Porter-Cable N039112 User manual

Française : Page 20
Español: Página 40
C2002
Air Compressor
Compresor de aire
Compresseur d’air
Instruction manual
Manuel d'instructions
Manual de'instrucciones
www.deltaportercable.com
INSTRUCTIVO DE OPERACIÓN, CENTROS
DE SERVICIO Y PÓLIZA DE GARANTÍA.
LÉASE ESTE INSTRUCTIVO
ANTES DE USAR EL PRODUCTO.
Maintenance-free pump
La pompe sans entretien
La bomba sin mantenimiento

2 - ENG
SAFETY GUIDELINES - DEFINITIONS
This manual contains information that is important for you to know and under-
stand. This information relates to protecting YOUR SAFETY and PREVENTING
EQUIPMENT PROBLEMS. To help you recognize this information, we use the
symbols below. Please read the manual and pay attention to these symbols.
Indicates an
imminently hazardous situation which,
if not avoided, will result in death or
serious injury.
Indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
Indicates a potentially
hazardous situation which, if not
avoided, could result in death or
serious injury.
Indicates a practice
not related to personal injury which,
if not avoided, may result in property
damage.
IMPORTANT SAFETY INSTRUCTIONS
This product contains chemicals known to the State of California
to cause cancer, and birth defects or other reproductive harm. Wash hands after
handling.
Some dust contains chemicals known to the State of California
to cause cancer, birth defects or other reproductive harm such as asbestos and
lead in lead based paint.
To reduce the risk of injury, read the instruction manual.
SAVE THESE INSTRUCTIONS
HAZARD
RISK OF EXPLOSION OR FIRE
WHAT CAN HAPPEN HOW TO PREVENT IT
• Itisnormalforelectricalcon-
tacts within the motor and
pressure switch to spark.
• Alwaysoperatethecompressorina
well ventilated area free of combustible
materials, gasoline, or solvent vapors.
• Ifelectricalsparksfromcom-
pressor come into contact with
flammable vapors, they may
ignite, causing fire or explosion.
• Ifsprayingflammablematerials,
locate compressor at least 20' (6.1 m)
away from spray area. An additional
length of air hose may be required.
• Storeflammablematerialsinasecure
location away from compressor.

3 - ENG
• Restrictinganyofthecom-
pressor ventilation openings
will cause serious overheat-
ing and could cause fire.
• Neverplaceobjectsagainst
or on top of compressor.
• Operatecompressorinanopen
area at least 12" (30.5 cm) away
from any wall or obstruction that
would restrict the flow of fresh air
to the ventilation openings.
• Operatecompressorinaclean,dry
well ventilated area. Do not operate unit
in any confined area. Store indoors.
• Unattendedoperationofthis
product could result in per-
sonal injury or property dam-
age. To reduce the risk of fire,
do not allow the compressor
to operate unattended.
• Alwaysremaininattendancewith
the product when it is operating.
• Alwaysturnoffandunplug
unit when not in use.
HAZARD
RISK TO BREATHING (ASPHYXIATION)
WHAT CAN HAPPEN HOW TO PREVENT IT
• Thecompressedairdirectly
from your compressor is not
safe for breathing. The air
stream may contain carbon
monoxide, toxic vapors,
or solid particles from the
air tank. Breathing these
contaminants can cause
serious injury or death.
• Neveruseairobtaineddirectly
from the compressor to supply
air for human consumption. The
compressor is not equipped with
suitable filters and in-line safety
equipment for human consumption.
• Exposuretochemicalsindust
created by power sanding,
sawing, grinding, drilling,
and other construction
activities may be harmful.
• Sprayedmaterialssuchas
paint, paint solvents, paint
remover, insecticides, weed
killers, may contain harmful
vapors and poisons.
• Workinanareawithgoodcross
ventilation. Read and follow the safety
instructions provided on the label or
safety data sheets for the materials
you are spraying. Always use certified
safety equipment: NIOSH/OSHA
respiratory protection or properly fit-
ting face mask designed for use
with your specific application.

4 - ENG
HAZARD
RISK OF BURSTING
Air Tank: On February 26, 2002, the U.S. Consumer Product Safety Commission
published Release # 02-108 concerning air compressor tank safety:
Air compressor receiver tanks do not have an infinite life. Tank life is dependent
upon several factors, some of which include operating conditions, ambient condi-
tions, proper installations, field modifications, and the level of maintenance. The
exact effect of these factors on air receiver life is difficult to predict.
If proper maintenance procedures are not followed, internal corrosion to the
inner wall of the air receiver tank can cause the air tank to unexpectedly rupture
allowing pressurized air to suddenly and forcefully escape, posing risk of injury
to consumers.

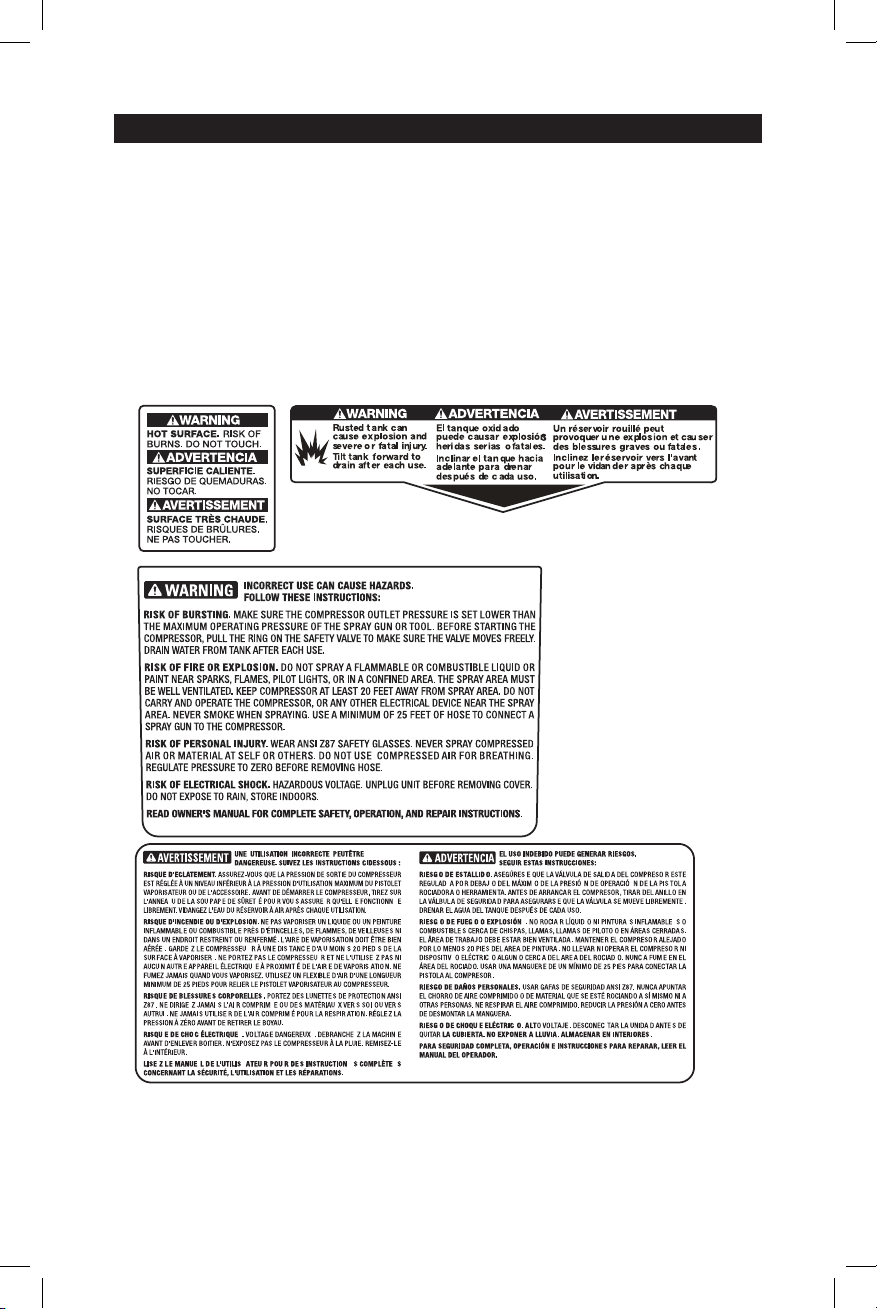

Your compressor air tank must be removed from service by the end of the year
shown on your tank warning label.
The following conditions could lead to a weakening of the air tank, and result in
a violent air tank explosion:
WHAT CAN HAPPEN HOW TO PREVENT IT
• Failuretoproperlydrain
condensed water from
air tank, causing rust and
thinning of the steel air tank.
• Drainairtankdailyoraftereachuse.
If air tank develops a leak, replace
it immediately with a new air tank
or replace the entire compressor.
• Modificationsorattempted
repairs to the air tank. • Neverdrillinto,weld,ormakeany modifications to the air tank or its
attachments. Never attempt to
repair a damaged or leaking air
tank. Replace with a new air tank.
• Unauthorizedmodifications
to the safety valve or any
other components which
control air tank pressure.
• Theairtankisdesignedtowithstand
specific operating pressures.
Never make adjustments or parts
substitutions to alter the factory
set operating pressures.
Attachments & accessories:
• Exceedingthepressure
rating of air tools, spray guns,
air operated accessories,
tires, and other inflatables
can cause them to explode
or fly apart, and could
result in serious injury.
• Followtheequipmentmanufacturers
recommendation and never exceed
the maximum allowable pressure
rating of attachments. Never use
compressor to inflate small low
pressure objects such as children’s
toys, footballs, basketballs, etc.

5 - ENG
Tires:
 
result in serious injury
and property damage.
• Useatirepressuregaugetocheck
the tires pressure before each use
and while inflating tires; see the tire
sidewall for the correct tire pressure.
NOTE: Air tanks, compressors and similar
equipment used to inflate tires can fill
small tires very rapidly. Adjust pressure
regulator on air supply to no more than
the rating of the tire pressure. Add air
in small increments and frequently use
the tire gauge to prevent over inflation.
HAZARD
RISK OF ELECTRICAL SHOCK
WHAT CAN HAPPEN HOW TO PREVENT IT
• Yourcompressorispowered
by electricity. Like any other
electrically powered device,
if it is not used properly it
may cause electric shock.
• Neveroperatethecompressoroutdoors
when it is raining or in wet conditions.
• Neveroperatecompressorwith
protective covers removed or damaged.
• Repairsattemptedby
unqualified personnel can
result in serious injury or
death by electrocution.
• Anyelectricalwiringorrepairs
required on this product should be
performed by authorized service
center personnel in accordance with
national and local electrical codes.
• Electrical Grounding:
Failure to provide adequate
grounding to this product
could result in serious injury
or death from electrocution.
Refer to Grounding
Instructions paragraph in
the Installation section.
• Makecertainthattheelectrical
circuit to which the compressor
is connected provides proper
electrical grounding, correct voltage
and adequate fuse protection.
HAZARD
RISK FROM FLYING OBJECTS
WHAT CAN HAPPEN HOW TO PREVENT IT
• Thecompressedairstreamcan
cause soft tissue damage to
exposed skin and can propel
dirt, chips, loose particles,
and small objects at high
speed, resulting in property
damage or personal injury.
• Alwayswearcertifiedsafetyequipment:
ANSI Z87.1 eye protection (CAN/
CSA Z94.3) with side shields
when using the compressor.
• Neverpointanynozzleorsprayer
toward any part of the body or
at other people or animals.
• Alwaysturnthecompressoroffand
bleed pressure from the air hose and
air tank before attempting maintenance,
attaching tools or accessories.

6 - ENG
HAZARD
RISK OF HOT SURFACES
WHAT CAN HAPPEN HOW TO PREVENT IT
• Touchingexposedmetal
such as the compressor
head, engine head, engine
exhaust or outlet tubes, can
result in serious burns.
• Nevertouchanyexposedmetalparts
on compressor during or immediately
after operation. Compressor will remain
hot for several minutes after operation.
• Donotreacharoundprotective
shrouds or attempt maintenance
until unit has been allowed to cool.
HAZARD
RISK FROM MOVING PARTS
WHAT CAN HAPPEN HOW TO PREVENT IT
• Movingpartssuchasthe
pulley, flywheel, and belt
can cause serious injury
if they come into contact
with you or your clothing.
• Neveroperatethecompres-
sor with guards or covers which
are damaged or removed.
• Keepyourhair,clothing,andgloves
away from moving parts. Loose
clothes, jewelry, or long hair can
be caught in moving parts.
• Airventsmaycovermovingparts
and should be avoided as well.
• Attemptingtooperate
compressor with damaged or
missing parts or attempting
to repair compressor with
protective shrouds removed
can expose you to moving parts
and can result in serious injury.
• Anyrepairsrequiredonthisproduct
should be performed by authorized
service center personnel.
HAZARD
RISK OF UNSAFE OPERATION
WHAT CAN HAPPEN HOW TO PREVENT IT
• Unsafeoperationofyour
compressor could lead
to serious injury or death
to you or others.
• Reviewandunderstandallinstruc-
tions and warnings in this manual.
• Becomefamiliarwiththeoperation
and controls of the air compressor.
• Keepoperatingareaclearofall
persons, pets, and obstacles.
• Keepchildrenawayfromthe
air compressor at all times.

7 - ENG
• Donotoperatetheproductwhen
fatigued or under the influence of alco-
hol or drugs. Stay alert at all times.
• Neverdefeatthesafetyfea
tures of this product.
• Equipareaofoperationwith
a fire extinguisher.
• Donotoperatemachinewithmiss-
ing, broken, or unauthorized parts.
• Neverstandonthecompressor.
HAZARD
RISK OF FALLING
WHAT CAN HAPPEN HOW TO PREVENT IT
• Aportablecompressorcan
fall from a table, workbench,
or roof causing damage to
the compressor and could
result in serious injury or
death to the operator.
• Alwaysoperatecompressorinastable
secure position to prevent accidental
movement of the unit. Never operate
compressor on a roof or other elevated
position. Use additional air hose to
reach high
locations.
HAZARD
RISK FROM NOISE
WHAT CAN HAPPEN HOW TO PREVENT IT
• Undersomeconditions
and duration of use, noise
from this product may con-
tribute to hearing loss.
• Alwayswearcertifiedsafetyequipment:
ANSI S12.6 (S3.19) hearing protection.
SAVE THESE INSTRUCTIONS
FOR FUTURE USE
SPECIFICATIONS
Model No. C2002
Bore 1.875" (47.6 mm)
Stroke 1.250" (31.8 mm)
Voltage/Hz-Single Phase 120/60
Minimum Branch Circuit Requirement 15 amps
Fuse Type Time Delay
Air Tank Capacity 6 Gallons (22.7 liters)
Approximate Cut-in Pressure 120 psig
Approximate Cut-out Pressure 150 psig
SCFM @ 40 psig 3.5 *
SCFM @ 90 psig 2.6 *
*Tested per ISO 1217
Refer to Glossary for abbreviations.

8 - ENG
GLOSSARY
Become familiar with these terms before operating the unit.
CFM: Cubic feet per minute.
SCFM: Standard cubic feet per minute; a unit of measure of air delivery.
PSIG: Pounds per square inch gauge; a unit of measure of pressure.
Products that bear one or more of the following marks: UL®,
CUL, ETL®, CETL, have been evaluated by OSHA certified independent safety
laboratories and meet the applicable Standards for Safety.
Cut-In Pressure: Whilethemotorisoff,airtankpressuredropsasyoucontinue
touseyouraccessory.Whenthetankpressuredropstoacertainlowerlevelthe
motor will restart automatically. The low pressure at which the motor automatically
restarts is called "cut-in" pressure.
Cut-Out Pressure: Whenanaircompressoristurnedonandbegins torun, air
pressure in the air tank begins to build. It builds to a certain high pressure before
the motor automatically shuts off, protecting your air tank from pressure higher
than its capacity. The high pressure at which the motor shuts off is called "cut-out"
pressure.
Branch Circuit: Circuit carrying electricity from electrical panel to outlet.
DUTY CYCLE
This air compressor pump is capable of running continuously. However, to
prolong the life of your air compressor, it is recommended that a 50%-75%
average duty cycle be maintained; that is, the air compressor pump should not
run more than 30-45 minutes in any given hour.
ACCESSORIES
Accessories for this unit are available at the store the unit was purchased.

this tool could be hazardous. Use only accessories rated equal to or higher
.
ASSEMBLY
UNPACKING
Remove unit from carton and discard all packaging.
INSTALLATION
HOW TO SET UP YOUR UNIT

• Locatetheaircompressorinaclean,dryandwellventilatedarea.
• Theaircompressorshouldbelocatedatleast12"(30.5cm)awayfromthe
wall or other obstructions that will interfere with the flow of air.
• Theaircompressorpumpandshroudaredesignedtoallowforpropercool-
ing. The ventilation openings on the compressor are necessary to maintain
proper operating temperature. Do not place rags or other containers on or
near these openings.
GROUNDING INSTRUCTIONS
RISK OF ELECTRICAL SHOCK.
            
electric current. This air compressor must be properly grounded.

9 - ENG
The portable air compressor is equipped with a cord having a grounding wire with
an appropriate grounding plug (see following illustrations).
1. The cord set and plug with this unit contains a grounding pin. This plug
MUST be used with a grounded outlet.
IMPORTANT: The outlet being used must
Grounded
Outlets
Plug
Grounding Pin
be installed and grounded in accordance
with all local codes and ordinances.
2. Make sure the outlet being used has
the same configuration as the ground-
ed plug. DO NOT USE AN ADAPTER.
See illustration.
3. Inspect the plug and cord before each
use. Do not use if there are signs of damage.
4. If these grounding instructions are not completely understood, or if in doubt as
to whether the compressor is properly grounded, have the installation checked
by a qualified electrician.
RISK OF ELECTRICAL SHOCK. IMPROPER GROUNDING CAN
RESULT IN ELECTRICAL SHOCK.



EXTENSION CORDS
If an extension cord must be used, be sure it is:
• a3wireextensioncordthathasa3bladegroundingplug,anda3slotrecep-
tacle that will accept the plug on the product
• ingoodcondition
• nolongerthan50'(15.2m)
• 14gauge(AWG)orlarger.(Wiresizeincreasesasgaugenumberdecreases.
12AWGand10AWGmayalsobeused.DONOTUSE16OR18AWG.)
Risk of Property Damage. The use of an undersized extension cord
will cause voltage to drop resulting in power loss to the motor and overheating.
Instead of using an extension cord, increase the working reach of the air hose by
attaching another length of hose to its end. Attach additional lengths of hose as
needed.
VOLTAGE AND CIRCUIT PROTECTION
Refer to the Specification Chart for the voltage and minimum branch circuit require-
ments.
Risk of Opertion. Certain air compressors can be operated on a 15
amp circuit if the following conditions are met.
1. Voltage supply to circuit must comply with the National Electrical Code.
2. Circuit is not used to supply any other electrical needs.
3. Extension cords comply with specifications.
4. Circuit is equipped with a 15 amp circuit breaker or 15 amp time delay fuse.
NOTE: If compressor is connected to a circuit protected by fuses, use only
time delay fuses. Time delay fuses should be marked "D" in Canada and "T"
in the US.
If any of the above conditions cannot be met, or if operation of the compressor
repeatedly causes interruption of the power, it may be necessary to operate it from
a 20 amp circuit. It is not necessary to change the cord set.

10 - ENG
OPERATION

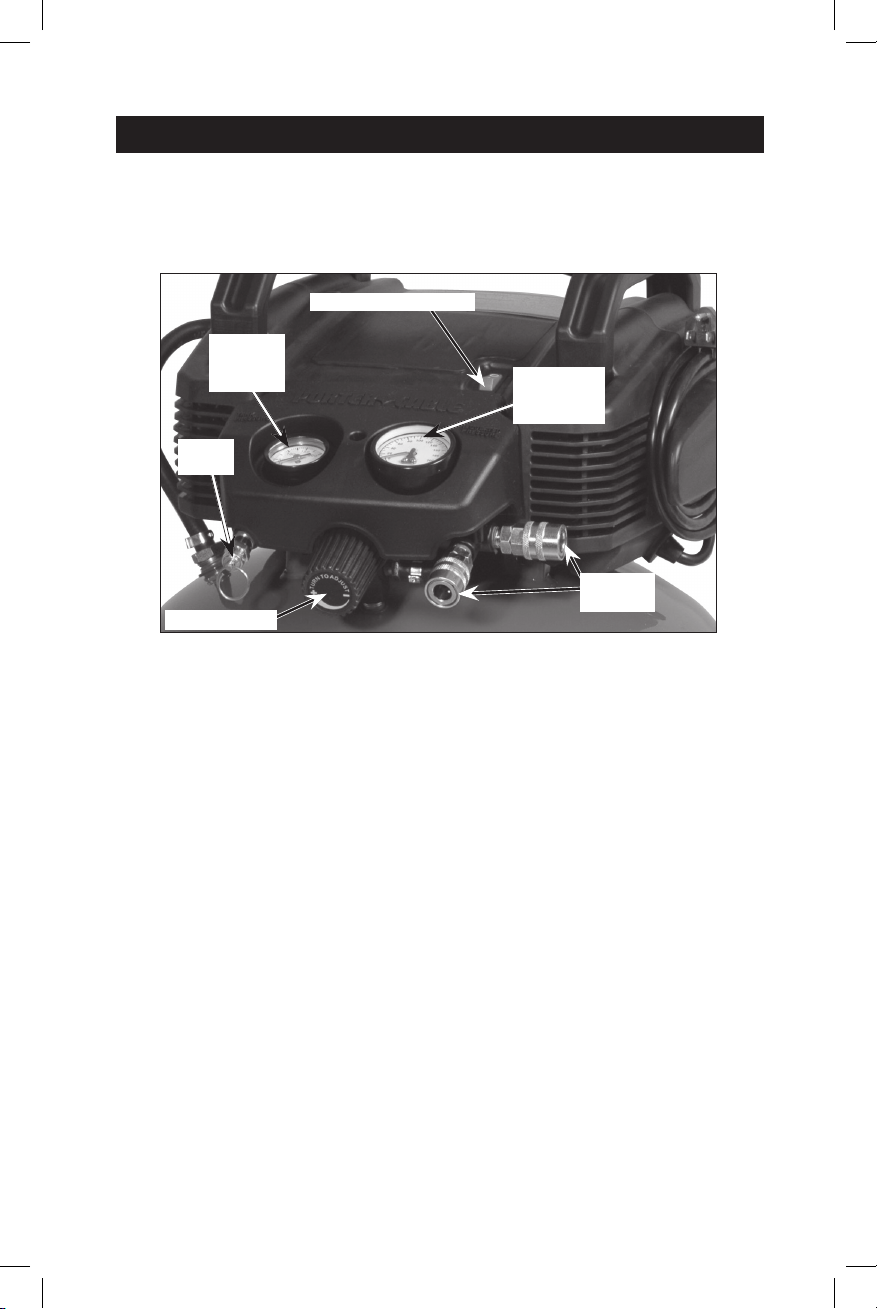

KNOW YOUR AIR COMPRESSOR
READ THIS OWNER’S MANUAL AND SAFETY RULES BEFORE OPERATING
YOUR UNIT. Compare the illustrations with your unit to familiarize yourself with
the location of various controls and adjustments. Save this manual for future
reference.



Tank
Pressure
Gauge Outlet
Pressure
Gauge
Regulator
Quick
Connect
DESCRIPTION OF OPERATION
Become familiar with these controls before operating the unit.
 Place this switch in the On (I) position to provide automatic
power to the pressure switch and Off (O) to remove power at the end of each
use.
Pressure Switch (not shown): The pressure switch automatically starts the
motor when the air tank pressure drops below the factory set "cut-in" pressure.
It stops the motor when the air tank pressure reaches the factory set "cut-out"
pressure.
 If the pressure switch does not shut off the air compressor at its
"cut-out" pressure setting, the safety valve will protect against high pressure by
"popping out" at its factory set pressure (slightly higher than the pressure switch
"cut-out" setting).
Tank Pressure Gauge: The tank pressure gauge indicates the reserve air pres-
sure in the tank.
Outlet Pressure Gauge: The outlet pressure gauge indicates the air pressure
available at the outlet side of the regulator. This pressure is controlled by the
regulator and is always less than or equal to the tank pressure.
Regulator: Controls the air pressure shown on the outlet pressure gauge. Turn
regulator knob clockwise to increase pressure and counterclockwise to decrease
pressure.
Cooling System (not shown): This compressor contains an advanced design
cooling system. At the heart of this cooling system is an engineered fan. It is
perfectly normal for this fan to blow air through the vent holes in large amounts.
You know that the cooling system is working when air is being expelled.

11 - ENG
Air Compressor Pump (not shown): Compressesairintotheairtank.Workingair
is not available until the compressor has raised the air tank pressure above that
required at the air outlet.

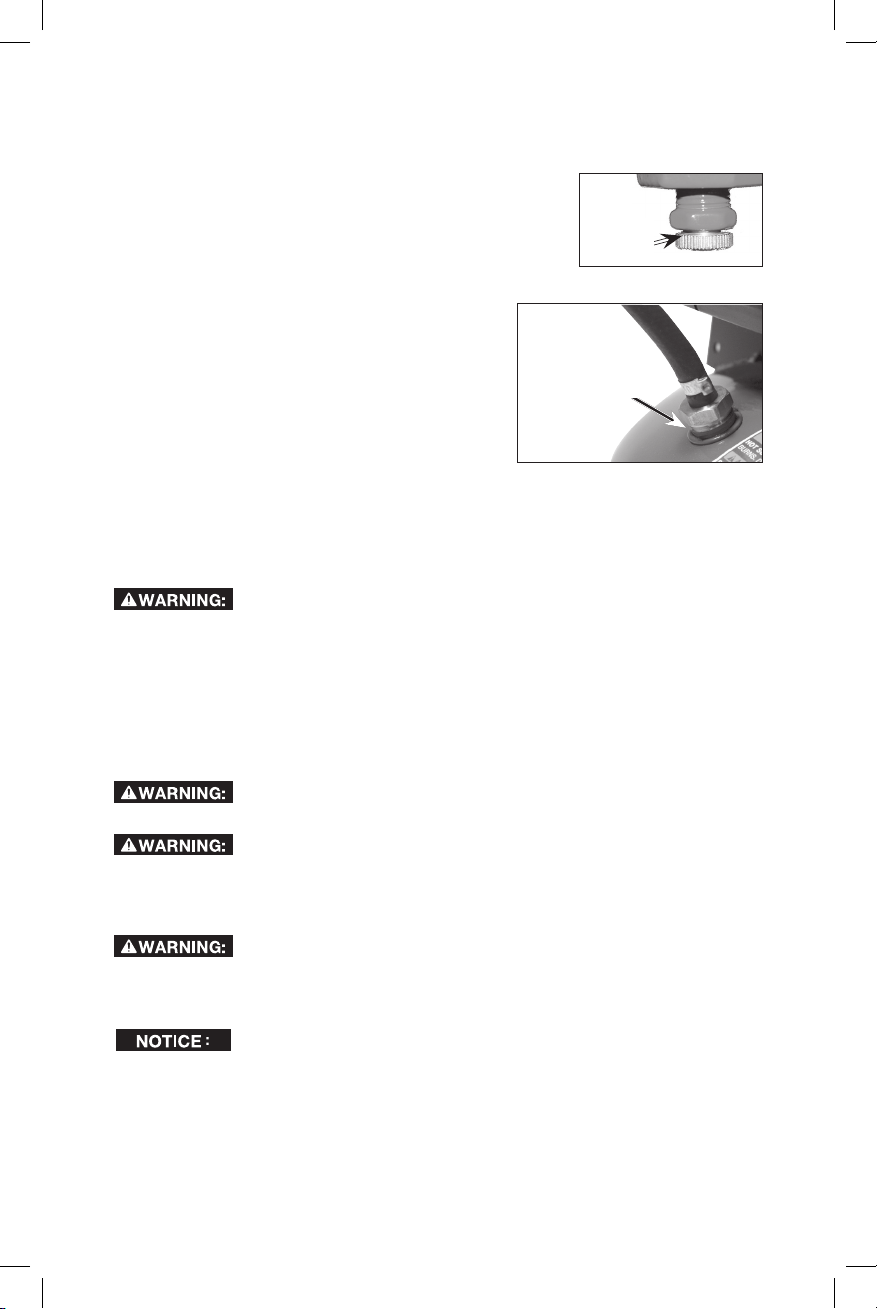

The drain valve is located at the base of the
Drain

air tank and is used to drain condensation at the end of
each use.
Whentheaircompressorisoperating,the
check valve is "open", allowing compressed air to enter
theairtank.Whentheaircompressorreaches"cutout"
pressure, the check valve "closes", allowing air

pressure to remain inside the air tank.
     The
motor has an automatic reset thermal overload
protector. If the motor overheats for any reason,
the overload protector will shut off the motor.
The motor must be allowed to cool down before
restarting. The compressor will automatically
restart after the motor cools.
HOW TO USE YOUR UNIT
How to Stop
Set the On/Off switch to "Off".

Do not operate this unit until you read this instruction manual


1. Set the On/Off switch to "Off".
2.
Plug the power cord into the correct branch circuit receptacle. (Refer to Voltage
and Circuit Protection paragraph in the Installation section of this manual.)
3. Turn the regulator knob counterclockwise to set the outlet pressure to zero.
4. Attach hose and accessories.


-
sories.
NOTE: The hose or accessory will require a quick connect plug if the air outlet is
equipped with a quick connect socket.




Risk of property damage. Compressed air from the unit may
contain water condensation and oil mist. Do not spray unfiltered air at an item
that could be damaged by moisture. Some air tools and accessories may require
filtered air. Read the instructions for the air tools and accessories.
How to Start
1. Set the On/Off switch to "On" and allow tank pressure to build. Motor will stop
when tank pressure reaches "cut-out" pressure.

12 - ENG
2. Turn regulator knob clockwise to increase pressure and stop when desired
pressure is reached.



The compressor is ready for use.
MAINTENANCE
CUSTOMER RESPONSIBILITIES

each use Daily 
each
use
See tank
warning
label
Check Safety Valve X
Drain Tank X
Remove tank from service X(1)
1- For more information, call our Customer Care Center at 1-(888)-848-5175
       


         

NOTE: See Operation section for the location of controls.
TO CHECK SAFETY VALVE
          

       
equipment: ANSI Z87.1 eye protection (CAN/CSA Z94.3) with side shields.
Before starting compressor, pull the ring on the safety valve to make sure that the
safety valve operates freely. If the valve is stuck or does not operate smoothly, it
must be replaced with the same type of valve.
TO DRAIN TANK
Air tanks contain high pressure air.
 ANSI Z87.1
eye protection (CAN/CSA Z94.3) when draining as debris can be kicked up

Use ear protection [ANSI S12.6 (S3.19) hear-
ing protection]
NOTE: All compressed air systems generate condensate that accumulates in
any drain point (e.g., tanks, filter, aftercoolers, dryers). This condensate contains
lubricating oil and/or substances which may be regulated and must be disposed of in
accordance with local, state, and federal laws and regulations.
1. Set the On/Off switch to "Off".
2. Turn the regulator knob counterclockwise to set the outlet pressure to zero.
3. Remove the air tool or accessory.

13 - ENG
4. Pull ring on safety valve allowing air to bleed from the tank until tank pressure
is approximately 20 psi. Release safety valve ring.
5. Drain water from air tank by opening drain valve on bottom of tank.
           

rupture.
Risk of Property Damage. Drain water from air tank may contain oil
and rust which can cause stains.
6. After the water has been drained, close the drain valve. The air compressor
can now be stored.
NOTE: If drain valve is plugged, release all air pressure. The valve can then be
removed, cleaned, the reinstalled.
SERVICE AND ADJUSTMENTS
ALL MAINTENANCE AND REPAIR OPERATIONS NOT LISTED MUST BE
PERFORMED BY TRAINED SERVICE TECHNICIAN.
       
-
          

air compressor to cool.
TO REPLACE OR CLEAN CHECK VALVE
1. Release all air pressure from air tank. See To Drain Tank in the Maintenance
section.
2. Unplug unit.
3. Remove the hose by removing the hose

Hose Clamp
clamp. NOTE: The hose clamp is not reus-
able. You must purchase a new hose clamp,
see Replacement Parts in the Service sec-
tion or purchase a standard hose clamp at a
local hardware store.
4. Unscrew the check valve (turn counterclock-
wise) using a socket wrench.
5. Make sure the valve disc moves freely inside
the check valve and the spring holds the disc in the upper, closed position.
The check valve may be cleaned with a solvent, such as paint and varnish
remover.
6. Apply sealant to the check valve threads. Reinstall the check valve
(turn clockwise).
7. Replace hose and new hose clamp.
TO REPLACE REGULATOR
1. Release all air pressure from air tank. See To Drain Tank in the Maintenance
section.
2. Unplug unit.
3. Remove the console cover.
4. Using an adjustable wrench remove the gauges, quick connect, and safety
valve from the regulator manifold.

14 - ENG

 
Gauges
Quick
Connect

5. Remove the hose by removing the hose clamp. NOTE: The hose clamp is not
reusable. You must purchase a new hose clamp, see Replacement Parts in
the Service section or purchase a standard hose clamp at a local hardware
store.
6. Remove pump mounting screws securing pump (one on each side).
Hose
Clamp
Pump Mounting Screw
7. Carefully slide pump from brackets
Regulator

Pump
shown


way
and out of the way.
8. Using an adjustable wrench remove
the regulator manifold.
9. Apply pipe sealant to new regulator
manifold and assemble, tighten with
wrench.
10. Reapply pipe sealant to gauges,
quick connect, and safety valve.
11. Reassemble all components in reverse order of removal. Make sure to orient
gauges to read correctly and use wrenches to tighten all components.
STORAGE
Before you store the air compressor, make sure you do the following:
1. Review the Maintenance section on the preceding pages and perform
scheduled maintenance as necessary.
2. Drain water from air tank. See To Drain Tank under Maintenance.

.
3. Protect the electrical cord and air hose from damage (such as being stepped
onorrunover).Windthemlooselyaroundthecompressorhandle.
4. Store the air compressor in a clean and dry location.

15 - ENG
SERVICE
REPLACEMENT PARTS
REPLACEMENT PARTS
Use only identical replacement parts. For a parts list or to order parts, visit our
service website at www.deltaportercableservicenet.com. You can also order parts
from your nearest PORTER-CABLE Factory Service Center or PORTER-CABLE
AuthorizedWarrantyServiceCenter.Or,youcancallourCustomerCareCenterat
1-(888)-848-5175.
SERVICE AND REPAIRS
All quality tools will eventually require servicing and/or replacement of parts. For infor-
mation about PORTER-CABLE, its factory service centers or authorized warranty ser-
vice centers, visit our website at www.deltaportercable.com or call our Customer Care
Center at 1-(888)-848-5175. All repairs made by our service centers are fully guaranteed
against defective material and workmanship. We cannot guarantee repairs made or
attempted by others.
You can also write to us for information at PORTER-CABLE, 4825 Highway 45 North,
Jackson, Tennessee 38305 - Attention: Product Service. Be sure to include all of the
information shown on the nameplate of your tool (model number, type, serial number,
etc.).
ACCESSORIES
Since accessories, other than those offered by PORTER-CABLE, have
not been tested with this product, use of such accessories with this tool could be haz-
ardous. To reduce the risk of injury, only PORTER-CABLE recommended accessories
should be used with this product.
A complete line of accessories is available from your PORTER-CABLE Factory Service
CenteroraPORTERCABLEAuthorizedWarrantyServiceCenter.PleasevisitourWeb
Site www.deltaportercable.com for a catalog or for the name of your nearest supplier.

16 - ENG
TROUBLESHOOTING
       
-
          

air compressor to cool.
PROBLEM CAUSE CORRECTION
Excessive tank pressure
- safety valve pops off. Pressure switch does not shut off motor when
compressor reaches
"cut-out" pressure.
Move On/Off lever to
the "Off" position, if
the outfit does not shut
off contact a Trained
Service Technician.
Pressure switch "cut-
out" too high. Contact a Trained Service Technician.
Air leaks at fittings. Tube fittings are not
tight enough. Tighten fittings where air can be heard escaping.
Check fittings with
soapy water solution.

Air leaks in air tank
or at air tank welds. Defective air tank. Air tank must be replaced. Do not
repair the leak.
Risk
bursting. Do not drill


weaken. The tank can

Air leaks between
head and valve plate. Leaking seal. Contact a Trained Service Technician.
Air leak from
safety valve. Possible defect in safety valve. Operate safety valve manually by pulling on
ring. If valve still leaks,
it should be replaced.
KnockingNoise. Possible defect in
safety valve. Operate safety valve manually by pulling on
ring. If valve still leaks,
it should be replaced.

17 - ENG
PROBLEM CAUSE CORRECTION
Pressure reading on
the regulated pressure
gauge drops when an
accessory is used.
It is normal for "some"
pressure drop to occur. If there is an excessive amount of pressure drop
when the accessory
is used, adjust the
regulator following
the instructions in
the
Operation paragraph in
the Operation Section.
NOTE: Adjust the
regulated pressure
under flow conditions
(while accessory
is being used).
Compressor is not
supplying enough air to
operate accessories.
Prolonged excessive
use of air. Decrease amount of air usage.
Compressor is not
large enough for
air requirement.
Check the accessory
air requirement. If
it is higher than the
SCFM or pressure
supplied by your air
compressor, you need
a larger compressor.
Hole in hose. Check and replace
if required.
Check valve restricted. Remove and clean,
or replace.
Air leaks. Tighten fittings.
Regulator knob has
continuous air leak. Damaged regulator. Replace.
Regulator will not
shut off air outlet. Damaged regulator. Replace.

18 - ENG
PROBLEM CAUSE CORRECTION
Motor will not run. Fuse blown, circuit
breaker tripped. Check fuse box for blown fuse and
replace as necessary.
Reset circuit breaker.
Do not use a fuse or
circuit breaker with
higher rating than
that specified for your
particular branch circuit.
Check for proper
fuse. You should use
a time delay fuse.
Check for low
voltage problem.
Check the
extension cord.
Disconnect the other
electrical appliances
from circuit or operate
the compressor on its
own branch circuit.
Extension cord is wrong
length or gauge. Check the extension cord.
Loose electrical
connections. Check wiring connection inside terminal box.
Faulty motor. Have checked by
a Trained Service
Technician.
Motor overload
protection switch
has tripped
Refer to Motor

under Operation.
If motor overload
protection trips
frequently, contact
a Trained Service
Technician

19 - ENG
FULL ONE YEAR WARRANTY
PORTER-CABLE industrial tools are warranted for one year from date of purchase.
Wewillrepair,withoutcharge,anydefectsduetofaultymaterialsorworkmanship.
For warranty repair information, call 1-(888)-848-5175. This warranty does not apply
to accessories or damage caused where repairs have been made or attempted by
others. This warranty gives you specific legal rights and you may have other rights
which vary in certain states or provinces.
LATIN AMERICA: This warranty does not apply to products sold in Latin America.
For products sold in Latin America, see country specific warranty information
contained either in the packaging, call the local company or see website for
warranty information.
FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible
or are missing, call 1-(888)-848-5175 for a free replacement.

20 - FR
MESURES DE SÉCURITÉ - DÉFINITIONS
Ce guide contient des renseignements importants que vous deviez bien saisir.
Cette information porte sur VOTRE SÉCURITÉ et sur LA PRÉVENTION DE
PROBLÈMES D'ÉQUIPEMENT. Afin de vous aider à identifier cette information,
nous avons utilisé les symboles ci-dessous. Veuillez lire attentivement ce guide en
portant une attention particulière à ces symboles.
Indique un danger
imminent qui, s'il n'est pas évité,

mort.
Indique la possibilité
d'un danger qui, s'il n'est pas évité,
peut causer des blessures mineures
ou moyennes.
Indique la
possibilité d’un danger qui, s’il n’est
pas évité, 
blessures ou la mort.
Indique une pratique
ne posant aucun risque de
dommages corporels mais qui par
contre, si rien n’est fait pour l’éviter,
pourrait poser des risques de
dommages matériels.
CONSIGNES DE SÉCURITÉ IMPORTANTES
Ce produit contient des produits chimiques reconnus
par l’État de la Californie comme étant cancérigènes et pouvant entraîner des
anomalies congénitales ou d’autres problèmes liés aux fonctions reproductrices.
Se laver les mains après toute manipulation.
Certaines poussières contiennent des produits chimiques
reconnus par l’État de la Californie comme cancérigènes et pouvant entraîner des
anomalies congénitales et d’autres problèmes liés aux fonctions reproductrices,
tels que l’amiante et le plomb contenus dans les peintures au plomb.
Afin de réduire le risque de blessures, lire le
mode d’emploi de l’outil.
CONSERVER CES DIRECTIVES
DANGER

CE QUI PEUT SE PRODUIRE 
• Ilestnormalquedescon-
tacts électriques dans le
moteur et le manocontac-
teur fassent une étincelle.
• Faitestoujoursfonctionnerlecom-
presseur dans une zone bien
aérée sans matière combustible,
essence ou vapeur de solvant.
