INSTALLATION,OPERATION &MAINTENANCE MANUAL
PORTABLE BASKETBALL BACKSTOP
No. 1235
INST 00257 127
©1997 PORTER ATHLETIC EQUIPMENT COMPANY. ALL RIGHTS RESERVED. 12-1-1997
INSTALLER NOTE:
Upon completion of the installation/assembly of this portable backstop,
make sure this instruction manual is in the possession of the owner or
facility manager, to save for future reference.

2
Dear Customer:
Congratulations on purchasing the Porter No. 1235 Competition Portable Basketball
Backstop. This quality built backstop features the unique Porter Center-Strut®design for
maximum player and equipment safety while providing many features for the ultimate in
competition play. Your athletes and spectators should enjoy thousands of hours of
practice and competition on Porter equipment.
This booklet is intended to be used for the initial set-up of your No. 1235 backstop, and
as a guide for the safe use and maintenance of the unit. PLEASE READ THESE
INSTRUCTIONS CAREFULLY AND COMPLETELY BEFORE BEGINNING
THE SET-UP WORK, OR MAINTENANCE, OF THIS UNIT.
If after reviewing this manual you have any questions, please feel free to consult our
factory.
THE OWNER OF THIS EQUIPMENT MUST SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE
Porter Athletic Equipment Company
2500 South 25th Avenue, Broadview, IL U.S.A., 60155
Toll Free: [phone] •Phone: [phone] •Fax: [phone]
www.porter-ath.com

3
GENERAL OPERATING INFORMATION
Electrical Supply
Connect control panel to 120 volt AC, 60HZ, 20AMP circuit, with a maximum length to power source of 50 feet. If additional cord
beyond 50 feet is required, a minimum power cable of #10awg is required to prevent power loss and possible damage to controls and
motor assembly.
Backstop Operation
Before attempting assembly of this unit check operation by doing the following:
1. To raise backstop to playing position rotate key switch to the up position. CAUTION - If backstop is already up on its casters the
unit will lower itself to the floor before boom will start to extend. Hold key until fully extended. WARNING - Release key
switch when unit is fully extended to avoid undue strain on frame and hydraulic system.
2. To lower mast make sure safety T-handle (see Illustration D) is disengaged and secured to backside of mast with lock pin. To
lower mast, rotate key switch to the down position and hold until fully lowered. Unit will start to raise up on casters at this point
for transport. WARNING - Make sure any floor anchoring system is disengaged before unit is raised onto its casters.
Glass Backboard Handling
During assembly of this backstop, it is of extreme importance that the glass backboard is not dropped, attachment bolts are not
improperly torqued (bolts tightened before plumbing all attachment points) or allowing the glass section to contact or strike metal
parts as the backboard warranty does not cover breakage during installation.
CAUTIONS
DO NOT stand or sit in front of the unit when being raised or lowered.
DO NOT attempt to lower unit with safety T-handle lock engaged.
DO NOT have hand or feet under unit when being raised or lowered.
DO NOT continue to pump unit after cycle (up or down) has been completed.
DO NOT operate key switch intermittently.
DO NOT move or roll the backstop with the mast in the up or extended position.
REMOVE top base pads and rear upright support pads before folding unit to the down position.
DISENGAGE floor anchor system before lowering unit to the transport position.
DO NOT allow untrained or unauthorized individuals to operate this backstop.

4
No. 1235 PORTABLE BASKETBALL BACKSTOP
ASSEMBLY, ADJUSTMENT, OPERATION and MAINTENANCE INSTRUCTIONS
WARNING
READ THESE ASSEMBLY AND OPERATING INSTRUCTIONS IN THEIR ENTIRETY, BEFORE ATTEMPTING TO
UNPACK, ASSEMBLE, OR OPERATE THIS PORTABLE BACKSTOP, TO AVOID POSSIBLE INJURIES, OR
DAMAGE TO THE EQUIPMENT.
PARTS LIST
ITEM Qty. PART NUMBER DESCRIPTION
1 1 FRME 00015 003 BACKSTOP FRAME ASSEMBLY (8' EXTENSION ONLY)
1 FRME 00165 003 BACKSTOP FRAME ASSEMBLY (10'-8" EXTENSION ONLY)
2 1 EXTN 00064 003 BANK YOKE FRAME
3 2 HING 00064 003 HINGE WELDMENT
4 1 PLTE 00048 003 YOKE CLAMP PLATE
5 2 CLMP 00007 003 2-3/8" HALF CLAMP
6 2 HDWE 01164 0P0 1/2" x 2-1/2" HEX HEAD CAP SCREW (Grade 5)
7 4 HDWE 01225 0P0 3/8" x 5-1/2" HEX HEAD CAP SCREW (Grade 5)
8 4 HDWE 02073 0P0 3/8" x 1-1/4" CARRIAGE BOLT (Grade 5)
9 8 HDWE 03002 0E0 3/8" HEX NUT
10 2 HDWE 03003 0E0 1/2" HEX NUT
11 8 HDWE 04002 0E0 3/8" LOCKWASHER
12 2 HDWE 04003 0E0 1/2" LOCKWASHER
13 8 HDWE 05005 0E0 1/2" FLATWASHER
14 15 HDWE 06020 0E0 1/4" x 4" HEX HEAD LAG SCREW
15 19 HDWE 06019 0E0 #12 x 1" PHILLIPS PAN HEAD MACHINE SCREW
BACKBOARD
16 1 00208-000 GLASS BACKBOARD
GOAL WITH NET AND HARDWARE
17 1 (PER ORDER) GOAL WITH NET (AS SPECIFIED ON ORDER)
18 4 HDWE _____ 0E0 3/8" x 3-1/2" BOLT
19 4 HDWE 03002 0E0 3/8" HEX NUT
20 4 PCAP 00040 002 THREAD COVER
21 4 HDWE 04002 0E0 3/8" LOCKWASHER
22 4 HDWE 05004 0E0 3/8" FLATWASHER
BACKBOARD PAD
23 1 00326-000 GLASS BACKBOARD PAD
BASE / UPRIGHT PADDING

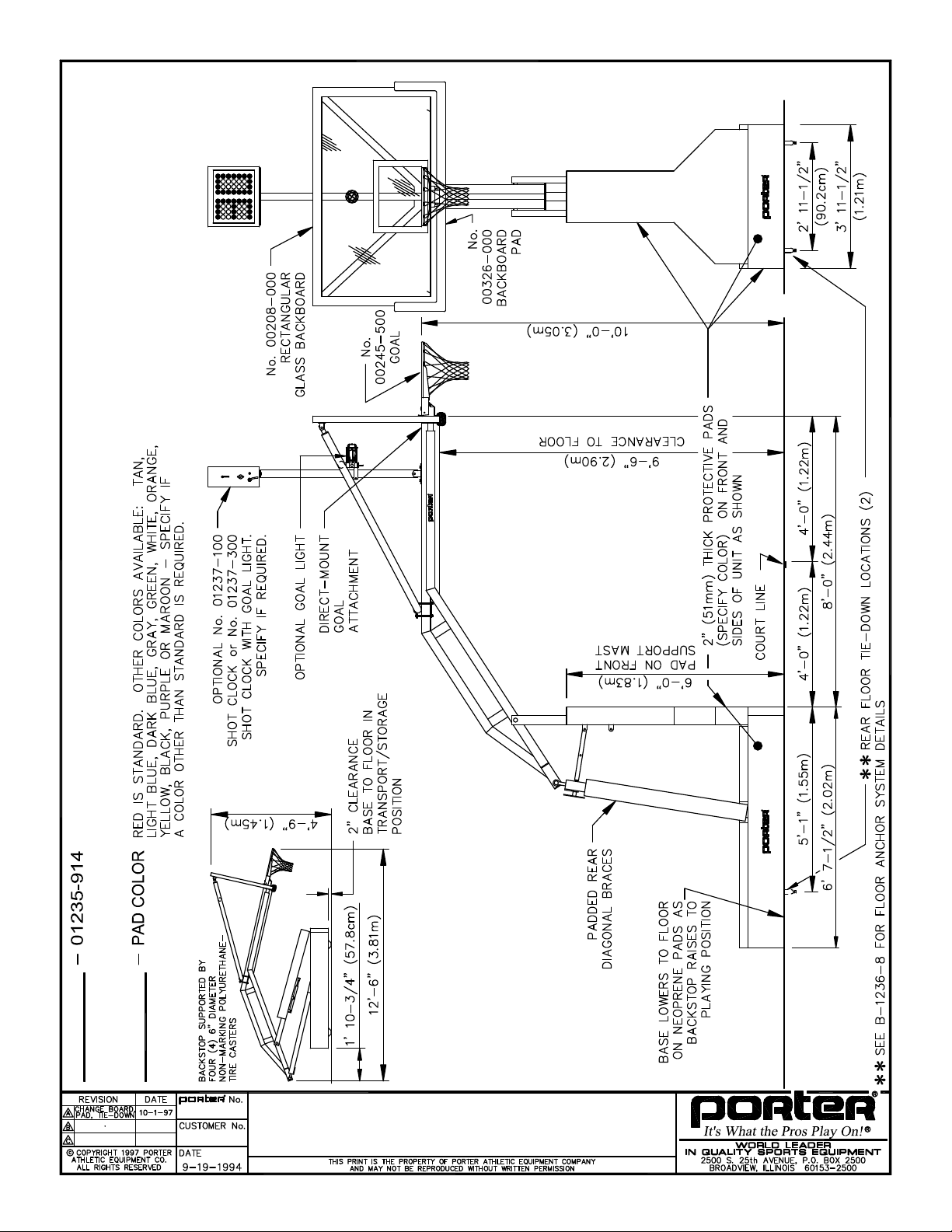

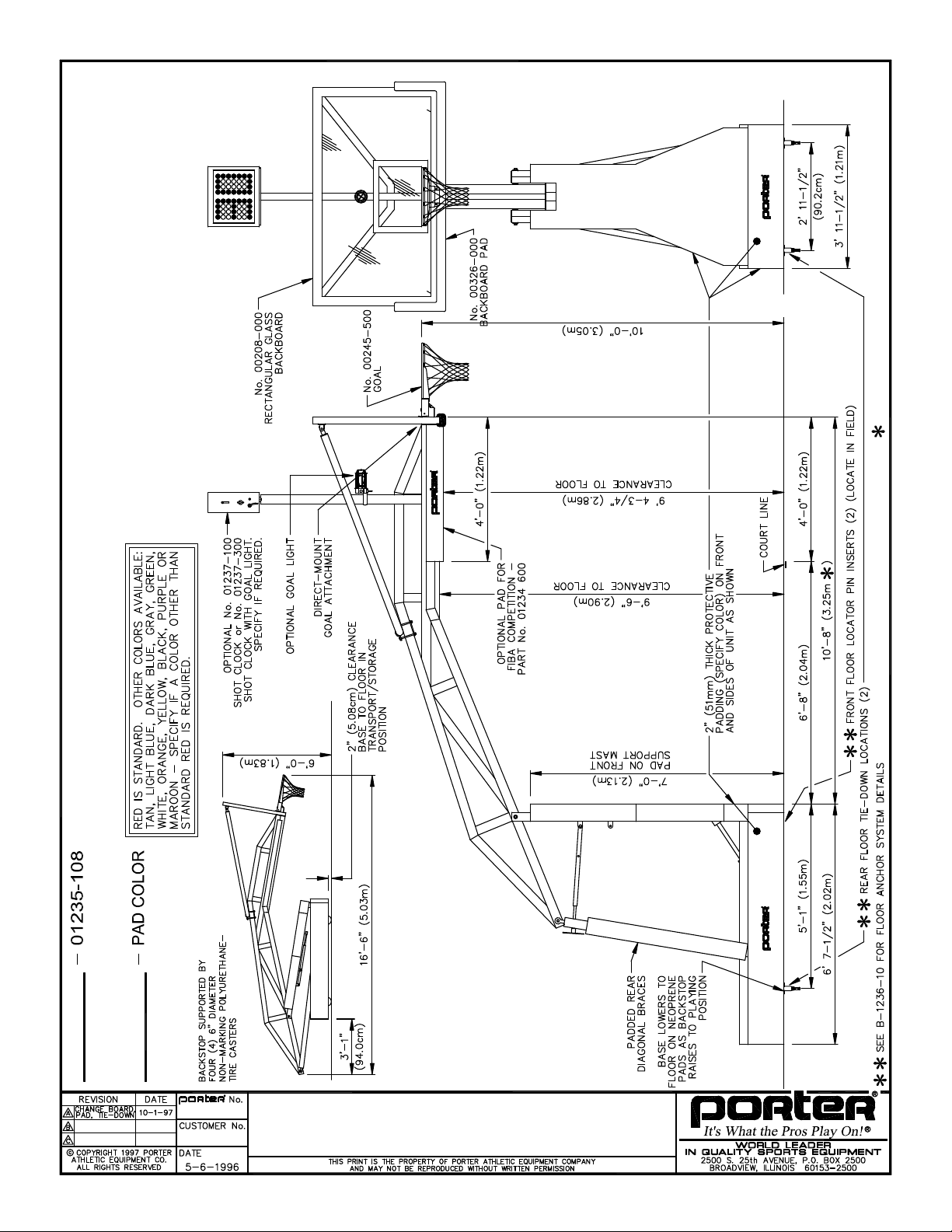

No. 01235-914 No. 01235-108
(8′-0″UNIT) (10′-8″UNIT)
24 1 ZMAT 11234 300 FRONT BASE PAD ZMAT 11234 300
25 2 ZMAT 11234 200 SIDE BASE PAD ZMAT 11234 200
26 1 ZMAT 11234 410 REAR BASE PAD ZMAT 11234 410
27 1 ZMAT 11234 100 FRONT MAST PAD ZMAT 11234 180
28 1 ZMAT 11234 500 TOP BASE PAD ZMAT 11234 510
29 1 ZMAT 11234 505 TOP BASE PAD ZMAT 11234 520
30 2 ZMAT 11234 723 REAR MAST PAD ZMAT 11234 723

5

6
No. 1235 PORTABLE BACKSTOP
ASSEMBLY INSTRUCTIONS
1. Unpack and identify all parts (refer to packing list) on page 4.
2. Position the unpacked glass backboard (#16) on its cardboard packing carton in front of portable backstop frame (#1). Remove
(2) 3/8" x 1" hex head cap screws from back of glass bank.
3. Assemble 3/8" x 3-1/2" bolt (#18) with 3/8" flatwasher (#22) in the upper two goal mount holes on the backboard. Note - This
hardware is packed with goal. Carefully lift backboard (#16) and position so that upper goal mounting bolts are in alignment with
the corresponding holes on the backstop mounting plate. See Illustration “A”. Three men are required to safely perform this
assembly. (Do not mount the goal at this time.)
4. While holding backboard in this position, secure in place on the backstop mounting plate (#1) with 3/8" hex nut (#19), 3/8"
lockwasher (#21) and 3/8" flatwasher (#22), finger tighten only.
5. Carefully shift backboard (pick one end up or down) to align slots shown in Illustration “A” with the two (2) tapped holes in the
backside of the backboard frame and secure with the two 3/8" x 1" long hex head cap screws (from No. 16) and 3/8" lockwashers
that were removed from the backboard in Step #2. Do not overtighten.
3/8" x 1-1/4" Lg. MACHINE BOLT, FLATWASHER,
LOCKWASHER AND HEX NUT SHIPPED
ASSEMBLED TO BACKBOARD
ILLUSTRATION "A"

7
6. Attach the two (2) hinge weldments (#3) into the slots in the upper corners of the glass backboard using four (4) 3/8" x 1-1/4"
long carriage bolts (#8), 3/8" hex nuts (#9), and 3/8" lockwashers (#11). Finger tighten only. See Illustration “B”.
7. The remaining assembly requires only to men. Lay bank yoke frame (#2) on the top side of the backstop horizontal extension
assembly positioning upper ends of the yoke into the hinges in the upper corner of the backboard assembled in Step #6. Secure in
place with two (2) 1/2" x 2-1/2" lg. hex head cap screws (#6), 1/2" hex nuts (#10), and 1/2" lockwashers (#12). Use 1/2"
flatwashers (#13) as spacers on either side of bank yoke frame stud (#2) (see Illustration “B”). Center the two hinge weldments
(#3) on the frame of the backboard and tighten all bolts securely.
8. Attach lower end of bank yoke frame (#2) to the top tube of the horizontal extension assembly (see Illustration “C”) using two (2)
half clamps (#5), mounting plate (#4), and four (4) 3/8" x 5-1/2" hex head cap screws (#7), 3/8" hex nuts (#9), and 3/8"
lockwashers (#11). Snug bolts only at this time.
MUST BE CENTERED LEFT-TO-RIGHT
BACKBOARD YOKE FRAME/HINGE WELDMENTS
12 10 6
11 9
3
8
ILLUSTRATION "B"
16
13
2
STUDS MUST BE EXTENDED EQUALLY.
ON GLASS BACKBOARD FRAME.

8
9. Remove the two goal mounting bolts (#18, #19, #21, #22) assembled in Steps 3 & 4.
10. You are now ready to mount the goal. Carefully hold the goal (#17) against the face plate of the backboard (#16) and insert the
two bolts (#18) through the goal, backboard and the backstop mounting plate (refer back to Illustration “A”). Note - Flatwashers
are not required at this point. Backboard may have to be shifted slightly for proper alignment. Secure with two (2) 3/8" hex nuts
(#19), 3/8" flatwashers (#22), and two (2) 3/8" lockwashers (#21) on backside of mounting plate. Assemble two 3/8" plastic caps
(#20) on end of bolts.
11. Repeat Step 10 by inserting bolts through the bottom two goal mounting holes. Snug bolts only at this time.
12. With the backstop in the down or folded position, roll the unit into the playing position, from end of court toward center court, so
that the two front swivel casters are facing the rear of the unit.
13. Raise the unit to the playing position and align the face of the backboard parallel to and 4′-0″in from the inside edge of the 2"
wide court line.
14. Marking the floor with tape, etc. will ensure proper alignment on future set-ups. Check anchor locations per anchor instructions.
15. Check Goal Height – Using a stepladder set goal height at 10' by adjusting the safety arm T-handle (see Illustration “D”). Lay
level across bottom of backboard while making this adjustment to insure that the backboard is level when the goal is at the 10'-0"
dimension. Note that it may be necessary to loosen the six (6) bolts in the backboard mounting plate very slightly to shift and
level the backboard. Re-tighten securely after final adjustments are complete. Goal height with shot clock installed (per shot
clock instructions), and T-handle disengaged, should be at 9′11-1/2". T-handle will raise goal height and place rear mast in
tension for maximum rigidity. NOTE – Unit will have to be checked again if the additional weight of a shot clock is added.
16. Lay a level vertically on the face of the glass backboard. Shift the clamp assembly on the rear of the bank yoke frame assembly
(see Illustration “C”) to properly plumb backboard. Tighten clamp bolts securely to hold backboard in position.
1
11
FRONT-TO-BACK TO PLUMB
ADJUST BACKBOARD YOKE FRAME
ILLUSTRATION "C"
FACE OF BACKBOARD
94
7 5
2

9
ASSEMBLE PADDING AND ENCLOSURE PANELS TO FRAME AS FOLLOWS
17. Position base pads around base so that front pad (#24) extends over edges of long side pads (#25). Side pads (#25) will extend
over edges of rear pad (#26). Assemble front pad (#24) to front of base (#1) using 1/4" x 4" lg. hex head lag screw (#14). Next
attach side pads (#25) to base (#1) using #12 x 1" lg. phillips pan head S.M.S. (#15). Rear pad (#26) will be attached to base (#1)
using either #12 x 1" lg. phillips pan head S.M.S. (#15), or Velcro peel and stick, depending on base (#1) weight configuration.
18. Front mast pad (#27) is positioned on top of front base pad and attached with 1/4" x 4" lg. hex head lag screws (#14).
19. Place top base pads (#28-#29) in position. Also check fit of rear wrap around brace pads (#30). Note - Both top base pads and
rear brace pads need to be removed when lowering unit so damage does not occur.
20. Attach glass backboard padding (#23) per instructions with pads.
21. Touch up any scratches that may have occurred during shipping or assembly with white touch up paint.
ILLUSTRATION "D"

10
IMPORTANT - UPON FINAL SET UP OF THIS UNIT, SHOW THE INDIVIDUAL WHO WILL OPERATE THIS UNIT HOW
TO PROPERLY OPERATE THIS UNIT AND READ THE WARNING LABELS TO HIM/HER EXPLAINING THE NECESSITY
TO FOLLOW SAFE OPERATING PROCEDURES. THESE INSTRUCTIONS MUST BE GIVEN TO AN OFFICIAL IN
CHARGE OF THE FACILITY TO KEEP FOR FUTURE REFERENCE.
THIS BACKSTOP MUST BE OPERATED ONLY BY AUTHORIZED PERSONNEL FAMILIAR WITH THE SAFE OPERATING
INSTRUCTIONS AND PROCEDURES. THIS EQUIPMENT SHOULD BE INSPECTED BEFORE EACH USE FOR WEAR,
LOOSE FITTINGS, DAMAGE, AND PROPER STABILITY. CONSULT A TRAINED SERVICE TECHNICIAN OR THE
FACTORY WHEN IN DOUBT.
WARNING
DANGER / WARNING ON MISUSE OF PORTABLE BACKSTOPS
(Published in Compliance with NCAA Comments on the Rules of Basketball)
A high degree of injury potential and severe liability problems exist when players or spectators are allowed to hang, sit or stand on the
goal, backboard or support structure.
This equipment is not designed for adding weight to the goal or backboard. Please do not climb on the goal, backboard or support
structure.
Administrators are cautioned that this practice be eliminated and that portable units are lowered immediately after the completion of
each game. There is a high risk of severe injury or even death if these instructions are not strictly followed.

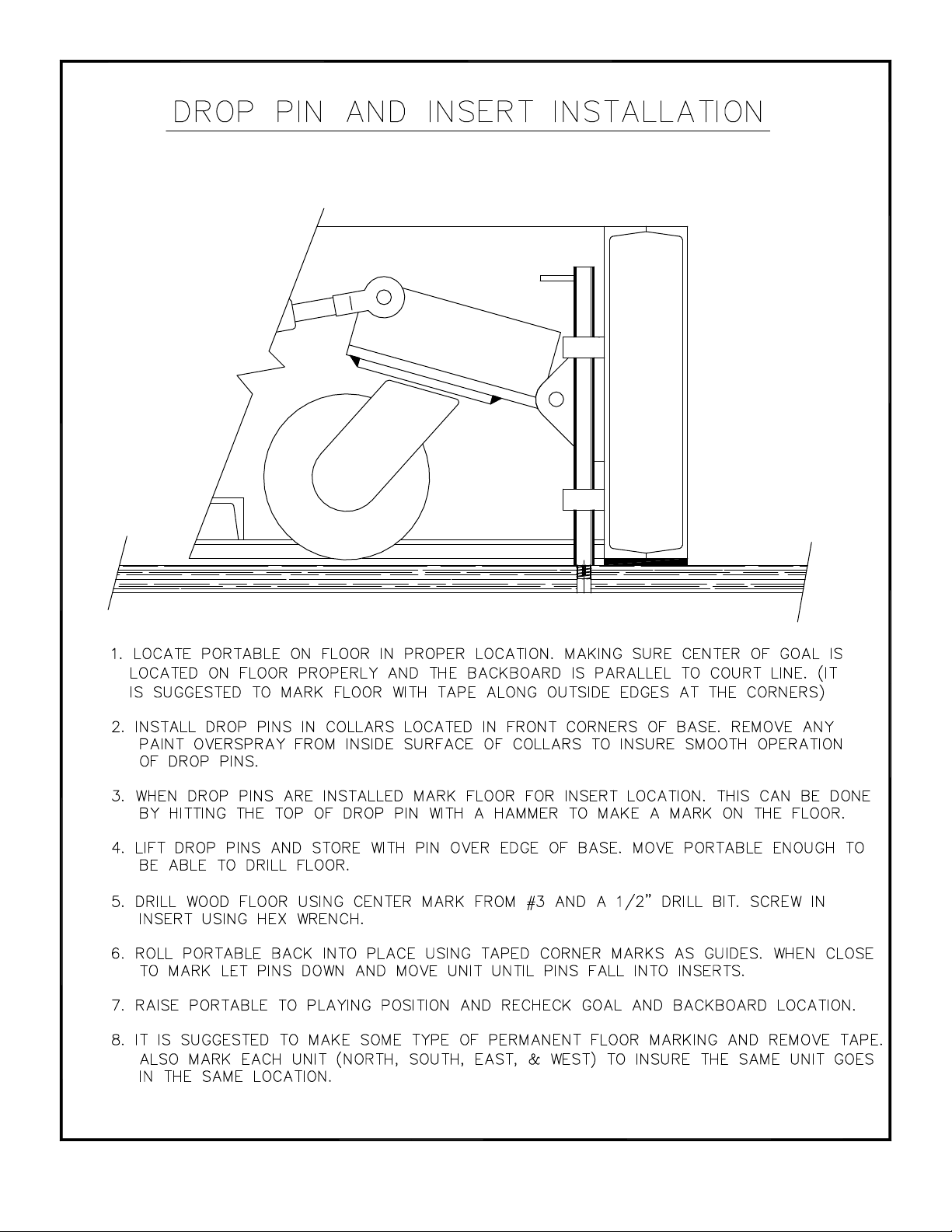

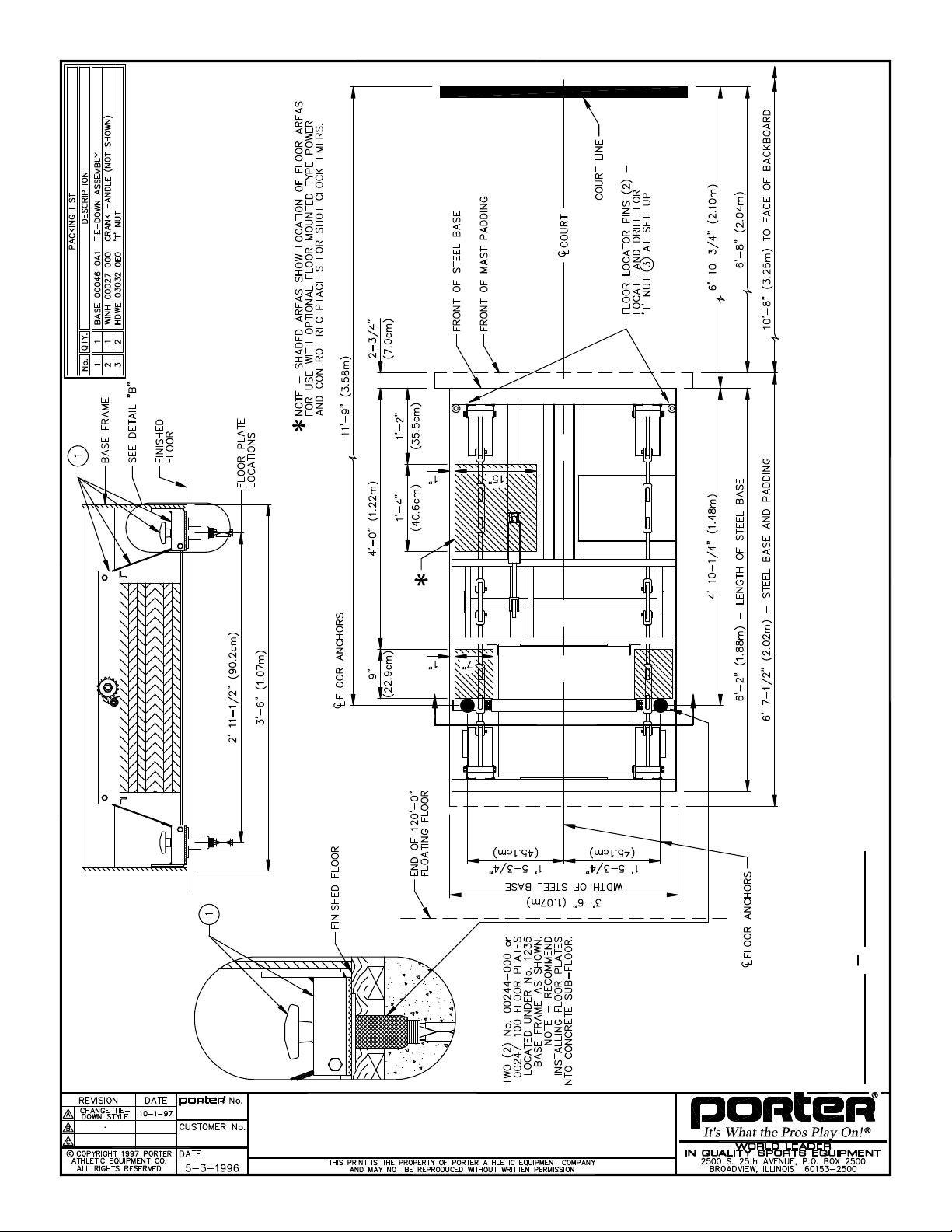

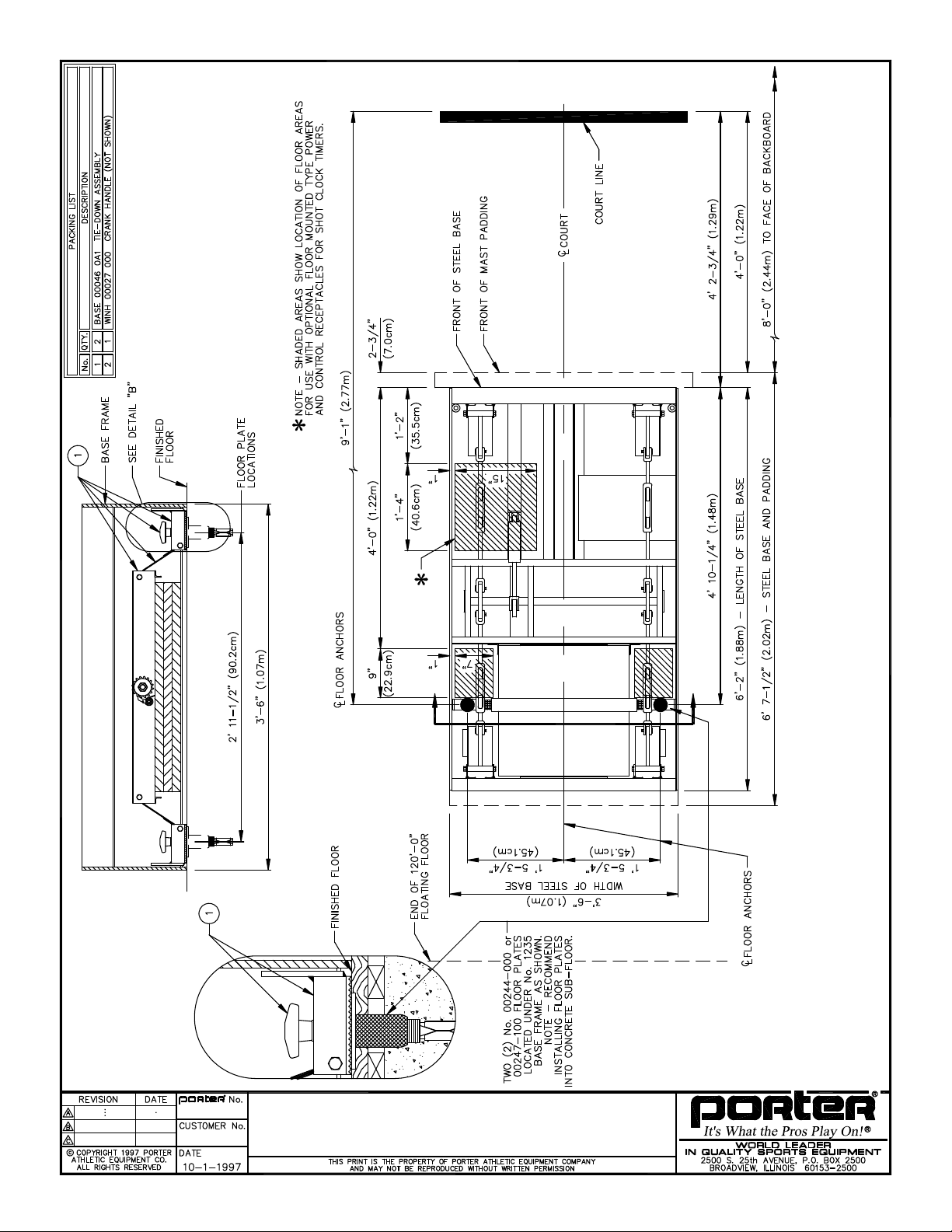

The use of a floor anchor system for all competition games is mandatory and is the responsibility of game management and the
personnel responsible for the facility.
THIS UNIT MUST BE OPERATED ONLY BY AUTHORIZED PERSONNEL FAMILIAR WITH THE SAFE OPERATING
INSTRUCTIONS AND PROCEDURES AS DESCRIBED IN THE OPERATING MANUAL. READ AND REFER TO ALL
OPERATING INSTRUCTIONS BEFORE ATTEMPTING TO OPERATE THIS UNIT.
CAUTION - The following steps must be observed to provide the safe operation of this unit.
- Do not move this unit in the “up” position.
- When raising or lowering this unit, stand to one side and keep all individuals clear from beneath unit (front and back). Keep
hands and feet away from all pinch and crush points.
- Inspect this equipment for wear, loose fittings, damage and proper stability before each use. Consult a trained service technician
or the factory when in doubt.
