PORTOS drive control system
OWNER'S MANUAL
PPKR-313/2
Technical specifications :
Power supply: 230V 50 Hz
Operating frequency: 433,92 MHz
Operating temperature: between -10˚C and +50˚C
Protection class: IP44
Operating range: 150 m in an open area
25 m inside buildings
Device characteristics:
!!!
UP
STOP
DOWN
PPKR-313/2
Radio equipment operating at 433 MHz
may cause reception interference.
The range of the radio signal is
architecturally and statutorily limited.

2
1. Switching between support and no support modes
The switch can be operated in two modes:
Support mode
Pressing and releasing the UP or DOWN button activates the programmed motor
function (opening or closing the roller shutter). The motor will run until it completely
closes or opens the roller shutter.
No support mode
The motor will work only when we keep the button pressed. Releasing the button causes
the motor to stop working. If the button is held for more than 2 seconds, the motor will
start to operate in the same way as in the support mode, that is, until the roller shutter is
fully closed or opened.
Switching between individual modes is performed in the following way:

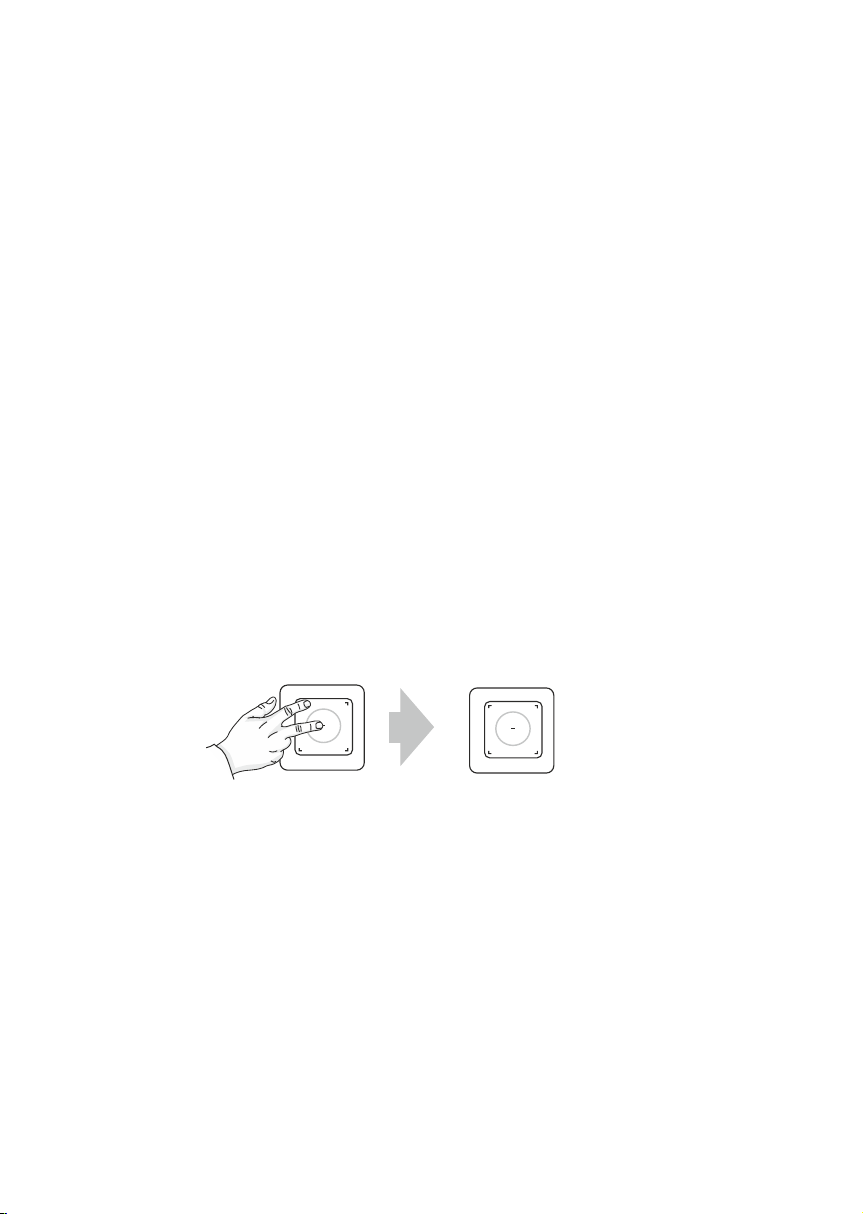

1. For the selected drive, press the UP + STOP buttons simultaneously for 6 seconds -
the LED on the switch will light up.
2. After 6 seconds, release the buttons - the LED will start flashing and will go off.
Setting of the operating mode of the selected drive has been changed.
6 sek. (flashing diode)

2. Assigning a remote.
To assign a given remote / transmitter to the PPKR-313/2 receiver, perform the following
actions:
1.On the selected switch, press the UP + DOWN buttons and hold them for 3 seconds
(the LED starts flashing).
2.On the switch, press the STOP button (the LED is steady on).
3.On any remote / transmitter, press the UP button (the LED goes off).
3 sec. (the LED is
steady on)
3. Remote removal.
To remove a given remote/transmitter from the PPKR-313/2 receiver, perform the
following actions:
1.On the switch, press the UP + DOWN buttons and hold them for 3 seconds (the LED
starts flashing).
2. On the switch, press the STOP button (the LED is steady on).
3.On any remote / transmitter, press the DOWN button (the LED goes off).
3 sec. (the LED is
steady on)
3
man auto
man auto

5. Connection diagrams
4
4. Removing all assigned remotes/transmitters.
In order to remove all assigned remotes/transmitters from the PPKR-313/2 receiver,
perform the following actions:
1.On the switch, press the DOWN + STOP buttons and hold them for 6 seconds (the
LED is steady on).
2.After 6 seconds, the LED starts flashing and goes off.
3.All assigned remotes/transmitters are removed.
6 sec.
(the LED is
steady on)
(the LED flashes
and goes off)
CAUTION - do not install PPKR 313/2 switches in the immediate vicinity
– the minimum distance is 20 cm.
230 V 50 Hz
N
L
N
N
Motor 1
MOTOR-1
MOTOR-2
N L
MOTOR-1
MOTOR-2
N L
Motor 2
