Portwell NAR-7070 User manual

NAR-7070
Communication Appliance
User ′ s Manual
Revision: 020
Item NO: B8980700
Portwell Inc.
6851 Mowry Ave. Newark, CA 94560
TELr: 510-790-9192 FAX: [phone]
http://www.portwell.com
Email: [e-mail]

NAR-7070 User’s Manual
1
Table of Contents
Chapter 1 Introduction..........................................................................................................3
1.1 About This Manual .................................................................................................... 3
1.2 Manual Organization ................................................................................................. 3
1.3 Technical Support Information .................................................................................. 4
Chapter 2 Getting Started .......................................................................................................5
2.1 Included Hardware .................................................................................................... 5
2.2 Before You Begin ...................................................................................................... 5
2.3 The Chassis .............................................................................................................. 6
2.4 Opening the Chassis ................................................................................................. 6
2.5 Installing or Removing a SODIMM ............................................................................ 7
2.6 Remove and Install CPU ........................................... Error! Bookmark not defined.
2.7 Remove and Install Battery ....................................... Error! Bookmark not defined.
2.8 Remove and Install HDD........................................... Error! Bookmark not defined.
2.9 Remove and Install PCI-X Riser card....................... Error! Bookmark not defined.
2.10 Remove and Install LED cable & LED board ............ Error! Bookmark not defined.
2.10 Remove and Install System FAN ............................................................................ 13
2.10 Remove and Install LCD module & LCD cable .......................................................14
2.10 Product Specifications............................................................................................. 15
2.11 Hardware Configuration Setting .............................................................................. 15
2.12 Install a Different Processor .................................................................................... 18
2.13 Connect to the console............................................................................................ 19
Chapter 3 Operation Guide ...................................................................................................21
3.1 Brief Guide of PPAP-3723....................................................................................... 21
3.2 System Architecture ................................................................................................ 22
Chapter 4 BIOS Setup Information ......................................................................................24
4.1 Entering Setup......................................................................................................... 24
4.2 Main Menu............................................................................................................... 25
4.3 Standard CMOS Feature......................................................................................... 26
4.4 Advanced BIOS Feature ......................................................................................... 28
4.5 Advanced Chipset Features ....................................................................................31
4.6 Integrated Peripherals ............................................................................................. 33
4.7 Power Management Setup...................................................................................... 36
4.8 PnP/PCI Configuration Setup.................................................................................. 38
4.9 PC Health Status..................................................................................................... 39

NAR-7070 User’s Manual
2
4.10 Frequency/Voltage Control...................................................................................... 40
4.11 Default Menu ........................................................................................................... 40
4.12 Setup Supervisor Password ....................................................................................41
4.13 Exiting Seleting........................................................................................................41
4.14 POST Messages ..................................................................................................... 42
4.15 BIOS POST Check Point List ..................................................................................46
4.16 Flash BIOS Utility .................................................................................................... 51
Chapter 5 Appendix ...........................................................................................................52
5.1 Watch Dog Timer Sample Code.............................................................................. 52
5.1 Reset To Default Sample Code............................................................................... 56
Chapter 6 EZIO-100 .............................................................................................................66
6.1 About EZIO-100 ...................................................................................................... 66
6.2 Features .................................................................................................................. 66
6.3 Mechanical Specification......................................................................................... 66
6.4 General Specification .............................................................................................. 67
6.5 Product Outlook....................................................................................................... 67
6.6 Interface Pin Assignment ........................................................................................ 67
6.7 EZIO Function Command........................................................................................ 68
6.8 Character Generator ROM (CGROM)..................................................................... 72
6.9 Sample Code........................................................................................................... 73

NAR-7070 User’s Manual
3
Chapter 1 Introduction
1.1 About This Manual
This manual describes all required information for setting up and using the NAR-7070.
NAR-7070 provides the essential components for delivering optimal performance and
functionality in the high-end communications appliance market segment. This manual should
familiarize you with NAR-7070 operations and functions. NAR-7070 has seven on-board
Ethernet to serve communication appliances, such as Firewall, which needs seven LAN ports to
connect external network (internet), demilitarized zone and internal network.
Feature of NAR-7070 includes:
The most advanced Communication Appliance built on Intel®, latest Netburst™ micro
architecture and Hyper-Threading technology
High computing power of dual Intel®Xeon™ processors
64bit Gigabit Ethernet provides high performance networking capacity
Intel®E7501A chipset with 533MHz PSB
User-friendly LCD control panel
Comprehensive thermal solution for 2U platform
Full-length PCI-X slot support
Standard PMC connecter support
2G PC2100 DDR RAM, upgradeable to 8GB
Two IDE hard disk drives
100V ~ 240V , 8A ~ 4A ,Auto-range
CE NO:C332606
FCC NO:F332606
1.2 Manual Organization
The manual describes how to configure your NAR-7070 system to meet various operating
requirements. It is divided into three chapters, with each chapter addressing a basic concept
and operation of this whole system.
Chapter 1: Introduction. This section briefly talks about how this document is organized. It includes
some guidelines for users who do not want to read through everything, but still helps
you find what you need.
Chapter 2: Hardware Configuration Setting and Installation. This chapter shows how the hardware
is put together, including detailed information. It shows the definitions and locations of
Jumpers and Connectors that you can easily configure your system. Descriptions on
how to properly mount the CPU and main memory are also included to help you get a
safe installation. Reading this chapter will teach you how to set up NAR-7060.
Chapter 3: Operation Information. This section gives you illustrations and more information on the
system architecture and how its performance can be maximized.
Chapter 4: BIOS operation information.
Any updates to this manual, technical clarification and answers to frequently asked questions
would be posted on the web site: http://www.portwell.com

NAR-7070 User’s Manual
4
1.3 Technical Support Information
Users may find helpful tips or related information on Portwell's web site: http://www.portwell.com. A
direct contact to Portwell's technical person is also available. For further support, users may also
contact Portwell’s headquarter in Taipei or your local distributors.

NAR-7070 User’s Manual
5
Chapter 2 Getting Started
This section describes how the hardware installation and system settings should be done.
2.1 Included Hardware
The following hardware is included in your kit:
PPAP-3723L Communication Appliance System Board
One serial port Null MODEM cable
One LCD Modules
2.2 Before You Begin
To prevent damage to any system board, it is important to handle it with care. The following
measures are generally sufficient to protect your equipment from static electricity discharge:
When handling the board, use a grounded wrist strap designed for static discharge elimination
and touch a grounded metal object before removing the board from the antistatic bag. Handle
the board by its edges only; do not touch its components, peripheral chips, memory modules or
gold contacts.
When handling processor chips or memory modules, avoid touching their pins or gold edge
fingers. Put the value communications appliance system board and peripherals back into the
antistatic bag when they are not in use or not installed in the chassis.
Some circuitry on the system board can continue operating even though the power is switched
off. Under no circumstances should the Lithium coin cell used to power the real-time clock be
allowed to be shorted. The coin cell can heat under these conditions and present a burn hazard.
WARNING!
1. "CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED.
REPLACE ONLY WITH SAME OR EQUIVALENT TYPE RECOMMENDED BY THE
MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE
MANUFACTURER’S INSTRUCTIONS"
2. This guide is for technically qualified personnel who have experience installing and
configuring system boards Disconnect the system board power supply from its
power source before you connect/disconnect cables or install/remove any system
board components. Failure to do this can result in personnel injury or equipment
damage.
3. Avoid short-circuiting the lithium battery; this can cause it to superheat and cause
burns if touched.
4. Do not operate the processor without a thermal solution. Damage to the processor

NAR-7070 User’s Manual
6
can occur in seconds.
5. Do not block air vents. Minimum 1/2-inch clearance required.
6. Please switch off the power, before you install/remove any system components. It can
avoid occurring any damages.
2.3 The Chassis
The system is integrated in a customized 2U chassis (Fig. 2-1, Fig. 2-2). On the front panel you
will find 4-push-button LCD module and seven Ethernet, a COM port and a POWER button and
RESET button. The back panel has two USB ports and two system FAN.
Fig. 2-1 Front View of the Chassis
Fig. 2-2 Rear View of the Chassis
2.4 Opening the Chassis
1. Screws out from cover (Fig. 2-3), slide the cover backwards and pull the rear edge upwards.
(Fig. 2-4)

NAR-7070 User’s Manual
7

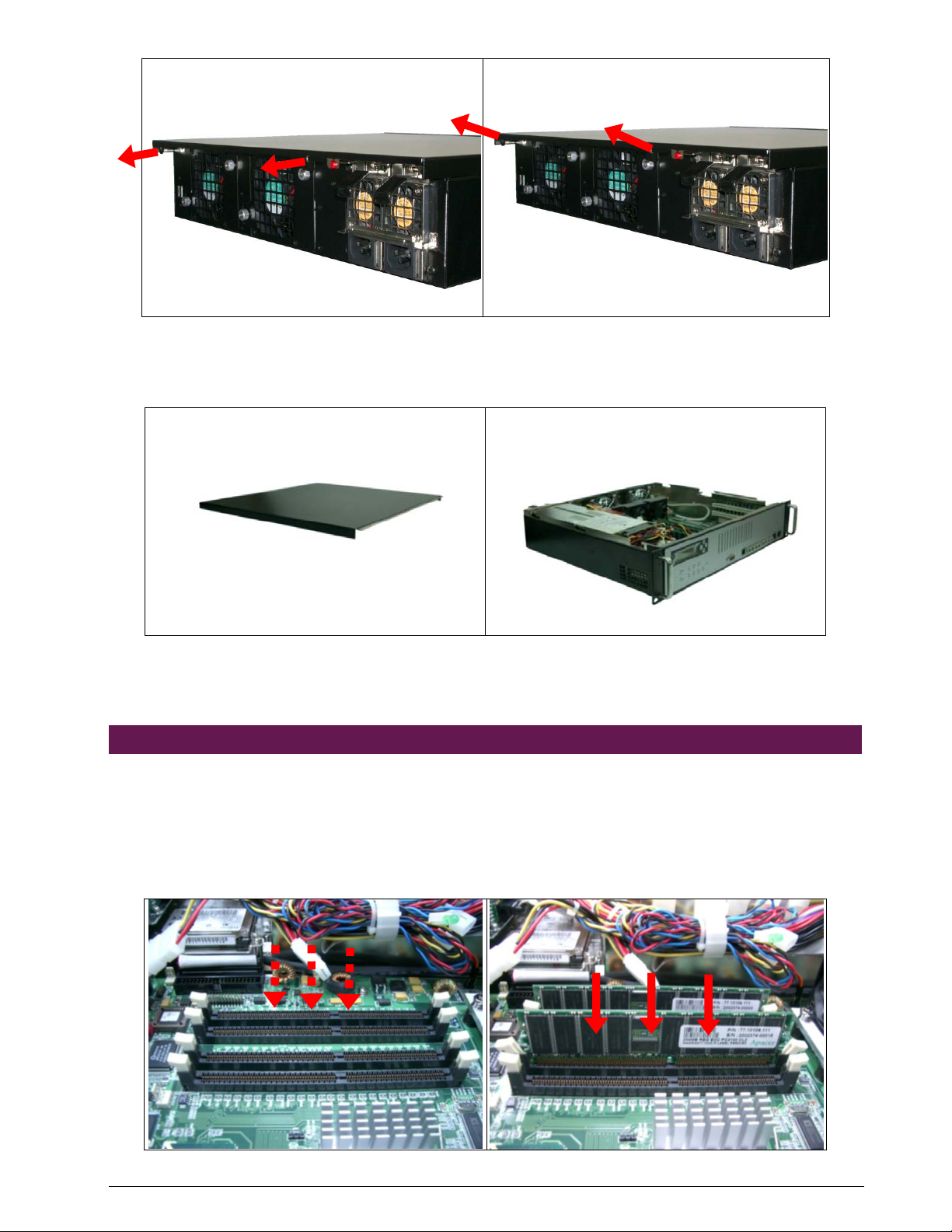

Fig. 2-3 Screws out from cover Fig. 2-4 Slide the cover backwards and pull the
rear edge upwards
2. The top cover (Fig. 2-5) can be removed from the base stand (Fig. 2-6)
Fig. 2-5 The top cover Fig. 2-6 The base stand
2.5 Installing or Removing a SODIMM
Follow these steps to upgrade RAM module:
1. Install the system memory by push the latches on each side of the DIMM socket down. Align
the memory module with the socket. Press memory module firmly down until it is sealed
correctly. The socket latches are levered upwards and latch on to the edges of the DIMM.
(Fig. 2-7, 2-8) (Slot 2 and 4 or slot 1 and 3 must be populated simultaneously)
Fig. 2-7 The memory slot Fig. 2-8 Install DIMM

NAR-7070 User’s Manual
8

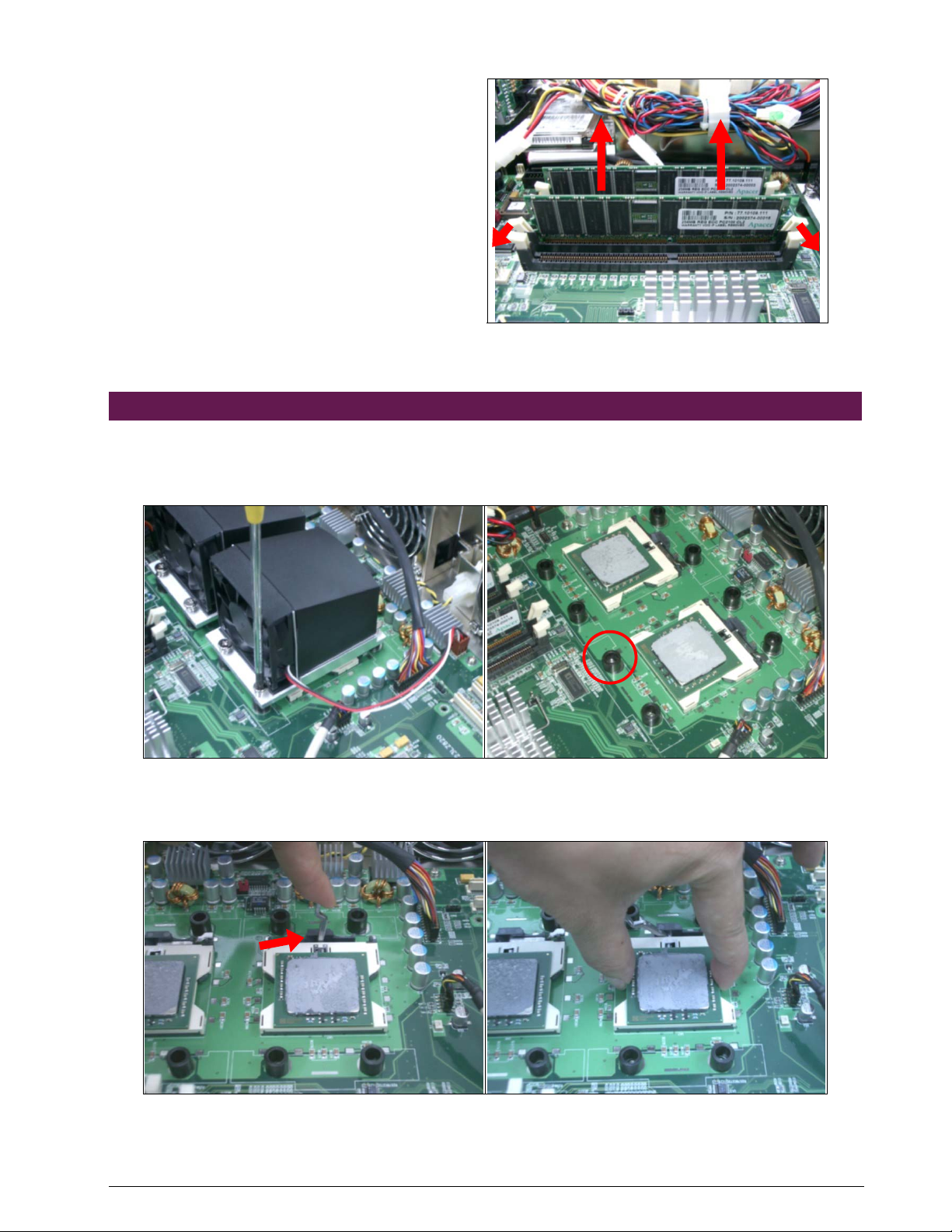

2. Push the latches on each side of the
DIMM socket down to eject the DIMM
(Fig. 2-9)
Fig. 2-9 Eject a DIMM module
2.6 Remove and Install CPU
3. Loosen and then take off the screws on the heat sink (Fig. 2-10).
4. Remove the heat sink and CPU space.(Fig. 2-11).
Fig. 2-10 Loosen the screw Fig. 2-11 Heat sink removed
5. Loosen the CPU socket (Fig 2-12)
6. Take the CPU chip out of the CPU socket (Fig 2-13)
Fig. 2-12 Loosen the socket Fig. 2-13 Take off the CPU
7. Install CPU in opposite order as above
CPU space

NAR-7070 User’s Manual
9

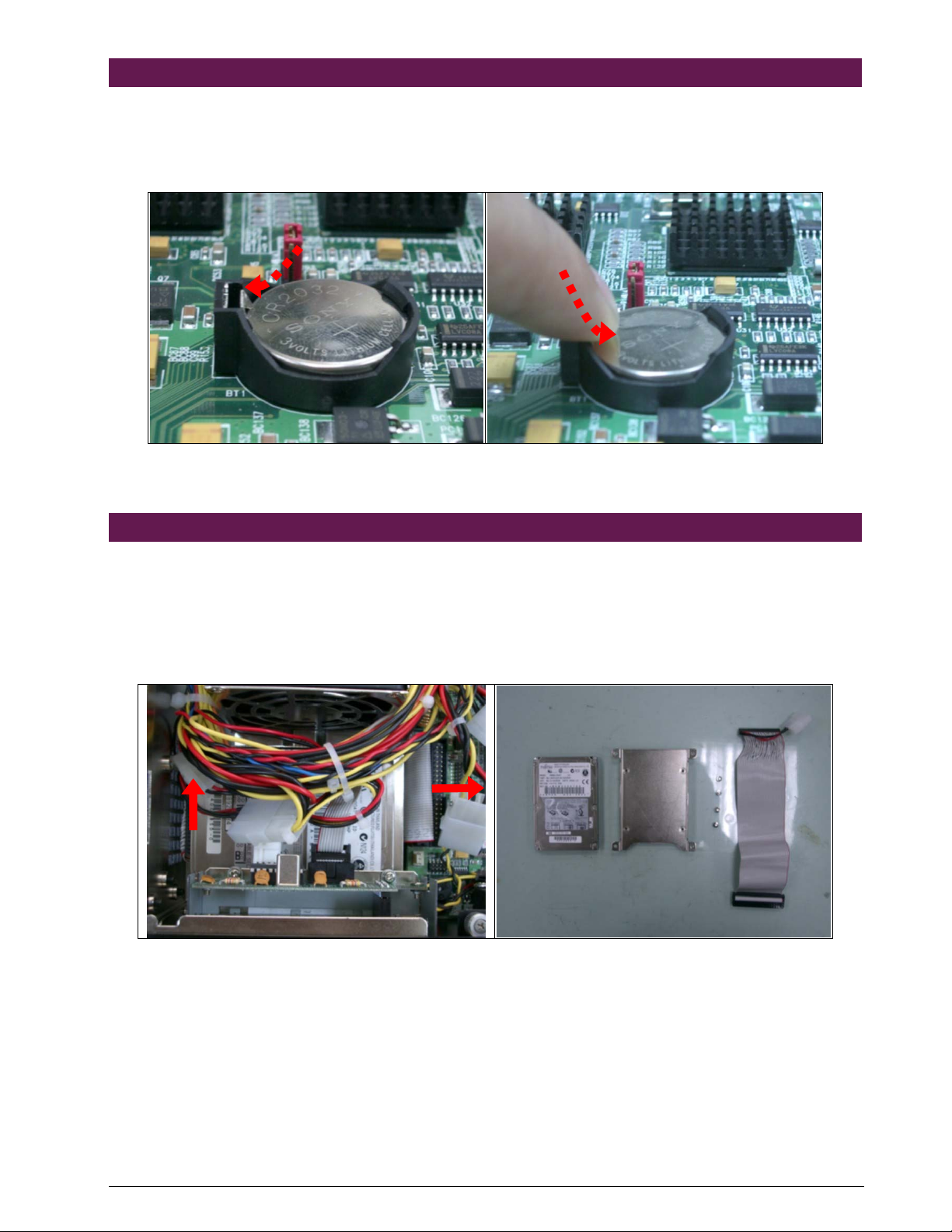

2.7 Remove and Install Battery
8. Press the metal clip down to eject the button battery (Fig. 2-16).
9. Replace a new battery by pressing it with fingertip to restore the battery
(Fig. 2-17).
Fig. 2-16 Eject the battery Fig. 2-17 Restore the battery
2.8 Remove and Install HDD
The system has an internal drive bay for one 2.5" hard disk drive. If the HDD did not pre-
installed, follow the steps below:
Before a HDD can be installed onto NAR-7070.
10. Remove HDD bracket (Fig. 2-18) install HDD into the HDD bracket.
Fig. 2-18 Remove HDD bracket Fig. 2-19 A 2.5” HDD and the HDD bracket
11. Fasten the both screws to lock HDD and bracket together (Fig. 2-20).

NAR-7070 User’s Manual
10
Fig. 2-20 Fix HDD to the bracket ( in both sides ) Fig. 2-21 Connect power and IDE cable to HDD
12. Connect the IDE cable and power connector to HDD (Fig. 2-21).
13. Fasten both screws back to lock HDD onto chassis (Fig. 2-22).
Fig. 2-22 Install into chassis

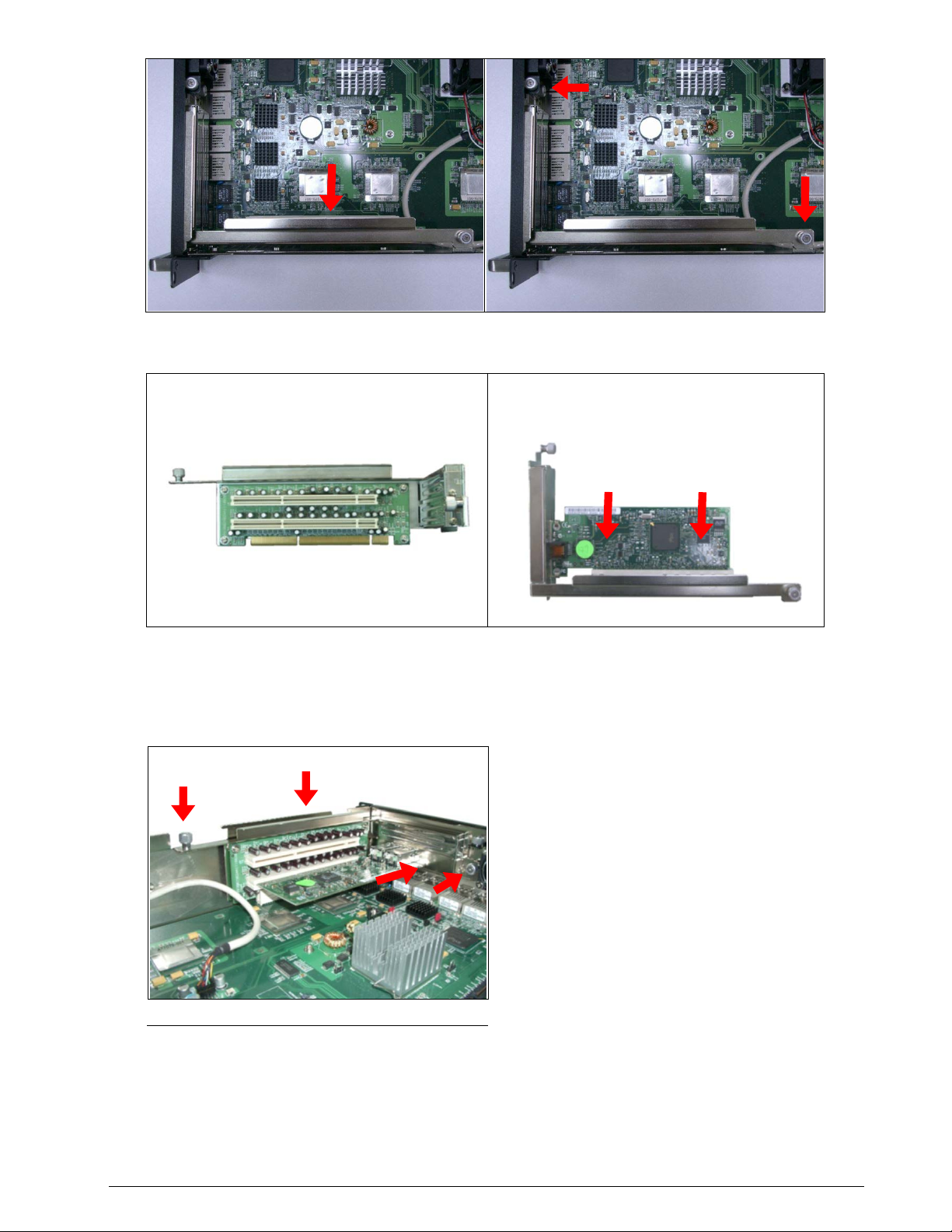

2.9 Remove and Install PCI-X Riser card
Two PCI-X slots are available in NAR-7070. Follow the steps below for installation:
14. The PCI-X Riser card is located on the left of the board. (Fig. 2-23)
15. To remove PCI-X Riser card, loosen and pull up the thumbscrews. (Fig. 2-24, 2-25)

NAR-7070 User’s Manual
11
Fig. 2-23 PCI-X Riser card on the back of
PPAP-3723L
Fig. 2-24 Loosen thumbscrews.
Fig. 2-25 The PCI-X Riser card Fig. 2-26 Insert PCI-X add-on card into PCI-X
Riser slot
16. Insert PCI-X card according to direction of arrow and tighten the thumbscrews. (Fig. 2-26)
17. Lock the PCI-X Riser card in position by a screw. (Fig. 2-27)
Fig. 2-27 Fix the PCI-X card to the back panel

NAR-7070 User’s Manual
12
2.10 Remove and Install LED cable & LED board
Follow the steps below to install or remove the LED cable and board:

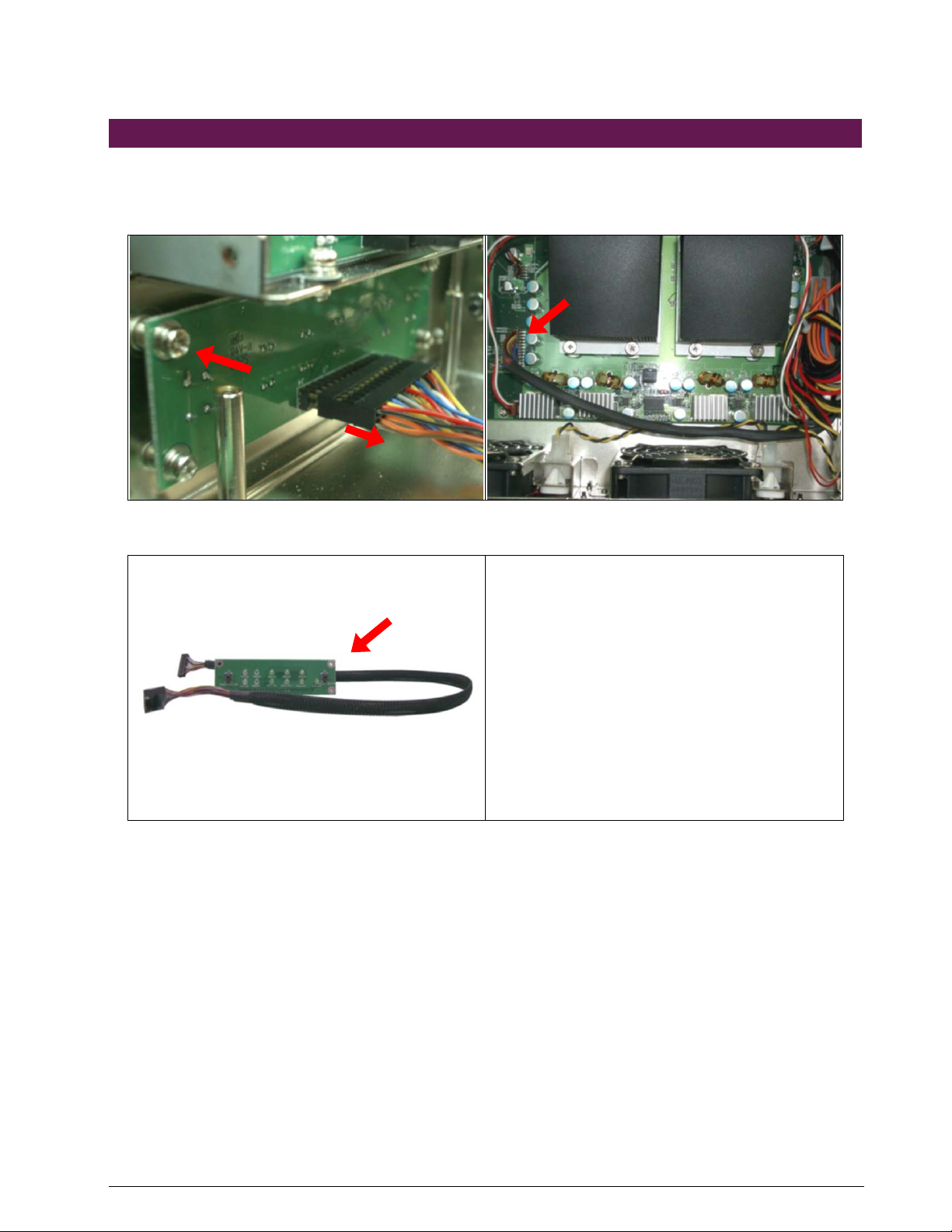

1. LED board is under LCD module (Fig. 2-28),remove 4 screws and disconnect LED cable.
2. Disconnect LED cable from main board (Fig. 2-29)
Fig. 2-28 remove screws and disconnect LED
cable
Fig. 2-29 disconnect and remove LED cable
Fig. 2-30 LED cable
3. Reverse the steps to install LED board and cable.

NAR-7070 User’s Manual
13
2.10 Remove and Install System FAN
Follow the steps below to remove system FAN:
1. Remove two screws on the system fan module, disconnect the power plug.(Fig. 2-31,2-32)
Fig. 2-31 Remove two screws on front system
fan module
Fig. 2-32 Disconnect front system fan power
Fig. 2-33 Front system fan module Fig. 2-34 Remove two screws to take out rear
system fans
2. Remove two screws on rear system fan module to take out rear.(Fig. 2-33,2-34)

NAR-7070 User’s Manual
14
Fig. 2-35 Rear fan system module Fig. 2-36 Rear fan system removed
3. Reverse the above steps to install front and rear system fan modules.
2.10 Remove and Install LCD module & LCD cable
Follow the steps below to remove LCD module:
1. Remove two screws, LCD signal cable and power cord as shown. Push the LCD module
toward inside the system. (Fig. 2-37,2-38,2-39)
Fig. 2- Location of LCD module Fig. 2-38 Remove two screws, LCD cable and
power cord as shown
Fig. 2-39 LCD module

NAR-7070 User’s Manual
15
2.10 Product Specifications
Model: NAR-7070
Processor: •Dual Intel®Xeon™ Processors (1.6 GHz – 2.8 GHz) with
512KB L2 Cache
Memory: •512MB PC1600 DDR RAM module, upgradeable to 8GB
BIOS: •Award system BIOS with 512KB flash ROM
I/O Ports •Six Gigabit Ethernet ports
•One 10/100 BASE-T Ethernet ports
•One RS-232 system console
•Two USB ports
Storage Device •One 2.5” HDD
Expansion •Two 64bit PCI-X slot
LCD Panel •2X16 LCD module with Four-button keypad
LED •LED indicators for power, HDD and Ethernet ports
Power •350W ATX PSU
Cooling •Two 7cm FAN for CPU cooling
•Two 8cm and three 4cm system fans
Operating
Environment
•Temperature: 0℃to 45℃
•Humidity: 5% to 95% RH
Dimension •431.0(W) x 408.0(D) x 88.0(H) mm
•17.00”(W) x 16”(D) x 3.46”(H)
Safety •CE/FCC
•LVDs
2.11 Hardware Configuration Setting
This section gives the definitions and shows the positions of jumpers, headers and connectors.
All of the configuration jumpers on PPAP-3723 are in the proper position. The default settings
set by factory are marked with a star ( ★).
Jumpers
In general, jumpers on PPAP-3723 system board are used to select options for certain
features. Some of the jumpers are configurable for system enhancement. The others are
for testing purpose only and should not be altered. To select any option, cover the jumper
cap over (Short) or remove (NC) it from the jumper pins according to the following

NAR-7070 User’s Manual
16
instructions. Here N/C stands for “Not Connected”. (Please refer to Fig. 2-28 for detailed
jumper positions.)
Jumper Setting Table (JP1-JP9)
JP1 POWER ON CONTROL Default Setting
1-2 POWER BUTTON POWER ON
2-3 AUTO POWER ON ★
JP2 POWER SWITCH Pin Definition for LED
Board Connector Default Setting
1-2 POWER ON SWITCH
2-3 Application Set Default SWITCH ★
JP3 CMOS Clear Jumper Default Setting
1-2 Normal ★
2-3 Clear CMOS
JP4 PMC Power Control Default Setting
Short 3.3V PMC PCI ★
N/C Non 3.3V PMC PCI
JP5 PMC Power Control Default Setting
Short 5V PCM PCI
N/C Non 5V PMC PCI ★
JP6 Manufacture Fix Default Setting
1-2 Default ★
2-3 Non
JP7 FAN Power Default Setting
1-2 12V ★
2-3 5V

NAR-7070 User’s Manual
1
7
Fig. 2-28 Jumper Position
Connectors
Devices are connected through these connectors which includes IDE, COM Port etc…
Connector Function Remark
J1 Gigabit RJ45 Connector
J2 Gigabit RJ45 Connector
J3 Gigabit RJ45 Connector (Colay with J12)
J4 Gigabit RJ45 Connector (Colay with J13)
J5 Gigabit RJ45 Connector (Colay with J14)
J6 Gigabit RJ45 Connector (Colay with J15)
J7 10/100M bit RJ45 Connector
J8 D Type COM1 Connector
J9 PS/2 KB/MOUSE Connector
J10 USB Stackup Connector
J11 Reserve for Debugging
J12 Gigabit Fiber Connector (Colay with J3)
J13 Gigabit Fiber Connector (Colay with J4)

NAR-7070 User’s Manual
18
J14 Gigabit Fiber Connector (Colay with J5)
J15 Gigabit Fiber Connector (Colay with J6)
J17 Hooker for MCH Heatsink
J18 Hooker for MCH Heatsink
J19 Vertical PCI-X Slot
J20 Hooker for MCH Heatsink
J21 Hooker for MCH Heatsink
J22
Customized function header
1-2:Reserve
3-4:Intruder Detection Header(3-4 ON is the Default
Setting)
5-6:Application Set Deffault Header
J23 USB Header
J24 LED Board Connector
J25 64 bit PMC PCI Connector
J26 64 bit PMC PCI Connector
J27 64 bit PMC PCI Connector
J28 COM 2 Header
2.12 Install a Different Processor
Install CPU
1. Lift the handling lever of CPU socket outwards and upwards to the other end.
2. Align the processor pins with holes on the socket. Make sure that the notched corner or dot
mark (pin 1) of the CPU corresponds to the socket's bevel end. Then press the CPU gently
until it fits into place. If this operation is not easy or smooth, don't do it forcibly. You need to
check and rebuild the CPU pin uniformly.
3. Push down the lever to lock processor chip into the socket.
4. Follow the installation guide of cooling fan or heat sink to mount it on CPU surface and lock it
on the socket 604.
5. Be sure to follow particular CPU speed and voltage type to adjust the jumper settings properly
for all boards.
Remove CPU
1. Unlock the cooling fan first.
2. Lift the lever of CPU socket outwards and upwards to the other end.
3. Carefully lift up the existing CPU to remove it from the socket.
4. Follow the steps of CPU installation to change to another one or place handling bar to close
the opened socket.

NAR-7070 User’s Manual
19
Configure Processor Speed
Enter BIOS browser to select Frequency/Voltage Control, and then change CPU Clock
Ratio to be 21X.
2.13 Connect to the console
Connection Using Hyper Terminal
If users use a headless NAR-7070, which has no mouse/keyboard and VGA output
connected to it, the console may be used to communicate with NAR-7070.
To access NAR-7070 via the console, Hyper Terminal is one of the choices. Follow the
steps below for the setup:
1. Execute HyperTerminal under C:\Program Files\Accessories\HyperTerminal
2. Enter a name to create new dial
3. For the connection settings, make it Direct to Com1.
4. Please make the port settings to Baud rate 19200, Parity None, Data bits 8, Stop bits 1
