POSIFLEX PP-7600X User manual

1
Package Contents
PP-7600X POS Printer…………….(x1)
80mm-wide Thermal Paper………..(x1)
(For operational testing)
58mm Paper Spacer Plate………….(x1)
24V/60W Power Adapter………….(x1)
Power Cord………………………...(x1)
USB Cable…………………………(x1)
RS232 Cable (Optional)…………...(x1)
Soft Wiping Cloth………………….(x1)
(For shinning case only)
User Manual………………………..(x1)
Product Features
3" thermal printer with auto cutter
Printing speed up to 200 mm/sec
80 mm or 58 mm paper width support
Drop-and-load action for easy paper roll replacement
Control over 2 cash drawers through 1 D.K port
Interface: USB (True USB & Virtual COM selectable), Serial
and Ethernet
Paper near end sensor
Optional LD-2100 light bar modular
To avoid paper jam occurring, do NOT press the printer’s cover
open lever during printing.
When a paper jam occurs, press the cover open lever to release the
paper cover. Then, remove the jammed paper and reinstall the
paper roll. Next, close the paper cover properly and firmly.
If the auto cutter is also jammed, the paper cover will be locked.
Should the cutter jam be so serious to interfere the paper cover
release operation, please push the paper cover and press the cover
open lever several times. If the problem cannot be solved none the
less, please call your local service center for help right away.
PP-7600X
POS Printer
User Manual
19302901010 Ver. Original
http://www.posiflex.com

2
Views of the PP-7600X
Front View

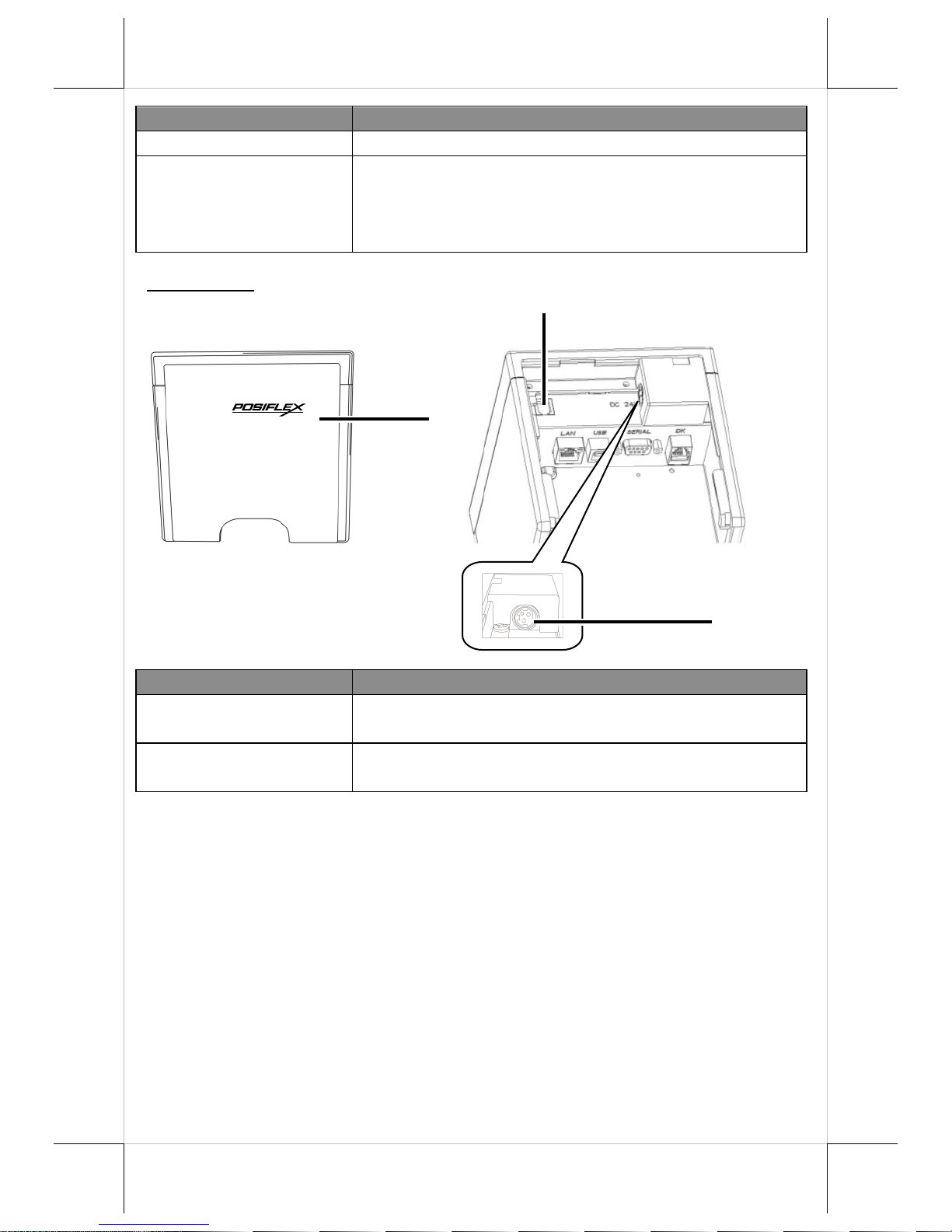

Part Names
Description
Power Button
This button turns the printer power on or off.
Power LED Indicator
This indicator turns on when the printer power is
on.
Error LED Indicator
This indicator works when the printer has
something wrong. For more details, refer to the
Status LED Indicators section given below.
Paper-out LED
Indicator
This indicator turns on when the paper-out issue
occurs.
Feed Button
Press this button once to feed the paper roll for one
line. Hold down this button to continue feeding the
roll paper
Paper Cover
Open this cover when installing or replacing the
paper roll.
Cover Open Lever
Push this lever to open the paper roll cover.
Paper Exit
An opening where the paper is outputted
Paper-out LED Indicator
Wedge Groove
Power Button
Power LED Indicator
Error LED Indicator
Feed Button
Cover Open Lever
Paper Roll Exit
Paper Cover
Paper Near End Sensor
Paper Roller

3
Part Names
Description
Wedge Groove
Aligns and fixes the paper spacer plate
Paper Near End Sensor
(Provided for adjusting the detection position to suit
the diameter of the paper core used, and for
adjusting the detection position of remaining
amount of paper)
Rear View
Part Names
Description
I/O Cable Jack
for LD-2100
Connects the I/O cable of LD-2100
Printer Power
Connector
Connects the DC cable for the power adapter of PP-
7600X
Printer Power Connector
Cable Cover
I/O Cable Jack for LD-2100

4

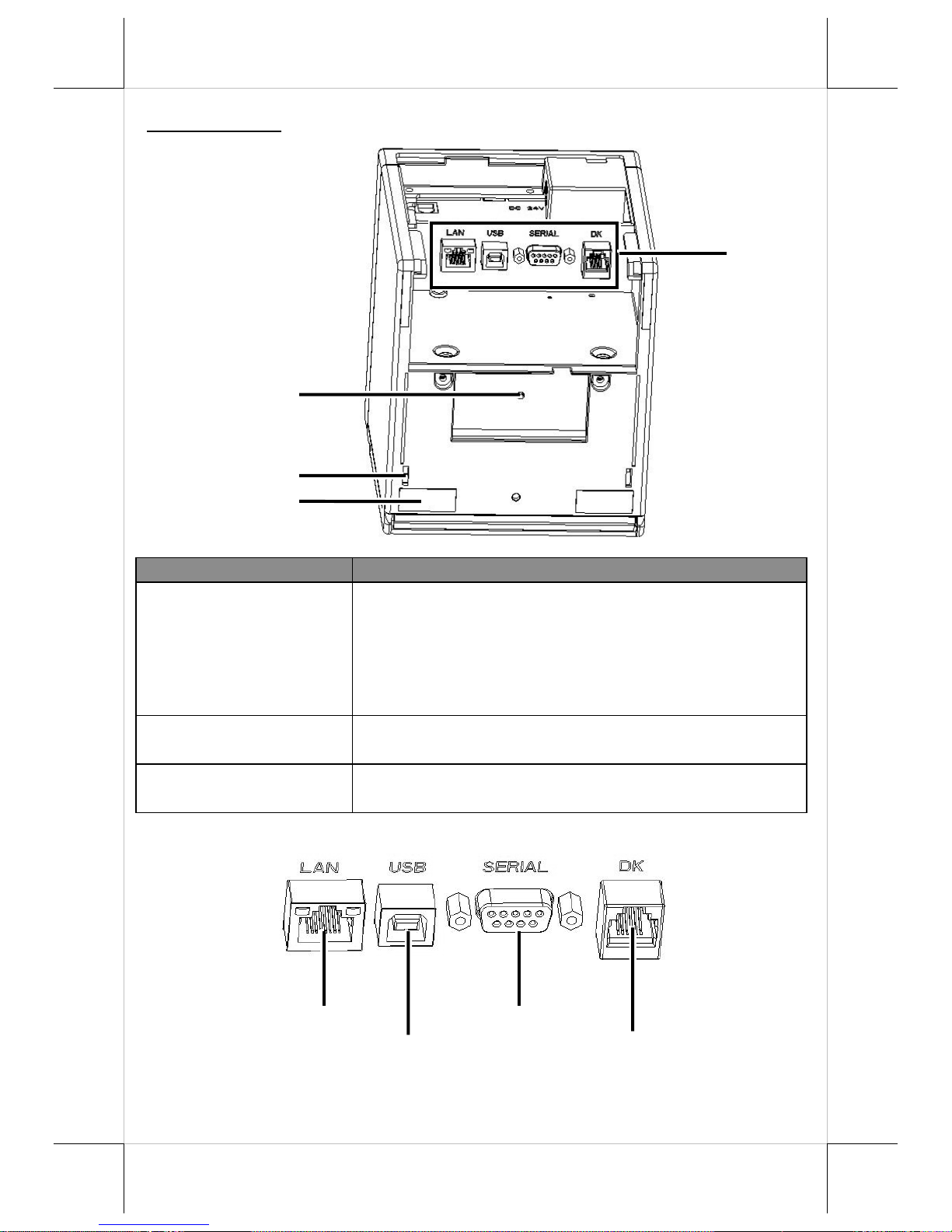

Bottom View
Part Names
Description
I/O Ports
LAN port connector (RJ45)
USB connector (Type-B)
Serial port connector (DB9)
DK (Drawer Kick) connector (RJ10)
Fixing Screw Hole
for LD-2100
Formed for fixing the optional LD-2100 light bar
Wedge Groove
for LD-2100
Formed for fixing the optional LD-2100 light bar
I/O Ports of the PP-7600X
Rubber Foot
I/O Ports
Wedge Groove
for LD-2100
Fixing Screw Hole
for LD-2100
Serial (DB9) Port
D.K (RJ10) Port
USB Port (Type-B)
LAN (RJ45) Port

5
Loading a Paper Roll
Before loading a paper roll, make sure you use a specified paper type. Follow
the steps below to load a paper roll.
1. Press down the cover open lever to
release the paper cover.
2. The paper cover ejects. Then, open the
paper cover manually.
3. Drop the thermal paper inside the paper
compartment of the printer, as shown in
the right figure.
4. Drag the paper roll to the portion where
the paper roller is installed.
Paper Roller

6

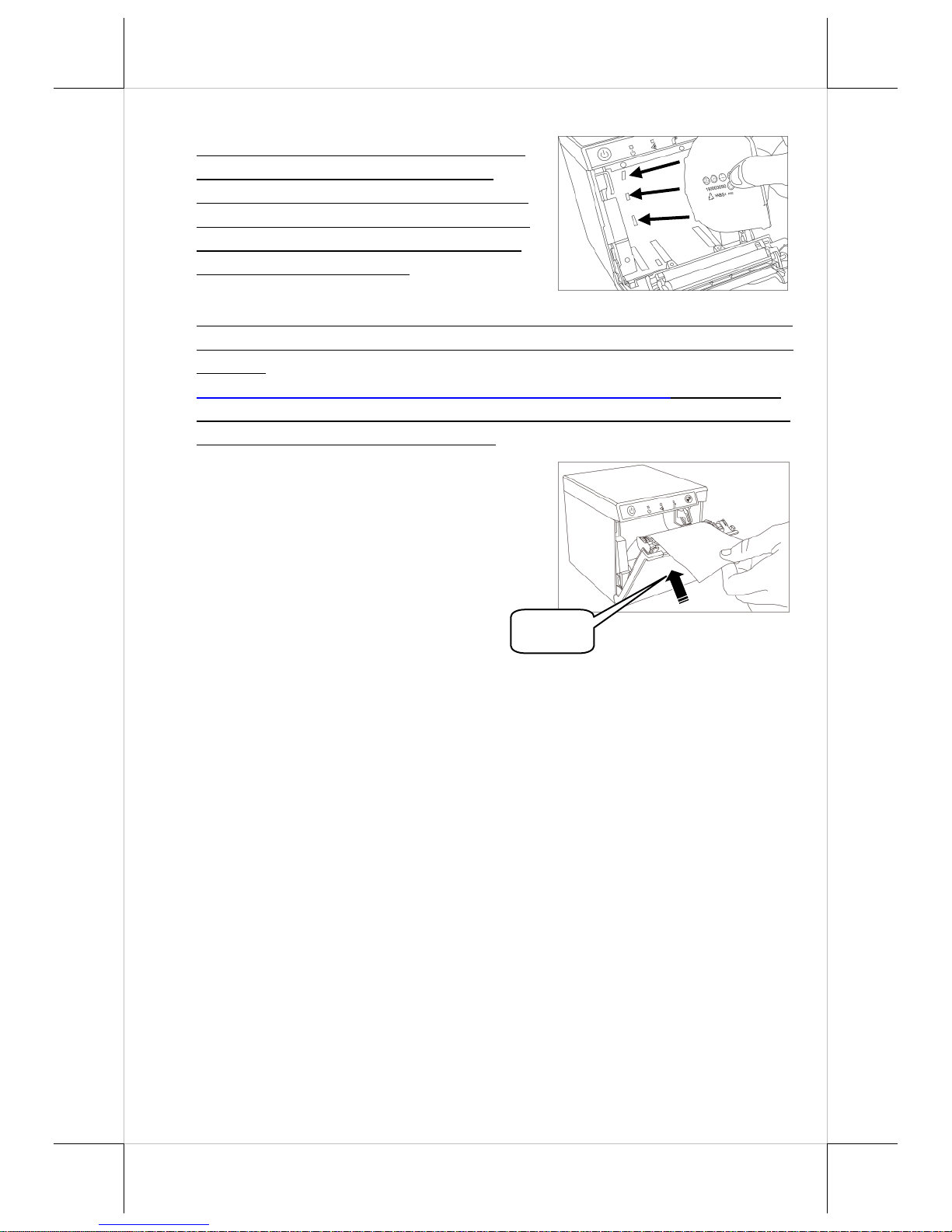

If you want to use a paper roll of 58mm
width, install the spacer plate in the
compartment of the printer, as shown in
the right figure, and then load the paper
roll of 58mm width into the partition at
the right side of the plate.
Next, set the paper width by using the PP-7600X software switch utility.
The software switch utility can be downloaded from the Posiflex’ global
website:
http://www.posiflex.com/en-global/Download/download. To get more
detailed information on the paper width jumper setting, contact directly
the Posiflex’ technical service team.
5. To avoid the paper cover not being
locked completely, push the central
portion of the paper cover to close.
Push

7

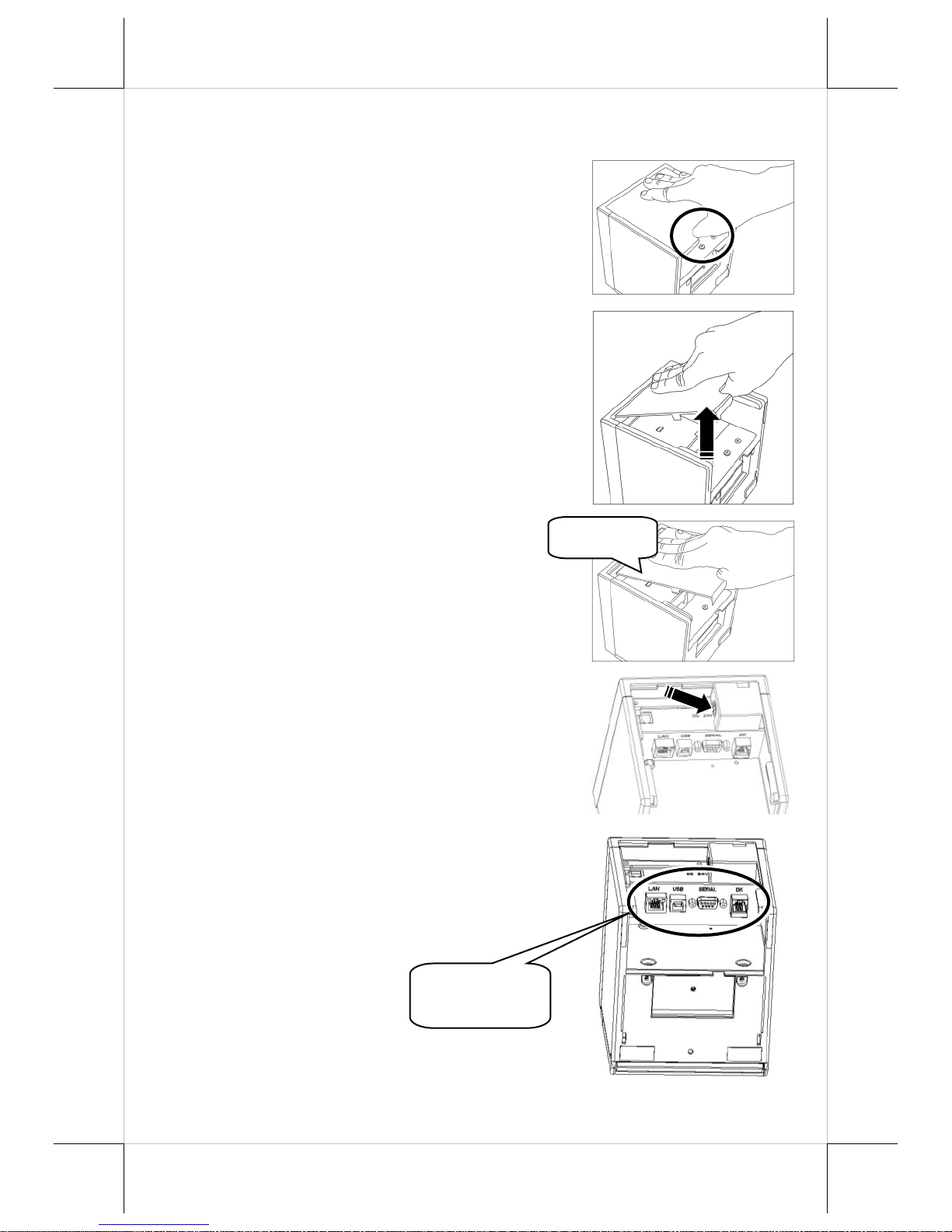

Connecting Power Adapter and I/O Cables
Follow the steps listed below to open the rear cover and connect cables.
1. Hold the concave portion of the cable cover
with thumb, as shown in the circled portion
of the figure.
2. Pull the cover in the direction indicated by
the arrow in the right figure.
3. Remove the cable cover.
4. Connect power adapter to the printer power
connector of the PP-7600X.
5. Connect I/O cable(s) to the I/O port(s) of the
PP-7600X.
Remove
Connect
to I/O ports

8

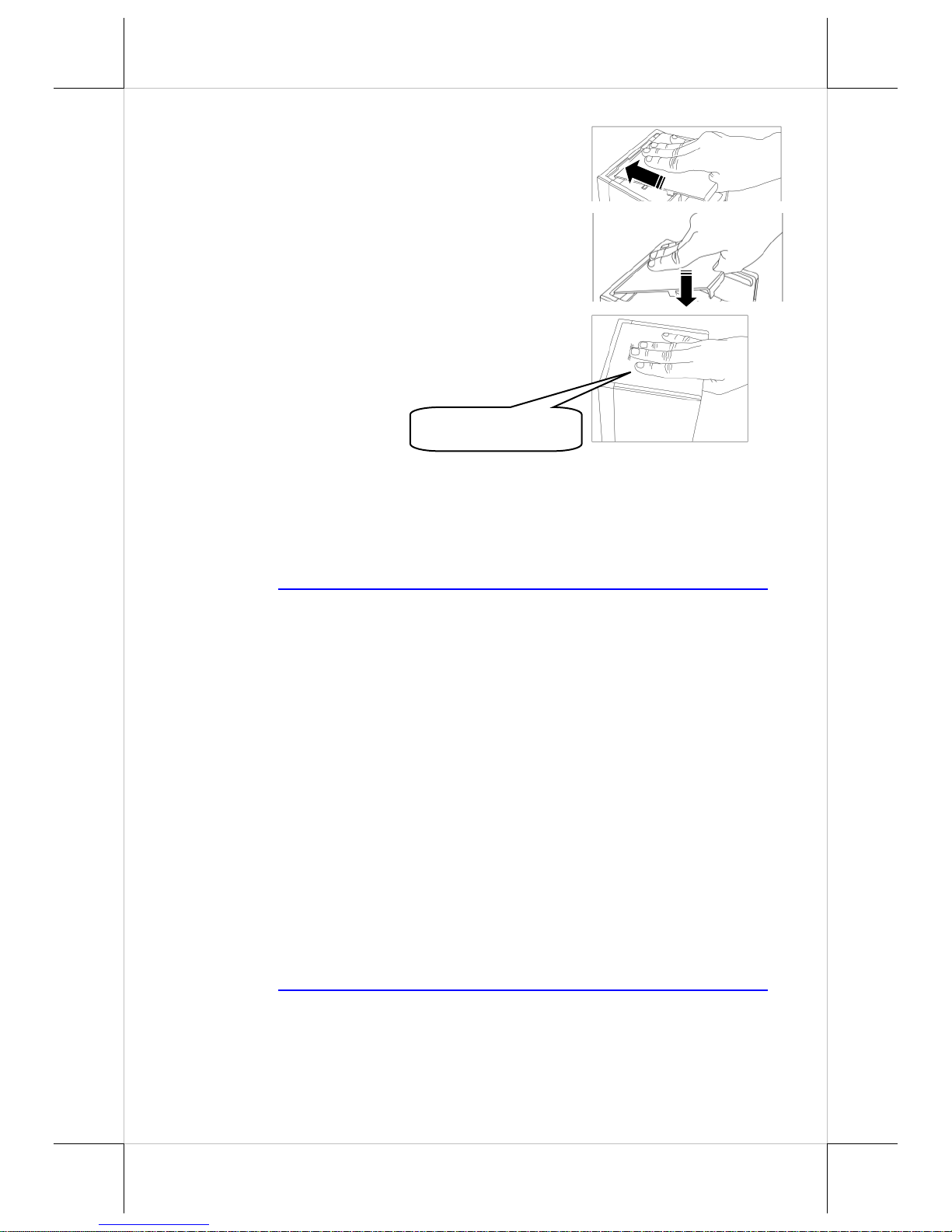

6. Make the cable cover wedge to the printer.
Determine that the cable cover is well
wedged to the printer.
7. Cover the I/O ports of the printer.
8. Determine that the cable cover is completely
closed.
Installing the Posiflex LAN POS Printer Manager
To allow you to easily do settings of the LAN printer, please install the LAN
POS printer Manager Utility (Utility Name: PP-7600 Series LAN and WIFI
POS printer Manager Utility). To download the manager, go to the Posiflex’
global website: http://www.posiflex.com/en-global/Download/download to
download the up-to-date utility.
After downloading the manager utility, it is suggested to do settings through
USB interface.
However, to avoid users doing settings by mistake, it is suggested that
professional technicians implement the setup. To do more advanced settings on
the printer, contact directly the Posiflex’ technical service team.
Installing the USB Printer Virtual COM Port Driver
If you use software programs that communicate with your POS terminal via a
serial interface (e.g. COM1...COM8), but your POS system does not have any
serial port, you will require a so-called virtual COM port driver. This virtual
COM port driver allows you to assign a virtual COM port connection number
to your POS terminal connected via a USB port and enables bidirectional
communication between your POS terminal and the printer.
To download the USB Printer Virtual COM Port Driver, go to the Posiflex’
global website: http://www.posiflex.com/en-global/Download/download to
download the up-to-date driver of the PP-7600X printer.
After downloading the driver, start to install it. When you finish installing the
driver, it is suggested to turn on your POS terminal again. The system will
automatically detect the PP-7600X printer.
Firmly Closed

9
Installing the LD-2100 Light Bar (Optional)
Follow the steps below to install the LD-2100 light bar on the PP-7600X
printer.
Power off the printer when installing the LD-2100 light bar.
1. Securely connect the pin header of the LD-2100 I/O cable to the pin
connector on the LD-2100 control board.
2. Plug the RJ11 connector of the LD-2100 cable into the LD-2100 I/O
cable jack of the PP-7600X printer.
3. Install the LD-2100 light bar onto the bottom side of the PP-7600X by
making the four joints formed on the LD-2100 wedge to the four wedge
grooves formed on the PP-7600X.

10

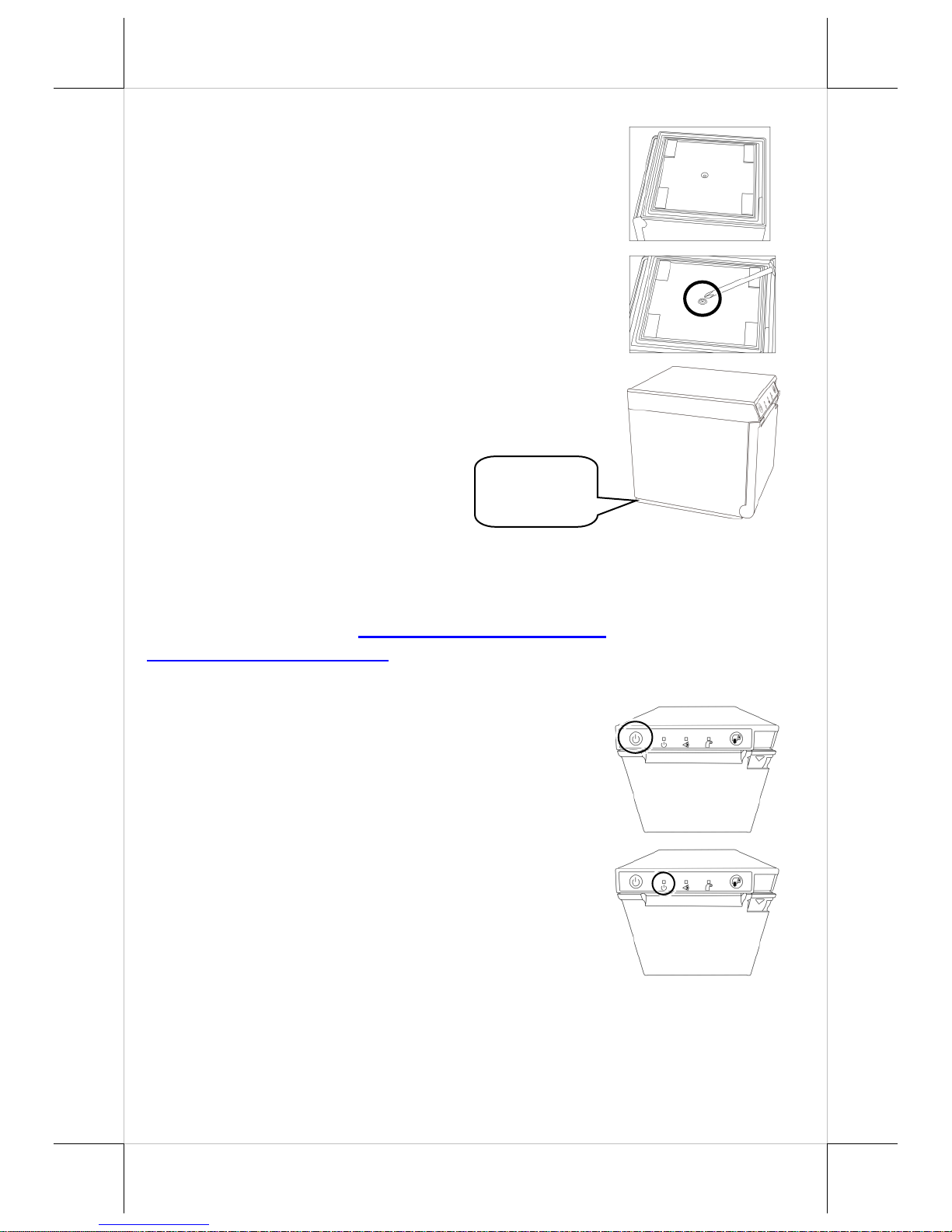

4. Determine that the LD-2100 securely connects to
the PP-7600X.
5. Fix the LD-2100 to the bottom side of PP-7600X
with a screw.
6. The installation of LD-2100 light bar is
completed.
After installing the LD-2100 light bar, you can set up the LD-2100 by using
the Posiflex LD2100 Tool. For more detailed information, refer to the Posiflex
LD2100 Tool. To download the LD2100 Tool and its manual, go to the
Posiflex’ global website: http://www.posiflex.com/en-
global/Download/download.
Powering ON the PP-7600X Printer
1. Press the power button of the printer.
2. The power LED indicator stays bright and solid
green when the printer is powered ON.
LD-2100
Light Bar

11
Status LED Indicators
After supplying power to the PP-7600X and powering ON the printer, you can
read the system operation status from the power LED indicator on the printer.
The LED status is described below.
LED
Status
Description
Power LED
Solid green
System ON
Error LED
Flash red + several beeps
Cutter abnormal
Solid red
Cover open
Flash red
Operation temp. high
Paper-out LED
Solid red + continual beep
Paper out
Cleaning
Cleaning the Printer Case
Before cleaning the printer case, be sure to power off the printer, and wipe the
dirt off the printer case with a soft wiping cloth we provide.
Do NOT clean the product with alcohol, benzene, thinner, or
other such solvents. Doing so may damage or break the parts
made of plastic and rubber.
Cleaning the Thermal Head and the Platen Roller
We recommends cleaning the thermal head to maintain receipt print quality.
We also recommend cleaning periodically (about once every 3 months).
Depending on the paper roll used, paper dust may stick to the platen roller and
the paper may not be fed correctly. To remove the paper dust, clean the platen
roller with a cotton swab moistened with water. Power on the printer only after
the water has completely dried.
After printing, the thermal head and its surroundings
can be very hot. Be careful. Let it be cool before you
clean it.
Do not damage the thermal head with your fingers or
any other hard object.

12
Troubleshooting
The printer cannot print
If you cannot print even though an error has not occurred, perform a self-test to
check if printing is possible.
Follow the steps below.
1. Close the paper cover.
2. While pressing the feed button, power on the printer. (Hold down the feed
button until printing starts.) The current print status is printed.
3. Briefly press the feed button (less than one second) to continue the self-test.
The printer prints using the built-in character set. After the self-test printing,
the printer is reset and switches to standard mode.
LED Indicators are On/Flashing/Off
No lights is given by the LED indicators
Check whether the power supply cable is correctly connected to the printer and
the socket.
Error LED is on
Check whether the paper cover is closed.
Check if paper jam occurs or foreign substance enters the paper cutter.
The thermal head and its surroundings can be very hot. Printing stops if the
thermal head is too hot. Printing starts again automatically when the
thermal head temperature falls.
Paper-out LED indicator is on
Check whether the paper roll is correctly installed and any paper roll
remains.
Error LED indicator is flashing
Power off the printer; after 10 seconds, power it back on. If the error LED
indicator turns on again even after turning the power back on, malfunction may
occurs. Contact your dealer or Posiflex’ technical service team.

13
Specifications
General
Printer Reliability
100 Km print length
Auto Cutter Reliability
700,000 cuts or more
NV Bit Image Memory
12KB (max.)
NV Graphics
384KB (max.)
Receive Buffer
6KB
Printer Driver
Windows Driver (APD), OPOS, JavaPOS (Win),
CUPS Driver (Linux)
Software
Posiflex Uitlity (Android), PP-7600 Utility (Windows Desktop),
Development Tool (Android SDK), Monitoring Tool (RMS)
LED Indicators
Green LED - On = Power
Red LED - Error and/or Paper Out
Sensors
Cover Open / Out-of-Paper /Paper Near End
Cash Drawer Port
(CR port)
2 drivers (CR port x1)
Power Consumption
Approx. 1.5A (mean)
Power Source
AC adapter (24V DC)
Power Saving
Yes
Temperature
Print quality assured: +5℃~ +40℃
Operating: 0℃~ +40℃
Non-operating: -20℃~ +60℃
Relative Humidity
Operating: 20 ~ 85%, non-condendensing 35% above for auto
cutter
Non-operating: 5% ~ 90%, non-condensing (paper excluded)
Acoustic Noise Level
55db
Standards
and Approvals
CE / FCC
Dimensions
(W x D x H)
5.08" x 5.86" x 5.1" / 129 x 148.8 x 129.5 mm
Weight
2.2lbs / 1kg
Color
Black / White
Print
Print Method
Thermal dot line printing
Print Speed
200 mm/second (max.)

14
Print Resolution
576 dots (W 8 dots/mm x H 8 dots/mm)
Print Direction
Vertical and Horizontal
Print Fonts
Fonts/Column capacity
Font A: 12 x 24 48 cpl (default); Font B: 10 x24 57 cpl
Character Size
Font A: 1.25 x 3.00 mm; Font B: 1.13 x 3.00 mm
Character Set
95 Alphanumeric, 18 International, 128 x 43 Graphic
Barcode
UPC-A/E, EAN13/8, ITF, CODE39 / 93 / 128, CODABAR,
GS1 DataBar
2D Symbol Printing
PDF417, QR code
Media Handling
Type
Thermal roll paper
Paper Feed Methord
Friction feed
Print Width
72 mm
Paper Width
80 +0/-1 mm
Paper Loading
Drop-in
Roll Diameter (Max)
ɸ83 (or 58) +0 / -1 mm
Core Diameter (Min)
ɸ8 mm
Paper Thickness
60 ~ 80 um
Paper Guide
Yes
Auto Cutter
Yes
Connectivity
Serial Interface
RS-232
USB Interface
Built-in USB
Ethernet Interface
Ethernet 10/100Base-T/TX
Operating System
OS support
Android, Linux, Windows
※ The product information and specifications are subject to change without
prior notice. To get the detailed information on PP-7600X, please check this
model from Posiflex Global Website
(http://www.posiflex.com/en-global/Download/download).

15
<MEMO>

16
<MEMO>
