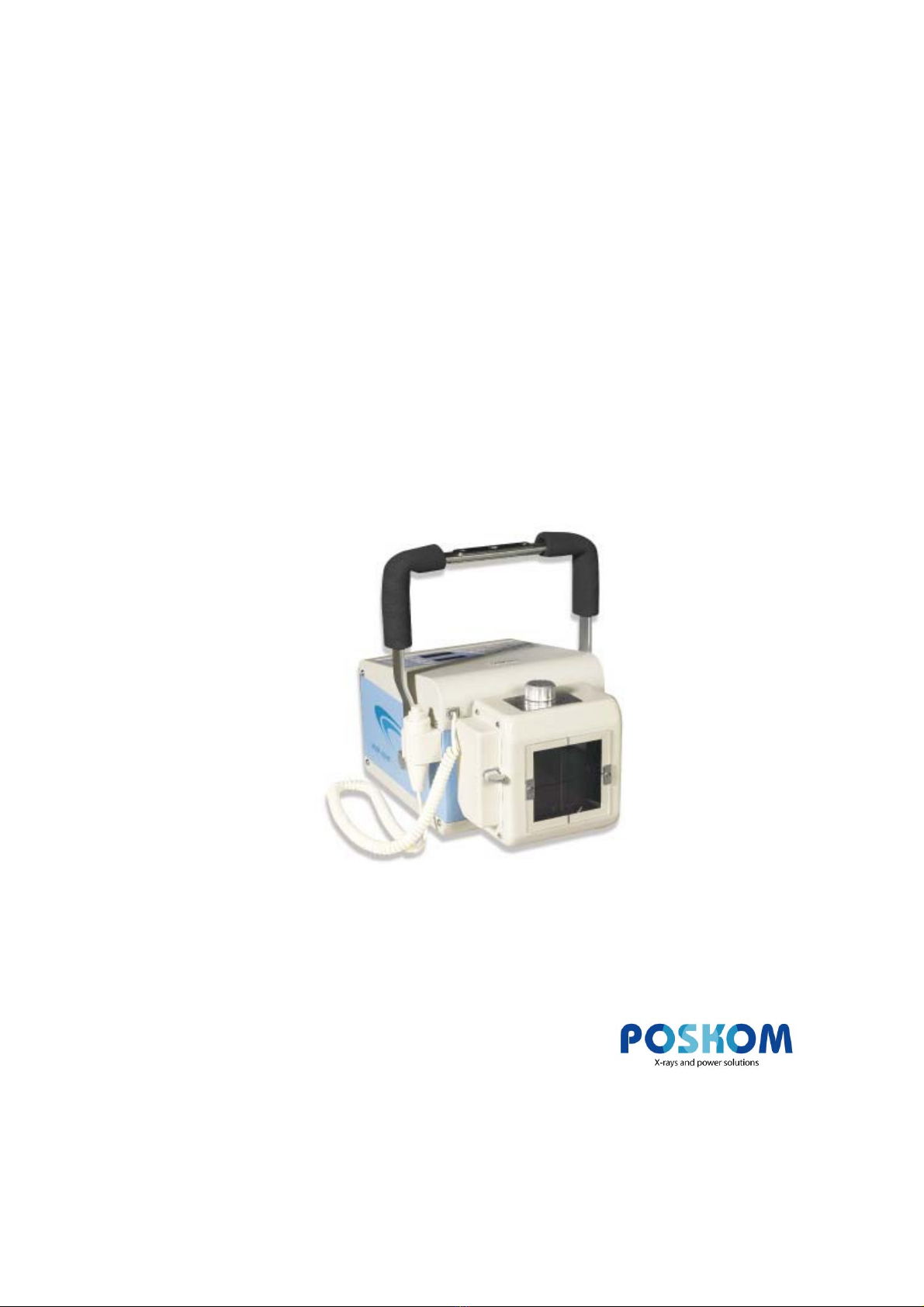

Poskom PXP-40HF Installation and operating instructions

DOCUMENT NO.: PM-PXP40HF-0504
REVISION NO.: 4
OPERATION & SERVICE MANUAL
MODEL: PXP-40HF
(PORTABLE X-RAY UNIT)

Product Manual: PXP-40HF Poskom Co.,
Ltd.
CONTENTS
PART I. OPERATION MANUAL
1 General description ---------------------------------------------------------------------- 3
2 Operational safety ---------------------------------------------------------------------- 5
3 Working environment ---------------------------------------------------------------------- 6
4 Radiation safety ---------------------------------------------------------------------- 6
5 System configuration ---------------------------------------------------------------------- 7
6 Function of x-ray unit ---------------------------------------------------------------------- 7
7 Specifications --------------------------------------------------------------------- 8
8 Display of each parts --------------------------------------------------------------------- 9
9 Operation of the machine ---------------------------------------------------------------------- 10
10 Operation mode ---------------------------------------------------------------------- 11
11 Remote control function ---------------------------------------------------------------------- 12
12 Technical chart for small animal ---------------------------------------------------------------------- 19
13 Equine chart ---------------------------------------------------------------------- 20
TABLES
1 Specifications ---------------------------------------------------------------------- 8
ILLUSTRATIONS
1 Operation device & display ---------------------------------------------------------------------- 9
2 Dimensions ---------------------------------------------------------------------- 16
3 Labels ---------------------------------------------------------------------- 17
PART II. SERVICE MANUAL
1 Notice ---------------------------------------------------------------------- 21
2 Operation sheet ---------------------------------------------------------------------- 21
3 Block diagram ---------------------------------------------------------------------- 22
4 Operation board and layout ---------------------------------------------------------------------- 23
5 Power board layout ---------------------------------------------------------------------- 24
6 Calibration process ---------------------------------------------------------------------- 25
7 Calibration code and data ---------------------------------------------------------------------- 29
8 Error code and countermeasures ---------------------------------------------------------------------- 30
9 Schematics ---------------------------------------------------------------------- 31
TABLES
1 mA calibration code and data ---------------------------------------------------------------------- 29
2 Filament calibration data ---------------------------------------------------------------------- 29
3 Error code and measures ---------------------------------------------------------------------- 30
2

Product Manual: PXP-40HF Poskom Co.,
Ltd.
PART I. OPERATION
1. GENERAL DESCRIPTION
1.1. OVERVIEW
PXP-40HF is one of PXP-HF portable family generators. Likewise of others, the PXP-40HF is most
compact, ultra-light weight and powerful HF inverter type of x-ray systems in this portable category. It
is designed especially for nursing home care or home care medical market and small medical clinics
as well as veterinary practitioner or battle field use. All PXP-HF family x-ray units are the ripple free HF
type of generator in producing 40~50% more powerful radiation output than conventional x-ray units in
its class. Therefore, PXP-40HF is the perfect x-ray portable unit for an indoor and outdoor medical
diagnostic practitioner in the radiographic application where requires an easy of operation and mobility.
Features are;
-Ultra light weight and compact size
-High frequency type of generator
-High output 100kV / 35mA
-APR pre-set (8) memory PROM
-Remote control software
-Built in collimator and laser pointer (option)
-Auto line compensation
-Digital readout reverse switch
-Accessories: metal carrying case, hand switch, power cord
-Power requirement: 110/220 Volt, 50 / 60 Hz
1.2. CONSOLIDATED MANUAL
This consolidated manual consists of operating and service instruction. This operator’s manual
provides PXP-40HF operating instructions for X-ray technicians, radiologists and other medical
personal trained in the use of X-ray equipment. Service manual provides installation instruction,
calibration and routine maintenance for field service personnel.
This manual is not designed to replace or substitute for certified training in the radiological or medical
field. In reading this manual, the operator should be qualified in the use of equipment of this type. This
portable X-ray system is only to be used by licensed practitioners in diagnostic, operative and post-
operative procedures.
PXP-40HF portable X-ray can be used in variety of diagnostic radiographic systems such as mobile
stand or radiographic table integrated with X-ray tube mounting devices. Although many of the
features of these portable systems were developed with radiographic application in mind, operation is
described in general terms to permit the use of those features in radiographic application
3

Product Manual: PXP-40HF Poskom Co.,
Ltd.
1.3. SAFTY REQUIREMENT
This manual provides guideline for the safe use and operation of the portable system. The operator
should be in trained in the use of equipment of this type and should refer to this manual in conjunction
with that training.
It is the responsibility of the owner to ensure that the system is operated only by properly trained,
qualified personnel who have obtained credentials from local, state, and federal authorities where
required.
Potential hazards exist in the use of medical electronic devices and x-ray systems. All users and
operators must understand the safety and emergency procedures, and the operating instructions given
in this manual
Poskom Co., Ltd. certifies that each system complies with the Radiation Control for Health Safety Act
in Title 21, Chapter I, subchapter J of the Code of Federal Regulation in the USA and EN 60601,
general requirements for radiation protection in diagnostic X-Ray equipment for IEC 601-1-3 in
European Nations.
Poskom and distributors assume no responsibility or liability for after-sale operating and safety
practices, nor can it be responsible for personal injury or damage resulting form misuse of its portable
x-ray systems.
Please address a question and comments regarding safety issue to Poskom service organization
and/or each distributor in your region.
1.4. CAUTIONS AND WARNING
Possible hazards are associated with unsafe operation of this type of portable X-ray equipment. These
hazards are described on the following warning or caution signs with the safety precautions which
should be taken.
CAUTION
The X-ray radiation could be dangerous for patients and operators
unless following safety regulations are strictly observed.
4

Product Manual: PXP-40HF Poskom Co.,
Ltd.
2. OPERATIONAL SAFETY
PXP-40HF users’ safety, easy of operation and product reliability are our major concern in designing
this PXP-HF family of generators. However, it is advisable to observe the following instruction and
guideline for your additional safety in operating this portable.
A. This product should be operated only by or under the supervision of legally qualified
persons.
B. PXP-40HF is designed for the radiographic uses and not for fluoroscopy or other
associated applications.
C. PXP-40HF should be used for the diagnosis, not for the therapy.
D. PXP-40HF is specified as ClassⅠtype B equipment under the IEC 601-1,2 standard.
THE PORTABLE IS NOT PROTECTED AGAINST
INGRESSINGAWATERORLIQUIDS.
E. Do not modify the equipment at your discretion and in case any modification is required
unavoidably, ask the help of Poskom or its authorized dealer for the service.
F. This system has been calibrated for optimal operations.
G. If you have any troubles with the equipment, turn off power immediately, and notify to
Poskom or its authorized dealer for their service and assistance.
H. If you want to connect any devices made by other companies to this equipment, ask
Poskom or its authorized dealers for their instructions.
5

Product Manual: PXP-40HF Poskom Co.,
Ltd.
3. WORKING ENVIRONMENT
3.1 Avoid following places for the normal operation and safe storage.
A. Where the equipment is exposed to water vapor.
B. Where the equipment is exposed to direct sunlight.
C. Where the equipment is exposed to dust.
D. Where the equipment is exposed to high humidity.
E. Where there is a ventilation problem.
F. Where the equipment is exposed to salty atmosphere.
G. Where the equipment is exposed to chemicals or gas.
3.2.For sound operation of the machine, it should keep away from the place with strong vibration and
maintain proper environment and conditions.
A. Operation Environment
Temperature range 10°C ~ 40°C,
Relative Humidity Range 30% ~ 75% RH
B. Optimal Temperature and Humidity
Temperature range 17°C ~ 23°C,
Relative Humidity Range 40% ~ 60% RH
3.3.For safe storage and transportation, you must keep following range of temperature, humidity and
atmosphere.
Environment for storage and transportation
Temperature range -25°C ~ +60°C
Relative Humidity Range 10% ~ 95% RH
4. RADIATION SAFETY
A. Users and operators should wear appropriate protecting devices and clothes.
CAUTION
The ionized radiation could be dangerous for patients and operators
unless following safety regulations are strictly observed.
B. Stay distance from the radiant sources and all the possible secondary radiation zones.
C. Eliminate all unnecessary objects near the exposure zones.
D. The distance from the focus to skin should be kept at least 20 cm.
E. For the experimental uses, please apply the lowest possible values about kV, mAs and
exposure time.
F. Be careful not to exceed the limited radiograms in the exposure area.
6

Product Manual: PXP-40HF Poskom Co.,
Ltd.
5. SYSTEM CONFIGURATION
5.1. PXP-40HF is a radiological device for medical uses. It should be applied for the radiographic
diagnosis and operated by qualified practitioners. Users have to comply with safety and health
regulations concerning the ionizing protection and the electrical and mechanical safety of the
medical devices.
5.2. PXP-40HF is composed of the following parts and devices: They should be firmly fixed and
connected with each other for the sound and normal operation.
A. Operation Board
B. Inverter
C. HV Tank including X-ray Tube
D. Collimator
E. Exposure Switch
F. Power Cord
5.3. Supplied outfit and documents
A. Aluminum Carrying Case
B. Operation Manual
C. Service Manual
D. Power Plug
E. Hand Switch (When you push hand switch in order to make radiography, it should be
pressed by two steps: step one is ready and step two is the exposure.)
6. FUNCTION OF X-RAY UNIT
6.1.PXP-40HF is designed and manufactured to gain the best radiographic results and long service
life of the x-ray tube.
6.2. kV and mAs setting method
A. Select the kV and mAs values using kV, mAs up/down switch.
B. APR (Anatomical Programming Radiography): Users can select kV and mAs values and
save them. (8 memory)
6.3.Parameter selection by the operator (kV/mA).
A. kV: The operator can adjust the kV value; the system automatically sets the maximum value
of mA producing the best radiographic results.
B. mAs: The operator can adjust the mAs value; the system automatically sets the minimum
value of kV producing the best radiographic result.
7

Product Manual: PXP-40HF Poskom Co.,
Ltd.
7. SPECIFICATIONS [Table 1. Specifications]
Output Power 2.4 kW
Voltage 100V-120V, 200V-240V
Phase & Frequency Single / 50/60 Hz
Input Power
Current Short time 30A /15A
Tube voltage current mAs
40kV ~ 50kV 35mA 0.4 ~ 100
51kV ~ 70kV 30mA 0.4 ~ 64
61kV ~ 70kV 25mA 80 ~ 100
71kV ~ 80kV 30mA 0.4 ~ 32
71kV ~ 80kV 25mA 40 ~80
81kV ~ 90kV 25mA 0.4 ~ 40
81kV ~ 90kV 20mA 50 ~ 80
91kV ~ 100kV 20mA 0.4 ~ 50
Radiography kV Range in 1kV steps
91kV ~ 100kV 16mA 64 ~ 80
MAs Range 0.4mAs – 100mAs, 25steps
Max. kV Deviation ±7 %
Max. mAs Deviation ±10 %
Indication kV (error code) /mAs: 7-segment LED
Model Name D-124 TOSHIBA
Focal Spot 1.2 mmx1.2 mm
Target Angle 16 degree
Anode Heat Storage 20 kHU
X-ray Tube
Heat Dissipation 250 HU/sec
Total Filtration 2.5 mm Al eq. @ 100kV
Tube: 0.8mmAl, Colli.: 0.5mmAl, Add Al Filt.: 1.2mmAl
Compensation for the Supply Power
Regulations
Automatic
Type Double slit type, Manual operation
Min. x-ray field size ≦5cm x 5cm @1m SID
Max. x-ray field size 35cm x 35cm @ 65cm SID
Laser Pointer Class : ⅢA 5mW
Timer Push button illuminator with 30 sec timer
Collimator with
Laser Pointer
Lamp 12V 50W Halogen

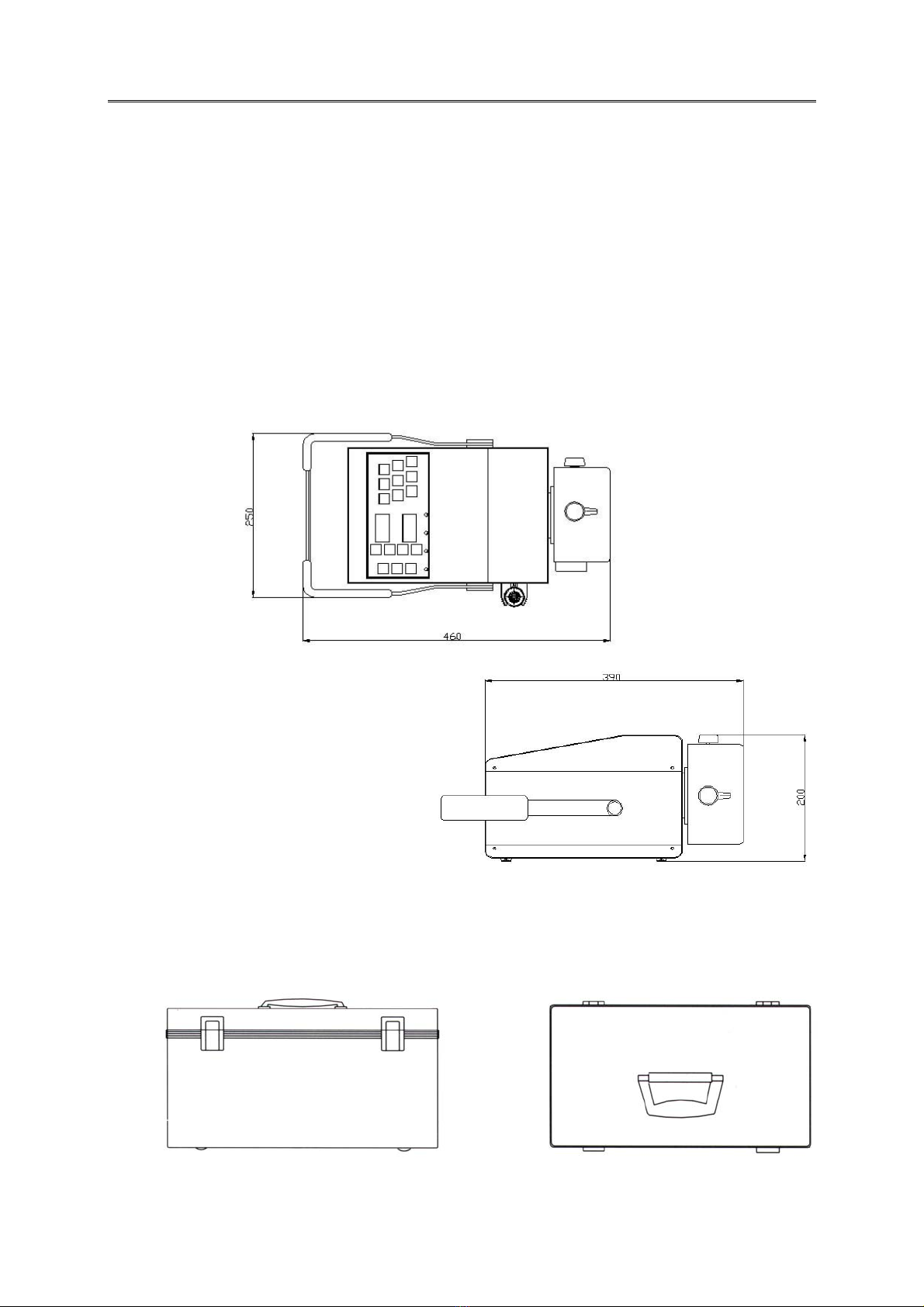

Dimension See drawing Fig- (460mmx250mmx200mm)
Weight 12.8 kg (26.4 lb.)
8

Product Manual: PXP-40HF Poskom Co.,
Ltd.
8. DISPLAY OF EACH PARTS

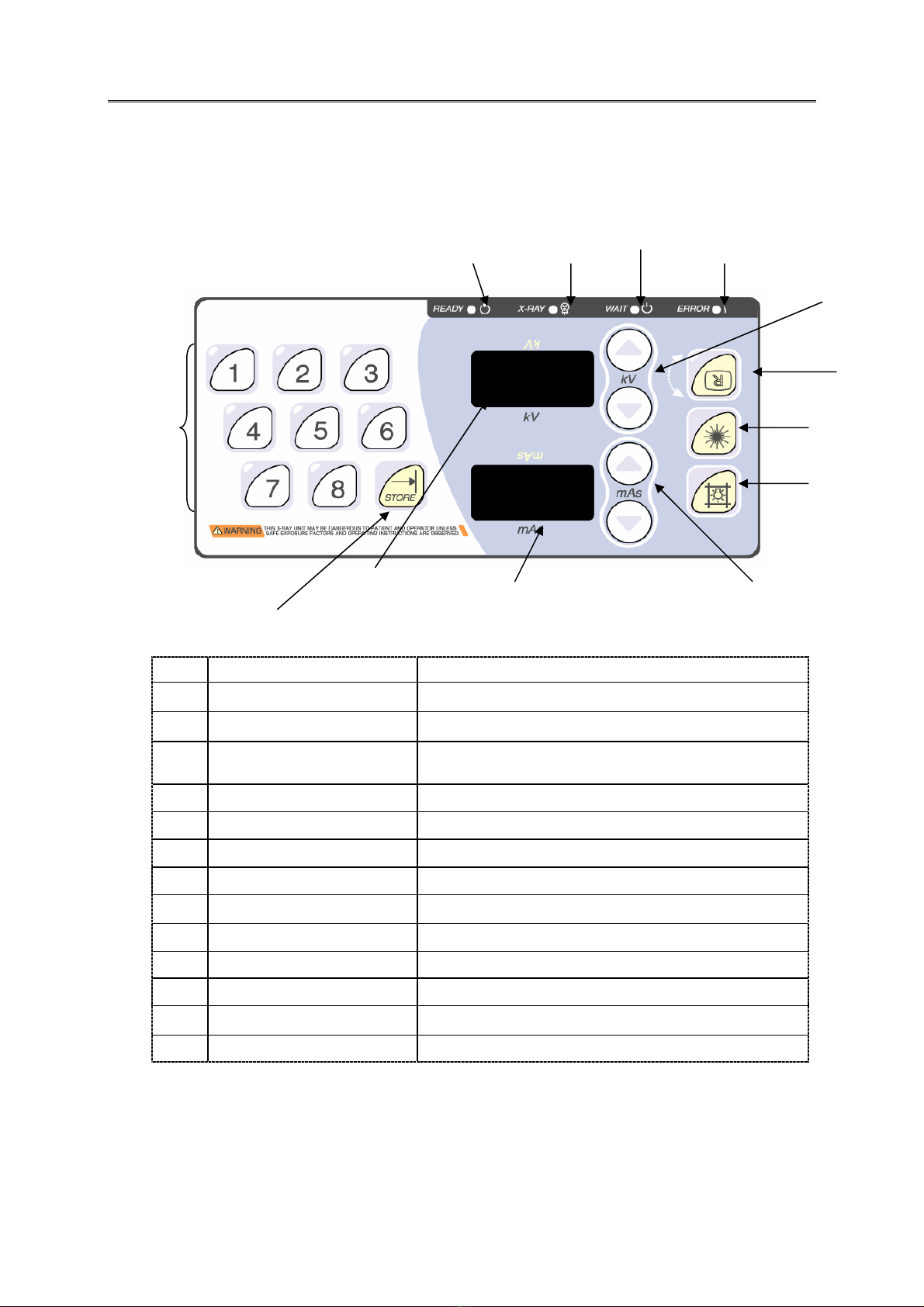

Illustraion1. Operation devices and display
3 4
5 13
6
8
10
1
12
11
2 7
9
No. Description Function
1 kV indicator Display kV value (range: 40 -100kV)
2 mAs indicator Display mAs value (range: 0.4-100mAs)
3 Ready lamp Lighted when you push the hand switch one time for
preparation
4 Exposure lamp Alert lamp during x-ray exposure
5 Wait lamp Lighted until the secondexposure started
6 kV up/down switch Select kV value by up or down buttons
7 mAs up/down switch Select mAs value by up or down buttons
8 APR Switch (1-8) Memory setting is available for 8 APR data
9 Store APR Data Save the selected APR Data
10 Display reversal switch Help to read LED value of kV, mAs reversed
11 Collimator lamp on Switch for operation of the lamp inside the collimator
12 Laser pointer To adjust exposure focus
13 Error lamp Lighted in case of system problem
9

Product Manual: PXP-40HF Poskom Co.,
Ltd.
9. OPERATION OF THE MACHINE
9.1. OPERATION PRACTICES
A. Wear a lead apron while you make exposures.
B. Stay distance at least 2 m from the unit or extend the cord of hand switch as long as possible in
order to secure enough space for your safety.
C. Use proper field size and technical values for each procedure to minimize x-ray exposure dose
and gain the best radiographic result.
D. Be careful about the decimal point on the mAs display in order to acquire intended mAs values.
E. When you make exposure to the patient on the bed, ask visitors to leave the room first and
keep appropriate distance from the patient.
F. Pay attention to the maintenance schedule of the device and keep up with it.
G. Cumulative radiation dose usually does not exceed recommended maximum levels. However, if
you make radiographic exposures using high kV and mAs quite often, the evaluation of the
specialist is needed to check whether extra protective devices are necessary for the user or not.
WARNING
Please check weather the voltage and frequency of the power supply are in
accordance with the figures written in the system labels, which attached on the
body of the machine. The levels of voltage should move within ±10% of the
nominal values.
CAUTION
The operation of the machine should not be started unless all verifications and
connections are fully prepared.
9.2. POSITIONING OF PATIENT
A. Place the loaded cassette on the patient’s backside.
B. Arrange the SID (Focal Spot to Image Receptor Distance) using a scale located on the side of
the collimator.
C. Turn on the collimator lamp and laser pointer by pushing collimator/laser on switch.
D. Adjust the size of the x-ray beam in accordance with the film size using the x-ray field
adjustment knobs. Turn off the collimator and laser pointer after 30 seconds on the timer.
10
CAUTION
For the first installation of the machine or operation after long period of non-use, it
needs to be preheated to secure long service life of the tube. Following method of
pilot test will relieve the damage on the x-ray tube. Operate the machine with low kV
values (50kV 5mAs) three times in row and execute with higher values [70kV 5mAs]
three times in row again. Then high kV values [90kV 5mAs] will be applied without
big troubles or pressures on the machine.

Product Manual: PXP-40HF Poskom Co.,
Ltd.
kV mAs
10. OPERATION MODE
kV mAs
10.1. NORMAL MODE
A. Please open the carrying case.
B. Connect power plug into the PXP-40HF device.

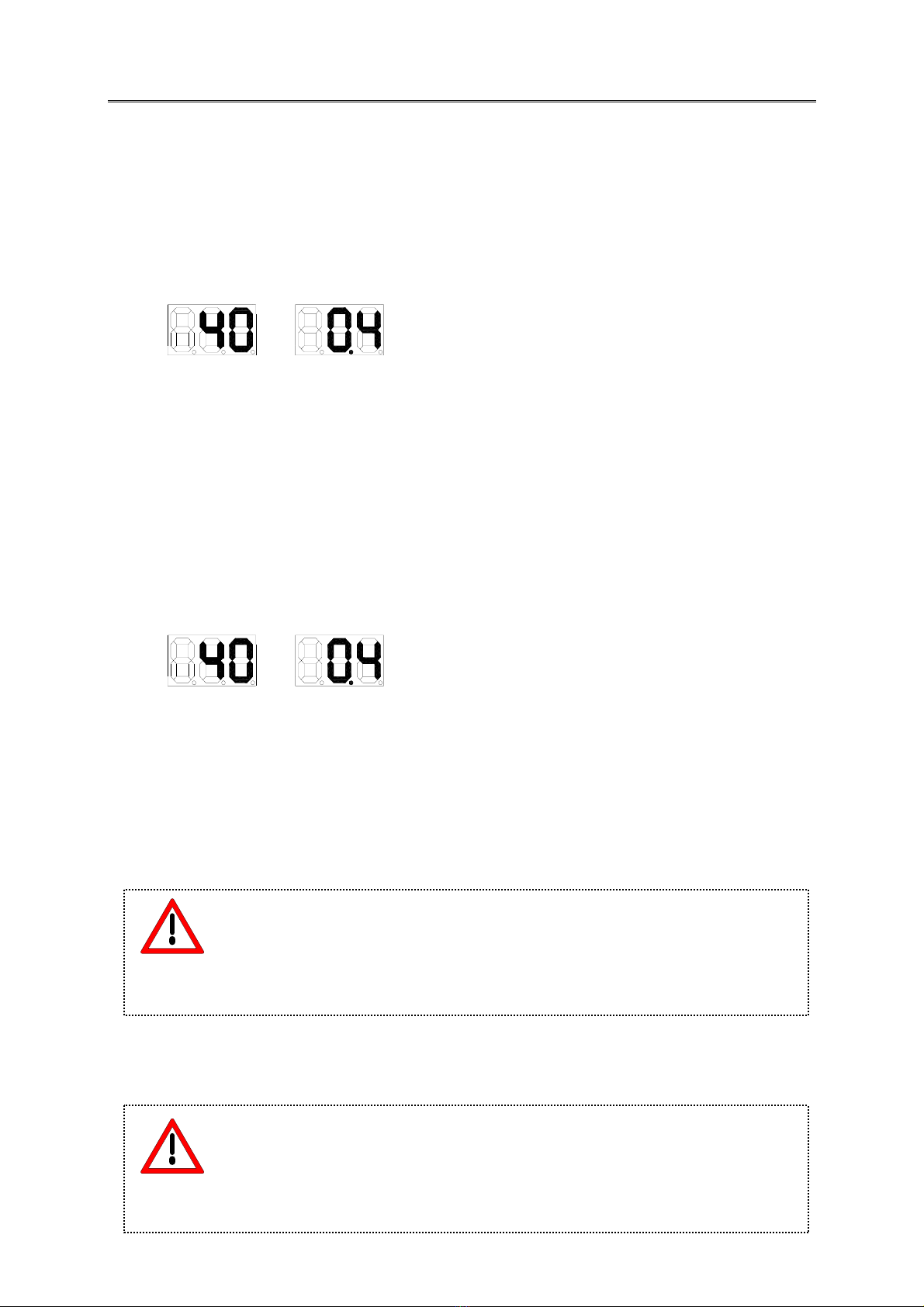

C. Turn on the line switch and the display will be shown up as follows.
D. Select the kV values using the [6] kV up/down switch.
E. Select the mAs values using the [7] mAs up/down switch.
F. Positioning the machine at the ready condition by one time pushing of the hand switch.
G. When the [3] ready LED lighted, press the hand switch again and make exposure. During the x-
ray exposure, x-ray LED will be lighted on.
H. After the exposure is ended, [5] “wait LED” sign will be lighted on and off for the waiting time.
10.2. APR MODE
A. Please open the carrying case.
B. Connect power plug into the PXP-40HF device.
C. Turn on the line switch and the display will be shown up as follows.
D. Select the [8] APR switch out of 1~8.
E. Select the kV values using the [6] kV up/down switch.
F. Select the mAs values using the [7] mAs up/down switch.
G. Save the selected kV and mAs figures with pushing the [9] “store” button.
H. When the [3] ready LED sign appears, press the hand switch again and make exposure.
During the x-ray exposure, the [4] X-ray LED will be lighted on.
I. After the exposure is ended, [5] “wait LED” will be lighted on and off for the waiting time.
NOTE
As it was illustrated in the front pages, the exposure switch should be pressed by
two steps. However, you can make immediate exposure in case the filament of the
tube is hot enough.
11
CAUTION
If you want to make exposures several times in row, wait until the [5] wait lamp is
lighted off. If the number of consecutive exposure exceeds three times (at higher
than 50mAs), wait for 3 minutes in order to prevent overheating of the machine.

Product Manual: PXP-40HF Poskom Co.,
Ltd.
11. REMOTE CONTROL FUCTION & OPERATION
11.1. INTRODUCTION
Currently, mAs, kVp and Pre-set memory techniques (Prom memory) can be selected by the operator
by depressing push buttons or by scrolling displays on a control panel. Each technique or mode
selection depends on an anatomic region or view for radiographic examination. The collimator lamp
and laser pointer is turned “on” by the lamp push-button and turned “off” by a 30 second collimator
timer run off.
Many portable operators and field users have suggested we find a better way to select an exposure
technique and parameters along with mAs, kVp and pre-set Prom memory values. Most field operators
hold portable X-Ray units with one hand, while holding the exposure hand switch with the other hand.
This makes selecting technique factors on the control panel awkward without dropping the portable
unit or hand switch. We have modified our X-ray portable software and functions of the Prep. and
Exposure hand switch to allow selection of all exposure parameters (mAs & kVp) and control of the
collimator lamp and laser beam.
The exposure hand switch consists of a two step hand switch. The first (1) stage of the hand switch is
called the “Preparation (Prep. or Ready)” stage. The second (2) stage of the hand switch is called the
“Exposure (Exp or X-Ray out)“ stage. (See drawing 1.)
All functions of the remote control described above are executed by clicking the first stage on the hand
switch which is the “Prep.” mode of operation. Each remote control function and technique value
selection is described below.
(Drawing 1) 1st stage switch = Prep. Switch
2nd stage switch = Exp. Switch
Hand switch housing
11.2. REMOTE CONTROL MODE
12

Product Manual: PXP-40HF Poskom Co.,
Ltd.
The kVp and mAs setting, memory selection and collimator lamp and laser pointer illumination
functions are controlled remotely by the hand switch by pressing the “Prep.” stage push-button as
follows:
<TRIPLE CLICK>
ATTENTION
Click the “Prep.” hand switch three (3) times consecutively. This will allow you
to enter in the “remote hand control” menu mode for operation.
11.3. MEMORY SELELCTION
When you click the PREP stage hand switch quickly three (3) times, the Pre-set Memory station LED
(PXP-20HF: 1-4 / PXP-40HF & 60HF: 1-8) will blink sequentially as well as the kVp and mAs LED
readouts. Make a single (1) click with the hand switch when the desired pre-set memory station lamp
begins to blink. This will cause the pre-set memory data to be selected and displayed in the control
LCD window.
NOTE
All pre-set memory data should be entered and stored at each memory station (PXP-20HF: 1-4 /
PXP-60HF: 1-8), prior to performing the above mode of operation.
11.4. kVp SELELCTION
One (1) click of the “Prep” switch will cause the kVp LED readout to blink. You will now be in the kVp
selection menu mode. The kVp values increase by one (1) kVp unit per click of the “Prep.” switch. If
you depress and hold the prep switch for a few second, the kVp readout will increases rapidly up to
the maximum value (PXP-20HF: 90kVp / PXP-40HF & 60HF: 100kVp). The kVp readout will circulate
from lowest to highest values as long as you hold and press the button. When the desired kV readout
appears on the control display panel, release the prep hand switch and wait for a few seconds. The
kVp value will set up automatically.
13

Product Manual: PXP-40HF Poskom Co.,
Ltd.
11.5. mAs SELECTION he kVp selection mode. Click the “Prep” hand switch once to make the
1.6. COLLIMATOR / LASER BEAM TURNED ON
K> chnique (mAs & kVp) set with your remote hand switch, you are ready to make a
1.7. X-RAY EXPOSURE
fter the x-ray exposure technique is selected and collimator light beam size is adjusted with the
mAs selection is similar to t
mAs LED readout blink. You will be in the mAs selection menu mode. The mAs value will increase with
each click of the “Prep” switch (0.4mAs to the maximum mAs of each portable x-ray unit). If you wish
to increase the mAs value quickly, simply hold the “Prep” switch down one stage. (PX-20HF: 50mAs /
PXP-40HF & 60HF: 100mAs). The mAs readout will circulate as long as you hold the “Prep” switch.
When the desired mAs readout appears on the control display panel, release the prep hand switch
and wait for a few seconds. Then mAs value will set automatically.
1
ATTENTION p. hand switch rapidly twice. The collimator lamp and laserClick the Pre
pointer beam will illuminate for X-ray exposure positioning.
<DOUBLE CLIC
With the exposure te
radiographic exposure for examination. It is very important to position the right region of interest on a
patient’s anatomy. Therefore, the collimator beam must be turned on to confirm the size of region and
size of film covered. The laser beam must also be turned on for checking the precise center of the
target prior to making a final X-ray exposure. When the Prep switch is rapidly clicked twice, the
collimator lamp and laser beam will turn on simultaneously until the lamp timer (30 seconds) runs off.
However, it will turn off automatically when x-ray exposure sequence is completed.
1
A
WARNING ray exposure is made in a room or outdoors, lower radiation will scatter throughout the d
When an X-
surrounding area.An authorized operator is expected to take precautions and is highly recommende
to ware a lead apron and gloves if necessary for your patient’s and your own protection.
collimator blade knob, an x-ray exposure can be made by an authorized individual of the medical clinic
or hospital.
X-RAY EXPOSURE SEQUENCE: tage) and hold will be
A. Press the Prep hand switch (1st s
B. Press down the 2nd stage hand switch. Exposure
made automatically by the exposure timer.
14

Product Manual: PXP-40HF Poskom Co.,
Ltd.
< 1ST STAGE> <2ND STAGE>
1.8. REMOTE CONTROL OVERRIDE 1
NOTE TO THE USER ned remote control hand switch functions and operations can also beAll of the before mentio
accomplished via the one-touch control panel. All exposure functions and parameters can be
Overridden through the main control panel prior to final exposure. (See user’s manual for
directions on how to use the main control panel)
15

Product Manual: PXP-40HF Poskom Co.,
Ltd.
Illustration 2. Dimension (Main Unit & Carrying Case)
) PXP-40HF
) CARRYING CASE (ALUMINUM)
1
2
16

Product Manual: PXP-40HF Poskom Co.,
Ltd.
17

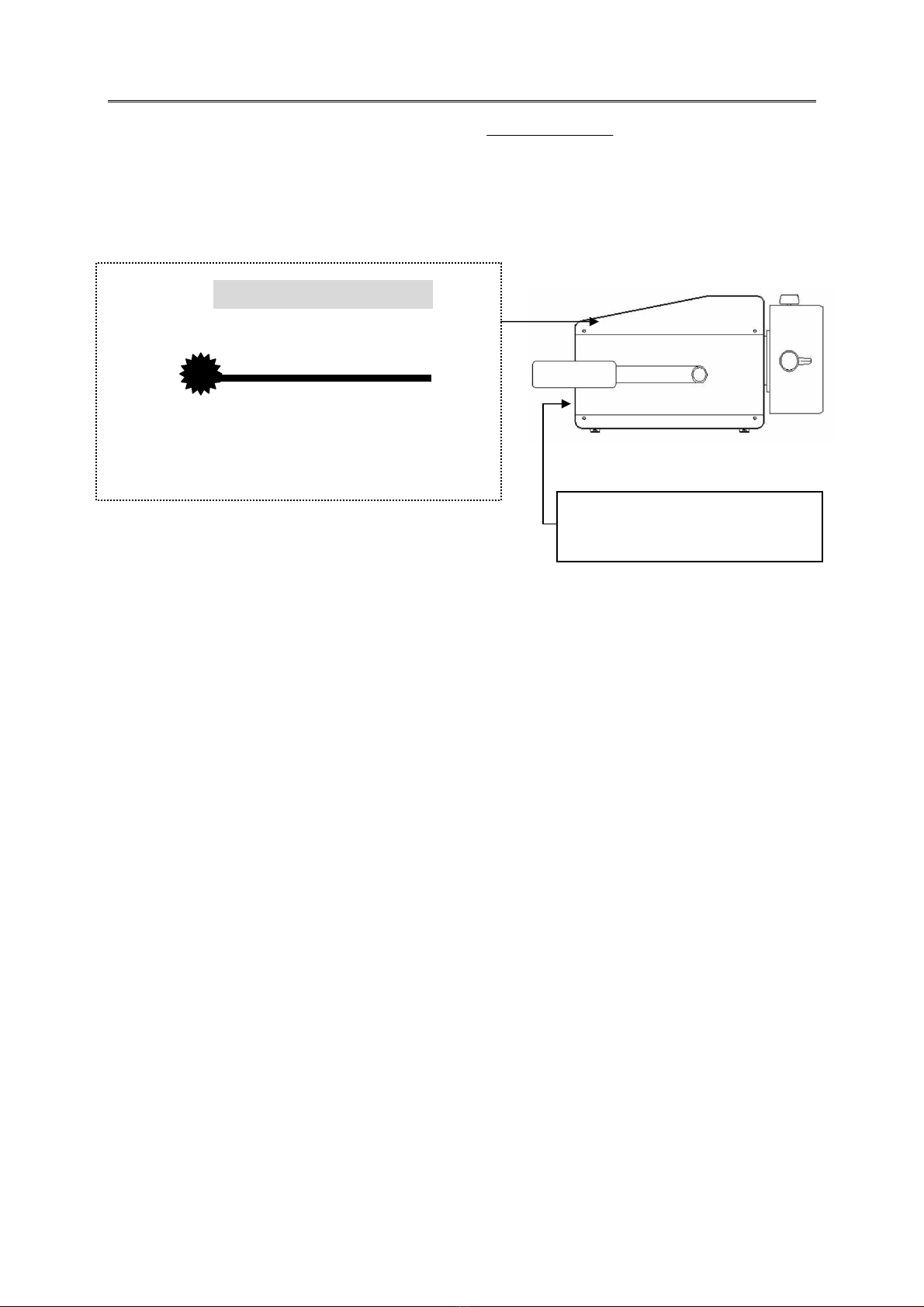

Illustration 3. Labels bel sticker and location
utput: 2.4 kVA
itech Ville Bldg., 1141-2, Baeksuk-dong,
zard do not remove cover
PXP-40HF Portable la
High Voltage Tank
MODEL: HV-40
SER.NO: XXXXXX
Rating: Max. 100kV, 35mA, Max o
POSKOM
Room 405, Un
Ilsan-gu, Goyang, Korea
Warning: Electric shock ha
Reserve Servicing to qualified personnel.
Warning: This X-ray unit maybe dangerous to patient and operator
DIAGNOSTIC X-RAY UNIT
50/60 Hz
een 3 exposure: 3 min
ong,
of
MODEL: PXP-40HF ATE:SER. NO.: D
Input Rating: AC220~240V,
Rating: X-ray Tube Voltage: 40~100kV
X-ray current: 20~35mA
Operati betwon condition: Time interval
(When the mAs is higher than 50)
Filtration: Total filtration: Min 2.5 mmAl mmAlTube: 0.8 mmAl, collimator, 0.5 mmAl, Al Filt.: 1.2
X-ray tube (TOSHIBA), Model: D-124, Serial no.: mFocalspot:1.2mmX1.2m
POSKOM itech Ville Bldg., 1141-2, Baeksuk-dRoom 405, Un
Ilsan-gu, Goyang, Korea s to prevent the possibilityTake adequate Precaution
any persons carelessly exposing themselves or others to
radiation.
Beam Limiting Device (Collimator)
ow 5cm x 5 cm at SID 100cm
MODEL: PCMAX-100
SER.NO: XXXXXXX
Input Rating: 12V, 50W
Min. X-ray field size: Bel
Max. X-ray field size: Below 35cm x 35cm at SID 65cm
Max. Tube Voltage: 100kV, Inherent filtration: 0.5 mmAl
POSKOM itech Ville Bldg., 1141-2, Baeksuk-dong,Room 405, Un
Ilsan-gu, Goyang, Korea
unless safe exposure factors and operation instruction are observed

Product Manual: PXP-40HF Poskom Co.,
Ltd.
DANGER
D
La t
This device com b J Regulation
Veterinary Use only
LASER LIGHT BEAM
O NOT STARE INTO BEAM
Wavelength: 650 nm
Output Power: 5mW
ser Class: III A Produc
plies with 21 CFR CH.I Su
18

Product Manual: PXP-40HF Poskom Co.,
Ltd.
12. TECHNIQUE CHART FOR SMALL ANIMALS
100 cm (40 Inch) SID, GRID: 103 lines / 6:1 ratio
[Table2.Chartforsmallanimals]
Film/Screen: Fuji RX-U/ Rare earth
Thickness (cm) Skull / Pelvis/ Extrim kVp /(mAs) Thorax kVp / (mAs) Abdomen kVp / (mAs)
2-3 No grid : 50 / (0.4)
4-5 No grid : 54 / (0.4)
6-7 No grid : 54 /(0.5) No grid: 66 / (0.4) o grid : 60 / (0.6)N
8-9 No grid : 60 /( 0.6) No grid: 70 / (0.4) No grid : 60 / (0.8)
10-11 66 / (1.6) No grid: 74 / (0.4) No grid : 60 / ( 1.0)
12-13 70 / (1.6) 78 / (0.8) 64 / (2.0)
14-15 72 / (1.6) 80 / (0.8) 68 / (2.5)
16-17 72 / (2.0) 86 / (0.8) 68 / (2.5)
18-19 74 / (2.4) 90 / (0.8) 70 / (3.2)
20-21 76 / (2.4) 90 / (1.2) 74 / (3.2)
22-23 80 / (2.4) 96 / (1.2) 80 / (4.0)
NOTE nts in the table are recommended for starting radiographic techniques. rs. Please follow
se in thickness of body section.
The conte
The final radiography of proper image density and resolution depends on many facto
the next adjustment and common rules if necessary.
1. Add or subtract 2 kVp for 1 cm increase or decrea
2. If films are too dark, decrease mAs value on the next lower station.
3. If films are too light, increase mAs value on the next higher station
19

Product Manual: PXP-40HF Poskom Co.,
Ltd.
3. EQUINE CHART
6 cm (26 Inch) Distance / Screen [Table3.EquineChart]
1
6
400 Speed Rare Earth Film
High Contrast Mid-ContrastANATOMY VIEW
kV As kVm mAs
AP 66 1.2 72 0.8
LAT 66 1.0 72 0.6
NAVICULAR
P3 62 0.8 - -
AP 66 1.2 72 0.8FETLOCK
66LAT 1.0 72 0.6
AP/FLEX 66 1.2 72 0.8KNEE
LAT/OBI 66 1.0 72 0.6
SPLINT BONE LAT 58 0.8 68 0.6
AP/HIGH 66 1.6 72 1.0
AP/LOW 66 1.2 72 0.8
HOCK
LAT 66 1.0 72 0.6
LAT - - 78 2.0STIFLE
PA - - 78 4.0
AP - - 78 2.0ELBOW
EROTH - - 78 1.2
ALTERNATIVE TECHNIQUES
LAT tance 78 1.245 cm disSTIFLE
PA 45 cm distance 78 2.5
AP 65 cm distance 68 2.5NAVICULAR
LAT 65 cm distance 68 2.0
FOAL 85 cm distance 90 0.8
300LBS 85 cm distance 100 1.2
CHEST
500LBS 85 cm distance 100 4.0
SINUS LAT 85 cm distance 88 1.2
LAT 75 cm distance 86 3.2SHOULDER
OBI 75 cm distance 86 4.0
20
