Power Wheels V3298 TOT ROD Toy Story 3 Datasheet

Owner's Manual
with Assembly Instructions
For Model V3298
Product features may vary from the picture above.
Please read this manual and save it
with your original sales receipt.
Tools needed for assembly: Phillips
Screwdriver, Slotted Screwdriver and
Hammer (all not included).
Use only with a Power Wheels®6 Volt
(4.0 Amp/Hr.) Rechargeable Battery
with Built-in Thermal Fuse and
a Power Wheels®6 Volt (4.0 Amp/Hr.)
Charger (both included).

2
V3298pr-0920
• Prevent Injuries and Deaths
• Direct Adult Supervision Required.
• Never Ride At Night.
• Keep Children Within Safe Riding Areas.
These areas must be:
- Away from swimming pools and other bodies of water to prevent drownings.
- Generally level to prevent tipovers
- Away from steps, steep inclines, cars, roads and alleys.
• Riding Rules
Make sure children know and follow these rules for safe driving and riding.
- Always sit on the seat.
- Always wear shoes.
- Only 1 (one) rider at a time.
RIDING HAZARD
ELECTRICAL HAZARD
• Battery can fall out and injure a child if vehicle tips over. Always use battery retainer.
• PREVENT FIRE
- Never modify the electrical system. Alterations could cause a re resulting in
serious injury and could also ruin the electrical system.
- Use of the wrong type battery or charger could cause a re or explosion resulting
in serious injury.
- Use of Power Wheels®components in products other than Power Wheels®
vehicles could cause overheating, re or explosion.
• The battery must be handled by adults only. The battery is heavy and contains
sulfuric acid (electrolyte). Dropping the battery could result in serious injury.
• Never allow children to charge the battery. Battery charging must be done by adults
only. A child could be injured by the electricity involved in charging the battery.
• Never lift or carry the battery by the wires or connector. This can damage the
battery and possibly cause a re resulting in serious injury. Lift and carry the
battery by the case only.
• Read the safety instructions on the battery.
• Examine the battery, charger and their connectors for excessive wear or damage
each time you charge the battery. If damage or excessive wear is detected, do not
use the charger or the battery until you have replaced the worn or damaged part.
• HOT motors. Handle carefully.
To prevent electric shock, do not immerse in water; wipe clean with a damp cloth.•
DANGER
WARNING
WARNING
IMPORTANT INFORMATION

V3298pr-0920
3
IMPORTANT INFORMATION
Read this manual carefully for important safety•
information and operating instructions before using
your vehicle. Keep this manual for future reference,
as it contains important information.
The vehicle is designed for use on grass, asphalt,•
and other hard surfaces; on generally level terrain;
and by children 12-36 months of age and older.
Do not exceed the maximum weight capacity of
40 lbs (18 kg).
Your new vehicle requires adult assembly. Please set•
aside at least 30 minutes for assembly.
Use this vehicle• ONLY outdoors. Most interior flooring
can be damaged by riding this vehicle indoors.
Fisher-Price®will not be responsible for damage to the
floor if the vehicle is used indoors.
You must charge your battery for 18-30 hours•
before you use your vehicle for the first time. We
recommend charging your battery before beginning
assembly. Please see the Battery Charging section for
detailed instructions.
The battery charger is not a toy.•
Do not short circuit the battery.•
Adults Note:• Regularly examine the charger for
damage to the cord, plug, housing or other parts that
may result in the risk of fire, electric shock or injury.
In the event of any damage, do not use the charger
until the damage has been properly repaired.
Your Power Wheels• ®6 volt battery is equipped
with a built-in thermal fuse. The thermal fuse is
a self-resetting safety device which automatically
“trips” and shuts down operation of the vehicle if the
vehicle is overloaded or the driving conditions too
severe. Once a fuse has “tripped”, remove your foot
from the pedal and wait approximately 25 seconds
before operating the vehicle again. To avoid repeated
automatic shut-downs, avoid severe driving conditions.
If a thermal fuse in a battery continually trips under•
normal driving conditions, please contact your local
Power Wheels®Authorized Service Center.
To prevent damaging the motors and gears, teach your•
child to stop the vehicle before switching direction.
If you have any questions about your Power Wheels• ®
vehicle, please call our toll-free service lines at
1-800-348-0751. Trained customer service
representatives are available to take your call in
English or French. Habla Español? Si usted tiene
alguna pregunta ó necesita asistencia llame gratis
1-800-348-0755 para los Estados Unidos. Tenemos
representantes que hablan español para atender
su llamada.
For your convenience, Power Wheels• ®maintains
an independently owned and operated Authorized
Service Center Network with more than 300 authorized
service centers nationwide. Our authorized service
centers will repair or replace parts under warranty at
no extra charge, and can perform non-warranty repairs
for a minimal charge. To find the authorized service
center nearest you, please visit us on-line at
www.powerwheels.com or call 1-800-348-0751.
Please visit us online to register your vehicle.•

4
V3298pr-0920
• If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than
return this product to the store.
• Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that
no parts are discarded.
• Metal parts have been coated with a lubricant to protect them during shipment. Wipe all metal parts with a paper
towel to remove any excess lubricant.
Not Shown: Label Sheet
Seat
Steering Wheel Cap
Handle
Vehicle Steering
Wheel
6 Volt (4.0 Amp/Hr.)
Charger
6 Volt (4.0 Amp/Hr.)
Battery
Key
Dash
Steering Column
Assembly Tool
Steering Column Cover
PARTS
Both Shown Actual Size
Lock Nut – 2
#8 x ¾" Screw - 2
Turn Signal

V3298pr-0920
5

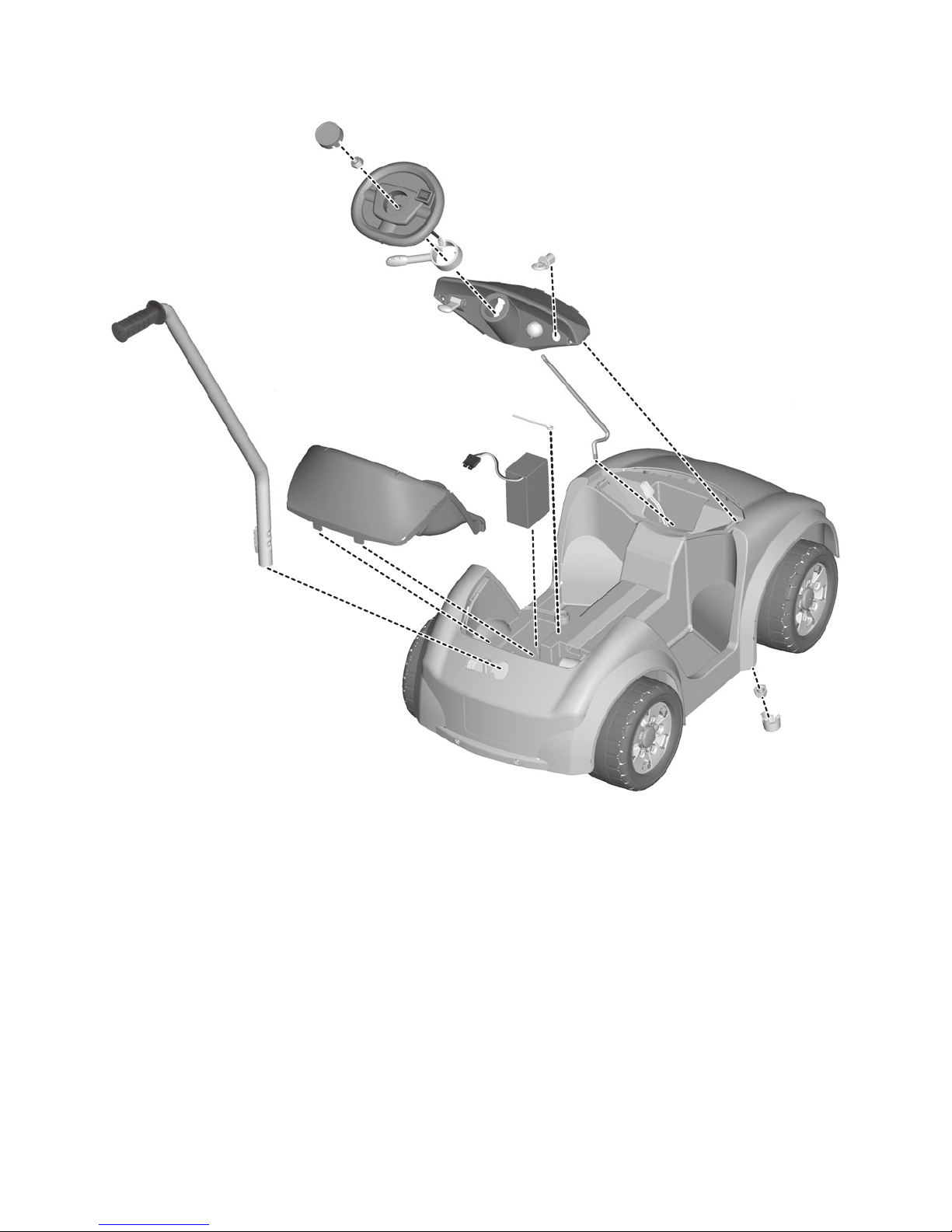

PARTS PICTURE
Note: Fasteners not shown.

6
V3298pr-0920
Use the charger in dry locations only.
ELECTRICAL HAZARD
Make sure you charge the battery for at least 18 hours•
using the enclosed Power Wheels®6 volt charger
before operating your vehicle for the first time. Charge
the battery for at least 14 hours after each use of the
vehicle. Never charge the battery longer than 30 hours.
Failure to follow these instructions may damage your
battery and will void your warranty.
Use only a Power Wheels• ®6 volt charger with “6V”
connector (input 120 VAC, 60Hz, with an output of
6 VDC) to charge your Power Wheels®6 volt battery.
BATTERY CHARGING
• Battery can fall out and injure a child
if vehicle tips over. Always use
battery retainer.
• PREVENT FIRE
- Never modify the electrical system.
Alterations could cause a re
resulting in serious injury and could
also ruin the electrical system.
- Use of the wrong type battery
or charger could cause a re or
explosion resulting in serious injury.
- Use of Power Wheels®components
in products other than Power Wheels®
vehicles could cause overheating,
re or explosion.
• The battery must be handled by
adults only. The battery is heavy and
contains sulfuric acid (electrolyte).
Dropping the battery could result in
serious injury.
• Never allow children to charge the
battery. Battery charging must be done
by adults only. A child could be injured
by the electricity involved in charging
the battery.
• Never lift or carry the battery by the
wires or connector. This can damage
the battery and possibly cause a re
resulting in serious injury. Lift and
carry the battery by the case only.
• Read the safety instructions on
the battery.
• Examine the battery, charger and
their connectors for excessive wear
or damage
each time you charge the
battery. If damage
or excessive wear
is detected,
do not use the charger or
the battery until you have replaced the
worn or damaged part.
WARNING
CAUTION
Battery must be upright
while charging.
Plug the charger connector into the battery socket.•
Plug the charger into a standard wall outlet.•
Notes:
- If power flow to the wall outlet is controlled by
a switch, make sure the switch is “ON”.
- Use the charger only in a wall outlet. Do not plug the
charger into a ceiling outlet.
Once the battery is charged, disconnect the battery•
connector from the charger connector. Unplug the
charger from the wall outlet. Refer to the Battery
Installation section for instructions on installing
your battery. If your battery is already installed in
your vehicle, simply re-connect the motor harness
connector to the battery.
You do not need to remove the battery from your•
vehicle to recharge it.
Before charging the battery, examine the battery case•
for cracks and other damage which may cause sulfuric
acid (electrolyte) to leak during the charging process.
If damage is detected, do not charge the battery or use
it in your vehicle. Battery acid is very corrosive and
can cause severe damage to surfaces it contacts.
Do not place the battery on a surface (such as kitchen•
counter tops) which could be damaged by the acid
contained inside the battery. Take precautions to
protect the surface on which you place your battery.
Charge the battery in a well ventilated area.•

V3298pr-0920
7
• Insert and “snap” the key into the dash.
Children can be harmed by small
parts, sharp edges and sharp points
in the vehicle’s unassembled state,
or by electrical items. Care should be
taken in unpacking and assembly of
the vehicle. Children should not handle
parts, including the battery, or help in
assembly of the vehicle.
Dash
Key
1
ASSEMBLY
WARNING
SIDE VIEW
• Locate the wire connector inside the front end of
the vehicle.
• While feeding the wire connector through the hole in
the dash, fit the tabs on the dash onto the front end of
the vehicle.
Dash
Wire Connector
2

8
V3298pr-0920
Bottom View
Pull
• Turn the vehicle over.
• Remove the protective caps from the ends of the
steering column and throw them away.
• Fit the straight end of the steering column down
through the hole in the dash.
Steering Column
• Insert two #8 x ¾" screws straight into the dash,
as shown. Tighten the screws.
Hint: If the screw holes in the dash do not align with the
vehicle, place a finger in the steering wheel opening in
the dash. Pull the dash toward the back of the vehicle to
reposition it.
ASSEMBLY
DASH VIEW
3
4
• Fit the end of the steering column through the hole in
the steering linkage.
• Fit a lock nut onto the end of the steering column.
• Tighten the lock nut with the assembly tool.
Steering Column Cover
• Place the steering column cover over the lock nut and
push to "snap" it into the steering linkage.
• Turn the vehicle upright.
Lock Nut
End of Steering
Column
Steering Linkage
5
6

V3298pr-0920
9
Steering
Column
DASH VIEW
Steering Wheel
Wire with Connector
Turn Signal
• Position the turn signal with the hollow side down.
• Fit the wire with connector on the end of the steering
wheel through the center of the turn signal.
• Fit the turn signal onto the steering wheel.
• Plug the motor harness connector from the vehicle
into the steering wheel connector.
• While carefully feeding the wire down into the dash, fit
the steering wheel onto the end of the steering column.
Motor Harness
Connector
Steering Wheel
Connector
ASSEMBLY
7
8
9
• Fit the remaining lock nut onto the end of the
steering column.
• Tighten the lock nut with the assembly tool.
Lock Nut
• “Snap” the steering wheel cap into the center of the
steering wheel.
Steering
Wheel Cap
End of Steering Column
10
11

10
V3298pr-0920
• First, “snap” the front of the seat to the vehicle A.
• Next, “snap” the four tabs near the back of the seat
into the matching slots in the vehicle B.
B
A
• Using a slotted screwdriver, turn both lock fasteners ¼
turn to the locked position .
LOCKED UNLOCKED
ASSEMBLY
12
13
SIDE VIEW
Handle
Latch
Note: Be sure the end of the handle is clean and free
from debris before inserting.
• Make sure the front wheels are not turned.
• Locate the latch on the back end of the vehicle.
• Press the tab and slide the latch to open.
• Insert the handle, as shown, and release the tab.
IMPORTANT! If the latch closes, the handle is properly
inserted. If it does not, remove the handle and repeat
this step.
14

V3298pr-0920
11
1
11
9 8
14 13
10
BACK VIEW
FRONT VIEW
DECORATION
Wipe the vehicle with a clean, dry•
cloth to remove any oils before
applying labels.
Apply labels exactly as shown in•
the illustrations. For best results,
avoid repositioning the label after
it has been applied.
Starting at the center of a label•
rub firmly with a dry cloth,
and smooth towards the outer
edges to remove air bubbles.
3
15
6 7
2
12 19
18
5
4
17
LEFT VIEW
16
RIGHT VIEW

12
V3298pr-0920
• Remove the #8-18 x ⅞" screw from the battery
retainer. Lift to remove the battery retainer from
the vehicle.
• Place the Power Wheels®6 Volt (4.0 Amp/Hr.) battery
in the battery compartment. Make sure the battery
connector extends toward the rear of the vehicle.
• Replace the battery retainer over the battery. Insert the
#8-18 x ⅞" screw through the battery retainer and into
the vehicle. Tighten the screw.
• Locate the lock fasteners on the front edge of the seat.
• Using a slotted screwdriver, turn both lock fasteners ¼
turn to the unlocked position .
• Grasp under the front of the seat and lift firmly to
remove it.
Battery Connector
Battery Retainer
• Plug the battery connector into the motor
harness connector.
Note: If the battery connector will not plug into the
motor harness connector, turn it over and try again!
Do not force the battery connector into the motor
harness connector.
• Re-assemble the seat to the vehicle. Using a slotted
screwdiver, turn the lock fastener ¼turn to the locked
position .
IMPORTANT! Always remember to keep the lock
fasteners locked at all times to prevent children from
accessing the battery.
IMPORTANT! Use only a Power Wheels®6 volt
(4.0 Amp/Hr) rechargeable battery. Use of any other
battery will damage your vehicle.
BATTERY INSTALLATION
1
3
2
4
LOCKED UNLOCKED

V3298pr-0920
13
Your Power Wheels• ®battery is a non-spillable sealed
lead-acid battery. It must be recycled or disposed of in
an environmentally sound manner.
Do not dispose of a lead-acid battery in a fire. The•
battery may explode or leak.
Do not dispose of a lead-acid battery in your regular,•
household trash. The incineration, landfilling or mixing
of sealed lead-acid batteries with household trash is
prohibited by law in most areas.
Protect the environment by not disposing of this•
product with household waste (2002/96/EC). Check
your local authority for recycling advice and facilities
(Europe only).
Return an exhausted battery to a federal or state approved•
lead-acid battery recycler, such as a Power Wheels®
authorized service center or a local seller of
automotive batteries. For the authorized service
center location nearest to you, please visit us on-line
at www.powerwheels.com or call 1-800-348-0751.
Contact your local waste management officials for
other information regarding the environmentally
sound collection, recycling and disposal of lead-acid
batteries. If you live in the State of Florida or the State
of Minnesota, it is prohibited by law for anyone to
throw away lead-acid batteries in the municipal
waste stream.
If a battery leak develops, avoid contact with the
leaking acid and place the damaged battery in a plastic
bag. See next section for proper disposal.
If acid comes in contact with skin or eyes, flush with
cool water for at least 15 minutes and call a physician.
If acid is internally ingested, give water, milk of
magnesia or egg whites immediately. Never give emetics
or induce vomiting. Call a physician.
Do not allow the battery to run down completely•
before charging.
Charge the battery before storing the vehicle, and at•
least once per month, even if the vehicle has not
been used.
Charge the battery after each use, regardless of how•
long the vehicle was used.
Leaving the battery in a discharged condition will•
ruin it.
Always remove an exhausted battery from the vehicle.•
Battery leakage and corrosion can damage the vehicle.
Do not store the battery in temperatures above 75° F•
or below -10° F.
BATTERY DISPOSAL
Check all screws and their protective coverings•
regularly and tighten as required. Check plastic parts
on a regular basis for cracks or broken pieces.
During snowy or rainy weather, the vehicle should be•
stored inside or under a protective cover.
Avoid operating the vehicle in wet or snowy•
conditions, and do not spray the vehicle with a hose.
Water or moisture in the motors or electrical switches
can cause them to corrode, and could cause switch or
motor failure.
Avoid operating the vehicle on sand, loose dirt or•
gravel. Sand, loose dirt or gravel in the motors or
electrical switches can cause them to jam, and could
cause switch or motor failure.
The vehicle can be wiped down with a soft, dry cloth.•
For a shiny fi nish, you can wipe plastic parts with
a non-wax furniture polish applied to a soft cloth.
Do not use automotive wax. Do not use soap and
water or spray the vehicle with a hose.
To ensure your vehicle stays in good operating order,•
we recommend you periodically have your vehicle
checked by a Power Wheels®authorized service center.
BATTERY CARE VEHICLE CARE

14
V3298pr-0920
RIDING HAZARD
• Prevent Injuries and Deaths
• Direct Adult Supervision Required.
• Never Ride At Night.
• Keep Children Within Safe
Riding Areas.
These areas must be:
- away from swimming pools
and other bodies of water to
prevent drownings
- generally level to prevent tipovers
- away from steps, steep inclines,
cars, roads and alleys.
• Riding Rules
Make sure children know and
follow these rules for safe driving
and riding.
- Always sit on the seat.
- Always wear shoes.
- Only 1 (one) rider at a time.
Before children use this vehicle, an adult should
carefully evaluate the driving area as well as the child’s
skill level and ability to drive the vehicle safely. Teach
appropriate safety rules to your child before allowing
operation of this vehicle. These rules should also be
reviewed with other playmates who want to drive
the vehicle.
A child who is not sitting on the seat could fall off,•
cause a tip over or block the driver’s view.
Only operate the vehicle in the daytime in a well-lit area.•
Driving near steep inclines can cause:•
- The vehicle to gain unsafe speed, even if the pedal is
released to stop.
- The vehicle to tilt and tip over
- The wheels to lose traction, causing the vehicle
to slip.
- The vehicle could roll backwards at an unsafe speed.
Never put anything near any moving parts. Rotating•
parts, such as motors, gear boxes and wheels,
can snag fingers, hair, etc., causing serious injury.
Do not allow operation of the vehicle when it is on its•
side or in an upside-down position.
Do not operate the vehicle near flammable vapors•
(gasoline, paint thinner, acetone, liquid wax, etc.).
The vehicle’s electrical switches, like most electrical
switches, emit an internal spark when first turned on
or turned off, which could cause an explosion or fire.
To prevent unsupervised use of the vehicle, disconnect•
the motor harness from the battery when the vehicle is
not in use.
SAFE DRIVING RULES
WARNING
Use vehicle on generally level ground ONLY!

V3298pr-0920
15
• Press the drive button on the steering wheel. The
vehicle drives forward at a maximum speed of 2 mph.
• Help your child practice steering to learn how far and
how quickly to turn the steering wheel when driving.
• To stop, release the drive button.
• Make sure your child is comfortable with steering the
vehicle and automatically knows how to stop.
Stage 1 - Parent Assisted Driving Stage 2 - Child Driver
Handle
Latch
Note: Be sure the end of the handle is clean and free
from debris before reinserting.
• Make sure the front wheels are not turned.
• Locate the latch next to the steering handle.
• Press the tab and slide the latch open.
• Lift and remove the handle from the vehicle, and release
the tab.
• Store the handle for future use.
PRESS
VEHICLE OPERATION
Make sure the handle is installed (see Assembly•
step 17).
Grasp the handle to assist your child.•
Have you child press the drive button on the steering•
wheel. The vehicle drives forward at a maximum of
2 mph.
PRESS

16
V3298pr-0920
Bumper-to-Bumper* Limited Warranty
*One year limited warranty from the date of purchase on the Power Wheels®vehicle.
Six month limited warranty on the 6 volt battery.
For the original purchaser, this one year limited warranty covers the Power Wheels®ride-on vehicle (purchased from
Power Wheels®) against defects in materials and workmanship. The six month limited warranty applies only to the
6 volt battery included by Power Wheels®with the original purchase of the vehicle.
This warranty covers normal use and does not cover the Power Wheels®vehicle or battery if damaged by
unreasonable use, neglect, accident, abuse, misuse, improper service or other causes not arising out of defects in
materials or workmanship. Evidence of any attempt at consumer repair will void this warranty.
THIS WARRANTY DOES NOT COVER, AND IS INTENDED TO EXCLUDE, ANY LIABILITY ON THE PART OF
POWER WHEELS®, WHETHER UNDER THIS WARRANTY OR IMPLIED BY LAW FOR ANY INDIRECT OR
CONSEQUENTIAL DAMAGES FOR BREACH OF WARRANTY. SOME STATES DO NOT ALLOW THE EXCLUSION
OR LIMITATION SO THIS LIMITATION MAY NOT APPLY TO YOU.
Should you need service or assistance with your vehicle during the warranty period, do not return the vehicle to the
store. Power Wheels®has provided a nationwide network of authorized service centers. If there is not an authorized
service center in your area, please visit us on-line at www.powerwheels.com or call Consumer Relations for
information, 1-800-348-0751.
This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state.
PLEASE SAVE YOUR ORIGINAL SALES RECEIPT.
LIMITED WARRANTY

V3298pr-0920
17
IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below.
If you still experience a problem, please contact Power Wheels®Consumer Relations, toll-free at 1-800-348-0751.
Or, contact your local Power Wheels®authorized service center. For the location nearest you, please visit us on-line at
www.powerwheels.com.
PROBLEMS AND SOLUTIONS GUIDE
PROBLEM POSSIBLE CAUSE SOLUTION
Vehicle does not run Undercharged battery Charge the battery. A new battery should have been
charged for at least 18 hours before using the vehicle for
the rst time. After rst-time use, recharge the battery for
at least 14 hours after each use. Never charge the battery
longer than 30 hours.
Check all connectors. Make sure the battery connector is
tightly plugged into the charger connector, and that the
charger is plugged into the wall.
Make sure power ow to the wall outlet is “ON”.
Charger is not working There is no sure way to tell if your charger is working
unless you have a volt meter. If you suspect there
is a problem with your charger, contact your local
Power Wheels®authorized service center. They can
test your charger for you.
Tripped thermal fuse The built-in thermal fuse may "trip" and shut down
operation of the vehicle if the vehicle is overloaded
or the driving conditions too severe. Once a fuse has
"tripped", release the button on the handlebar and wait
approximately 25 seconds before operating the vehicle
again. To avoid repeated automatic shutdowns, do not
overload the vehicle by exceeding the 40 lb maximum
weight capacity or by towing anything behind the vehicle.
Do not drive up hills or run into xed objects, which can
cause the wheels to stop spinning while power is still
being supplied to the motors. If a thermal fuse continually
trips, contact your local Power Wheels®authorized
service center.
Loose wires or loose connectors Check all wires and connectors. Make sure the battery
connector is tightly plugged into the motor connector and
that there are no loose wires around the motors.
Dead battery If your battery is old or if you have not followed Battery
Care instructions, your battery may be dead. If you are
unsure whether or not the battery is dead, you can have
it tested at your local Power Wheels®authorized
service center.
Electrical switch damage The electrical switches can become corroded due to
exposure to water or moisture, or can jam due to loose
dirt, sand or gravel. Contact your local Power Wheels®
authorized service center for diagnosis and repair.
Motor damage Contact your local Power Wheels®authorized service
center for diagnosis and repair.

18
V3298pr-0920
PROBLEMS AND SOLUTIONS GUIDE
PROBLEM POSSIBLE CAUSE SOLUTION
Vehicle was running but
suddenly stopped
Loose wires or loose connectors Check all wires and connectors. Make sure the battery
connector is tightly plugged into the motor connector,
and that there are no loose wires around the motors.
Tripped thermal fuse The built-in thermal fuse may "trip" and shut down
operation of the vehicle if the vehicle is overloaded
or the driving conditions too severe. Once a fuse has
"tripped", release the button on the handlebar and wait
approximately 25 seconds before operating the vehicle
again. To avoid repeated automatic shutdowns, do not
overload the vehicle by exceeding the 40 lb maximum
weight capacity or by towing anything behind the vehicle.
Do not drive up hills or run into xed objects, which can
cause the wheels to stop spinning while power is still
being supplied to the motors. If a thermal fuse continually
trips, contact your local Power Wheels®authorized
service center.
Short run time (Less than
1 - 3 hours per charge)
Undercharged battery Charge the battery. A new battery should have been
charged for at least 18 hours before using the vehicle for
the rst time. After rst-time use, recharge the battery for
at least 14 hours after each use. Never charge the battery
longer than 30 hours.
Check all wires and connectors. Make sure the battery
connector is tightly plugged into the charger connector,
and that the charger is plugged into the wall.
Make sure power ow to the wall outlet is “ON”.
Overcharged battery Do not charge the battery longer than 30 hours. If
you suspect that your battery is damaged as a result
of overcharging, contact your local Power Wheels®
authorized service center. They can test the battery
for you.
Battery is old and will not
accept full charge
Even with proper care, a rechargeable battery does not
last forever. Average battery life is 1 to 3 years depending
on vehicle use and use conditions. Replace only with
a Power Wheels®6 Volt (4.0 Amp/Hr.) battery with built-in
thermal fuse. Do not substitute parts.
Tripped thermal fuse The built-in thermal fuse may "trip" and shut down
operation of the vehicle if the vehicle is overloaded
or the driving conditions too severe. Once a fuse has
"tripped", release the button on the handlebar and wait
approximately 25 seconds before operating the vehicle
again. To avoid repeated automatic shutdowns, do not
overload the vehicle by exceeding the 40 lb maximum
weight capacity or by towing anything behind the vehicle.
Do not drive up hills or run into xed objects, which can
cause the wheels to stop spinning while power is still
being supplied to the motors. If a thermal fuse continually
trips, contact your local Power Wheels®authorized
service center.

V3298pr-0920
19
If, after reviewing the Problems and Solutions Guide, the vehicle still fails to operate, please contact your nearest
authorized service center.
PROBLEMS AND SOLUTIONS GUIDE
PROBLEM POSSIBLE CAUSE SOLUTION
Vehicle runs sluggishly Undercharged battery Charge the battery. A new battery should have been
charged for at least 18 hours before using the vehicle for
the rst time. After rst-time use, recharge the battery for
at least 14 hours after each use. Never charge the battery
longer than 30 hours.
Check all connectors. Make sure the battery connector is
tightly plugged into the charger connector, and that the
charger is plugged into the wall.
Make sure power ow to the wall outlet is “ON”.
Battery needs charging Be sure to charge the battery after each use.
Battery is old and will not accept
full charge
Even with proper care, a rechargeable battery does not
last forever. Average battery life is 1 to 3 years depending
on vehicle use and use conditions. Replace only with
a Power Wheels®6 Volt (4.0 Amp/Hr.) battery with built-in
thermal fuse. Do not substitute parts.
Vehicle is overloaded Make sure you do not overload the vehicle by allowing
more than one rider at one time, exceeding the 40 lb.
maximum weight capacity, or by towing objects behind
the vehicle.
Driving conditions are too stressful Use only on generally level ground.
Sometimes the vehicle
doesn’t run, but other times
it does
Loose wire or connector Check all wires around the motors and all connectors to
make sure they are tight.
Motor or electrical switch damage Contact your local Power Wheels®authorized service
center for diagnosis and repair.
When the button is
pressed, the vehicle won’t
run without a push
Loose wire or connector Check all wires around the motors and all connectors to
make sure they are tight.
“Dead Spot” on motor Contact your local Power Wheels®authorized service
center for diagnosis and repair.
Battery’s thermal fuse
constantly "trips", but the
vehicle is not overloaded
nor the driving conditions
too severe
Damaged battery Contact your local Power Wheels®authorized service
center for diagnosis and repair.
Loud clacking or grinding
noise from a motor-gearbox
Broken gears Contact your local Power Wheels®authorized service
center for diagnosis and repair.
Charger gets warm
during use
It is normal for some chargers to get
warm during use and is not reason for
concern. Some chargers do not get
warm during use.
No action required.
If your charger does not get warm during use, it does not
mean that it is not working properly.
Battery makes a sizzling
or gurgling noise
when charging
It is normal for some batteries to make
noise and swell slightly while charging
and is not reason for concern.
No action required.
If your battery does not make noise or swell slightly
during charging, it does not mean that it is not accepting
the charge.

Or contact your local independently owned and operated
Power Wheels®Authorized Service Center.
For the location nearest you, visit us on-line at www.powerwheels.com.
©Disney
Visit the Disney website at www.disney.com
Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 U.S.A.
©2010 Mattel, Inc. All Rights Reserved. ®and ™ designate U.S. trademarks of Mattel, Inc. unless otherwise indicated.
PRINTED IN MEXICO V3298pr-0920
Before first-time use,
you must charge the battery
18 hours!
Charge the battery immediately after each use.
Charge the battery once a month, even if the vehicle is not used or stored.
Do not return
your vehicle to the store!
We're a toll-free phone call away, and we can help.
If you are missing parts or need assistance, please call:
1-800-348-0751
