OWNER’S MANUAL
Mobile Video System

- 1 -
TABLE OF CONTENTS
Table of Contents…………………………………….…………….………………………..1
Safety Information………………………………………………….………………………2
Features…………………………………………………………….………………………3
Accessories……………………………………….…….………………………………….4
Wire Connection……………...……………………………..……………………………….5
Unit Installation and Removal………………………….….………………………………8
Front Panel………………………………………………………..…..……………………12
Base Panel.………………………………………………………..…..……………………13
Remote Control……………………………………………………………………………14
Touch Screen Operations………………………………………………….……………19
Touch Screen Calibrate…………………………………….………………………19
Main Menu…………………………………………………….………………………20
Radio Operations…………………………………………………….……………….21
DVD Operations…………………………………………………….……………….22
i-Pod Operations…………………………………………………….………………..27
SD CARD Operations………………………………………………….………………..28
USB Operations…………………………………………………….………………..28
AV IN Operations…………………………………………………….………………29
AUX IN Operations…………………………………………………….………………29
NAVI Operations…………………………………………………….…………….…30
ATSC Operations…………………………………………………….…………….…34
System Parameters Setup………………………………..….……………….……35
Specifications…………………………………………………………………………….....38
Troubleshooting………………………….……………………………………….….…...39
Disc Notes………………………………………………………………………………...41

- 2 -
SAFETY INFORMATION
Please read the manual carefully before operating this unit and keep it for future
reference.
CAUTION: This unit is a class 1 laser product. To prevent direct exposure to the laser
system, do not open the unit. The laser beam may hurt your eyes.
If the unit requires adjustments, contact an authorized service centre.
USE THIS PRODUCT SAFELY
Be sure you fully understand the following safety information:
When driving
Keep the unit at an appropriate sound level. Driving with the sound at a level preventing
you from hearing sounds outside and around the car may cause an accident.
When cleaning
Do not expose the product to water or excessive moisture. This could cause short
circuit, fire or other severe damage.
When parked
Parking in direct sunlight can result in very high temperature levels inside your car.
Let the interior and unit cool down before switching the unit on.
NOTE:
Do not use and store the player in dusty, hot or humid environment.
FUSE REPLACEMENT – WARNING!
Never replace any fuse with one of a higher value than the fuse supplied
with your unit. Using a higher current rated fuse may cause damage to
your unit and/or electrical wiring.

- 3 -
FEATURES
•Motorized Front Panel w/ 4 Pre-Set Angles & Last Angle Memory
•Theft Deterrent Detachable Faceplate
•Accepts Add-On GPS Navigation Module, NAVIBOX-1
•Accepts Add-On Digital TV Tuner Module, DTV-1
•Car-Spec DVD Transport for Extreme Temperature Exposure
•Playback from DVDR/RW & CDR/RW, Including VCD, MP3, MP4 & DiviX
•Recall Memory for Last DVD Position
•I-Pod Input Connection (requires IC-1)
•Mini-USB Connection for MP3 & MP4 Playback from 4gb Flash Drive or SD
Card
•1 BG Internal Memory for Background & Screen Saver Images
•18 FM / 12 AM Station Memory
•50w x 4 MOSFET Powered Speaker Level Outputs
•Front & Rear Pre-Amp Outputs
•Variable Subwoofer Pre-Amp Output w/ LPF (80, 120, 160Hz)
•A/V Outputs for Multiple Components
•A/V Inputs for Secondary Source
•Front Panel 3.5mm Auxiliary A/V Input
•Reverse Camera Input w/ Trigger
•Custom & Pre-Set EQ Settings
•Audio Staging Controls
•12/24 Hour Clock
•USA/European Frequency Stepping
•NTSC/PAL Auto Selection
•480 x 234 Screen Resolution
•450 NIT Backlight Brightness
NOTE:
This user's manual is only for reference.
Modifying rights are reserved.
Specifications are subject to change without notice.

- 4 -

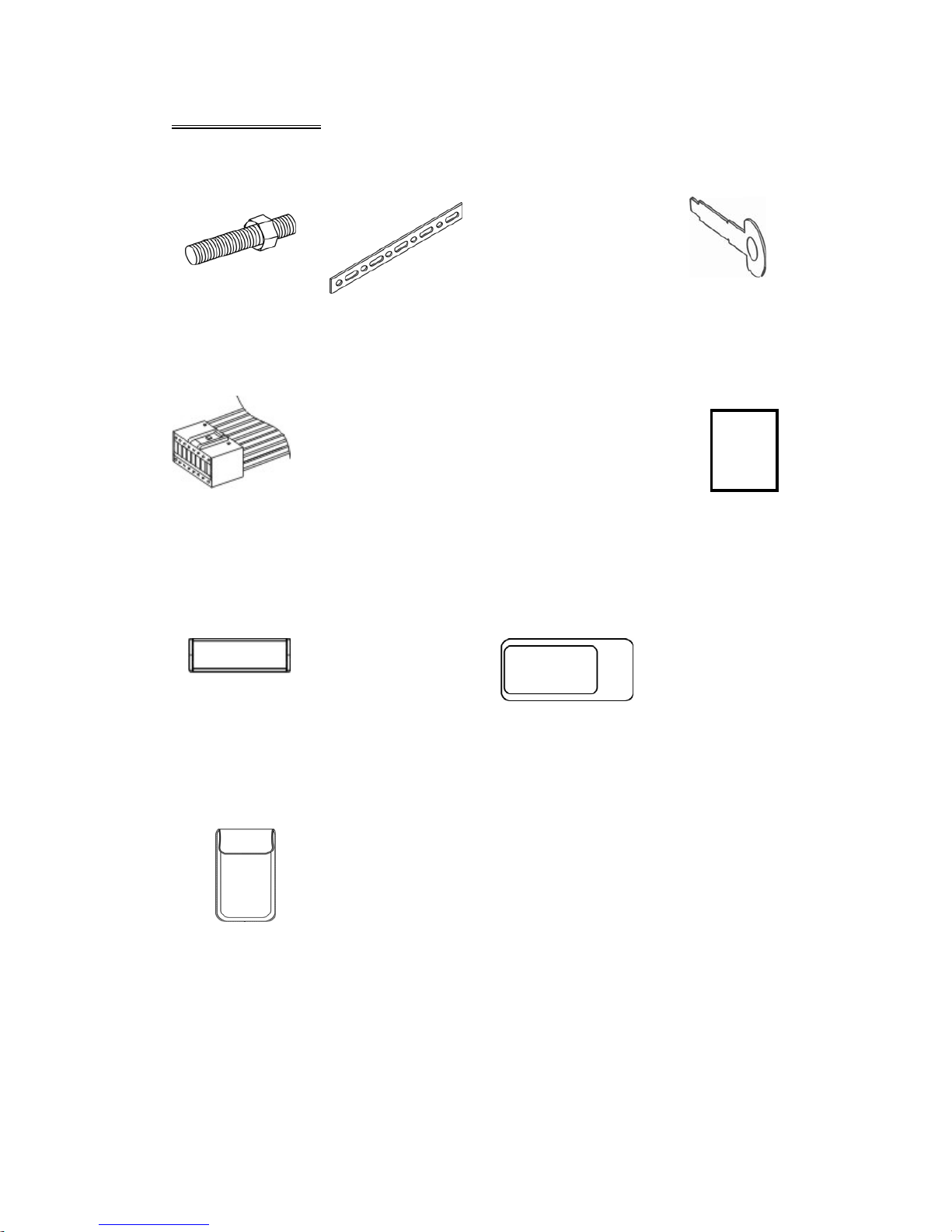

ACCESSORIES
Bolt x 1 Back Strap x 1 M5X5 Screws x 4 Keys x 2
Power Wire x 1 Connecter Wire x 1 Connecter Wire x 1 Operational Manual x 1
（White）（Yellow）
Trim Bezel x 1 Mounting Sleeve x 1 Remote Control x 1 USB Cable x 1
Faceplate Case x 1 iPod Cable x 1 AUX Cable x 1
(Optional)
1
2
3
56
8
9
10
12
7
11
13 14 15
4

- 5 -
WIRE CONNECTION
1. RADIO & ANALOG TV ANTENNA (OPTIONAL)
2. 15PIN SOCKET
3. AUDIO / VIDEO OUTPUT & INPUT

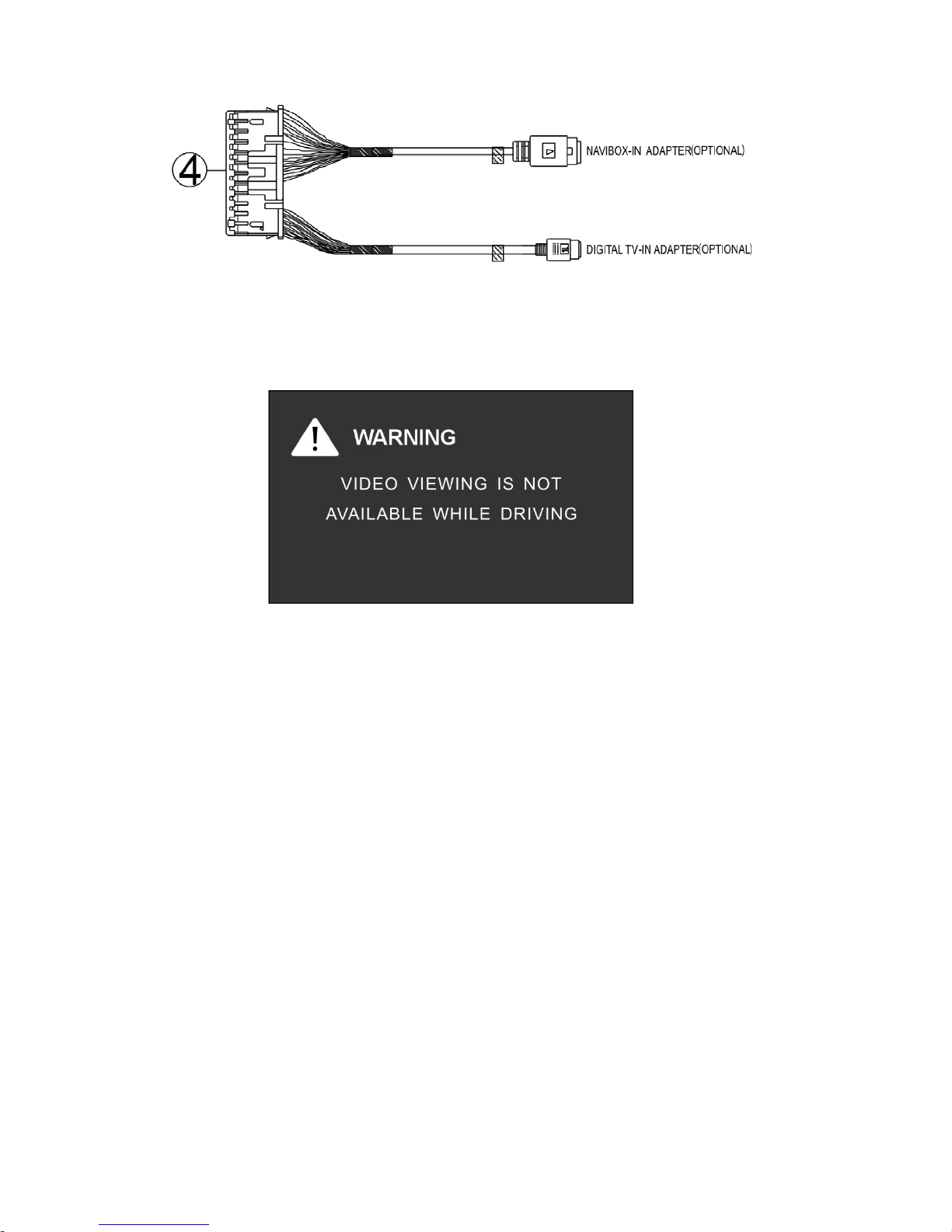

4. NAVI & DIGITALTVADAPTER (OPTIONAL)
5. IPOD ADAPTER

- 6 -
Brake Control
Connect the brake control wire AUTO_ANT (see Wiring Diagram). It is necessary to
connect the Brake Control wire to the Hand-brake switch of the car. While driving, the
TFT monitor will display the alarm picture (see as follows) in order to ensure the safety.
Under the Rear View Mode, the Brake Control function is no effective.
Telephone Mute Control (Optional)
Connect the telephone mute control wire TEL_MUTE (see Wiring Diagram). If there is a
vehicle call comes in, the sound volume will mute off automatically, and TFT monitor
shows: PHONE…; when call finished, the sound volume will recover to former volume,
and the words PHONE… disappear.
Auto Antenna Control
Connect the auto antenna control wire AUTO_ANT (see Wiring Diagram). The antenna
will lift when the unit startup; it will descend when the unit turnoff.

- 7 -
Wiring Diagram

- 8 -

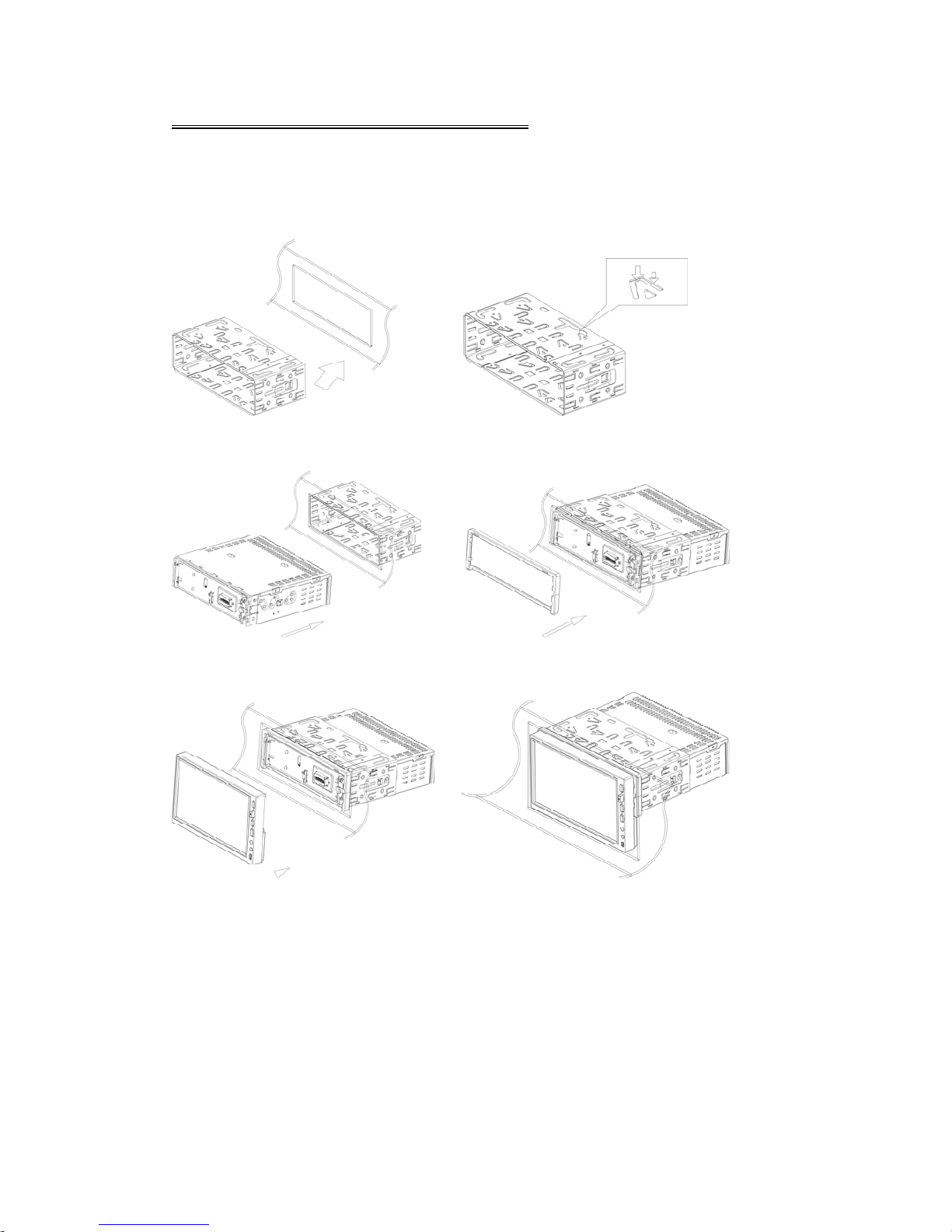

UNIT INSTALLATION AND REMOVEL
Installation Method 1:
1 Install the mounting sleeve 2 Bend the claws into place
into the dashboard. to secure the sleeve.
3 Slide the units into the mounting 4 Install the trim bezel onto the unit.
sleeve.
5 Install the face panel onto the unit. 6 Sketch map when installation is finished.

- 9 -

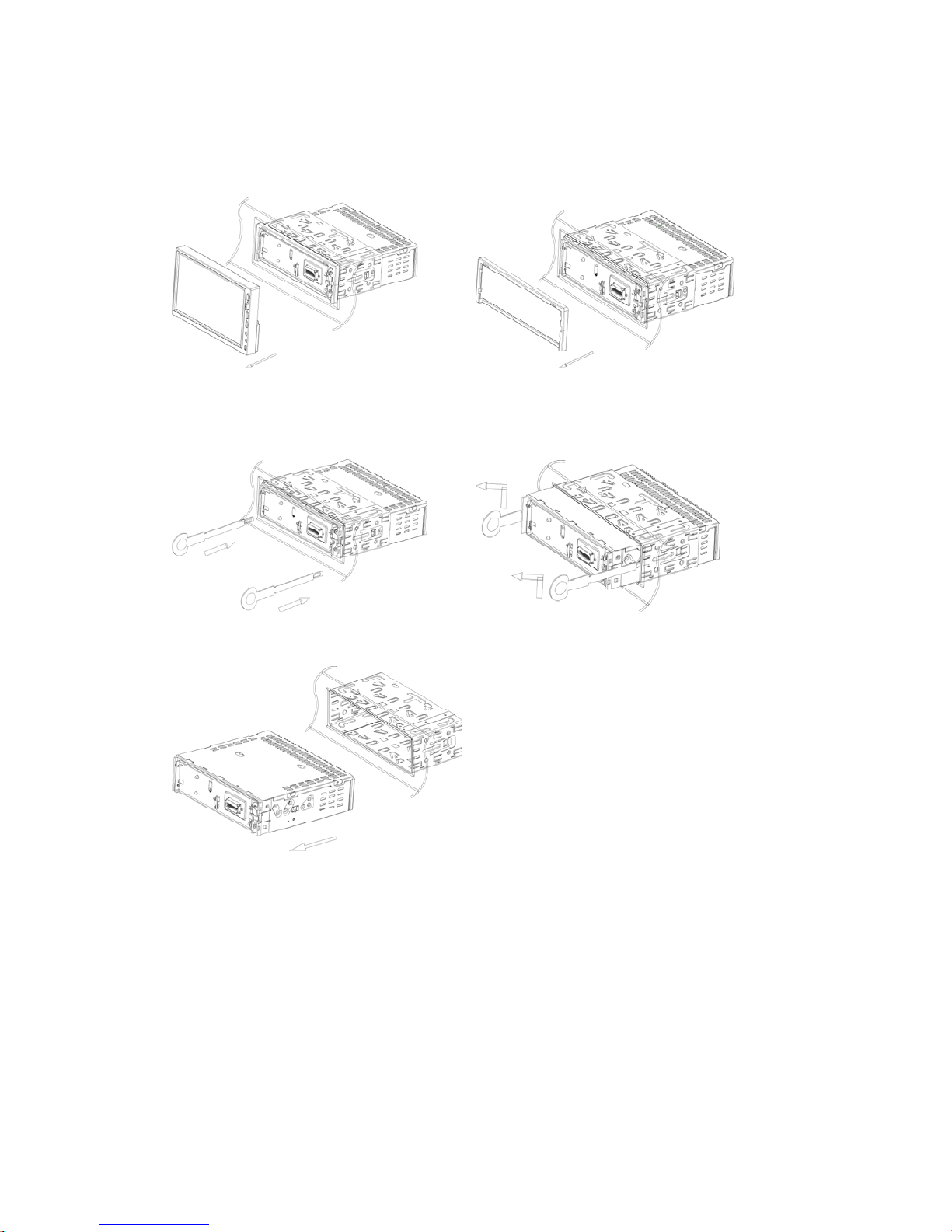

Removal Method 1:
1 Detach the face panel by 2 Detach the trim bezel.
pushing the release button.
3 Insert the keys into the aperture 4 Pull the unit out of the
between the unit and the mounting mounting sleeve.
sleeve to release the internal locks.
5 Sketch map when removal is finished.

- 10 -
Installation Method 2:
1 Tighten the bolt onto the rear 2 Tighten the back strap onto your
panel of the unit. car inside the dashboard.
3 Place the unit into the dashboard; 4 Screw the unit on the car on the
make the bolt bar across back strap; two sides with M5×5 SCREWS.
and then fix the bolt by the Nut M5.
5 Install the trim bezel onto the unit. 6 Install the face panel onto the unit.

- 11 -
Removal Method 2:
1 Detach the front panel by 2 Detach the trim bezel.
pushing the release button.
3 Unscrew the unit off the car on 4 Unscrew the Nut M5 screw on the rear
the two sides. side of the unit and pull out the unit.
5 Sketch map when removal is finished.

- 12 -
FRONT PANEL
1. OPEN/CLOSE/ P.ANGLE 2. REL 3. MENU / NAVI
4. POWER / SOURCE 5. REMOTE 6. AUX IN
7. MIN USB
1. Open/Close/ P. Angle
Press the button to open the monitor to eject the disc, press it again to close the
monitor.
Hold pressing the button to enter into adjusting mode, press it again to adjust the angle
of the front panel as following:
Angle 1 - Angle 2 - Angle 3 - Angle 4 - Angle 1
Angle 1 Angle 2 Angle 3 Angle 4
2. REL
Press to take off the panel for burglar-proof purpose.
3. Menu/Navi
Touch to access the Main Menu.
Hold on touching to access the GPS mode.
4. Power / Source
When ACC is on, press the button to turn the unit ON;
Hold on pressing the button to turn the unit OFF.
When the unit is on, press to switch between different modes.
5. Remote
Remote infrared receiver.

- 13 -
6. AUX IN
Connect an external audio device to this jack to listen to the device through your car
speakers.
7. Mini USB
The unit will be switched to DVD Mode automatically when USB connected, and play
the songs, pictures, videos in USB.
BASE PANEL
8. RESET
If the unit ever needs to be reset, you can do so by removing the face plate to gain
access to the reset button.
Press and hold this button to switch back to all the original factory settings.
Keep in mind this will erase all your preset radio stations and any EQ settings you may
have made and saved.ٛ

- 14 -
REMOTE CONTROL
1. POWER/SOURCE 13. PREVIOUS 25. SYSTEM / NAVI
2. MUTE 14. SLOW / END CALL 26. F.FWD
3. NUMBER BUTTONS 15. TITLE / PBN 27. RIGHT(Seek up)
4. MENU / * 16. ZOOM / CALL 28. STOP
5. AUDIO / # 17. SUBTITLE / PBP 29. D.ANGLE
6. EQ / LOUD 18. OPEN / CLOSE / P.ANGLE/ EJECT
7. UP (TUNE UP)/PTY 19. SETUP 30. PLAY / PAUSE
8. LEFT (SEEK DOWN) 20. VOLUME+ 31. NEXT
9. ENTER / BAND 21. VOLUME- 32. A-B / PHONE PAIR
10. PROGRAM 22. DISPLAY 33. REPEAT / PHONE
11. DOWN(Tune Down)/AF 23. PBC / AST / CLEAR 34. PAL / NTSC / AP
12. RANDOM / TRANSFER 24. F.REV 35. STEREO / MP
NOTE:
This is a universal remote, some functions would be optional.

- 15 -
1. [POWER/SOURCE]
When ACC is on, press the button to turn the unit on; hold on pressing the button to
turn off the unit.
When the unit is on, press to switch between different modes.
2. [MUTE]
Press to switch off the sound; press it again to resume to the previous volume level.
3. [NUMBERS 0~9]
Radio Mode, press the buttons 1~6 to select a preset station, hold on touching to store
current radio frequency to the preset station.
DVD Mode, When playing DVD, VCD, CD, MP3, press the buttons 0~9 to input the
number of track, press the [BAND] button to confirm.
TV Mode, press the buttons 0~9 to choose the channel and press the [BAND] button to
confirm.
Bluetooth Mode, press the buttons 0~9 to input phone numbers.
4. [MENU / *]
DVD Mode, press to return to the boot menu when playing DVD disc.
Bluetooth Mode, press to input the symbol *.
5. [AUDIO / #]
DVD Mode, press to change dialogue language when playing DVD disc; Press to select
different audio channels when playing VCD, CD disc.
Bluetooth Mode, press to input the symbol #.
6. [LOUD/EQ]
Press to adjust the EQ setting as following:
USER – POP – CLASSIC – ROCK – JAZZ – USER
Hold on pressing to switch between LOUD ON / OFF.
7. [∧] / 8. [<] / 11. [∨] / 27. [>] Direction Key
DVD Mode and System Parameters Setup, press the [∨] / [∧] buttons to move the
cursor upward / downward to select item. Press the [<] / [>] buttons to move the cursor
leftward / rightward to select item.
Radio Mode, press the [<] / [>] buttons to switch the stored stations. Hold on pressing
the [<] / [>] buttons to fast seeking the next available channel by decreasing /
increasing the tuning frequency; seeking will stop by pressing any button. Press the [∨]
/ [∧] buttons to decrease / increase the frequency step by step. Hold on pressing the [∨]
/ [∧] buttons to fast seeking by decreasing / increasing the tuning frequency; seeking
will stop when loose the button.
TV Mode, hold on pressing the [<] / [>] buttons to fast tuning channel forward the low /
high frequency automatically. Press the [∧] / [∨] buttons to select the stored channel
upward / downward.
Bluetooth Mode, press [<] / [>] buttons to switch between dialing page, phonebook,
music and setup page.
GPS Mode, press the [∨] / [∧] buttons to decrease / increase the brightness of the
screen.

- 16 -
9. [BAND/ENTER]
DVD Mode, press to confirm the selection.
Radio Mode, press to switch the wave band as following:
FM1 – FM2 - FM3 - AM1- AM2 - FM1
TV Mode, press to switch the TV audio as following:
NTSC – PAL/BG – PAL/I – PAL/DK – NTSC
Hold on pressing to switch the TV system area as following:
USA – CCIR – ITALY – AUS – NZ – USA
Bluetooth Mode, press the button to turn on/off selected item.
10. [PROGRAM]
DVD Mode, press to enter / exit the PROGRAM Function when playing the DVD, VCD,
CD disc.
12. [RANDOM/TRANSFER]
DVD Mode, press to turn RANDOM function on / off when playing DVD, VCD, CD disc.
Bluetooth Mode, press to transfer the call between the unit and your cell phone when
talking the phone.
13. [PREVIOUS] / 31. [NEXT]
DVD Mode, press to go to the pervious / next chapter, track or song.
14. [SLOW/END CALL]
DVD Mode, press to slow motion playback at 1/2x speed when playing DVD/VCD disc.
Each press changes speed from 1/2x to 1/4x to 1/8x to 1/16x then back to normal play.
Bluetooth Mode, press to reject or hang up a call.
15. [TITLE/PBN]
DVD Mode, press to enter the title menu when playing DVD disc.
Bluetooth Mode, press to enter the next page of phone number list in phonebook.
16. [ZOOM/CALL]
DVD Mode, press to zoon the picture display when playing DVD, VCD disc. Each press
changes speed from 2x to 3x to 4x to 3x to 2x then back to normal play.
Bluetooth Mode, press to call a number or to receive a cell phone call.
17. [SUB-T/PBP]
DVD Mode, press to change the subtitle language when playing DVD disc.
Bluetooth Mode, press to enter the previous page of phone number list in phonebook.
18. [OPEN/CLOSE/P.ANGLE/EJECT]
Press the button to open the monitor to eject the disc, press it again to close the
monitor.
Hold pressing the button to enter into adjusting mode, press it again to adjust the angle
of the front panel as following:
Angle 1 - Angle 2 - Angle 3 - Angle 4 - Angle 1
19. [SETUP]
DVD Mode, press to enter/ exit the DVD SETUP menu.

- 17 -
20. [VOL+] / 21. [VOL-]
Press to increase / decrease the volume.
Hold on pressing the button to keep increasing/decreasing the volume.
22. [DISPLAY]
Under main menu, press to set the background by default picture.
DVD Mode, press to display current playback information.
Bluetooth Mode, press to return to the previous page.
23. [PBC/AST/CLEAR]
DVD Mode, press to select the PBC function on / off when playing VCD disc.
Radio Mode, press to review stored stations; Hold on pressing to automatically
program the 6 strongest stations available into the presets in the each wave band.
TV Mode, automatically seek the stations available.
Bluetooth Mode, press to cancel or clear the numbers you have input.
24. [F.REV] / 26. [F.FWD]
DVD Mode, press to fast reverse / fast forward at 2x speed. Each press changes speed
from 2x to 4x to 8x to 16x to 32x then back to normal play. Press the [PLAY/PAUSE]
button to resume to normal playback.
25. [SYSTEM/NAVI]
Press to enter / exit the System Parameter Setup menu when playing DVD, VCD and
CD disc.
Hold on pressing to enter / exit the NAVI Mode.
28. [STOP]
DVD Mode, when DVD/VCD/CD disc playback, press the button once to stop the
playback, press the [Play/Pause] button to resume the playback again. Press the
button twice to stop the playback, press the [Play/Pause] button to start the playback
from the beginning of disc. When MP3 disc playback, press the button to stop the
playback, press the [Play/Pause] button to start the playback from the beginning of
track.
29. [D.ANGLE]
DVD Mode, press to select different viewing angles with interactive DVD media during
playback.
30. [PLAY/PAUSE]
DVD Mode, press to pause or resume the playback.
32. [A-B/PHONE PAIR]
DVD Mode, press to set point A, press it again to set point B, then the unit starts to
repeat from A to B. When playing DVD, MP3, press it again to stop repeating. When
playing VCD, CD, press it again to repeat all tracks.
Bluetooth Mode, press to start phone-pairing.
33. [REPEAT/PHONE]
DVD Mode, press to repeat as CHAPTER-TITLE-ALL-REPEAT OFF when DVD
playback. Press to repeat as TRACK-ALL-REPEAT OFF when VCD/CD playback.
Press to repeat as REPEAT ONE-REPEAT ALL-REPEAT OFF when MP3 playback.

- 18 -
Bluetooth Mode, press to break off or connect cell phone with the unit.
34. [P/N/AUDIO PLAYER]
DVD Mode, press to switch the video output (PAL/NTSC) when playing DVD disc.
Bluetooth Mode, press to enter into AUDIO PAIRING.
35. [STEREO/MUSIC PAIR]
Radio Mode, press to turn the stereo on / off under.
Bluetooth Mode, press to break off or connect the music storage medium with the unit.
REPLACING THE BATTERIES
If the remote control has no function or if the operating range reduced, replace the old
battery with new one.
1. Pull out the battery holder. Follow the
arrow 1 slide it to the right toward the
battery while at the same time pull the
battery holder away from the remote
control.
2. Place the new battery. Place the new
lithium battery with the (+) side up.
3. Push the holder back. Using the finger
to push in the holder back until the
locking sound is heard.

- 19 -
TOUCH SCREEN OPERATIONS
TOUCH SCREEN CALIBRATION
When “Power Off”, press the buttons 2, [BAND] of remote control to enter the
CALIBRATION page:
To touch the points from 1 to 5 until the points change to next cross by using a ballpoint
pen or pencil. After all 5 points have been touched, the unit has been finished the
CALIBRATION. If the calibration is succeeded, the unit would display the following
page and then power off automatically.
If the calibration is failed, the unit would display the following page and please operate
the above processes again.
