PowerBoss Admiral 40D User manual

Instruction Manual
Admiral 40D (7580.13)

2
Introduction
Preface
Dear Customer,
We are certain that the excellent quali-
ties of the vehicle will justify the faith
you have shown in us through your
purchase.
Your safety, and that of others, basical-
ly lies in your ability to control and ope-
rate the vehicle. Before using the
vehicle for the first time, read this trans-
lation of the original manual thoroughly,
act according to the information contai-
nedandkeepitinasafeplaceforfuture
reference or subsequent owners. Ple-
ase read the Chapter “Safety Informati-
on” prior to starting the vehicle to
ensure it is operated and used safely.
The operating manual contains all the
most important information regarding
operation, maintenance and service.
Throughout this manual, texts which
concern safety are indicated by the cor-
responding danger pictogram. Should
you have any questions in respect of
the vehicle or operating instruction ma-
nual, your authorized PowerBoss dea-
ler is available to provide help at any
time.
We explicitly point out that no legal
claims may be asserted based on the
information contained in this manual.
Please pay attention that only original
spare parts are used for any necessary
maintenance and repair work. Only ori-
ginal spare parts can guarantee long,
reliable equipment operation. We reser-
ve the right to make technical improve-
ments.
Valid from: April 2011
PowerBoss Inc.
175 Anderson Street
NC 28315 U.S.A.
Telephone: [phone]
Fax: [phone]
Intended use
The Admiral 40 D is a scrubber drier ve-
hicle conceived for wet cleaning hard
floors indoors. Any use beyond this is
regarded as improper use. The manuf-
acturer is not considered liable for any
damage resulting from improper use;
the user is solely responsible for all the
risks.
The scrubber drier has not
been approved for use on pub-
lic paths and roads.
Intended use also includes maintaining
and observing the operating, mainte-
nance and repair conditions prescribed
by the manufacturer.
The scrubber drier may only be opera-
ted,servicedandrepairedbypersonnel
who are familiar with the work involved
and are aware of the risks.
The applicable accident prevention
laws must be observed and any gene-
rally accepted health and safety direc-
tives must be maintained.
Based on the conception, design and
construction of the vehicle introduced
onto the market by us, the vehicle com-
plies with the applicable basic safety
and health requirements stipulated in
Introduction

3
the EC Directive (refer to the Declarati-
onof Conformity).Thisdeclaration isno
longer considered valid in the event of
modifications to the vehicle not authori-
zed by us. The manufacturer is not de-
emed liable for any damage resulting
from unauthorized modifications to the
vehicle.
Notes on warranty
The terms defined in the purchase
agreement apply. Claims for compen-
sation related to damage are excluded
from the terms of warranty when the da-
mage is the result of failure to observe
regulations concerning service and
maintenance. Maintenance work must
beperformedbyauthorizedPowerBoss
service centers and confirmed in the
“Maintenance Report” which serves as
a warranty logbook.
The following are excluded from the
terms of warranty: wear and tear
through overuse, defective fuses, im-
proper handling and use or unauthori-
zed modifications. Claims under the
terms of warranty are annulled when
damage occurs to the vehicle resulting
from the use of parts or accessories not
explicitly approved by us or from failure
to observe maintenance regulations.
Acceptance of the machine
Inspect the vehicle immediately on deli-
very for signs of transport damage.
These will be replaced when the dama-
ge is immediately confirmed by the hau-
lage contractor and the damage report
is sent to our authorized sales partner
together with the consignment note.
Introduction

4
Contents
Introduction . . . . . . . . . . . . . 2
Preface. . . . . . . . . . . . . . . . . . 2
Intended use . . . . . . . . . . . . . 2
Notes on warranty . . . . . . . . . 3
Acceptance of the machine . . 3
1 Safety Information . . . . . . . . 6
1.1 Safety and warning symbols . 6
1.2 General information . . . . . . . . 7
1.3 Operating information. . . . . . . 8
1.4 Maintenance information . . . 10
1.5 Particular risks . . . . . . . . . . . 12
1.5.1 Electronics . . . . . . . . . . . . . . 12
1.5.2 Batteries. . . . . . . . . . . . . . . . 12
1.6 Environmental protection . . . 13
1.7 Labels on the vehicle . . . . . . 14
2 Starting Up . . . . . . . . . . . . . 17
2.1 Instruction. . . . . . . . . . . . . . . 17
2.2 Initial battery charge. . . . . . . 17
2.3 Prior to starting up
for the first time . . . . . . . . . . 18
2.3.1 Installing brushes and pads . 18
2.3.2 Installing and adjusting
the squeegee . . . . . . . . . . . . 20
2.3.3 Adjusting the driver's seat . . 21
2.4 Before starting up daily . . . . 22
3 Operation . . . . . . . . . . . . . . 23
3.1 Method of operation. . . . . . . 23
3.1.1 Scrubbing unit . . . . . . . . . . . 23
3.1.2 Squeegee. . . . . . . . . . . . . . . 25
3.1.3 Suction turbines (suction). . . 25
3.1.4 Pre-sweep/Vacuum
unit option. . . . . . . . . . . . . . . 25
3.1.5 Fresh water tank . . . . . . . . . 26
3.1.6 Recovery tank . . . . . . . . . . . 27
3.1.7 Traction drive . . . . . . . . . . . . 27
3.1.8 Brakes . . . . . . . . . . . . . . . . . 28
3.1.9 Batteries and charger. . . . . . 29
3.1.10 Options. . . . . . . . . . . . . . . . . 30
3.2 Operating and indicator
elements. . . . . . . . . . . . . . . . 34
3.2.1 Operating elements
in the driver's cab. . . . . . . . . 34
3.2.2 Left-hand
operating panel . . . . . . . . . . 37
3.2.3 Right-hand
operating panel . . . . . . . . . . 43
3.2.4 Operating elements
on the vehicle. . . . . . . . . . . . 47
3.3 Operation . . . . . . . . . . . . . . . 51
3.3.1 Switching the vehicle on. . . . 51
3.3.2 Accelerating . . . . . . . . . . . . . 52
3.3.3 Stopping and parking. . . . . . 52
3.3.4 Cleaning. . . . . . . . . . . . . . . . 52
3.3.5 Switching the vehicle off. . . . 56
3.3.6 Loading and
transporting the vehicle . . . . 56
3.4 After finishing work. . . . . . . . 57
3.5 Function faults . . . . . . . . . . . 58
3.5.1 Error code table . . . . . . . . . . 58
3.5.2 Other function faults. . . . . . . 61
4 Technical Data . . . . . . . . . . 62

5
Contents
5 Maintenance and Service . 71
5.1 PowerBoss system
maintenance. . . . . . . . . . . . . 71
5.2 Maintenance report . . . . . . . 72
5.3 Maintenance schedule . . . . . 73
5.3.1 PowerBoss system
maintenance, customer . . . . 73
5.3.2 PowerBoss system
maintenance I. . . . . . . . . . . . 76
5.3.3 PowerBoss system
maintenance II . . . . . . . . . . . 80
5.3.4 PowerBoss system
maintenance III/S
(safety check). . . . . . . . . . . . 81
5.4 Battery system . . . . . . . . . . . 82
5.4.1 Charging batteries . . . . . . . . 83
5.4.2 Servicing
the driving batteries . . . . . . . 84
5.4.3 Disassembling
the trough battery. . . . . . . . . 84
5.4.4 Installing the trough battery . 86
5.4.5 Disposing of batteries. . . . . . 86
5.4.6 Total discharge signal
transducer (TSG) . . . . . . . . . 87
5.5 Fresh water tank . . . . . . . . . 88
5.5.1 Filling the fresh water tank . . 89
5.5.2 Emptying
the fresh water tank . . . . . . . 90
5.5.3 Cleaning
the draining hose cap. . . . . . 90
5.5.4 Cleaning
the fresh water filter . . . . . . . 90
5.6 Recovery tank . . . . . . . . . . . 91
5.6.1 Emptying the recovery tank . 92
5.6.2 Cleaning the recovery tank . 92
5.6.3 Cleaning
the draining hose cap. . . . . . 93
5.6.4 Cleaning the air intake filter . 94
5.6.5 Cleaning the openings
to the fresh water tank . . . . . 94
5.7 Scrubbing unit . . . . . . . . . . . 95
5.7.1 Changing the brushes . . . . . 95
5.7.2 Installing new rubber
deflector strips . . . . . . . . . . . 96
5.8 Squeegee. . . . . . . . . . . . . . . 97
5.8.1 Cleaning the squeegee . . . . 97
5.8.2 Disassembling
the squeegee . . . . . . . . . . . . 97
5.8.3 Installing the squeegee . . . . 98
5.8.4 Changing the sealing strips . 98
5.8.5 Adjusting
the support rollers . . . . . . . . 99
5.9 Pre-sweep/vacuum
unit (option) . . . . . . . . . . . . . 99
5.9.1 Emptying the dirt hopper . . . 99
5.9.2 Dust vacuum . . . . . . . . . . . 100
5.9.3 Side brushes . . . . . . . . . . . 102
5.9.4 Rotary brush. . . . . . . . . . . . 103
5.10 Wheels. . . . . . . . . . . . . . . . 105
5.10.1 Changing the rear wheels . 105
5.10.2 Changing the front wheel. . 105
5.11 Electrical installation. . . . . . 106
5.11.1 Red control lamps . . . . . . . 106
5.11.2 Error codes. . . . . . . . . . . . . 106
5.11.3 Fuses . . . . . . . . . . . . . . . . . 106
5.11.4 Drive control relay . . . . . . . 106
5.12 Cleaning the vehicle. . . . . . 107
5.13 Transporting and towing. . . 108
Warranty . . . . . . . . . . . . . . 110

6
Safety Information
1Safety Information
1.1 Safety and warning symbols
All texts related to personal safety,
safety of the vehicle and environmental
protection are assigned the following
symbols throughout the operating man-
ual:
Symbol Risks to ... Definition
Safety information persons
or property Safety information to prevent the development of haz- ardous situations resulting from ignoring or failing to
follow instructions or prescribed work procedures.
Note the machine Important information on handling the equipment in
order to maintain its functionality.
Ecological hazard the environment Ecological hazard through the use of substances
which represent a potential hazard to health and the
environment.

7
Safety Information
1.2 General information
• The scrubber drier fulfills all the ap-
plicable safety and health require-
ments stipulated in the EC directives
with regard to its planning, construc-
tional design and final construction
as introduced by us onto the market.
In the case of modifications to the ve-
hicle not approved by us, the EC
Declaration of Conformity enclosed
in this operating manual loses its va-
lidity.
• In addition to the information provid-
ed in this operating manual, all the
legally applicable health and safety
provisions must be observed.
• Before starting up the vehicle for the
first time, read the operating manual
supplied with it thoroughly as well as
any separate manuals provided with
additionalorattachmentdevicesand
observe all the information during
work.
• The vehicle may only be operated,
maintained and repaired by persons
trained by PowerBoss or authorized
to do so by PowerBoss.
• Particular attention should be paidto
the information regarding safety.
Technical expertise is the key to pre-
venting errors when operating the
equipmentandensuringtrouble-free
operation.
• The operating manual must always
be kept at the operating location of
the vehicle and, as a result, should
be kept in a safe place on the vehi-
cle.
• Iftheequipmentis soldorrentedout,
these documents should be trans-
ferred to the new owner/operator.
The transfer should be confirmed!
• The warning labels attached to the
equipment provide important infor-
mation concerning safe operation.
Labels which are illegible or missing
must be replaced.
• Original spare parts must be used to
ensure safety.
• If you want to shut the vehicle down,
render it inoperable. It must not rep-
resent a source of danger for chil-
dren.

8
Safety Information
1.3 Operating information
• Before starting the vehicle up for the
firsttime, thebatterytobeusedmust
be fully charged, properly, by imple-
menting the initial battery charge
routine. Please pay attention to the
operating manual provided with the
charging unit as well as the manual
from the battery manufacturer. Pow-
erBoss assumes no liability for dam-
age to the battery caused by a fault
when the battery is charged for the
first time.
• Before starting the vehicle up, al-
ways check it is in a proper condition
and that it is safe to drive and oper-
ate. Clear up any faults and defects
immediately! Never operate the vehi-
cle without functional safety equip-
ment.
• Warning: Do not use the vehicle
without a protective roof structure
(refer to “Accessories”, “Cab safety
roof”) in areas in which the driver is
at risk of being hit by falling objects
(e.g.warehouses).Contactthe trade
association responsible for you as to
whether obligations exist in this re-
spect.
• The scrubber drier must be subject-
ed to an inspection in respect of its
operationally safe condition at least
once a year by an authorized techni-
cal expert. The results of the inspec-
tion must be documented in writing
and kept safe at least until the next
inspection.
• Floor cleaning machines may only
be operated by suitable personnel
who have been trained to operate
the equipment, have proven their ca-
pability to operate the vehicle to the
contractor or person appointed by
him and have been explicitly
charged by him to operate the vehi-
cle.
• Before starting work, operating per-
sonnel must be fully familiar with all
adjustment, operating and control el-
ements as well as their respective
function! It is too late to do this when
the vehicle is actually in operation!
• The warning labels attached to the
scrubber drier provide important in-
formationconcerningsafeoperation.
• Wet floors are a potential risk for slip-
ping! Ensure to provide the corre-
sponding information and warning
signs.
• If the floor is excessively wet, check
the vehicle for leaks and that the
sealing strips are in a good condi-
tion. If the sealing strips are dam-
aged, change them immediately.
• Onlyusecleaningagentssuitablefor
the vendor (non-foaming) and ob-
serve all the use, disposal and warn-
ing information provided by the
cleaning agent manufacturer.
• It is forbidden to use the vehicle in
potentially explosive atmospheres.
• The vehicle is not suitable for clear-
ing up health-hazardous, inflamma-
ble or explosive fluids or dusts and
substances with similar properties.
• Ride-on equipment may only be set
into motion from the seat (seat con-
tact switch).
• The seat contact switch must never
be bypassed or the function immobi-
lized in any way (e.g. by placing a
heavy load on the seat).
• It is forbidden to transport people on
the vehicle!
• Always wear heavy duty, non-slip
footwear when working with the vehi-
cle.
• Start driving immediately after
switching on the brush head drive

9
Safety Information
otherwiseimprintsofthe brush could
be produced on the floor.
• The machine may only be driven on
and the equipment used on those
surfaces which have been approved
by the contractor or person appoint-
ed by him.
• The manner of driving must be
adapted to the local conditions (floor
characteristics, presence of persons
in the vicinity, obstacles, etc.).
• When using the vehicle, it is essen-
tial to pay attention to third parties,
especially children.
• Never leave the vehicle unattended
while motors are still running and it
has not been locked against unin-
tended movement.
• To prevent authorized used of the
vehicle, lock the drive by removing
the key from the key switch.
• When transporting the vehicle, the
motors must be shutdown.
• Only open empty recovery tanks.
• The scrubber drier may only be driv-
en on hard-surfaced, sufficiently
non-slip ground (e.g. asphalt, con-
crete) which is free of oil, water,
snow etc.
• The vehicle may only be driven on
gradients to a maximum of 6% for a
maximum of five minutes when in
work mode. Do not drive the vehicle
on slopes with a gradient steeper
than the limit gradient indicated on
the vehicle.
• The vehicle may only be driven on
gradients to a maximum of 15% for a
maximum of one minute when in
transport mode. When driving the
vehicle in transport mode, the
ground must be clean and dry, i.e.
free of dirt, oil, snow, water etc., par-
ticularly when driving on gradients.

10
Safety Information
1.4 Maintenance information
Properly completed vehicle mainte-
nance is an important protective mea-
sure in preventing accidents.
• The maintenance work and mainte-
nance intervals prescribed in the op-
erating manual must be adhered to.
• Operating personnel must complete
the necessary daily and weekly
maintenance work. All other mainte-
nance work must be completed at
your nearest authorized PowerBoss
service center.
• Before starting any cleaning and
maintenance work or replacing
parts, switch off the motors, remove
the key from the key switch and pull
out the battery plug. This is particu-
larly important in respect of work on
the electrical system!
• Before working on the brushes,
switch off the scrubbing unit, set the
key switch to position 0 and remove
the key.
• The scrubbing unit may only be dis-
assembled and installed by service
personnel.
• Suitable tools must be used for
cleaning and maintenance work.
• Spare parts must comply with the
minimum technical requirements
stipulated by the manufacturer! This
is ensured by the use of original
spare parts.
• When working in the area of the
raised seat console, it must be pivot-
ed up fully to prevent it accidentally
closing or suddenly slamming shut.
• Itisnotpermittedto clean thevehicle
with a pressure washer or steam
blaster.
• Clean the recovery tank regularly to
protect it from the accumulation of
dirt, viruses, bacteria, etc.
• It is not permitted to use aggressive
and corrosive cleaning agents.
• Allow the vehicle to dry after being
cleaned, e.g. over the weekend.
• The vehicle must be checked by a
recognized technical expert in re-
spect of operational safety at rea-
sonable intervals (we recommend at
least one a year), particularly with re-
gard to protective equipment and
locks and following modifications or
repair.
• Only start the vehicle up when all the
safetyequipmenthas beeninstalled,
is functional and brought to its pro-
tecting position.
• The vehicle has been set up for op-
eration using low-maintenance
trough batteries. If other battery
types are to be used, the vehicle
must be adjusted for them by an au-
thorized PowerBoss service center.
• Observe the information in the oper-
ating manual provided by the battery
manufacturer. These must be avail-
able to operating and maintenance
personnel at all times.
• Batteries may only be handled and
changed by properly skilled mainte-
nance personnel.
• When installing the trough battery,
use appropriate lifting gear.
• Only use batteries and chargers rec-
ommended by us. The full terms of
warranty can only be accepted when
these units are used.
• Pay attention that the insulation on
the charger is not initially damaged
and not damaged during the charg-
ing process. The cable must not rub
against anything. Do not use the
charger if the insulation is damaged.
• Always wear appropriate protective
clothing when handling the battery
(e.g. protective gloves, finger stalls,
protective goggles).

11
Safety Information
• The seat console must be pivoted
open during the battery charging
process to prevent the development
of explosive oxyhydrogen!
• Never leave the batteries in a dis-
charged state but recharge them as
soon as possible.
• Only refill distilled water.
• Whenthe cells areingood condition,
never refill the battery acid.
• Spilled battery acid must never enter
the sewage system in its initial form,
it must be neutralized beforehand.
• Pay attention to legal requirements
and local directives.
• For further safety information, see
supplementary sheet 88-60-2554
“Notes on driving batteries”.

12
Safety Information
1.5 Particular risks
• The following applies when locating
and clearing faults: Switch the vehi-
cle off, remove the key from the key
switch and disconnect the battery
plug!
• In the case of faults involving the
traction drive, stop the vehicle imme-
diately and remove the key from the
key switch!
1.5.1 Electronics
• Always disconnect the battery plug
before starting any work on the elec-
trical installations.
• Only use original fuses with the pre-
scribed amperage.
• Inthecaseofdefectsin theelectrical
installation, switch the vehicle off im-
mediately and clear the fault.
• Work on the electrical equipment
may only be carried out by electri-
cians who have received the neces-
sary training and in accordance with
the electrical engineering regula-
tions.
• The vehicle's electrical equipment
must be inspected/checked at regu-
lar intervals. Defects, such as loose
connections and cable damage,
must be rectified immediately.
1.5.2 Batteries
• Due to a change in the center of
gravity, only approved batteries may
be installed at the intended position.
• To prevent creeping currents, al-
ways keep the batteries clean and
dry and protect from contamination,
e.g. from metal dust.
• Never lay any metallic objects or
tools on batteries. Risk of short cir-
cuit and deflagration!
• Ensure sufficient ventilation in the
charging area when charging the
batteries. Otherwise there is a risk of
explosion!
• The seat console must be pivoted
open during the battery charging
process to prevent the development
of explosive oxyhydrogen!
• Only use recommended chargers!
Pay attention that the insulation is
not initially damaged and not dam-
aged during the charging process.
The cable must not rub against any-
thing. Do not use the charger if the
insulation is damaged.
• Ensure there are no naked flames
nearby when handling batteries, par-
ticularly when checking the acidity.
Risk of explosion!
• Do not inhale battery gases.
• Battery acid is very corrosive; keep
away from children.
• Wear protective goggles when con-
trolling the acid level.
• In the event of acid splashing in the
eyes, rinse them with water for ap-
prox. 15 minutes and seek medical
attention immediately.
• Also pay attention to the information
in Section 1.4.

13
Safety Information
1.6 Environmental protection
• A certain factual expertise is re-
quired in order to use substances
which could represent a risk to
health and the environment.
• Always observe legal regulations
and local directives when disposing
of cleaning agents.
Disposing of batteries
• Used batteries with the recycling
symbol contain reusable commodi-
ties. The heavy metals contained
represent a major risk both to peo-
ple's health and to the environment.
Never open or damage batteries.
Never touch, inhale or swallow the
content of batteries. Health hazard!
Do not allow batteries to get into the
environment. Risk of contaminating
thegroundandwater!Inaccordance
with symbol with the crossed out gar-
bagebin,thesebatteriesmustnotbe
disposed of in domestic waste.
Return and recycling of old batteries
must be agreed on with the autho-
rized PowerBoss dealer in accor-
dance with national requirements.
Disposing of the vehicle
• Render the vehicle inoperable. It
must not represent a source of dan-
ger for children.
• Disposeofthevehicleinaccordance
with local regulations. For further in-
formation on handling and recycling,
please contact the authorized Pow-
erBoss dealer where you purchased
the vehicle.

14
Safety Information
1.7 Labels on the vehicle
The following safety and warning labels
are attached to the vehicle where easily
legible.
Missing or illegible labels must
be replaced immediately.
Company logo (Fig. 1/1) (Fig. 2/1)
Read the operating manual,
maximum gradient and ban
on cleaning using a high-
pressure washer

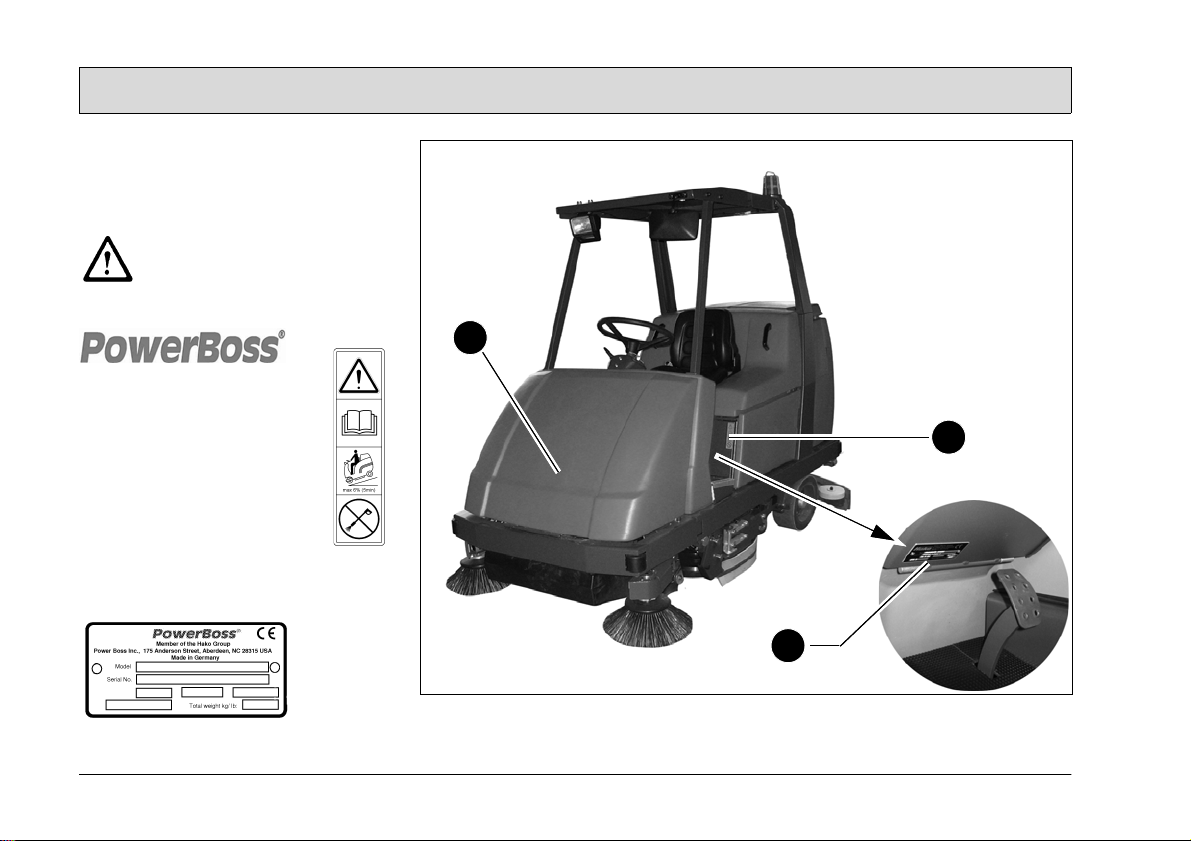

(Fig. 1/2)
Rating plate (Fig. 1/3)
The rating plate is in the driv-
er's cab, at the bottom on the flap of the
left-hand electrical compartment.
Fig. 1
1
2
3

15
Safety Information
Drive direction selector:
Forwards or reverse (Fig. 2/4)
Release parking brake
(Fig. 2/5)
Apply parking brake
(Fig. 2/6)
Maximum water temperature for
water to be filled
(Fig. 2/7)
Fig. 2
7
4
5
6
1

16
Safety Information
Fresh water drainage
(Fig. 3/8)
The fresh water is
drained via the hose
which hangs to the
left of this label.
Waste water drain-
age
(Fig. 3/9)
The waste water is
drained via the hose
which hangs to the
right of this label.
No waste water
drainage
(Fig. 3/10)
The flap serves ex-
clusively for cleaning
and maintenance of
the recovery tank.
Fig. 3
9
9
8
10

17
Starting Up
2Starting Up
Pay attention to persons in the
vicinity of the vehicle when
completing any work.
2.1 Instruction
Operators must receive instruction be-
fore the vehicle is put into service. Only
technicians from your local authorized
PowerBoss dealer are allowed to pro-
vide initial instruction on the vehicle.
The manufacturing plant will notify the
dealer immediately after delivering the
vehicle and the dealer will contact you
to arrange a date.
2.2 Initial battery charge
An initial battery charge must be per-
formed on the batteries in order for
them to provide an optimum perfor-
mance and service life. A battery char-
ger is available which is specially adapt-
ed to the batteries.
Only use batteries and char-
gers recommended by us. The
full terms of warranty can only
be accepted when these units
are used.
Before starting the vehicle up
for the first time, the batteries
to be used must be fully
charged, properly, by imple-
menting the initial battery
charge routine. PowerBoss as-
sumes no liability for damage
to the battery caused by a fault
whenthebatteryischarged for
the first time.
The seat console must be piv-
oted open during the battery
charging process to prevent
the development of explosive
oxyhydrogen!
Only use the original charger!
Pay attention that the insula-
tion is not initially damaged
and not damaged during the
charging process. The cable
must not rub against anything.
Do not use the charger if the in-
sulation is damaged.
Do not inhale battery gases.
Please pay attention to the operating
manual provided with the charging unit
as well as the manual from the battery
manufacturer. Powering up the batter-
ies is described in such detail in the
manufacturer's documents, further in-
formation on the subject is considered
unnecessary for this manual.

18
Starting Up
2.3 Prior to starting up for the
first time
The following work must be completed
before starting the vehicle up for the
first time:
2.3.1 Installing brushes and pads
At the factory, a water retaining ring
(Fig. 4/1) is fitted to the brushes which
reduces water consumption consider-
ably during scrubbing.
Fig. 4
Refer to Section 4 for the brushes avail-
able.
Switch off the scrubbing unit,
set the key switch to position 0
and remove the key.
Installing the brushes
The brush locks, supplied loose in the
vehicle's accessories kit, must be as-
sembled on the brushes in accordance
with Figure 6/1.
Fig. 5
1 Deflector
2Deflector lock
3Grip
1. Open the deflector (Fig. 5/1):
take hold of the grip (Fig. 5/3), raise
the deflector (Fig. 5/1), pivot it for-
wards and outwards and lower it
(service position).
2. Slidethe brushunderthe brushhead
in accordance with Figure 6.
Fig. 6
3. Raisethebrush andturnslightlyuntil
the toothing meshes.
4. Pull the brush up until all six hooks
engage in the catches.
5. Rotate the brush once to check that
all the hooks are engaged.
11 2 3
1

19
Starting Up
6. Close the lock on the brush, see Fig-
ure 7.
7. Close the deflector (Fig. 5/1): take
hold of the grip (Fig. 5/3), raise the
deflector (Fig. 5/1), pivot it towards
the vehicle and lower it into the de-
flector lock (Fig. 5/2). The deflector
(Fig. 5/1) is now in its working posi-
tion.
Lock closed
Lock open
Fig. 7
Installing the drive plates with pad
1. Turn the drive plate over and place
thepadonthecontactsurface,press
on and fix in place with the center-
lock.
2. Lock the drive plate with the pad in
the catches as described in Sec-
tion “Installing the brushes”.
Brush selection
The scrubber drier must be equipped
with the brushes and pads from the ac-
cessories program according to the ac-
cumulation of dirt and characteristics of
the floor; also refer to Section 4.

20
Starting Up
2.3.2 Installing and adjusting
the squeegee
Fig. 8
Installing the squeegee
1. Switch on the key switch.
2. Lower the holding attachment of the
squeegee: Press the button for the
squeegeeandsuctionturbinesothat
the green control lamp lights up.
3. Switchoffthekeyswitchandremove
the key.
4. Open the rear doors.
5. Slide the squeegee from the rear un-
der the lowered holding attachment
and fix the squeegee to it with the
four wing nuts (Fig. 8/1).
6. Attach the suction hose to the con-
nection nozzle (Fig. 8/2) of the
squeegee.
7. Insert the key in the key switch and
turn the key switch on.
8. The squeegee is raised automatical-
ly.
9. Close the rear doors.
Adjusting the squeegee
Thesqueegeemustbe set up onalevel
floor according to the conditions in
which it is to be used. The squeegee
must stand vertically on the floor (ad-
justed at the factory). The sealing strip
(Fig. 8/3) should bend slightly to the
rear when the vehicle is in operation.
Support rollers (Fig. 8/5) limit its move-
ment toward the floor. These support
rollers must be adjusted in order to
raise the contact surface of the squee-
gee:
• Loosen the counternuts (Fig. 8/4)
and raise the support rollers on the
left and right evenly (turn screw
counterclockwise and lock again).
The sealing strip now bends a little
more towards the rear. An
adjustment of the support rollers is also
necessarywhentheedgeof the sealing
strip is worn.
1
2
3
4
5
