PowerVision S1 User manual
PowerVision S1
User Manual
PowerVision
V1.0
.
Reading suggestion........................................................................................................................1
Symbol description...........................................................................................................................1
Usage recommendations.................................................................................................................1
Watch Tutorial Video......................................................................................................................1
Product description........................................................................................................................2
About PowerVision S1......................................................................................................................2
Buttons and port functions..............................................................................................................4
Unfolding and storage......................................................................................................................7
Charging...........................................................................................................................................12
Phone installation and balance adjustment................................................................................12
Preparing for use.............................................................................................................................15
Connecting PowerVision S1................................................
..
.........................................................16
Activating PowerVision S1.......................................................................................................
.
......16
Using the gimbal............................................................................................................................ 17
Operating modes ...........................................................................................................................
.
17
Shooting with Vision+S1.................................................................................................................18
Using PowerFollow mode...............................................................................................................20
Charging your phone with S1...............................................................................................22
Charging your phone wirelessly.....................................................................................................22
Functions as a wireless charger for phones.................................................................................22
Charging your phone with a wired charger..................................................................................23
Firmware upgrade.........................................................................................................................24
Specications....................................................................................................................................25
Contents
PowerVision S1 provides users the following information:
1."Tutorial Video"
2."Disclaimer and Safety Guidelines"
3."Quick Start Guide"
4."User Manual"
We recommend that users watch the tutorial video for this product on the of-
cial PowerVision website https://www.powervision.me or Vision+S1 App before
using this product.
To learn more about how to use this product, read the "Disclaimer and Safety
Guidelines " and "Quick Start Guide".
For detailed product operating instructions, read this user manual.
Download Vision+S1 App in your phone's App store. Search for Vision+S1 App
or scan the following QR code with your phone:
To ensure optimal performance of Vision+S1 App, make sure that your device is
using iOS version 10.0 or Android version 7.0 or higher.
App tutorial video location:
Ofcial website tutorial video location:
https://www.powervision.me/app/3.0/powervisions1.html
Precautions
Reading suggestion
Symbol description
Usage recommendations
Watch Tutorial Video
Vision+ S1
1
PowerVision S1 combines a three-axis stabilized handheld gimbal, smart stand,
and wired and wireless charging in a single device. Its clever and compact folding
design is elegant and easy to carry, making it the perfect companion for smart-
phones.
PowerVision S1 integrates three-axis gimbal with high precision, which features
physical stabilization that helps phones capture smoother and less-shaky motion pic-
tures.The device folds into a small size that's convenient to carry and easy to
store.Users can also use S1 to fast charge their phones with a wired or wireless char-
ger any time and anywhere.
Use Bluetooth to connect to Vision+S1 App and control your phone using the
gimbal's buttons. Shooting in special effect modes such as Panorama, Motionlapse,
and Slowmotion is supported.
PowerVision S1 is the rst product of its kind to feature a PowerFollow function.
PowerFollow enables the gimbal to automatically follow your movement during lives-
treaming, improving the quality of indoor and outdoor shooting of motion scenarios.
Product description
About PowerVision S1
• PowerVision S1 part names
1.Motor Cover
2.Wireless Charging Output
3.5-Way Button
4.Camera Button
5.Power Button
6.Zoom Slider
7.System Status Indicator
Battery Level Indicator
8.USB-C Port
9.Built-in Tripod
10.1/4"-20 UNC Port
1
2
7
6
3
4
5
8
10 9
11
17
13
16 15
12
14
2
11.Pan Motor
12.Tilt Motor
13.Roll Motor
14.Main Arm
15.Tilt Joint
16.Roll Joint
17.Magnetic Mounting Plate
• Magnetic Phone Clamp
• Magnetic Phone Case (sold separately)
1.Magnetic Mounting Plate
2.Slide Stand
• Magnetic Universal Phone Mount (sold separately)
1.Magnetic Universal Phone Mount (sold separately)
2.Slide Stand
1
2
1
2
3
OFF mode
• Press once: View battery level and activate charger mode.
• Press and hold: Turn on.
ON mode
• Press once: Open the shortcut menu, and press again to return to camera
mode.
• Press twice: Toggle between portrait and landscape mode.
• Press three times: Enter playback mode, and press again to return to camera
mode.
• Press and hold: Power off.
Standby mode
• Press once: Wake up device.
ON mode
• Press once: Photo or video.
• Press and hold: Burst shooting when in photo mode.
Standby mode
• Press once: Wake up device.
By default, PowerVision S1 is in Follow mode when it is powered on.In Follow
mode, the gimbal will keep the phone level at all times during shooting.When the
gimbal is moved up, down, left, or right, the shooting direction will be adjusted
smoothly.
Use the following buttons and ports to access PowerVision S1's functions:
Buttons and port functions
◆Power Button
◆Camera Button
◆System Status Indicator
4
Blinking blue light
Blinking red light Gimbal exception
(too high or too low temperature, excessive battery discharge etc.)
Blinking pattern
Solid yellow light
Solid green light
Yellow and green pulses blink
Solid orange light
Indicator status
Bluetooth not connected
Bluetooth connected
Standby mode
Phone charger mode
Gimbal is updating
Indicates the current system status
Operating status:
Charging mode:
◆ Battery Level Indicator
Current battery level LED1 LED2 LED3 LED4
0%~13%
13%~25%
25%~38%
38%~50%
50%~63%
63%~75%
75%~88%
88%~100%
Battery level LED1 LED2 LED3 LED4
Fully charged
5
0%-50%
80%-100%
50%-80%
Camera mode:
Up, down, left, and right buttons: move the gimbal in four directions
Middle button:
• Press once to enable Tracking mode. Press once again to disable Tracking
mode.
• Press twice to re-center the gimbal.
• Press three times to switch between front and rear cameras.
• Press and hold rmly to enter Lock mode.
• Press once and then hold rmly to enter Sport mode. Release to turn off Sport
mode.
Standby mode:
• Press once to wake up device.
◆ 5-Way Button
Camera mode: Slide up or down to control the camera zoom.
• Press once to increase/decrease the camera zoom factor.
• Press to continuously increase/decrease the camera zoom factor.
◆ Zoom Slider
Charging port
• Use this port to connect to the USB charger, and charge PowerVision S1 .
Power supply port
• Use this port to connect and charge your phone.
◆ USB-C Port
6

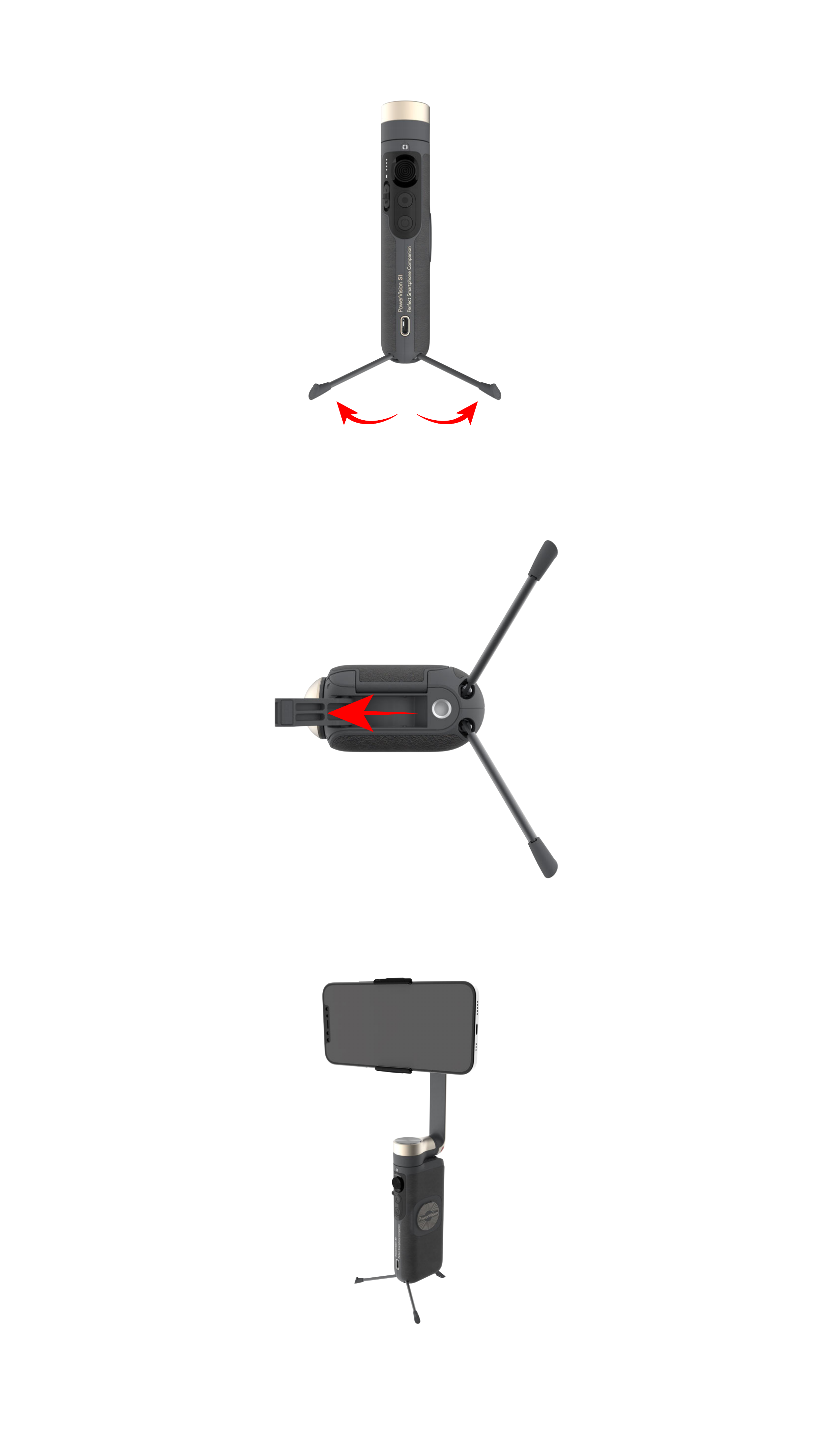

PowerVision S1 features a built-in tripod. Extend and unfold the tripod to place
it on a stable table.
Open the [Motor cover], and rotate the [Main arm] 180 degrees vertically until
level with the device.
◆ Built-in Tripod
Use the 1/4"-20 UNC Port located at the base to connect the gimbal to an exter-
nal tripod.
◆ 1/4"-20 UNC Port
PowerVision S1 was designed to be extremely portable. The device can be
folded into a small size, making it easy to store and transport, and can also be used
to charge phones.
Unfolding and storage
：Gesture control switch
There are three types of gesture controls when this switch is enabled.
：Enable or disable Follow
：Take a photo
：Start or stop video recording
3. Settings
：Gimbal settings
a.Follow Mode
1）.Follow: The roll axis is locked, and the tilt axis and the yaw axis follow the move-
ments of the device.
2）.Tilt Locked: The roll axis and the tilt axis are locked, and the yaw axis follows the
movements of the device.
3）.FPV: The roll, tilt, and yaw axes all follow the movements of the device.
b.Sport Mode Switch: Enables and disables sport mode. When this switch is enabled,
◆ Unfolding
Do not turn on S1 when it is in storage. Please install the phone onto the
gimbal before turning it on and using the device.
the follow speed increases.
c.Zoom Speed: Controls the zoom speed of the zoom slider.
d.Handle Speed: Adjust the control speed of 5-Way button
e.Horizontal Reverse Switch: When this switch is enabled, if you push the handle left
or right, the gimbal's yaw axis will move in the opposite direction of your actual
movements.
f.Vertical Reverse Switch: When this switch is enabled, if you push the handle up or
down, the gimbal's tilt axis will move in the opposite direction of your actual move-
ments.
g.Gimbal Auto Calibration: When the gimbal encounters unexpected horizontal
skewing or drifting, this function automatically recalibrates the gimbal.
h.Gimbal Fine-tuning: This function allows the gimbal's horizontal level to be
ne-tuned.
：General Settings
Manage current connection settings and view setting names, rmware version, and
device serial number, etc.
4、Exposure Parameters
：Real-time display of the current shutter speed, ISO and EV values.
5、Zoom
：Shows the current zoom ratio.Use the zoom function to zoom in
or out.
6、Shooting Mode
Swipe to choose different shooting modes
Timewrap: The phone shoots a time-lapse while in motion.
Timelapse: Includes normal time-lapse and Motionlapse.A normal time-lapse requires
setting the time interval and length of time. For Motionlapse, you can also set up to 4
gimbal positions.
Slowmotion: Chooses a frame rate to shoot in slow motion.
Video: Shoots regular video.
Photo: Takes photos.
Panorama: Uses the gimbal to automatically shoot a panoramic photo. Supports 3*3,
240°, and clone modes.
7、Media Library
：View local media library resources.
8、Exposure Parameter Settings
：Adjust exposure parameters.
9、Camera Button
：Press to start or stop shooting.
10、Shortcut Function Menu
：Different shooting modes have different parameter. Visit the App shooting
page for more details.
11、Front/Rear Camera Switch
：Press to switch between the front and rear cameras
12、Tracking Mode
：Tracking mode helps you to keep your target in the center position in the
frame while photographing or recording.Tracking mode can be enabled using three
methods:
a. Short press the 5-Way button and PowerVision S1 will automatically start tracking
the object in the center of the frame. Press the 5-Way button again to deactivate
object tracking.
b. Manually draw a box on the screen to choose an object to be tracked. Press the
tracking icon to deactivate object tracking.
c. Enable gesture recognition in the status bar of the shooting page. Show the
camera lens with the "Five" gesture and the system will automatically recognize the
object and start tracking it. To deactivate object tracking, make the same gestures to-
wards the camera lens.
13、Focus Frame
：Focus frame
14、Gimbal Battery Level
：Shows the gimbal's current battery level.
15、Gimbal Mode
：Shows the current gimbal mode.
Note: Camera setting functions may differ depending upon the phone model you are
using. Actual supported functions may vary.
7

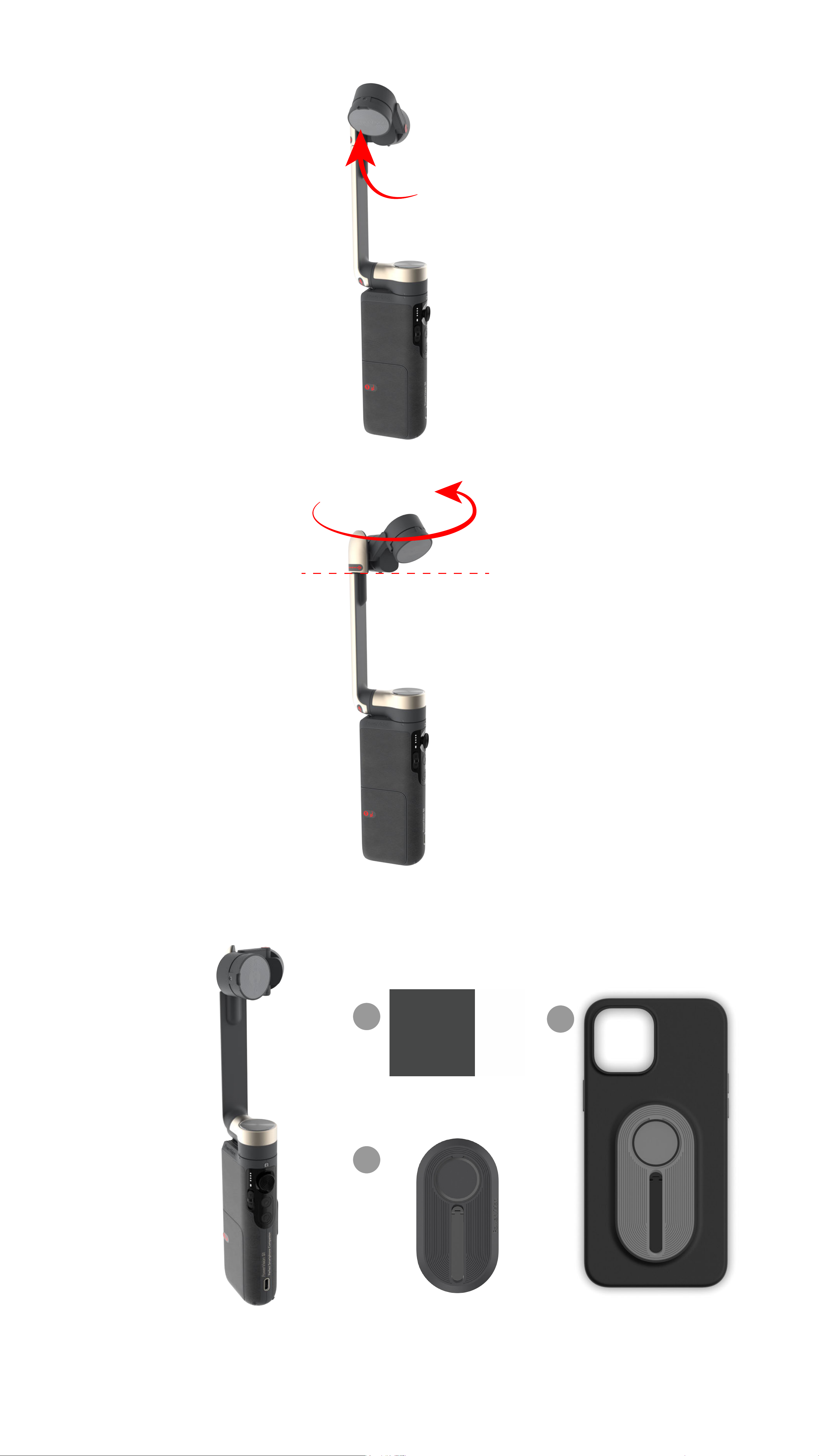

180°
Rotate the [Roll joint] to the illustrated position.
Hold the main arm and rotate the [Tilt joint] counterclockwise to the illustrated
position.
Use a ①magnetic phone clamp, ②magnetic phone case, or ③magnetic univer-
sal phone mount to install your phone into the gimbal and start using it.
：Gesture control switch
There are three types of gesture controls when this switch is enabled.
：Enable or disable Follow
：Take a photo
：Start or stop video recording
3. Settings
：Gimbal settings
a.Follow Mode
1）.Follow: The roll axis is locked, and the tilt axis and the yaw axis follow the move-
ments of the device.
2）.Tilt Locked: The roll axis and the tilt axis are locked, and the yaw axis follows the
movements of the device.
3）.FPV: The roll, tilt, and yaw axes all follow the movements of the device.
b.Sport Mode Switch: Enables and disables sport mode. When this switch is enabled,
12
3
the follow speed increases.
c.Zoom Speed: Controls the zoom speed of the zoom slider.
d.Handle Speed: Adjust the control speed of 5-Way button
e.Horizontal Reverse Switch: When this switch is enabled, if you push the handle left
or right, the gimbal's yaw axis will move in the opposite direction of your actual
movements.
f.Vertical Reverse Switch: When this switch is enabled, if you push the handle up or
down, the gimbal's tilt axis will move in the opposite direction of your actual move-
ments.
g.Gimbal Auto Calibration: When the gimbal encounters unexpected horizontal
skewing or drifting, this function automatically recalibrates the gimbal.
h.Gimbal Fine-tuning: This function allows the gimbal's horizontal level to be
ne-tuned.
：General Settings
Manage current connection settings and view setting names, rmware version, and
device serial number, etc.
4、Exposure Parameters
：Real-time display of the current shutter speed, ISO and EV values.
5、Zoom
：Shows the current zoom ratio.Use the zoom function to zoom in
or out.
6、Shooting Mode
Swipe to choose different shooting modes
Timewrap: The phone shoots a time-lapse while in motion.
Timelapse: Includes normal time-lapse and Motionlapse.A normal time-lapse requires
setting the time interval and length of time. For Motionlapse, you can also set up to 4
gimbal positions.
Slowmotion: Chooses a frame rate to shoot in slow motion.
Video: Shoots regular video.
Photo: Takes photos.
Panorama: Uses the gimbal to automatically shoot a panoramic photo. Supports 3*3,
240°, and clone modes.
7、Media Library
：View local media library resources.
8、Exposure Parameter Settings
：Adjust exposure parameters.
9、Camera Button
：Press to start or stop shooting.
10、Shortcut Function Menu
：Different shooting modes have different parameter. Visit the App shooting
page for more details.
11、Front/Rear Camera Switch
：Press to switch between the front and rear cameras
12、Tracking Mode
：Tracking mode helps you to keep your target in the center position in the
frame while photographing or recording.Tracking mode can be enabled using three
methods:
a. Short press the 5-Way button and PowerVision S1 will automatically start tracking
the object in the center of the frame. Press the 5-Way button again to deactivate
object tracking.
b. Manually draw a box on the screen to choose an object to be tracked. Press the
tracking icon to deactivate object tracking.
c. Enable gesture recognition in the status bar of the shooting page. Show the
camera lens with the "Five" gesture and the system will automatically recognize the
object and start tracking it. To deactivate object tracking, make the same gestures to-
wards the camera lens.
13、Focus Frame
：Focus frame
14、Gimbal Battery Level
：Shows the gimbal's current battery level.
15、Gimbal Mode
：Shows the current gimbal mode.
Note: Camera setting functions may differ depending upon the phone model you are
using. Actual supported functions may vary.
8
：Gesture control switch
There are three types of gesture controls when this switch is enabled.
：Enable or disable Follow
：Take a photo
：Start or stop video recording
3. Settings
：Gimbal settings
a.Follow Mode
1）.Follow: The roll axis is locked, and the tilt axis and the yaw axis follow the move-
ments of the device.
2）.Tilt Locked: The roll axis and the tilt axis are locked, and the yaw axis follows the
movements of the device.
3）.FPV: The roll, tilt, and yaw axes all follow the movements of the device.
b.Sport Mode Switch: Enables and disables sport mode. When this switch is enabled,
◆ Storage
Please remove your phone and power off S1 before storing it
Hold the main arm and rotate the [Tilt joint] clockwise to the illustrated position.
Rotate the [Roll joint] to the illustrated position.
the follow speed increases.
c.Zoom Speed: Controls the zoom speed of the zoom slider.
d.Handle Speed: Adjust the control speed of 5-Way button
e.Horizontal Reverse Switch: When this switch is enabled, if you push the handle left
or right, the gimbal's yaw axis will move in the opposite direction of your actual
movements.
f.Vertical Reverse Switch: When this switch is enabled, if you push the handle up or
down, the gimbal's tilt axis will move in the opposite direction of your actual move-
ments.
g.Gimbal Auto Calibration: When the gimbal encounters unexpected horizontal
skewing or drifting, this function automatically recalibrates the gimbal.
h.Gimbal Fine-tuning: This function allows the gimbal's horizontal level to be
ne-tuned.
：General Settings
Manage current connection settings and view setting names, rmware version, and
device serial number, etc.
4、Exposure Parameters
：Real-time display of the current shutter speed, ISO and EV values.
5、Zoom
：Shows the current zoom ratio.Use the zoom function to zoom in
or out.
6、Shooting Mode
Swipe to choose different shooting modes
Timewrap: The phone shoots a time-lapse while in motion.
Timelapse: Includes normal time-lapse and Motionlapse.A normal time-lapse requires
setting the time interval and length of time. For Motionlapse, you can also set up to 4
gimbal positions.
Slowmotion: Chooses a frame rate to shoot in slow motion.
Video: Shoots regular video.
Photo: Takes photos.
Panorama: Uses the gimbal to automatically shoot a panoramic photo. Supports 3*3,
240°, and clone modes.
7、Media Library
：View local media library resources.
8、Exposure Parameter Settings
：Adjust exposure parameters.
9、Camera Button
：Press to start or stop shooting.
10、Shortcut Function Menu
：Different shooting modes have different parameter. Visit the App shooting
page for more details.
11、Front/Rear Camera Switch
：Press to switch between the front and rear cameras
12、Tracking Mode
：Tracking mode helps you to keep your target in the center position in the
frame while photographing or recording.Tracking mode can be enabled using three
methods:
a. Short press the 5-Way button and PowerVision S1 will automatically start tracking
the object in the center of the frame. Press the 5-Way button again to deactivate
object tracking.
b. Manually draw a box on the screen to choose an object to be tracked. Press the
tracking icon to deactivate object tracking.
c. Enable gesture recognition in the status bar of the shooting page. Show the
camera lens with the "Five" gesture and the system will automatically recognize the
object and start tracking it. To deactivate object tracking, make the same gestures to-
wards the camera lens.
13、Focus Frame
：Focus frame
14、Gimbal Battery Level
：Shows the gimbal's current battery level.
15、Gimbal Mode
：Shows the current gimbal mode.
Note: Camera setting functions may differ depending upon the phone model you are
using. Actual supported functions may vary.
9
：Gesture control switch
There are three types of gesture controls when this switch is enabled.
：Enable or disable Follow
：Take a photo
：Start or stop video recording
3. Settings
：Gimbal settings
a.Follow Mode
1）.Follow: The roll axis is locked, and the tilt axis and the yaw axis follow the move-
ments of the device.
2）.Tilt Locked: The roll axis and the tilt axis are locked, and the yaw axis follows the
movements of the device.
3）.FPV: The roll, tilt, and yaw axes all follow the movements of the device.
b.Sport Mode Switch: Enables and disables sport mode. When this switch is enabled,
◆ Unfolding and storing built-in tripod of S1
Open the [Motor cover], and rotate the [Main arm] 180 degrees vertically into
the device.
Completely extend S1's built-in metal feet at the base of the device.
Close the [Motor cover] to nish storage.
the follow speed increases.
c.Zoom Speed: Controls the zoom speed of the zoom slider.
d.Handle Speed: Adjust the control speed of 5-Way button
e.Horizontal Reverse Switch: When this switch is enabled, if you push the handle left
or right, the gimbal's yaw axis will move in the opposite direction of your actual
movements.
f.Vertical Reverse Switch: When this switch is enabled, if you push the handle up or
down, the gimbal's tilt axis will move in the opposite direction of your actual move-
ments.
g.Gimbal Auto Calibration: When the gimbal encounters unexpected horizontal
skewing or drifting, this function automatically recalibrates the gimbal.
h.Gimbal Fine-tuning: This function allows the gimbal's horizontal level to be
ne-tuned.
：General Settings
Manage current connection settings and view setting names, rmware version, and
device serial number, etc.
4、Exposure Parameters
：Real-time display of the current shutter speed, ISO and EV values.
5、Zoom
：Shows the current zoom ratio.Use the zoom function to zoom in
or out.
6、Shooting Mode
Swipe to choose different shooting modes
Timewrap: The phone shoots a time-lapse while in motion.
Timelapse: Includes normal time-lapse and Motionlapse.A normal time-lapse requires
setting the time interval and length of time. For Motionlapse, you can also set up to 4
gimbal positions.
Slowmotion: Chooses a frame rate to shoot in slow motion.
Video: Shoots regular video.
Photo: Takes photos.
Panorama: Uses the gimbal to automatically shoot a panoramic photo. Supports 3*3,
240°, and clone modes.
7、Media Library
：View local media library resources.
8、Exposure Parameter Settings
：Adjust exposure parameters.
9、Camera Button
：Press to start or stop shooting.
10、Shortcut Function Menu
：Different shooting modes have different parameter. Visit the App shooting
page for more details.
11、Front/Rear Camera Switch
：Press to switch between the front and rear cameras
12、Tracking Mode
：Tracking mode helps you to keep your target in the center position in the
frame while photographing or recording.Tracking mode can be enabled using three
methods:
a. Short press the 5-Way button and PowerVision S1 will automatically start tracking
the object in the center of the frame. Press the 5-Way button again to deactivate
object tracking.
b. Manually draw a box on the screen to choose an object to be tracked. Press the
tracking icon to deactivate object tracking.
c. Enable gesture recognition in the status bar of the shooting page. Show the
camera lens with the "Five" gesture and the system will automatically recognize the
object and start tracking it. To deactivate object tracking, make the same gestures to-
wards the camera lens.
13、Focus Frame
：Focus frame
14、Gimbal Battery Level
：Shows the gimbal's current battery level.
15、Gimbal Mode
：Shows the current gimbal mode.
Note: Camera setting functions may differ depending upon the phone model you are
using. Actual supported functions may vary.
10
：Gesture control switch
There are three types of gesture controls when this switch is enabled.
：Enable or disable Follow
：Take a photo
：Start or stop video recording
3. Settings
：Gimbal settings
a.Follow Mode
1）.Follow: The roll axis is locked, and the tilt axis and the yaw axis follow the move-
ments of the device.
2）.Tilt Locked: The roll axis and the tilt axis are locked, and the yaw axis follows the
movements of the device.
3）.FPV: The roll, tilt, and yaw axes all follow the movements of the device.
b.Sport Mode Switch: Enables and disables sport mode. When this switch is enabled,

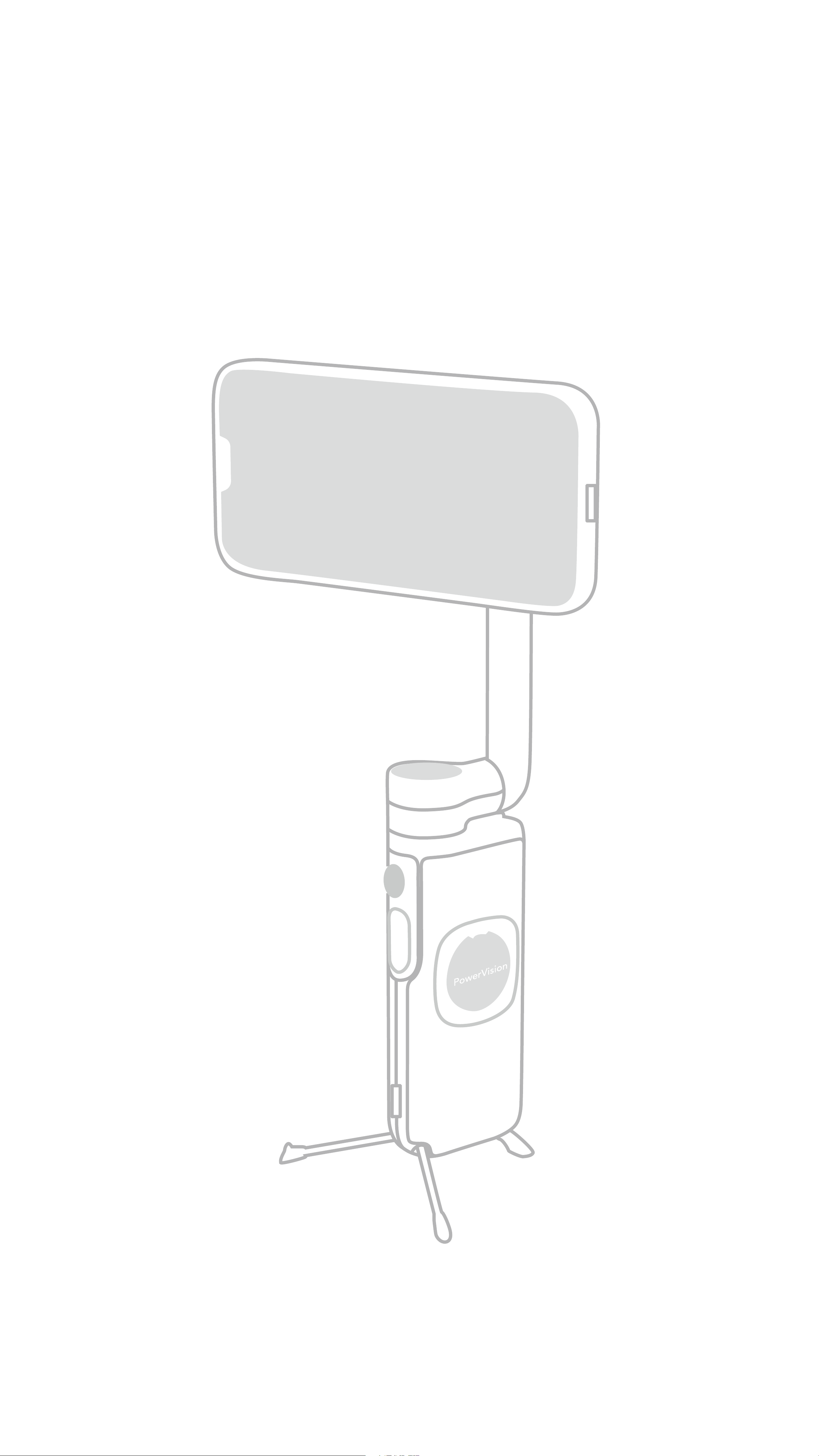

Fold the metal feet into the illustrated position.
Open the Card Foot at the base.
Place the device on a level surface.
the follow speed increases.
c.Zoom Speed: Controls the zoom speed of the zoom slider.
d.Handle Speed: Adjust the control speed of 5-Way button
e.Horizontal Reverse Switch: When this switch is enabled, if you push the handle left
or right, the gimbal's yaw axis will move in the opposite direction of your actual
movements.
f.Vertical Reverse Switch: When this switch is enabled, if you push the handle up or
down, the gimbal's tilt axis will move in the opposite direction of your actual move-
ments.
g.Gimbal Auto Calibration: When the gimbal encounters unexpected horizontal
skewing or drifting, this function automatically recalibrates the gimbal.
h.Gimbal Fine-tuning: This function allows the gimbal's horizontal level to be
ne-tuned.
：General Settings
Manage current connection settings and view setting names, rmware version, and
device serial number, etc.
4、Exposure Parameters
：Real-time display of the current shutter speed, ISO and EV values.
5、Zoom
：Shows the current zoom ratio.Use the zoom function to zoom in
or out.
6、Shooting Mode
Swipe to choose different shooting modes
Timewrap: The phone shoots a time-lapse while in motion.
Timelapse: Includes normal time-lapse and Motionlapse.A normal time-lapse requires
setting the time interval and length of time. For Motionlapse, you can also set up to 4
gimbal positions.
Slowmotion: Chooses a frame rate to shoot in slow motion.
Video: Shoots regular video.
Photo: Takes photos.
Panorama: Uses the gimbal to automatically shoot a panoramic photo. Supports 3*3,
240°, and clone modes.
7、Media Library
：View local media library resources.
8、Exposure Parameter Settings
：Adjust exposure parameters.
9、Camera Button
：Press to start or stop shooting.
10、Shortcut Function Menu
：Different shooting modes have different parameter. Visit the App shooting
page for more details.
11、Front/Rear Camera Switch
：Press to switch between the front and rear cameras
12、Tracking Mode
：Tracking mode helps you to keep your target in the center position in the
frame while photographing or recording.Tracking mode can be enabled using three
methods:
a. Short press the 5-Way button and PowerVision S1 will automatically start tracking
the object in the center of the frame. Press the 5-Way button again to deactivate
object tracking.
b. Manually draw a box on the screen to choose an object to be tracked. Press the
tracking icon to deactivate object tracking.
c. Enable gesture recognition in the status bar of the shooting page. Show the
camera lens with the "Five" gesture and the system will automatically recognize the
object and start tracking it. To deactivate object tracking, make the same gestures to-
wards the camera lens.
13、Focus Frame
：Focus frame
14、Gimbal Battery Level
：Shows the gimbal's current battery level.
15、Gimbal Mode
：Shows the current gimbal mode.
Note: Camera setting functions may differ depending upon the phone model you are
using. Actual supported functions may vary.
11
Use the USB charging cable (provided) and a compatible power adapter (sold
separately) to connect to PowerVision S1's USB-C port and charge the device.
When the device is fully charged while in OFF mode, the battery level indicator
will automatically turn off.
Charging
：Gesture control switch
There are three types of gesture controls when this switch is enabled.
：Enable or disable Follow
：Take a photo
：Start or stop video recording
3. Settings
：Gimbal settings
a.Follow Mode
1）.Follow: The roll axis is locked, and the tilt axis and the yaw axis follow the move-
ments of the device.
2）.Tilt Locked: The roll axis and the tilt axis are locked, and the yaw axis follows the
movements of the device.
3）.FPV: The roll, tilt, and yaw axes all follow the movements of the device.
b.Sport Mode Switch: Enables and disables sport mode. When this switch is enabled,
PowerVision S1 supports connecting your phone to the gimbal and quick dis-
mantling via a variety of accessories, including the magnetic phone clamp, magnetic
phone case, or magnetic universal phone mount.
Phone installation and balance adjustment
This product supports fast charging, and is recommended to be paired with
third party adapters that have a power output of at least 18 W.
Charging time: about 2 hrs (*tested on an 18 W charger)
Max operating time: 15 hrs.（*Under ideal conditions with the gimbal fully bal-
ances.
◆ Magnetic phone clamp
1.Place the magnetic phone clamp in the middle of the phone, with the camera
logo on the side facing the direction of the phone's camera
2.Align the magnetic phone clamp with the gimbal's magnetic mounting plate
to complete the attachment process.
Note: Ensure that there is no offset in the upper and lower distances of the phone clamp, or
this will impact the center of gravity balance when you shoot with the gimbal.
the follow speed increases.
c.Zoom Speed: Controls the zoom speed of the zoom slider.
d.Handle Speed: Adjust the control speed of 5-Way button
e.Horizontal Reverse Switch: When this switch is enabled, if you push the handle left
or right, the gimbal's yaw axis will move in the opposite direction of your actual
movements.
f.Vertical Reverse Switch: When this switch is enabled, if you push the handle up or
down, the gimbal's tilt axis will move in the opposite direction of your actual move-
ments.
g.Gimbal Auto Calibration: When the gimbal encounters unexpected horizontal
skewing or drifting, this function automatically recalibrates the gimbal.
h.Gimbal Fine-tuning: This function allows the gimbal's horizontal level to be
ne-tuned.
：General Settings
Manage current connection settings and view setting names, rmware version, and
device serial number, etc.
4、Exposure Parameters
：Real-time display of the current shutter speed, ISO and EV values.
5、Zoom
：Shows the current zoom ratio.Use the zoom function to zoom in
or out.
6、Shooting Mode
Swipe to choose different shooting modes
Timewrap: The phone shoots a time-lapse while in motion.
Timelapse: Includes normal time-lapse and Motionlapse.A normal time-lapse requires
setting the time interval and length of time. For Motionlapse, you can also set up to 4
gimbal positions.
Slowmotion: Chooses a frame rate to shoot in slow motion.
Video: Shoots regular video.
Photo: Takes photos.
Panorama: Uses the gimbal to automatically shoot a panoramic photo. Supports 3*3,
240°, and clone modes.
7、Media Library
：View local media library resources.
8、Exposure Parameter Settings
：Adjust exposure parameters.
9、Camera Button
：Press to start or stop shooting.
10、Shortcut Function Menu
：Different shooting modes have different parameter. Visit the App shooting
page for more details.
11、Front/Rear Camera Switch
：Press to switch between the front and rear cameras
12、Tracking Mode
：Tracking mode helps you to keep your target in the center position in the
frame while photographing or recording.Tracking mode can be enabled using three
methods:
a. Short press the 5-Way button and PowerVision S1 will automatically start tracking
the object in the center of the frame. Press the 5-Way button again to deactivate
object tracking.
b. Manually draw a box on the screen to choose an object to be tracked. Press the
tracking icon to deactivate object tracking.
c. Enable gesture recognition in the status bar of the shooting page. Show the
camera lens with the "Five" gesture and the system will automatically recognize the
object and start tracking it. To deactivate object tracking, make the same gestures to-
wards the camera lens.
13、Focus Frame
：Focus frame
14、Gimbal Battery Level
：Shows the gimbal's current battery level.
15、Gimbal Mode
：Shows the current gimbal mode.
Note: Camera setting functions may differ depending upon the phone model you are
using. Actual supported functions may vary.
12
：Gesture control switch
There are three types of gesture controls when this switch is enabled.
：Enable or disable Follow
：Take a photo
：Start or stop video recording
3. Settings
：Gimbal settings
a.Follow Mode
1）.Follow: The roll axis is locked, and the tilt axis and the yaw axis follow the move-
ments of the device.
2）.Tilt Locked: The roll axis and the tilt axis are locked, and the yaw axis follows the
movements of the device.
3）.FPV: The roll, tilt, and yaw axes all follow the movements of the device.
b.Sport Mode Switch: Enables and disables sport mode. When this switch is enabled,
◆ Magnetic phone case
1.Select a magnetic phone case that matches your phone model, align the area
with a circle logo with the gimbal's magnetic mounting plate to complete the attach-
ment process.
◆ Magnetic Universal Phone Mount
For phones that are not included on the list of devices compatible with mag-
netic phone cases, a magnetic universal phone mount offers rapid installation.To
attach a magnetic universal phone mount to the back of your phone, follow these
steps:
Note: For a list of phone models that are compatible with the magnetic phone
case, check details in our ofcial website, www.powervision.me.
1 2 3 ４
the follow speed increases.
c.Zoom Speed: Controls the zoom speed of the zoom slider.
d.Handle Speed: Adjust the control speed of 5-Way button
e.Horizontal Reverse Switch: When this switch is enabled, if you push the handle left
or right, the gimbal's yaw axis will move in the opposite direction of your actual
movements.
f.Vertical Reverse Switch: When this switch is enabled, if you push the handle up or
down, the gimbal's tilt axis will move in the opposite direction of your actual move-
ments.
g.Gimbal Auto Calibration: When the gimbal encounters unexpected horizontal
skewing or drifting, this function automatically recalibrates the gimbal.
h.Gimbal Fine-tuning: This function allows the gimbal's horizontal level to be
ne-tuned.
：General Settings
Manage current connection settings and view setting names, rmware version, and
device serial number, etc.
4、Exposure Parameters
：Real-time display of the current shutter speed, ISO and EV values.
5、Zoom
：Shows the current zoom ratio.Use the zoom function to zoom in
or out.
6、Shooting Mode
Swipe to choose different shooting modes
Timewrap: The phone shoots a time-lapse while in motion.
Timelapse: Includes normal time-lapse and Motionlapse.A normal time-lapse requires
setting the time interval and length of time. For Motionlapse, you can also set up to 4
gimbal positions.
Slowmotion: Chooses a frame rate to shoot in slow motion.
Video: Shoots regular video.
Photo: Takes photos.
Panorama: Uses the gimbal to automatically shoot a panoramic photo. Supports 3*3,
240°, and clone modes.
7、Media Library
：View local media library resources.
8、Exposure Parameter Settings
：Adjust exposure parameters.
9、Camera Button
：Press to start or stop shooting.
10、Shortcut Function Menu
：Different shooting modes have different parameter. Visit the App shooting
page for more details.
11、Front/Rear Camera Switch
：Press to switch between the front and rear cameras
12、Tracking Mode
：Tracking mode helps you to keep your target in the center position in the
frame while photographing or recording.Tracking mode can be enabled using three
methods:
a. Short press the 5-Way button and PowerVision S1 will automatically start tracking
the object in the center of the frame. Press the 5-Way button again to deactivate
object tracking.
b. Manually draw a box on the screen to choose an object to be tracked. Press the
tracking icon to deactivate object tracking.
c. Enable gesture recognition in the status bar of the shooting page. Show the
camera lens with the "Five" gesture and the system will automatically recognize the
object and start tracking it. To deactivate object tracking, make the same gestures to-
wards the camera lens.
13、Focus Frame
：Focus frame
14、Gimbal Battery Level
：Shows the gimbal's current battery level.
15、Gimbal Mode
：Shows the current gimbal mode.
Note: Camera setting functions may differ depending upon the phone model you are
using. Actual supported functions may vary.
13
(1)Clean the back of the phone.
(2)Align the center positioning card with the back of your phone, and the mag-
netic universal phone mount's circular magnetic area with the center of the
back of the phone.
(3)Apply pressure to the attached magnetic universal phone mount for 30 s
and ensure that it is at.
(4)Remove the center positioning card and wait for one hour before using the
gimbal.
Align the circular logo area with the gimbal's magnetic mounting plate to com-
plete the attachment process.
：Gesture control switch
There are three types of gesture controls when this switch is enabled.
：Enable or disable Follow
：Take a photo
：Start or stop video recording
3. Settings
：Gimbal settings
a.Follow Mode
1）.Follow: The roll axis is locked, and the tilt axis and the yaw axis follow the move-
ments of the device.
2）.Tilt Locked: The roll axis and the tilt axis are locked, and the yaw axis follows the
movements of the device.
3）.FPV: The roll, tilt, and yaw axes all follow the movements of the device.
b.Sport Mode Switch: Enables and disables sport mode. When this switch is enabled,
A magnetic universal phone mount cannot be attached to the phone case, or it
may impact the gimbal's functionality and the phone's wireless charging function.
If the magnetic universal phone mount is not properly aligned with the phone's
wireless charging output, the phone may be unable to use the wireless charging
function.
the follow speed increases.
c.Zoom Speed: Controls the zoom speed of the zoom slider.
d.Handle Speed: Adjust the control speed of 5-Way button
e.Horizontal Reverse Switch: When this switch is enabled, if you push the handle left
or right, the gimbal's yaw axis will move in the opposite direction of your actual
movements.
f.Vertical Reverse Switch: When this switch is enabled, if you push the handle up or
down, the gimbal's tilt axis will move in the opposite direction of your actual move-
ments.
g.Gimbal Auto Calibration: When the gimbal encounters unexpected horizontal
skewing or drifting, this function automatically recalibrates the gimbal.
h.Gimbal Fine-tuning: This function allows the gimbal's horizontal level to be
ne-tuned.
：General Settings
Manage current connection settings and view setting names, rmware version, and
device serial number, etc.
4、Exposure Parameters
：Real-time display of the current shutter speed, ISO and EV values.
5、Zoom
：Shows the current zoom ratio.Use the zoom function to zoom in
or out.
6、Shooting Mode
Swipe to choose different shooting modes
Timewrap: The phone shoots a time-lapse while in motion.
Timelapse: Includes normal time-lapse and Motionlapse.A normal time-lapse requires
setting the time interval and length of time. For Motionlapse, you can also set up to 4
gimbal positions.
Slowmotion: Chooses a frame rate to shoot in slow motion.
Video: Shoots regular video.
Photo: Takes photos.
Panorama: Uses the gimbal to automatically shoot a panoramic photo. Supports 3*3,
240°, and clone modes.
7、Media Library
：View local media library resources.
8、Exposure Parameter Settings
：Adjust exposure parameters.
9、Camera Button
：Press to start or stop shooting.
10、Shortcut Function Menu
：Different shooting modes have different parameter. Visit the App shooting
page for more details.
11、Front/Rear Camera Switch
：Press to switch between the front and rear cameras
12、Tracking Mode
：Tracking mode helps you to keep your target in the center position in the
frame while photographing or recording.Tracking mode can be enabled using three
methods:
a. Short press the 5-Way button and PowerVision S1 will automatically start tracking
the object in the center of the frame. Press the 5-Way button again to deactivate
object tracking.
b. Manually draw a box on the screen to choose an object to be tracked. Press the
tracking icon to deactivate object tracking.
c. Enable gesture recognition in the status bar of the shooting page. Show the
camera lens with the "Five" gesture and the system will automatically recognize the
object and start tracking it. To deactivate object tracking, make the same gestures to-
wards the camera lens.
13、Focus Frame
：Focus frame
14、Gimbal Battery Level
：Shows the gimbal's current battery level.
15、Gimbal Mode
：Shows the current gimbal mode.
Note: Camera setting functions may differ depending upon the phone model you are
using. Actual supported functions may vary.
14
(1)Clean the back of the phone.
(2)Align the center positioning card with the back of your phone, and the mag-
netic universal phone mount's circular magnetic area with the center of the
back of the phone.
(3)Apply pressure to the attached magnetic universal phone mount for 30 s
and ensure that it is at.
(4)Remove the center positioning card and wait for one hour before using the
gimbal.
Align the circular logo area with the gimbal's magnetic mounting plate to com-
plete the attachment process.
PowerVision S1 can be used with its dedicated App. Use PowerVision S1 buttons
to activate Camera, Gimbal, Panorama, Motionlapse, and Tracking modes.
Follow these steps to access Vision+S1 App's main functions:
Preparing for use
：Gesture control switch
There are three types of gesture controls when this switch is enabled.
：Enable or disable Follow
：Take a photo
：Start or stop video recording
3. Settings
：Gimbal settings
a.Follow Mode
1）.Follow: The roll axis is locked, and the tilt axis and the yaw axis follow the move-
ments of the device.
2）.Tilt Locked: The roll axis and the tilt axis are locked, and the yaw axis follows the
movements of the device.
3）.FPV: The roll, tilt, and yaw axes all follow the movements of the device.
b.Sport Mode Switch: Enables and disables sport mode. When this switch is enabled,
• Home: View device connection status and the gimbal's remaining battery level.
• Camera: After connecting with PowerVision S1, enter the camera shooting
screen.
• PowerFollow: After connecting with PowerVision S1, use the PowerFollow func-
tion. Then the gimbal will follow your movement during livestreaming.
• Creation: Tap to enter. This mode allows you to edit the videos you have shot.
• My Login: Register and log in to your PowerVision account to enter the App
settings menu.
• Help: Tap to enter. View tutorial video and help documents.
the follow speed increases.
c.Zoom Speed: Controls the zoom speed of the zoom slider.
d.Handle Speed: Adjust the control speed of 5-Way button
e.Horizontal Reverse Switch: When this switch is enabled, if you push the handle left
or right, the gimbal's yaw axis will move in the opposite direction of your actual
movements.
f.Vertical Reverse Switch: When this switch is enabled, if you push the handle up or
down, the gimbal's tilt axis will move in the opposite direction of your actual move-
ments.
g.Gimbal Auto Calibration: When the gimbal encounters unexpected horizontal
skewing or drifting, this function automatically recalibrates the gimbal.
h.Gimbal Fine-tuning: This function allows the gimbal's horizontal level to be
ne-tuned.
：General Settings
Manage current connection settings and view setting names, rmware version, and
device serial number, etc.
4、Exposure Parameters
：Real-time display of the current shutter speed, ISO and EV values.
5、Zoom
：Shows the current zoom ratio.Use the zoom function to zoom in
or out.
6、Shooting Mode
Swipe to choose different shooting modes
Timewrap: The phone shoots a time-lapse while in motion.
Timelapse: Includes normal time-lapse and Motionlapse.A normal time-lapse requires
setting the time interval and length of time. For Motionlapse, you can also set up to 4
gimbal positions.
Slowmotion: Chooses a frame rate to shoot in slow motion.
Video: Shoots regular video.
Photo: Takes photos.
Panorama: Uses the gimbal to automatically shoot a panoramic photo. Supports 3*3,
240°, and clone modes.
7、Media Library
：View local media library resources.
8、Exposure Parameter Settings
：Adjust exposure parameters.
9、Camera Button
：Press to start or stop shooting.
10、Shortcut Function Menu
：Different shooting modes have different parameter. Visit the App shooting
page for more details.
11、Front/Rear Camera Switch
：Press to switch between the front and rear cameras
12、Tracking Mode
：Tracking mode helps you to keep your target in the center position in the
frame while photographing or recording.Tracking mode can be enabled using three
methods:
a. Short press the 5-Way button and PowerVision S1 will automatically start tracking
the object in the center of the frame. Press the 5-Way button again to deactivate
object tracking.
b. Manually draw a box on the screen to choose an object to be tracked. Press the
tracking icon to deactivate object tracking.
c. Enable gesture recognition in the status bar of the shooting page. Show the
camera lens with the "Five" gesture and the system will automatically recognize the
object and start tracking it. To deactivate object tracking, make the same gestures to-
wards the camera lens.
13、Focus Frame
：Focus frame
14、Gimbal Battery Level
：Shows the gimbal's current battery level.
15、Gimbal Mode
：Shows the current gimbal mode.
Note: Camera setting functions may differ depending upon the phone model you are
using. Actual supported functions may vary.
15
Connecting PowerVision S1
Power on PowerVision S1.
Turn on Bluetooth on your phone.Using PowerVision S1 App, select S1 as the
name of the device to connect to.
Activating PowerVision S1
The rst time you connect to PowerVision S1 you will need to activate your
device or you will be unable to use Vision+S1 App functions.
Activating PowerVision S1 requires registering and logging in to a PowerVision
account. Completing these steps requires an internet connection.
After completing activation, you can shoot using PowerVision S1 App.
：Gesture control switch
There are three types of gesture controls when this switch is enabled.
：Enable or disable Follow
：Take a photo
：Start or stop video recording
3. Settings
：Gimbal settings
a.Follow Mode
1）.Follow: The roll axis is locked, and the tilt axis and the yaw axis follow the move-
ments of the device.
2）.Tilt Locked: The roll axis and the tilt axis are locked, and the yaw axis follows the
movements of the device.
3）.FPV: The roll, tilt, and yaw axes all follow the movements of the device.
b.Sport Mode Switch: Enables and disables sport mode. When this switch is enabled,
the follow speed increases.
c.Zoom Speed: Controls the zoom speed of the zoom slider.
d.Handle Speed: Adjust the control speed of 5-Way button
e.Horizontal Reverse Switch: When this switch is enabled, if you push the handle left
or right, the gimbal's yaw axis will move in the opposite direction of your actual
movements.
f.Vertical Reverse Switch: When this switch is enabled, if you push the handle up or
down, the gimbal's tilt axis will move in the opposite direction of your actual move-
ments.
g.Gimbal Auto Calibration: When the gimbal encounters unexpected horizontal
skewing or drifting, this function automatically recalibrates the gimbal.
h.Gimbal Fine-tuning: This function allows the gimbal's horizontal level to be
ne-tuned.
：General Settings
Manage current connection settings and view setting names, rmware version, and
device serial number, etc.
4、Exposure Parameters
：Real-time display of the current shutter speed, ISO and EV values.
5、Zoom
：Shows the current zoom ratio.Use the zoom function to zoom in
or out.
6、Shooting Mode
Swipe to choose different shooting modes
Timewrap: The phone shoots a time-lapse while in motion.
Timelapse: Includes normal time-lapse and Motionlapse.A normal time-lapse requires
setting the time interval and length of time. For Motionlapse, you can also set up to 4
gimbal positions.
Slowmotion: Chooses a frame rate to shoot in slow motion.
Video: Shoots regular video.
Photo: Takes photos.
Panorama: Uses the gimbal to automatically shoot a panoramic photo. Supports 3*3,
240°, and clone modes.
7、Media Library
：View local media library resources.
8、Exposure Parameter Settings
：Adjust exposure parameters.
9、Camera Button
：Press to start or stop shooting.
10、Shortcut Function Menu
：Different shooting modes have different parameter. Visit the App shooting
page for more details.
11、Front/Rear Camera Switch
：Press to switch between the front and rear cameras
12、Tracking Mode
：Tracking mode helps you to keep your target in the center position in the
frame while photographing or recording.Tracking mode can be enabled using three
methods:
a. Short press the 5-Way button and PowerVision S1 will automatically start tracking
the object in the center of the frame. Press the 5-Way button again to deactivate
object tracking.
b. Manually draw a box on the screen to choose an object to be tracked. Press the
tracking icon to deactivate object tracking.
c. Enable gesture recognition in the status bar of the shooting page. Show the
camera lens with the "Five" gesture and the system will automatically recognize the
object and start tracking it. To deactivate object tracking, make the same gestures to-
wards the camera lens.
13、Focus Frame
：Focus frame
14、Gimbal Battery Level
：Shows the gimbal's current battery level.
15、Gimbal Mode
：Shows the current gimbal mode.
Note: Camera setting functions may differ depending upon the phone model you are
using. Actual supported functions may vary.
16
：Gesture control switch
There are three types of gesture controls when this switch is enabled.
：Enable or disable Follow
：Take a photo
：Start or stop video recording
3. Settings
：Gimbal settings
a.Follow Mode
1）.Follow: The roll axis is locked, and the tilt axis and the yaw axis follow the move-
ments of the device.
2）.Tilt Locked: The roll axis and the tilt axis are locked, and the yaw axis follows the
movements of the device.
3）.FPV: The roll, tilt, and yaw axes all follow the movements of the device.
b.Sport Mode Switch: Enables and disables sport mode. When this switch is enabled,
the follow speed increases.
c.Zoom Speed: Controls the zoom speed of the zoom slider.
d.Handle Speed: Adjust the control speed of 5-Way button
e.Horizontal Reverse Switch: When this switch is enabled, if you push the handle left
or right, the gimbal's yaw axis will move in the opposite direction of your actual
movements.
f.Vertical Reverse Switch: When this switch is enabled, if you push the handle up or
down, the gimbal's tilt axis will move in the opposite direction of your actual move-
ments.
g.Gimbal Auto Calibration: When the gimbal encounters unexpected horizontal
skewing or drifting, this function automatically recalibrates the gimbal.
h.Gimbal Fine-tuning: This function allows the gimbal's horizontal level to be
ne-tuned.
：General Settings
Manage current connection settings and view setting names, rmware version, and
device serial number, etc.
4、Exposure Parameters
：Real-time display of the current shutter speed, ISO and EV values.
5、Zoom
：Shows the current zoom ratio.Use the zoom function to zoom in
or out.
6、Shooting Mode
Swipe to choose different shooting modes
Timewrap: The phone shoots a time-lapse while in motion.
Timelapse: Includes normal time-lapse and Motionlapse.A normal time-lapse requires
setting the time interval and length of time. For Motionlapse, you can also set up to 4
gimbal positions.
Slowmotion: Chooses a frame rate to shoot in slow motion.
Video: Shoots regular video.
Photo: Takes photos.
Panorama: Uses the gimbal to automatically shoot a panoramic photo. Supports 3*3,
240°, and clone modes.
7、Media Library
：View local media library resources.
8、Exposure Parameter Settings
：Adjust exposure parameters.
9、Camera Button
：Press to start or stop shooting.
10、Shortcut Function Menu
：Different shooting modes have different parameter. Visit the App shooting
page for more details.
11、Front/Rear Camera Switch
：Press to switch between the front and rear cameras
12、Tracking Mode
：Tracking mode helps you to keep your target in the center position in the
frame while photographing or recording.Tracking mode can be enabled using three
methods:
a. Short press the 5-Way button and PowerVision S1 will automatically start tracking
the object in the center of the frame. Press the 5-Way button again to deactivate
object tracking.
b. Manually draw a box on the screen to choose an object to be tracked. Press the
tracking icon to deactivate object tracking.
c. Enable gesture recognition in the status bar of the shooting page. Show the
camera lens with the "Five" gesture and the system will automatically recognize the
object and start tracking it. To deactivate object tracking, make the same gestures to-
wards the camera lens.
13、Focus Frame
：Focus frame
14、Gimbal Battery Level
：Shows the gimbal's current battery level.
15、Gimbal Mode
：Shows the current gimbal mode.
Note: Camera setting functions may differ depending upon the phone model you are
using. Actual supported functions may vary.
Using the gimbal
S1 has three operating modes, which can be used in both portrait and land-
scape shooting modes. The gures below show a phone being used in landscape
mode.
After you unfold S1 and install your phone, hold the device and the device
should be positioned beneath the gimbal. Then it is in the upright mode.Press the
5-Way button twice to re-center the gimbal.
Operating modes
◆ Upright Mode
Underslung mode is an inversion of upright mode. Hold the device and the
device should be positioned above the gimbal. Then it is in the underslung mode.-
Press the 5-Way button twice to re-center the gimbal.
◆Underslung Mode
In upright mode, rotate S1 90 degrees to the left or right. Then hold the device
and the device should be at a horizontally level with the gimbal. Then it is in side grip
mode.Press the 5-Way button twice to re-center the gimbal.
◆ Side Grip Mode
17
Shooting Mode Congurable Parameters
Flash, resolution、frame rate
Flash, resolution and frame rate
Flash, frame rate
Flash, gesture control, beautify
Flash, gesture control, beautify
Flash, gesture control, timer, Panorama mode
Timewrap
Timelapse
Slowmotion
Video
Panorama
1. Home
：Press to return to the home page.
2. Camera Status Bar
：Gesture control switch
There are three types of gesture controls when this switch is enabled.
：Enable or disable Follow
：Take a photo
：Start or stop video recording
3. Settings
：Gimbal settings
a.Follow Mode
1）.Follow: The roll axis is locked, and the tilt axis and the yaw axis follow the move-
ments of the device.
2）.Tilt Locked: The roll axis and the tilt axis are locked, and the yaw axis follows the
movements of the device.
3）.FPV: The roll, tilt, and yaw axes all follow the movements of the device.
b.Sport Mode Switch: Enables and disables sport mode. When this switch is enabled,
the follow speed increases.
c.Zoom Speed: Controls the zoom speed of the zoom slider.
d.Handle Speed: Adjust the control speed of 5-Way button
e.Horizontal Reverse Switch: When this switch is enabled, if you push the handle left
or right, the gimbal's yaw axis will move in the opposite direction of your actual
movements.
f.Vertical Reverse Switch: When this switch is enabled, if you push the handle up or
down, the gimbal's tilt axis will move in the opposite direction of your actual move-
ments.
g.Gimbal Auto Calibration: When the gimbal encounters unexpected horizontal
skewing or drifting, this function automatically recalibrates the gimbal.
h.Gimbal Fine-tuning: This function allows the gimbal's horizontal level to be
ne-tuned.
：General Settings
Manage current connection settings and view setting names, rmware version, and
device serial number, etc.
4、Exposure Parameters
：Real-time display of the current shutter speed, ISO and EV values.
5、Zoom
：Shows the current zoom ratio.Use the zoom function to zoom in
or out.
6、Shooting Mode
Swipe to choose different shooting modes
Timewrap: The phone shoots a time-lapse while in motion.
Timelapse: Includes normal time-lapse and Motionlapse.A normal time-lapse requires
setting the time interval and length of time. For Motionlapse, you can also set up to 4
gimbal positions.
Slowmotion: Chooses a frame rate to shoot in slow motion.
Video: Shoots regular video.
Photo: Takes photos.
Panorama: Uses the gimbal to automatically shoot a panoramic photo. Supports 3*3,
240°, and clone modes.
7、Media Library
：View local media library resources.
8、Exposure Parameter Settings
：Adjust exposure parameters.
9、Camera Button
：Press to start or stop shooting.
10、Shortcut Function Menu
：Different shooting modes have different parameter. Visit the App shooting
page for more details.
11、Front/Rear Camera Switch
：Press to switch between the front and rear cameras
12、Tracking Mode
：Tracking mode helps you to keep your target in the center position in the
frame while photographing or recording.Tracking mode can be enabled using three
methods:
a. Short press the 5-Way button and PowerVision S1 will automatically start tracking
the object in the center of the frame. Press the 5-Way button again to deactivate
object tracking.
b. Manually draw a box on the screen to choose an object to be tracked. Press the
tracking icon to deactivate object tracking.
c. Enable gesture recognition in the status bar of the shooting page. Show the
camera lens with the "Five" gesture and the system will automatically recognize the
object and start tracking it. To deactivate object tracking, make the same gestures to-
wards the camera lens.
13、Focus Frame
：Focus frame
14、Gimbal Battery Level
：Shows the gimbal's current battery level.
15、Gimbal Mode
：Shows the current gimbal mode.
Note: Camera setting functions may differ depending upon the phone model you are
using. Actual supported functions may vary.
18
Shoot with Vision+S1 App
1
3 7
8
9
10
11
121415 13
4 5 6
2
Table of contents
