ARRI ALEXA User manual

QUICK GUIDE
Date: 22nd May 2012
ALEXA
Lens Data Display LDD-FP
For ALEXA SUP 6.1 or greater

ALEXA Lens Data Display LDD-FP
For ALEXA SUP 6.1 or greater – Quick Guide Page 2 of 9
Table of Contents
1.!Disclaimer .................................................................................................................. 3!
2.!Scope.......................................................................................................................... 4!
3.!Introduction................................................................................................................ 4!
4.!Operation ................................................................................................................... 5!
Mounting................................................................................................................... 5!
Setup ........................................................................................................................ 5!
Power-on the LDD-FP .............................................................................................. 5!
LDD-FP Main Screen for ALEXA.............................................................................. 6!
LDD-FP Status Screen ............................................................................................. 7!
Menu Items............................................................................................................... 7!
Brightness............................................................................................................ 7!
Display Options ................................................................................................... 8!
Sleep Options...................................................................................................... 8!
Circle of Confusion .............................................................................................. 8!
Focus Tracking.................................................................................................... 8!
LDA User Lens List / LDA Main Lens List........................................................... 8!
Help ..................................................................................................................... 9!
5.!Specifications ............................................................................................................ 9!

ALEXA Lens Data Display LDD-FP
For ALEXA SUP 6.1 or greater – Quick Guide Page 3 of 9
1. Disclaimer
Before using the product described in this manual be sure to read and understand all respective instruction.
The ARRI Lens Data Display for Focus Pullers (LDD-FP) is only available to commercial customers. The
customer grants by utilization that the ARRI LDD-FP or other components of the system are deployed for
commercial use. Otherwise the customer has the obligation to contact ARRI preceding the utilization.
While ARRI endeavors to enhance the quality, reliability and safety of their products, customers agree and
acknowledge that the possibility of defects thereof cannot be eliminated entirely. To minimize risk of damage
to property or injury (including death) to persons arising from defects in the products, customers must
incorporate sufficient safety measures in their work with the system and have to heed the stated canonic
use.
ARRI or its subsidiaries do not assume any responsibility for incurred losses due to improper handling or
configuration of the camera or other system components, due to sensor contamination, occurrence of dead
or defective pixels, defective signal connections or incompatibilities with third party recording devices.
ARRI assumes no responsibility for any errors that may appear in this document. The information is subject
to change without notice.
For product specification changes since this manual was published, refer to the latest publications of ARRI
data sheets or data books, etc., for the most up-to-date specifications. Not all products and/or types are
available in every country. Please check with an ARRI sales representative for availability and additional
information.
Neither ARRI nor its subsidiaries assume any liability for infringement of patents, copyrights or other
intellectual property rights of third parties by or arising from the use of ARRI products or any other liability
arising from the use of such products. No license, express, implied or otherwise, is granted under any
patents, copyrights or other intellectual property right of ARRI or others.
ARRI or its subsidiaries expressly exclude any liability, warranty, demand or other obligation for any claim,
representation, or cause, or action, or whatsoever, express or implied, whether in contract or tort, including
negligence, or incorporated in terms and conditions, whether by statue, law or otherwise. In no event shall
ARRI or its subsidiaries be liable for or have a remedy for recovery of any special, direct, indirect, incidental,
or consequential damages, including, but not limited to lost profits, lost savings, lost revenues or economic
loss of any kind or for any claim by third party, downtime, good-will, damage to or replacement of equipment
or property, any cost or recovering of any material or goods associated with the assembly or use of our
products, or any other damages or injury of the persons and so on or under any other legal theory.
In the case one or all of the foregoing clauses are not allowed by applicable law, the fullest extent
permissible clauses by applicable law are validated.
ARRI is a registered trademark of Arnold & Richter Cine Technik GmbH & Co Betriebs KG.
This product meets CE regulations.

ALEXA Lens Data Display LDD-FP
For ALEXA SUP 6.1 or greater – Quick Guide Page 4 of 9
2. Scope
This instruction manual applies to the following hardware, software and firmware versions:
ARRI LDD-FP using
Software Packet LDDFP_V3.02 or greater
This software packet also supports LDD-FP functionality for
ARRICAM, ARRIFLEX 435 Advanced/Xtreme, ARRIFLEX 416PLus
ARRI ALEXA PLUS, ARRI ALEXA PLUS 4:3 or ARRI ALEXA STUDIO camera using
Software SUP 6.1 or greater
WMU-3 with WHITE radio, WFU-3, WZU-3, WEB-3 expansion bracket optional
Software Packet WMU3_03A or greater
Order numbers:
K2. 54163.0 LDD-FP complete, includes:
K2.54172.0 Cable LDD-FP-RDO 600mm(2ft) spiral cable
K4.52044.0 Base Plate assy.
K5.60294.0 Light Protection
K2.54077.0 3/8” Accessory Shoe interfaces the base plate assy. to any 3/8” thread
3. Introduction
The small and lightweight LDD-FP shows important ARRI LDS lens information and camera status. It can be
configured to show one or two of focus, zoom and iris scale and the camera status in any combination. The
LDD-FP graphically shows depth of field, and allows for the setting, displaying and storage of focus marks.
Because of its small size it can be mounted in many ways, allowing the assistant to see precise lens and
camera information while keeping an eye on the action.
The LDD-FP shows camera information depending on the detected camera type. From ALEXA SUP 6.1 on,
specific ALEXA status information, like remaining SxS recording time or digital recording specific camera
status colors will be displayed.
An attachable light protection eases the readability in bright light areas.

ALEXA Lens Data Display LDD-FP
For ALEXA SUP 6.1 or greater – Quick Guide Page 5 of 9
4. Operation

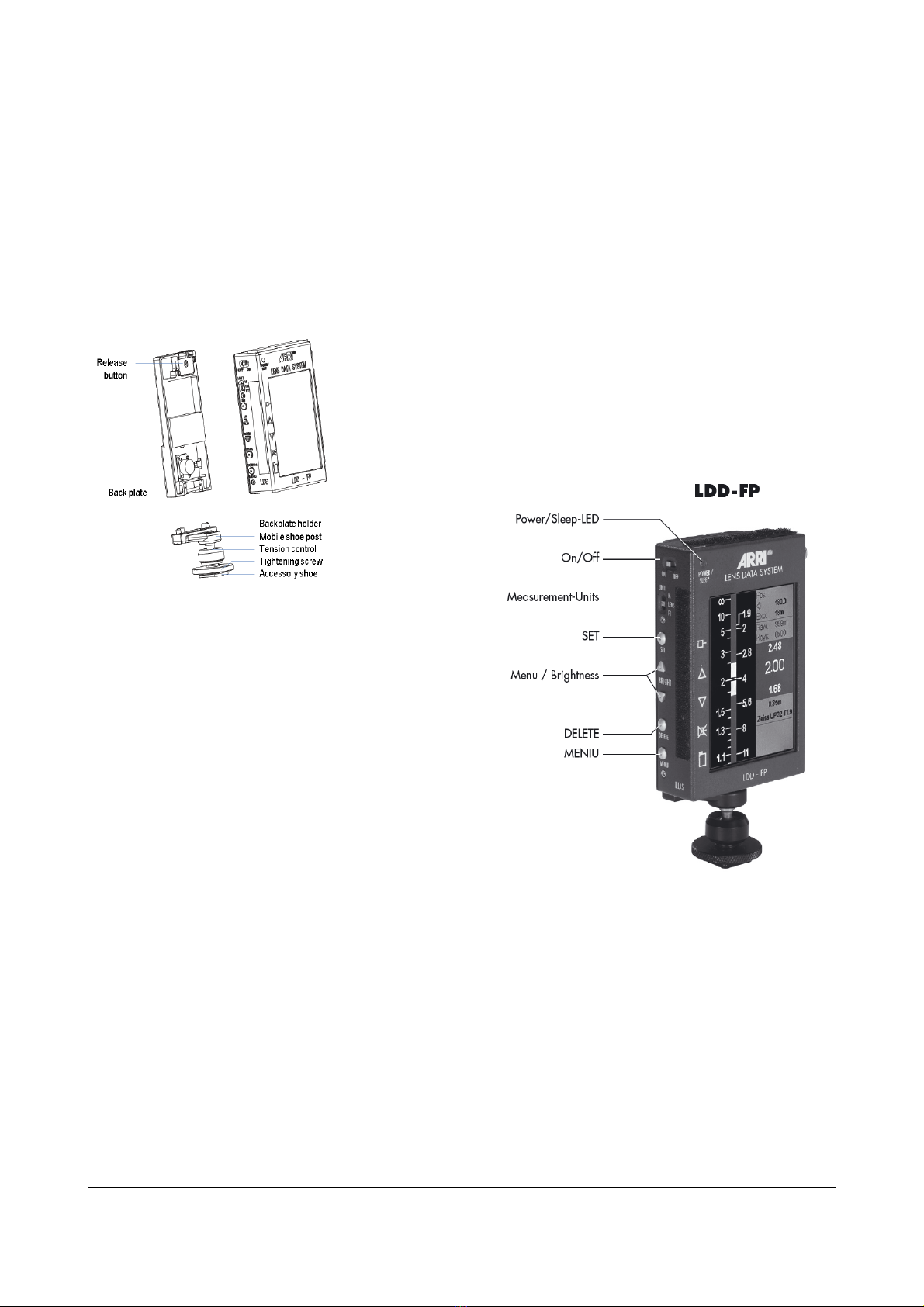

Mounting
The LDD-FP mounting plate is equipped with a camera shoe attachment and swivel head. Use a 3/8” to
camera shoe adapter K2.54077.0 or equivalent for mounting the LDD-FP on a convenient 3/8” accessory
thread on the camera or attached equipment.
The LDD-FP mounting plate additionally provides a 3/8” thread on it’s back side for using standard camera
stands or brackets.
Clip the LDD-FP into the bracket and connect it to the ALEXA PLUS/PLUS 4:3/STUDIO LDD socket using
the cable LDD-FP-RDO K2.54172.0.
Setup
Use the ON/OFF switch to power-on the unit. The
LDD-FP needs a few seconds to be ready, then the
Power/Sleep LED lights green. The pre-selected lens-
and camera data will be displayed.
Press the MENU button briefly to show the camera
status and lens data.
Press the MENU button longer than 2 seconds to get
access to the main menu with several selection and
function possibilities.
Move to the menu items using the UP/DOWN
(BRIGHT) buttons. Check the menu item with the SET
button. Return to the previous menu screen using the
MENU button.
In some sub-menus a context-specific help information
screen (question mark) is available.
Select the displayed lens units from LENS (originate lens unit), or calculated M (Meter) or FT (feet), using the
UNIT slide-switch.
Only one LDD-FP can be used on the same camera.
Power-on the LDD-FP
The LDD-FP has a dedicated ON/OFF switch on the top of the left side. A green LED indicates power on the
LDD-FP. After a pre-settable time the LDD-FP will switch into SLEEP mode, indicated by a blank screen and
a blinking power LED.
Wake-up the LDD-FP from sleep mode by pressing any button briefly

ALEXA Lens Data Display LDD-FP
For ALEXA SUP 6.1 or greater – Quick Guide Page 6 of 9

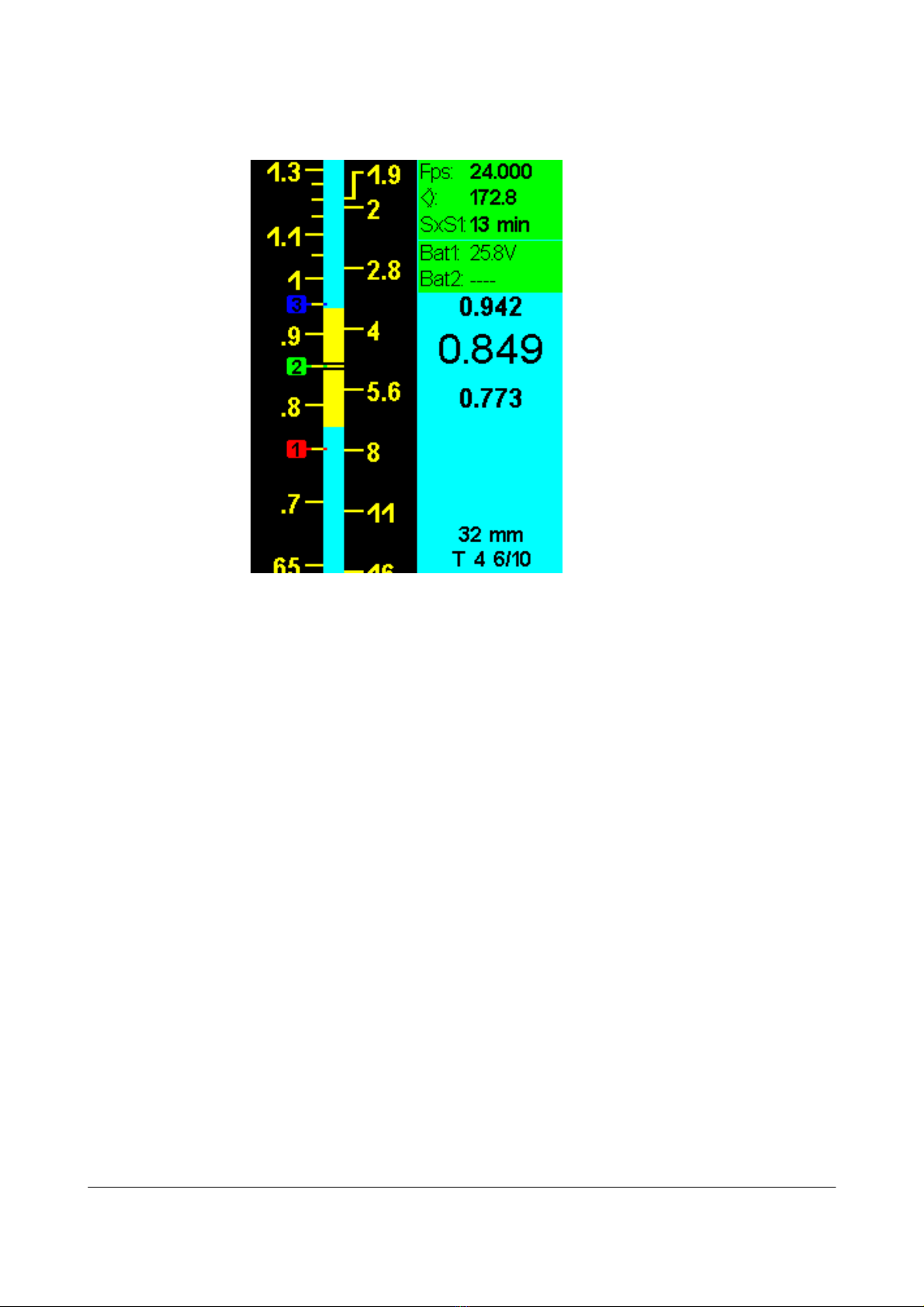

LDD-FP Main Screen for ALEXA
INFO screen: camera and lens data
Recording frames per second
Sector angle
Remaining recording time
Battery voltage main connector
Battery voltage onboard battery
Focus Marker #3 Focus value –upper DoF value *)
Focus value –center
Focus Marker #2
Focus value –lower DoF value *)
Focus Marker #1 Future function: UDM/CTM distance
display
Focal length
Iris value
FOCUS scale IRIS scale
*) Depth of Field (DoF) value/width of yellow bar depends on Iris value and Circle of Confusion setting
Focus Marker
Turn the lens ring to the chosen target position and press the SET button. A focus marker will be generated
and numbered subsequently. Up to nine markers can be set.
Renumber a focus marker: Turn the lens ring to the desired marker position and press the UP button. The
marker number will be raised by one.
Note: All other marker numbers stay untouched, so one can generated more than one marker with the same
number.
Delete a focus marker: Turn the lens ring to the desired marker position and press the DELETE button
briefly. The marker will be deleted.
To delete all markers, press the DELETE button for 2 seconds.
Depth of Field
The Depth of Field will be displayed with numerical values as well as graphically through a yellow bar in the
focus scale.
The shown numbers and the width of the yellow bar are calculated from the Iris value, the center focus
setting and the Circle of Confusion preset in the respective LDD-FP menu.
Note: The Circle of Confusion setting cannot be transmitted to and from the respective ALEXA setting. To
achieved the same values in the ALEXA and the LDD-FP, set the Circle of Confusion to the same value on
both sides

ALEXA Lens Data Display LDD-FP
For ALEXA SUP 6.1 or greater – Quick Guide Page 7 of 9

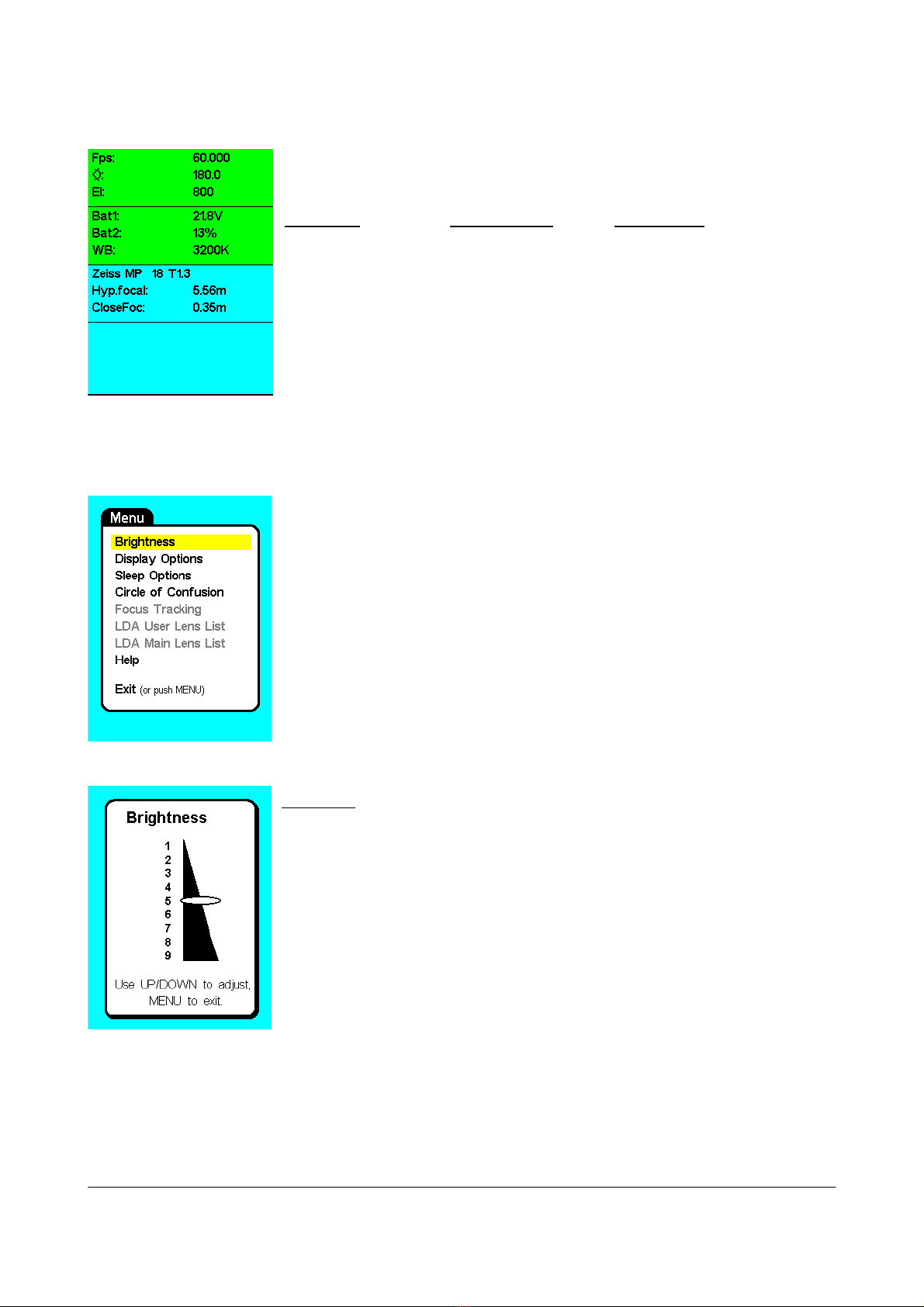

LDD-FP Status Screen
Press the MENU button briefly. The LDD-FP Status Screen appears, showing
camera status and lens data.
Color code Camera Status Camera LED
Standard background NOT READY Off*
GREEN Status field STANDBY Green
RED Status field RECORD Red
YELLOW Status field ERROR Red/green blinking*
* Depending on the error grade, “Camera Error” or “Camera Warning” will be displayed in the Main
and Status screen additionally.
Menu Items
Push and hold the MENU button for 2 seconds to get access to the Main Menu
screen. Move the yellow bar to the desired Menu Item using the UP/DOWN
buttons, and push the SET button.
Brightness
Vary the display brightness to a convenient level using the UP/DOWN buttons
and press MENU to return to the Main Menu screen.

ALEXA Lens Data Display LDD-FP
For ALEXA SUP 6.1 or greater – Quick Guide Page 8 of 9

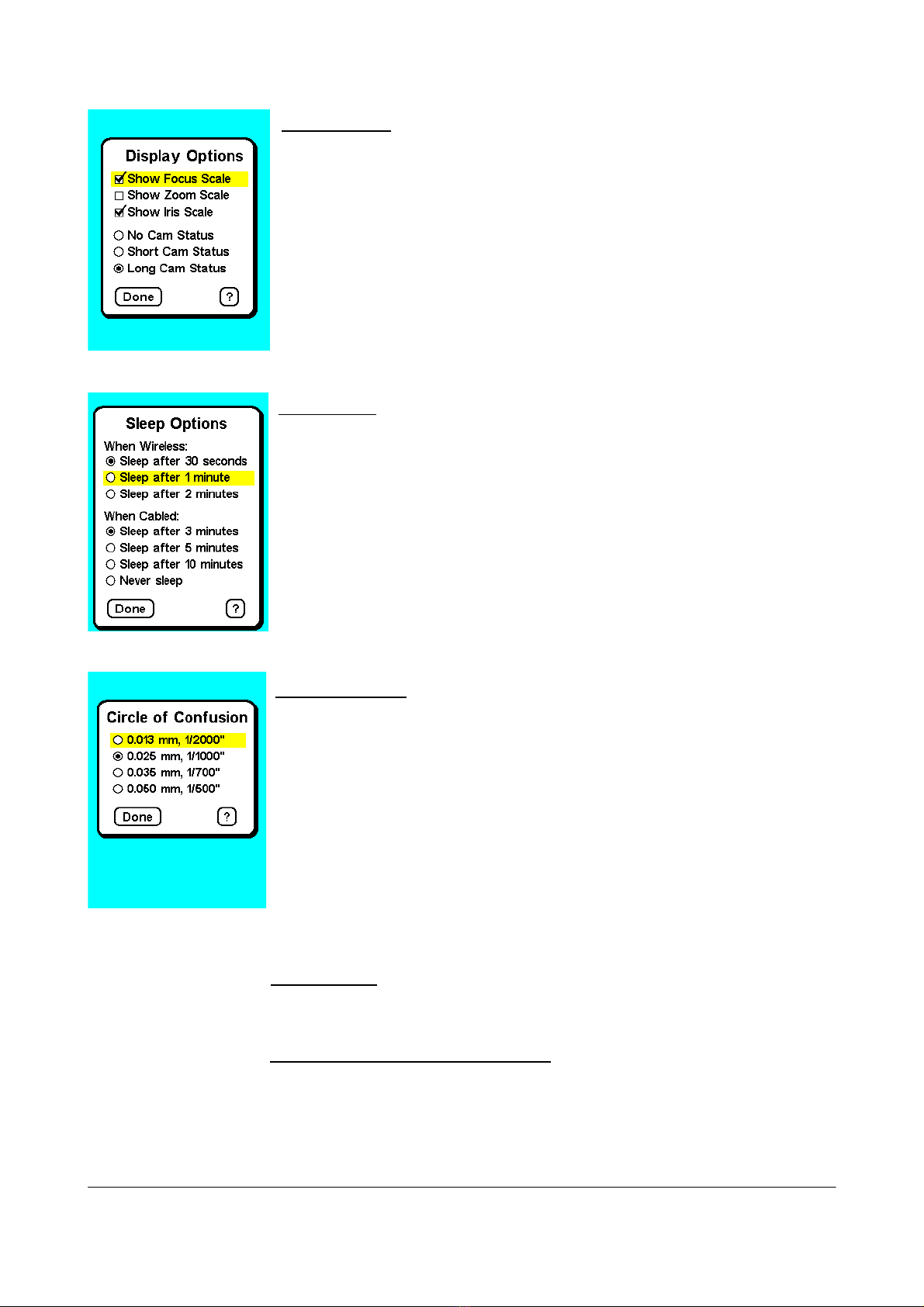

Display Options
Move the yellow bar to the selected function using the UP/DOWN buttons and
push the SET button to check/uncheck the selection.
One or two of the provided lens scales may be selected.
In the second block the depth of displayed camera information can be selected
in a similar way.
Press MENU or select the DONE item on the screen to return to the Main Menu
screen.
Sleep Options
Move the yellow bar to the selected function using the UP/DOWN buttons and
push the SET button to check/uncheck the selection.
Different switch-off times may be selected, depending on the LDD-FP power
source.
Press MENU or select the DONE item on the screen to return to the Main Menu
screen
Circle of Confusion
Move the yellow bar to the selected function using the UP/DOWN buttons and
push the SET button to check/uncheck the selection.
Note: This selection is independent of the selection on the ALEXA.
Press MENU or select the DONE item on the screen to return to the Main Menu
screen.
Focus Tracking
Not available in ALEXA Mode
LDA User Lens List / LDA Main Lens List
Not available in ALEXA Mode.

ALEXA Lens Data Display LDD-FP
For ALEXA SUP 6.1 or greater – Quick Guide Page 9 of 9
Help
Pushing the SET button briefly, a help message will be displayed.
Press MENU to return to the Main Menu screen.
5. Specifications
Power supply:
6.5 to 36 volts / approx. 4 watts at full screen brightness
Dimensions:
76 x 121 x 37 mm without bracket and cable connector
97 x 160 x 40 mm complete with bracket and cable connector
Weight:
330g without bracket
450g with bracket
