Powerware 5115 User manual

Powerware®5115
User’s Guide
500–1400 VA
www.powerware.com
02/15/01

Class B EMC Statements
FCCPart 15
NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
S Reorient or relocate the receiving antenna.
S Increase the separation between the equipment and the receiver.
S Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
S Consult the dealer or an experienced radio/TV technician for help.
ICES-003
This Class B Interference Causing Equipment meets all requirements of the Canadian Interference Causing Equipment
Regulations ICES-003.
Cet appareil numérique de la classe B respecte toutes les exigences du Reglement sur le matériel brouilleur du Canada.
Requesting a Declaration of Conformity
Units that are labeled with a CE mark comply with the following harmonic standards and EU directives:
S Harmonic Standards: EN 50091-1-1 and EN 50091-2
S EU Directives: 73/23/EEC, Council Directive on equipment designed for use within certain voltage limits
93/68/EEC, Amending Directive 73/23/EEC
89/336/EEC, Council Directive relating to electromagnetic compatibility
92/31/EEC, Amending Directive 89/336/EEC relating to EMC
The EC Declaration of Conformity is available upon request for products with a CE mark. For copies of the EC
Declaration of Conformity, contact:
Powerware Corporation
Koskelontie 13
FIN-02920 Espoo
Finland
Phone: [phone]
Fax: [phone]
Powerware is a registered trademark and Advanced Battery Management (ABM) is a trademark of Powerware Corporation.
E Copyright 2000 Powerware Corporation, Raleigh, NC, USA. All rights reserved. No part of this document may be
reproduced in any way without the express written approval of Powerware Corporation.

Powerware®5115
User’s Guide
500–1400 VA
www.powerware.com

Special Symbols
The following are examples of symbols used on the UPS to alert you to important information:
RiskofElectricShock
DoNotOpenCover
C
CC
CA
AA
AU
UU
UT
TT
TI
II
IO
OO
ON
NN
N
CAUTION To reduce the riskof electric shock,
Do not remove cover (orback)
No user-serviceable partsinside
Refer servicing to the factory
RISK OF ELECTRIC SHOCK- Indicates that a risk of electric shock is present and the
associated warning should be observed.
CAUTION: REFER TO OPERATOR’S MANUAL - Refer to your operator’s manual for
additional information, such as important operating and maintenance
instructions.
SAFETY EARTHING TERMINAL - Indicates the primary safety ground.
LOAD ON/OFF - Press the button with this symbol to energize the output
receptacles (
µ indicator illuminates) or to de-energize the output receptacles
(
µ indicator is off).
RJ-45 RECEPTACLE - For 230V units only: this receptacle provides network
interface connections. Do not plug telephone or telecommunications equipment
into this receptacle.
This symbol indicates that you should not discard the UPS or the UPS batteries
in the trash. The UPS may contain sealed, lead-acid batteries. Batteries must be
recycled.

i
Powerware®5115 User’sGuide S www.powerware.com
TABLE OF CONTENTS
1 Powerware 5115 –One of the Best! 1..................................
2 Installation 3.....................................................
Inspecting the Equipment 3.......................................................
SafetyPrecautions 3............................................................
Installing the UPS 4.............................................................
UPS Rear Panels 6..............................................................
3 Operation 11......................................................
Turning the UPS On 11............................................................
Starting the UPS on Battery 11...................................................
Turning the UPS Off 11...........................................................
StandbyMode 12...............................................................
UPS Front Panel 12..............................................................
Initiating the Self-Test 12.........................................................
4 Additional UPS Features 13..........................................
Voltage Configuration 13..........................................................
Communication Port 14...........................................................
Network Transient Protector 15.....................................................
5 UPS Maintenance 17...............................................
UPSand Battery Care 17..........................................................
Storing the UPS and Batteries 17..................................................
Replacing Batteries 18...........................................................
Testing New Batteries 21.........................................................
Recycling the Used Battery 21......................................................
6 Specifications 23..................................................
7 Troubleshooting 27.................................................
Site Wiring Fault(120V Models Only) 27...............................................
Audible Alarmsand UPSConditions 27................................................
Silencing an Audible Alarm 27....................................................
Service and Support 31...........................................................

Table of Contents
ii Powerware®5115 User’sGuide
S www.powerware.com

1
Powerware®5115 User’sGuide S www.powerware.com
CHAPTER 1
POWERWARE 5115 – ONE OF THE BEST!
The Powerware
R
5115 uninterruptible power system (UPS) protects
your sensitive electronic equipment from basic power problems such as
power failures, power sags, power surges, brownouts, and line noise.
Power outages can occur when you least expect it and power quality can
be erratic. These power problems have the potential to corrupt critical
data, destroy unsaved work sessions, and damage hardware — causing
hours of lost productivity and expensive repairs.
With the Powerware 5115, you can safely eliminate the effects of power
disturbances and guard the integrity of your equipment. The Powerware
5115’s flexibility to handle an array of network devices makes it the
perfect choice to protect your LANs, servers, workstations, and other
electrical equipment.

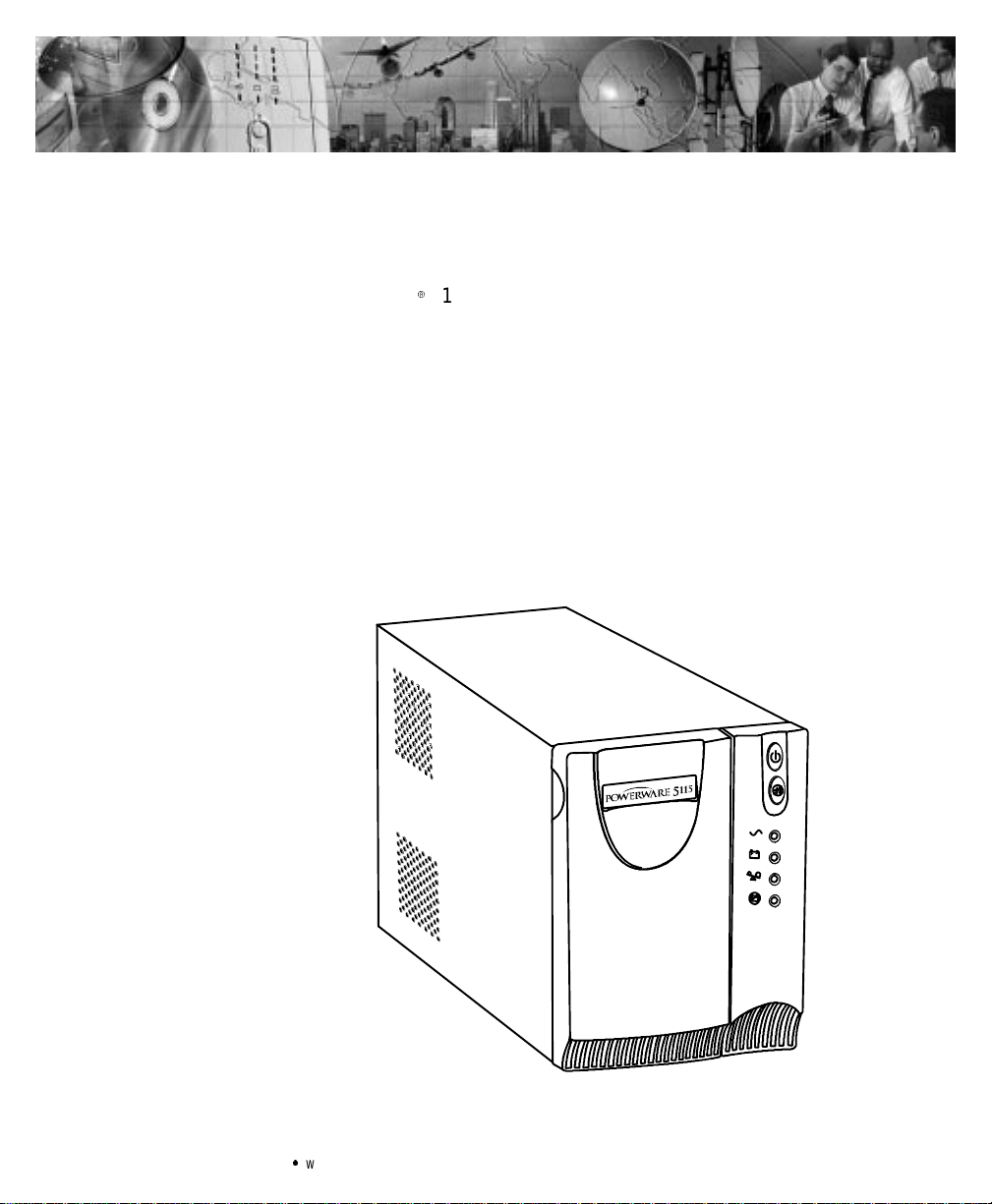

Figure 1. Powerware 5115

Powerware 5115 – ONE OF THE BEST!
2Powerware®5115 User’sGuide
S www.powerware.com
Because an integral part of power protection is power management
software, the Powerware 5115 comes fully equipped with a
communication port, serial cable, and a CD containing both LanSafe III
for networked systems and FailSafe III for standalone systems.
Providing outstanding performance and reliability, the Powerware 5115’s
unique benefits include the following:
S Advanced Battery Management (ABM t ) doubles battery service life,
optimizes recharge time, and provides advanced warning before the
end of battery life.
S Buck and Boost voltage regulation ensures consistent voltage to your
load by correcting voltage fluctuations.
S Hot-swappable batteries simplify maintenance by allowing you to
replace batteries safely without powering down the criticalload.
S Network Transient Protector guards your modem, fax machine, and
other network communications equipment from surges.
S Start-on-battery capability allows you to power up the UPS even if
utility power is not available.
S The Powerware 5115 is backed by worldwide agency approvals.

3
Powerware®5115 User’sGuide S www.powerware.com
CHAPTER 2
INSTALLATION
This section explains:
S Equipment inspection
S Safety precautions
S UPS installation
S UPS rear panels
Inspecting the Equipment
If any equipment has been damaged during shipment, keep the shipping
cartons and packing materials for the carrier or place of purchase and
file a claim for shipping damage. If you discover damage after
acceptance, file a claim for concealed damage.
To file a claim forshipping damage or concealed damage: 1) File with
the carrier within 15 days of receipt of the equipment; 2) Send a copy of
the damage claim within 15 days to your service representative.
Safety Precautions
Read the following precautions before you install the UPS.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS. This manualcontains important instructions that you
should follow during installation and maintenance of the UPS and batteries.Please
read allinstructions before operating the equipment and save this manualfor future
reference.

Installation
4Powerware®5115 User’sGuide
S www.powerware.com
WARNING
S ThisUPScontainsitsown energysource (batteries).The output receptacles may
carrylive voltage even when the UPSisnot connected to an AC supply.
S Do not remove or unplug the input cord when the UPSisturned on. This removes
the safetyground from the UPS and the equipment connected to the UPS.
S To reduce the risk of fire orelectric shock, installthisUPS in a temperature and
humiditycontrolled,indoorenvironment,freeofconductivecontaminants.Ambient
temperaturemustnotexceed40°C(104°F).Donotoperatenearwaterorexcessive
humidity (95% max).
S To complywith internationalstandards, the sum ofearth leakage current fromthe
load connected to the UPS must not exceed 1.5 mA.
Installing the UPS
The following steps explain how to install the UPS. Figure 2 shows a
typical installation only. See “UPS Rear Panels” on page 6 for the rear
panel of each model.
1. If you are installing power management software, connect your
computer to the UPS communication port using the supplied
communication cable.
NOTE If you need to change the factory-set defaultsfor the output voltage or input
voltage range, see “Voltage Configuration”on page 13 before installing the UPS.
2. On 230V models, plug the power cord into the input connector
on the UPS rear panel.
Customer-supplied power cords must be correctly rated for the
UPS (see “Specifications” on page 23). You can also use the
powercordfromthelargestloadifitiscorrectlyrated.

Installation
5
Powerware®5115 User’sGuide S www.powerware.com
Press the ON button
(on the front panel)
1
11
1
Connect communication
cable from computer to
UPS (optional)
Connect UPS to power
2
22
2&3
33
3
4
44
4
Connect equipment to UPS
5
55
5
This is a typicalsetup;
your setup may vary.
NOTE
Figure 2. Typical UPS Installation (120V Model Shown)
3. Plug the UPS power cord into a power outlet.
4. Plug the equipment to be protected into the UPS output
receptacles.
DO NOT protect laser printers with the UPS because of the
exceptionally high power requirements of the heating elements.
5. Start the UPS by pressing the button as shown in Figure 2.
The
µ
indicator illuminates indicating that power is available
from the UPS output receptacles.
The UPS conducts a self-test and enters Normal mode. If the
alarm beeps or a UPS alarm indicator stays on, see Table 9 on
page 28.
The installation is complete. To learn how to operate the UPS,
see “Operation” on page 11.
NOTE The batteriescharge to 90% capacityin approximately3 hours.However, it is
recommendedthatthebatterieschargefor6to 24hoursafterinstallationorlong-term
storage.

Installation
6Powerware®5115 User’sGuide
S www.powerware.com

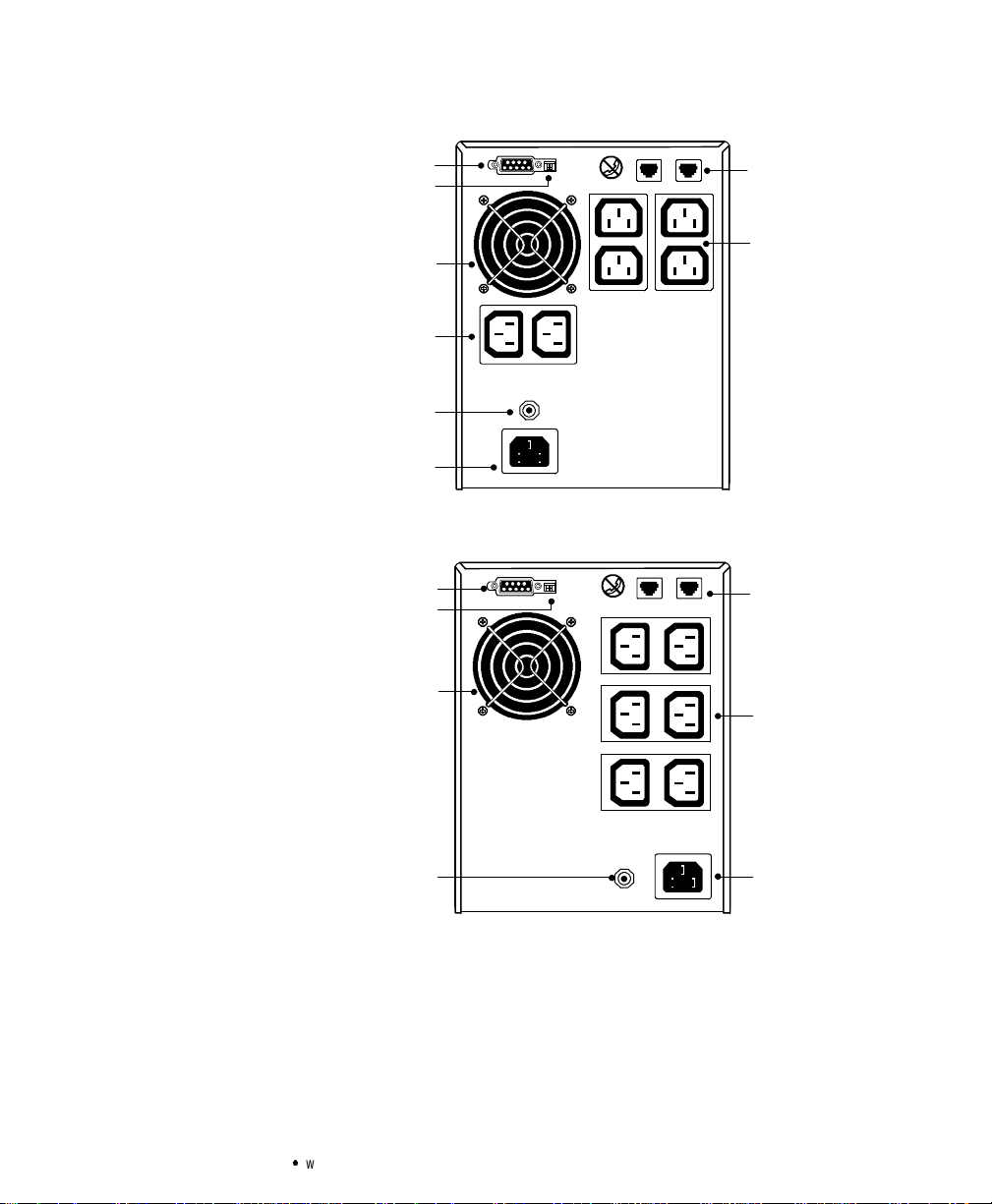

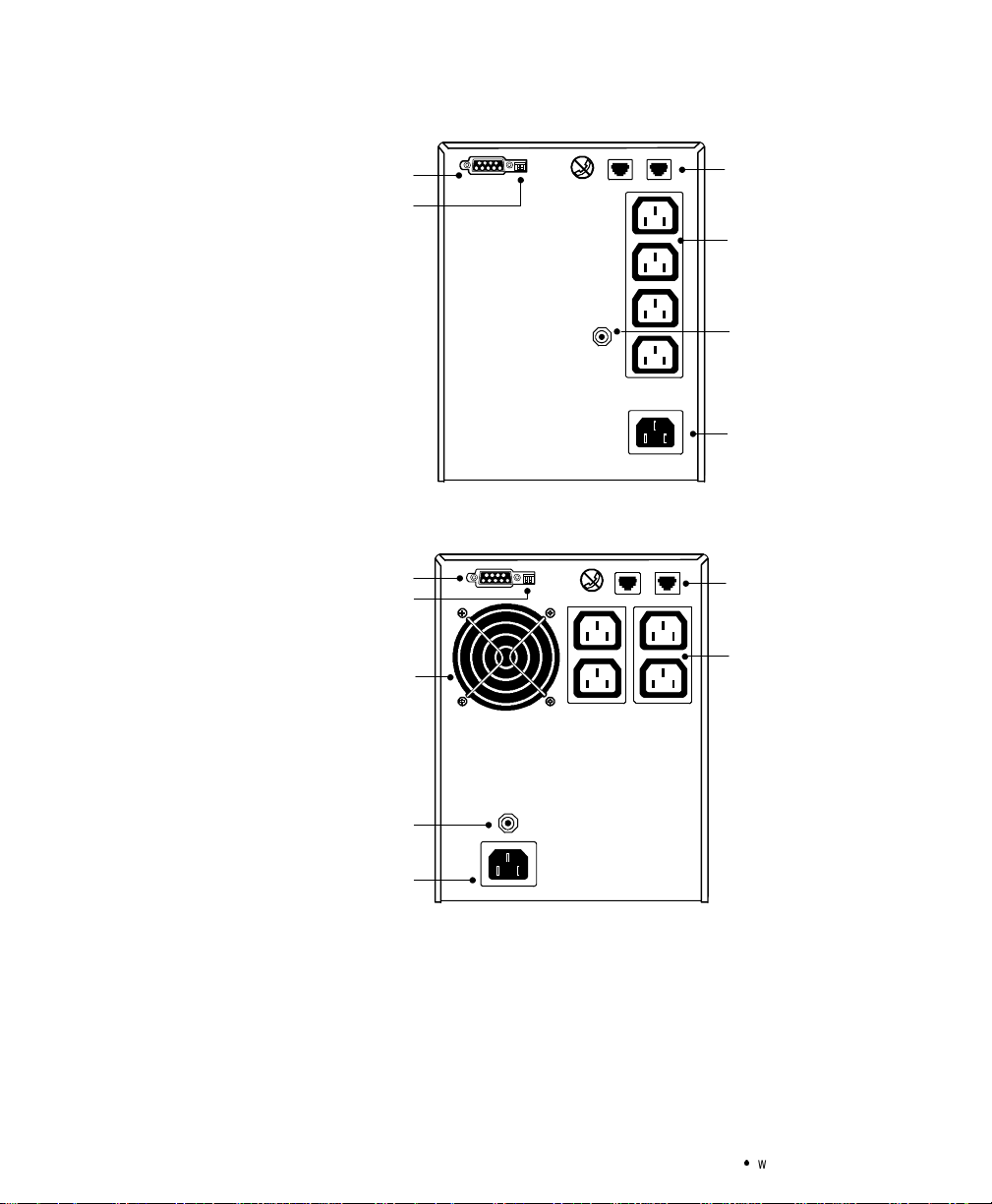

UPS Rear Panels
This section shows the rear panels of the Powerware 5115 models.
Communication Port
Four 5-15 Receptacles
6-ft Power Cord
with 5-15 Plug
Input Overcurrent
Protector
DIP Switches
Network Transient
Protector
Site Wiring Fault Indicator
Figure 3. 500 VA, 120V Rear Panel
Four 5-15 Receptacles
6-ft Power Cord
with 5-15 Plug
Network Transient
Protector
Fan
Communication Port
DIP SwitchesSite Wiring Fault Indicator
Input Overcurrent
Protector
Figure 4. 750 VA, 120V Rear Panel

Installation
7
Powerware®5115 User’sGuide S www.powerware.com
Network Transient
Protector
Two 5-15 Receptacles
Communication Port
DIP SwitchesSite Wiring Fault Indicator
Four 5-15 Receptacles
6-ft Power Cord
with 5-15 Plug
Fan
Input Overcurrent
Protector
Figure 5. 1000 VA, 120V Rear Panel
Six 5-15 Receptacles
6-ft Power Cord
with 5-15 Plug
Input Overcurrent
Protector
Network Transient
Protector
Fan
Communication Port
DIP SwitchesSite Wiring Fault Indicator
Figure 6. 1400 VA, 120V Rear Panel

Installation
8Powerware®5115 User’sGuide
S www.powerware.com
Communication Port
Four 10A, IEC-320
Receptacles
Input Overcurrent
Protector
DIP Switches
Network Transient
Protector
10A, IEC-320
Input Connector
Figure 7. 500 VA, 230V Rear Panel
Four 10A, IEC-320
Receptacles
Input Overcurrent
Protector
DIP Switches Network Transient
Protector
10A, IEC-320
Input Connector
Fan
Communication Port
Figure 8. 750 VA, 230V Rear Panel

Installation
9
Powerware®5115 User’sGuide S www.powerware.com
Two 10A, IEC-320
Receptacles
Four 10A, IEC-320
Receptacles
Input Overcurrent
Protector
DIP Switches Network Transient
Protector
10A, IEC-320
Input Connector
Fan
Communication Port
Figure 9. 1000 VA, 230V Rear Panel
Six 10A, IEC-320
Receptacles
Input Overcurrent
Protector
DIP Switches Network Transient
Protector
Fan
Communication Port
10A, IEC-320
Input Connector
Figure 10. 1400 VA, 230V Rear Panel

Installation
10 Powerware®5115 User’sGuide
S www.powerware.com

11
Powerware®5115 User’sGuide S www.powerware.com
CHAPTER 3
OPERATION
This section describes:
S Turning the UPS on and off
S Starting the UPS on battery
S Standby mode
S The UPS front panel and LEDs
S Initiating the self-test
Turning the UPS On
To turn on the UPS, press the button on the front panel (shown in
Figure 11). After the UPS is turned on, it conducts a self-test and enters
Normal mode. The
µ
indicator illuminates indicating that power is
available from the UPS output receptacles.
Starting the UPS on Battery
To turn on the UPS without using utility power, press and hold the
button for two seconds. When the UPS starts on battery, it does not
conduct a self-test to conserve battery power.
NOTE TheUPSdoesnotauto-detecttheinputfrequencywhenstartingonbattery;the
default is the last frequency used by the UPS.
Turning the UPS Off
To turn off the UPS, press the button on the front panel and then
unplug the UPS from the power outlet. If you do not unplug the UPS, it
remains in Standby mode.

Operation
12 Powerware®5115 User’sGuide
S www.powerware.com
Standby Mode When the UPS is turned off and remains plugged into a power outlet,
the UPS is in Standby mode. The battery recharges when necessary and
the
µ
indicator is off, indicating that power is not available from the
UPS output receptacles.
UPS Front PanelThe UPS front panel indicates the UPS status and also identifies
potential power problems. Figure 11 shows the UPS front panel
indicators and controls.
On/Off Button
Test/Alarm Reset Button
Power On Indicator (Green)
On Battery Indicator (Yellow)
Overload Indicator (Red)
Service Indicator (Red)
Figure 11. UPS Front Panel
If the alarm beeps or any alarm indicators are on, see Table 9 on page 28
to identify and correct the problem.
Initiating the Self-Test
Press and hold the button for three seconds to initiate the self-test. If
the UPS finds a problem, an LED indicates where the problem is. For
more information, see “Troubleshooting” on page 27.
NOTE The batteriesmust be fullycharged and the UPS must not be in Batterymode
to perform the self-test.

13
Powerware®5115 User’sGuide S www.powerware.com
CHAPTER 4
ADDITIONAL UPS FEATURES
This section describes:
S Changing the voltage configuration
S Using the communication port
S The Network Transient Protector
Voltage Configuration
The DIP switches on the rear panel of each unit (see Figure 12) are used
to configure the output voltage and input voltage range.
1. The UPS must be completely shutdown.
Turn the UPS off by pressing the buttononthefrontpanel
and then unplug the UPS.
2. Set the DIP switches according to the configurations in Table 1.
3. Plug the UPS into a power outlet and press the button to
turn the UPS on.
UPS Rear Panel
ON
OFF 21
Figure 12. DIP Switches

Additional UPS Features
14 Powerware®5115 User’sGuide
S www.powerware.com
Table 1. DIP Switch Settings
120V Models
Output Voltage Input Voltage Range DIPSwitch1 DIPSwitch2
110V 99V-116V ON OFF/ON
120V* 108V–127V* OFF OFF/ON
230V Models
Output Voltage Input Voltage Range DIPSwitch1 DIPSwitch2
220V 198V–233V ON OFF
230V* 207V–243V* OFF OFF/ON
240V 216V–254V ON ON
*Default position
Communication Port
To establish communication between the UPS and a computer, connect
your computer to the UPS communication port using the supplied
communication cable.
When the communication cable is installed, power management
software can exchange data withthe UPS.The software polls the UPS for
detailed information on the status of the power environment. If a power
emergency occurs, the software initiates the saving of all data and an
orderly shutdown of the equipment.
3
87 9
1
6
245
UPS Rear Panel
Figure 13. Communication Port
