PowerXtreme X10 User manual

User manual
POWERXTREME X10
LiFePO4 Battery
EmergoPlus BV
Informaticastraat 20
NL 4538 BT Terneuzen
Tel. [phone]
www.emergoplus.com
[email protected]

User manual PowerXtreme X10
E18-X10-EN00 www.emergoplus.com Page 2of 24
Dear customer,
Thank you for purchasing the high quality PowerXtreme battery from
EmergoPlus! This product has been developed using the most modern
technologies and quality systems. We assure you that we make every effort
to ensure trouble-free operation so that you are happy with your purchase.
Our ultimate goal is a satisfied customer. If you have any questions, please
contact one of our dealers or our service department.
We hope you enjoy your PowerXtreme battery!
Cordial greetings,
EmergoPlus BV

User manual PowerXtreme X10
E18-X10-EN00 www.emergoplus.com Page 3of 24
Table of contents
1. Product description ...............................................................................4
2. Safety instructions.................................................................................6
2.1 Safety instructions statement ......................................................6
2.2 Safety instructions .......................................................................6
2.3 Transport alert ...............................................................................8
3. Description and operation.....................................................................9
3.1 LiFePO4 battery for caravan mover..............................................9
3.2 Charging.........................................................................................9
3.3 PowerXtreme App .......................................................................10
3.4 PowerXCharger XC3 (OPTION) ...................................................13
3.5Storage.........................................................................................13
3.6 Installation ...................................................................................13
4. Decommissioning................................................................................18
5. Technical specifications .....................................................................19
5.1 Battery..........................................................................................19
5.2 Charger ........................................................................................20
6. Faults and repairs................................................................................21
6.1 Error search table ................... Fout! Bladwijzer niet gedefinieerd.
7. Warranty conditions ............................................................................22
8. Liability .................................................................................................22
9. EG Declaration of Conformity .............................................................23

User manual PowerXtreme X10
E18-X10-EN00 www.emergoplus.com Page 4of 24
1. Product description
The PowerXtreme X10 is a Lithium-iron phosphate (LiFePO4) battery. This
is the safest of the most important lithium-ion battery types. Besides safety,
the LiFePO4 technology is characterized by:
▪Low internal resistance
▪High efficiency
▪Small dimensions
▪Minimal weight
▪Excellent cycle performance
▪Large permitted temperature range
▪Almost constant Voltage throughout the entire discharge cycle
▪It is possible to use 100% of the capacity before the battery is
empty and switches itself off. On the PowerXtreme X10 this is
10Ah. This is in contrast to lead-acid batteries where usually 50 -
60% of the capacity can be used before the battery needs to be
recharged.
Which makes this battery the right choice for a wide range of applications.
Another big advantage compared to lead-acid batteries is that the LiFePO4
battery does not need to be fully charged. A lead-acid battery will fail due to
sulphating if it is not fully charged for a longer period of time.
The PowerXtreme X10 battery consists of 4 cells connected in series with
a nominal voltage of 3.2V which together form 12.8V.
Essential part of the LiFePO4 battery is its Battery Management System
(BMS). The BMS monitors the cells that make up the battery for the
following risks
▪Too deep discharge - A LiFePO4 cell will fail if the voltage is less
than 2.5V. The BMS disconnects the battery before the cell voltage
reaches this point.
▪Overvoltage - If the cell voltage exceeds 3.65V during charging, the
BMS will stop the higher voltage. The BMS stops the charging
process before the cell voltage becomes too high.
▪Too high temperature - The BMS will turn off the battery if the
system temperature becomes too high.

User manual PowerXtreme X10
E18-X10-EN00 www.emergoplus.com Page 5of 24
▪Too low temperature - The BMS prevents the battery from being
charged at temperatures below -10°C.
▪Short circuit - The BMS switches the battery off if the terminals are
shorted.
▪Our batteries have a cell balancing function built into the BMS.
Because the cells are never 100% identical, this system ensures
that the cells remain balanced and that no major differences in cell
voltages can arise due to the discharge and charging.
The PowerXtreme X10 is equipped with Bluetooth technology that allows
monitoring of the battery and switching it on and off via an App.

User manual PowerXtreme X10
E18-X10-EN00 www.emergoplus.com Page 6of 24
2. Safety instructions
2.1 Safety instructions statement
The safety instructions help you to avoid hazards when performing actions.
The safety instructions are divided into the following categories:
2.2 Safety instructions
▪Carefully read this manual before using the battery pack.
▪Keep the manual close to the battery and make it available to the user
of the battery pack.
▪Only technically qualified personnel may carry out work on the battery.
▪The electrolyte is highly corrosive. Under normal circumstances, contact
with the electrolyte is not possible. In case of damage to the battery,
avoid direct contact with the electrolyte or powder. If you have come into
WARNING!
Means that the act in question is dangerous and
should be prepared before proceeding.
CARFUL!
Means that the operation can cause damage.
PAY ATTENTION!
Means advice for instruction to the user.

User manual PowerXtreme X10
E18-X10-EN00 www.emergoplus.com Page 7of 24
contact with the electrolyte, rinse it immediately with plenty of water.
After this, consult a doctor.
▪Use cables of the correct cross-section and keep the cable connections
as short as possible. Use reliable cable clamps and tighten the bolts
firmly.
▪Never short-circuit the + and - poles. The internal BMS is protected
against short circuits, but to prevent dangerous sparks this is strongly
discouraged.
▪Never connect the battery pack in series or in parallel with any other type
of battery pack.
▪Do not use the battery as a starter battery.
▪Do not open the battery pack. The guarantee is void if the battery is
opened.
▪Do not place the battery pack in a high temperature environment or in
direct sunlight or near a heat source >45°C.
▪Never install the battery in rain or damp conditions with RV>80%.
▪Avoid damage to the battery and/or charger housing.
▪Do not store the battery in discharged condition (< 11.5V) for a longer
period of time.
▪If the battery is stored for a longer period of time without use, we
recommend that you charge it once every six months. Don't forget to
disconnect the battery terminals or turn off the ground switch when you
don't use the battery for a longer period of time.
▪Never charge the battery pack at temperatures below 0 °C.
▪Always use the supplied charger. This charger is suitable for LiFePO4
cell chemistry with the corresponding charging voltage.
▪Never use a damaged battery pack.
▪Make sure that the battery and charger are never covered with clothing
or other materials! This can lead to overheating!
CAREFUL!
Using a charger that is not suitable for LiFePO4
chemicals can damage the battery because it is not
properly charged.

User manual PowerXtreme X10
E18-X10-EN00 www.emergoplus.com Page 8of 24
2.3 Transport alert
▪The Li-ion battery must be transported in its original packaging.
▪The X10 batteries have been tested according to the UN handbook for
tests and criteria, part III, paragraph 38.3 (ST/SG/AC.10/11/Rev.5).
During transport, the battery falls under category UN3480 class 9,
packing group II and must be transported in accordance with these
regulations. This means that the battery must be packed in accordance
with the packaging instruction P903 for transport over land or sea (ADR,
RID & IMDG) and in the case of air transport (IATA) in accordance with
the packaging instruction P965. The original packaging complies with
these instructions.
▪Make sure that the battery is properly secured during transport. The
battery can become a projectile if a vehicle is involved in an accident.

User manual PowerXtreme X10
E18-X10-EN00 www.emergoplus.com Page 9of 24
3. Description and Operation
3.1 LiFePO4 battery for caravan mover
The battery has more than enough capacity to carry out 2 normal
displacement operations of a caravan. With heavy use (35 A continuous)
you can use the mover for up to 30 minutes. With extreme use (100 A) you
can use the mover for approx. 10 minutes. After each operation, it is
recommended that you charge the battery for another operation.
The battery is suitable for briefly (approx. 10 sec) delivering very high
currents to overcome a threshold or other obstacle. If you try to do this for
a longer period of time, the battery will switch off automatically and you
should wait until the battery resets itself.
3.2 Charging
When the battery runs out, it must be recharged. Connect the charger to
the battery and then plug it into the 230V socket. The charger now starts
charging with a charging current of 2A. During charging, the LED lights red.
At the end of the charging cycle the LED lights green. The charging time
depends on the charging status at the start of the charging cycle. If the
capacity is still 40%, 6Ah must be charged. The charging time is then
around 3 hours x 2A + around 1 hour = around 4 hours. The charger can be
continuously connected to 230V, even after the battery is fully charged.
Never charge the battery pack at temperatures below 0°C. At -10°C, a
protection device is activated which makes charging impossible. The
battery can be discharged or used up to a temperature of -20°C.
WARNING!
Stop the charging process if the battery becomes
too hot during charging (> 45
°C –50 °C).

User manual PowerXtreme X10
E18-X10-EN00 www.emergoplus.com Page 10 of 24
3.3 PowerXtreme App
Via the Apple store (suitable for iPhone 4S with IOS 6 or higher) or the
Google Play store (suitable for Android 4.3 or higher) you can download the
PowerXtreme App and use it to read the status and health of your battery.
When you open the APP a dialog box appears where you can see all
Bluetooth devices within the range (< 5.0 metres). You can recognise your
battery by the serial number that starts with EP..... Select your battery, then
connect via Bluetooth and you will see all the information about the battery.
The following data is displayed in the APP:
Basic Info tab:
▪State of Charge: SOC State of charge in %
▪Voltage: Terminal voltage of the battery in V
▪Capacity: Capacity/Content of the battery in Ah
▪Status: Charging - Discharging –Standby
▪Health: of the battery
▪On/ Off On/ Off switch
Back to search
On/Off switch
SOC indicator
Terminal
voltage
Battery
capacity Ah
Perfect,
Normal, Bad
Service menu

User manual PowerXtreme X10
E18-X10-EN00 www.emergoplus.com Page 11 of 24
SOC means "State of Charge" or the state of charge of the battery. The
voltage and capacity of the battery are listed below.
STATUS" shows whether the battery is charging or discharging or whether
the battery is in standby mode.
Health shows the condition of the battery. This varies from Perfect, Good
and Bad.
The three dots at the bottom right open a menu intended for service
purposes.
U.I.T.C. info tab:
Voltage meter Terminal voltage of the battery in V
Current meter Present current consumption in A
Temperature Temperature of the battery cells
Cycle life Number of charge/discharge cycles
Clamp voltage
Temperature
Number of
charging
Current
consumptio
n/output

User manual PowerXtreme X10
E18-X10-EN00 www.emergoplus.com Page 12 of 24
The UITC info shows 2 "meters", on the left the battery voltage and on the
right the current. This can be the charging current or the current drawn from
the battery. If the battery is connected to a charger but at the same time
power is requested by users, the resulting current is displayed.
Temperature of the cell pack. If the temperature is too low or too high, a
safety device is activated.
Cycle life keeps track of how often the battery has been discharged by 80%.
For example, from 90% SOC to 10% SOC is a cycle. Also, from 70% SOC to
empty then charging to 100% and empty to 90% is a cycle.
System Info tab
System info contains messages about events that occurred during the
charging or discharge process. This refers to the following events:
▪Short circuit
▪Lift up short circuit
▪High temperature at charging
▪High temperature at discharge
▪Low temperature at charging
▪Low temperature at discharge
▪Overcurrent when charging
▪Too much current when discharged
▪High Voltage
▪Low Voltage
▪Temperature/Voltage/Current back to normal
▪Display remaining charge time

User manual PowerXtreme X10
E18-X10-EN00 www.emergoplus.com Page 13 of 24
The Buy Info tab
Please provide the contact details of EmergoPlus.
3.4 PowerXCharger XC3 (OPTION)
To charge the battery while driving, the PowerXCharger XC3 is available as
an option. This converts the charging voltage of the car alternator into the
right charging voltage for the PowerXtreme battery. Due to the limited
charging current, there is no need to install thick wiring. The XC3 also acts
as a battery guard. If the terminal voltage of the starter battery is too low,
the XC3 switches the battery off so that the starter battery does not
discharge further. Charging with a solar panel is also possible. However, a
suitable charge regulator must be used for this.
3.5 Storage
If you want to store the battery for a longer period of time, disconnect the
battery terminals. This will prevent the battery from being discharged by
slumber consumption. Also disconnect the charging current connector
from the battery. The battery has a very low self-discharge and can be
stored for up to half a year without any problems. Charge the battery after
half a year.
3.6 Installation
The following is important for the installation of the battery:
▪In the box, you will find the following parts:
PAY ATTENTION!
It is possible that the app displays a value that is
too low for the SOC (charge status) when the
battery has not been used for a longer period of
time. Once you have charged the battery, the SOC
display will be correct again.

User manual PowerXtreme X10
E18-X10-EN00 www.emergoplus.com Page 14 of 24
-Battery
-Battery terminals + and –
-Mounting plate with Velcro and 4 self-tapping screws
-Battery charger
-Instruction card
▪After unpacking, check all parts for possible damage.
▪Fully charge the battery before first use.
▪Mount the battery pack using the supplied mounting plate and
Velcro fastener at the location of your choice in the camper.
▪Make sure there is at least 10 cm clearance around the battery. Do
not install the LiFePO4 battery in an unventilated area, there is a
risk of overheating!

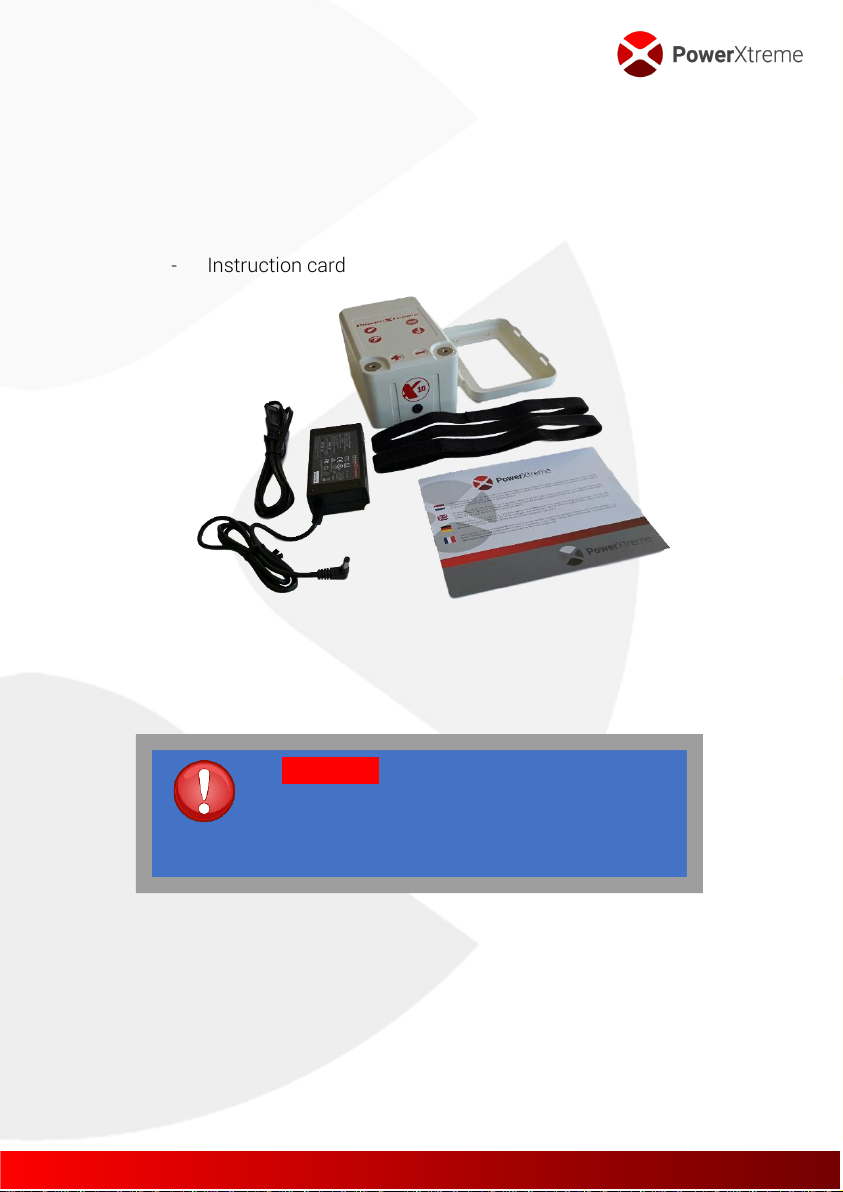

Figure 1. Package contents X10
WARNING!
Never use the LiFePO4 battery in locations with
gas or dust explosion hazards or potentially
flammable products.

User manual PowerXtreme X10
E18-X10-EN00 www.emergoplus.com Page 15 of 24
▪Switch off all loads and charging equipment before you start
connecting.
▪Use proper cabling of sufficient cross-section and correctly
dimensioned terminals and battery terminals. Tighten all
connections securely. Recommended tightening torque for M6 is
9.9 - 14 Nm. Do not use too great a tightening torque, as this can
lead to irreparable damage to the LiFePO4 battery.
▪If you use screws to connect consumers instead of the supplied
battery terminals, make sure that these screws are not longer than
10mm.
PAY ATTENTION!
De meegeleverde accupolen hebben
verschillende diameters, de dunste is voor de
negatieve pool, de dikste voor de positieve pool.
Figure 2. Difference diameter of + and - pole
CAREFUL!
If bolts that are too long are used, the connections
will not get stuck! This leads to large contact
resistances and can cause the battery or equipment
to spark or switch off.

User manual PowerXtreme X10
E18-X10-EN00 www.emergoplus.com Page 16 of 24
▪Connect the negative pole of the battery to the negative connection
of the caravan mover unit.
▪Connects the positive terminal of the battery to the positive
terminal of the caravan mover unit.
▪Use cables as prescribed in your caravan mover manual. It is
recommended to use a minimum of 16 mm2. Use one red wire for
the + and one black or blue wire for the -.
▪Never connect the battery in parallel to any other type of battery,
including the wiring from the car.
▪Do not work on the LiFePO4 battery or the installation when it is still
live. Only have changes to your electrical installation carried out by
qualified electricians.
Figure 3. WRONG! Loose connection by using too long bolt
CAFEFUL!
Observe the polarity of the battery and avoid short
circuits! Equipment whose polarity is incorrectly
connected can be irreparably damaged

User manual PowerXtreme X10
E18-X10-EN00 www.emergoplus.com Page 17 of 24
▪After first use or test all connections for (over) heating. Repair or
replace connections that have become too hot.
▪Check the wiring and connections at least once a year. Immediately
rectify defects such as loose connections and burnt cables.
▪System overview:
PAY ATTENTION!
Install a fuse and a main switch to the
power circuit according to local
regulations. Place the fuse as close as
possible to the + pole of the battery.
A = PowerXtreme X10
B = Fuse
C = Main switch
D = Battery charger
E = Load
Figure 4. Wiring diagram
WARNING!
Never connect the battery in parallel to another
battery, including the wiring from the car.

User manual PowerXtreme X10
E18-X10-EN00 www.emergoplus.com Page 18 of 24
4. Decommissioning
Electric appliances should not be disposed of with normal household
waste. According to the European Directive 2012/19/EU on waste electrical
and electronic equipment (WEEE), these devices must be collected
separately in order to recycle them in an environmentally friendly manner
possible.

User manual PowerXtreme X10
E18-X10-EN00 www.emergoplus.com Page 19 of 24
5. Technical specifications
5.1 Battery
Model
X10
Cell Chemistry
LiFePO4
Voltage
12V
Nominal Voltage
12,8V
Capacity
10Ah
Max. continuous power
100A
Short-term power (30 Sec)
150A
Peak power (1 sec)
200A
Max. charging power
10A
Max. charging voltage
14,6V
Max. discharge voltage
9V
DC charge input
max. 14,6V
Operating temperature
-20 °C to +60 °C
Charge temperature
0 °C to 45 °C
Storage temperature
-10 °C to 45 °C
Weight
2,1 kg
Poles confirmation
2 x M6 (internal thread)
Communication
Bluetooth
Warranty
5 years
Lifetime (80 DOD)
>1500 cycles
IP class
IP 62
Cell Balancing
Yes
Dimensions
182 x 120 x 90 mm
Security
Over/underpower, short circuit and
temperature

User manual PowerXtreme X10
E18-X10-EN00 www.emergoplus.com Page 20 of 24
5.2 Charger
Model
XC2
Input Voltage
100 – 240 VAC
Input Frequency
50 – 60 Hz
Output voltage
14,6 V
Charging current
2A
Charging characteristic
CC - CV
Dimensions
110 x 62 x 34 mm
