Prem-I-Air EH1506 User manual

Page 1

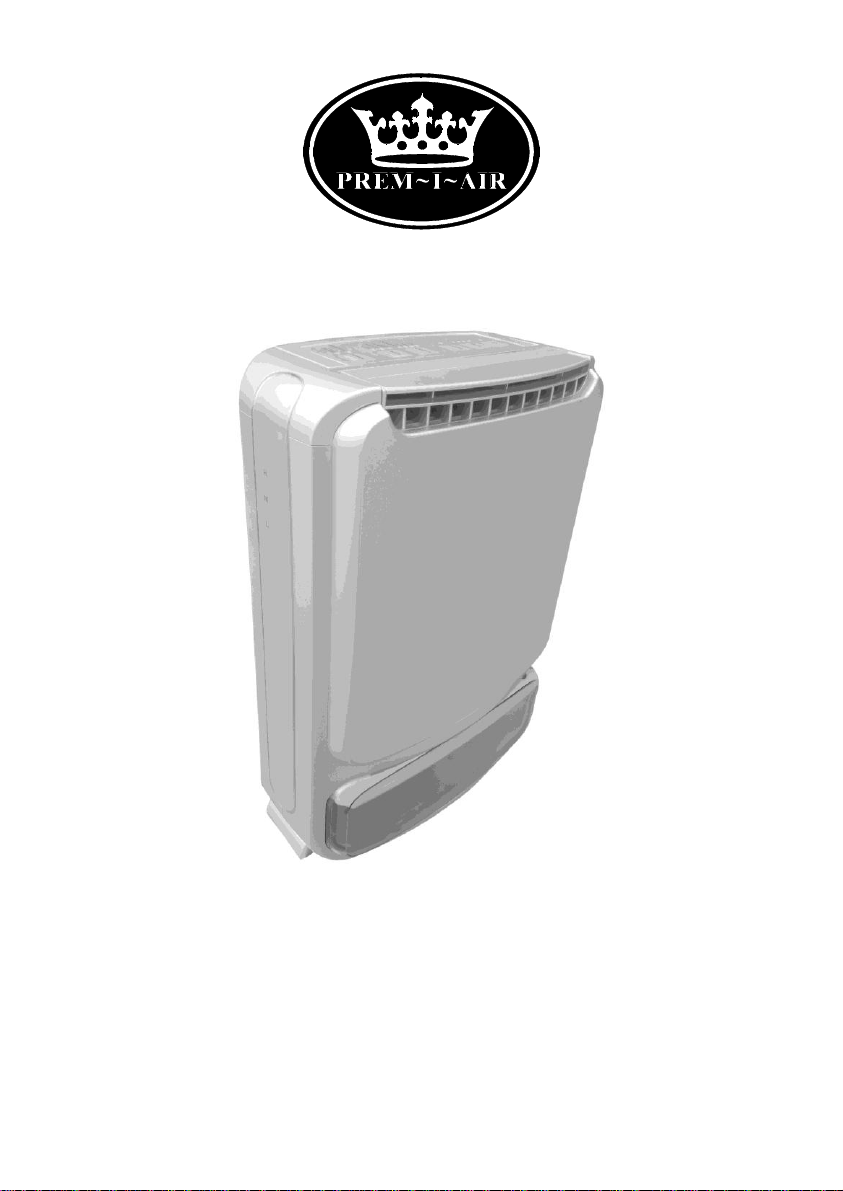

EH1506
Desiccant Dehumidifier &
Laundry Dryer
Déshumidificateur et
Fonction Sèche–Linge

Page 2
IMPORTANT
Installer and Users please note:
These instructions should be read carefully and left with the user of the product
for future reference.
BEFORE USE
You must inspect the product including its cable and plug for any signs of
damage. If the product is damaged, DO NOT use it, and contact your supplier
immediately.
PRODUCT SAFETY
This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without
supervision.
Place the appliance on a firm flat stable surface.
Make sure that air intakes and exhausts are not obstructed.
For indoor use only.
Do not place this appliance within 400mm (16") of curtains or similar items.
Ensure that the appliance stands upright at all times.
Do not use this appliance in the immediate surroundings of a bath, shower or
swimming pool.
Do not place the mains lead beneath a carpet or rug.
Do not leave the product unattended for long periods of time.
Ensure that the product does not tip over whilst there is water in the bucket.
This can cause a hazard as the water may run into the electronics.
Do not use on a ship, boat or motor-caravan or touring caravan.
This appliance contains an incandescent heating element: DO NOT use in
locations where liquified petroleum gas, paint, petrol or other flammable
liquids are used or stored.

Page 3
INSTALLATION
Place the appliance on a firm, flat level surface.
If continuous drainage is to be used, pull the bucket part-way out, pass the hose
through the hole in the bucket, and connect to the spigot. Then replace the
bucket. Use a hose with an internal diameter of 12mm (½"). Make sure that the
hose runs downwards throughout its entire length, and has no kinks. Otherwise
the drainage will not work.

Page 4
OPERATION
•Plug the mains lead into a 13 Amp mains socket.
•If connecting via an extension lead, make sure that the lead is rated at
5 Amps or more, and that it is fully unwound.
•Place the appliance on a firm flat level surface.
•Switch the appliance on at the mains socket. Then press the POWER switch
to start operation.

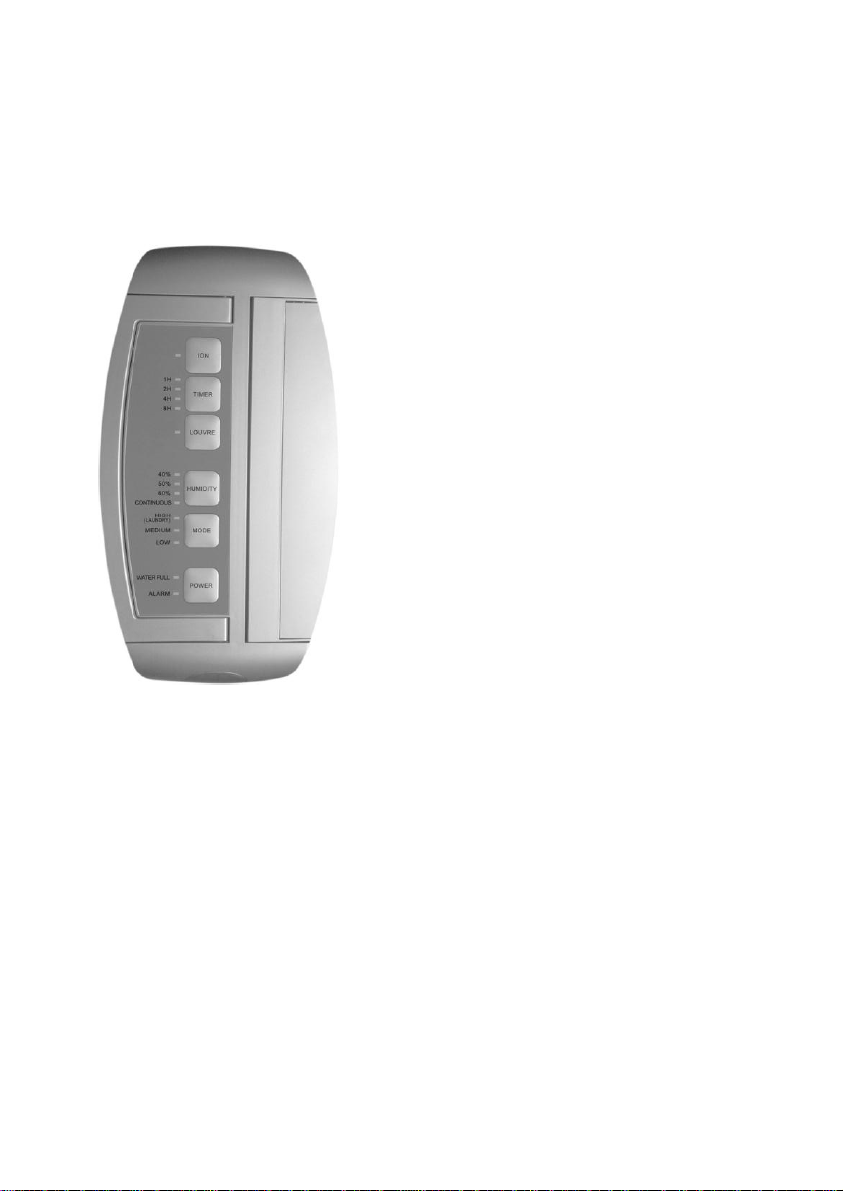

•Press the MODE button to select the
operating mode. Normally, use the
MEDIUM setting, change to LOW to reduce
the operating noise, or to HIGH for rapid
drying of laundry.
•Press the HUMIDITY button to set the
required humidity level on the display. The
level can be set to 40%, 50% or 60%. The
appliance will remove humidity from the air
whenever the humidity level is higher that
the set level.
•To select continuous operation, press the
CONT. button. The appliance will
continuously remove humidity from the air
regardless of the humidity level. Press the
CONT. button again to stop continuous
operation.
•Take particular care if selecting continuous
operation when continuous drainage is
being used. It will lead to a continous
reduction of humidity levels; which, if the
humidity becomes too low, may lead to the cracking of delicate wooden
items.
•Press the LOUVRE button to switch the louvre oscillation on or off.
•Press the ION button to switch the ioniser function on or off. The ioniser
generates negative ions which helps to remove dust from the air.
•Unplug the appliance from the mains when not in use. (Do not disconnect
whilst still operating, press the POWER switch to turn the appliance OFF
first)
•Check the appliance regularly for damage and cease using it immediately if
any damage to the product, the cable or the mains plug is found.
•The appliance operates best if it is in an enclosed area. Close all doors and
windows, and eliminate sources of additional humiditiy, such as cooking,
clothes drying. Cover fish tanks.
•The most comfortable setting for the humidity level is around 50%.
•The TIMER button may be used to cause the appliance to switch OFF after a
period of time, either 1, 2, 4 or 8 hours.

Page 5
DRYING LAUNDRY
To dry laundry, hang the laundry on a drying rack or clothes horse, preferably in
an enclosed space such as a small room. Place the EH1506 nearby. The ideal
arrangement is with the EH1506 at the side of the drying rack (allow 400mm
clearance).
DO NOT allow any of the clothes to obstruct the air intakes or exhausts of
the EH1506.
DO NOT allow water to drip on the EH1506. Adjust the louvre to direct the
airflow on to the drying rack, and set the EH1506 on HIGH (LAUNDRY) mode.
This will dry the clothes quickly and efficiently and will prevent the excessive
humidity caused by drying clothes indoors, which can lead to mould growth. If not
using continuous drainage, inspect the EH1506 regularly and empty the bucket
when it is full.
EMPTYING THE COLLECTED WATER
If not using a drainage hose, empty the
bucket when the "WATER FULL" indicator
lights.
Pull the bucket out.
Lift the bucket upwards.
Empty the water down a drain.
STORAGE
If the appliance is not going to be used for a long time:
1. Empty and clean the bucket.
2. Unplug from the mains
3. Clean the appliance
4. Store in its original packaging
PAT TESTING
When used in a workplace, this product must be safety-tested yearly by a
qualified electrician (PAT Tested) in order to comply with the Electricity at Work
Regulations.

Page 6
We recommend that it is PAT tested regularly when used in a domestic
environment.
GENERAL SAFETY REQUIREMENTS
Domestic wiring must be tested periodically by a qualified electrician at least
once every 10 years or at every change of occupancy.
For office and retail premises, and buildings such as village halls, the wiring must
be inspected at least once every 5 years.
It is recommended that all building be fitted with smoke alarms (it is mandatory
for new buildings).
MAINTENANCE
Before cleaning, turn the appliance off, and disconnect from the mains
supply. The appliance may then be cleaned using a damp cloth with a drop
of washing-up liquid to remove any dust or dirt from the case. Do no use
stronger detergents or solvents as these may damage the surface finish.
Clean the inside of the bucket to prevent the build-up of bacteria.
Using a dry 1" (25mm) paint-brush, remove any dust from the grilles.
The filter must be cleaned every fortnight (or more often if the atmosphere is
particularly dusty). A blocked filter will impair performance, and may cause
overheating.
To clean the filter, first remove the filter
frame by pulling the tab as shown.
Remove the filter from the frame.
Clean the filter with a vacuum cleaner,
or wash in warm water with a drop of
washing-up liquid.
Ensure that the filter is completely dry
before replacing.

Page 7
If the mains lead is damaged, it must be replaced by the manufacturer or an
authorised service centre. If the mains plug needs to be replaced, proceed as
follows:
Connect the brown wire to the
terminal labelled "L".
Connect the blue wire to the
terminal labelled "N".
Connect the green/yellow wire to
the terminal labelled with the earth
symbol or "E".
Make sure that the cord-grip is
positioned correctly (over the
outer sheath of the cable) and it
fully tightened.
If the plug is fitted with a 13 A fuse, replace it by a 5 A fuse.
FAULT FINDING
Appliance stops operating and "FULL" indicator lights.
•Bucket is full of water - empty the water as shown on page 6. Do not drink the
water (it may be used for watering plants).
•Bucket is not replaced properly. Ensure that the bucket is correctly aligned with
the housing.
Appliance operates intermittently.
•The humidity in the room has reached the level set on the control panel.
Very little water is extracted.
•There is very little humidity in the air (this happens during dry sunny weather,
and also during very cold weather). Condensation on windows is caused by the
difference between indoor and outdoor temperatures, and is not a good indicator
of the level of humidity.
The room remains humid and little water is extracted
•The humidity setting is too high, select a lower humidity level.
•The area to be dehumidified is too large
OPERATING COSTS
At time of going to press, the average cost of electricity is £0.12 per unit (kilowatt-
hour). The amount you are being charged will be shown on your electricity bill.
At this cost, the appliance will cost £0.08 per hour to run on the "continuous"
setting. If the humidity control is used, the operating costs will be lower.

Page 8
TECHNICAL SPECIFICATION
Dimensions: 351×180×500 mm
Weight: 6.3 kg
Power supply: 230 V ~ 50 Hz
Power consumption: 650 W
Operating current: 2.6 A
Airflow: 115 m3/h
Moisture removal: 8 litres/day
Tank capacity: 2 litres
Sound level: <50 dB(A)
DISPOSAL AND RECYCLING
Most local authorities have specific collection system for appliances and disposal
is free of charge to the end-user.
When replacing an existing appliance with a similar new appliance your retailer
may take the old appliance for disposal.
SERVICE WARRANTY
Prem-i-Air guarantees the product free from defects in materials and
workmanship for a period of twelve months.
Should this appliance be operated under conditions other than those
recommended, at voltages other than the voltage indicated on the appliance, or
any attempts made to service or modify the appliance, then the warranty will be
rendered void.
The product you buy may sometimes differ slightly from illustrations. This
warranty is in addition to, and does not affect, your statutory rights.
If you have any problems with this product, please call our Help Desk on (0845)
459 4816. Prem-i-Air Appliances Ltd.,
Lancots Lane, Sutton,
St. Helens, Merseyside.
WA9 3EX
website: www.prem-i-air.com

Page 9
IMPORTANT
Installateurs et Utilisateurs, veuillez noter:
Vous devez lire cette notice attentivement et la conserver pour une éventuelle
future consultation. AVANT UTILISATION
Vérifiez que le produit, y compris le câble, n'est pas endommagé. Si le produit
est endommagé, NE l'utilisez PAS, et contactez votre revendeur.
CONSIGNES DE SECURITE
Cet appareil peut être utilisé par des enfants âgés de 8 ans et plus et par
des personnes dont les capacités physiques, sensorielles ou mentales sont
diminuées ou manquant d'expérience ou de connaissances uniquement
sous la surveillance d'un adulte qui leur aura appris à utiliser l'appareil et leur
aura expliqué les risques encourus.
Les enfants ne doivent pas jouer avec l'appareil.
Placez l'appareil sur une surface plate.
Ne le placez pas sur une surface molle ou instable.
Pour utilisation à l'intérieur uniquement.
Ne placez pas l'appareil à moins de 400mm des rideaux ou produits
similaires.
Pour utilisation à l'intérieur uniquement.
Ne pas utiliser dans alentours immédiats d'une salle de bains, d'une cabine
de douche ou d'une piscine.
Ne pas utiliser dans une salle de bains ou dans une pièce humide.
Ne placez pas le cordon d'alimentation sous un tapis ni une carpette.
N'utilisez pas cet appareil dans des endroits où sont stockés ou utilisés de la
peinture, de l'essence ou d'autres liquides inflammables.
N'insérez pas d'objets dans les grilles de l'appareil. Cela pourrait
endommager la partie chauffante et provoquer une surchauffe ou un choc
électrique.
Ne coupez pas l'alimentation secteur quand l'appareil est en fonctionnement.
Tournez toujours le bouton de contrôle de l'hygrostat sur OFF et patientez 3
minutes avant de débrancher l'alimentation. Cela protégera le compresseur
contre tout dommage.
Ne laissez pas l'appareil sans surveillance pendant de longues périodes.
Faites attention que l'appareil ne bascule pas quand le bac à eau est plein.
L'entretien et le nettoyage ne doivent en aucun cas être effectués par
un enfant sans la surveillance d'un adulte.
Vérifiez que les entrées et le sorties d'air ne sont pas obstruées.
Ne laissez pas l'appareil fonctionner sans surveillance pendant
longtemps.

Page 10
Assurez-vous que l'appareil ne se renverse pas quand il y a de l'eau
dans le bac. Ceci peut être dangereux car l'eau peut s'infiltrer dans
les parties électroniques.
N'utilisez pas cet appareil sur un bateau, un navire ni dans un
camping-car ou une caravane.
Cet appareil contient un élément chauffant incandescent : NE PAS
utiliser cet appareil dans des endroits où sont stockés ou utilisés du
gaz de pétrole liquéfié, de la peinture, de l'essence ou d'autres
liquides inflammables. INSTALLATION
Placez l'appareil sur une surface plate et stable.
Si vous utilisez le drainage continu, sortez le bac à eau, passez le tuyau à
travers le trou situé sur le bac et raccordez-le à l'embout. Puis replacez le
bac à eau. Utilisez un tuyau de 12mm de diamètre interne. Assurez-vous
que le tuyau soit bien incliné vers le bas sur toute sa longueur et qu'il ne
soit pas entortillé sinon le drainage ne fonctionnera pas correctement.
