INSTALLATION MANUAL
PBC-UMS
.
Premier Mounts
3130 E. Miraloma Avenue
Anaheim, CA 92806
Phone: [phone] Fax: [phone]
[e-mail] www.mounts.com
Rev. 01

PBL-110 Projector Mount
Page 2 Installation Manual

PBC-UMS
Table of Contents
Warning Statements ..................................................................................................................................................................... 4
Parts List ........................................................................................................................................................................................ 5
Installation Tools .......................................................................................................................................................................... 5
Features ......................................................................................................................................................................................... 7
Projector Preparation .................................................................................................................................................................... 8
Bracket Installation ..................................................................................................................................................................... 10
Leveling the Mounting Bracket ................................................................................................................................................. 11
Securing the Upper Assembly Ceiling Plate .............................................................................................................................. 12
Securing the Projector to the Upper Assembly ........................................................................................................................ 13
Final Adjustments ....................................................................................................................................................................... 14

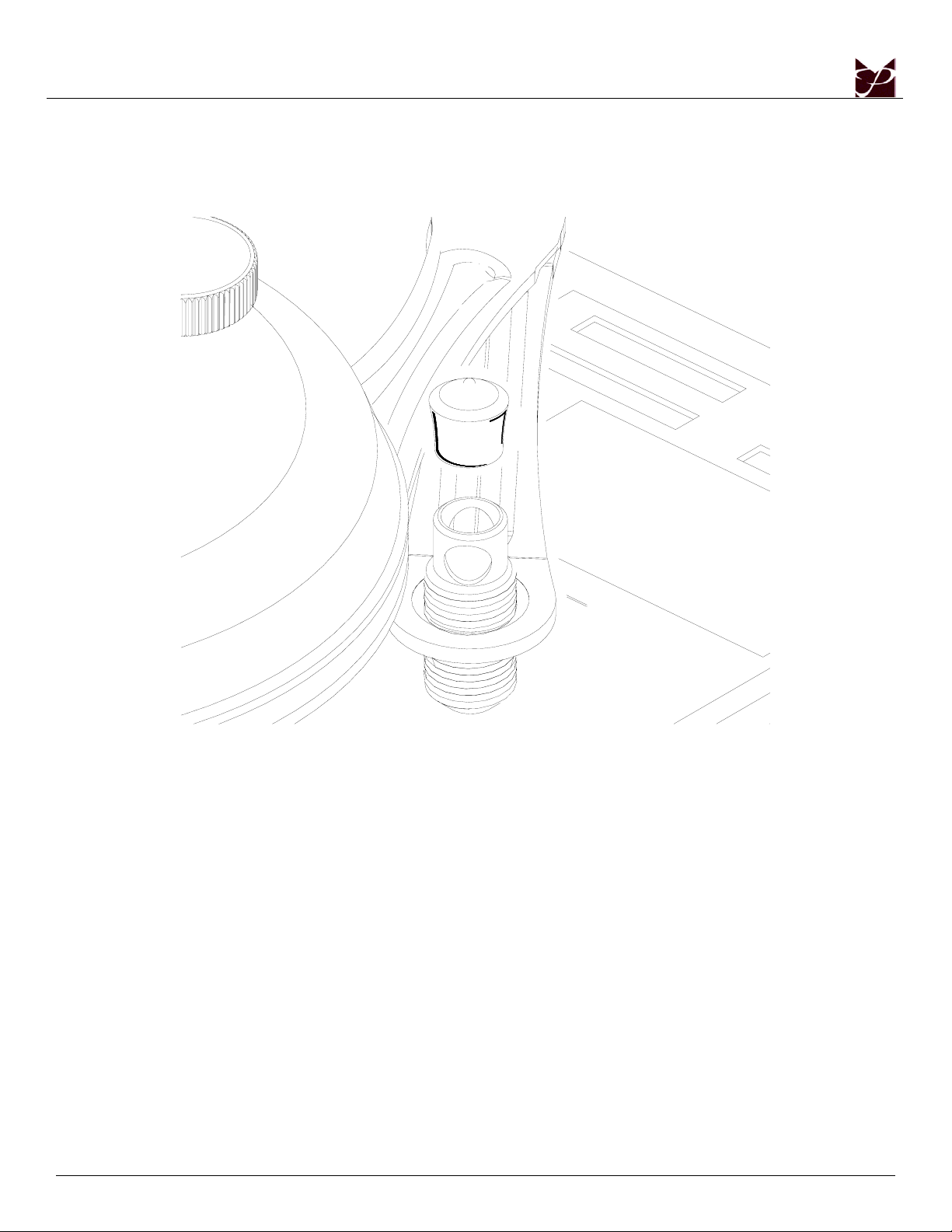

Plastic Cap Installation ............................................................................................................................................................... 15
Troubleshooting Procedures ...................................................................................................................................................... 16

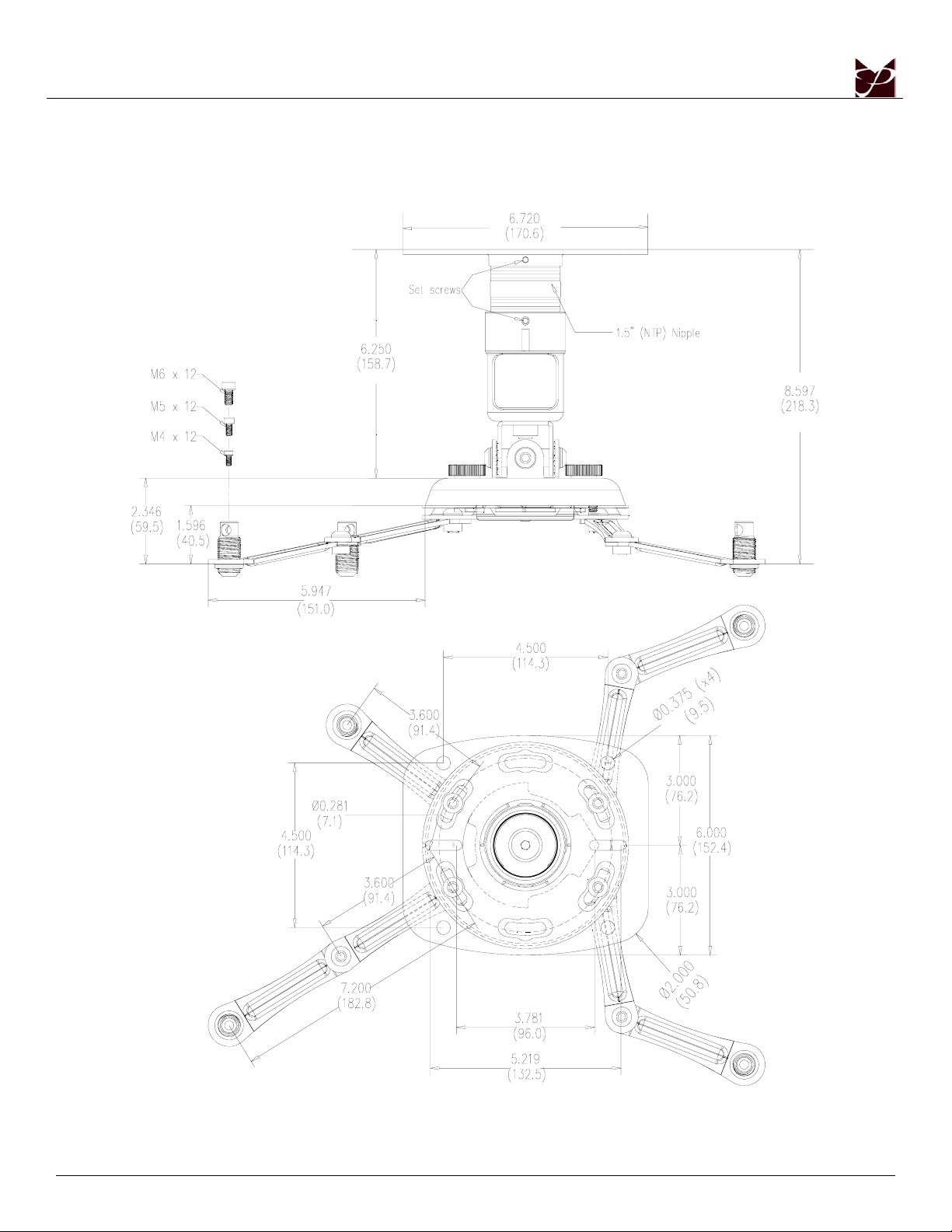

Technical Specifications ............................................................................................................................................................. 17
Warranty ...................................................................................................................................................................................... 18
Contact Premier Mounts ............................................................................................................................................................ 18
Notes ............................................................................................................................................................................................ 19
Installation Manual Page 3

PBC-UMS
Warning Statements
WARNING: THE CEILING STRUCTURE MUST BE CAPABLE OF SUPPORTING 25 LBS. IF NOT, THE
CEILING MUST BE REINFORCED. PROPER INSTALLATION PROCEDURE BY A QUALIFIED
SERVICE TECHNICIAN, AS OUTLINED IN THE INSTALLATION INSTRUCTIONS, MUST BE
ADHERED TO. FAILURE TO DO SO COULD RESULT IN SERIOUS PERSONAL INJURY, OR EVEN
DEATH.
WARNING: SAFETY MEASURES MUST BE PRACTICED AT ALL TIMES DURING THE INSTALLATION OF
THIS PRODUCT. USE PROPER SAFETY GEAR AND TOOLS FOR THE INSTALLATION
PROCEDURE TO PREVENT PERSONAL INJURY.
WARNING: PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE INSTALLATION INSTRUCTIONS
SHOULD BE READ AND COMPLETELY UNDERSTOOD. THE INSTALLATION INSTRUCTIONS
MUST BE READ TO PREVENT PERSONAL INJURY AND PROPERTY DAMAGE. KEEP THESE
INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION FOR FUTURE
REFERENCE.
Indicates that the power plug is to be
disconnected from the power outlet.
Contact Premier Mounts with any
questions.
Safety precautions must be taken at all
times.
Warning and Caution statements.
A secure structure must support the weight, or load, of the projector. When mounting to a ceiling
that contains wooden studs, dead center of the wooden stud must be confirmed prior to
installation.
Do not install on a structure that is prone to vibration, movement or chance of impact. Failure to
do so could result in damage to the projector and/or damage to the mounting surface.
Do not install near heater, fireplace, direct sunlight, air conditioning or any other source of direct
heat energy. Failure to do so may result in damage to the projector and could increase the risk of
fire.
At least two qualified people should perform the installation procedure. Injury and/or damage can
result from dropping or mishandling the projector.
Recommended mounting surfaces: wooden studs and solid-flat concrete. If the mount is to be
installed on any surface other than wooden studs, use suitable hardware (which is commercially
available).
Page 4 Installation Manual

PBC-UMS

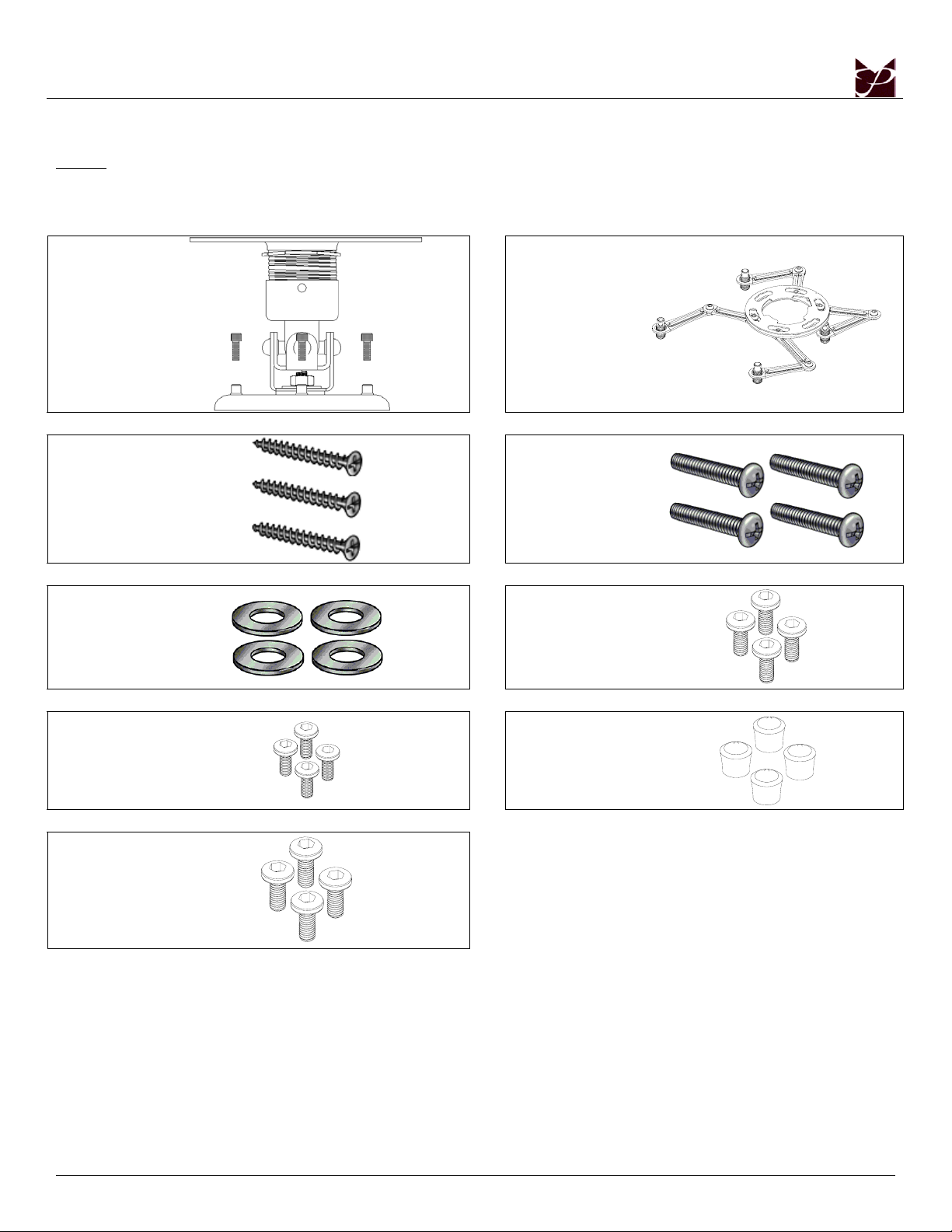

Parts List
NOTE: This mount is shipped with all proper installation hardware and components. Make sure that none
of these parts are missing and/or damaged before beginning installation. If there are parts missing
and/or damaged, please stop the installation and contact Premier Mounts [phone].
Upper
Assembly®
(1)
Universal
Mounting
Bracket (1ea)
#14 Wood
Screws (3)
M3 x 16mm
Phillips Head
Screws (4ea)
M3 Flat
Washers
(4ea)
M5 x 12 Hex
head screws
(4ea)
M4 x 12
Hex head
screws
(4ea)
Plastic barrel
caps (4ea)
M6 x 12
Hex head
screws
(4ea)
Installation Tools
Phillips Head Screw Driver Portable Drill
Soft Material/ Blanket Pencil
¼” Drill Bit Green Level (Supplied)
Tape Measure Wrench with ½” Drive Socket
Stud Finder (Commercially Available) Ladder
M3 Allen Wrench (Supplied) M5 Allen Wrench (Supplied)
Installation Manual Page 5

PBC-UMS

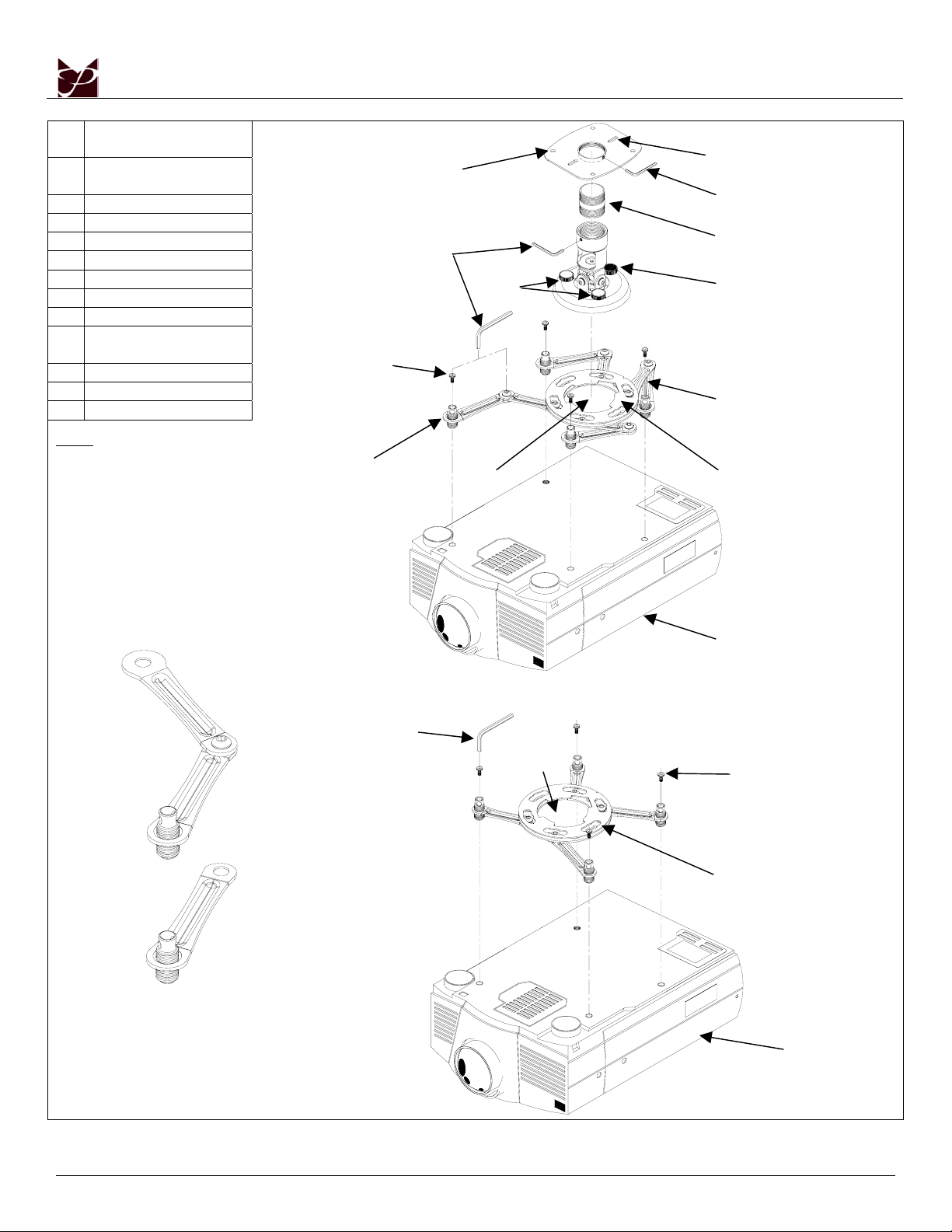

A Single Wooden Stud
Mounts
B Solid Structure
Mounting Points
C M3 Allen Wrench
D Allen Wrench
E 1.5” Nipple (NTP)
F Tension Knobs
G Safety Knob
H Security Screws
I Leveling Screws
J Universal Mounting
bracket
K Leg Assembly
L Projector (not included)
M Tri-Lock Opening
NOTE: The four (two-piece)
leg assemblies can be used as
single leg or any
combination of single and
dual legs together as shown
in Options 1 and 2. The
number of legs may vary
depending on the number of
mounting points found on
the bottom of the projector.
Option 1
H
L
J
A
B
K
G
E
M
I
H
F
D
M
D
Option 2
C
Combination
Leg
J
L
Single Leg
Page 6 Installation Manual

PBC-UMS
Features
Congratulations on your recent purchase of the your PBC-UMS universal projector ceiling mount kit. This
unit is designed for projectors weighing 25lbs. (13kg) or less. The mount is easy to install and is loaded with
additional installation features built into the mount. These features allow you to optimize the projector’s
position to the screen for the best projector performance and picture quality.
• Can be mounted to the ceiling
• Tilt/Roll up to ±20°
• Rotates 360°
• Positive locking in any set position
• Quick release system for easy projector mounting and removal
• Cables can be routed inside pipe
• Upper ceiling plate allows for single wooden stud installation and cable insertion through the ceiling plate
for a cleaner appearance
Installation Manual Page 7

PBC-UMS
Projector Preparation
CAUTION: THE PROJECTOR IS FRAGILE; HANDLE WITH CARE AT ALL TIMES.
NOTE: Review the projector manufacturers operation manual and refer to the ceiling mount installation
section. Important information concerning the installation dimensions (i.e. distance from the
screen to the lens of the projector, top of the lens placement to the top screen, etc.) will be found
in this section. Adherence to these instructions will simplify the installation and enhance the
quality of the final screen image.
1. Carefully invert the projector and place it on a smooth, flat surface.
2. Identify the number of mounting points and screw thread size. Most projectors have either three of
four mounting points and are M4, M5 or M6 in thread size (Figure 1).

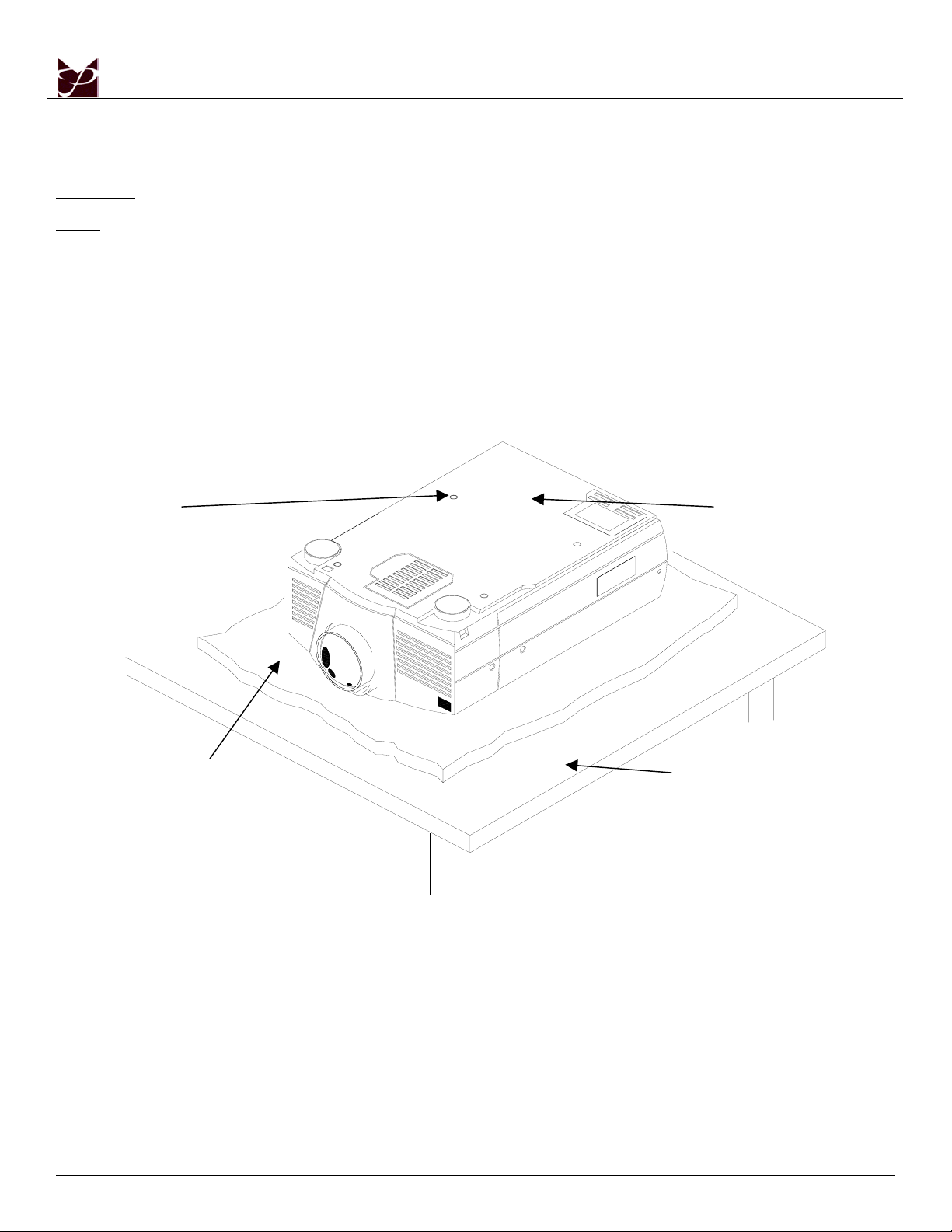

Figure 1. Projector Preparation
M
ounting
P
oints
B
lanket/
Soft Cloth
Inverted
P
rojector
F
lat
Surface
3. Separate the upper assembly from the projector mounting bracket by slightly loosening the two
tension knurl knobs to create free play between the bracket tri-lock assembly and the upper section
tri-lock assembly points (Figure 2A and Figure 2B).
4. Loosen the security screw knurl knob far enough to allow the two parts to be rotated 180° apart and
separate (Figure 2C).
Page 8 Installation Manual

PBC-UMS

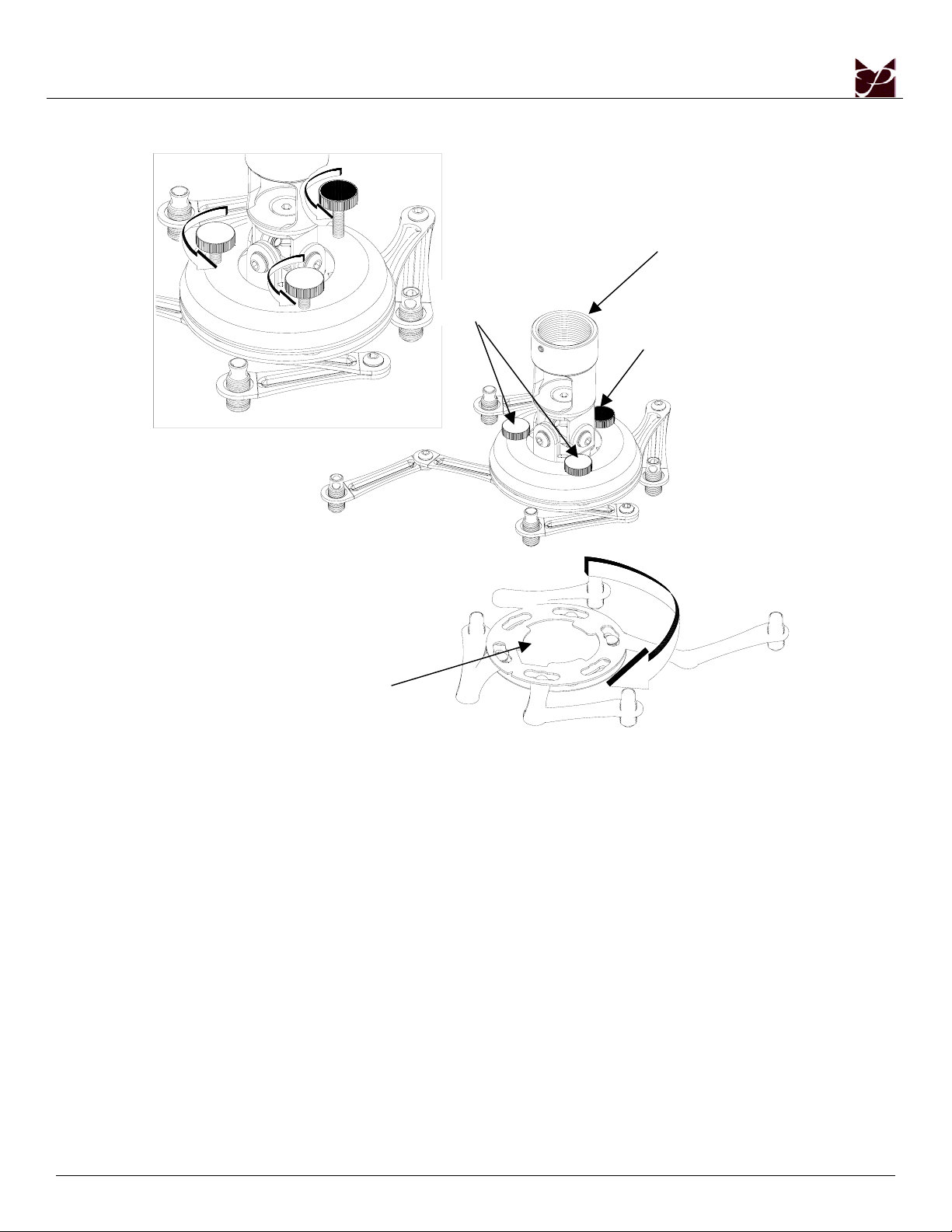

Figure 2. Mount Preparation
B
A
U
pper
Assembly
Safety
K
nob
Tension
K
nobs
R
otate 180°
To unlock
Tri-Lock
Opening C
Installation Manual Page 9

PBC-UMS
Bracket Installation
NOTE: The two-piece mounting kegs are designed to allow for the positioning of each leg around
projector air vents located on the base of the projector. Where applicable, each leg mount may
be shortened by removing the locking screw. This will allow for a better bracket fit, overall.
NOTE: For easier installation, the mounting legs should be first mounted to the projector. Each leg
should then be adjusted so that they can mount to the Universal Mount (Figure 3).
1. Locate the mounting points on the bottom of the projector and use the appropriate number of
mounting legs.
2. Select the mounting hardware that the projector requires and loosely install the universal mount on
the projector.
Figure 3. Bracket Installation
Two Piece Leg
One Piece Leg
M
5 Allen
W
rench
Inverted
P
rojector
L
eveling
Barrels
M
6 x 12mm
H
ex Head
Screw
M
5 x 12mm
H
ex Head
Screws
M
4 x 12mm
H
ex Head
Screws
U
niversal Mount
In the event that your projector should require M3 hardware, please follow these
instructions:
1. Thread the leveling barrel into the hole on the mounting arm.
2. Place the M3 flat washer into the leveling barrel hole.
3. Use the M3 x 16mm Phillips Head screws to attach the leveling barrel to the
p
ro
j
ector.
Page 10 Installation Manual

PBC-UMS
Leveling the Mounting Bracket
CAUTION: Secure but do not over tighten the mounting hardware. Failure to do so will result in
damaging the threads in the projector.
1. Rotate the leveling barrels to level the mounting bracket.
2. Position the mounting bracket so that it avoids most, if not all, ventilation points (including lamp and
filter access doors).
3. When the desired position is achieved, tighten the mounting screws to the projector and then tighten
the hex head leg screws with the M5 Allen wrench (Figure 4).
DOWN
UP

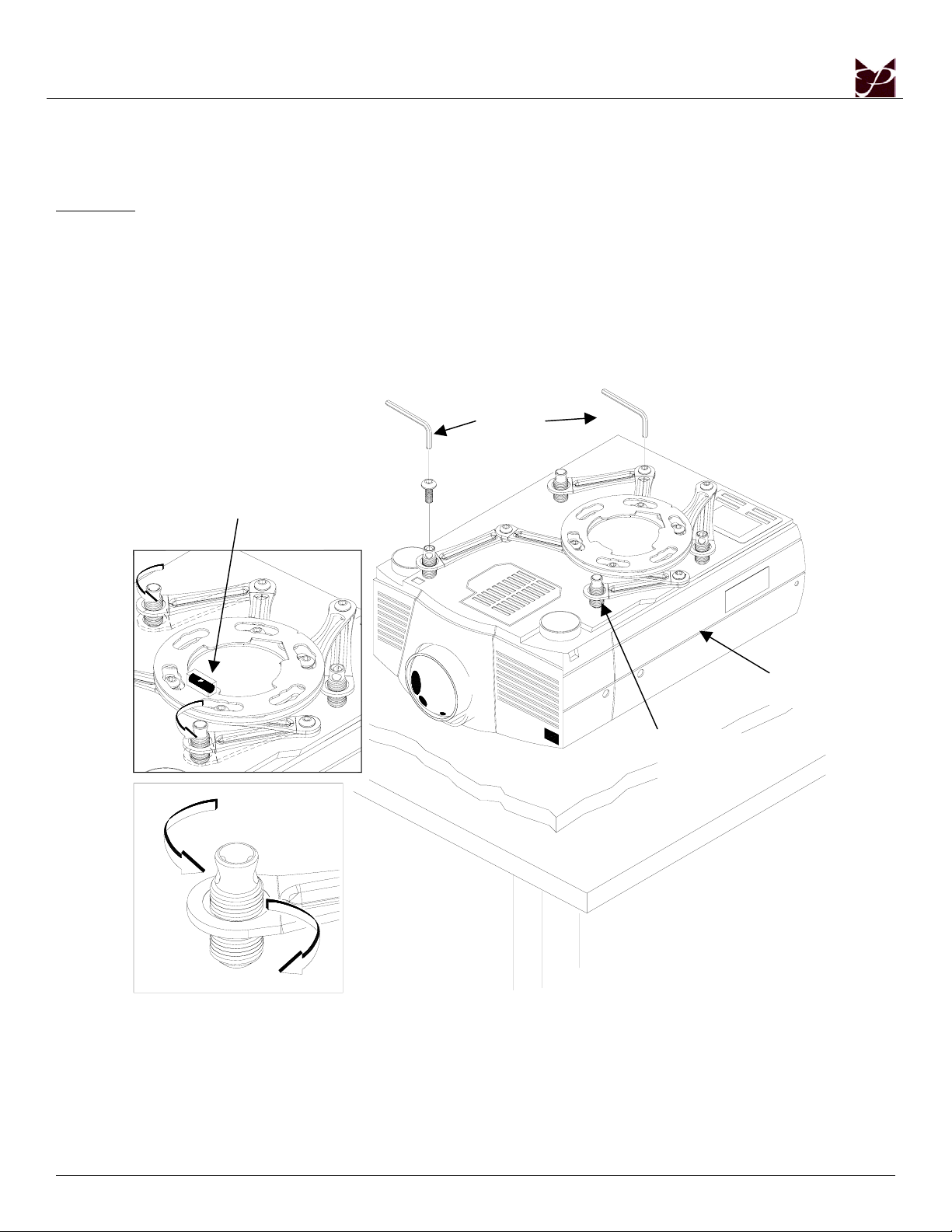

Figure 4. Leveling the Mounting Bracket
M
5 Allen
W
rench
L
evel
L
eveling the Mount
I
nverted
P
rojector
L
eveling
Barrels
Installation Manual Page 11

PBC-UMS
Securing the Upper Assembly Ceiling Plate
Review your projector’s owner’s manual to determine what distance is recommended from the front of the
lens to the edge of the screen for best picture ratio.
NOTE: However in most home theater and office ceiling mount installations this is not practical as the
projector would be to low within the room. At a minimum you should at least locate the inverted
projectors top of the lens point to a point centered horizontally on the screen and no higher then
the top image edge of the screen).
Most projector manufacturers prefer to have the center of the projector lens centered of the top of the screen
when the projector is inverted for ceiling mounting. It is normally better to have the top edge of the lens as
close to parallel with the top image edge of the screen as well. Before you mount your screen and projector,
make sure the mounting location will safely support the weight of the projector.
NOTE: Make sure to measure from the center of the mounting bracket to the front edge of the lens
to determine the proper placement of the center of the upper assembly.
1. Secure the ceiling assembly into a solid wood ceiling stud with the two (2) #14 x 2” wood screws
(supplied) or with other (commercially available) hardware depending on your installation environment
(Figure 5).
Figure 5. Securing the Upper Assembly Ceiling Plate
W
ooden
Ceiling Stud
Ceiling
Structure
W
ood Screws
Secure the ceiling mount
to the center of the
w
ooden stud.
U
pper
Assembl
y
Page 12 Installation Manual

PBC-UMS
Securing the Projector to the Upper Assembly
1. Make sure the three-knurl knobs are loosened to fully expose to the “tri-lock” mounting plate in the
base of the upper assembly.
2. Carefully lift the projector and insert the mounting bracket mating special tri-lock cutout into the
mating portion of the upper assembly.
3. Once inserted rotate the projector and mounting bracket 180° and secure the rear safety knob first to
prevent further rotation of the bracket in the upper assembly.
4. Tighten the remaining two tension knurl knobs until the mount becomes rigid. The safety knob
should line up with the alignment slot on the mounting bracket.
Figure 6. Low Profile Installation
N
OTE: Follow the numbering
sequence prior to securing
the projector to the upper
assembly.
3
2
U
niversal Mount
Tri-Lock
Opening
Safety Knurl Knob
Tension Knurl Knobs
Insert universal bracket to
the tri-lock, then rotate the
projector 180°
The alignment slot
must be in direct
alignment with the
safety knob to lock
the mounting
bracket to the
upper assembly.
1
Alignment Slot
P
rojector
Installation Manual Page 13

PBC-UMS
Final Adjustments
1. With the projector secured in the mount and power on and signal supplied to the projector you can
now proceed with the final height, tilt, roll and yaw to optimize the projected image.
Figure 7. Final Adjustments
A
The height can be adjusted by rotatin
g
the PBC clockwise (higher) / counter-
clockwise (lower). Once the height is
achieved, tighten the locking set screw
using the supplied Allen Wrench.
B
To adjust the tilt angle of the projector,
slightly loosen the side M8 screws and tilt
to the desired angle and firmly tighten the
two M8 adjustment screws.
C
If roll adjustment is needed to square the
images on the screen, slightly loosen the
front and rear M8 screws and adjust to
the desired angle. Then firmly tighten the
two M8 adjustment screws.
W
ooden Stud
Ceiling Structure
H
eight Adjustable
Screws
L
ocking Set Screw
W
ooden Stud
A
B
C
(Roll) Adjusting
Screws
R
e-check the hardware for tightness and security.
Page 14 Installation Manual

PBC-UMS
Plastic Cap Installation
1. Once all the final adjustments have been finished, install the plastic caps on the leveling barrels
(Figure 8).
Figure 8. Plastic Cap Installation
Installation Manual Page 15

PBC-UMS
Troubleshooting Procedures
QUESTION: My projector mount must be set at an angle to be viewed properly on the wall, but the
projector will not hold at this position. Why is this?
ANSWER: The angle adjustments are not tight; they must be tightened.
QUESTION: Why won’t my bracket fit my projector?
ANSWER: There may be several mounting positions for your particular bracket. Try to line up the
holes on the bracket with the mounting points on the projector. If this still does not
solve the problem, then contact Customer Service and advise them of the situation.
Page 16 Installation Manual

PBC-UMS
Technical Specifications
Figure 9. Technical Dimensions
Installation Manual Page 17

PBC-UMS
Warranty
Limited Lifetime Warranty
All products carry a limited lifetime warranty from ship date against defects in materials and workmanship.
Premier Mounts is not liable for improper installation that results in damage to mounts, adapters, display
equipment or personal injury.
Contact Premier Mounts
In the event of missing and/or damage equipment, or technical questions, the following information can help
in the completion of the installation.
Customer Service – [phone]
Page 18 Installation Manual

PBC-UMS
Notes
R
LISTED
E176225
Premier Mounts
3130 E. Miraloma Avenue
Anaheim, CA 92806
Phone: [phone] Fax: [phone]
[e-mail] www.mounts.com
Rev. 01
Installation Manual Page 19
