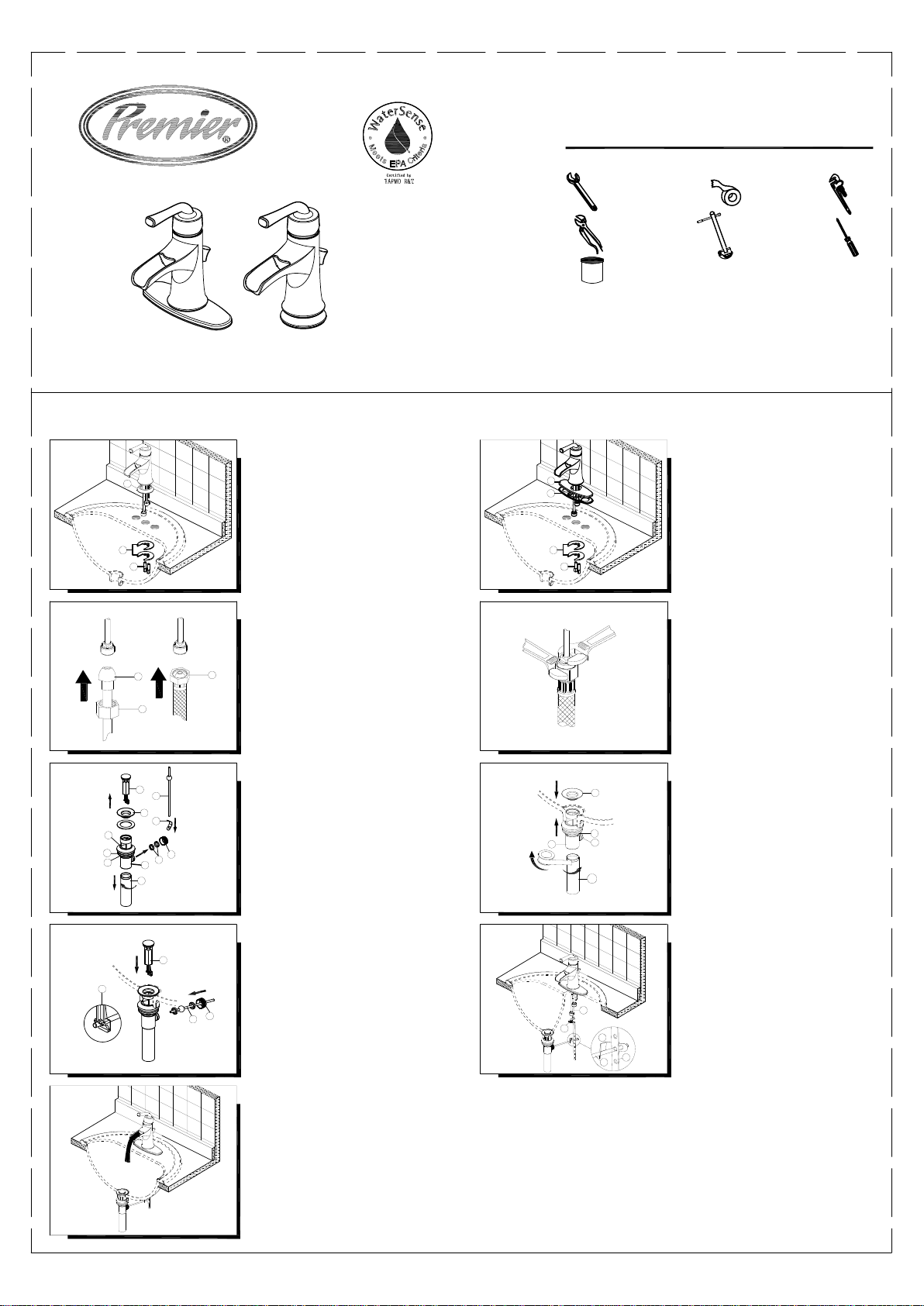

INSTALLATION STEPS: Single handle lavatory faucet
Cleaning:
To maintain and protect the fine luster of all products, clean with a soft, damp cloth
only. DO NOT USE detergents or cleansers as they may harm the protective finish.
INSTALLATION
Model Number: 284443 & 284445 & 284446
Making the waterline connections:
Use 1/2 in. I.P.S. faucet connections (2, not included),
or use the coupling nuts (3, not included) with a 3/8 in.
O.D. ball-nose riser (1, not included).
NOTE: The hot side inlet tube is indcated by a label.
If the label is not present, the hot supply tube is the
longer of the two inlet tubes.
Flange Installation (optional).
Shut off the water supply at angle stop. Remove the
old faucet. Clean the sink surface in preparation for
new faucet. Place the flange (1) on the bottom of the
new faucet. Install the faucet assembly through the
holes of the sink. From underneath the sink, secure
the faucet to the sink with the washers (2) and nut (3)
provided.
Before tightening the faucet connector to the
water supply, apply a second wrench to the
supply tube fitting. This will prevent the supply
tube from moving or twisting when tightening
the faucet connector. Do not overtighten.
3.
1.
2.
12
3
1
3
2
78
3
11
10
4
5
6
9
2
1
Remove the stopper (1) and the flange (2). Screw
the brass nut (3) all the way down. Push the plastic
washer (4) and the gasket (5) down. Unscrew the
pivot nut (6) from the pop-up body (7) and remove
the seal washers (8). Take off the spring clip (9)
from the horizontal rod (10). Remove the tailpiece
(11) from the pop-up body (7).
4.
5
4
3
1
2
5.Apply the silicone to the underside of the flange
(2). Insert the pop-up body (1) into the drain hole
from below sink. Screw the flange (2) into the
pop-up body (1). With the pivot hole (3) facing
toward faucet, Use groove joint pliers to tighten
the nut (4), do not over tighten. Do not turn the
pop-up while tightening the nut, or sealant may
not seal drain. Clean excess putty. Apply thread
sealant tape to the top threads of the tailpiece (5)
in a clockwise direction, as shown and hand
tighten.
4
3
21
Install the horizontal rod (2) and the stopper (3) as
shown (4). Hand tighten the pivot nut (1).
6.
3
2
51
4
Place one end of the spring clip (1) onto the end
of the horizontal rod (2). Insert the horizontal rod
(2) through a hole on the strap (3). Connect the
other end of the spring clip (1) to the horizontal
rod (2). Insert the lift rod (4) into the strap and
tighten the screw (5).
7.
Important: After installation is completed, turn on the water
supply and allow both hot and cold water to run for at least
one minute each. This flushes away any debris that could
cause damage to internal parts. While the water is running,
check for leaks. Turn off the water.
9.
1
Escutcheon Installation (optional).
Shut off the water supply at angle stop. Remove
the old faucet. Clean the sink surface in
preparation for new faucet. Place the escutcheon
(1) and the base plate (2) on the bottom of the
new faucet. Install the faucet assembly through
the holes of the sink. From underneath the sink,
secure the faucet to the sink with the washers
(3) and nut (4) provided.
3
4
2
1.
Brand Lavatory Faucets Tools:
Adjustable wrench
Groove joint pliers
Pipe wrench
Screwdriver
Thread sealant tape
Basin wrench
Plumber's putty

284443 & 284445 & 284446
Lift Rod & Lift Knob
Escutcheon Kit
Filtration
Connector
Cartridge
12
14
9 Check Valve
7
490
488
1
1
491 1
486 1
487
485 1
1
Screw
Bonnet Nut
Cap
Handle
Set Screw
Cap
PART DESCRIPTION
1
4
5
6
2
3
NO.
482 1
16 1
307
484 1
1
483
20 1 1
PART NO.
MODEL NO.284443 QTY.
11
8
10 Mounting Kit
11 489 1
1
3
4
6
5
2
7
8
9
10 12
15
14
1
124020
Brass Pop-Up
15
493
489
494
491
487
486
485
307
484
17
492
20
12
14
9
7
1
1
1
1
1
1
Bonnet Nut
Cap
Handle
PART DESCRIPTION
1
4
5
6
2
3
NO.
1
1
1
1
1
1
PART NO.
MODEL NO.284445 QTY.
8
10
11 1
482
Cap
Set Screw
Screw
Cartridge
Connector
Check Valve
Filtration
Mounting Kit
Escutcheon Kit
Lift Rod & Lift Knob 1
15 Brass Pop-Up 124011
MODEL NO.284446
332
Brass Pop-Up
15 1
Lift Rod & Lift Knob
Escutcheon Kit
Mounting Kit
Filtration
Check Valve
Connector
Cartridge
Screw
Set Screw
Cap 482
1
11
10
8
QTY.PART NO.
1
1
1
1
1
1
NO.
3
2
6
5
4
1 PART DESCRIPTION
Handle
Cap
Bonnet Nut
1
1
1
1
1
1
7
9
14
12
20
495
496
484
307
485
486
487
491
498
489
497
13
13 Flange Kit 537 1 13 Flange Kit 538 1 13 Flange Kit 539 1
