Premium PRN4560MS User manual

TABLE OF CONTENTS
STRUCTURE ILLUSTRATION…….……………………………………….…..3
IMPORTANT SAFETY INSTRUCTIONS………………………………………4
INSTALLATION INSTRUCTION………………………………………………..4
OPERATING YOUR REFRIGERATOR………………………….……………..5-6
FREEZER COMPARTMENT OPERATION……………………………………6
CARE & MAINTENANCE………………………………………………………..7
CHANGING THE REVERSIBLE DOOR……………………………………….8-9
TROUBLESHOOTING GUIDE…………………………………………………..10
2

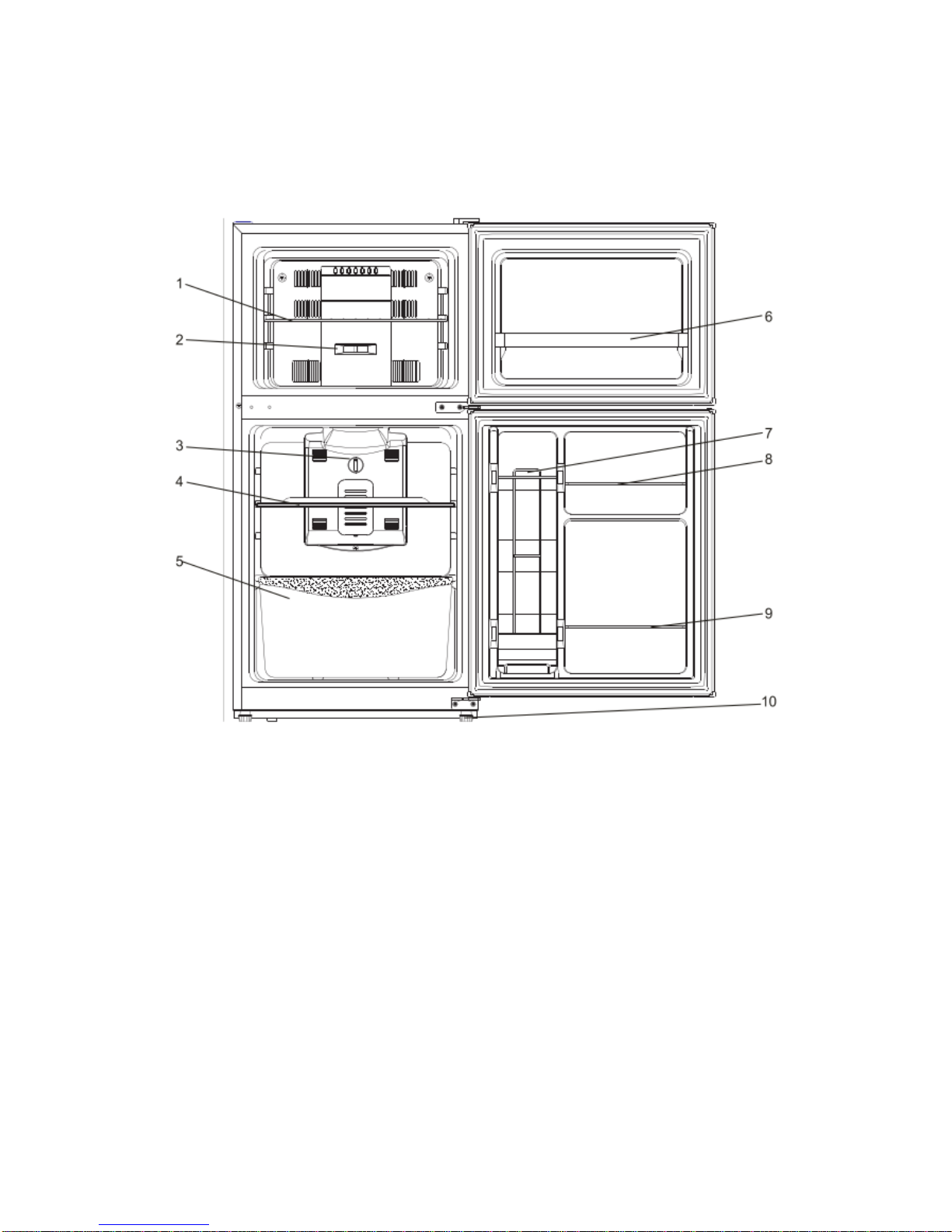

Structure Illustration
1.Freezer compartment shelf6.Freezer door rail
2.Freezer temperature control knob7.Can rack
3.Refrigerator temperature control knob8.Bottle rack(short)
4.Refrigerator compartment shelf 9.Bottle rack(long)
5.Vegetable bin 10.Adjustable feet
3

Important Safety Instructions
•DANGER: Risk of child entrapment. To avoid the possibility of child entrapment, please
take the following precautions before you dispose of your refrigerator.
Remove all doors.
Leave shelves in place so children may not easily climb in.
Never allow children to play with, operate, or crawl inside the
refrigerator.
•Do not store or use gasoline or any flammable vapors and liquids in the vicinity of this
refrigerator.
•All refrigeration products contain refrigerants, which under the guidelines of federal law
must be removed before disposal. It is the consumer’s responsibility to comply with
federal and local regulations when disposing of this product.
Installation Instructions
Before Using Your Refrigerator
•Remove the exterior and interior packing.
•Before connecting the refrigerator to the power source, let it stand upright for
approximately 4 hours. This will reduce the possibility of a malfunction in the cooling
system from improper handling during transportation.
•Clean the interior surface with lukewarm water using a soft cloth. (Cleaning instructions on
page 7)
Location
•Do not recess or build-in. This appliance is designed to be free standing only.
•Allow 5 inches clearance space between the back and sides of the refrigerator, which
allows the proper air ventilation.
•Avoid Installation:
On weak surfaces unable to support refrigerator when fully loaded.
In direct sunlight and sources of heat (stove, heater, radiator, etc.). Ambient
temperature below 50°F or above 85°F will hinder the performance of this
appliance.
In moist areas.
In garage.This unit is not designed for any type of outside installation.
In moving vehicle.This unit is not designed to be installed in an RV or used
with an inverter. This unit is intended for household use only.
Installing Your Refrigerator
•Adjust the leveling feet to keep the refrigerator level.
•Plug the refrigerator into dedicated, properly installed-grounded wall outlet. Do not under
any circumstances cut or remove the third (ground) prong from the power cord.
•After plugging the appliance into a wall outlet, turn the unit on and allow the unit to cool
down for 24 hours before placing food in the refrigerator or freezer compartment.
4

Electrical Connection
This refrigerator should be properly grounded for your safety. The power cord of this
refrigerator is equipped with a three-prong plug which mates with standard three prong wall
outlets to minimize the possibility of electrical shock.
Do not, under any circumstances, cut or remove the third ground prong from the power cord
supplied.
This refrigerator requires a standard 115 Volt A.C. ~/60Hz electrical outlet with three-prong
ground.
This refrigerator is not designed to be used with an inverter.
The cord should be secured behind the refrigerator and not left exposed or dangling to prevent
accidental injury.
Never unplug the refrigerator by pulling the power cord. Always grip the plug firmly and pull
straight our from the receptacle.
Do not use an extension cord with this appliance. If the power cord is too short, have a
qualified electrician or service technician install an outlet near the appliance. Use of an
extension cord can negatively affect the performance of the unit.
Operating Your Refrigerator
Temperature Control
The temperature control is located inside the refrigerator compartment on the
top. The refrigerator compartment temperature control ranges from “MIN”,
cold setting, to “MAX” coldest setting. The first time the unit is turned on,
adjust the temperature control knob to a higher (colder) setting and run for at
least 24 hours before readjusting the temperature and placing food inside.
This will ensure the cabinet is thoroughly chilled before food is placed into the
refrigerator.
If you choose to change the thermostat setting, adjust the thermostat by one
increment at a time. After each movement of the control knob, allow several hours for the unit
to adjust completely. Large amounts of food may lower the cooling efficiency of the appliance.
5

Replacing the Interior Light
Before removing the light bulb, turn the refrigerator temperature control to the “MIN” position.
Then unplug the electrical cord from the wall outlet. Failure to do so may result in electrical
shock or personal injury. Replace the old bulb with a new bulb of the same wattage and size.
Freezer Compartment Operation
Temperature Control
Your refrigerator has one control for regulating the temperature in the
freezer compartment. The freezer temperature control is located on the
freezer compartment’s interior back panel. For the best performance,
leave the freezer control at the midpoint and adjust the refrigerator
compartment temperature control. Adjust the freezer control one
increment at a time until the desired temperature is reached.
Ice Tray
To make ice, pour cool water into ice tray and place it in the freezer for two
hours. To release ice cubes, twist the ice tray and the ice cubes will
separate from the ice tray. To shorten the time of making ice, you can set
the temperature control knob at a colder position.
The Freezer Compartment
This compartment is designed for the long-term storage of frozen food. The storage life of
frozen foods varies and the recommended storage time should not be exceeded. Place frozen
food into the freezer as quickly as possible after purchase. If there are instructions on the
packet, carefully follow these instructions regarding storage times.
6

Care and Maintenance
Cleaning Your Refrigerator
•Disconnect the electrical unit from the wall outlet.
•Clean interior and parts with a cloth soaked in lukewarm water and baking soda solution.
A solution of 2 tablespoons baking soda to a quart of water will clean and neutralize odors.
Rinse and wipe dry.
•Be sure to keep the door gasket (seal) clean to keep the unit running efficiently.
•The outside of the refrigerator should be cleaned with a warm damp cloth and mild
detergent. Do not use harsh or abrasive cleaners.
•Never clean refrigerator parts with flammable fluids. The fumes can create a fire hazard.
Vacation Time
•For long vacations, remove all food. Then, unplug the electrical cord from the wall outlet.
•Clean the interior and leave doors open to avoid possible odor or mold formation.
•Use extreme caution in the case of children. The unit should not be accessible to child’s
play.
Moving Your Refrigerator
•Disconnect the electrical cord from the wall outlet.
•Remove all the food and securely tape down all loose items such as shelves, drawers,
and doors.
•Be sure the refrigerator stays in the upright position during transportation.
Energy Saving Tips
•The refrigerator should be located in the coolest area of the room, away from heat
producing appliances or heating ducts, and out of the direct sunlight.
•Let hot foods cool to room temperature before placing in the refrigerator.
•Be sure to wrap foods properly, and wipe containers dry before placing them in the
refrigerator. This cuts down on frost build-up inside the refrigerator.
•Organize and label food to reduce door openings and extended searches.
7

Changing the Reversible Door
Before reversing the door swing, ensure the appliance is unplugged and empty. Provide
additional support for the doors while hinges are being removed. Do not depend on the door
magnets to hold the door in place. It is recommended that two people perform this task. DO
NOT lay the appliance completely flat as this may damage the coolant system.
8
Remove top hinge cover. Unscrew
and remove the top hinge and top
Lift the freezer door up and away
from the appliance.
Remove the screws from the
middle hinge. Lift refrigerator door
up and away from the appliance
Remove the bottom hinge by removing the leveling leg
and screw on the bottom of the refrigerator cabinet. To
reattach the hinge on the opposite side of cabinet, first
remove the leveling leg. Reattach the hinge using the
screws that were previously removed. Reattach both
leveling legs.

IMPORTANT:
Double check that both doors are aligned correctly and gaskets are sealed on
all sides. If necessary, re-adjust the leveling legs.
9
Remove right pin assemblies from the bottom of
the freezer and refrigerator doors. On the
opposite side, attach the replacement pin
assemblies(located in the plastic bag with the Use
and Care Manual) with a screwdriver.
Note: You must re-use the screws from the pin
assemblies that are removed in this step when
attaching the new assemblies
Place the refrigerator door on the bottom left
hinge. Ensure the door is aligned horizontally
and vertically, and that the gasket seals on all
sides before attaching the middle hinge. Attach
the middle hinge using a screwdriver.
Place the freezer door on the middle hinge.
Ensure that the door is aligned horizontally
and vertically, and that the gasket seals on all
sides before attaching the top hinge. Attach
the top hinge and replace the hinge cover.

Troubleshooting Guide
You can solve many common refrigerator problems easily, saving you the cost of a possible
service call. Try the suggestions below to see if you can solve the problem before calling for
service.
10
Problem Possible Causes
Refrigerator does not operate
•Refrigerator is unplugged.
•The circuit breaker is tripped/ fuse blown.
Compressor turns on and off
•The room temperature is warmer than normal.
•Door is left open or is frequently opened.
•The refrigerator does not have the correct clearances.
•The refrigerator has recently been disconnected for a
period of time.
Refrigerator compartments are too
warm •Temperature control is not set correctly.
•Door is left open or is frequently opened.
•The door gasket does not seal properly.
•A large amount of warm or hot food was stored
recently. Wait for the refrigerator to reach its selected
temperature.
•The refrigerator has recently been disconnected for a
period of time.
Vibrating or rattling (slight vibration is
normal) •Leveling legs need adjusting.
•Refrigerator is placed on an uneven or weak surface.
•The refrigerator is touching the wall. Re-level the
refrigerator and move it away from the wall.
Temperature of external refrigerator
surface is warn •The exterior refrigerator walls can be as much as 30°F
warmer than room temperature.
•This is normal while the compressor works to transfer
heat from inside the refrigerator cabinet.
Moisture collects inside the refrigerator •Door is left open or is frequently opened.
Moisture forms on outside of
refrigerator
•It is normal in hot and humid weather. Air carries
moisture into the refrigerator when doors are opened.
Bubbling or gurgling sounds (like
boiling water)
•This is the normal sound of refrigerant (used to cool
refrigerator) circulating throughout the system.
Popping or cracking sounds when
compressor comes on
•This is normal. Metal parts undergo expansion and
contraction, like hot water pipes. The sound will level off
or disappear as refrigerator runs.
The door will not close properly •The refrigerator is not on a level surface.
•The gasket is dirty.
•The storage basket is out of position.
