Premium PRN348HS User manual

348
348

Refrigerator Chamber
1
The refrigerator compartment is used to store the food which needed to be frozen. And different part in
chamber has difference temperature, so different part is suitable for different kind of food, as the following
diagram:
Note: Due to unceasing modification of our products your refrigerator may be slightly different
from this Instruction Manual, but its functions and using methods remain the same.
1¡PARTS NAME
1.WIND COVER
2.ICE TRAY
3.FREEZER SHELF
4.FREEZER TEMPERATURE
REGULATOR
5.CONTROLLER
6.REFRIGERATOR SHELF A
7.DOOR LIGHT SWITCH
8.ADJUST KNOB
COVER
9.LAMP
10. EFRIGERATOR SHELF B
11. SIDE PLATE
12. CRISPER COVER
13. CRISPER
14. ADJUSTABLE FOOT
15. DOOR SHELF
16. FRONT FOOT
R
1、Description of the appliance
1
4
6
9
11
2
5
7
12
14
3
8
10
13
15
16

2

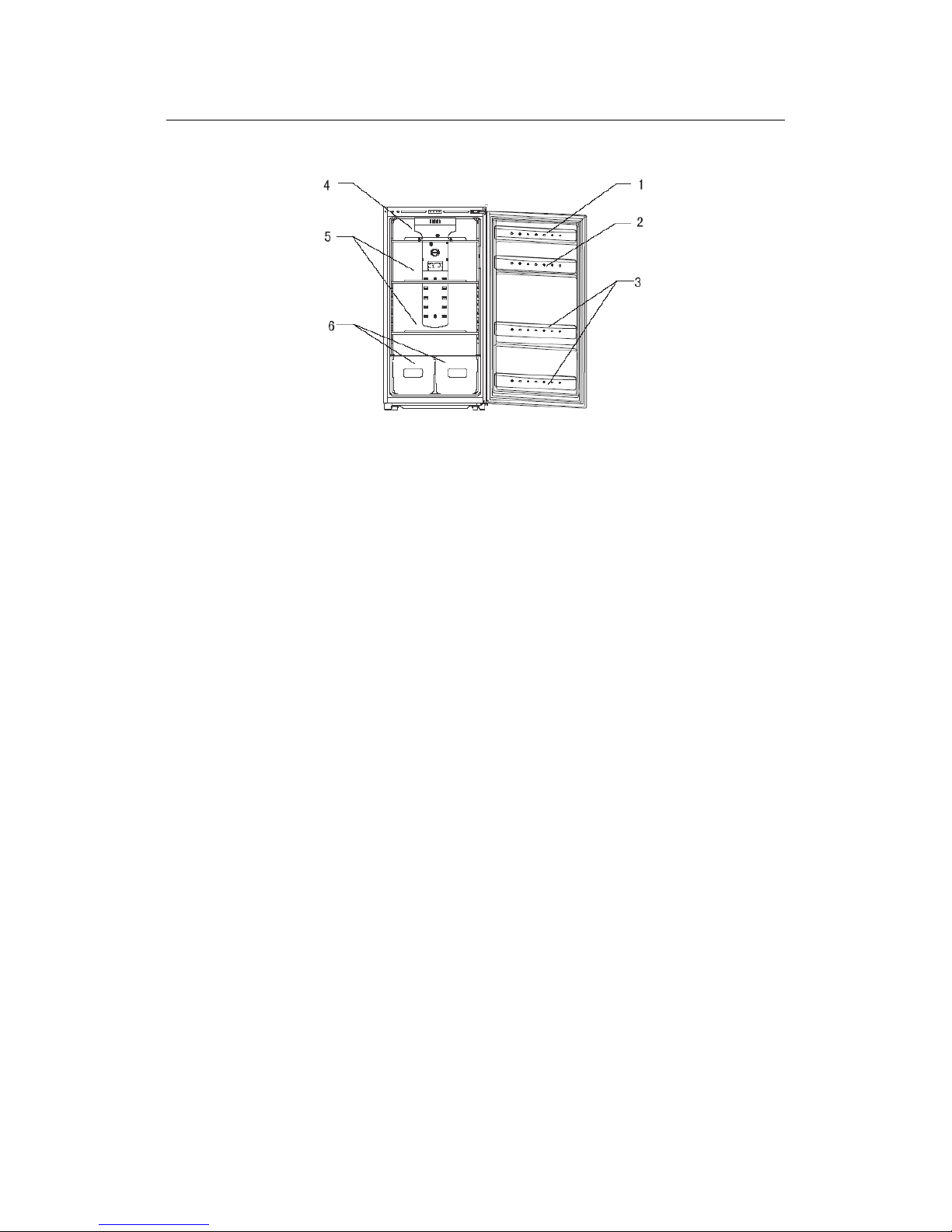

① Part: it is suitable for storing small bottle and eggs, etc.
② Part: it is suitable for storing butter and cheese, etc.
③ Part: it is suitable for storing bottle liquid
and canned food, etc.
④ Part: it is suitable for storing cake,
cooked-food and milk products, etc.
⑤ Part: it is suitable for storing sweetmeats
and canned food, etc.
⑥ Part: it is suitable for storing fruits, vegetable
and salad, etc.
Shelf of refrigerator chamber
There are three adjustable shelves in refrigerator chamber, and they can be taken out to be cleaned.
Vegetable crisper
It is suitable for storage of fruits and vegetable.
Cover of crisper
It is for controlling the temperature of the vegetable drawer and avoiding the vegetable losing moisture.
Door shelf
It is suitable for storage of egg, canned liquid, bottled liquid and packed food, etc. Before you
take the food out, please lift up the door shelf vertically, and do not place too many heavy things in the shelf.

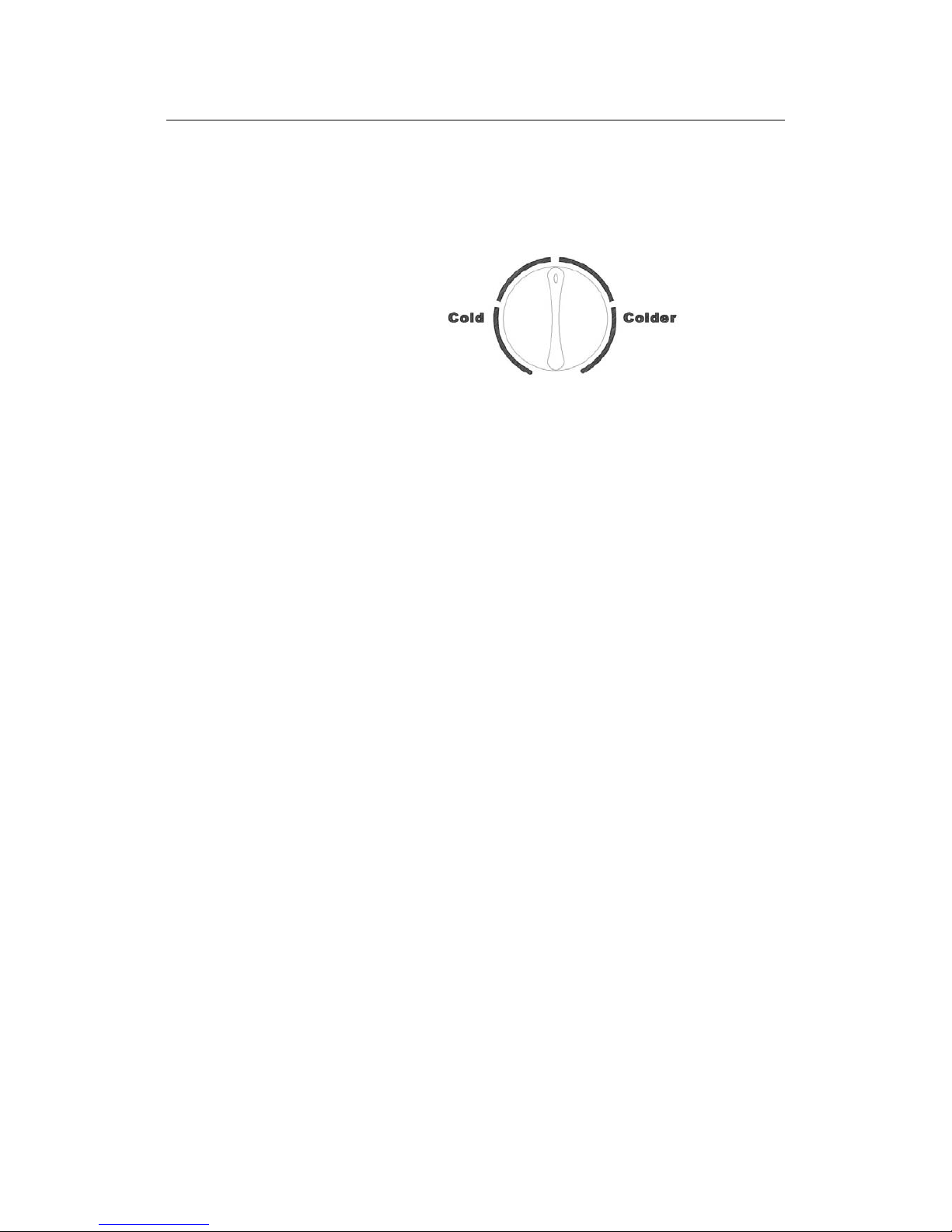

Temperature regulator in Refrigerator Chamber
Insufficient refrigeration in chamber.
Set the temperature controller at by "COLDER".
Using the refrigerator in normal condition.
Set the temperature controller knob vertically or
vertical position by "COLD".
You can choose the position according
to different ambient temperature in different seasons.
In spring and autumn: set the temperature controller knob vertically.
In autumn: vertical position;
In summer: vertical position;
In winter: set the temperature controller knob vertically or vertical position by "COLDER".
Less fresh food in chamber
Set the temperature controller knob by "COLD".
1
4
2
5
3
6

Notice:
Do not place the food on the air outlet, and leave enough
space for airflow.
Changing The Light Bulb
Before removing the light bulb, cither the refrigerator
or disconnect the electricity leading into the
refrigerator at the main power supply. Failure to do so
could result in electrical shock or personal injury.
Use the cross screw driver to take the screw out.
Remove the light cover by pushing up gently.
Unscrew the bulb.
Replace with a 15 watt-refrigerator bulb that is of the same
shape and size.
Replace the light bulb cover.
Freezer Chamber
It is for freezing and storing frozen food and making ice cream etc.
Ice tray
It is for making ice, pour cooled boiled water into ice tray up to its 4/5 volume, place it in
ice making chamber for two hours and the ice can be made
automatically. When you want to take ice cubes, please twist
the ice tray, and the ice cubes are separated from the ice tray.
But do not bend it, otherwise it will crack. If you want to
shorten the time of making ice, you can set the temperature
control knob at “MAX".
Notes
If it takes a long time to make ice, please do not hold the ice tray directly to avoid the ice tray
sticking and hurting your hands.
Notes
It is forbidden to store the glass or canned liquid food, because the volume expands when the
food is frozen, glass would crack.
3
MAX
FREEZER
MIN
Freezer Temperature Regulator
Temperature regulator in Freezer Chamber
The temperature regulator allows you to regulate the temperature inside the Freezer.
In case of too much frozen food or ice making in chamber.
Please set the temperature control knob at "MAX" position.
In case of using the freezer in usual condition
Please set the temperature regulator at the middle of
" MAX" and "MIN".
In case of a little frozen food in chamber
Please set the temperature controller at "MIN" position.

4
Good ventilation
For purpose of easy dissipation of heat, high efficiency of
refrigeration and low power consumption, a space should
be needed around the refrigerator. Please keep 100mm of
space between the back of the appliance and the wall,
200mm between the side and wall, and the space over
the top is not less than 300mm, enough space should be
left to open the door to 160°.
Power supply
The refrigerator is only suitable to single-phase
alternating current of 120V, (60±1) Hz.
If the fluctuation of voltage in your area is beyond
the range of above mentioned, for the safety sake,
please add an A.C. automatic voltage regulator to
the refrigerator. Use an individual socket instead
of a common one share with other electric appliances.
Notes:
Its plug must match the socket
with ground wire, the socket must be connected according
to the diagram.(E earth line, N zero line, L fire line)
Power supply cord
Do not extend or fold the power cord, keep the power cord
away from compressor, because the temperature of the
compressor surface would rise when works, otherwise the
insulation would be weakened and current leakage would
occur.
Protection from moisture
Do not locate the refrigerator in moist space to avoid the
metal parts rusty. And do not spray water to the refrigerator,
otherwise it will weaken the insulation and cause current
leakage.
120V
+10%

Keep away from heat
Please keep refrigerator away from heating sources
and direct sunlight.
Stable placing
Floor on which refrigerator placed must be flat and
solid, do not place the refrigerator on any soft material
such as foam plastic etc. If the refrigerator is not stable,
you can adjust the screws of
front legs to level your refrigerator, and do not place
anything that make echo near the refrigerator.
Keep your refrigerator away from any volatile or
combustible materials such as gas, petrol, alcohol,
lacquer, and banana oil, etc. The abovementioned
objects should not be stored in refrigerator.
It is forbidden to use the refrigerator outdoors.
When fix or move the refrigerator, please do not
decline more than 45°.
45°

6
Do not put the following
articles on the top: unstable
and heavy articles, beating
things like vollage regulator,
container filled with water.
Do not touch the frozen
food in freezer chamber
with wet hands for the
water on your hands may
be frozen and stuck to the
food you touch.
Keep away from
inflammable spray.
Keep the water away
to avoid the weakening
of the insulation.
When gas leakage happens, do
not touch the refrigerator until
the gas valves is turned off and
the air in the room is exchanged,
if round the temperature regulator
immediately, sparks may occur.
Do not clip the power
supply cord.
Do not insert the plug
until 5 minutes after
pulling it out to protect
the compressor from
high pressure.
Do not hang something on
the door to avoid timing and
falling of the refrigerator
and dropping of food.
Do not put combustibles in
your refrigerator like gas for
light et, banana oil, alcohol,
gasoline, binder, propane,
binder, propane gas etc.
3¡NOTICE
3、How to use the refrigerator

7
Do not crowd the refrigerator with
too much food to avoid blocking the
airflow and more energy
consumption.
Please clean the food, bottles and
packed articles before storage.
Sweep out the water if any.
Please use the sealed container and
plastic preservative bag to prevent
food from being dried or mixed taste
with different kinds of food.
Hot food should be cooled down to
room temperature before storage,
otherwise, they would affect their
preservation and increase energy
consumption.
Do not place the food on the temperature sensor and the inner back wall of
the refrigerator.
*Radish, banana, pumpkin, onion, and canned food need not be stored in
the refrigerator.
This refrigerator can not store medical, inflammable and explosive articles.
It is inadvisable to let the refrigerator stop operation for a long time in normal
condition, If you do so, please clean the refrigerator, open the doors and let it stand still
for several days. Moreover please operate the refrigerator several times during stopping
operation.
Don't put food onto the front or the wind patch cover to jam ventilation.
Notes
How to place food

8
*Do not place food in refrigerator and
decrease the times of opening the door.
*Please place ice cubes at upper part of
refrigerator chamber.
*As the temperature in freezer
chamber may rise, please eat food as soon
as possible to avoid them turning bad.
After cleaning the refrigerator, please check
the following points:
① Are the power supply cord and the plug
broken?
② Is the plug set properly?
③ Does the ground wire come off?
④ Is there a block on the drainage outlet?
1. Please wipe the refrigerator with
a soft cloth, use warm water or
neutral detergent.
2. Then dry it with another cloth.
3. In case of especially dirty spots
such as glue, oil, you may wipe
them with alcohol.
4. It is advisable to clean your refrigerator
once a month.
If the plastic parts in refrigerator are
contaminated by oil (animal oil or
vegetable oil) for a long time, they will be
aged and cracked and smell bad. Therefore,
you should get the habit of cleaning it
regularly.
Please use the dry cloth to clean the
electric parts to avoid electric leakage.
1. For the sake of safety, please pull the
plug off before cleaning.
2. It is forbidden to spray water to the
refrigerator directly, otherwise it would
weaken the electrical insulation and
cause the metal parts rusty.
3. It is advisable to use the neutral detergent.
The following materials may damage the
lacquer coat and plastic surface:
basic detergent, toilet soap, abrasive power,
hot water, banana oil, gasoline and alcohol.
Cleaning method
Maintenance of plastic parts
Electric parts
Notes
In case of power failure
Notes
banana
oil gas
4、Care and maintenance

When there is something wrong with your refrigerator, please check the following points
before asking for repair.
Stopping operation
The refrigerator is under the direct
sunshine or near heating sources.
The temperature controller is set at
the "COLD" position.
The plug is not inserted correctly.
The ambient temperature is below 10°,
or the temperature compensation switch is not on.
Insufficient refrigeration
There is too much food in the refrigerator
and it blocks the airflow.
The refrigerator doors are not closed properly.
Refrigeration leakage occurs due to the state of being
broken or bending of the door gasket.
Bad ventilation is around the refrigerator.
Too much hot food is placed in refrigerator.
There are no space around the refrigerator.
The refrigerator is placed under the direct sunshine
or near heating sources.
Sound like water running
It is not the sound of water running,
but the sound of refrigerant flowing, it
is not a fault.
It is not malfunction, as there are condensers
inside the two sides and the front frame of
refrigerator, They are warm when refrigerator
works.
c
9
5、Trouble shooting

Dew on two sides of the refrigerator.
In moist seasons (like raining day) dew appears on two sides of the
refrigerator, as when pouring the cold water into the glass cup, the dew
appears on the cup.
This is not malfunction, you can wipe it with a dry cloth.
Unusual noise
The refrigerator is not placed steadily.
The refrigerator touches the wall.
Drain-tray water is falling off.
The outer refrigeration-tubes are touching each other or the
refrigeration tube are touching the inner side of cabinet.
Operating for a long time
The ambient temperature is too high and Temperature controller in freezer
chamber or in refrigerator chamber is set at
"COLDER"position.
Too much food is placed in the refrigerator and insufficient spaces is needed
for airflow.
The door is not closed completely or the gasket is not sealed enough.
Open the door too often.
The ambient temperature is high and the door is open for a long time.
Liquid food is not covered before storage.
The temperature controller is set at"COLDER"position.
The ambient temperature is below 5°.
1. It is forbidden to disassemble any parts fixed by screws, and please
ask the pointed local repair center to repair your refrigerator.
2. It is forbidden to test any electrical parts in operation condition.
c
10

11
6¡Warnings!!!
6、Reversing the door
Reversing the door
The side at which the door opens can be changed from the right side (as supplied ) to the left
side, if the installation site requires.
Before you start lay the refrigerator on it's back in order to gain access to the base, you should
rest it on soft foam packaging or similar material to avoid damaging the cooling piper at the rear
of the refrigerator.
1. Remove the top hinge cover and remove the top hinge bracket by unscrewing the three retaining
nuts. Lift the upper door and place it on a padded surface to prevent it scratched.
2. Remove the two flange screw, then remove the middle hinge that hold the lower door in place.
Lift the lower door and place it on a padded surface to prevent scratching it.

3. Remove the hinge hole cover from the right holes as illustrated and transfer them to the uncover
hole at the left side.
4. Remove both adjustable feet and remove the bottom hinge bracket by unscrewing the bolts.
5. Replace both adjustable feet. Transfer the lower door to the property position. Secure the door's
level, make the bottom hinge pin into the lower hole of the door, then tight the bolts.
12

6. Make the middle hinge reverse the direction 180 degree, then transfer it to the left property posit-
ion. Make the middle hinge pin in the upper hole of the lower door, then tight the bolts. Transfer the
upper door to the property position. Secure the door's level; Make the middle hinge pin into the lo-
wer hole of the upper door.
7. Transfer the top hinge to the left property position. Make the top hinge pin into the upper hole of
the upper door, then tight the bolts, tight the screws to secure the door
8. Replace the top hinge cover.
13

Warning!
When changing the side at which the door opens, the appliance must not be connected to the
mains. Remove plug from the mains beforehand.
9. Replace the Assistant-machine.Serial number one is the left assistant-machine.When the door
is reversing, take off the number two,replace the number one which is put into the packet.
1
2
14

7、Warnings!!!
15
Keep ventilation openings, in the appliance enclosure or in the build-instructure,clear of obstruction.
Do not use mechanical devices or other means to accelerate the defrosting process, other than those
recommended by the manufacturer.
Do not use electrical appliances inside the food storage compartments of the appliance, unless they are
of the type recommended by manufacturer.
If the supply cord is damaged, It must be replaced by the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
Be cautious not to cause fire when maintaining the refrigerator as the refrigerant and vesicant
are burnable. Useless and old refrigerators should be recycled and disposed by professional
companies.
Do not discard useless and old refrigerators at will in order to avoid environment pollution. Thank
you for your cooperation.
Young children should be supervised to ensure that they do not play with the appliance.
Do not damage the refrigerant circuit(applicable only for appliances with refrigeration circuits
which are accessible to the user).
This appliance is not intended for use by young children or infirm persons unless they have
been adequately supervised by a responsible person to ensure that they can use the appliance safely.
This appliance is not intended-for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.

1. Descripción del refrigerador
1. Cubierta de la ventila 10. Estante “B” del refrigerador
2. Cubeta de hielo 11. Panel lateral
3. Estante del congelador 12. Cubierta del cajón de vegetales
4. Regulador de la temperatura del congelador 13. Cajón de vegetales
5. Control 14. Patas para ajustar la altura
6. Estante “A” del refrigerador 15. Estantes de las puertas
7. Interruptor de la luz del refrigerador 16. Pie frontal
8. Perilla de ajuste
9. Cubierta de la bombilla
Nota: Debido a mejorías en nuestros productos, el electrodoméstico puede ser
ligeramente diferente al que aparece en este manual de instrucciones pero las funciones y
método de uso son iguales.
Compartimiento de refrigeración
El compartimiento de refrigeración se usa para guardar alimentos descongelados. La
temperatura en cada una de las secciones del compartimiento de refrigeración es diferente
con el fin de alojar diferentes tipos de alimentos. Por favor ver el siguiente diagrama:

2
Área 1: Ideal para guardar botellas pequeñas, huevos, etc.
Área 2: Ideal para guardar mantequilla y quesos.
Área 3: Ideal para guardar líquidos y alimentos enlatados.
Área 4: Ideal para guardar pasteles, alimentos cocinados y productos lácteos.
Área 5: Ideal para guardar alimentos enlatados y carnes.
Área 6: Ideal para guardar frutas, vegetales y ensaladas.
Estantes del refrigerador.
Hay tres estantes ajustables en el compartimiento de refrigeración los cuales pueden ser
removidos para su limpieza.
Cajón para vegetales.
Se usa para almacenar vegetales y frutas.
Cubierta del cajón de vegetales.
Controla la temperatura del cajón de vegetales para evitar que estos pierdan su frescura.
Estantes de la puerta del refrigerador.
Ideal para almacenar huevos, líquidos enlatados, líquidos embotellados, comida
empacada, etc. Antes de retirar los alimentos, levante la tapa verticalmente. No guarde
alimentos pesados en el estante.

3
Regulación de la temperatura del refrigerador
Insuficiente refrigeración
• Gire la perilla y ajuste la
temperatura a “COLDER”
para uso en condiciones
normales
• Gire la perilla hacia la
posición vertical o en posición
vertical hacia “COLD”
• Puede escoger la temperatura
adecuada dependiendo de las
condiciones climáticas de la
temporada
En primavera y otoño: gire la perilla hasta la posición vertical
En otoño: posición vertical
En verano: posición vertical
En invierno: gire la perilla hacia la posición vertical o hacia la posición “COLDER”
Refrigerador poco lleno
Gire la perilla hacia la posición “COLD”
Nota:
No guarde alimentos obstruyendo la ventila de aire para permitir el correcto flujo de aire
frío.
Reemplazando la bombilla
Antes de remover la bombilla, desconecte el cable de electricidad del tomacorriente en la
pared. Si no se desconecta el cable, se corre el riesgo de una descarga eléctrica o heridas.
1. Use un destornillador en cruz para remover los tornillos.
2. Remueva la cubierta de la bombilla
3. Retire la bombilla de acuerdo
al diagrama que aparece en la
parte inferior
4. Reemplace por una nueva
bombilla para refrigerador de
15-watts del mismo tamaño y
forma.
5. Instale nuevamente la cubierta
de la bombilla

4
Compartimiento del congelador
Se usa para almacenar alimentos congelados, hacer helado, etc.
Cubeta de hielo
Se utiliza para hacer hielo. Agregue agua hervida fría en la cubeta hasta 4/5 partes de su
volumen. Ponga la cubeta en el refrigerador y espere 2 horas. El hielo se hará
automáticamente. Para hacer el hielo de la cubeta, gírela para que los hielos se separen.
No doble la cubeta, esto puede romperla. Si quiere acortar el tiempo, gire la perilla a la
posición “MAX”
Precaución:
No tome la bandeja de hielo directamente con sus manos para evitar que el hielo se
adhiera a sus manos o le ocasione heridas
Nota:
No almacene vidrio o alimentos líquidos enlatados en el congelador debido a la
expansión, esto puede ocasionar que el vidrio se rompa.
Regulación de la temperatura del congelador
El regulador de temperatura del congelador permite regular la temperatura dentro del
compartimiento del congelador.
1. Si el congelador está completamente lleno, o este haciendo hielo es recomendable
poner la temperatura en la posición “MAX”.
2. Si el congelador está mas o menos lleno, la
temperatura se puede poner entre las posiciones
“MIN y “MAX”
3. Si el congelador está semivacío, ponga la
temperatura entre “MIN” y el centro
