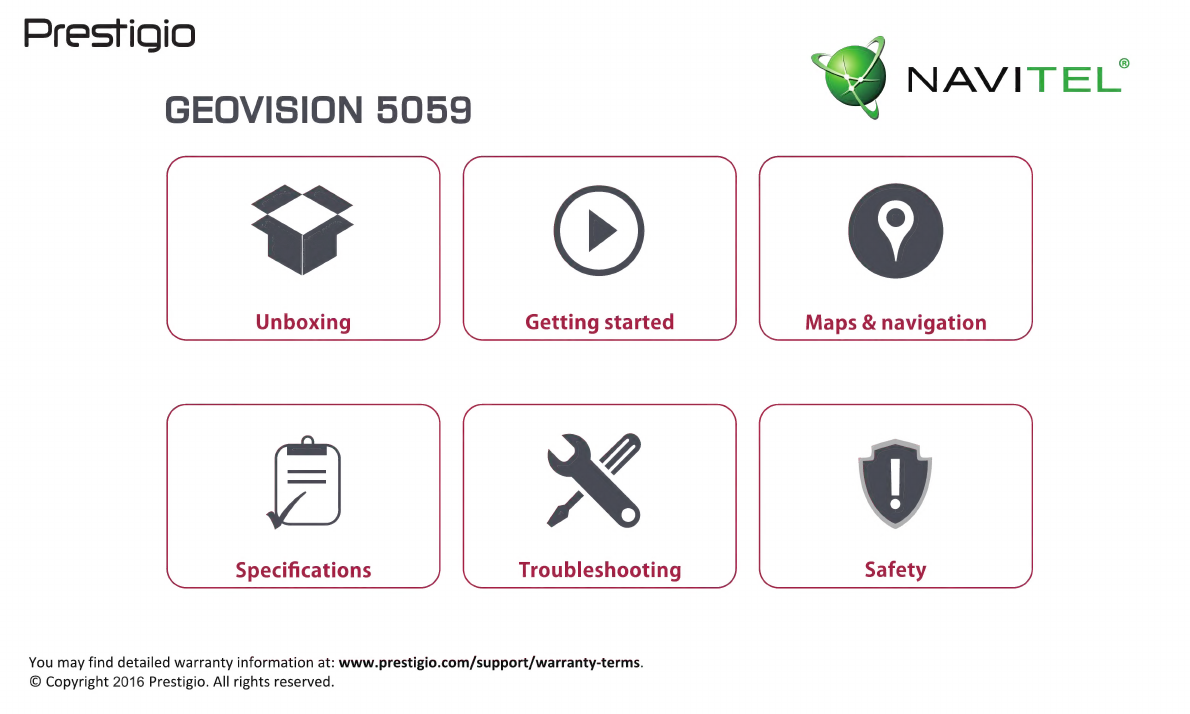

Prestigio GEOVISION 5059 User manual

Prestigio
GEOVISION 5059
P%
w
Unboxing Getting started
Maps & navigation
Y
S
Troubleshooting

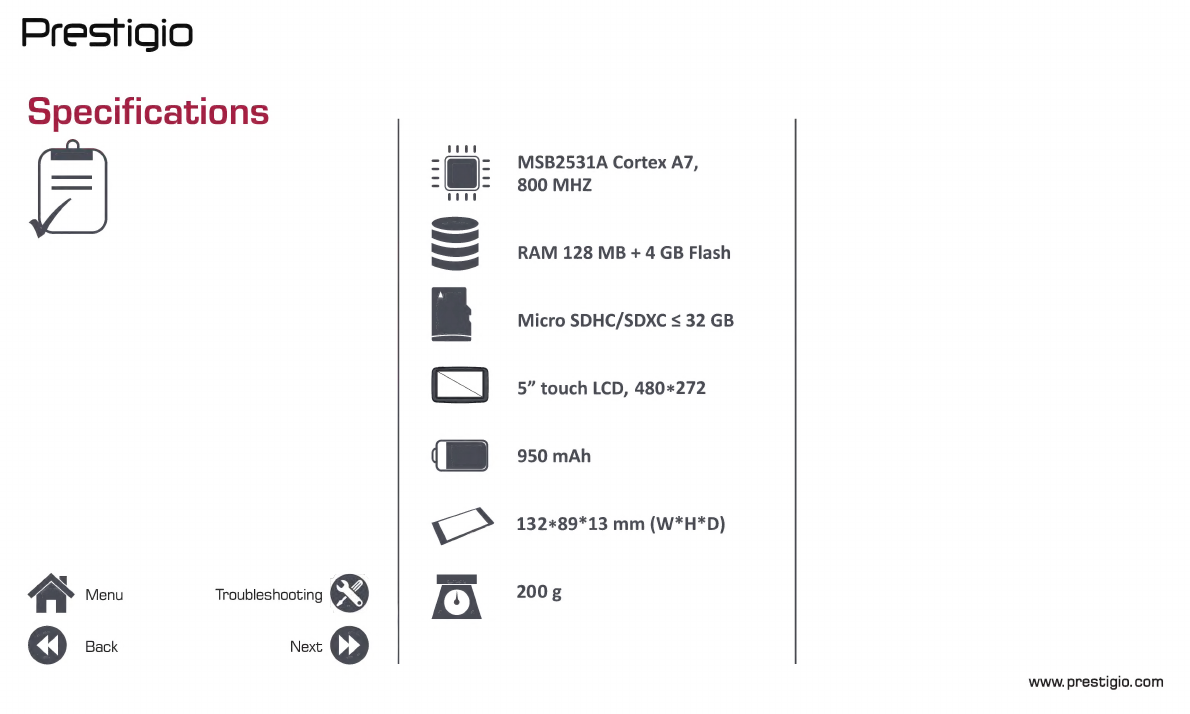

Specifications
You may find detailed warranty information at: www.prestigio.com/support/warranty-terms.
© Copyright 2016 Prestigio. All rights reserved.

Prestigio

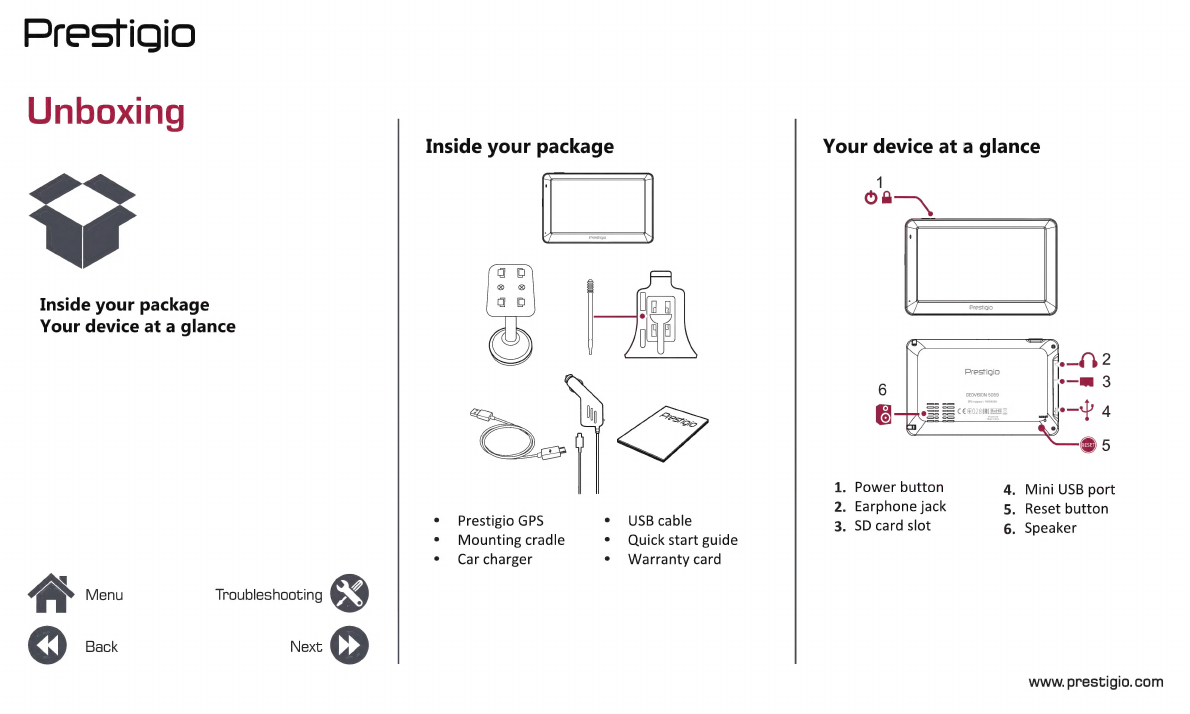

Unboxing
Inside your package Your device at a glance
Inside your package
Your device at a glance
1. Power button 4. Mini USB port
= 2. Earphone jack 5. Reset button
e Prestigio GPS e USB cable 3. SD card slot 6. Speaker
e Mounting cradle e Quick start guide
e Car charger e Warranty card
q
a Menu Troubleshooting
©) Back Next
O @
www. prestigio.com

Prestigio

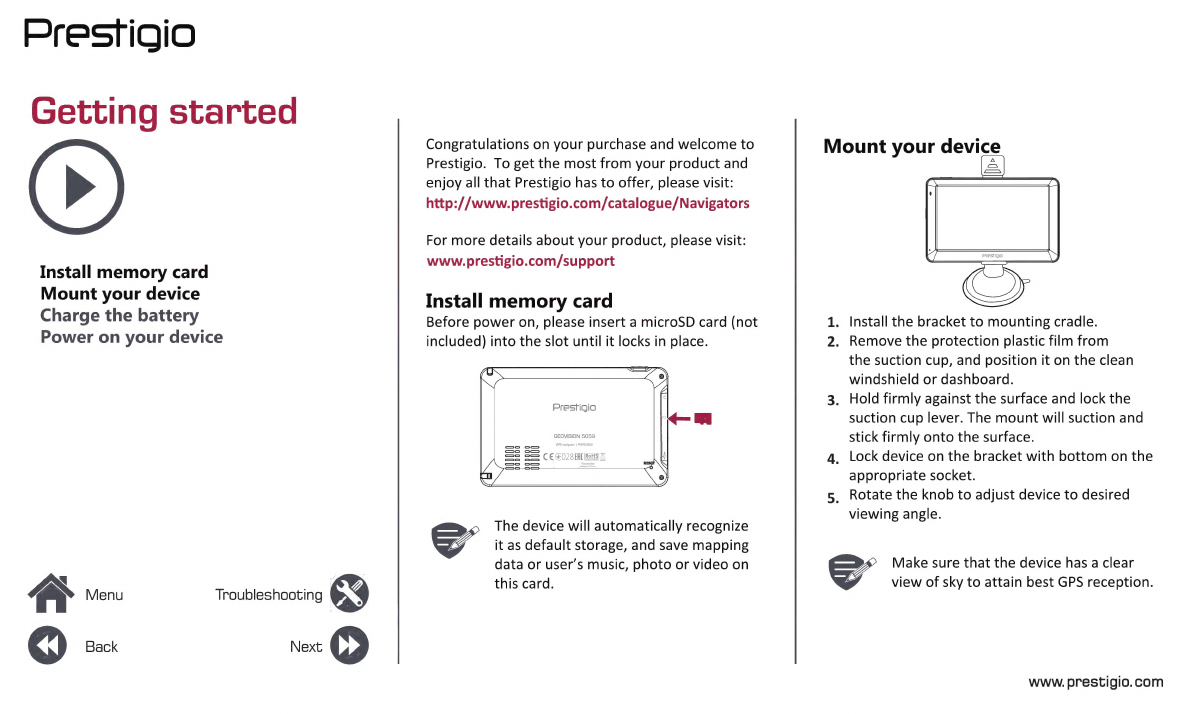

Getting started
Install memory card
Mount your device
Charge the battery
Power on your device
q
a Menu Troubleshooting
©) Back Next
Congratulations on your purchase and welcome to
Prestigio. To get the most from your product and
enjoy all that Prestigio has to offer, please visit:
http://www.prestigio.com/catalogue/Navigators
For more details about your product, please visit:
www.prestigio.com/support
Install memory card
Before power on, please insert a microSD card (not
included) into the slot until it locks in place.
Prestigio
GEOVISION 5059
=e eo GPS navigator | PGPS5059
Ss ES €CO28iA BESS
The device will automatically recognize
Hi it as default storage, and save mapping
data or user’s music, photo or video on
this card.
A
©
Mount your device
. Install the bracket to mounting cradle.
. Remove the protection plastic film from
the suction cup, and position it on the clean
windshield or dashboard.
. Hold firmly against the surface and lock the
suction cup lever. The mount will suction and
stick firmly onto the surface.
. Lock device on the bracket with bottom on the
appropriate socket.
_ Rotate the knob to adjust device to desired
viewing angle.
S Make sure that the device has a clear
view of sky to attain best GPS reception.
www. prestigio.com

Prestigio
Dismount your device
1. Push the tap on top of the mounting cradle to
release the device.
2. Lift the suction cup lever to easily remove the
suction cup from windshield or dashboard.
Install memory card
Mount your device
Charge the battery
Power on your device
Charge the battery
Using the car charger: after vehicle engine is
started, charge the device through vehicle 12V
cigarette lighter, to protect the device from
sudden surges in current.
e Using mini USB cable: connect the device to AC
adapter or the USB port of a computer.
2
Coe:
q
a Menu Troubleshooting
D
O vx we
e Please fully charge the battery (for
g at least 8 hours) before initial use.
The battery status indicator glows in
red color when charging, and turns
bright amber color when charging is
complete.
e Charging time is approximately 2
hours after initial use.
e Itis not necessary to start charging
the device before the battery is fully
discharged.
Power on your device
Press and hold the power button to turn on your
device.
To turn it off, press and hold the power
AÁ button, and and then tap power icon on
the pop-up screen.
www. prestigio. com

Prestigio
Maps & navigation
Program interface
OO (06 (3
Program interface
Routing
Some additional features
C Name Function
1 Sound
Tapping on the button opens the
sound menu.
2 Compass
a Menu
Troubleshooting
Tapping on the button opens the
context menu, which controls
options of map orientation
("North up" — the map will
always be oriented northwards,
"Track up" — the map will always
be oriented in the direction of
movement along the route), type
of map view (Plain view "2D",
Panoramic view "3D") and skins
("Night skin", "Day skin", "Auto").
3 Road lanes
D
O vx we
The sign displays road lanes with
possible maneuvers.
4 Information The sign shows the upcoming
panel maneuver (for example, turning)
and distance to the maneuver.
Tapping on the sign opens the
menu containing route options,
for instance an option which
allows stopping route guidance.
5 Route Visualization of a current route.
6 Information The panel shows current speed,
panel the remaining time to the
destination point,
distance to the destination point,
and estimated arrival time.
7 GPS-cursor Indication of a current position on
the map, when the GPS receiver is
switched on.
8 Menu Tapping on the button opens the
main program menu.
9 Information The panel shows the name of
panel the street you are currently
driving along. The information is
available only if GPS/GLONASS
connection is established and the
map contains such information.
If there is no street name, the
direction will be displayed.
www. prestigio.com

Prestigio
10 Scale
button
16 "Navitel.
Friends"*
Zoom out button.
11 Scale
button
Zoom in button.
12 "Navitel.
Events" *
Button for controlling the
“Navitel.Events” service.
. 13 Route
Program interface progress
Routing bar
Some additional features
The icon of the “Navitel.Friends”
service, tapping on which opens
its menu. The service is intended
for adding friends, viewing
their location and exchanging
messages with them.
The progress bar displays the
remaining route, waypoints (if
any) and traffic density on the
route marked by color.
14 Battery
The icon indicates the level of
battery charge. Tapping on the
icon shows free device memory.
15 GPS
GPS-connection indicator. Grey
indicator — GPS/GLONASS-
receiver is off; red — receiver
is turned on, but there is no
connection with satellites;
yellow — bad connection; green
— connection is established. The
number in the icon indicates the
number of satellites.
Troubleshooting
de
we O
a Menu
©) Back
www. prestigio.com

Prestigio
Program interface
Routing
Some additional features
a Menu
©) Back
Troubleshooting
Next
A
©
saving as a waypoint, adding to the
route or viewing the object’s data,
and others.
21 Updates Provides access to the program and
z map update menu screen.
22 Track Button for track recording: red dot-
recording recording is on, grey dot — recording
is stopped.
23 Navitel. The icon displays general traffic
Traffic* intensity on ten-point scale. Tapping
on the button shows the menu for
controlling the “Navitel.Traffic”
service.
C Name Sana 24 peer The icon allows reading/sending |
17 "Cursor" Tapping on the button shows the SMS messages and using coordinates in
button menu for operations with the them. It also shows the number of
point marked on the map (making unread messages.
it a destination point by pressing
"Go!" button or proceeding to the
properties screen.
18 "Save Saves the point marked on the map
WP" as a waypoint.
button
19 2D/3D Switching between the plain 2D and
the panoramic 3D map formats.
20 Pointon Short tap on the map marks the
the map point for further operations with it:
www. prestigio. com

Prestigio
Program interface
Routing
Some additional features
a Menu
©) Back
Troubleshooting
Next
A
©

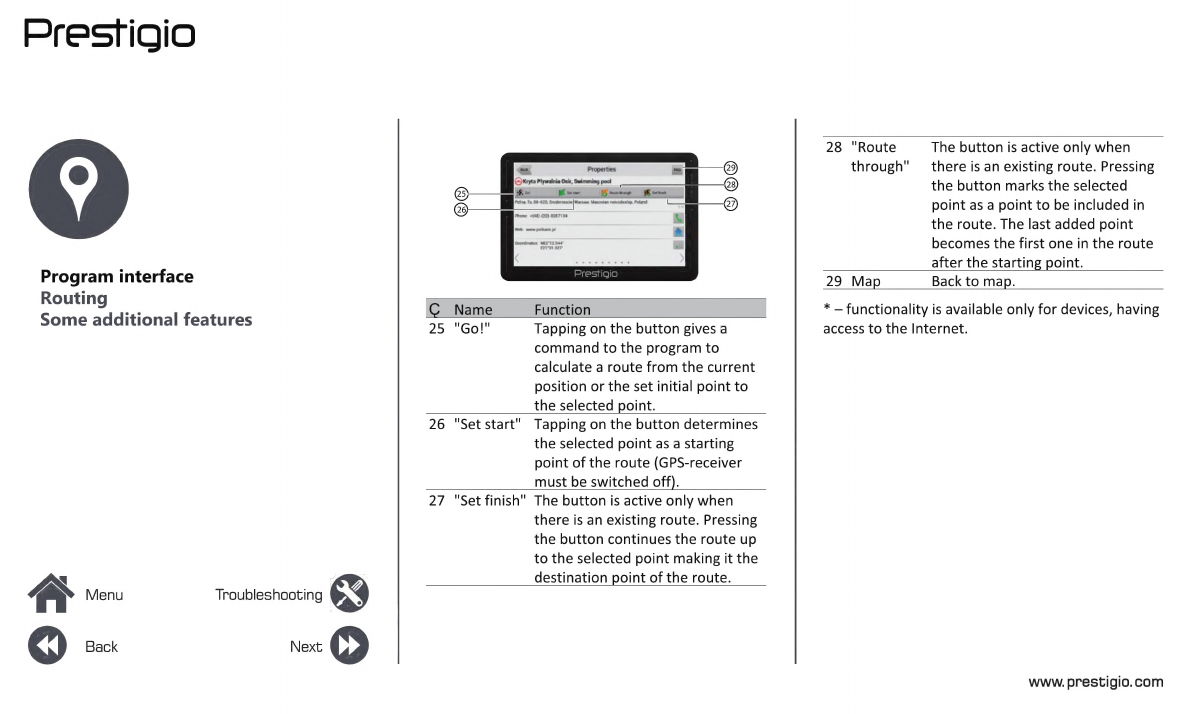

e Properties -
Roa Plywalnia Osir, Swimming pool E
D Ro R a Desa Bima E
| Ta 00-625, S eosin Mamas vonoden mp Poland um ——27)
Pome 4440) (22) 0287134
28 "Route
through"
The button is active only when
there is an existing route. Pressing
the button marks the selected
point as a point to be included in
the route. The last added point
becomes the first one in the route
after the starting point.
29 Map
Back to map.
Name
Function
"Gol"
Tapping on the button gives a
command to the program to
calculate a route from the current
position or the set initial point to
the selected point.
26 "Set start" Tapping on the button determines
the selected point as a starting
point of the route (GPS-receiver
must be switched off).
27 "Set finish" The button is active only when
there is an existing route. Pressing
the button continues the route up
to the selected point making it the
destination point of the route.
* — functionality is available only for devices, having
access to the Internet.
www. prestigio.com

Prestigio
Program interface
Routing
Some additional features
q
40% Menu Troubleshooting
A
O ce: we

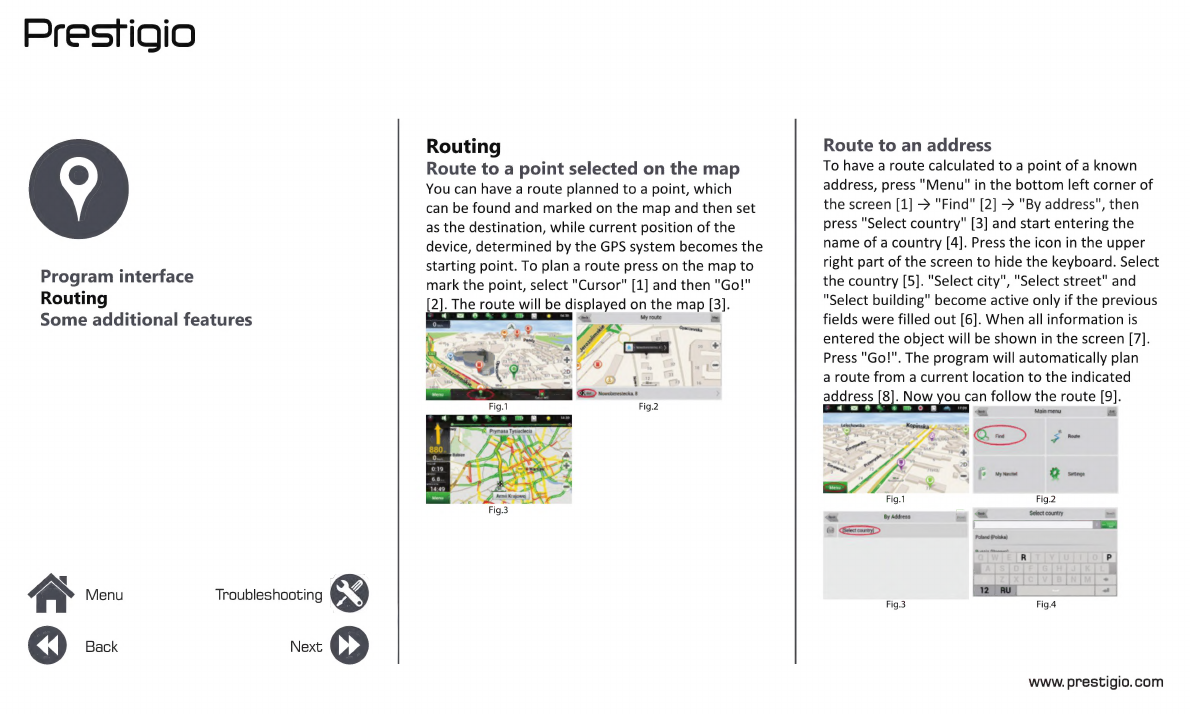

Routing
Route to a point selected on the map
You can have a route planned to a point, which
can be found and marked on the map and then set
as the destination, while current position of the
device, determined by the GPS system becomes the
starting point. To plan a route press on the map to
mark the point, select "Cursor" [1] and then "Go!"
[2]. The route will be displayed on the map [3].
ea My rosto a
Route to an address
To have a route calculated to a point of a known
address, press "Menu" in the bottom left corner of
the screen [1] > "Find" [2] > "By address", then
press "Select country" [3] and start entering the
name of a country [4]. Press the icon in the upper
right part of the screen to hide the keyboard. Select
the country [5]. "Select city", "Select street" and
"Select building" become active only if the previous
fields were filled out [6]. When all information is
entered the object will be shown in the screen [7].
Press "Go!". The program will automatically plan
a route from a current location to the indicated
address [8]. Now you can follow the route [9].
qa 6
me Main menu m
Ge Ze
+
D
- 2 My aroe L Settings
Fig.2
baa L Select country -—
=
Poland (Puiska)
QIWIEIR p
12 RU Tc
Fig.3 Fig.4
www. prestigio.com

Prestigio
Program interface
Routing
Some additional features
q
a Menu Troubleshooting
©) Back
Next
A
©
Manual setting of all route points
To plan a route, where the starting and the
destination points are determined manually, first
mark a point on the map where you plan to start
and press "Cursor" [1] to proceed to the "My
route" screen. Tap on the information panel at the
bottom of the screen [2]. Press "Set start" in the
"Properties" screen [3]. The GPS-receiver must be
switched off. The point will be marked on the map
as a starting point. Select a destination point on
the map: tap on the map to mark the point, press
"Cursor" [4] and then press "Go!" in the "My route"
screen [5]. The program will automatically plan a
route [6].
©
www. prestigio.com

Prestigio
Program interface
Routing
Some additional features
a Menu
©) Back
Troubleshooting
Next
A
©
Some additional features
For those devices which support Internet
connection, various NAVITEL® online services,
including "Navitel.Traffic" and "Navitel.Friends" are
available.
Navitel. Traffic
The service provides and displays real-time
information about density of traffic on the map.
If a part of a road is marked green on the map
this means that road traffic here is normal, if it is
marked yellow — traffic is rather dense, orange —
traffic is heavy, red — there is a traffic jam [1]. To set
the service select "Menu" > "Settings" > "Online
services”.
Navitel. Friends
The "Navitel.Friends" interactive service allows
viewing positions of friends on the map in real-time
mode, to plan a route, using their coordinates, to
share coordinates of other points and exchange
messages. To turn the service on select "Menu" >
"Settings" > "Online services" and set the switch in
the "Turn on Navitel.Friends" field to "On" position.
www. prestigio.com

Prestigio
Specifications
S
40% Menu Troubleshooting
©) Back
Next
A
©
DIS e Om:
MSB2531A Cortex A7,
800 MHZ
RAM 128 MB + 4 GB Flash
Micro SDHC/SDXC < 32 GB
5” touch LCD, 480+272
950 mAh
132*89*13 mm (W*H*D)
200 g
WWW, prestigio.com

Prestigio
Troubleshooting
Q
Take steps described in the tables below to solve
simple problems before contacting customer
service.
S
Immediately turn off the device and
4 disconnect the power adapter if the
device is not working properly. Never
try to repair the unit without authorized
professionals for it may damage the
unit.
Users can’t turn on the unit.
- Connect the adaptor correctly.
- Use the adaptor to supply power or charge the
battery.
There is no sound.
- Turn up the volume or turn on the sound
output.
There is no picture.
- Adjust the brightness of the LCD.
Troubleshooting
S
40% Menu . A . o. ,
The unit can’t receive satellite signals or can’t
orient.
©) Back Next o - Make sure to use the unit out of room; if in the
vehicle, you can use the external GPS antenna
to solve this problem.
The unit can receive signals now but can’t then;
signals received are not stable.
- Use the adaptor to supply power or charge the
battery.
- Remove the veil.
- Avoid great swing of the unit.
www. prestigio.com

Prestigio
Safety instructions
a Menu
©) Back
Troubleshooting
Next
A
©
To reduce the risk of electric shock, do not
remove the cover (or back). Only PRESTIGIO
certified technicians are qualified to repair your
device.
The manufacturer should not hold responsibility
for the damage caused by any substitutions
and modifications of the product without
authorization from the manufacturer or
authorized unit.
To prevent fire or shock hazard, do not expose
your device to rain or moisture.
Do not put, store or leave your device near heat
sources, in direct strong sunlight, or in a high
temperature location.
Maintain well-ventilated conditions around the
unit to avoid overheating.
Operating temperature: -20°C to 60°C.
www. prestigio. com
