Prestigio RoadScout 4150 User manual

CAUTION
1. To reduce the risk of electric shock, do not remove the cover (or back). No
user-serviceable parts inside. Refer servicing to qualified service personnel.
2. The manufacturer should not hold responsibility for the damage caused by any
substitutions and modifications of the product without authorization from the
manufacturer or authorized unit.
WARNING
The device should not be exposed to dripping or splashing and no objects filled with
liquids should be placed on the device.
To prevent the GPS from being damaged, be sure to keep the GPS out of direct
sunlight or heat. Maintain well-ventilated conditions around the unit to avoid
overheating.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
Important Safety
Instructions

Accessories List
ITEM NAME QTY
Car Charger 1
Mounting Cradle 1
USB Cable 1
Stylus Pen 1
Leather Carrying Case
(RS5150 only) 1
Driver/Documentation CD 1
User Manual 1
Warranty Card
Accessories
EN
EN - 1
1

Front and Side View
1. LCD Touch Screen
Tap the screen with a finger to select commands or use the included stylus.
2. Battery Status Indicator
The indicator glows in bright amber color when battery is fully charged and in red
color when charging.
3. microSD Slot
Insert the SD card into the slot. Used for Mapping Data or user’s music, photo or
video.
4. Mini-USB Port
Connects to USB Cable for data access or battery charging
5. Headphone Port
Connect an earphone for private listening. When an earphone jack is plugged in,
the speaker will be turned off automatically.
6. Reset Button
Used to reset the device.
7. Power Button
Press to power ON/OFF device.
8. Speaker
Emits sound, voice or music.
9. Stylus Pen
Used for writing on the LCD Touch Screen.
10. Backlight Button
Auto adjust the screen brightness level
View of Main Unit
1
2
4
5
3
6
7
8
9
10
EN - 2
EN

Inserting microSD Card

To insert a microSD card, place
connector towards device and card
label towards the front side of the
device.

To remove a microSD card, gently
press the edge of the card to release
the safety lock and pull the card out
of the slot.
NOTE:
Please always make sure that no application is accessing the microSD
card before extraction.
Charging
1. Connecting to External USB Device
Flip open the protective rubber cover towards the front of the device.
Insert USB connector into the appropriate USB port.
Insert the other USB connector into USB port on PC to start charging.
Device Connection

2. Connecting to Car Charger
Flip open the protective rubber cover towards the left side of the device.
Insert USB connector into the appropriate USB port.
Insert car charger connector into vehicle 12
V accessory/cigarette socket to start
charging.
NOTE:
Please connect the car charger to vehicle 12V accessory/cigarette socket after
vehicle engine is started to protect the device from sudden surges in current.
Connecting to Earphones
Flip open the protective rubber cover towards the front of the device.
Insert earphone plug (not included) into the appropriate earphone port to switch
audio output from device speaker to earphone.
NOTE:
Excessively loud volume is potentially detrimental to hearing. Please turn
down the volume before connecting the earphone and gradually turn up
the volume to a comfortable level.
Device Connection

About Rechargeable Battery
The device is equipped with a built-in rechargeable battery. Please fully charge the
battery (for at least 8 hours) before initial use. The battery status indicator glows in red
color when charging and turns bright amber color when charging is complete. Charging
time is approximately 2 hours.
Working conditions and precautions for the rechargeable battery
Device with new batteriey should be fully charged before initial use.
It is not necessary to start charging the device before the battery is fully discharged.
Cautions on Battery
Charging
EN
EN - 3

Device Mounting Procedures
The device can be securely mounted on vehicle dashboard or windshield with the
mounting cradle included. Please follow procedures below to operate mounting cradle:
1. Select an appropriate location on windshield or dashboard where the device and
mounting cradle will not obstruct driver field of vision.
2. Please also make sure that the device has a clear view of sky to attain best GPS
reception.
Place device on the bracket with
bottom positioned on the appropriate
socket.
Push on the top edge to securely
install device onto the cradle.
Lift the suction cup lever and press
the suction cup at desired location.
Press down the suction cup lever to
secure the mounting cradle on the
surface.
Rotate the knob to adjust device to
desired viewing angle.
To Dismount Device
1. Push the tap on top of the mounting cradle to release the device.
2. Lift the suction cup lever to easily remove the suction cup from windshield or
dashboard.
Using Mounting
EN - 4
EN

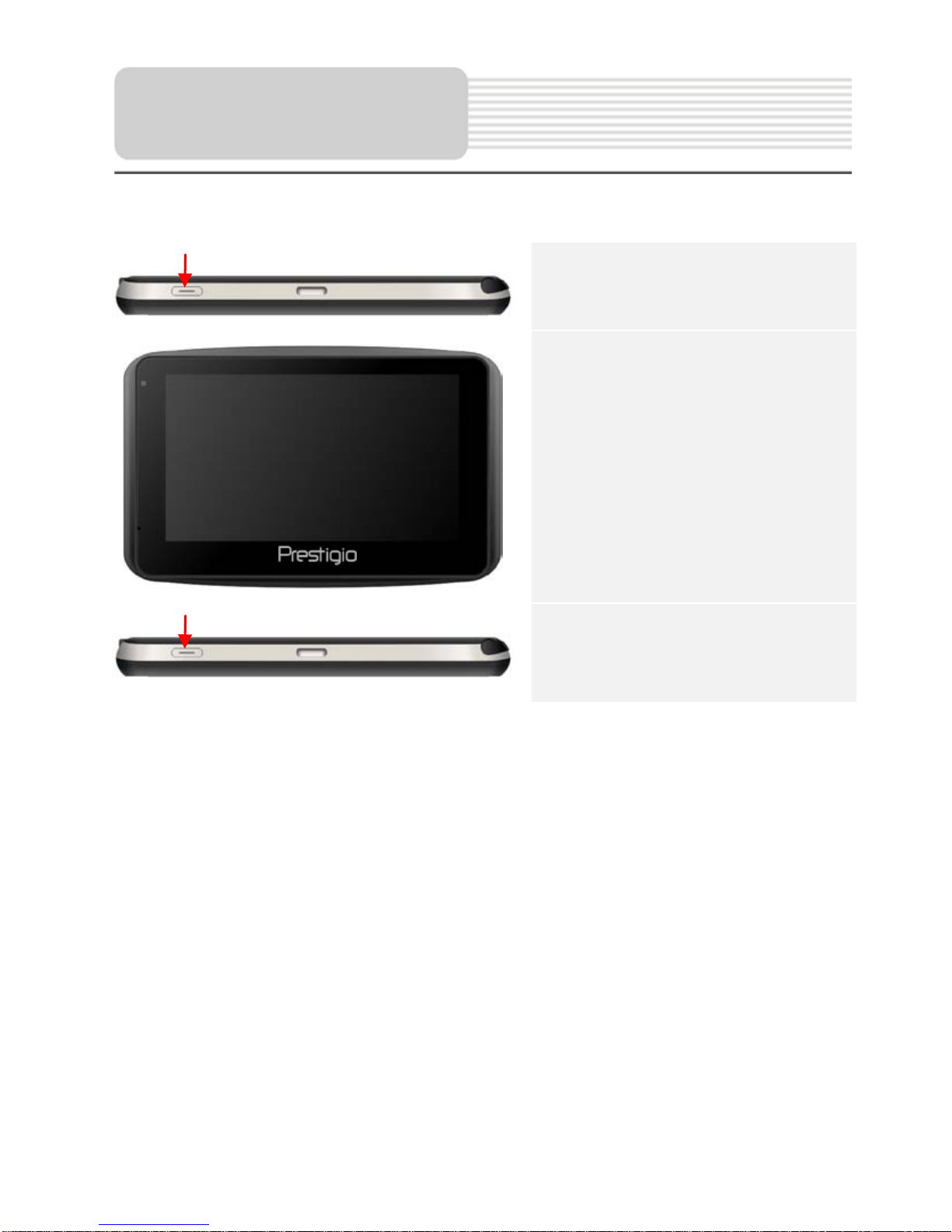

1. Press and hold Power Button
to turn on device.
2. Shortly after the startup screen
is shown, the main menu will be
displayed.
3. Tap the corresponding buttons
with touch pen included to
navigate various functions.
4. Press and hold Power Button
to turn off the device or to allow
device to enter sleep mode.
Getting Started

No.
Name
Function
1 Next maneuver Next maneuver on the way and distance up to it. Press this Icon
to open route options menu.
2 Compass Press the compass loon to edit map rotation mode, map view
and day/night mode.
3 Sound Press this button to turn on/off voice and sound effects.
4 Information
panels
Display time until the end of the trip, total route length, and
arrival time.
5 GPS-cursor If GPS connection is established, displays your current location.
6 Route
Route you are currently navigating displays as a wide blue line.
7 Search Press this button to enter the search menu and to find specific address or object (you can find more Info about Search In
~Functionality~ section)
8 Information
panel
Shows street name you are currently moving on. Available only
if GPS or GLONASS connection is established. If there is no
street name, the direction will be shown.
9 Scale Map current scale.
Program interface

No.
Name
Function
10 Return to current
location
You can see the green arrow at the top of the screen if the map
was moved relative to your position. Press it to return view to
your current location.
11 Autoscale If you zoom In/out with ~Autozoom~ function activated, this function will deactivate for a period according to settings. Press
this button to activate ~Autozoom~ function manually.
12 MENU Press to enter the Main Menu.
13
Zoom Out
Decrease map scale.
14 Zoom In
Increase map scale.
15 Map slope Press "Up"/"Down" to slope the map. Available only if scale is
between 5 and 300 m.
16 Speedcam
window
When you approach a speed camera with visual warnings being
activated the window will appear In upper right comer at the
screen. This window shows you permitted speed and distance
left. Press the window to turn On/Off speed exceeding
sound warnings.
17
Speed
Current speed. Available only with GPS connection established.
18 Information
panel
Shows street name you are currently moving on. Available only
if GPS or GLONASS connection is established. If there is no
street name, the direction will be shown.
19 Battery Icon displays battery life. Press it to open window with full
information about battery life and remaining memory.
20 GPS
GPS connection button. Green icon - connection enabled, white
icon – function disabled. Green icon also has a dot at different
color: red - no connection, yellow - poor connection, green -
connection established.
Program interface
EN - 5
EN

No.
Name
Function
21 Waypoint Waypoints are manually created by the user and display with
red flags on a map.
22 “SaveWP”Saves current mark on map as a waypoint.
Program interface
EN - 6
EN

No.
Name
Function
23 “Cursor”Shows the menu of mark on map
24 Mark on map Touch the screen with a stylus to set a mark. You can save this mark as a way point add it to the route or see object’s
characteristics the mark was set on.
25 Track record Track record. Green icon - track record enabled, white icon
function disabled.
26 Traffic Jams Press this icon to edit "Navitel.Traffic Jams." function.
27 Navitel.SMS Button is used to read/send SMS-messages and to work with coordinates given there. Figure near the icon displays number
of unread messages.
28 “Go To”“Mark on map”becomes the end point of the route.
29 Insert “Mark on map”becomes the middle point of the route
30 “Add”“Mark on map”becomes the end point of the route, whereas
previous end point becomes middle point.
31 “Start”“Mark on map”becomes the start point of the route. You should
turn off your GPS/GLOANASS-receiver.
32 Back Depends on way you got to this screen , returns back to “Map”
screen or to find menu.
33 Info Info about current “Mark on map”position. Tap to see more.
34 Back to mapReturns to the “Map”page
35 Object of interest Different objects on map (traffic lights, metro stations, petrol
stations etc.).
Program interface

Autorouting
In order to create a route automatically, from the current position to the destination
point, tap with the stylus pen on the place on the map where the final point is, tap on
the “Cursor” button and in the context menu choose "Go to" (Fig. 1). The calculated
route will be shown on the map in blue color with highly visible dark border (Fig. 2).
Please, note that in case of non-routable maps, the route will represent a straight green
line from your position to the destination point, ignoring the existing buildings, roads, etc.
Autorouting
1
2

Autorouting using search
Find an object of interest using “Search” and press it with stylus, then select “Go To”
item from the menu. Apart from this item there are also “Insert” — add a point
between two points of existing route, and “Add” — point is added to the end of a
route and continues it. Both items are available only with existing route.

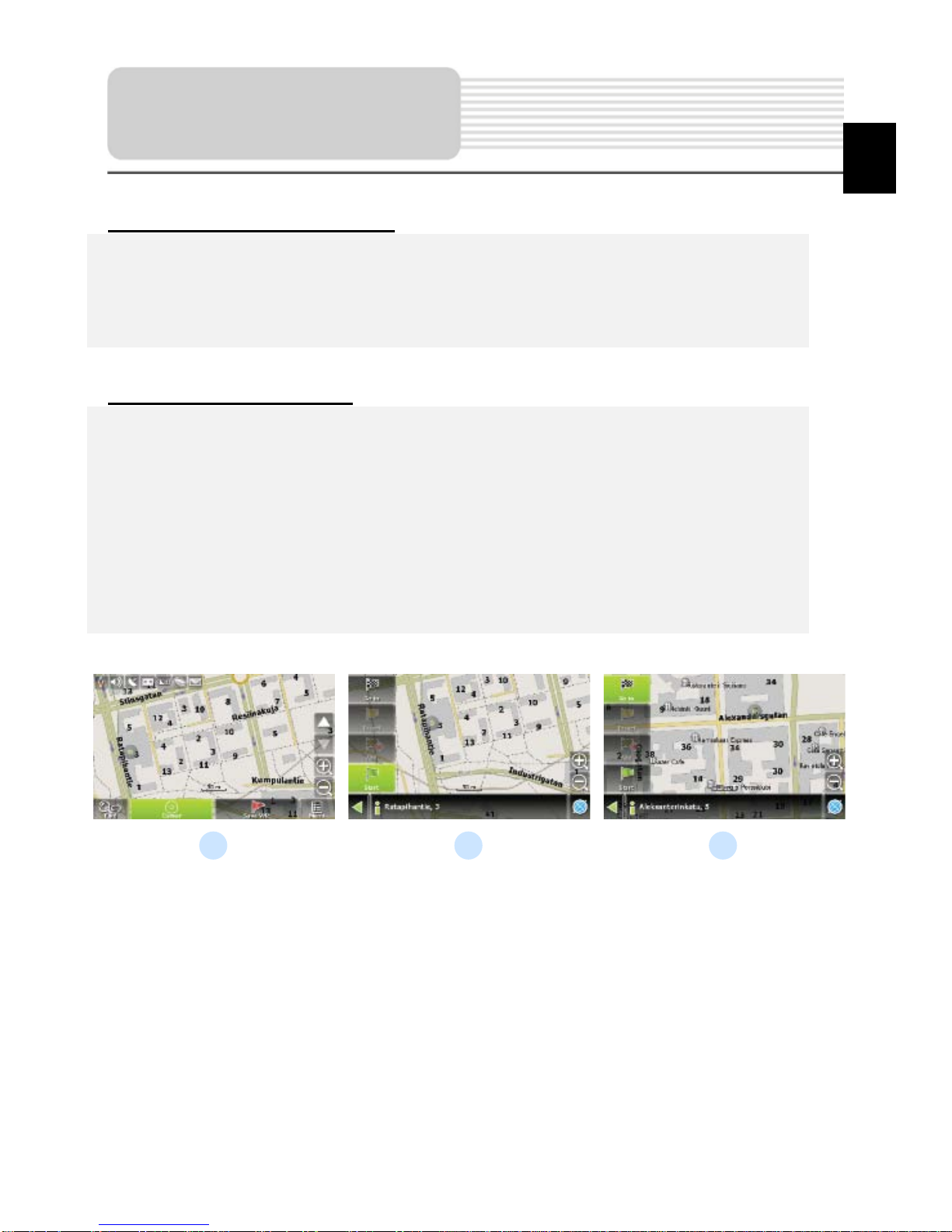

Manual route creation
The difference of this route creation method from previous two is what you can set a
start point and a destination point.
To create a route, press a map using stylus, press the “Cursor” (Fig. 1) button and
“Start” button after the menu appears (Fig. 2). Then find the destination point and
press “Cursor” — “Go To” (Fig. 3). If you using maps supports autorouting, route will
be created referring to this data and will be the shortest or the quickest. Otherwise
waypoints will be connected with strait green lines.
Please note! If GPS-receiver is active, you cannot set the start point!
Autorouting
1
2
3
EN - 7
EN

If your device has GPRS-module, or provides Internet connection via the
GPRS-module of your mobile phone through Bluetooth, you will be able to use
some «Navitel.Navigator» software features like «Navitel.Traffic» and
«Navitel.SMS» services.
Navitel.Traffic
Using this service you can see the traffic
situation in Russia, Ukraine, Belarus or
any other country you have official map
for. To set the service, go to “Settings” ->
«On-line services» -> ”Traffic Jams”.
When the service is active, the roads are
colorized in different colors, which mean:
red - traffic jam, pink - movement is
complicated, yellow - movement is a bit
complicated, green - favorable traffic(1).
Navitel.SMS
The special window will appear on the screen when you receive the Navitel.SMSI2].
Select “Hide” to hide it or ”Accept” to see options.
Note:
For more detailed information regarding the functionality of Navitel 5.0 software, please,
refer to the compete user manual on CD, or to www.prestigio.com.
Additional features
1
2
EN - 8
EN

NOTE:
Do NOT store audio files in the built-in flash storage for it may result in
system malfunction. The flash storage is used to store system data and
should not be tempered at anytime.
Reminders regarding music playback function
Audio files should be loaded in the SD card before connecting to device.
Audio files can be imported to the SD card from PC by a variety of programs such
as Windows Media Player.
The loading process should be performed independently from the device.
Do NOT attempt to use the device as a card reader device.
Playing Music
Insert SD card with audio files loaded
before powering on the device.
Shortly after the greeting screen is
shown, main menu will be displayed
automatically.
Tap on MultiMedia icon to enter
submenu.
Music Mode

Tap on Music icon to enter music
files list.
During Music Playback
Tap on / to return to previous/skip to next song.
Tap on to play.
Tap on to pause.
Tap on to stop playback.
Tap on / to select random/repeat playback.
Tap on to adjust volume.
Tap on to return to music files list.
Music Mode

NOTE:
Do NOT store video files in the built-in flash storage for it may result in
system malfunction. The flash storage is used to store system data and
should not be tempered at anytime.
Reminders regarding video playback function
Video files should be loaded in the SD card before connecting to device.
The loading process should be performed independently from the device.
Do NOT attempt to use the device as a card reader device.
Playing Video
Insert SD card with video files loaded
before powering on the device.
Shortly after the greeting screen is
shown, main menu will be displayed
automatically.
Tap on MultiMedia icon to enter
submenu.
Video Mode
EN
EN - 9

Tap on the Video icon to enter video
files list.
During Video Playback
Tap on to return to video files list.
Tap on to play.
Tap on to stop playback.
Tap on to pause.
Tap on / to return to previous / skip to next video.
Tap on to adjust volume.
Tap on to turn to full-screen mode.
Video Mode
EN
EN - 10

NOTE:
Do NOT store photo files in the built-in flash storage for it may result in
system malfunction. The flash storage is used to store system data and
should not be tempered at anytime.
Reminders regarding photo viewing function
High resolution image files may considerably slow down device reading speed.
Image files with resolution 640 X 480 or lower is recommended.
Image files should be loaded in the SD card before connecting to device.
The loading process should be performed independently from the device.
Do NOT attempt to use the device as a card reader device.
Viewing Photo
Insert SD card with image files loaded
before powering on the device.
Tap on Picture Viewer icon to enter
photo list and select the desired file.
Picture Mode
