Pride Mobility VICTORY SERIES User manual

Via della Tecnica, 14
Prato della Corte
00065 Fiano Romano
Roma- Italia
www.pridemobility.com
Il Massimo della Prestazione e dello Stile
®
Manuale Utente
ATTENTION:
Read everything
in this manual
before operating
your Scooter
Victory 3 Wheel
Victory XL
Victory XL-8

2Victory
ISTRUZIONI DI SICUREZZA
Copyright ©2000
Pride Mobility Products Italia s.r.l.
Please read and follow all instructions in this owners manual before attempting to operate your
Scooter for the first time. If there is anything in this manual you do not understand, or if you
require additional assistance for set-up, contact your local authorized Pride provider.
sing your Pride product safely depends upon your diligence in following the warnings, cautions,
and instructions in this owners manual. sing your Pride product safely also depends upon your
own good judgement and/or common sense, as well as that of your provider, caregiver, and/or
healthcare professional. Pride is not responsible for injuries and/or damage resulting from any
persons failure to follow the warnings, cautions, and instructions in this owners manual. Pride
is not responsible for injuries and/or damage resulting from any persons failure to exercise
good judgement and/or common sense.
The symbols below are used throughout this owners manual to identify warnings and cautions. It
is very important for you to read and understand them completely.
WARNING! Failure to heed the warnings in this owners manual may result in personal injury.
CAU ION! Failure to heed the cautions in this owners manual may result in damage to your
Scooter.

3
Victory
I. INTRO UCTION ......................................................................................................................... 4
II. SAFETY ......................................................................................................................................... 6

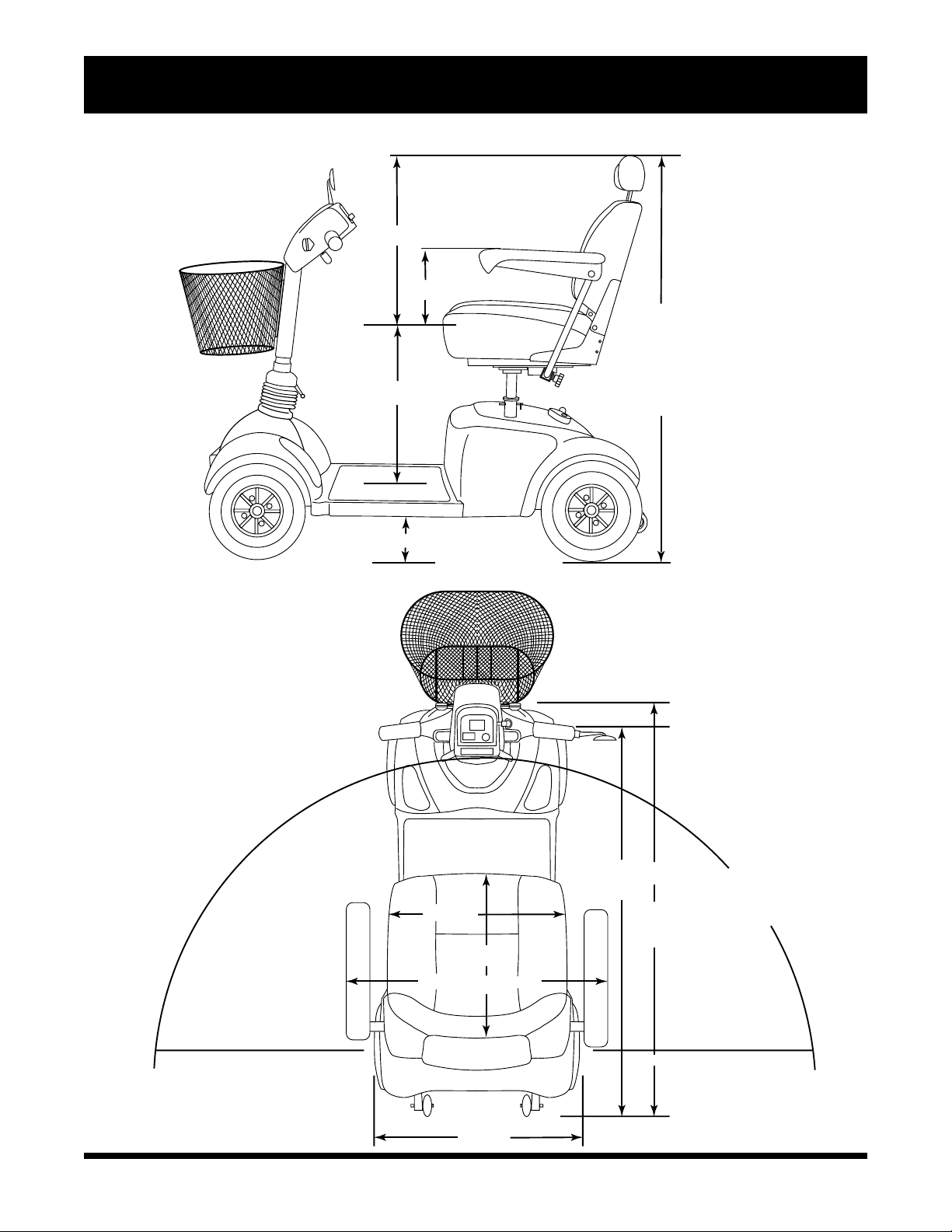

III. SPECIFICATIONS ................................................................................................................... 11
IV. YOUR VICTORY ........................................................................................................................ 16

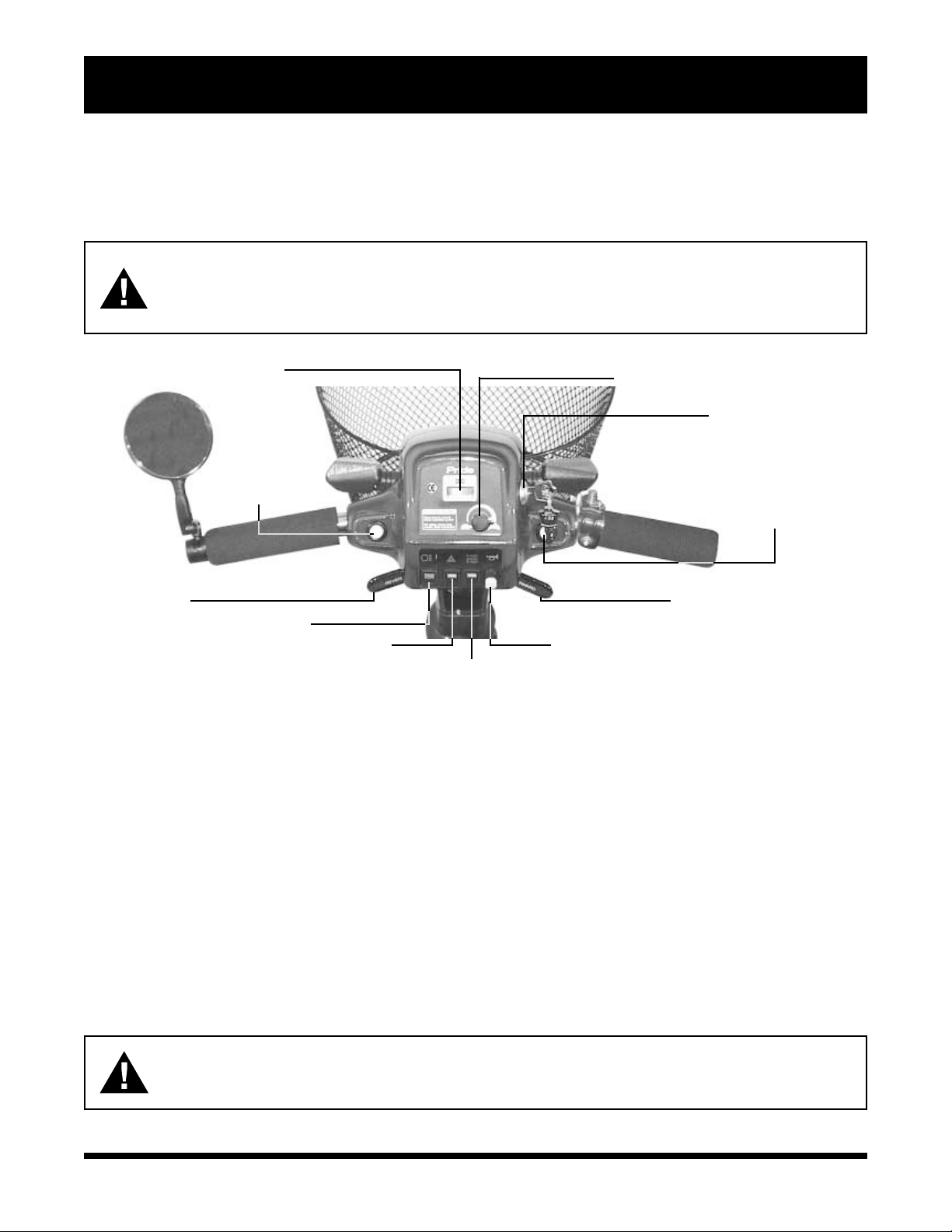

Control Console ssembly................................................................................................................. 17
Rear Shroud ...................................................................................................................................... 18
Rear Section...................................................................................................................................... 18
V. BATTERIES AN CHARGING ............................................................................................ 22
Reading Your Battery Voltage ............................................................................................................. 22
Charging Your Batteries ..................................................................................................................... 22
Battery Replacement .......................................................................................................................... 22
Frequently sked Questions (F Qs) ................................................................................................. 23
VI. OPERATION ............................................................................................................................... 26
Pre-ride djustments and Checks ...................................................................................................... 26
Getting On Your Scooter .................................................................................................................... 26
Operating Your Scooter ..................................................................................................................... 26
Getting Off Of Your Scooter .............................................................................................................. 27
uto Shutoff Feature ......................................................................................................................... 27
VII. COMFORT A JUSTMENTS................................................................................................ 28
Tiller ngle djustment ...................................................................................................................... 28
Seat Height djustment...................................................................................................................... 28
Seat Rotation ..................................................................................................................................... 29
Sliding Seat djustment ..................................................................................................................... 29
Seatback djustment ......................................................................................................................... 29
rmrest Width djustment ................................................................................................................. 30
rmrest ngle djustment ................................................................................................................. 30
VIII. ISASSEMBLY AN ASSEMBLY ..................................................................................... 31
Disassembly ...................................................................................................................................... 31
ssembly .......................................................................................................................................... 33
IX. OPTIONAL ACCESSORIES ................................................................................................. 34
X. TROUBLESHOOTING ............................................................................................................ 36
XI. CARE AN MAINTENANCE ................................................................................................ 37
XII. WARRANTY ................................................................................................................................39
CONTENTS

4Victory
I. INTRODUCTION
Welcome to Pride Mobility Products Italia s.r.l. (Pride). Congratulations on the purchase of your new Victory
Scooter. The Victory design combines the most advanced state-of-the-art components with modern, attractive
styling. We are certain that the design features and trouble-free operation of your new Scooter will add convenience
to your daily living.
t Pride, your safety is important to us. Please read and follow all of the instructions in this manual before
you attempt to operate your Scooter for the first time. These instructions were produced for your benefit.
Your understanding of these instructions is essential for the safe operation of your new Scooter.
Pride is not liable for damage to property or personal injury arising out of unsafe use of a Scooter. Pride is also not
liable for any property damage or personal injury arising out of the failure of any person and or/user to follow the
instructions and recommendations set forth in this manual or any other instructions or recommendations contained
in other Victory related literature issued by Pride or contained on the Scooter itself.
This owners manual is compiled from the latest specifications and product information available at the time of
publication. We reserve the right to make changes as they become necessary. ny changes to our products may
cause slight variations between the illustrations and explanations in this manual and the product you have purchased.
If you experience any problems with your Scooter that you are unable to resolve, or if you do not feel capable of
safely following any of the instructions and/or recommendations contained in this manual, please contact your
authorized Pride provider for assistance.
Once you understand how to operate and take care of your Victory, we are certain that it will give you years of
trouble-free service and enjoyment.
INFORMATION EXCHANGE
We want to hear your questions, comments, and suggestions regarding this owners manual. We would also like to
hear about the safety and reliability of your new Scooter, and about the service you receive from your authorized
Pride provider.
Please notify us of any change of address, so we can keep you apprised of important information regarding safety,
new products, and new options that can increase your ability to use and enjoy your Victory. Please feel free to
write us at the address below:
Pride Mobility Products Italia s.r.l.
Via della Tecnica, 14
Prato della Corte
00065 Fiano Romano
Roma- Italia

5
Victory
I. INTRODUCTION
PRI E OWNERS CLUB
s a Pride product owner, you are invited to register your products warranty and enroll in the Pride Owners Club.
You may do so by filling out and returning your enclosed registration card or by visiting Prides web site at
www.pridemobility.com. s a registered member, each time you visit our site, you will have access to the most
interactive and honest educational venue available today for people with mobility needs, their families, and friends.
From our home page, click on the button that reads Owners Club to enter a page dedicated to current and
potential Pride product owners. You will gain access to interviews, stories, recreation ideas, daily living tips,
product and funding information, and interactive message boards. Message boards invite you to communicate with
other Pride customers as well as Pride representatives who are available to assist you with any questions or
concerns you may have. You will receive a free gift simply for registering with the Pride Owners Club.
My Authorized Pride Provider Is:
Name:_______________________________________________________________________________
ddress:_____________________________________________________________________________
Phone Number:________________________________________________________________________
Quick Reference Information:
Scooter Model:_________________________________________________________________________
Serial Number:__________________________________________________________________________
Purchase Date:________________________________________________________________________
NOTE: If you ever lose or misplace your warranty card or owners manual, notify us and we will be glad to
send you a new one immediately.

6Victory
SAFETY PRECAUTIONS
You must read, understand, and follow all of the safety precautions and product information contained in this
manual before operating your Scooter for the first time. Below are some safety tips designed to help you become
accustomed to operating your new Scooter safely.
Motor Vehicle Transport
Never use your Scooter as a seat in a moving vehicle. Your Scooter was not designed for such use and cannot
protect you in the event of an automobile accident or an abrupt deceleration.
II. SAFETY
WARNING! Always be sure your Scooter is properly secured when it is being transported. Failure to
do so may result in personal injury and/or damage to your Scooter.
lthough your Scooter may be equipped with a lap belt, this belt was not designed with the intent of providing
proper restraint during motor vehicle transport. nyone traveling in a motor vehicle should be properly secured in
his/her seat with seat belts approved by the vehicle manufacturer.
lso, make sure to secure or remove the batteries before loading your Scooter into a motor vehicle for transport.
Weight Limitations
Your Victory is rated for a maximum weight limit of 135 kg.
WARNING! Do not carry passengers on your Scooter under any circumstances. Exceeding the
weight limit voids your warranty and may result in personal injury and/or damage to your Scooter.
Public Roads and Parking Lots
WARNING! Do not operate your Scooter on public streets and roadways. Please be aware it may be
difficult for traffic to see you when you are seated on your Scooter. Obey all local pedestrian traffic
rules. Wait until your path is clear of traffic, and then proceed with extreme caution.

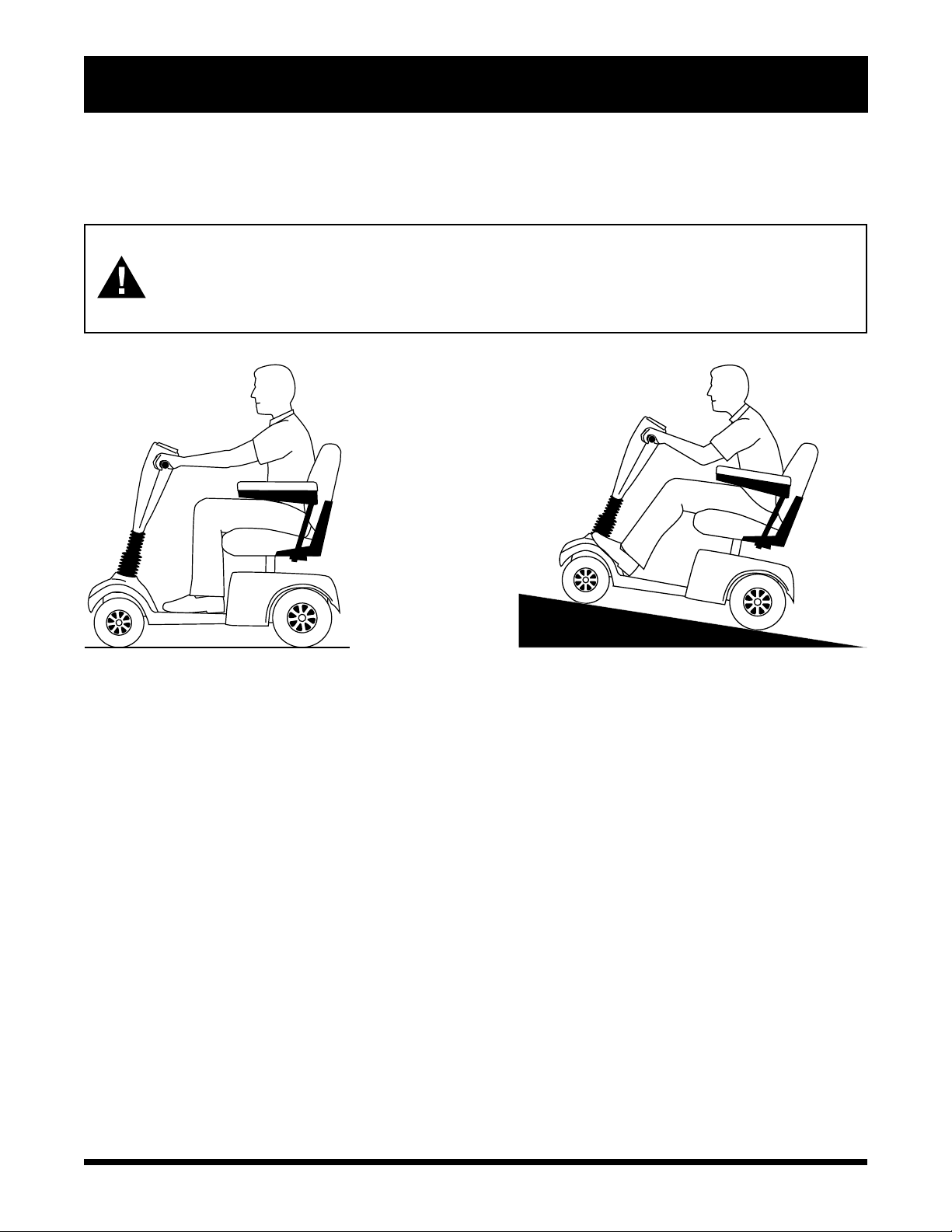

Anti-tip Precautions
nKeep both hands on the tiller and your feet on the floorboard at all times while operating your Scooter. This
position gives you the most control over your Scooter.
nUse extreme caution when driving near raised surfaces or unprotected ledges or drop-offs (kerbs, porches,
stairs, etc.).
nNever drive your Scooter across the side of an incline or diagonally up or down an incline; do not stop, if
possible, while driving up or down an incline.
nReduce your speed when approaching a turn.
nDrive slowly through turns.

7
Victory
II. SAFETY
Tyres
WARNING! he batteries range in weight from approximately 11 - 19 kg each. If you are unable to
lift that much weight, be sure to get help. Lifting weight above your capacity to do so could result
in personal injury.
WARNING! Battery posts, terminals, and related accessories contain lead and lead compounds.
Wash hands after handling.
lways protect batteries from freezing and never charge a frozen battery. ttempting to charge a battery in freezing
conditions does not prevent a battery from freezing.
WARNING! Allowing a battery to freeze or subjecting a battery to freezing temperatures can
damage the battery. Charging a frozen battery may result in personal injury and/or damage to the
battery.
Weather Precautions
WARNING! Do not expose the electronics to any type of moisture at any time (rain, snow, mist,
or wash). Such exposure can damage the electronics. Never attempt to ride a Scooter that has
been exposed to moisture until it has dried thoroughly.
WARNING! Do not operate or store your Scooter where it may be exposed to inclement weather
conditions such as rain, snow, mist, and below-freezing temperatures (such as storage on an
outside car/van lift). Attempting to operate your Scooter in such conditions can damage the
electronics and potentially result in loss of control.
WARNING! Do not operate your Scooter in icy or slippery conditions or on salted surfaces (i.e.,
walks or roads). Such use may result in an accident, personal injury, or adversely affect the
performance and/or safety of your Scooter.
WARNING! Make certain that your Scooter tyres are properly inflated (30 psi). Overinflating a tire
can cause it to explode, possibly resulting in personal injury and/or damage to your Scooter.
WARNING! When changing a tire, remove only the center lug nut, then remove the tire. If any
further disassembly is required, deflate the tire completely or it may explode, possibly resulting in
personal injury.
Batteries
Disconnect the batteries if you will not be using your Scooter for more than 48 hours.

8Victory
II. SAFETY
Lift/Elevation Products
If you are going to be traveling with your Scooter, you may find it necessary to use a lift/elevation product to aid in
transportation. Pride recommends that you review closely the instructions and specifications set forth by the
manufacturer of the lift/elevation product for use of that product.
WARNING! Never sit on your Scooter when it is being used in connection with any type of lift/
elevation product. Your Scooter was not designed with such use in mind, and any damage or injury
incurred from such use is not the responsibility of Pride.
Electromagnetic Fields
Your Scooters road performance features may be influenced by electromagnetic fields caused by mobile telephones
or other radiating devices, such as hand-held radios, radio and television stations, computers, wireless computer
links, microwave sources, and paging transmitters.
Prescription Drugs/Physical Limitations
The Scooter user must exercise care and common sense when operating his/her Scooter. This includes awareness
of safety issues when taking prescribed or over-the-counter drugs or when the user has specific physical limitations.
WARNING! Consult your physician if you are taking prescribed or over-the-counter medication or if
you have certain physical limitations. Some medications and limitations may impair your ability to
operate your Scooter in a safe manner.
Alcohol
The Scooter user must exercise care and common sense when operating his/her Scooter. This includes awareness
of safety issues while under the influence of alcohol.
WARNING! Do not operate your Scooter while you are under the influence of alcohol, as this may
impair your ability to drive safely.
Driving Surfaces
Your Scooter was designed to provide optimum stability under normal driving conditionsdry, level surfaces
composed of concrete or asphalt. However, Pride recognizes that there will be times when you will face surfaces
other than concrete or asphalt. For that reason, we also designed your Scooter to perform admirably on packed
soil, grass, and gravel.
nFeel free to use your Scooter safely on lawns and in park areas.
nvoid tall grass that can become tangled in the running gear.
nPacked soil, gravel, driveways, or roads will not present a problem for your Scooter.
nvoid loosely packed gravel and sand.
nIf you feel unsure about a driving surface, avoid that surface.

9
Victory
II. SAFETY
Doors
nDetermine if the door opens toward or away from you.
nUse your hand to turn the knob or push the handle or push-bar.
nDrive slowly forward to push the door open or drive slowly backward to pull the door open.
Elevators
Modern elevators have a door-edge safety mechanism that, when pushed, reopens the elevator door(s).
nIf you are in the doorway of an elevator when the door(s) begin to close, push on the rubber door edge or
allow the rubber door edge to contact your Scooter to reopen the door.
nUse care that pocketbooks, packages, or Victory accessories do not become caught in the elevator doors.
Ramps and Other Inclines
More and more buildings have ramps with specified percentages of inclination, designed for easy and safe access.
Some ramps may have turning switchbacks that require you to have good cornering skills on your Scooter.
nTake slow, wide swings with the front wheel(s) around any tight corners. If you do that, the rear wheels will
follow a wide arc and will not cut the corner short, bump into, or get hung up on any railing corners.
nWhen driving down a ramp, keep the speed adjustment dial (see IV. Your Victory) set to the tortoise
(slowest speed setting) to ensure a safely controlled descent.
nvoid sudden stops, starts, and turns. Reduce your speed when approaching a turn.
Maximum Recommended Incline
Other inclines may be natural or, if man-made, not designed specifically for Scooters. Figures 1, 2, and 3 illustrate
your Scooters stability and its ability to climb grades under various weight loads.
Figure 2. Maximum Recommended Incline
(Victory4 Wheel)
Figure 1. Maximum Recommended Incline
(Victory3 Wheel)
Figure 3. Maximum Recommended Incline (Victory XL & XL-8)
68 kg
12.3%
90 - 113 kg
10.5%
135 kg
8.7%
68 kg
14.1%
90 kg
12.3%
135 kg
8.7%
113 kg
10.5%
68 kg
17.6%
90 kg
15.8%
135 kg
12.3%
113 kg
14.1%

10 Victory
Figure 4. Normal Driving Position Figure 5. Increased Stability Driving Position
Controlled tests show that, when you approach an incline, it is best to lean forward. See figures 4 and 5. This shifts
the center of gravity of you and your Victory toward the front of the Scooter for improved stability.
WARNING! Even though your Scooter is capable of climbing slopes greater than those illustrated in
this section, do not, under any circumstances, exceed the incline guidelines or any other
specifications presented in this manual. Doing so could cause loss of stability, resulting in personal
injury or damage to your Scooter.
II. SAFETY

11
Victory
III. SPECIFICATIONS
Figure 6. Victory Dimensions
40.5 cm
39 cm
19 cm
46 cm - 51 cm
11.5 cm
85 cm - 90 cm
107 cm
119 cm
117 cm
Length (3 Wheel)
Length (4Wheel)
(3Wheel Turning Radius) (4Wheel Turning Radius)
81 cm
61 cm
46 cm
53 cm - 73.5 cm

12 Victory
III. SPECIFICATIONS
Figure 7. Victory XLand XL-8 Dimensions

13
Victory
III. SPECIFICATIONS
Victory 3 and 4 Wheel Specifications
Length: 3 Wheel: 117 cm
4 Wheel: 119 cm
Width: 61 cm
Tyres: Type: Pneumatic Front: 10 cm x 25 cm
Rear: 10 cm x 25 cm
Weight Capacity: 135 kg maximum
Battery Type (not included): Two 12V, 32 amp hours (AH), U-1 type, sealed lead-acid (SLA) or gel cell
Horsepower: 1.1 HP (Peak)
Charger: Onboard 2.5 amp charger
Speed (Max): Variable up to 6.4 km/hr
Maximum Grade: Please refer to figures 1 and 2.
Range: 32 - 40 km per charge with 32 AH batteries
Turning Radius: 3 Wheel: 81 cm
4 Wheel: 107 cm
Body Colours: Candy Apple Red, Viper Blue, Hunter Green, Onyx Black
Seating:
Style: Manual recline, foldable
Dimensions: 46 cm width (usable) x 39 cm height to headrest; 15 cm headrest height x 43 cm
depth
Seat cover material: Grey vinyl/fabric blend
Armrests: Grey molded rubber
User adjustable seat height from ground: 60 cm, 62 cm, or 65 cm
User adjustable seat height from Scooter deck: 46 cm, 48 cm, or 51 cm
Included Features: Adjustable seat height and positioning, front basket, rear bumper, full light package, walking stick clips, rearview mirror
4 Wheel only: front bumper
Brakes: Electronic regenerative braking and electromechanical disc brake
Rear Wheel Drive: Transaxle, 24V
Wheels: Aluminum alloy wheels, colour matches shrouds
Tiller Type: Adjustable
Freewheel Mechanism: Freewheel release lever located on upper-right rear portion of rear shroud
Scooter Weight:
Total weight of 3 Wheel with two 12V, 32 AH batteries: 74.5 kg
Total weight of 4 Wheel with two 12V, 32 AH batteries: 77.5 kg
Component Breakdown:
Front section: 3 Wheel: 14.6 kg; 4 Wheel: 17.5 kg
Rear section (without batteries or rear shroud):20.25 kg
Rear plastic shroud: 1.6 kg
Seat: 16 kg
Batteries (two required): 11 kg each (12V, 32 AH)
Front-to-rear Lockup: Lock pin and dual camlock lever system
Ground Clearance: 11.5 cm
Optional Accessories: Armrest mount cane/crutch holder, bracket mount cane/crutch holder, walker holder, safety flag,
oxygen holder, rear basket, single and double crutch holders

14 Victory
III. SPECIFICATIONS
Victory XL Specifications
Length: 150 cm
Width: 65 cm
Tyres: Type: Pneumatic
Size: 10 cm x 33 cm
Weight Capacity: 135 kg maximum
Battery Type (not included): Two 12V, 32 AH or two 12V, 40 AH, U-1 type, sealed lead-acid;
Two 12V, 45 AH or two 12V, 55 AH, NF-22, sealed lead-acid
Horsepower: 1.4 HP (Peak)
Charger: Onboard 5-amp charger
Speed (Max): Variable up to 9.25 km/hr
Maximum Grade: Please refer to figure 3
Range:
32 km with two 12V, 32 AH
40 km with two 12V, 40 AH
48 km with two 12V, 45 AH
56 km with two 12V, 55 AH
Turning Radius: 135 cm
Body Colours: Candy Apple Red, Viper Blue, Hunter Green
Seating:
Style: High back with user-adjustable recline angle, armrests, and sliding mechanism
Dimensions: 52 cm width (usable) x 51 cm height (usable) x 50 cm depth (usable)
Seat cover material: Grey vinyl
Armrest material: Black molded rubber
User-adjustable seat height from ground: 62 cm - 67 cm
User-adjustable seat height from Scooter deck:46 cm - 51 cm
Included Features:
Full dynamic front/rear suspension; triple-sized battery compartment; front and rear bumpers;
external manual freewheel release lever; external circuit breaker; easily accessible battery charger
receptacle; recessed tiller headlight; front basket; onboard accessory bracket; microprocessor-
based motor controller; energy saving auto shutoff feature
Brakes: Electronic regenerative braking and electromechanical disc brake
Rear Wheel Drive: Transaxle, 24V
Wheels: Aluminum alloy wheels, colour matches shrouds
Tiller Type: Adjustable
Freewheel Mechanism: Freewheel release lever located on upper-right rear portion of rear shroud
Scooter Weight:
Total weight with batteries: 103 kg (12V, 32 AH); 109 kg (12V, 40 AH);
114 kg (12V, 45 AH); 117 kg (12V, 55 AH)
Total weight without batteries: 80 kg
Front section (without basket or batteries): 26 kg
Rear section (without rear shroud): 30 kg
Seat: 21 kg
Basket: 0.7 kg
Batteries: 11 kg each (12V, 32 AH); 15 kg each (12V, 40 AH); 17 kg each (12V, 45 AH);
19 kgeach (12V, 55 AH)
Front-to-rear Lockup: Lock pin and dual camlock lever system
Ground Clearance: 13 cm
Optional Accessories: Cane/Crutch holder (bracket mount); walker holder; wishbone crutch holder; forearm crutch
holder; rear basket; rearview mirror; safety flag; oxygen bottle holder

15
Victory
III. SPECIFICATIONS
Victory XL-8 Specifications
Length: 150 cm
Width: 65 cm
Tyres: Type: Pneumatic
Size: 10 cm x 33 cm
Weight Capacity: 135 kg maximum
Battery Type (not included): Two 12V, 32 AH or two 12V, 40 AH, U-1 type, sealed lead-acid;
Two 12V, 45 AH or two 12V, 55 AH, NF-22, sealed lead-acid
Horsepower: 2.0 HP (Peak)
Charger: Onboard 5-amp charger
Speed (Max): Variable up to 13 km/hr
Maximum Grade: Please refer to figure 3
Range:
Up to 32 - 40 km with two 12V, 32 AH
Up to 40 - 48 km with two 12V, 40 AH
Up to 48 - 56 km with two 12V, 45 AH
Up to 56 - 64 km with two 12V, 55 AH
Turning Radius: 135 cm
Body Colours: Candy Apple Red, Viper Blue, Hunter Green
Seating:
Style: High back with user-adjustable recline angle, armrests, and sliding mechanism
Dimensions: 52 cm width (usable) x 51 cm height (usable) x 50 cm depth (usable)
Seat cover material: Grey vinyl
Armrest material: Black molded rubber
User-adjustable seat height from ground: 62 cm - 67 cm
User-adjustable seat height from Scooter deck: 46 cm - 51 cm
Included Features:
Full dynamic front/rear suspension; triple-sized battery compartment; front and rear bumpers;
external manual freewheel release lever; full light package; external circuit breaker; easily
accessible battery charger receptacle; recessed tiller headlight; front basket; onboard accessory
bracket; microprocessor-based motor controller; energy saving auto shutoff feature
Brakes: Electronic regenerative braking and electromechanical disc brake
Rear Wheel Drive: Transaxle, 24V
Wheels: Aluminum alloy wheels, colour matches shrouds
Tiller Type: Adjustable
Freewheel Mechanism: Freewheel release lever located on upper-right rear portion of rear shroud
Scooter Weights:
Total weight with batteries: 103 kg (12V, 32 AH); 109 kg (12V, 40 AH);
114 kg (12V, 45 AH); 117 kg (12V, 55 AH)
Total weight without batteries: 80 kg
Front section (without basket or batteries): 26 kg
Rear section (without rear shroud): 30 kg
Seat: 21 kg
Basket: 0.7 kg
Batteries: 11 kg each (12V, 32 AH); 15 kg each (12V, 40 AH); 17 kg each (12V, 45 AH);
19 kg each (12V, 55 AH)
Front-to-rear Lockup: Lock pin and dual camlock lever system
Ground Clearance: 13 cm
Optional Accessories: Rear basket; safety flag; single crutch holder; walker holder; oxygen bottle holder

16 Victory
Your Victory is an indoor/outdoor, motorized electric Scooter designed to enhance your personal mobility. For easy
transportation or storage, you can disassemble your Scooter into seven components. See figures 8, 9, and 10.
IV. YOUR VICTORY
SEAT
REAR SHROUD
BATTERIES
REAR SECTION
FRONT SECTION
BASKET
Figure 8. Victory 3 and 4 Wheel Figure 9. Victory XL
SEAT
REAR SECTION
FRONT SECTION
BATTERIES
REAR SHROUD BASKET
SEAT
REAR SECTION
FRONT SECTION
BATTERIES
REAR SHROUD BASKET
Figure 10. Victory XL-8

17
Victory
IV. YOUR VICTORY
CONTROL CONSOLE ASSEMBLY
The control console assembly located on the front section houses all of the controls you need to operate your
Scooter. See figure 11.
Figure 11. Control Console Assembly
THROTT E CONTRO EVER
(REVERSE)
IGHT SWITCH
SPEED ADJUSTMENT DIA
HORN BUTTON
TURN SIGNA BUTTON
TURN SIGNA BUTTON
HAZARD IGHT SWITCH
THROTT E CONTRO EVER
(FORWARD)
KEY SWITCH
BATTERY CONDITION METER
4 - 8 MPH SWITCH (VICTORY X -8)
WARNING! Do not expose the control console assembly to moisture. In the event that the console
does become exposed to moisture, do not attempt to operate your Scooter until it has dried
thoroughly.
Battery Condition Meter
When the key is fully inserted and turned clockwise to power up your Scooter, this meter indicates the approximate
battery voltage strength. For further information on battery charging, see V. Batteries and Charging.
Speed Adjustment Dial
This dial allows you to preselect and limit your maximum speed.
nSet the dial between the slowest (image of a tortoise) and fastest (image of a hare) speed settings.
Key Switch
This switch enables you to power up (turn on) and power down (turn off) your Scooter.
nFully insert the key into the key switch and turn it clockwise to power up your Scooter.
nTurn the key counterclockwise and remove it from the key switch to power down your Scooter.
WARNING! If the key is removed from the key switch while your Scooter is in motion, the electronic
brakes will engage and your Scooter will come to an abrupt stop!

18 Victory
Turn Signal Buttons
Use these buttons to turn on the left and right turn signal lights.
nPress the appropriate turn signal button once to activate it.
nThe turn signals are timed to shut off automatically.
Throttle Control Lever
This lever allows you to control the forward and reverse speeds up to the maximum you preset with the speed
adjustment dial. For instructions on how to operate the throttle control lever, see VI. Operation.
Light Switch
This switch controls the headlight and running (rear red) lights.
nToggle this switch to turn the headlight and running lights on and off.
Hazard Light Switch
This switch activates the 4-way flashers on your Scooter.
nToggle this switch to turn the hazard lights on and off.
4 - 8 MPH Switch
The Victory XL-8 is equipped with a 4 - 8 MPH switch, which enables you to limit your maximum speed at either
4 MPH or 8 MPH.
nToggle this switch to either 4 MPH or 8 MPH.
Horn Button
This button activates a warning horn.
nThe key must be inserted and turned clockwise for the horn to be operational.
nDo not hesitate to use the warning horn to prevent accident or injury.
Handbrake Lever (not shown)
Your Scooter may be equipped with a handbrake lever, located on the tiller handle. This lever provides you with
additional stopping power.
nRelease the throttle control lever and gently squeeze the handbrake lever to come to a complete stop.
NOTE: If you do not release the throttle control lever before using the handbra e, your Scooter may not
come to a complete stop.
REAR SHROU
The rear shroud protects the rear section and its subcomponents. Refer to VIII. Disassembly and ssembly for
instructions on removing the rear shroud.
REAR SECTION
The electronic controller module, charger power cord receptacle, main circuit breaker, motor/transaxle assembly,
manual freewheel lever, batteries, and anti-tip wheels are located on the rear section of your Scooter. See figures
12 and 13.
IV. YOUR VICTORY

19
Victory
IV. YOUR VICTORY
MANUA FREEWHEE EVER
MOTOR/TRANSAX E
ASSEMB Y
ANTI-TIP WHEE S
E ECTRONIC CONTRO ER
MODU E
Figure 13. Victory XL and XL-8 Rear Section
MAIN CIRCUIT BREAKER
(RESET BUTTON)
CHARGER POWER CORD
RECEPTAC E
ONBOARD BATTERY CHARGER
MOTOR/TRANSAX E
ASSEMB Y
E ECTRONIC CONTRO ER
MODU E
CHARGER POWER CORD
RECEPTAC E
MANUA FREEWHEE EVER
MAIN CIRCUIT BREAKER
(RESET BUTTON)
ONBOARD BATTERY CHARGER
ANTI-TIP WHEE S
Figure 12. Victory 3 and 4 Wheel Rear Section
BATTERIES
BATTERIES

20 Victory
IV. YOUR VICTORY
Electronic Controller Module
The electronic controller module is located behind the batteries and at the forward left corner of the rear section. It
receives electrical signals from the console controls and sends power to the motor, the brakes, and the lighting
system.
WARNING! Do not expose the electronic controller module to moisture. In the event that the
module does become exposed to moisture, do not attempt to operate your Scooter until it has dried
thoroughly.
WARNING! he Victory XL and XL-8 are equipped with microprocessor-based, programmable
controllers. hese controllers must be programmed by an authorized Pride technician only.
Improper programming of the controller could result in unsafe operation of your Scooter, causing
personal injury and/or damage to your Scooter.
Charger Power Cord Receptacle
This receptacle allows you to connect the charger power cord into your Scooter. For further information on the
charger power cord, refer to V. Batteries and Charging.
Onboard Battery Charger
The onboard battery charger converts household current ( C) to direct current (DC) and charges the batteries.
See V. Batteries and Charging.
Main Circuit Breaker
When the voltage in the batteries becomes low or your Scooter is heavily strained because of excessive loads or
steep inclines, the main circuit breaker may trip to protect the motor and electronics from damage. When the
breaker trips, the entire electrical system shuts down.
nThe main circuit breaker reset button is mounted on the upper rear section of your Scooter, near the charger
power cord receptacle. See figures 12 and 13.
nThe reset button pops out when the breaker trips.
nllow a minute or so for the electronics to rest.
nPush in the reset button to reset the breaker.
nIf the breaker trips frequently, you may need to charge the batteries more often or have your authorized Pride
provider perform a load test on the batteries.
Motor/Transaxle Assembly
The motor/transaxle assembly consists of a geared transmission and differential. This one piece, direct drive, fully
sealed assembly provides quiet operation with maximum power and long life.
Batteries
The batteries store the electrical energy that powers your Scooter. For more information, see V. Batteries and
Charging.
