C550
Recline and Tilt Wheelchair
Owner’s Manual
Pride Mobility Products Australia Pty. Ltd.
20-24 Apollo Drive, Hallam, Victoria,
Australia 3803

Page 2 of 27 C550 Owner's manual_17_11_2011 English.doc
WARNING!
DO NOT OPERATE THIS WHEELCHAIR WITHOUT FIRST READING AND
UNDERSTANDING THIS MANUAL. IF YOU ARE UNABLE TO UNDERSTAND THE
WARNINGS AND INSTRUCTIONS WHOLLY, CONTACT THE DISTRIBUTOR OR DEALER
WHERE YOUR MANUAL WHEELCHAIR WAS PURCHASED BEFORE ATTEMPTING TO USE
THIS EQUIPMENT. OTHERWISE INJURY OR DAMANGE MAY RESULT.

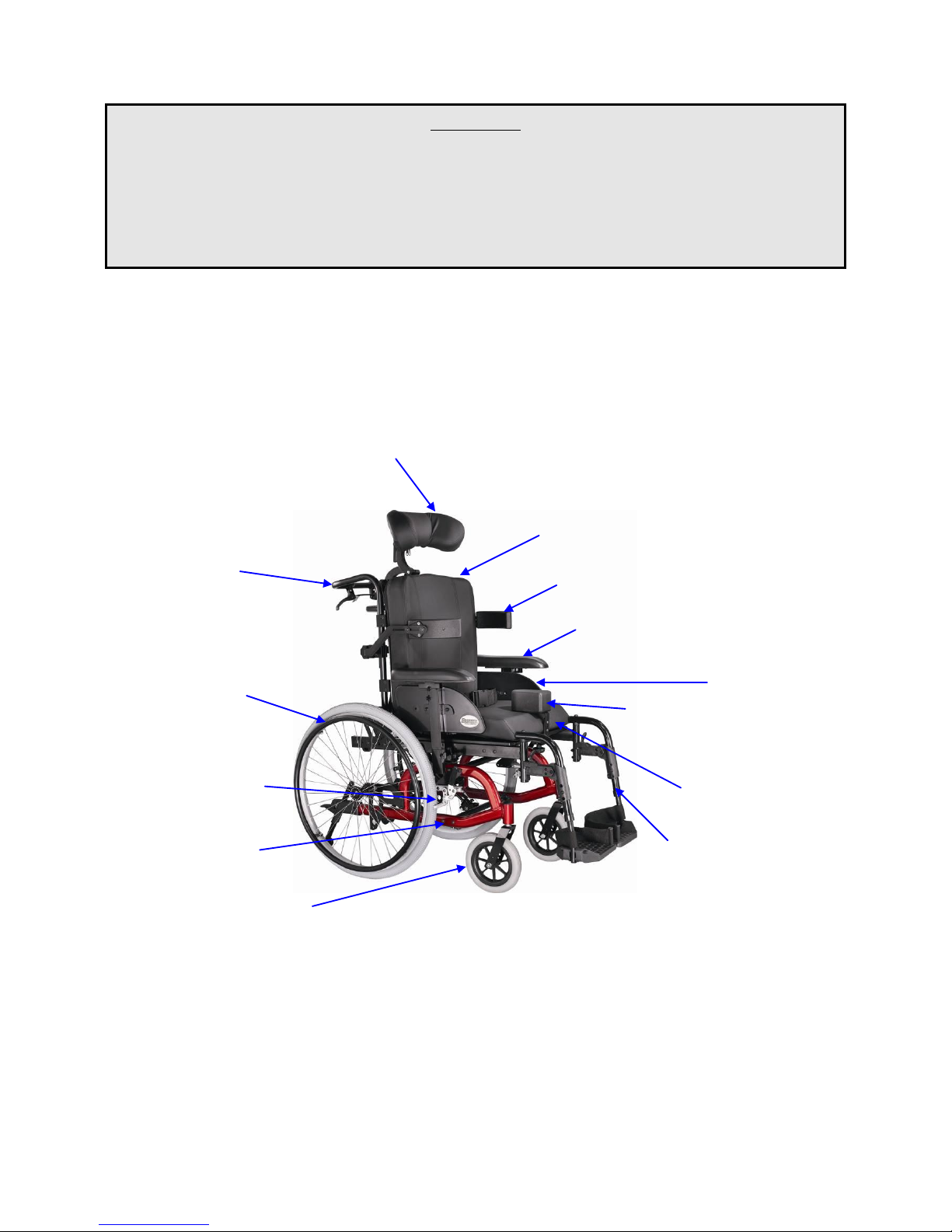

COMPONENTS
Manufactured by
Taiwan Armada Enterprise Co., Ltd.
No.12 Kung-Yeh 14th Road, Da-Li Industrial Zone,
Da-Li District, Taichung City, Taiwan, R.O.C.
Headrest (option)
Back upholstery
Lateral support (option)
Armrest
Skirt guard
Pommel (option)
Seat upholstery
Swing in & out legrest
Push handle
Rear wheel
Hand brake
(wheel lock)
Main frame
Front wheel

Page 3 of 27 C550 Owner's manual_17_11_2011 English.doc
(Customer Service Support)
Please contact nearest distributor (dealer) for after service.
Before calling:
Please fill in the following information. The details below will help us
assist you faster and ensure we provide you with the best advice
concerning your wheelchair.
Batch Number ..................................
Model ................................................
Date of purchase ...............................
(Notice):
The information contained in this User‟s Guide is subject to change without notice.
No part of this document may be photocopied, reproduced, transmitted, transcribed, stored in a
retrieval system or translated to another language or computer language, in any form or by any means,
electronic, mechanical, magnetic, optical, chemical, manual or otherwise without prior written consent
of Pride Mobility Products Australia Pty. Ltd. (Pride).
Use Pride accessories and parts only with Pride products. Pride parts are not interchangeable with
other manufacturers‟ products. Replace any worn parts immediately.
All rights reserved.

Page 4 of 27 C550 Owner's manual_17_11_2011 English.doc
Table of Contents
1. Introduction ------------------------------------------
5
1.2 Intended Use --------------------------------------
5
1.3 Legal & General Responsibilities --------------
5
2. Safety Instruction ------------------------------------
6
2.1 General Information -----------------------------
6
2.2 Safe operation ------------------------------------
7
3. Unpacking & Assembly ----------------------------
8
3.1 Unpacking -----------------------------------------
8
3.2 Assembly ------------------------------------------
9-
12
4. Adjustment -------------------------------------------
13
4.1 Quick release axles -------------------------------
13
4.2 Anti-tipper -----------------------------------------
13
4.3 Headrest (option) ---------------------------------
14
4.4 Lateral support (option) -------------------------
15
4.5 Armrest --------------------------------------------
16-
17
4.6 Footplate ------------------------------------------
17
4.7 Swing in&out legrest ----------------------------
18
4.8 Pommel (option) ---------------------------------
18
4.9 Back recline ---------------------------------------
19
4.10 Seat tilt -------------------------------------------
19
4.11 Seat belt ------------------------------------------
19
4.12 Seat depth adjustment --------------------------
20
4.13 Back height adjustment ------------------------
21
4.14 Hand break --------------------------------------
21
4.15 Drum Hub brake system -----------------------
22
4.16 Tyre Pressure ------------------------------------
22
5. Maintenance -----------------------------------------
23
5.1 General care ---------------------------------------
23
5.2 Upholstery -----------------------------------------
23
5.3 Paintwork of frame -------------------------------
23
5.4 Drive wheel adjustment -------------------------
23
5.5 Broken spokes ------------------------------------
23
5.6 Wheel lock ----------------------------------------
23
6. Temporary Storage ----------------------------------
24
7. Specifications ----------------------------------------
25
8. Warranty ----------------------------------------------
26
8.1 Limited warranty ---------------------------------
26
8.2 Warranty exclusions ------------------------------
26

Page 5 of 27 C550 Owner's manual_17_11_2011 English.doc
1. Introduction
We thank you for choosing the “C550”. This latest model has been designed with specific practical
user needs in mind. It combines practical and durable construction with safety and performance of
ergonomics.
This manual contains some useful tips and information on safety, operation and maintenance. Please
read it carefully to ensure that you get maximum enjoyment and benefit from your new independence
and mobility.
Whenever you require special advice and attention do not hesitate to contact your local Pride Mobility
distributor. They have all the equipment and know-how to provide an expert service and assistance on
technical and clinical applications to suit your particular needs.
1.2. Intended Use
The C550 is intended to assist and improve mobility for those individuals who are less able or have
walking difficulties who wish to maintain their independence and freedom.
Your day to day activities will depend on your physical capabilities and your own specific
circumstances. If in doubt seek medical advice first.
The information is this booklet provides a general guide on how to use your wheelchair safely and
correctly. Do not use the wheelchair without reading this manual first.
1.3. Legal & General Responsibilities
As a wheelchair user you must be aware of the risks involved to both yourself and others. We
recommend that you take out „Third Party Liability‟ insurance to cover you against any possible
claims. Advice and policies are available from general insurance companies or alternatively ask Pride
Mobility distributor for details.
Although by law you are not required to hold a driving license you are responsible and fully liable for
proper operation and use of your wheelchair. You must ensure that your chair is maintained and is in a
good condition at all times.

Page 6 of 27 C550 Owner's manual_17_11_2011 English.doc
2. Safety Instruction
2.1. General Information
Ensure that:
● The operating manual is read by all people who drive, care for and service the manual wheelchair.
● All persons who drive, care for, service or repair the manual wheelchair have access to the operating
manual at any time.
Any damages resulting from nonobservance of this operating manual are excluded from the
guarantee.
Risk of accidents!
●Do NOT use the wheelchair if your driving capability is impaired through consumption of medicine
or alcohol.
●Only use the wheelchair for its correct intended use.
●Only use the wheelchair when it is in perfect working order.
●If any breakdowns occur, stop using the wheelchair immediately and secure it against unauthorized
use.
●It is imperative that you always rectify any faults which could influence the function and safety of
the wheelchair immediately.
●Observe maximum loading = see Specifications
●Only use accessories and spare parts authorized by Pride Mobility Products Australia Pty. Ltd.
●The wheelchair is only authorized for transport of one person.
Tipping hazard!
●Do not lean out over the armrest to the sides or over the backrest to the rear.
●Keep the wheelchair away from children. It is not intended to be used as a toy

Page 7 of 27 C550 Owner's manual_17_11_2011 English.doc
2.2. Safe operation
When using indoors beware of narrow doors, steps, high surfaces, protruding wall fittings and
everyday household items such as children‟s toys, electrical appliances etc. Take extra care in kitchen
environments.
To ensure stability and safe control you must maintain proper balance at all times. The wheelchair is
designed to remain stable during normal use as long as you do not move your centre of gravity outside
the normal seating position.
When reaching/bending forward do not lean your body out of the wheelchair further than the length of
the armrests. Do not attempt to reach objects by sliding forwards to the edge of the seat.
When reaching/bending backwards do not reach any further than your arm will extend without
changing your seating position.
Never attempt to use an escalator or stairway, always use a lift.
Occasionally check that the adjustments of the footrests, armrests are secure and are set in the most
comfortable position for use.

Page 8 of 27 C550 Owner's manual_17_11_2011 English.doc
3. Unpacking & Assembly
3.1. Unpacking
Your manual wheelchair is shipped partially disassembled for protection during shipping. After
removing C550 from the carton please check that you have been supplied with the following
main parts.
(1)The main frame assembled with back adjustable belt, seat board, rear wheel, front wheel,
headrest (option), armrest and push handle.
(2) Seat upholstery
(3) Back upholstery
(4) Armrest
(5) Side panel
(6) Hand brake
(7) Legrest
(8) Anti-tipper
(9) Lateral support (option)
(10) Pommel (option)
1
2
3
7
4
5
6
8
9
10

Page 9 of 27 C550 Owner's manual_17_11_2011 English.doc
3.2. Assembly
Please assemble the main parts mentioned as per the following procedure and check the assembly for
normal operation.
3.2.1 Back
Fold the backrest back as shown in Figure 1.
Use lock pin to lock back adjustment as shown in Figure 1.
Figure 1
3.2.2 Legrest
Mount the swing-in & out legrest as shown in Figure 2 & 3.
Figure 2 Figure 3

Page 10 of 27 C550 Owner's manual_17_11_2011 English.doc
3.2.3 Back upholstery
Place the back upholstery on the wheelchair as shown in Figure 4 & 5 & 6.
Figure 4 Figure 5 Figure 6
3.2.4 Seat upholstery
Place the seat cushion on the wheelchair as shown in Figure 7.
Figure 7
3.2.5 Pommel (option)
Insert pommel unit into the bracket then tighten the knob as shown in Figure 8.
Figure 8

Page 11 of 27 C550 Owner's manual_17_11_2011 English.doc
3.2.6 Lateral support (option)
Insert the lateral support unit into the bracket then tighten the knobs as shown in Figure 9.
Figure 9
3.2.7 Anti-tipper
Tool: 1 x Allen key (4mm) & 1 x Ring Spanner (13mm)
Insert the anti‐tippers into the rear frame down tube then tighten up the screw as shown in Figure
10.
Figure 10
3.2.8 Hand brake (wheel lock)
Tool: 1 x Allen key (4mm) & 1 x Ring Spanner (10mm)
Assemble hand brake on the first and third holes of the plate and tighten up the screws as shown
in Figure 11 & 12.
Figure 11 Figure 12

Page 12 of 27 C550 Owner's manual_17_11_2011 English.doc
3.2.9 Side panel
Insert the side panel into the bracket and tighten handle screw as shown in Figure 13.
Figure 13
3.2.10 Armrest
Tool: 1 x Allen key (4mm)
Insert the armrest into the bracket and tighten up the screws as shown in Figure 14.
Figure 14
3.2.12 Headrest
Adjust the three handle screws in the headrest connect plates to the suitable position and angle for
user as shown in Figure 15.
Figure 15

Page 13 of 27 C550 Owner's manual_17_11_2011 English.doc
4. Adjustment
After any adjustments, repair or service and before use, make sure all attaching hardware is tightened
securely. Otherwise injury or damage may occur.

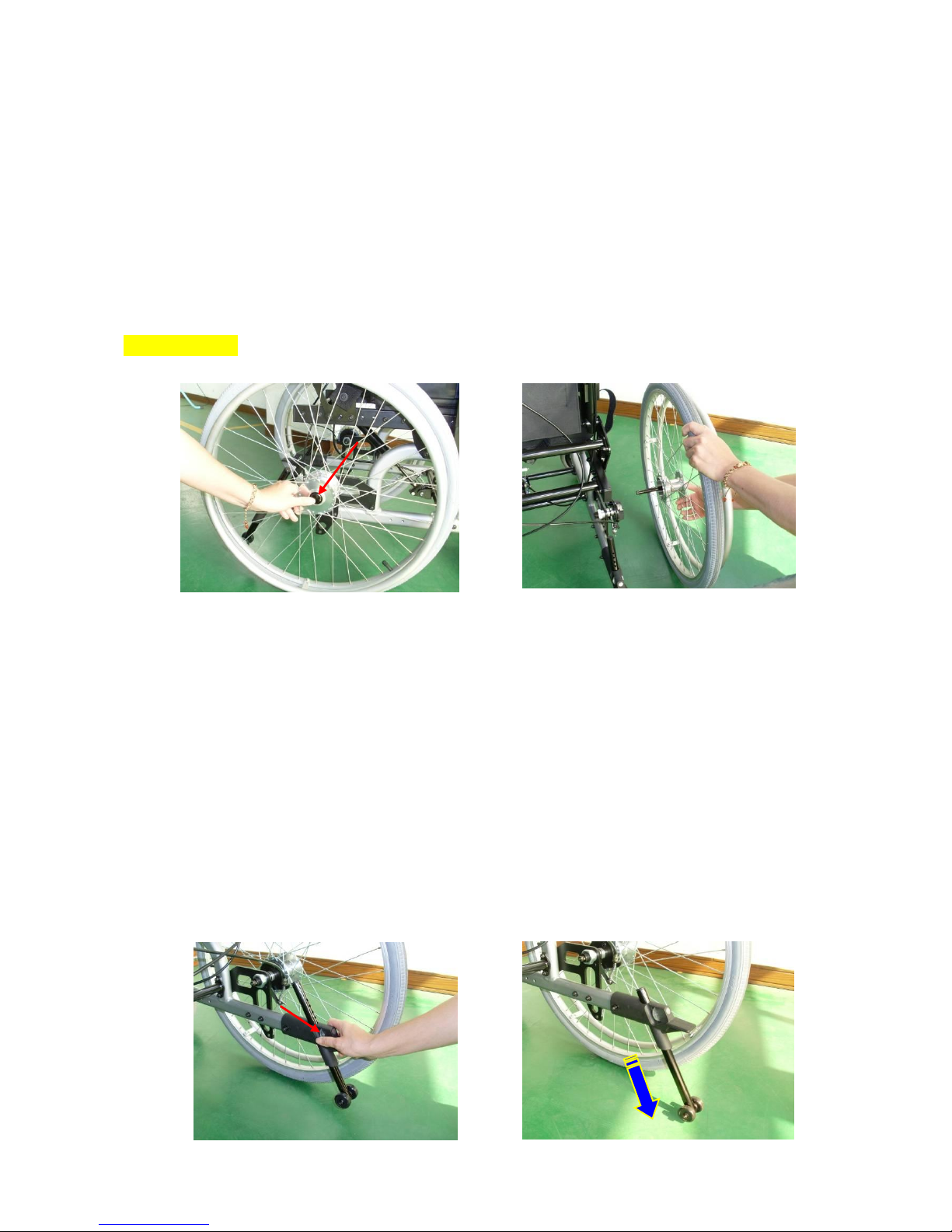

4.1 Quick release axles
Press button in the centre of the hub whilst simultaneously pulling the rear wheel out of the
wheelchair as shown in Figure 16 & 17.
ATTENTION! The 16” rear wheels are also available and have quick release axle function.
Figure 16 Figure 17
4.2Anti-tipper
This is anti-tipper is to prevent back tipping which ensures safety when using a reclining backrest,
driving on slopes or crossing obstacles.
Pull the release button (Iron spacer) and slide upward and downward to adjust wheels holding
tube for the desired distance based upon the preset holes as shown in Figure 18 & 19. There are
seven holes available.
Figure 18 Figure 19

Page 14 of 27 C550 Owner's manual_17_11_2011 English.doc

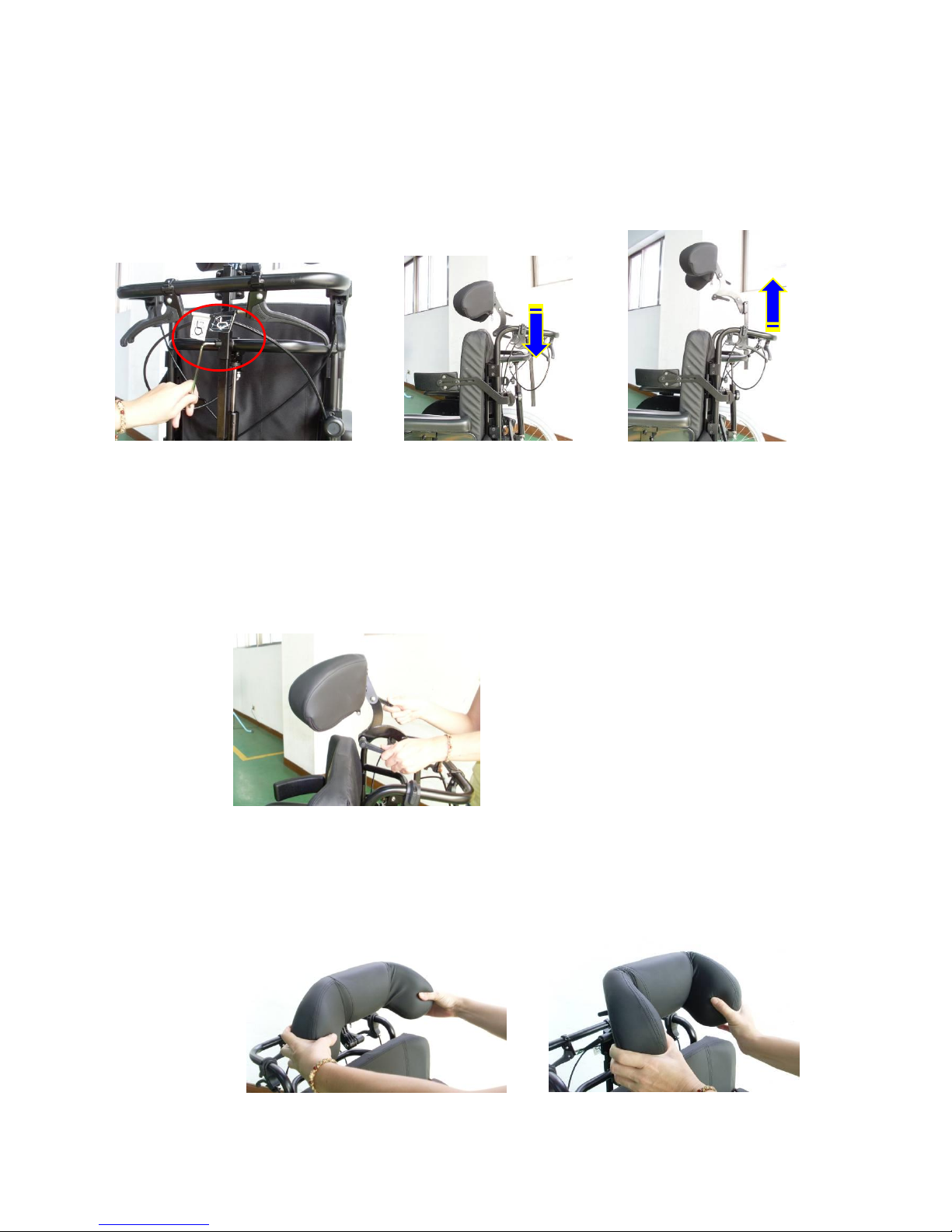

4.3 Headrest (option)
Tool: 1 x Allen key 4mm
4.3.1 Height adjustment
Release the handle screw as red circle on the backrest basic bracket could adjust the height of
headrest as shown in Figure 20 & 21 & 22.
Figure 20 Figure 21 Figure 22
4.3.2 Angel adjustment
Loosen three headrest levers (back the headrest) as shown in Figure 23.
Turn the headrest to your desired angle
Tighten three headrest levers as shown in Figure 23.
Figure 23
4.3.3 Headrest curve
The headrest could be curved to your desired angle as shown in Figure 24 & 25.
Figure 24 Figure 25

Page 15 of 27 C550 Owner's manual_17_11_2011 English.doc
4.4 Lateral Support (Option)
4.4.1 Outward or inward position adjustment
Tool: 1 x Allen key 5mm
Loosen the knob could adjust outward or inward position as shown in Figure 26 & 27 & 28.
Tighten the knob after adjustment.
Figure 26 Figure 27 Figure 28
4.4.2 PU pad outward or inward position adjustment
Tool: 1 x Allen key 4mm
Loosen the two screws on the lateral support bracket could adjust the PU pad outward or inward
position as shown in Figure 29 & 30.
Tighten the screws after adjustment.
Figure 29 Figure 30
4.4.3 Lateral support height adjustment
Tool: 1 x Allen key 5mm
Loosen two screws on the bracket in red circle and knob as shown in Figure 31.
Adjust lateral support height then tighten the two screws and knob as shown in Figure 32 & 33.
Figure 31 Figure 32 Figure 33

Page 16 of 27 C550 Owner's manual_17_11_2011 English.doc
4.5 Armrest
4.5.1 Armrest detachable
Rotate the knob on the armrest bracket as red circle could detach the armrest as shown in Figure
34 & 35.
Figure 34 Figure 35
4.5.2 Armrest height adjustment
Tool: 1 x Allen key 4mm
Loosen the screw on the armrest bracket could adjust the height of armrest as shown in Figure 36
& 37.
Tighten the screws after adjustment as shown in Figure 37.
ATTENTION!- Do not pull out the armrest beyond the marker for maximum pull-out line as shown
in Figure 37.
Figure 36 Figure 37
Figure 36 Figure 37

Page 17 of 27 C550 Owner's manual_17_11_2011 English.doc
4.5.3 Armrest position outward adjustment
Loosen the two screws of both sides and move armrest outward 1”each side to adjustable seat
width as shown in Figure 38 & 39.
Tighten up the screw after adjustment.
Figure 38 Figure 39
4.6. Footplate
4.6.1 Flipping up the footplate
Grab footplate at the side and fold out to the legrest tube as shown in Figure 40.
Grab the side of the footplate and fold down as shown in Figure 41.
Figure 40 Figure 41
4.6.2 Footplate height adjustment
Tool: 1 x Allen key 4mm
Loosen screws on the footrest could adjust the height of footplate as shown in Figure 42.
After adjustment put spacer and nut then tighten the screws as shown in Figure 42.
Figure 42

Page 18 of 27 C550 Owner's manual_17_11_2011 English.doc
4.7 Swing in&out legrest
Press the release lever as red circle, the legrest is released to be rotated inward or outward to
facilitate access and also be removed completely as shown in Figure 43 & 44 & 45.
Figure 43 Figure 44 Figure 45
4.8 Pommel (Option)
Release the knob under the seat board and could adjust pommel position backward or frontward
as shown in 46 & 47 & 48.
Tighten the knob after adjustment as shown in Figure 46.
Figure 46 Figure 47 Figure 48

Page 19 of 27 C550 Owner's manual_17_11_2011 English.doc
4.9 Back recline
Adjust the angle of back recline by pressing the right side of hand brake on the push handle and press
down the push handle simultaneously as shown in Figure 49 & 50. We also stick a back recline label
on the brake cord.
Figure 49 Figure 50
4.10 Seat tilt
Adjust the angle of seat tilt by pressing the left side of hand brake on the push handle and press down
the push handle simultaneously. We also stick a seat tilt label on the brake cord
Figure 51 Figure 52
4.11 Seat belt
Insert male side seat belt into female side and you can use seat belt. Adjust tightness of seat belt by
pulling male side as shown in Figure 53 & 54.
Figure 53 Figure 54

Page 20 of 27 C550 Owner's manual_17_11_2011 English.doc
4.12 Seat depth adjustment
Tool: 1 x Allen key 4mm & 10mm Ring spanner
Release the screws of backrest plate both side could adjust suitable seat depth then tighten up.
There are four seat depths available; they are 15”, 16”, 17”, and 18”as shown in Figure 55 & 56
& 57.
There are three positions for armrest position adjustment. Release the screws under the armrest
bracket both side, remove the armrest and release the screws of bracket. Adjust armrest bracket to
desired position then tighten up. Insert armrest into the bracket then tighten up the screws under
the bracket as shown in Figure 58 & 59 & 60.
Figure 55 Figure 56
Figure 57 Figure 58
Figure 59 Figure 60
