Owner’s Manual
ATTENTION:
Please read the content
of your owners manual
before operating your
power chair.

2 www.pridemobility.com Jazzy 1103 Rev L/Feb03
Please read and follow all instructions in this owners manual before attempting to operate your power chair for the
first time. If there is anything in this manual you do not understand, or if you require additional assistance for set-up,
contact your authorized Pride provider.
Using your Pride product safely depends upon your diligence in following the warnings, cautions, and instructions
in this owners manual. Using your Pride product safely also depends upon your own good udgement and/or
common sense, as well as that of your provider, caregiver, and/or healthcare professional. Pride is not responsible
for in uries and/or damage resulting from any persons failure to follow the warnings, cautions, and instructions in
this owners manual. Pride is not responsible for in uries and/or damage resulting from any persons failure to
exercise good udgement and/or common sense.
The symbols below are used throughout this owners manual to identify warnings and cautions. It is very important
for you to read and understand them completely.
WARNING! Failure to heed the warnings in this owners manual may result in personal injury.
CAU ION! Failure to heed the cautions in this owners manual may result in damage to your power
chair.
SAFETY GUIDELINES
Copyright © 2003
Pride Mobility Products Corp.
INFMANU 1182

Jazzy 1103 Rev L/Feb03 www.pridemobility.com 3
I. INT ODUCTION.......................................................................................... 4
II. SAFETY ...................................................................................................... 6
III. EMI/ FI ..................................................................................................... 13
IV. THE JAZZY 1103 ..................................................................................... 15
V. COMFO T ADJUSTMENTS ...................................................................... 20
VI. BATTE IES AND CHA GING .................................................................... 24
VII. OPE ATION .............................................................................................. 28
VIII. CA E AND MAINTENANCE ....................................................................... 35
IX. OPTIONS AND ACCESSO IES ................................................................. 40
X. WA ANTY .............................................................................................. 43
CONTENTS

4 www.pridemobility.com Jazzy 1103 Rev L/Feb03
I. INTRODUCTION
INT ODUCTION
Welcome to Pride Mobility Products Corporation (Pride). Congratulations on the purchase of your new Pride
Power Chair. The Pride Power Chair design combines the most advanced state-of-the-art components with
modern, attractive styling. We are certain that the design features and trouble-free operation of your new power
chair will add convenience to your daily living.
At Pride, your safety is important to us. Please read and follow all of the instructions in this manual before you
attempt to operate your power chair for the first time. These instructions were produced for your benefit. Your
understanding of these instructions is essential for the safe operation of your new power chair.
Pride is not liable for damage to property or personal in ury arising out of unsafe use of a power chair. Pride is also
not liable for any property damage or personal in ury arising out of the failure of any person and/or user to following
the instructions and recommendations set forth in this manual or any other instructions or recommendations contained
in other power chair related literature issued by Pride or contained on the power chair itself.
This owners manual is compiled from the latest specifications and product information available at the time of
publication. We reserve the right to make changes as they become necessary. Any changes to our products may
cause slight variations between the illustrations and explanations in this manual and the product you have purchased.
If you experience any problems with your power chair that you are unable to solve, or if you do not feel capable of
safely following any of the instructions and/or recommendations as contained in this manual, please contact your
authorized Pride provider for assistance.
Once you understand how to operate and take care of your power chair, we are certain that it will give you years
of trouble-free service and en oyment.
Information Exchange
We want to hear your questions, comments, and suggestions about this manual. We would also like to hear about
the safety and reliability of your new power chair, and about the service you received from your authorized Pride
provider.
Please notify us of any change of address, so we can keep you apprised of important information about safety, new
products, and new options that can increase your ability to use and en oy your power chair. Please feel free to
contact us at the address below:
Pride Mobility Products Corporation
Attn: Customer Care Department
182 Susquehanna Avenue
Exeter, PA 18643-2694
[e-mail]
800-424-8205

Jazzy 1103 Rev L/Feb03 www.pridemobility.com 5
I. INTRODUCTION
Pride Owners Club
As an owner of a Pride product, you are invited to register your products warranty and enroll in the Pride Owners
Club. You may do so by filling out and returning your enclosed registration card or by visiting Prides web site at
www.pridemobility.com. As a registered member, each time you visit our site, you will have access to the most
interactive and honest educational venue available today for people with mobility needs, their families, and friends.
From our home page, select Owners Club to enter a page dedicated to current and potential Pride product
owners. You will gain access to interviews, stories, recreation ideas, daily living tips, product and funding information,
and interactive message boards. These message boards invited you to communicate with other Pride customers as
well as Pride representatives who are available to assist you with any questions or concerns you may have.
My Authorized Pride Provider Is:
Name:_______________________________________________________________________________
Address:_____________________________________________________________________________
Phone Number:________________________________________________________________________
Purchase Date:________________________________________________________________________
NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact
us and we will be glad to send you a new one immediately.

6 www.pridemobility.com Jazzy 1103 Rev L/Feb03
II. SAFETY
SAFETY
WARNING! Do not operate your new power chair for the first time without completely
reading and understanding this owners manual.
Your power chair is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an
extensive variety of products to best fit the individual needs of the power chair user. Please be aware that the final
selection and purchasing decision regarding the type of power chair to be used is the responsibility of the power
chair user, who is capable of making such a decision, and his/her healthcare professional (i.e., medical doctor,
physical therapist, etc.).
The contents of this manual are based on the expectation that a mobility device expert has properly fitted the power
chair to the user and has assisted the prescribing healthcare professional and/or the authorized Pride provider in the
instruction process for the use of the product.
There are certain situations, including some medical conditions, where the power chair user will need to practice
operating the power chair in the presence of a trained attendant. A trained attendant can be defined as a family
member or care professional specially trained in assisting a power chair user in various daily living activities.
As you begin using your power chair during daily activities, you will probably encounter situations in which you will
need some practice. Simply take your time and you will soon be in full and confident control as you maneuver
through doorways, on and off of elevators, up and down ramps, and over moderate terrain.
Below are some precautions, tips, and other safety considerations that will help the user become accustomed to
operating the power chair safely.
Modifications
Pride has designed and engineered your power chair to provide maximum mobility and utility. A wide range of
accessories is available from your authorized Pride provider to further customize your power chair to better suit
your needs and/or preferences. However, under no circumstances should you modify, add, remove, or disable any
feature, part, or function of your power chair.
WARNING! Do not modify your power chair in any way not authorized by Pride. Unautho-
rized modifications may result in personal injury and/or damage to your power chair.
Pre-Ride Safety Check
Get to know the feel of your power chair and its capabilities. Pride recommends that you perform a safety check
before each use to make sure your power chair operates smoothly and safely. See VIII. Care and Maintenance.
Perform the following inspections prior to using your power chair:
nCheck for proper tire inflation. Maintain 30-35 psi in each tire (if equipped with pneumatic tires).
nCheck all electrical connections. Make sure they are tight and not corroded.
nCheck all controller connections to the electronics tray. Make sure they are secured properly.
nCheck the brakes. See VIII. Care and Maintenance.
nCheck battery charge. See VI. Batteries and Charging.

Jazzy 1103 Rev L/Feb03 www.pridemobility.com 7
II. SAFETY
NOTE: If you discover a problem, contact your authorized ride provider for assistance.
eight Limitations
Your power chair is rated for a maximum weight capacity. Please refer to the specifications table for this limit.
WARNING! Exceeding the weight capacity voids your warranty and may result in personal
injury and/or damage to your power chair. Pride will not be held responsible for injuries
and/or property damage resulting from failure to observe weight limitations.
WARNING! Do not carry passengers on your power chair. Carrying passengers on your
power chair may result in personal injury and/or property damage.
Tire Inflation
If your power chair is equipped with pneumatic tires, you should check or have the air pressure checked at least
once a week. Proper inflation pressures will prolong the life of your tires and help ensure the smooth operation of
your power chair.
WARNING! It is important that 30-35 psi tire pressure be maintained in pneumatic tires at
all times. Do not underinflate or overinflate your tires. Low pressure may result in loss of
control, and overinflated tires may burst. Failure to maintain 30-35 psi tire pressure in
pneumatic tires at all times may result in tire and/or wheel failure, causing serious per-
sonal injury and/or damage to your Jazzy.
WARNING! Inflate your power chair drive tires from a regulated air source with an avail-
able pressure gauge. Inflating your tires from an unregulated air source could overinflate
them, resulting in a burst tire and/or personal injury.
Incline Information
More and more buildings have ramps with specified degrees of inclination, designed for easy and safe access.
Some ramps may have turning switchbacks (180-degree turns) that require you to have good cornering skills on
your power chair.
nProceed with extreme caution as you approach the downgrade of a ramp or other incline.
nTake wide swings with your power chairs front wheels around any tight corners. If you do that, the power
chairs rear wheels will follow a wide arc, not cut the corner short, and not bump into or get hung up on any
railing corners.
nWhen driving down a ramp, keep the power chairs speed ad ustment set to the slowest speed setting to
ensure a safely controlled descent. See VII. Operation.
nAvoid sudden stops and starts.
When climbing an incline, try to keep your power chair moving. If you must stop, start up again slowly and then
accelerate cautiously. When driving down an incline, set your power chair to the slowest setting and drive in the
forward direction only. If your power chair starts to move down the incline faster than you anticipated or desired,
allow it to come to a complete stop by releasing the oystick, then push the oystick forward slightly to ensure a
safely controlled descent

8 www.pridemobility.com Jazzy 1103 Rev L/Feb03
II. SAFETY
WARNING! When climbing an incline, do not zigzag or drive at an angle up the face of the
incline. Drive your power chair straight up the incline. his greatly reduces the possibility
of a tip or a fall. Always exercise extreme caution when negotiating an incline.
WARNING! You should not travel up or down a potentially hazardous incline (i.e., areas
covered with snow, ice, cut grass, or wet leaves).
WARNING! When on any sort of an incline or decline, never place the power chair in
freewheel mode while seated on it or standing next to it. Doing so may result in personal
injury and/or damage to your power chair.
WARNING! Never travel down an incline backwards. his may result in personal injury.
WARNING! Even though your power chair is capable of climbing slopes greater than those
illustrated in figures 1 and 2, do not, under any circumstances, exceed the incline guidelines or any
other specifications presented in this manual. Doing so could cause instability in your power chair,
resulting in personal injury and/or damage to your power chair.

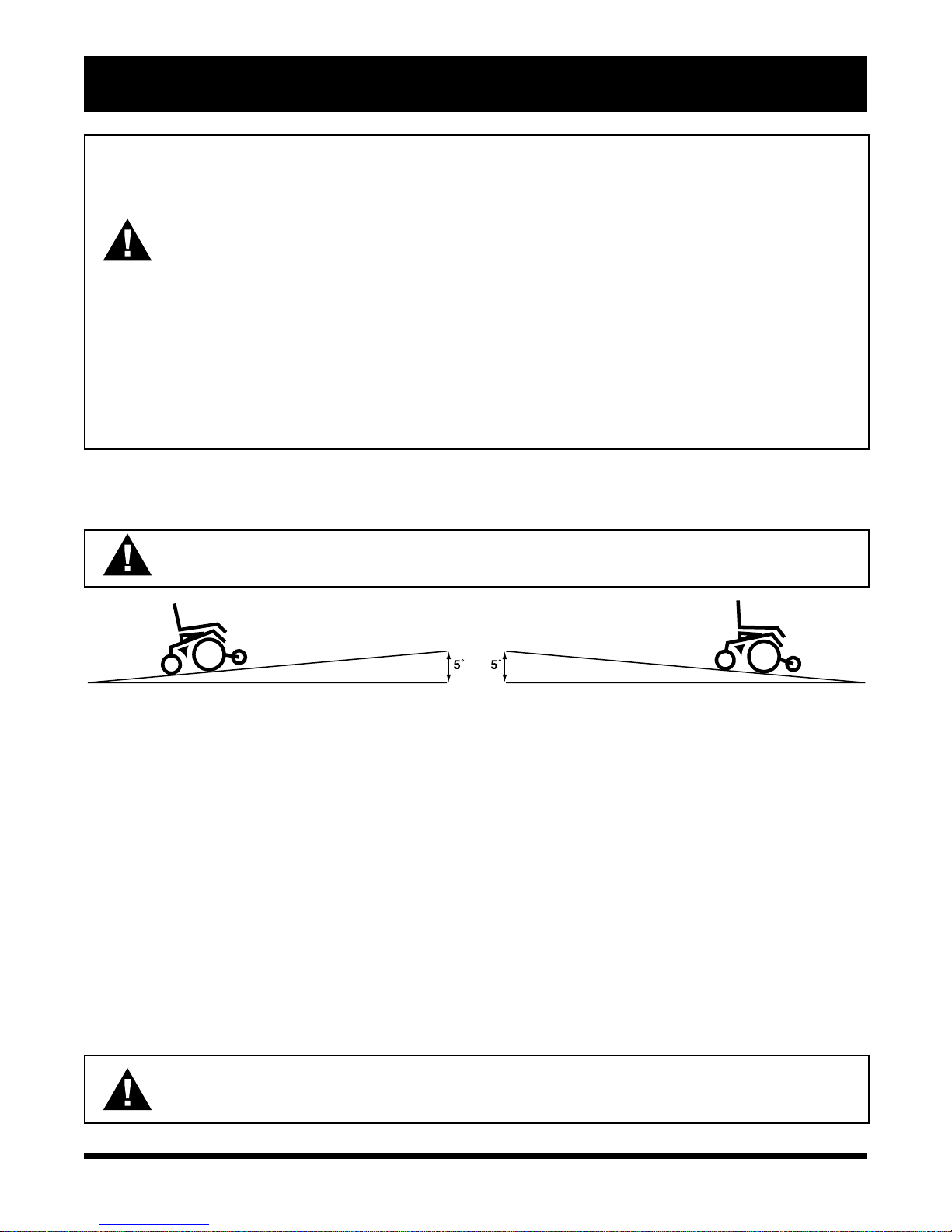

In compliance with the Americans with Disabilities Act of 1990, all handicap public access ramps are required to
have a maximum slope of 5°. Therefore, Pride recommends that the maximum slope of an incline you attempt to
safely ascend or descend on your power chair does not exceed 5°. See figure 1.
WARNING! Any attempt to climb or descend a slope steeper than 5° may put your power
chair in an unstable position and cause it to tip, resulting in personal injury.
Braking Information
Your power chair is equipped with two powerful brake systems:
1. Regenerative  uses electricity to rapidly slow the vehicle when the oystick returns to the center/stop position.
2. Disc Park Brake  activates mechanically after regenerative braking slows the vehicle to near stop, or when
power is removed from the system for any reason.
Cornering Information
While your power chair is equipped with rear caster wheels in back and anti-tip wheels in front, excessively high
cornering speeds can still create the possibility of tipping. Factors which affect the possibility of tipping include, but
are not limited to: cornering speed, steering angle (how sharply you are turning), uneven road surfaces, inclined
road surfaces, riding from an area of low traction to an area of high traction (such as passing from a grassy area to
a paved area  especially at high speed while turning), and abrupt directional changes. High cornering speeds are
not recommended. If you feel that you may tip over in a corner, reduce your speed and steering angle (i.e., lessen
the sharpness of the turn) to prevent your power chair from tipping.
WARNING! When cornering sharply, reduce your speed. his greatly reduces the possibil-
ity of a tip or fall. o avoid personal injury and/or property damage, always exercise com-
mon sense when cornering.
Figure 1. Maximum Safe Angle (Ascending and Descending)

Jazzy 1103 Rev L/Feb03 www.pridemobility.com 9
II. SAFETY

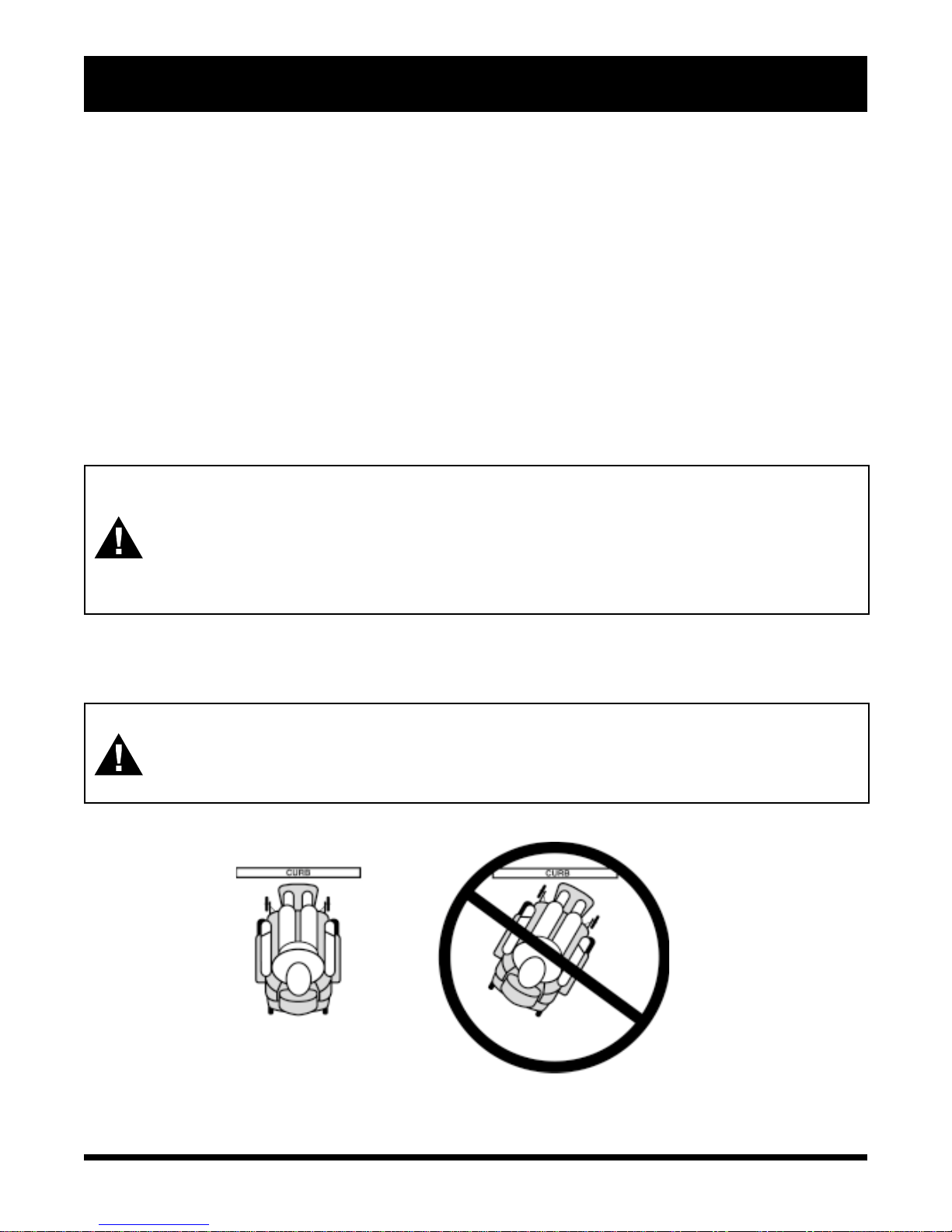

Figure 1a. Curb Approach (Correct and Incorrect)
Outdoor Driving Surfaces
Your power chair is designed to provide optimum stability under normal driving conditionsdry, level surfaces
composed of concrete, blacktop, or asphalt. However, Pride recognizes that there will be times when you will
encounter other surface types. For this reason, your power chair is designed to perform admirably on packed soil,
grass, and gravel. Feel free to use your power chair safely on lawns and in park areas.
nReduce your power chairs speed when driving on uneven terrain and/or soft surfaces.
nAvoid tall grass that can entangle the running gear.
nAvoid loosely packed gravel and sand.
nIf you feel unsure about a driving surface, avoid that surface.

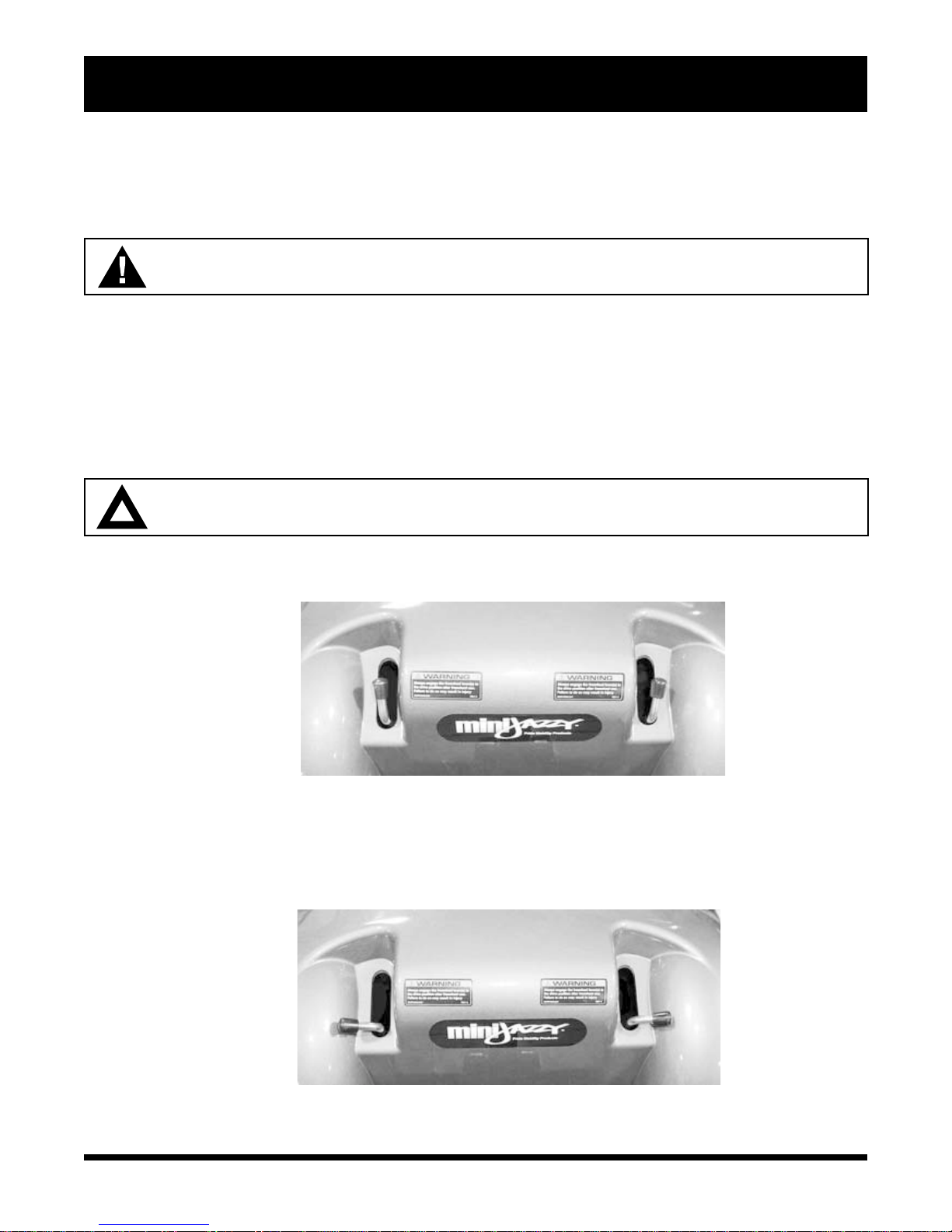

Freewheel Mode
Your power chair is equipped with two manual freewheel levers to allow for manual maneuverability by a trained
attendant. For more information about how to place your power chair into and out of freewheel mode, see IV.
The Jazzy 1103.
WARNING! Do not use your power chair in freewheel mode without an attendant present.
Personal injury may result.
WARNING! Do not attempt to personally place your power chair in freewheel mode while
seated on it. Personal injury may result. Ask an attendant for assistance if necessary.
WARNING! Do not place your power chair in freewheel mode while on an incline. he
chair could roll uncontrollably on its own, causing personal injury.
Stationary Obstacles (Steps, Curbs, etc.)
Proceed with extreme caution when driving near raised surfaces, unprotected ledges and/or drop-offs (curbs,
porches, stairs, etc.). The correct method for approaching a curb is illustrated in figure 1a.
WARNING! Do not attempt to have your power chair climb or descend an obstacle that is
higher than two inches unless you have the assistance of an attendant.
WARNING! Do not attempt to have your power chair proceed backward down any step,
curb, or other obstacle. his may cause the power chair to tip and cause personal injury.

10 www.pridemobility.com Jazzy 1103 Rev L/Feb03
II. SAFETY
Public Streets and Roadways
WARNING! You should not operate your power chair on public streets and roadways. Be
aware that it may be difficult for traffic to see you when you are seated on your power
chair. Obey all local pedestrian traffic rules. Wait until your path is clear of traffic, and
then proceed with extreme caution.
Stairs and Escalators
Power chairs are not designed to travel up or down stairs or escalators. Always use an elevator.
WARNING! Never use your power chair to negotiate steps or escalators. You may cause
injury to yourself and to others and/or damage your power chair.
Doors
nDetermine if the door opens toward or away from you.
nDrive your power chair gently and slowly forward to push the door open. Or drive your power chair gently
and slowly backward to pull the door open.
Elevators
Modern elevators have a door edge safety mechanism that, when pushed, reopens the elevator door(s).
nIf you are in the doorway of an elevator when the door(s) begin to close, push on the rubber door edge or
allow the rubber door edge to contact the power chair and the door will reopen.
nUse care that pocketbooks, packages, or power chair accessories do not become caught in elevator doors.
EMI & RFI
Laboratory tests performed by the Food and Drug Administration (FDA) have shown that radio waves can cause
unintended motion of electric mobility vehicles. Radio waves are a form of electromagnetic energy (EM). When
EM adversely affects the operation of an electronic device, it is called Electromagnetic Interference (EMI) or
Radio Frequency Interference (RFI). For more information, see III. EMI/RFI.
Lift/Elevation Products
If you will be traveling with your power chair, you may find it necessary to use a lift/elevation product to aid in
transportation. Pride recommends that you closely review the instructions, specifications, and safety information
set forth by the manufacturer of the lift/elevation product before using that product.
Motor Vehicle Transport
Currently, there are no standards approved for tie-down systems in a moving vehicle of any type to transport a
person while seated in a power chair.
Transfers
Transferring onto and off of your power chair requires a good sense of balance. Always have an attendant or
healthcare professional present while learning to properly transfer yourself.

Jazzy 1103 Rev L/Feb03 www.pridemobility.com 11
II. SAFETY
To eliminate the possibility of in ury, Pride recommends that you or a trained attendant perform the following tasks
before attempting a transfer:
nTurn the power off. See VII. Operation.
nEnsure your power chair is not in freewheel mode. See IV. The Jazzy 1103
nTurn both caster wheels toward the transfer destination to improve power chair stability during transfer.
nMake sure both armrests are flipped up or removed from your power chair.
nFlip the footrest up, or move the leg rests aside; this will help to keep your feet from getting caught on the
footrest or the leg rests during the transfer.
nReduce the distance between your power chair and the ob ect you are transferring onto.
WARNING! Before transferring, position yourself as far back as possible in the power
chair seat to prevent the power chair from tipping forward during transfer and causing
injury.
WARNING! Avoid using your armrests for weight bearing purposes. Such use may cause
the power chair to tip and cause personal injury.
WARNING! Avoid putting all of your weight on the footrest. Such use may cause the power
chair to tip and cause personal injury.
Positioning Belts
Your authorized Pride provider, therapist(s), and other healthcare professionals are responsible for determining
your requirement for a positioning belt in order to operate your power chair safely.
WARNING! If you require a positioning belt to safely operate your power chair, make sure
it is fastened securely. Serious personal injury may result if you fall from the power chair.
WARNING! he positioning belt is not designed for use as a seat belt in a motor vehicle.
Nor is your Jazzy suitable for use as a seat in any vehicle. Anyone traveling in a vehicle
should be properly belted into seats approved by the vehicle manufacturer.
WARNING! Do not sit on your power chair while it is in a moving vehicle. Personal injury
and/or property damage may result.
WARNING! Always be sure your power chair and its batteries are properly secured when it
is being transported. Failure to do so may result in personal injury and/or damage to your
power chair.
Inclement eather Precautions
WARNING! Pride recommends that you do not operate your power chair in icy or slippery
conditions or on salted surfaces (i.e., walks or roads). Such use may adversely affect the
performance and safety of your power chair, resulting in an accident and personal injury.
WARNING! Do not expose your power chair to any type of moisture at any time (rain, snow,
mist, or wash). Such exposure can damage your power chair. Never operate your power
chair if it has been exposed to moisture until it has dried thoroughly.

12 www.pridemobility.com Jazzy 1103 Rev L/Feb03
II. SAFETY
Reaching and Bending
Never reach, lean, or bend while driving your power chair. If it is absolutely necessary to reach, lean, or bend while
seated on your power chair, it is important to maintain a stable center of gravity and keep the power chair from
tipping. Pride recommends that the power chair user determine his/her personal limitations and practice bending
and reaching in the presence of a qualified healthcare professional.
WARNING! Do not bend, lean, or reach for objects if you have to pick them up from the floor by
reaching down between your knees. Movements such as these may change your center of gravity
and the weight distribution of the power chair. his may cause your power chair to tip, possibly
resulting in personal injury. Keep your hands away from the tires when driving.
Batteries
In addition to following the warnings below, be sure to comply with all other battery handling information. For
more information about your power chairs batteries, see VI. Batteries and Charging.
WARNING! Power chair batteries are heavy. See specifications table. If you are unable to lift that
much weight, be sure to get help. Lifting beyond your capacity can result in personal injury.
WARNING! Battery posts, terminals, and related accessories contain lead and lead compounds.
Wash hands after handling.
WARNING! Always protect the batteries from freezing and never charge a frozen battery. Charging
a frozen battery may result in personal injury and/or damage to the battery.
Preventing Unintended movement
WARNING! If you anticipate being seated in a stationary position for an extended period of time,
turn off the power. his will prevent unexpected motion from inadvertent joystick contact. his will
also eliminate the possibility of unintended chair movement from electromagnetic (EM) sources.
Failure to do so may result in personal injury.
Prescription Drugs/Physical Limitations
Users must exercise care and common sense when operating a power chair. This includes awareness of safety
issues when taking prescribed or over-the-counter drugs or when the user has specific physical limitations.
WARNING! Consult your physician if you are taking prescribed or over-the-counter medication or if
you have certain physical limitations. Some medications and limitations may impair your ability to
operate your power chair in a safe manner.
Alcohol
The power chair user must exercise care and common sense when operating his/her power chair. This includes
awareness of safety issues while under the influence of alcohol.
WARNING! Do not operate your power chair while you are under the influence of alcohol, as this
may impair your ability to operate your power chair in a safe manner.
Removable Parts
WARNING! Do not attempt to lift or move a power chair by any of its removable parts. Personal
injury and/or damage to the power chair may result.

Jazzy 1103 Rev L/Feb03 www.pridemobility.com 13
III. EMI/RFI
Laboratory tests performed by the Food and Drug Administration (FDA) have shown that radio waves can cause
unintended motion of power chairs. Radio waves are a form of electromagnetic energy. When this energy adversely
affects the operation of an electronic device, it is called Electromagnetic Interference (EMI) or Radio Frequency
Interference (RFI).
WARNING! Radio waves may interfere with the control of power chairs.
EMI/ FIF EQUENTLY ASKED QUESTIONS (FAQS)
The following FAQs summarize what you should know about EMI/RFI. Use this information to minimize the risk
that EMI/RFI will affect your power chair.
Where do radio waves come from?
Radio waves are emitted from the antennas of cellular phones, mobile two-way radios (such as walkie-talkies),
radio stations, TV stations, amateur radio (HAM) transmitters, wireless computer links, microwave sources, and
paging transmitters. Radio waves are a form of electromagnetic energy (EM). Because electromagnetic energy is
more intense closer to the transmitting antenna (source of emission), the EM fields from two-way radios are of
special concern to power chair users.
If my power chair is affected by EMI/RFI, what kind of motion should I e pect?
This is hard to predict. It would depend on a number of factors:
nStrength of the radio waves
nConstruction of the power chair
nPosition of the power chair (whether it is on level ground or on an incline)
nWhether or not the power chair is in motion
An affected power chairs movement can be erratic. It may move by itself or come to a sudden stop. Furthermore,
it is possible for EMI/RFI to unexpectedly release the brakes on a power chair. Some intense sources of EMI/RFI
can even damage the control system of the Jazzy.
Is there any way to know for sure whether radio waves are responsible for the unintended motion
of my power chair?
Unfortunately, interference from radio wave sources may be difficult to recognize, since the signals from these
sources are invisible and may be intermittent. However, the FDA recommends that you report all incidents of
unintended motion or brake release to the power chair manufacturer and, if possible, note whether there was a
radio wave source nearby at the time of the incident.
Has anyone been hurt from erratic, unintended motion of power chairs?
The FDA has reports of in uries that resulted from the apparent uncontrolled motion of power chairs. However, it
is unclear how many of these incidents were actually caused by radio wave interference.

14 www.pridemobility.com Jazzy 1103 Rev L/Feb03
III. EMI/RFI
Are all power chairs susceptible to EMI/RFI?
Each make and model of chair differs in its ability to resist electromagnetic interference. That is, each has a
particular level of immunity to interference, measured in volts per meter (Vm). A higher immunity level offers
greater protection. In other words, a power chair with a high immunity level is less likely to be affected by a strong
radio source than one with a low immunity level.
What is the FDA doing about the problem?
The FDA has written to the manufacturers of power chairs and requested that they test their new products to be
sure that they provide a reasonable degree of immunity against EMI/RFI. The letter states that power chairs should
have an immunity of at least 20 V/m. This provides a reasonable degree of protection against the common sources
of EMI/RFI.
The FDA has also requested that these manufacturers clearly label their products with the immunity level, or state
that the immunity level is not known. The labeling and informational material supplied with the power chair must
explain what the immunity level means, and the labeling or informational material must warn users about the possibility
of EMI/RFI and how to avoid it. In addition, the FDA has recommended that manufacturers establish an educational
program to inform users of power chairs, and their caregivers, about the problems associated with EMI/RFI, and
the actions they can take to minimize the risk.
What can I do to find out if my power chair is likely to be affected by EMI/RFI?
If youve had your power chair for a long time and havent experienced any unintended motion, it is not likely that
you will have problems in the future. But it is always possible that problems could arise if you are close to a source
of radio waves. Therefore, it is very important to be alert to this possibility. The Jazzy meets or exceeds an
immunity level of at least 20 V/m.
What can I do to reduce the risk that my power chair could be affected by EMI/RFI?
Here are some precautions you can take:
nDo not turn on or use hand-held personal communications devices, such as citizens band (CB) radios and
cellular phones, while the power chair is on.
nBe aware of nearby transmitters, such as radio or TV stations and hand-held or mobile two-way radios, and
try not to come close to them. For example, if you are in a power chair with an immunity level of 20 V/m, you
should remain at least three feet from a hand-held two-way radio and ten feet from a mobile two-way radio.
nBe aware that adding accessories and/or components, or modifying the power chair may make it more susceptible
to interference from radio wave sources. There is no easy way to evaluate their effect upon the overall immunity
of the power chair.
What should I do if my power chair moves une pectedly?
If unintended motion or brake release occurs, turn the power chair off as soon as it is safe to do so. Call Pride at
800-424-8205 to report the incident.

Jazzy 1103 Rev L/Feb03 www.pridemobility.com 15
IV. THE JAZZY 1103
Figure . The Jazzy 1103
SEAT
BASE
CONTROLLER
ANTI-TIP WHEELS
ARMRESTS
BODY SHROUD
FOOTREST
CASTER WHEEL DRIVE WHEEL
FREEWHEEL LEVERS
POWER BASE ASSEMBLY
SEAT ASSEMBLY
The Jazzy has two main assemblies: the seat and the power base. See figures 2, 3, and 4. Typically, the seat
assembly includes the armrests, seatback, and seat base. The Jazzy seat may also have some optional accessories
attached to it, such as a basket, a cane/crutch holder, or a cup holder. See IX. Options and Accessories.
The power base is the heart of the Jazzy. The power base assembly includes two motor/brake assemblies, two
drive wheels, two anti-tip wheels, two caster wheels, two batteries, and all wiring harnesses.
SEATBACK
JOYSTICK

16 www.pridemobility.com Jazzy 1103 Rev L/Feb03
IV. THE JAZZY 1103
JAZZY 1103 SPECIFICA IONS
Suspension: Limited suspension
Drive Wheels: 10-in. pneumatic, center-mounted (solid tires are optional)
Caster Wheels: 8-in. solid, rear articulating
Anti-Tip Wheels: 6-in. solid, front mounted
Max. Speed: Up to 4 mph
Brakes: Intelligent Braking, electronic regenerative, disc park brake
Ground Clearance: 3 in.
Turning Radius: 18 in.
Overall Size: Length: 34.5 in.
Width: 23 in.
Seating Options: Medium Back (standard)
Synergy Seat
High Back with headrest
Power Elevating Seat
Drivetrain: Two motor, mid-wheel
Batteries: Two 12-volt, U-1 batteries
Range: Up to 25 miles
Battery Charger: 3 amp, Onboard
3 amp, Off-board (optional)
Electronics: 50-amp Pilot Controller
50-amp VSI Controller
Weight Capacity: 250 lbs.
Component Weights: Base: 77 lbs.
Seat: 33 lbs.
Batteries: 24.5 lbs. each
Warranty: Lifetime limited warranty on frame
2-year electronics warranty
18 months on drive motors

Jazzy 1103 Rev L/Feb03 www.pridemobility.com 17
Figure 4. Electronics Tray (Non Power Seat)
IV. THE JAZZY 1103
8
SEAT POST
BATTERY
BATTERY
MOTOR/BRAKE
ASSEMBLY
MAIN CIRCUIT BREAKER
AMMETER
CONTROLLER CONNECTOR
BATTERY
CHARGER
ELECTRONICS TRAY
ONBOARD CHARGER
AC POWER CORD RECEPTACLE
Figure 3. Jazzy 1103 Power Base (Shroud Removed)
CHARGER INHIBIT CONNECTOR

18 www.pridemobility.com Jazzy 1103 Rev L/Feb03
IV. THE JAZZY 1103
ELECT ONICS T AY
The electronics tray is located on the back of the power base. See figure 4. The ammeter, the onboard charger AC
power cord receptacle, the main circuit breaker, the controller connector, and the charger inhibit connector are all
located on the electronics tray.
Ammeter: The ammeter displays the chargers current output in amps. SeeVI. Batteries and Charging.
Onboard Battery Charger AC Power Cord Receptacle: This is where the AC power cord plugs into the
onboard charger.
Main Circuit Breaker: The main circuit breaker is a safety feature built into your Jazzy. When the batteries and
the motors are heavily strained (e.g., from excessive loads), the main circuit breaker trips to prevent damage to the
motors and the electronics. If the circuit trips, allow your Jazzy to rest for approximately one minute. Next, push
in the circuit breaker button, turn on the controller, and continue normal operation. If the main circuit breaker
continues to trip repeatedly, contact your authorized Pride provider.
Controller Connector: This is where the controller connects to the power base.
Charger Inhibit Connector: Your power chair is equipped with a charger inhibit connector. The charger inhibit
enables the onboard charger to disable the controller during charging. The charger inhibit connector is coded with
colorted dots. The dots are positioned so that you can align the flat side of the male connector with the flat side of
the female connector before making the connection.
CAU ION! Failure to properly align the connectors can result in damage to the controller, the
charger harness, and the connectors.

Jazzy 1103 Rev L/Feb03 www.pridemobility.com 19
MANUAL F EEWHEEL LEVE S
For convenience, your Jazzy 1103 is equipped with two manual freewheel levers. See figure 2. These levers allow
you to disengage the drive motors and maneuver the chair manually.
o engage or disengage the drive motors:
1. Locate the two (2) metal levers protruding from the body shroud.
2. Turn them rearward to disengage the drive motors. See figure 5.
3. Turn them outward to engage the drive motors. See figure 6.
If the lever is difficult to move in either direction, slightly rock the Jazzy back and forth. The lever should then move
to the desired position.
CAU ION! It is important to remember that when your Jazzy is in freewheel mode, the braking
system is disengaged.
WARNING! Do not use the Jazzy while the drive motors are disengaged! Do not disengage the drive
motors when the Jazzy is on an incline, as the unit could roll on its own, causing injury!
Figure 6. Drive Mode (Drive Motor Engaged)
Figure 5. Freewheel Mode (Drive Motor Disengaged)
IV. THE JAZZY 1103

20 www.pridemobility.com Jazzy 1103 Rev L/Feb03
After you have become familiar with your Jazzys operation, you may find the need to ad ust the seat. There are
some ad ustments you can make to increase your comfort such as seat height, armrest angle, footrest height and
angle, and oystick position.
WARNING! If your Jazzy was configured at your authorized Pride provider, please consult your
healthcare professional before changing the seat position or making any other adjustment. Some
adjustments may degrade you Jazzys performance and safety by changing its center of gravity.
V. COMFORT ADJUSTMENTS
Figure 7. Seat Height Adjustment
SEAT PEDESTAL
Figure 8. Armrest Width
LOOSEN KNOB TO MOVE ARMREST.
SEAT PEDESTAL BOLT
SEAT
POST
HEX
HEAD
BOLT
HEX
HEAD
NUT
You may need the following to make comfort adjustments:
nMetric/Standard Hex Key Set
nMetric/Standard Socket Set and Ratchet
nAd ustable Wrench
SEAT HEIGHT
You can change the seat height to one of three positions in one-
inch increments.
WARNING! Do not pick up the seat frame by the
armrests. hey are free to pivot, and you may lose
control of the seat if they do so, resulting in
personal injury or damage to the chair.
To change the seat height:
1. Turn the power off.
2. Make sure the Jazzy is not in freewheel.
3. Unplug the controller and charger inhibit connectors.
4. Pull the seat release lever forward to unlock it.
5 Lift the seat up and out of the seat post.
6. Lift off the shroud.
7. Loosen the seat pedestal bolt. See figure 7.
8. Use two wrenches to loosen and remove the hex head nut and
bolt. See figure 7.
9. Slide the seat post up or down in the seat pedestal.
10. Align the holes on the seat post and the seat pedestal.
11. Reinstall the hex head bolt and tighten.
12. Tighten the seat pedestal bolt.
13. Reinstall the shroud.
14. Reinstall the seat.
15. Reconnect the controller and the charger inhibit.
