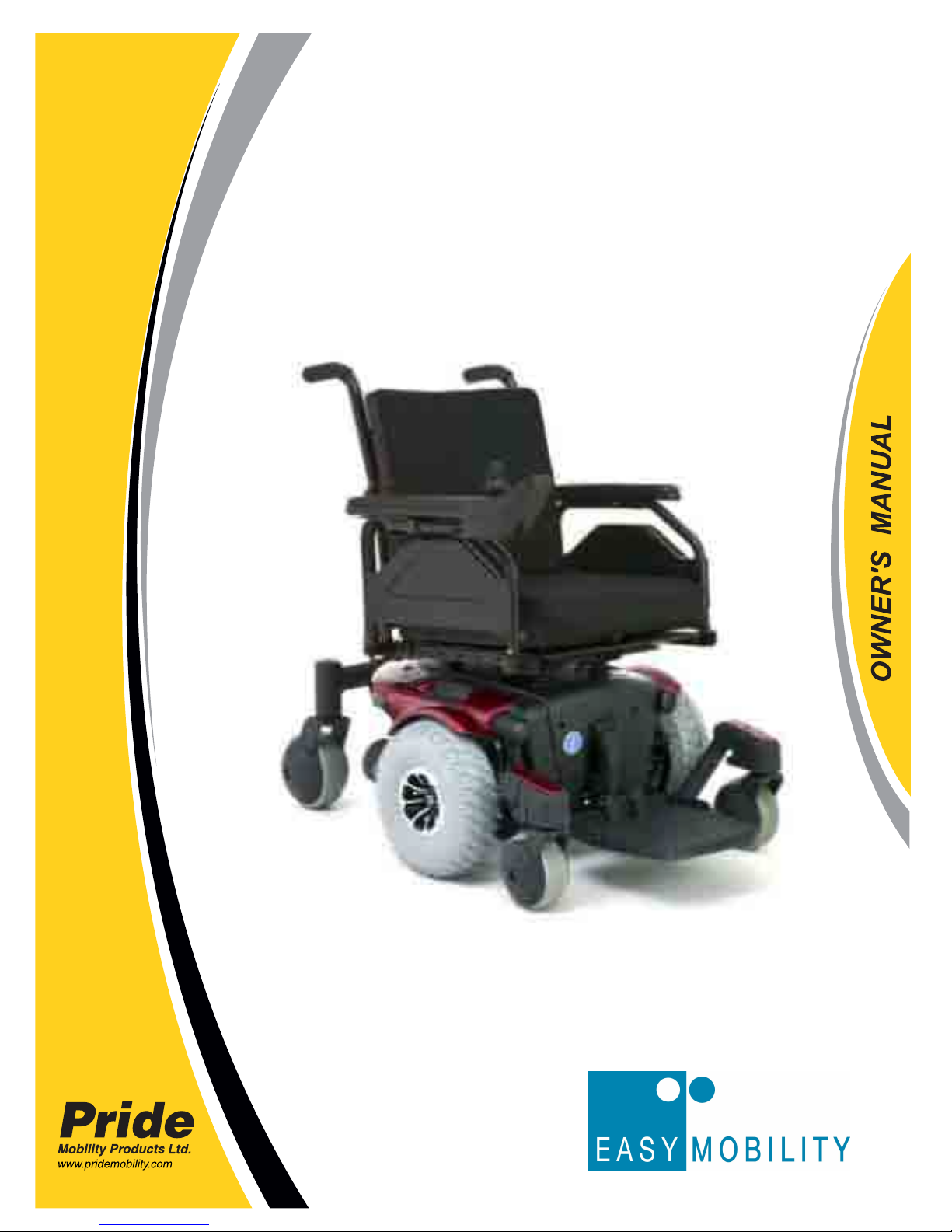

Pride QUANTUM SERIES User manual

QUANTUM
SERIES
Including Models: Quantum 610
Freephone 0800 62 68 29

SAFETY GUIDELINES
Copyright©2008
PrideMobilityProductsLtd.
INFMANU3077/RevC/January2008
QuantumRehabSpecialist:_____________________________________________________________________
Address:________________________________________________________________________________
Phone Number:___________________________________________________________________________
PurchaseDate:____________________________________________________________________________
NOTE: This owner’s manual is compiled from the latest specifications and product information available
at the time of publication. We reserve the right to make changes as they become necessary. Any changes to
our products may cause slight variations between the illustrations and explanations in this manual and the
product you have purchased. The latest/current version of this manual is available on our website.
Thesymbolsbelowareusedthroughoutthisowner'smanualandonthe power chair to identify warningsandimportant
information.Itisveryimportantforyou toreadthem andunderstandthem completely.
WARNING! Indicates a potentially hazardous condition/situation. Failure to follow designated
procedures can cause either personal injury, component damage or malfunction. On the product,
this icon is represented as a black symbol on a yellow triangle with a black border.
MANDATORY! These actions should be performed as specified. Failure to perform mandatory
actions can cause personal injury and/or equipment damage. On the product, this icon is
represented as a white symbol on a blue dot with a white border.
PROHIBITED! These actions are prohibited. These actions should not be performed at any time or
in any circumstances. Performing a prohibited action can cause personal injury and/or equipment
damage. On the product, this icon is represented as a black symbol with a red circle and red
slash.
Quick Reference Information
088 609 661
WARNING! A Quantum Rehab Specialist or a qualified technician must perform the initial setup
of this power chair and must perform all of the procedures in this manual.

Quantum 610 www.quantumrehab.com 3
I. INTRODUCTION....................................................................................................................................4
II. SAFETY....................................................................................................................................................5
III. YOUR POWER CHAIR.......................................................................................................................17
IV. ASSEMBLY............................................................................................................................................21
V. COMFORT ADJUSTMENTS...........................................................................................................24
VI. BATTERIES AND CHARGING .......................................................................................................30
VII. CARE AND MAINTENANCE ...........................................................................................................34
VIII.WARRANTY...........................................................................................................................................41
APPENDIX I - SPECIFICATIONS ..........................................................................................................42
CONTENTS

4 www.quantumrehab.com Quantum 610
I. INTRODUCTION
SAFETY
WELCOMEtoPrideMobility Products Corporation (Pride). The power chair youhave purchased combinesstate-of-
the-artcomponentswithsafety,comfortandstyling inmind.Weareconfidentthat thesedesignfeatureswillprovide you
withtheconveniencesyouexpectduringyourdaily activities. Once you understand how tosafelyoperate and carefor
yourpower chair,itshould give you yearsoftroublefree operation and service.
Readand followallinstructions, warningsandnotes inthismanual beforeattemptingtooperateyourpowerchairfor the
firsttime.Youmustalsoreadallinstructions, warningsand notescontainedinanysupplementalinstructionalbookletsfor
thecontroller,frontriggingsand/orseatingsystemthataccompaniedyourpowerchairbeforeinitialoperation.Your safety
dependsupon you, as wellasyourprovider,caretakerorhealthcareprofessional in using goodjudgement.
Ifthereisanyinformationin this manual which you do not understand, or if yourequire additional assistance for setup
or operation, please contact your authorised Pride Dealer.Failure to follow the instructions in this manual and
thoselocatedon yourpowerchaircan leadtopersonalinjuryand/ordamage tothepowerchair,andmayvoid
thewarranty.
PURCHASER’S AGREEMENT
Byaccepting delivery of this product,you promisethat youwillnot change, alter or modifythis productor removeor
renderinoperableorunsafe anyguards,shields orothersafety featuresofthis product;fail,refuseorneglecttoinstallany
retrofitkitsfrom time to time provided by Pride to enhance or preserve the safe use ofthisproduct.
SHIPPING AND DELIVERY
Beforeusing yourpowerchair, makesureyourdelivery iscompleteas somecomponentsmay beindividuallypackaged.
Ifyoudo not receive a complete delivery,please contact your authorised Pride Dealer immediately.Wheredamage has
occurredduring transport, eithertothepackagingor content, pleasecontactthedeliverycompany responsible.
INFORMATION EXCHANGE
Wewanttohearyourquestions,commentsandsuggestions aboutthis manual.Wewouldalso liketo hearaboutthesafety
andreliability of yournewpowerchair, and abouttheserviceyou received fromyourauthorisedPride Dealer.
Please notify us of any change of address, so we can keep you apprised of important information about safety, new
productsand newoptionsthat canincreaseyour ability touseand enjoyyourpower chair. Pleasefeelfree tocontactus at
theaddress below:
PrideMobility ProductsLtd.
32 Wedgwood Road
Bicester, Oxon OX26 4UL
NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact us and
we will be glad to send you a new one immediately.

Quantum 610 www.quantumrehab.com 5
II. SAFETY
PRODUCT SAFETY SYMBOLS
Thesymbols belowareused onthepower chairtoidentifywarnings, mandatoryactionsand prohibitedactions.It isvery
importantfor youtoreadand understand themcompletely.
Read and follow the information in the owner’s manual.
Maximum seating weight.
Do not allow unsupervised children to play near the power chair while the batteries are
charging.
Keep your hands away from the tyres when driving. Be aware that loose fitting clothing
can become caught in drive tyres.
Use correct tie-down points for controller harness to prevent the harness from getting
caught in the drive tyres, pinched in the seat frame or damaged when passing through
doorways.
Do not use a cell phone, walkie/talkie, laptop, or other radio transmitter while operating.
Avoid exposure to rain, snow, ice, salt or standing water whenever possible. Maintain and
store in a clean and dry condition.

6 www.quantumrehab.com Quantum 610
II. SAFETY
Removal of grounding prong can create electrical hazard. If necessary, properly install an
approved 3-pronged adapter to an electrical outlet having 2-pronged plug access.
Do not place your power chair in freewheel mode while on an incline.
Do not lift the mobility product while seated in it.
Keep tools and other metal objects away from battery terminals.
Do not place your power chair in freewheel mode while on an decline.
Do not lift the mobility product while seated in it.
Wear safety goggles.

Quantum 610 www.quantumrehab.com 7
Do not connect an extension lead to the AC/DC converter or the battery charger.
Corrosive chemicals contained in battery. Use only AGM or Gel-Cell batteries to reduce
the risk of leakage or explosive conditions.
Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive conditions.
Do not use batteries with different amp-hour (Ah) capacities. Do not mix old and new
batteries. Always replace both batteries at the same time.
II. SAFETY
Explosive conditions exist!
EMI-RFI - This product has been tested and passed at an immunity level of 20 V/m.
Battery Set Configuration:
++
++
+ = Positive (Red) Terminal Post
- = Negative (Black) Terminal Post
Connect Red wire to Red Positive (+) Terminal Post
Connect Black wire to Black Negative (–) Terminal Post

8 www.quantumrehab.com Quantum 610
Disposal and recycling - Contact your authorised Pride Dealer for information on
proper disposal and recycling of your Pride product and its packaging.
Locked and in drive mode.
Place unit on level ground and stand behind or to one side when changing from drive
mode to freewheel mode or freewheel mode to drive mode.
Unlocked and in freewheel mode.
Battery charger for indoor use only.
Contains Lead.
II. SAFETY

Quantum 610 www.quantumrehab.com 9
II. SAFETY
SAFETY
MANDATORY! Do not operate your new power chair for the first time without completely reading
and understanding this owner’s manual.
Your power chairisa state-of-the-artlife-enhancementdevicedesignedto increasemobility.Prideprovidesanextensive
varietyof products tobest fitthe individual needs ofthe power chair user. Please be awarethatthe final selection and
purchasing decision regarding the type of power chair to be used is the responsibility of the power chair user, who is
capableof makingsuchadecision, andhis/herhealthcareprofessional (i.e.,medicaldoctor,physicaltherapist,etc.).
Thecontents ofthismanualare basedontheexpectation thatamobilitydevice experthasproperlyfitted thepowerchair
totheuserandhasassisted theprescribinghealthcareprofessionaland/ortheQuantum RehabSpecialistintheinstruction
processfor the use of theproduct.
Therearecertain situations,includingsomemedicalconditions,wherethepowerchair userwillneedtopracticeoperating
the power chair in the presence of a trained attendant.Atrained attendant can be defined as a family member or care
professionalspeciallytrainedinassistingapowerchairuserinvariousdailylivingactivities.
Asyoubegin usingyour powerchairduringdailyactivities,youwillprobablyencountersituationsinwhichyouwillneed
somepractice. Simplytakeyourtime and youwillsoon be infullandconfident controlasyoumanoeuvre through door-
ways,onandoffoflifts,up and down ramps and over moderate terrain.
Beloware someprecautions,tips and othersafetyconsiderations that willhelpthe userbecomeaccustomedto operating
thepower chairsafely.
Modifications
Pridehasdesignedandengineeredyourpowerchairtoprovide maximummobilityandutility.Awiderangeofaccessories
isavailable from your Quantum Rehab Specialist to further customise your power chairtobettersuityourneedsand/or
preferences.However,undernocircumstancesshould youmodify,add, removeordisableanyfeature, partorfunctionof
yourpower chair.
WARNING! Do not modify your power chair in any way not authorised by Pride. Do not use
accessories if they have not been tested or approved for Pride products.
Pre-Ride Safety Check
Gettoknowthefeelofyourpowerchairanditscapabilities.Priderecommendsthatyouperformasafetycheckbefore
eachusetomakesureyourpower chair operates smoothly and safely.
Performthefollowinginspections prior to using your power chair:
!Check forpropertyre inflation.Maintain butdo notexceed 2.4 bar (35psi,240kPa)ineach tyreif equippedwith
pneumatictyres.
!Checkall electrical connections. Make sure they are tight and not corroded.
!Checkallcontrollerconnections to the power base. Make sure they aresecured properly.
!Checkthe brakes. See VII. “Care andMaintenance.”
!Checkbattery charge. See VI. “Batteries and Charging.”
NOTE: If you discover a problem, contact your Quantum Rehab Specialist for assistance.

10 www.quantumrehab.com Quantum 610
II. SAFETY
Weight Limitations
Your powerchairis ratedfora maximumweightcapacity.Please refertothe specificationstablefor thislimit.
MANDATORY! Stay within the specified weight capacity of your power chair. Exceeding the weight
capacity voids your warranty. Pride will not be held responsible for injuries and/or property damage
resulting from failure to observe weight limitations.
WARNING! Do not carry passengers on your power chair. Carrying passengers on your power
chair may affect the centre of gravity, resulting in a tip or a fall.
Tyre Inflation
Ifyourpowerchair isequippedwithpneumatictyres,youshould checkorhavetheair pressurecheckedregularly.Proper
inflationpressures willprolongthe lifeofyour tyresandhelp ensurethesmooth operationofyourpower chair.
WARNING! It is important that 2.4 bar (35 psi, 240 kPa) tyre pressure be maintained in pneumatic
tyres at all times. Do not underinflate or overinflate your tyres. Low pressure may result in loss of
control, and overinflated tyres may burst. Failure to maintain 2.4 bar (35 psi, 240 kPa) tyre pressure
in pneumatic tyres at all times may result in tyre and/or wheel failure.
WARNING! Inflate your power chair drive tyres from a regulated air source with an available
pressure gauge. Inflating your tyres from an unregulated air source could overinflate them, resulting
in a burst tyre.
Incline Information
Moreandmorebuildingshaverampswithspecified degreesofinclination,designedforeasyandsafeaccess.Someramps
mayhave turning switchbacks(180-degreeturns)that require youtohavegood cornering skillsonyour power chair.
!Proceedwithextreme caution as you approach the downgrade of a ramp or other incline.
!Takewideswings withyourpowerchair’sfront wheelsaroundanytightcorners.Ifyou dothat,thepowerchair’srear
wheelswill follow awidearc,notcut the cornershortandnotbump into orgethungupon any railingcorners.
!When driving down a ramp, keep the power chair’s speed adjustment set to the slowest speed setting to ensure a
safelycontrolleddescent.
!Avoidsudden stops and starts.
Whenclimbingan incline,trytokeepyourpowerchairmoving.Ifyoumust stop,startupagainslowlyandthenaccelerate
cautiously.Whendrivingdown an incline, set your power chair to the slowest setting and drive in theforwarddirection
only. If your power chair starts to move down the incline faster than you anticipated or desired, allow it to come to a
completestop byreleasingthejoystick, thenpushthejoystick forwardslightlytoensure asafelycontrolleddescent.
WARNING! When on any sort of an incline or decline, never place the power chair in
freewheel mode while seated on it or standing next to it.

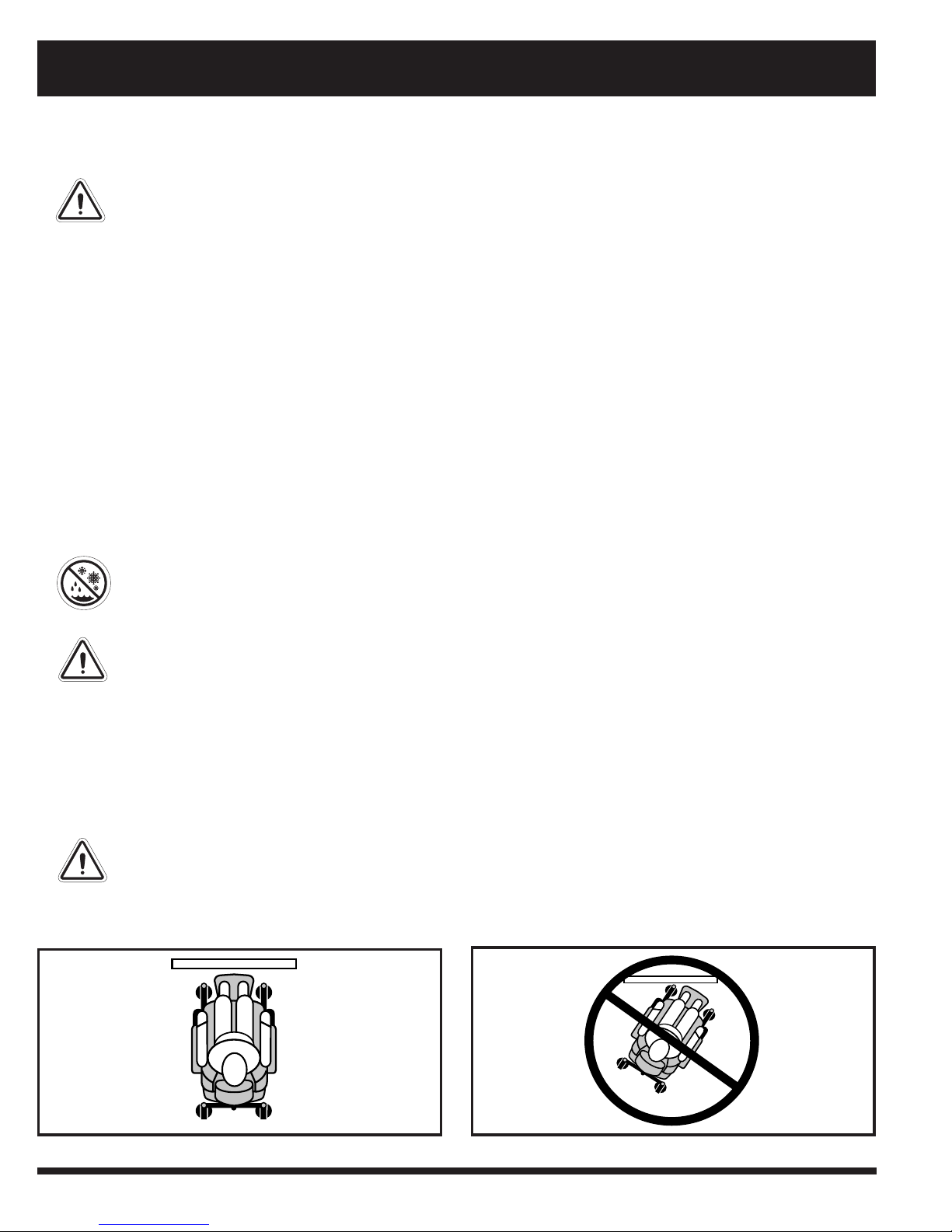

WARNING! When climbing an incline, do not zigzag or drive at an angle up the face of
the incline. Drive your power chair straight up the incline. This greatly reduces the
possibility of a tip or a fall. Always exercise extreme caution when negotiating an
incline.
WARNING! You should not travel up or down a potentially hazardous incline (i.e., areas
covered with snow, ice, cut grass or wet leaves).
WARNING! Never travel down an incline rearward. Doing so may cause the power
chair to tip. Always exercise extreme caution when negotiating an incline.

Quantum 610 www.quantumrehab.com 11
II. SAFETY
Figure 1. Maximum Safe Slope (Ascending and Descending)
WARNING! If your power chair is equipped with a reclining seatback, do not attempt to negotiate
inclines with the seat in a reclined position. Do not attempt to negotiate obstacles with the seat
in a reclined position unless an attendant is present to help stabilise the chair. Failure to heed
could result in the power chair tipping over.
WARNING! Even though your power chair is capable of climbing slopes greater than those illustrated
in figure 1, do not, under any circumstances, exceed the incline guidelines or any other
specifications presented in this manual. Doing so could cause instability in your power chair.
Priderecommendsthatthemaximumslopeofaninclineyouattempttosafelyascendordescendonyourpowerchairdoes
not exceed 8.7% (5°). See figure 1.
WARNING! Any attempt to climb or descend a slope steeper than 8.7% (5°) may put your power
chair in an unstable position and cause it to tip.
Freewheel Mode
Yourpowerchairisequippedwithtwomanualfreewheelleverstoallowformanualmanoeuvrabilitybyatrainedattendant.
Formore information abouthowtoplace your powerchairintoand out offreewheelmode,see III. “YourPower Chair.”
WARNING! Do not use your power chair in freewheel mode without an attendant present.
WARNING! Do not attempt to personally place your power chair in freewheel mode
while seated on it. Ask an attendant for assistance if necessary.
WARNING! Do not place your power chair in freewheel mode while on an incline or
decline. This could cause the chair to roll uncontrollably on its own.
Braking Information
Yourpowerchairis equipped withtwopowerfulbrake systems:
!Regenerative— useselectricityto rapidly slowthevehicle whenthejoystickreturns tothecentre/stop position.
!DiscParkBrake—activatesmechanicallyafterregenerative brakingslowsthevehicletonearstop,orwhen poweris
removedfrom the systemforanyreason.
Cornering Information
Whileyourpowerchairisequippedwithfrontandrearcastorwheels,excessivelyhighcorneringspeedscanstillcreatethe
possibilityoftipping.Factorswhichaffectthepossibilityoftippinginclude,butarenotlimitedto:corneringspeed,steering
angle(howsharplyyouareturning),unevenroadsurfaces,inclinedroadsurfaces,ridingfromanareaoflowtractiontoan
area of high traction (such as passing from a grassy area to a paved area – especially at high speed while turning) and
abruptdirectional changes. High cornering speeds arenot recommended.If youfeel thatyou maytip overin acorner,
reduceyour speed and steering angle (i.e.,lessenthesharpnessof the turn) to prevent yourpowerchairfromtipping.
WARNING! When cornering sharply, reduce your speed and maintain a stable centre of gravity.
This greatly reduces the possibility of a tip or fall.

12 www.quantumrehab.com Quantum 610
KERB
KERB
II. SAFETY
Public Streets and Roadways
WARNING! You should not operate your power chair on public streets and roadways. Be aware
that it may be difficult for traffic to see you when you are seated on your power chair. Obey all
local pedestrian traffic rules. Wait until your path is clear of traffic, and then proceed with extreme
caution.
Outdoor Driving Surfaces
Yourpowerchairisdesignedtoprovideoptimumstabilityundernormaldrivingconditions—dry,levelsurfacescomposed
ofconcrete,blacktopor tarmac.However,Priderecognisesthattherewill betimeswhenyouwill encounterothersurface
types.Forthisreason,yourpowerchairis designedto performadmirablyonpackedsoil,grassandgravel.Feel freeto use
yourpowerchairsafely on lawns and in park areas.
!Reduceyour power chair’s speedwhendrivingon uneven terrain and/orsoftsurfaces.
!Avoidtallgrassthatcan entangletherunninggear.
!Avoidlooselypackedgraveland sand.
!Ifyou feelunsureabout adrivingsurface, avoidthatsurface.
Inclement Weather Precautions
Exposureof yourpowerchair to inclementweatherconditions shouldbeavoidedwhenever possible.Ifsuddenly caught
up in rain, snow, severe cold or heat while operating your power chair, proceed to shelter at the earliest opportunity.
Thoroughlydry yourpowerchair beforestoring,chargingor operatingyourpower chair.
PROHIBITED! Operating in rain, snow, salt, mist/spray conditions and on icy/slippery surfaces can
have an adverse affect on the electrical system. Maintain and store your power chair in a dry and
clean condition.
WARNING! Prolonged exposure to hot or cold conditions may affect the temperature of upholstered
and non-upholstered items on the power chair, possibly resulting in skin irritation. Exercise caution
when using the power chair in extremely hot or cold conditions or when exposing your power
chair to direct sunlight for prolonged periods of time.
Stationary Obstacles (Steps, Kerbs, etc.)
Proceedwithextreme caution when driving near raised surfaces, unprotectedledges and/or drop-offs(kerbs, porches,
stairs,etc.).Besure yourpowerchairistraveling perpendiculartoanykerbyou mayberequiredtonavigate. Seefigure2.
WARNING! Do not attempt to have your power chair climb or descend an obstacle that is higher
than 5 cm (2 in.) unless you have the assistance of an attendant.
WARNING! If your power chair is equipped with a kerb climber, do not attempt to climb any kerb
in excess of 5 cm (2 in.) in height. Do not approach kerbs at an angle; instead approach any kerb
you intend to ascend or descend in the forward position
WARNING! Do not attempt to have your power chair proceed rearward down any step, kerb or
other obstacle. This may cause the power chair to tip.
Figure 2. Correct Kerb Approach Figure 3. Incorrect Kerb Approach

Quantum 610 www.quantumrehab.com 13
II. SAFETY
Stairs and Escalators
Powerchairsarenotdesignedtotravelupor down stairs or escalators.Alwaysuse a lift.
WARNING! Never use your power chair to negotiate steps or escalators.
Doors
!Determineifthe door opens toward or away from you.
!Driveyour powerchairgently andslowlyforward to pushthedoor openordrive yourpowerchairgently andslowly
rearwardto pull the door open.
Lifts
Modernlifts have a dooredgesafetymechanismthat, when pushed, reopens theliftdoor(s).
!Ifyouareinthe doorway of a lift when the door(s) begin toclose, push on the rubberdoor edge or allowthe rubber
dooredge to contact the powerchair andthe doorwill reopen.
!Usecarethat handbags, packages or power chair accessories donot become caughtin lift doors.
Lift/Elevation Products
Ifyouwillbetravelingwith yourpowerchair,youmayfinditnecessaryto usealift/elevationproducttoaidin transporta-
tion.Priderecommends that you closely reviewthe instructions, specificationsand safetyinformation setforth by the
manufacturerofthelift/elevationproductbeforeusingthatproduct.
WARNING! Never sit on your power chair when it is being used in connection with any
type of lift/elevation product. Your power chair was not designed with such use in
mind and any damage or injury incurred from such use is not the responsibility of
Pride.
Motor Vehicle Transport
Priderecommends thatyoudo notremainseated in yourpowerchair whiletravelingin amotorvehicle.The powerchair
shouldbe stowed in the bootof acar orinthe back of a truckor vanwith batteriesremoved andproperlysecured.
WARNING! Do not sit on your power chair while it is in a moving vehicle.
WARNING! Always be sure your power chair and its batteries are properly secured when it is being
transported. Batteries should be secured in an upright position and protective caps should be
installed on the battery terminals. Batteries should not be transported with any flammable or
combustible items.
Positioning Belts
YourauthorisedPrideDealer,therapist(s)andotherhealthcareprofessionalsareresponsiblefordeterminingyourrequire-
mentforapositioningbeltinorderto operateyourpowerchairsafely.Typically,thepositioningbeltisnotdesignedforuse
asarestrainingdeviceinamotorvehicle.
Positioningbeltsshouldbeinstalled as detailed in this manual. See V.“ComfortAdjustments.”Once installed, the belt
shouldbeplacedacross the pelvis as determined by the user’s healthcare dealer.Anchor pointsof the positioningbelts
shouldbe located so thata projected side-view angleof thepelvis is between 30°–75°of horizontaldepending on the
user’s weight,postureandseat cushionthickness.
WARNING! If you require a positioning belt to safely operate your power chair, make sure it is
fastened securely in order to reduce the possibility of a fall from the power chair.
WARNING! The positioning belt is not designed for use as a seat belt in a motor vehicle.

14 www.quantumrehab.com Quantum 610
II. SAFETY
Batteries
In addition to following the warnings below, be sure to comply with all other battery handling information. For more
informationabout yourpowerchair’s batteries,seeVI.“Batteries andCharging.”
MANDATORY! Battery posts, terminals and related accessories contain lead and lead
compounds. Wear goggles and gloves when handling batteries and wash hands after
handling.
WARNING! Power chair batteries are heavy. See specifications table. If you are unable
to lift that much weight, be sure to get help. Use proper lifting techniques and avoid
lifting beyond your capacity.
WARNING! Always protect the batteries from freezing and never charge a frozen battery.
Charging a frozen battery may result in damage to the battery.
WARNING! Connect your battery harnesses in the proper manner. RED (+) cables must
be connected to positive (+) battery terminals/posts. BLACK (-) cables must be
connected to negative (-) battery terminals/posts. Protective caps should be installed
over all battery terminals. REPLACE cables immediately if damaged.
Removable Parts
WARNING! Do not attempt to lift or move a power chair by any of its removable parts, including the
armrests, seat, foot riggings, controller and shrouds.
Preventing Unintended Movement
WARNING! If you anticipate being seated in a stationary position for an extended period of time,
turn off the power. This will prevent unexpected motion from inadvertent joystick contact. This
will also eliminate the possibility of unintended chair movement from electromagnetic (EM) sources.
Reaching and Bending
Neverreach, lean orbendwhile driving yourpowerchair.If it isabsolutelynecessary to reach,leanorbend while seated
onyour power chair,it is important to maintainastable centre of gravity andkeep thepower chairfrom tipping.Pride
recommendsthatthe power chair user determine his/her personallimitations and practicebending and reachingin the
presenceofaqualified healthcareprofessional.
WARNING! Do not bend, lean or reach for objects if you have to pick them up from the
floor by reaching down between your knees or if you have to reach over the back of
the seat. Movements such as these may change your centre of gravity and the weight
distribution of the power chair, possibly causing your power chair to tip.
WARNING! Keep your hands away from the tyres when driving. Be aware that loose
fitting clothing can become caught in drive tyres.

Quantum 610 www.quantumrehab.com 15
Transfers
Transferringontoandoffofyourpowerchairrequiresagood
senseofbalance.Alwayshaveanattendantorhealthcarepro-
fessionalpresentwhilelearningtoproperlytransferyourself.
Toeliminatethe possibilityofinjury,Priderecommendsthat
youoratrainedattendantperform thefollowingtasksbefore
attemptingatransfer:
!Turnoff the powertothecontroller.
!Ensureyour power chair is notin freewheelmode.See
III.“YourPowerChair.”
!Turnthe castorwheelstowardthe transferdestinationto
improvepowerchairstabilityduringtransfer.
!Makesurebotharmrestsareflipped uporremovedfrom
yourpower chair.
!Flipup thefootplatform ormovetheleg restsaside;this
willhelptokeepyourfeetfromgettingcaughtonthefoot
riggingduringthetransfer.
!Reducethe distance between yourpower chairandthe
objectyou are transferring onto.
II. SAFETY
WARNING! Before transferring, position yourself as far back as possible in the power chair seat
to prevent the power chair from tipping forward during transfer.
WARNING! Avoid putting all of your weight on the power chair armrests and do not use the armrests
for weight bearing purposes, such as transfers. Such use may cause the power chair to tip, resulting
in a fall from the power chair and personal injury.
WARNING! Avoid putting all of your weight on the foot riggings. Such use may cause the power
chair to tip.
User Positioning
Priderecommendsthatallusersbeseatedinanuprightpositionwiththeirpelvispositionedasfarrearwardaspossibleinthe
powerchairseat.AllusersneedtodiscusspelvicpositioningwiththeirQuantumRehabSpecialist,therapist(s)orhealthcare
professionaltodetermineappropriatepelvicpositionwhenseatedonthepowerchairbasedontheuser’sindividualmedicalneeds.
Prescription Drugs/Physical Limitations
Usersmustexercisecareandcommonsensewhenoperatingapowerchair.This includesawareness ofsafety issueswhen
takingprescribed orover-the-counterdrugs orwhenthe userhasspecificphysical limitations.
WARNING! Consult your physician if you are taking prescribed or over-the-counter medication or
if you have certain physical limitations. Some medications and limitations may impair your ability
to operate your power chair in a safe manner.
Figure 4.IdealTransfer Position

16 www.quantumrehab.com Quantum 610
Alcohol/Smoking
Thepowerchairuser mustexercisecareandcommonsensewhen operatinghis/herpowerchair.Thisincludes awareness
ofsafetyissueswhileundertheinfluenceofalcoholor whilesmoking.
WARNING! Do not operate your power chair while you are under the influence of alcohol, as this
may impair your ability to operate your power chair in a safe manner.
WARNING! Pride strongly recommends that you do not smoke cigarettes while seated in your
power chair, although the powerchair has passed the necessary testing requirements for cigarette
smoking. You must adhere to the following safety guidelines if you decide to smoke cigarettes
while seated in your power chair.
!Do not leave lit cigarettes unattended.
!Keep ashtrays a safe distance from the seat cushions.
!Always make sure cigarettes are completely extinguished before disposal.
Electromagnetic and Radio Frequency Interference (EMI/RFI)
WARNING! Laboratory tests have shown that electromagnetic and radio frequency waves can
have an adverse affect on the performance of electrically-powered mobility vehicles.
Electromagneticand Radio FrequencyInterference cancome from sources suchas cellular phones, mobiletwo-way
radios(such as walkie-talkies), radio stations, TVstations,amateurradio(HAM) transmitters, wireless computer links,
microwavesignals,pagingtransmittersandmedium-rangemobiletransceiversusedbyemergencyvehicles.Insomecases,
thesewavescancauseunintendedmovementordamagetothecontrolsystem.Everyelectrically-poweredmobilityvehicle
hasanimmunity(orresistance)toEMI.Thehighertheimmunitylevel,thegreatertheprotectionagainstEMI.Thisproduct
hasbeen tested and has passed at an immunity levelof20V/m.
WARNING! Be aware that cell phones, two-way radios, laptops and other types of radio transmitters
may cause unintended movement of your electrically-powered mobility vehicle due to EMI.
Exercise caution when using any of these items while operating your mobility vehicle and avoid
coming into close proximity of radio and TV stations.
WARNING! The addition of accessories or components to the electrically-powered mobility vehicle
can increase the susceptibility of the vehicle to EMI. Do not modify your power chair in any way
not authorised by Pride.
WARNING! The electrically-powered mobility vehicle itself can disturb the performance of other
electrical devices located nearby, such as alarm systems.
NOTE: For further information on EMI/RFI, go to the Resource Center on www.pridemobility.com. If
unintended motion or brake release occurs, turn your power chair off as soon as it is safe to do so. Contact
your Quantum Rehab Specialist to report the incident.
II. SAFETY

Quantum 610 www.quantumrehab.com 17
III. YOUR POWER CHAIR
THE QUANTUM 610
TheQuantum 610 has twomainassemblies:the seat assembly andthepowerbase assembly. See figure5.Typically, the
seatassembly includes thearmrests,seatback and seatbase.Thepower baseassemblyincludestwo motor/brake assem-
blies,twodrivewheels, four castor wheels, two batteries and wiring harnesses. See figure 5, 6, and 7.
SEATBACK
REAR
SHROUD
DRIVE WHEEL
CASTOR WHEEL
Figure 5.The Quantum 610
POWERBASE
ASSEMBLY
SEAT ASSEMBLY
FOOTRIGGING
(FOOT PLATFORM SHOWN)
SEATBASE
ARMRESTS
CONTROLLER
CASTOR WHEEL

18 www.quantumrehab.com Quantum 610
III. YOUR POWER CHAIR
Electrical Components
Theelectricalcomponentsarelocatedinsidethepowerbase. Themaincircuitbreakerislocatedonthefrontofthebattery
tray.Thecontrollerconnector(s)arelocated inside the power base. See figure 7.
MotorConnectors:This is where the controller connects to the motors.
BatteryConnector: Thisiswherethecontrollerconnectsto the batteries.
ControllerConnector:This iswherethecontrollerconnectsto the power base. Eachcontrollerusesadifferent type of
cable.Regardlessofwhichtypeofcontrollerisused, the cable must be secured to the seat assembly and not allowed to
dragon the floor.
Figure 6.The Quantum 610 Power Base
MOTOR/BRAKEASSEMBLY
REARSHROUDFASTENERS
TRAPEZEBARS
FRONT COVER

Quantum 610 www.quantumrehab.com 19
III. YOUR POWER CHAIR
MainCircuitBreaker:Themaincircuitbreakerisasafetyfeaturebuiltintoyourpowerchair.Whenthebatteriesandthe
motorsareheavilystrained(e.g.,fromexcessiveloads),themaincircuitbreakertripsto preventdamage tothemotorsand
theelectronics.Ifthecircuittrips, allowyourpowerchairto “rest”forapproximatelyoneminute.Next,push inthecircuit
breakerbutton, turn on the controllerandcontinuenormaloperation. If the main circuitbreakercontinuestotrip repeat-
edly,contact yourQuantumRehab Specialist.
Figure 7. Quantum 610 Electrical Components
BATTERY
CONNECTOR
MAINCIRCUITBREAKER
FLIGHTPOWERMODULE
MOTOR
CONNECTORS
CHARGERINHIBITCONNECTOR
BATTERY
CONNECTOR
VSI CONTROLLER
CONTROLLER CONNECTOR
MOTOR
CONNECTORS

20 www.quantumrehab.com Quantum 610
Manual Freewheel Levers
TheQuantum610hasamanualfreewheelleveroneachmotor.Manualfreewheelleversenableyoutodisengagethedrive
motorsfromthegearboxes andmanoeuvre thechairmanually.
WARNING! Do not use the power chair while the drive motors are disengaged! Do
not disengage the drive motors when the power chair is on an incline or decline, as
the unit could roll on its own! Only engage the freewheel mode when on a level
surface.
WARNING! It is important to remember that when your power chair is in freewheel
mode, the braking system is disengaged.
To engage or disengage the drive motors:
1. Locatethelever on top of each motor.
2. Pushthe two levers inward to engage the drivemotors(drivemode).Seefigure8.
3. Pullthetwo levers outward todisengagethedrivemotors (freewheel mode).Seefigure9.
Ifaleverisdifficulttomoveineitherdirection,slightlyrockthepowerchairbackandforth.The levershouldthenmoveto
thedesired position.
WARNING! It is important to remember that when your power chair is in freewheel mode, the
braking system is disengaged.
III. YOUR POWER CHAIR
Figure 9. Freewheel Mode (Drive Disengaged)Figure 8. Drive Mode (Drive Engaged)
MANUALFREEWHEELLEVER
MANUALFREEWHEELLEVER
