Pride Quantum 06 edge va User manual

QUANTUM
Product Serial #
Q6 Edge VA
Q6 Edge VA

SAFETY GUIDELINES
Copyright © 2013
Pride Mobility Products Corp.
INFMANU4409/Rev B/September 2013
Quantum Rehab Provider:
Address:
Phone Number:
Purchase Date:
NOTE: This owner’s manual is compiled from the latest specifications and product information available at
the time of publication. We reserve the right to make changes as they become necessary. Any changes to our
products may cause slight variations between the illustrations and explanations in this manual and the product
you have purchased. The latest/current version of this manual is available on our website.
NOTE: This product is compliant with WEEE, RoHS, and REACH directives and requirements.
NOTE: This product meets IPX4 classification (IEC 60529).
NOTE: The Q6 Edge VA and its components are not made with natural rubber latex. Consult with the
manufacturer regarding any after-market accessories.
WARNING! A Quantum Rehab Provider or a qualified technician must perform the initial setup of
this power chair and must perform all of the procedures in this manual.
The symbols below are used throughout this owner’s manual and on the power chair to identify warnings and
important information. It is very important for you to read them and understand them completely.
WARNING! Indicates a potentially hazardous condition/situation. Failure to follow designated
procedures can cause either personal injury, component damage, or malfunction. On the
product, this icon is represented as a black symbol on a yellow triangle with a black border.
MANDATORY! These actions should be performed as specified. Failure to perform mandatory
actions can cause personal injury and/or equipment damage. On the product, this icon is
represented as a white symbol on a blue dot with a white border.
PROHIBITED! These actions are prohibited. These actions should not be performed at any time
or in any circumstances. Performing a prohibited action can cause personal injury and/or
equipment damage. On the product, this icon is represented as a black symbol with a red circle
and red slash.
INTENDED USE
The intended use of the Pride Mobility Products device is to provide mobility to persons limited to a seated
position that have the capability of operating a powered wheelchair.
Quick Reference Information

Q6 Edge VA www.pridemobility.com 3
I. INTRODUCTION ...................................................................................................................................4
II. SAFETY .....................................................................................................................................................5
III. YOUR POWER CHAIR ........................................................................................................................7
IV. ASSEMBLY ............................................................................................................................................12
V. COMFORT ADJUSTMENTS ...........................................................................................................16
VI. BATTERIES AND CHARGING ......................................................................................................23
VII. CARE AND MAINTENANCE ..........................................................................................................27
CONTENTS

4 www.pridemobility.com Q6 Edge VA
I. INTRODUCTION
SAFETY
WELCOME to Quantum Rehab, a division of Pride Mobility Products (Pride). The power chair you have pur-
chased combines state-of-the-art components with safety, comfort, and styling in mind. We are confident that
these design features will provide you with the conveniences you expect during your daily activities. Once you
understand how to safely operate and care for your power chair, it should give you years of trouble free operation
and service.
Read and follow all instructions, warnings, and notes in this manual before attempting to operate your power chair
for the first time. You must also read all instructions, warnings, and notes contained in any supplemental instruc-
tional booklets for the controller, front riggings, and/or seating system that accompanied your power chair before
initial operation. Your safety depends upon you, as well as your provider, caretaker, or healthcare professional in
using good judgement.
If there is any information in this manual which you do not understand, or if you require additional assistance for
setup or operation, please contact your Quantum Rehab Provider. Failure to follow the instructions in this
manual and those located on your power chair can lead to personal injury and/or damage to the power
chair, including voiding the warranty.
PURCHASER’S AGREEMENT
By accepting delivery of this product, you promise that you will not change, alter, or modify this product or
remove or render inoperable or unsafe any guards, shields, or other safety features of this product; fail, refuse, or
neglect to install any retrofit kits from time to time provided by Pride to enhance or preserve the safe use of this
product.
SHIPPING AND DELIVERY
Before using your power chair, make sure your delivery is complete as some components may be individually
packaged. If you do not receive a complete delivery, please contact your Quantum Rehab Provider immediately.
Where damage has occurred during transport, either to the packaging or content, please contact the delivery com-
pany responsible.
Pride Mobility Products Corporation
Attn.: Customer Care Department
182 Susquehanna Avenue
Exeter, PA 18643-2694
[email protected]
NOTE: If you ever lose or misplace your copy of this manual, contact us and we will be glad to send you a new
one immediately.

Q6 Edge VA www.pridemobility.com 5
Power chair information label.
Manufactured in
Read and follow the information in the owner’s manual.
II. SAFETY
PRODUCT SAFETY SYMBOLS
The symbols below are used on the power chair to identify warnings, mandatory actions, and prohibited actions.
It is very important for you to read and understand them completely.
NOTE: There are more warnings identified and explained in the Consumer Safety Guide that is included with
your power chair. Please become familiar with all the warnings and safety information found in the Consumer
Safety Guide and refer to this resource often.
Unlocked and in freewheel mode.
Locked and in drive mode.
Place unit on level ground and stand to one side when changing from drive mode to
freewheel mode or freewheel mode to drive mode.
Class II Equipment
Indicates power chair securement points.
Indicates that power chair, with similarly labeled seating system, conforms to ANSI/
RESNA WC/Vol. 4, Section 19 for transport of an occupied power chair in a motor
vehicle.
Indicates that power chair with a similar label is not rated for occupied
transit.
MAIN FRAME

6 www.pridemobility.com Q6 Edge VA
II. SAFETY
GENERAL GUIDELINES
MANDATORY! Do not operate your new power chair for the first time without completely reading
and understanding this owner’s manual.
Your power chair is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an
extensive variety of products to best fit the individual needs of the power chair user. Please be aware that the final
selection and purchasing decision regarding the type of power chair to be used is the responsibility of the power
chair user, who is capable of making such a decision, and his/her healthcare professional (i.e., medical doctor,
physical therapist, etc.).
The contents of this manual are based on the expectation that a mobility device expert has properly fitted the
power chair to the user and has assisted the prescribing healthcare professional and/or the Quantum Rehab Pro-
vider in the instruction process for the use of the product.
There are certain situations, including some medical conditions, where the power chair user will need to practice
operating the power chair in the presence of a trained attendant. A trained attendant can be defined as a family
member or care professional specially trained in assisting a power chair user in various daily living activities.
As you begin using your power chair during daily activities, you will probably encounter situations in which you
will need some practice. Simply take your time and you will soon be in full and confident control as you maneuver
through doorways, on and off of elevators, up and down ramps, and over moderate terrain.
Below are some precautions, tips, and other safety considerations that will help you become accustomed to oper-
ating your power chair safely.
Pre-Ride Safety Check
Get to know the feel of your power chair and its capabilities. Pride recommends that you perform a safety check
before each use to make sure your power chair operates smoothly and safely.
Perform the following inspections prior to using your power chair:
Check for proper tire inflation. Maintain but do not exceed the psi/bar/kPa air pressure rating indicated on each
tire if equipped with pneumatic tires.
Check all electrical connections. Make sure they are tight and not corroded.
Check all controller connections to the power base. Make sure they are secured properly.
Check the brakes. See VII. “Care and Maintenance.”
Check battery charge. See VI. “Batteries and Charging.”
Ensure the manual freewheel levers are in drive mode before sitting on the power chair.
NOTE: If you discover a problem, contact your Quantum Rehab Provider for assistance.

Q6 Edge VA www.pridemobility.com 7
III. YOUR POWER CHAIR
THE Q6 EDGE VA POWER CHAIR
Your power chair has two main assemblies: the seat assembly and the power base assembly. See figure 1. Typically,
the seat assembly includes the armrests, seatback, and seat base. The power base assembly includes two motor/brake
assemblies, two drive wheels, four caster wheels, two batteries, and wiring harnesses.
See figures 1, 2, and 3.

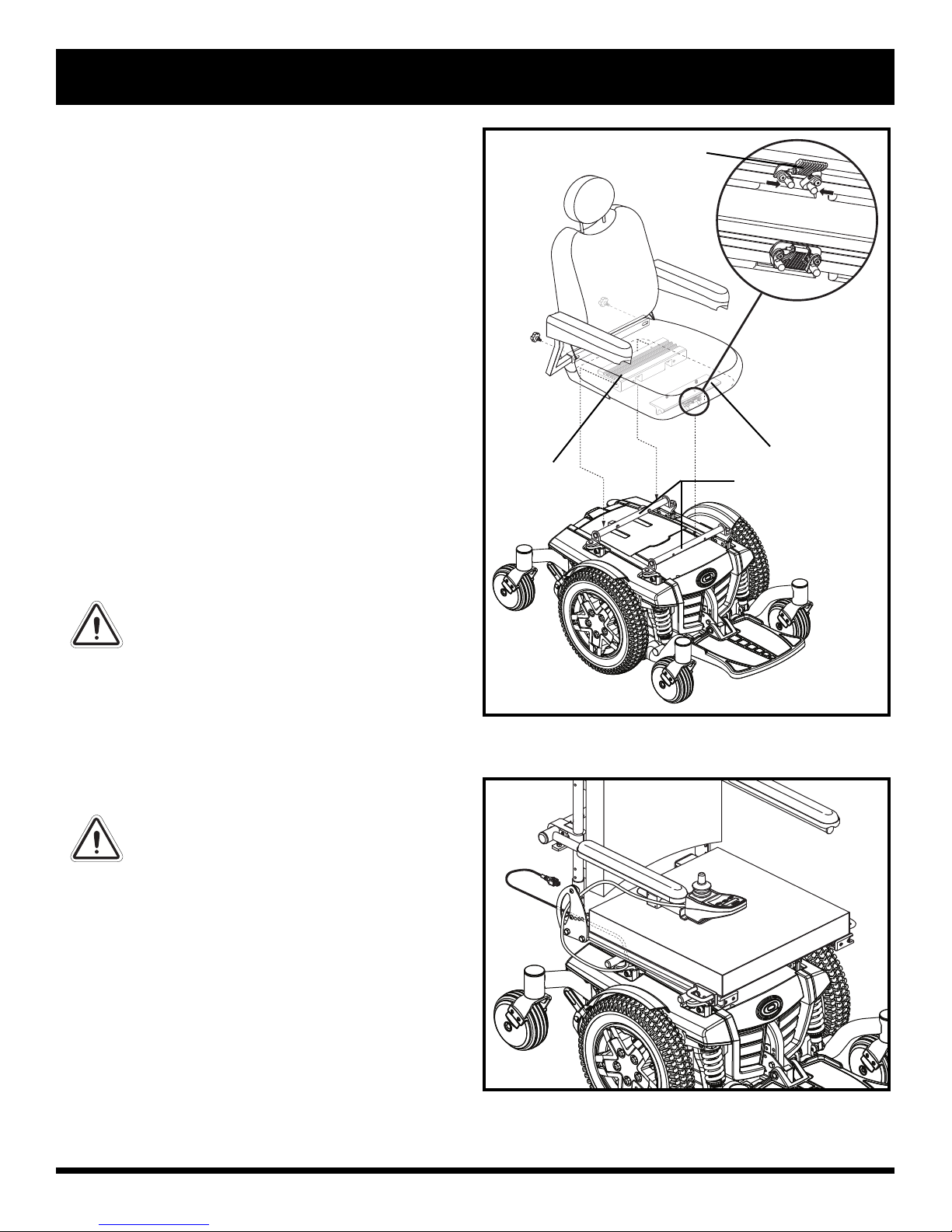

Figure 1. The Q6 Edge VA Power Chair (Synergy Seat Shown)
SEATBACK
DRIVE WHEEL
CASTER WHEEL
POWER BASE
ASSEMBLY
SEAT ASSEMBLY
JOYSTICK
FRONT RIGGING
(FOOT PLATFORM SHOWN)
SEAT BASE
CONTROLLER
CASTER WHEEL
MANUAL FREEWHEEL
LEVER
ARMREST
ARMREST
SPRING SHOCK/GAS
DAMPER LOCATION

8 www.pridemobility.com Q6 Edge VA
III. YOUR POWER CHAIR

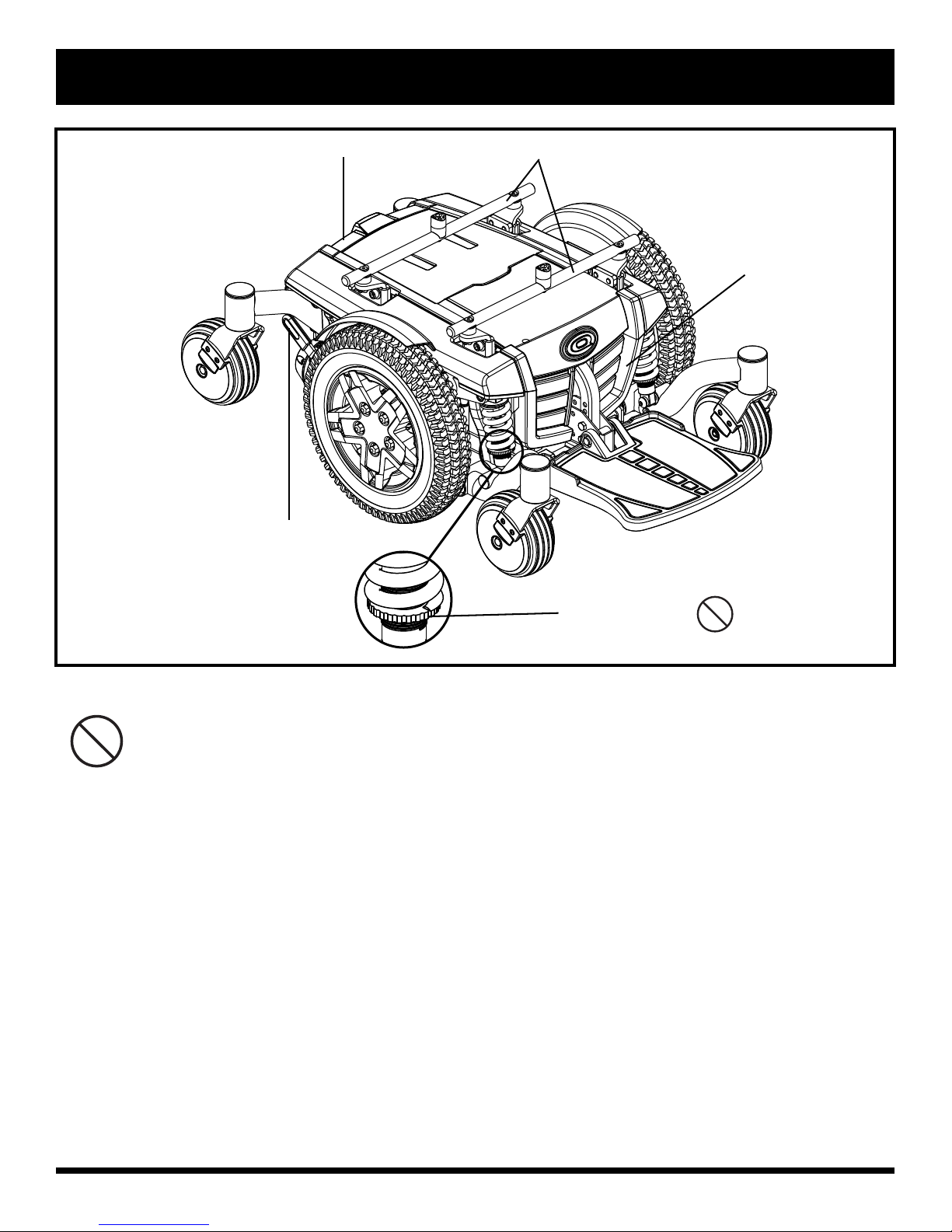

PROHIBITED! The spring tension on your power chair was factory set to meet the needs of the
demographic majority of users. Do not adjust the tension of any spring on your power chair.
Electrical Components
The electrical components consist of the controller assembly, the batteries, and the motors. The batteries, motors,
and controller power module (if equipped) are located on the power base assembly. The controller is located on
the seat assembly. Connectivity between the controller and the motors, batteries, and the battery charger is pro-
vided by one or more wiring harnesses. See figure 3.
Controller Harness Connector: The controller harness connector is where the controller plugs into the power
base. Each controller uses a different type of harness. Regardless of which type of controller is used, the harness
must be secured to the seat assembly and not allowed to drag on the floor.
Motor Connectors: This is where the controller connects to the motors.
Battery Connector: This is where the controller connects to the batteries.
Controller Power Module: This enables the controller to communicate with the batteries and the motors.
Figure 2. The Q6 Edge VA Power Base
MANUAL FREEWHEEL LEVER
TRAPEZE BARS
FRONT COVER
REAR SHROUD
SUSPENSION SPRING

Q6 Edge VA www.pridemobility.com 9
III. YOUR POWER CHAIR
Main Circuit Breaker (located on the rear main frame): The main circuit breaker is a safety feature built into
your power chair. When the batteries and the motors are heavily strained (e.g., from excessive loads), the main
circuit breaker trips to prevent damage to the motors and the electronics. If the circuit trips, allow your power chair
to “rest” for approximately one minute. Next, push in the circuit breaker button, turn on the controller, and con-
tinue normal operation. If the main circuit breaker continues to trip repeatedly, contact your Quantum Rehab
Provider.
Figure 3. Q6 Edge VA Electrical Components
QUICK RELEASE
BATTERY CONNECTORS
MAIN CIRCUIT
BREAKER
CONTROLLER POWER MODULE
TO MOTOR
CONNECTOR
CONTROLLER CONNECTOR
TO MOTOR
CONNECTOR
TO BATTERY
CONNECTORS

10 www.pridemobility.com Q6 Edge VA
MANUAL FREEWHEEL LEVER
MANUAL FREEWHEEL LEVER
III. YOUR POWER CHAIR
Manual Freewheel Levers
For your convenience, your power chair is equipped with a manual freewheel lever mounted on each motor. The
levers allow you to disengage the drive motors and maneuver the chair manually.
WARNING! The power chair could roll unintentionally when the drive motors are
disengaged on an incline! Property damage, severe injury or death can occur.
WARNING! This chair IS NOT EQUIPPED with an audible or visible warning system to
alert the user when one or both drive motors are disengaged.
WARNING! The power chair can drive in circles when only one drive motor is
engaged. DO NOT ATTEMPT TO DRIVE IN THIS CONDITION. Property damage, severe
injury or death can occur.
WARNING! Ensure both drive motors are engaged before turning on power to the
controller or attempting to drive the power chair.
WARNING! Do not attempt to use the power chair or occupy the chair when the drive
motors are disengaged.
To operate the manual freewheel levers:
1. Push down both manual freewheel levers for freewheel mode (drive motor disengaged). See figures 4A
and 4B.
2. Pull up both manual freewheel levers for drive mode (drive motor engaged). See figures 5A and 5B.
NOTE: You must turn off the power before disengaging the drive motors; otherwise, you may get an error code
on the controller. To clear this code, turn off the controller and place the power chair in drive mode. Then, turn
on the controller. The error message should be cleared. If it is not, contact your Quantum Rehab Provider.
NOTE: The power chair will be significantly easier to push with the power off.
WARNING! Avoid applying excessive force to the manual freewheel levers.
WARNING! Do not use your foot to operate the manual freewheel levers. Do not stand on the
manual freewheel levers. Applying excessive force to the manual freewheel levers may result in
damage to the freewheel levers, motors, and brakes.
WARNING! Do not use the freewheel lever handles as tie-down points to secure this product.

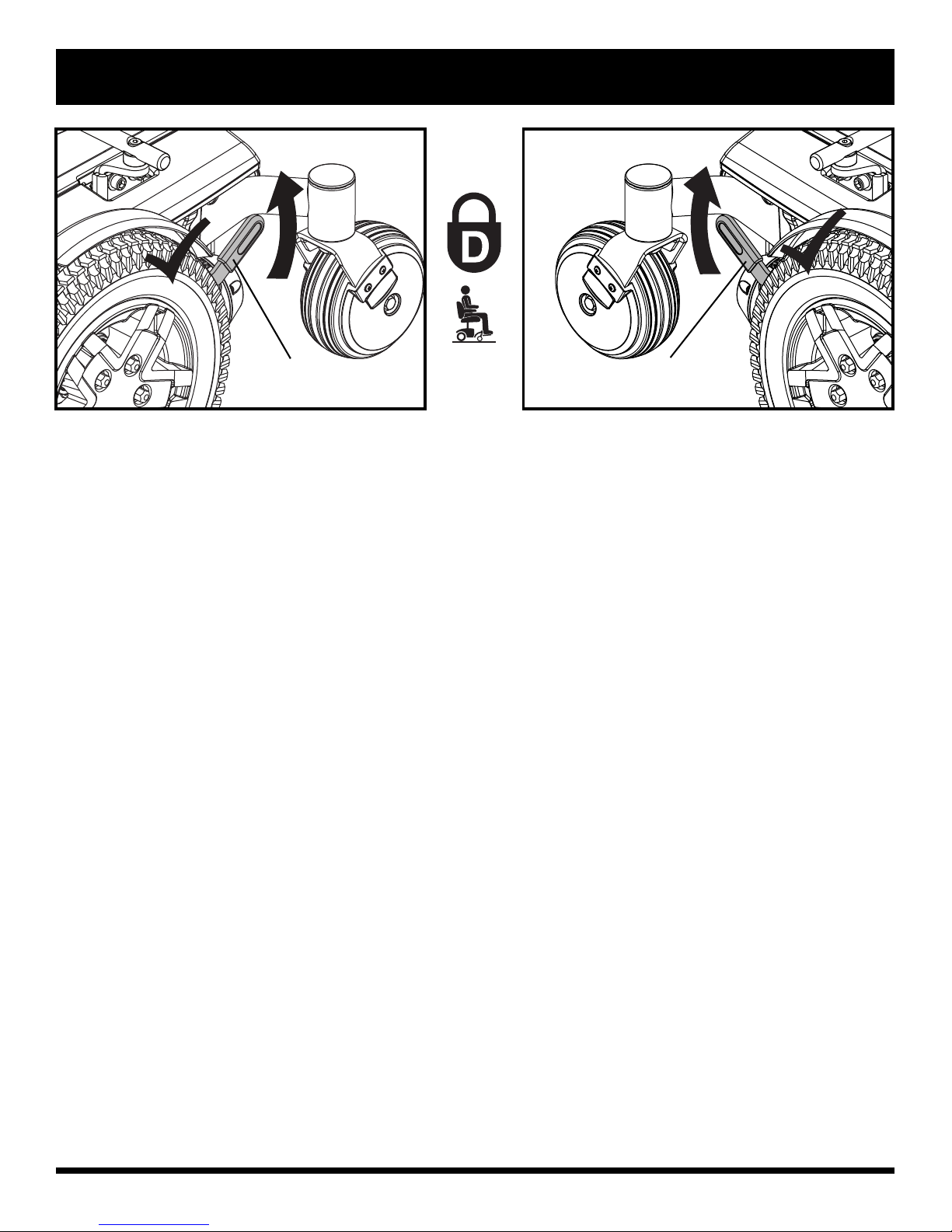

Figure 4A. Freewheel Mode (Left Drive Motor
Disengaged) Figure 4B. Freewheel Mode (Right Drive Motor Disengaged)

Q6 Edge VA www.pridemobility.com 11
MANUAL FREEWHEEL LEVER
MANUAL FREEWHEEL LEVER
III. YOUR POWER CHAIR
Figure 5A. Drive Mode (Left Drive Motor Engaged) Figure 5B. Drive Mode (Right Drive Motor Engaged)

12 www.pridemobility.com Q6 Edge VA
INITIAL ASSEMBLY
Your power chair may require some assembly either before initial use or after transportation. It may also require
disassembly to make some comfort adjustments. Figure 6 details those parts of the power chair that are designed
to be disassembled and assembled by an end user or by a qualified caregiver before using the product or making
comfort adjustments.
NOTE: Any nylon insert lock nut removed during the disassembly or adjustment of the power chair must be
replaced with a new nut. Nylon insert lock nuts should not be reused as it may cause damage to the nylon insert,
resulting in a less secure fit. Replacement nylon insert lock nuts are available at local hardware stores or
through your Quantum Rehab Provider.
IV. ASSEMBLY

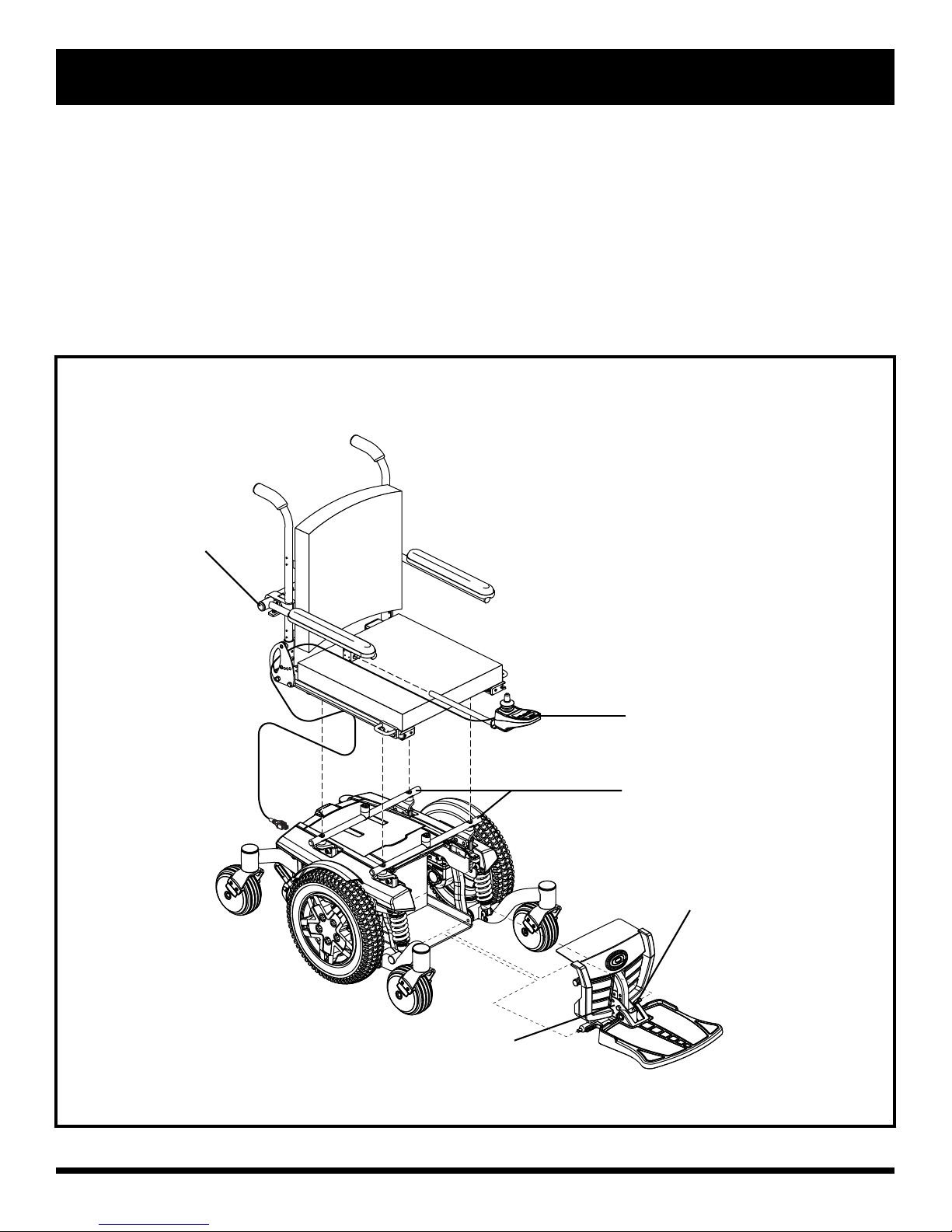

Figure 6. Q6 Edge VA Assembly View (Synergy Seat Shown)
ARMREST ANGLE
ADJUSTMENT
FOOT PLATFORM HEIGHT/DEPTH ADJUSTMENT
SEAT HEIGHT/ANGLE ADJUSTMENT
CONTROLLER POSITION
FOOT PLATFORM
ANGLE ADJUSTMENT

Q6 Edge VA www.pridemobility.com 13
Seat Installation
It may be necessary to install the seat either prior to
initial operation or after transporting your power chair.
For unoccupied transit power chairs, contour seats are
attached to the power base with the Universal Mount-
ing System (UMS). The UMS consists of universal
parts that may be attached to the seat, regardless of seat
width or seat depth. The two main components are alu-
minum extrusions mounted to the seat base. These
extrusions attach to a pair of trapeze bars that are
mounted to the power base. See figure 7.
For occupied transit power chairs, the seat plate is
secured to the four seat mounting brackets on the
power base. The seat plate is located on the bottom of
the seat. See figure 9.
NOTE: If your power chair is equipped with a Spe-
cialty Seat, Synergy Seat, or a TRU-Balance Power
Positioning System, refer to the information provided
in separate manuals.
WARNING! Do not pick up the seat
frame by the armrests. They are free to
pivot, and you may lose control of the
seat if they do so.
To install the seat (UMS):
1. Tilt the seat back and slide the rear extrusion onto
the rear trapeze bar. See figure 7.
2. Lower the front extrusion onto the front trapeze bar
until the seat locks into place.
3. Flip the seat latch safety down.
WARNING! Make sure the seat latch
safety is flipped down before using
your power chair.
4. Install the controller and route the harness to the
back of the power base. See figures 8 or 10.
IV. ASSEMBLY
Figure 7. Universal Mounting System and Contour Seat—
UMS
REAR
EXTRUSION
FRONT EXTRUSION
SEAT LATCH SAFETY
Figure 8. Controller Harness Routing on a Synergy Seat
TRAPEZE BARS

14 www.pridemobility.com Q6 Edge VA
IV. ASSEMBLY
MANDATORY! Prevent controller
harness damage! Avoid routing the
controller harness on the outside of
the armrest pad. Route the harness
under the armrest or toward the inside
of the armrest pad. Use correct tie-
down points for controller harness to
prevent the harness from getting
caught in the drive tires, pinched in the
seat frame, or damaged when passing
through doorways.
5. Plug the controller connector into the rear of the
power base. See figure 3.
6. Secure the controller harness to the armrest
receiver with wire ties. See figure 10.
To install the seat (Transit Securement System):
1. Attach the seat plate to the four mounting brackets
on the power base and ensure all hardware is prop-
erly installed and tightened securely. See figure 9.
2. Install the controller and route the harness to the
back of the power. See figure 10.
MANDATORY! Prevent controller
harness damage! Avoid routing the
controller harness on the outside of
the armrest pad. Route the harness
under the armrest or toward the inside
of the armrest pad. Use correct tie-
down points for controller harness to
prevent the harness from getting
caught in the drive tires, pinched in the
seat frame, or damaged when passing
through doorways.

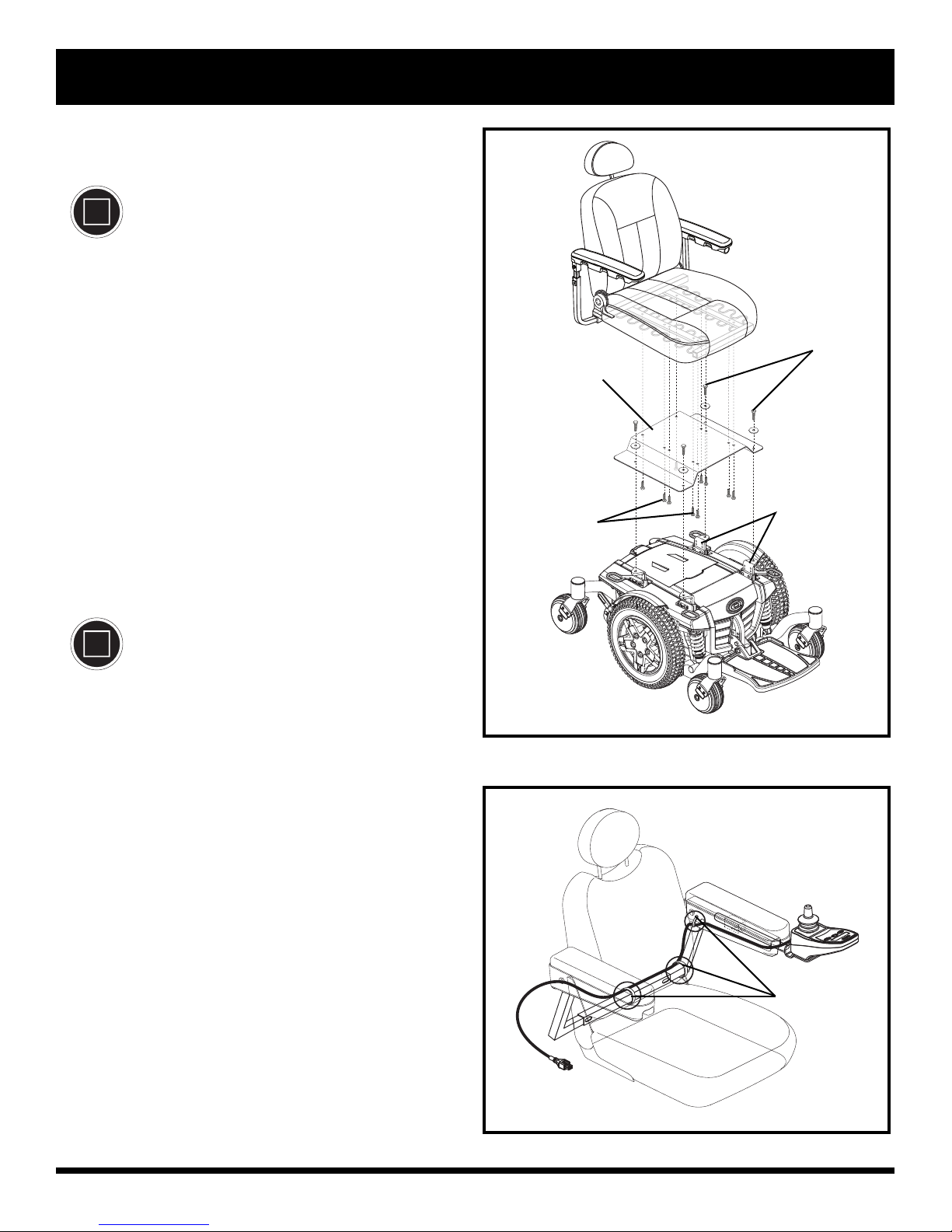

Figure 9. Seat Installation—Occupied Transit
Figure 10. Controller Harness Routing on a Contour Seat
WIRE TIES
TO POWER BASE
SEAT PLATE
HARDWARE
MOUNTING
BRACKETS
HARDWARE

Q6 Edge VA www.pridemobility.com 15
SECUREMENT
BRACKETS
(3 OF 4 SHOWN)
POSITIONING BELT
ANCHORING BRACKET LOCATIONS
(1 OF 2 SHOWN)
IV. ASSEMBLY

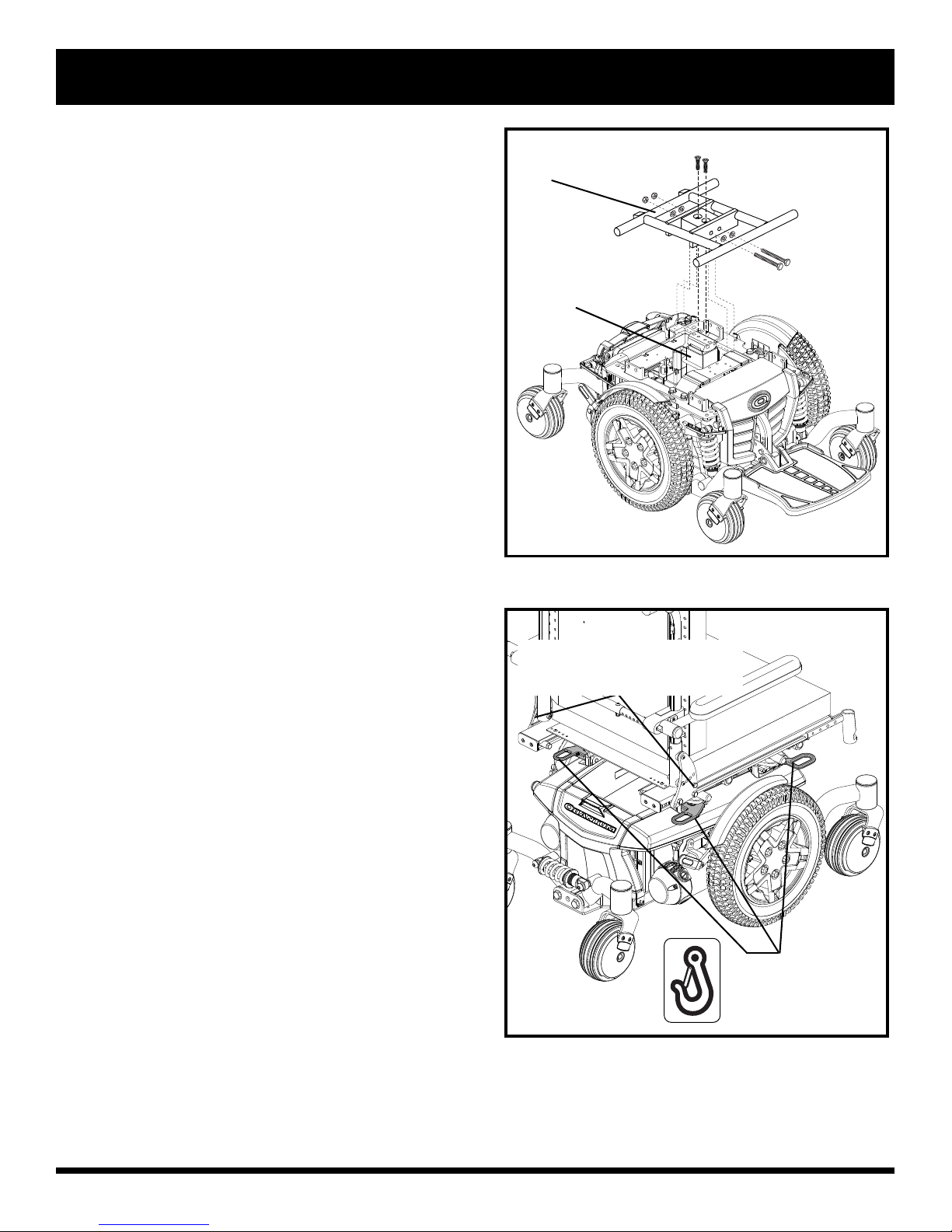

Figure 11. Power Elevating Seat Actuator
ACTUATOR
SEAT PLATE INTERFACE
BRACKET
Power Elevating Seat Option
Your power chair may be equipped with a power ele-
vating seat option. While the seat itself may be any one
of the styles offered for this model, the way the seat
base attaches to the power base is different.
To install the power elevating seat:
l. Place the seat plate interface bracket onto the actu-
ator. See figure 11.
2. Insert the supplied hardware into the actuator and
tighten the hardware.
3. Place the seating system onto the seat plate and
secure.
4. Plug in the power seat toggle switch harness, if
equipped.
Transit Securement System (Optional)
If your power chair is equipped with a transit
securement system, it is equipped with manufacturer-
installed front and rear securement brackets and
positioning belt anchoring brackets. See figure 12.
Refer to the supplement provided with your power
chair for information on how to use the transit
securement system.
Figure 12. Transit System Securement Brackets
(Synergy Seat Shown)

16 www.pridemobility.com Q6 Edge VA
You may need the following to make comfort
adjustments:
metric/standard socket set and ratchet
adjustable wrench
metric/standard hex key set
thread lock
Seat Height and Seat Angle Adjustment
If your power chair is not equipped with a transit
securement system, you can change the seat height to
one of three positions by raising the front and rear tra-
peze bars. If you raise or lower only one trapeze bar
(front or rear), you can also change the seat base angle
(dump).
MANDATORY! If your power chair is
equipped with a transit securement
system and any adjustment to the seat
height or seat angle is necessary,
contact your Quantum Rehab Provider.
These comfort adjustment can only be
made by a Quantum Rehab Provider.
To change the seat height:
1. Turn off the power to the controller.
2. Make sure the power chair is in drive mode.
3. Unplug the controller connector(s) from the power
base. See figure 3.
4. Flip up the seat latch safety. See figure 7.
5. Squeeze the seat latch and release the seat from the
front trapeze bar.
6. Slide the seat forward and remove it from the
power base.
V. COMFORT ADJUSTMENTS
COMFORT ADJUSTMENTS
After becoming familiar with your power chair’s operation, you may find the need to make some adjustments to
increase your comfort, such as seat height and angle, armrest width, armrest angle and height, foot platform
height, depth, and angle, and controller position.
NOTE: If your power chair is equipped with a Specialty Seat, Synergy Seat, or TRU-Balance Power Position-
ing System, refer to the seat adjustment information contained in separate manuals. If your power chair is
equipped with a contoured seating system, refer to the following information.
WARNING! The center of gravity of your power chair was factory set to a position that meets the
needs of the demographic majority of users. Your Quantum Rehab Provider has evaluated your
power chair and made any necessary adjustments to suit your specific requirements. Do not
change your seating configuration without first contacting Pride Mobility Products or your
Quantum Rehab Provider.
WARNING! Some power chair components are heavy. You may need assistance to lift or carry
them. Please refer to the specifications table for specific component weights before you
disassemble the power chair.
WARNING! Remove the occupant from the power chair before making any adjustments.
Figure 13. Seat Height/Angle Adjustment—UMS
TRAPEZE BARS
HARDWARE
HARDWARE
SEAT INTERFACE
WELDMENT

Q6 Edge VA www.pridemobility.com 17

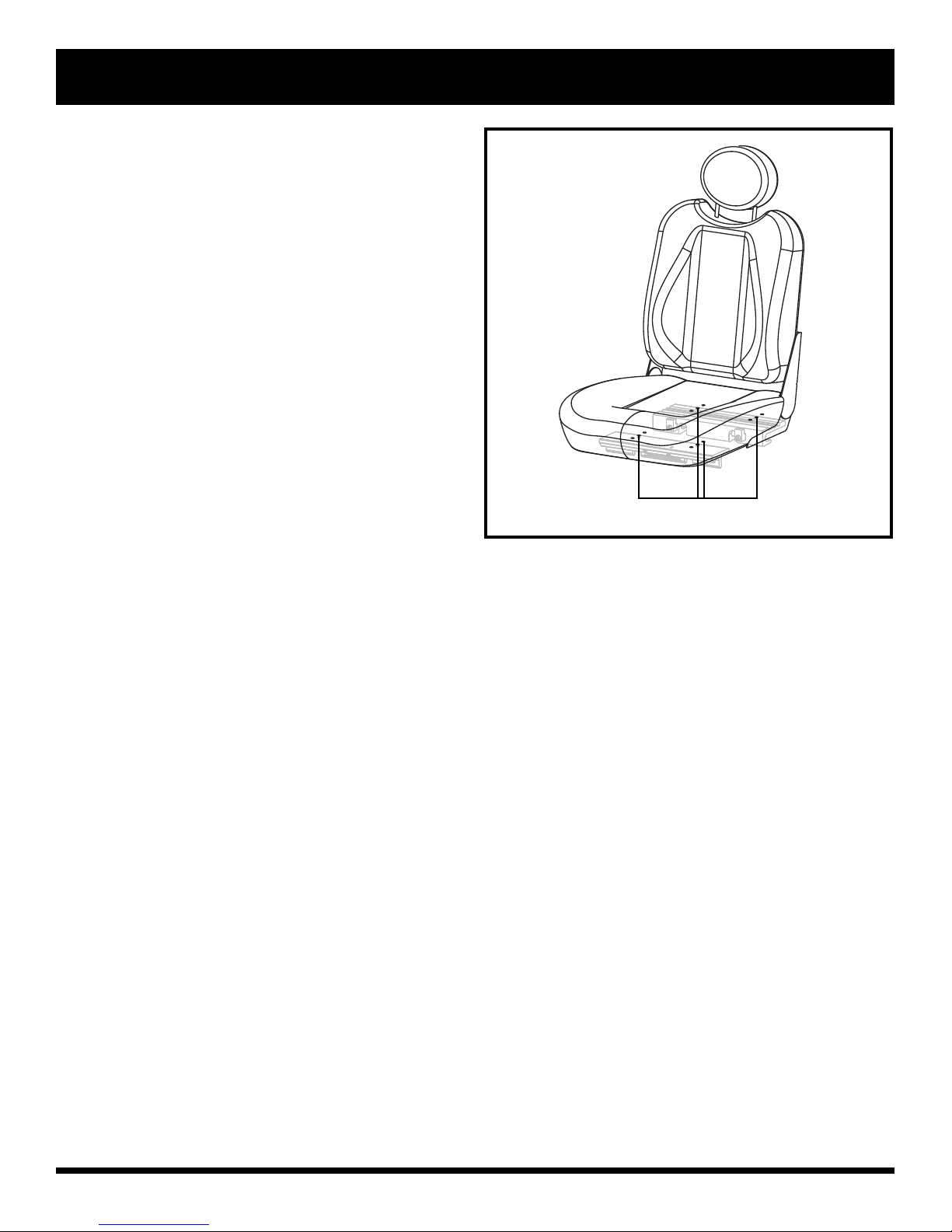

Figure 14. Seat Position Adjustment
V. COMFORT ADJUSTMENTS
SEAT MOUNTING HOLES
7. Remove the hardware that attaches the trapeze bars
to the seat interface weldments. See figure 13.
8. Move the trapeze bars up or down to the desired
height.
NOTE: Change the seat dump by raising or lowering
only one trapeze bar (front or rear).
9. Reinstall the hardware.
10. Reinstall the seat.
11. Reconnect the controller to the power base.
Seat Position
You can move the seat forward or rearward by chang-
ing the extrusion mounting position.
To change the position:
1. Turn off the power to the controller.
2. Make sure the power chair is in drive mode.
3. Unplug the controller connector(s) from the power
base.
4. Remove the seat from the power base.
5. Remove both extrusions from the bottom of the seat.
6. Reposition the extrusions on a different set of
mounting holes. You must move both extrusions
the same number of holes either forward or back-
wards. See figure 14.
7. Fasten the extrusions back onto the bottom of the
seat.
8. Reinstall the seat.
9. Reconnect the controller to the power base.
Manual Recline Seatback Adjustment
If your power chair is equipped with a reclining seat,
you can adjust the seatback angle with the seatback
release lever. The lever is located on the right side of
the seat base.
To adjust the recline angle:
1. Pull up on the seatback release lever.
2. Lean forward or backwards to the desired position.
3. Release the lever.

18 www.pridemobility.com Q6 Edge VA
V. COMFORT ADJUSTMENTS
Seatback Angle Adjustment
If your power chair is equipped with an adjustable seat-
back, you can adjust it to four (4) different angles: 90°,
102°, 105°, or 107°.
To adjust the seatback angle:
1. Remove the adjusting screws from each seat hinge.
See figure 15.
2. Set the seatback at the desired angle.
3. Reinstall the adjusting screws to each seat hinge
and tighten.
Armrest Width Adjustment
You can change each armrest’s width independently of
the other.
NOTE: Changing the armrest width may increase the
overall width of your power chair.
To change the armrest width:
1. Locate the two armrest knobs on each side of the
armrest receiver bracket. See figure 15.
2. Loosen the knobs.
3. Slide the armrests in or out to the desired width.
4. Tighten the knobs.
Armrest Angle Adjustment
To change the armrest angle:
1. Lift the armrest straight up so that it is perpendicu-
lar to the floor. See figure 15.
2. Loosen the jam nut.
3. Turn the adjusting screw to raise or lower the front
of the armrest.
4. Tighten the jam nut to lock the adjusting screw into
place.
Armrest Height Adjustment
To change the armrest height:
1. Loosen the two setscrews located on the armrest
receiver. See figure 15.
2. Raise or lower the armrest to the desired height.
3. Tighten the setscrews to secure the armrest.
ARMREST KNOB
JAM NUT
Figure 15. Seatback/Armrest Adjustment
SEATBACK ANGLE
ADJUSTING SCREW
ARMREST
HEIGHT
ADJUSTING
SETSCREWS
ARMREST ANGLE
ADJUSTING
SCREW

Q6 Edge VA www.pridemobility.com 19
V. COMFORT ADJUSTMENTS

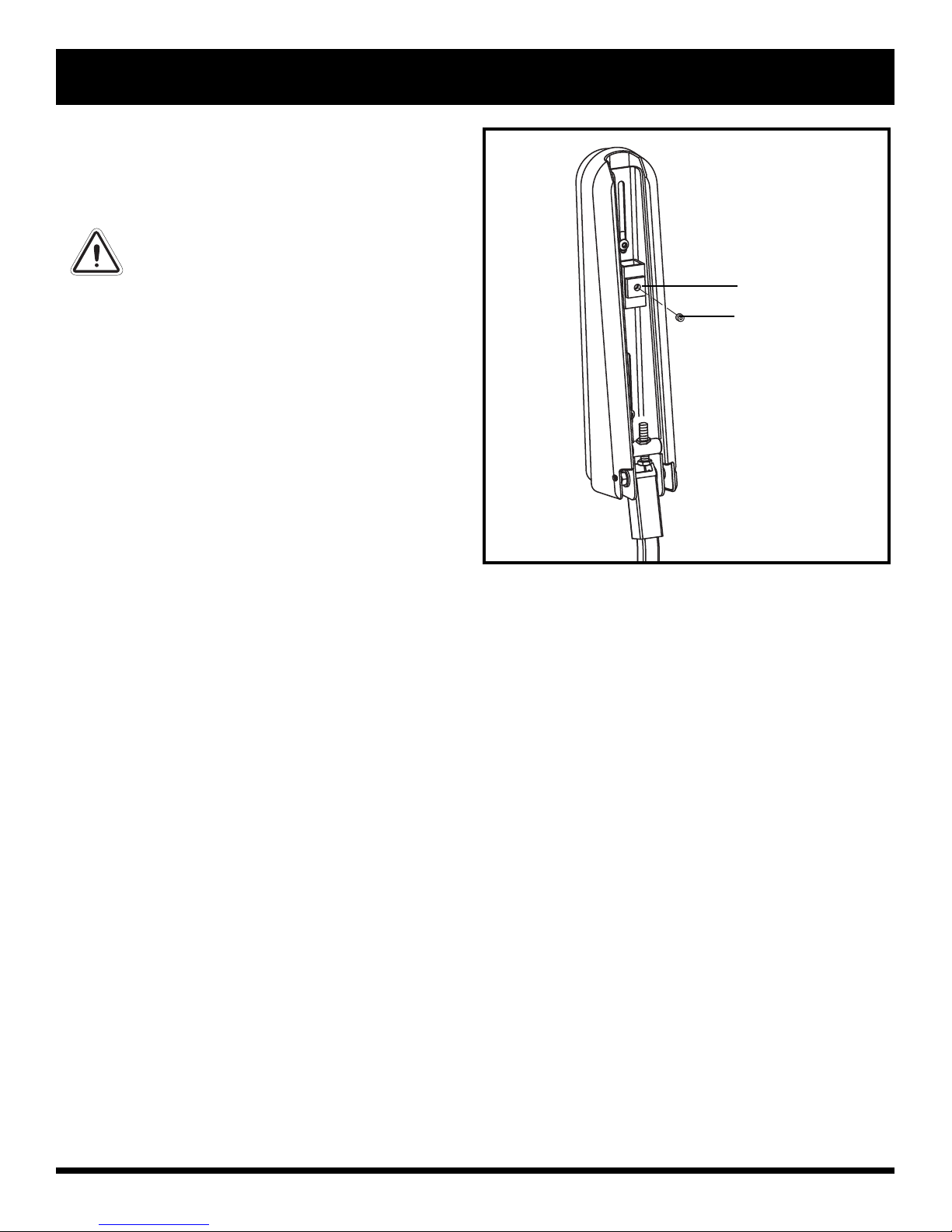

Figure 16. Underside of Armrest
Controller Position
You can move the controller in toward or out away
from the armrest, or change the position of the control-
ler for either left-hand or right-hand use.
WARNING! Do not place the controller
harness so that it can be pinched in the
seat frame or the power base frame.
To extend the controller:
1. Flip up the armrest so it is perpendicular to the
floor.
2. Loosen the setscrew on the controller bracket. See
figure 16.
3. Slide the controller into or out of the armrest to the
desired position.
4. Tighten the setscrew to secure the controller.
To change the controller position:
1. Turn off the power to the controller.
2. Unplug the controller connector(s) from the power
base.
3. Remove any wire ties securing the controller har-
ness to the armrest.
4. Flip up the armrest so it is perpendicular to the floor.
5. Loosen the setscrew on the controller bracket
6. Slide the controller out of the armrest.
7. Loosen the setscrew in the other armrest.
8. Place the controller in the other armrest.
9. Tighten the setscrews in both armrests.
10. Route the controller harness to the back of the
power base and plug in the controller.
11. Secure the controller harness to the armrest with
wire ties. See figure 10.
NOTE: If your power chair is equipped with a Spe-
cialty Seat, Synergy Seat, or TRU-Balance Power
Positioning System, refer to the information provided
in supplemental manuals provided with your seating
system.
SETSCREW
CONTROLLER BRACKET

20 www.pridemobility.com Q6 Edge VA
V. COMFORT ADJUSTMENTS
Foot Platform Height Adjustment
The foot platform height is easily adjusted to several different heights.
To raise or lower the foot platform:
1. Remove the hardware from the foot platform bracket. See figure 17.
2. Raise or lower the foot platform to the desired height.
3. Reinstall the hardware into the foot platform bracket and tighten.
Foot Platform Depth Adjustment
You can adjust the depth of the foot platform.
To adjust the foot platform depth:
1. Remove the hardware from the foot platform bracket. See figure 17.
2. Move the foot platform in or out to the desired depth.
3. Reinstall the hardware into the foot platform bracket and tighten.
Foot Platform Angle Adjustment
You can adjust the angle of the foot platform.
To adjust the foot platform angle:
1. Flip up the foot platform and locate the screw. See figure 17.
2. Turn the screw to raise or lower the front of the foot platform.

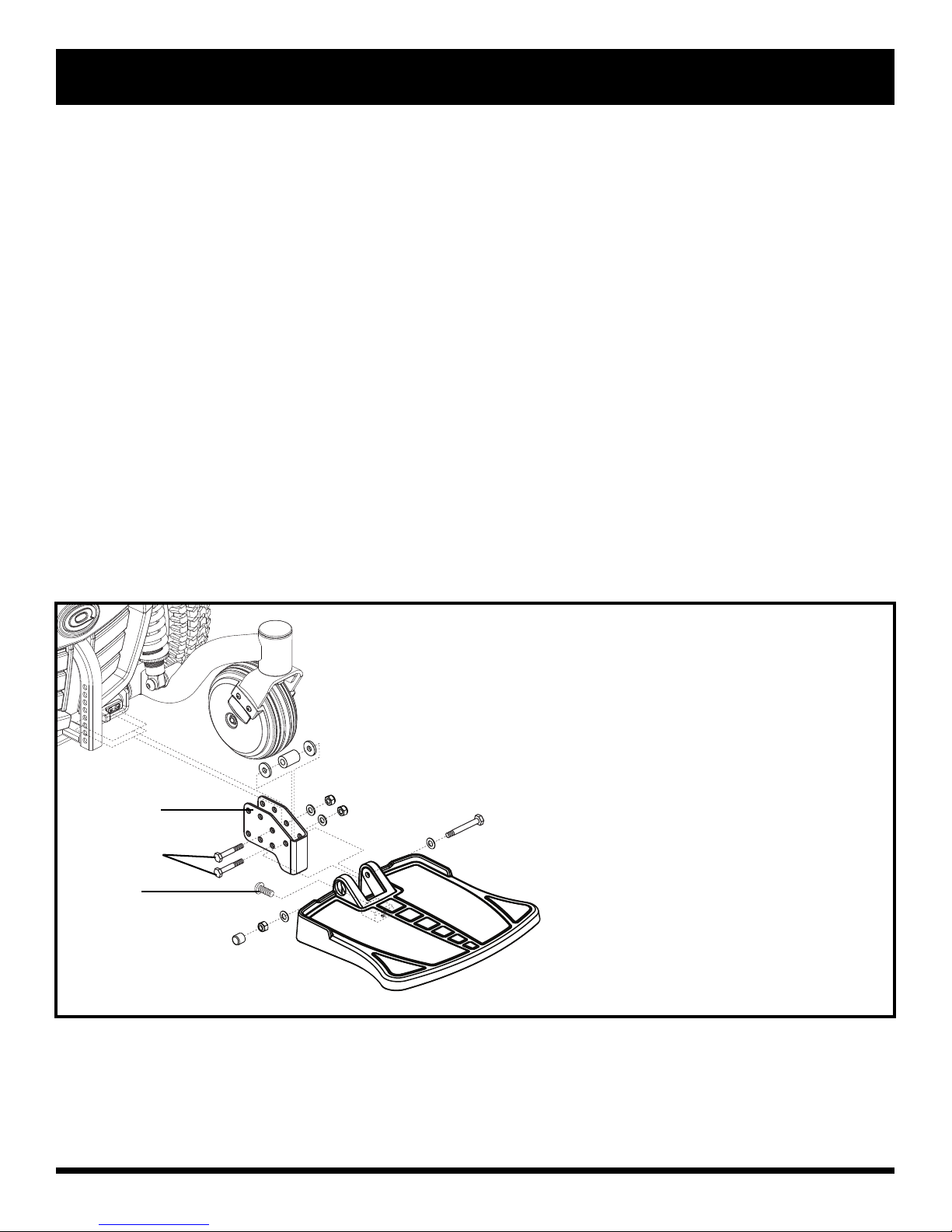

Figure 17. Foot Platform Adjustment
FOOT
PLATFORM
BRACKET
SCREW
HARDWARE
