Primera FX400 User manual




PrinterandStand



































InstallSoftwareandSetuptheStand
InstallMedia
DesignandPrint
AdjustingOffsets
Introduction
511211-030409

2
Table of Contents
1. SoftwareInstallandStandSetup 3
2. Install Foil or Laminate 7
3. Design, Print and Imprint
a. DesigntheLXLabel 11
b. DesigntheFoilLabel 11
c. Design a Laminate Label 12
d. PrintwithPTFoilSoftware 12
4. Adjustingoffsets 15
5. Foil/LaminateOnly 17
6. Specifications 19

3
Introduction:
Thank you for purchasing the FX400 metallic foil and laminate thermal printer. You
can use your FX400 with a Primera LX400, LX800 or LX810 printer. Using your LX
printer and the FX400 you can first print a full color label and print gold or silver
borders, accents, and text or laminate the label to protect against water and fading.
For the purposes of this manual the LX400, LX800 or LX810 will collectively be
referred to as the “LX Printer”. Metallic Foil or laminate will be collectively referred
to as “media”.
Section 1: Install Software and Setup the Stand
A. Install Software:
You must first install the Primera PTFoil software and the
FX400 driver.
1. Place the Installation Disc in the computer CD-ROM drive.
The Installer application will automatically launch in a few
moments.
2. Follow the prompts to install the print software.
Note: If the Installer does not start, open My Computer on your desktop. Double-
click the icon of the appropriate CD/DVD drive containing the Software Installer
disc. Double-click Installer.exe.
3. Connect power to your FX400.
4. Connect the FX400 to your PC with your beige USB 2.0 Cable.
After a few moments, Windows will tell you it has found new
hardware and is looking for software to install it.

4
Choose “No, not this time” and then click next. Next, select "Install the software
automatically" and follow the wizard to complete the installation.
You will be prompted that the software has not passed Windows Logo Testing.
You must click Continue Anyway to finish the installation.
B. Setup the Stand:
The stand is designed to easily support the LX Printer and the FX400. The stand is
separated into two parts for shipping purposes. Remove these two parts and the
FX 400 from the box. Follow the instructions below to setup the stand.
1. Place the stand pieces on a flat, level surface such as a desk or table as shown
in the diagram below. You will need at least 40 inches of horizontal space, 16
inches of depth and 30 inches of vertical space.

5

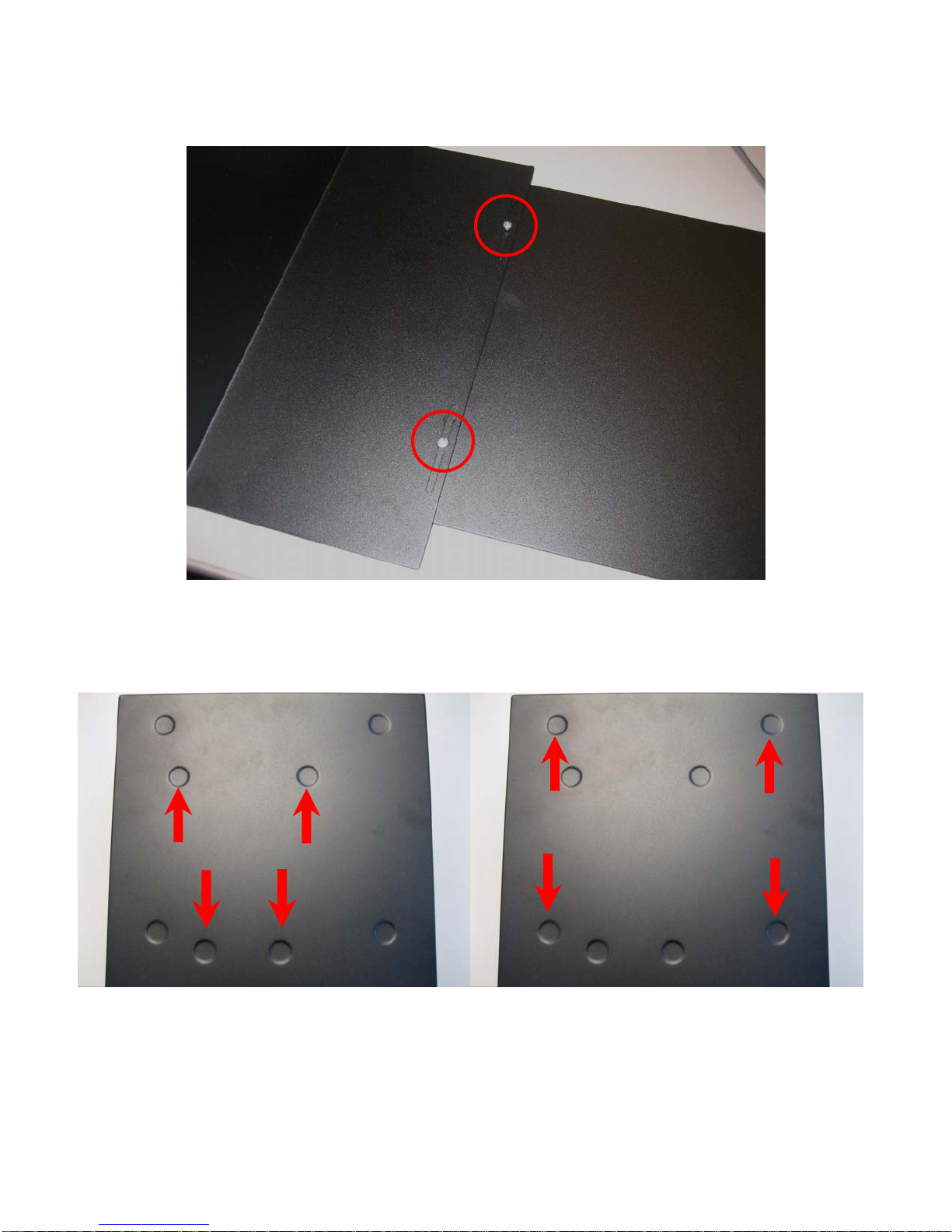

2. Attach the stand pieces together using the included screws. Do not tighten the
screws. The stand may need adjustment once the printers are in place. The LX
printer stand (larger stand) should be on the left side.
3. Place the LX printer on the larger stand. There are two sets of indents in the top
of the stand which correspond to the rubber feet of the LX printer. Place the LX400
on the smaller set of indents. Place the LX800/810 on the larger set of indents.
LX400 Indents LX800/810 Indents
4. Connect power, install ink cartridges and label stock into your LX printer
according to the printer’s manual.
Front of Printer
Front of Printer

6

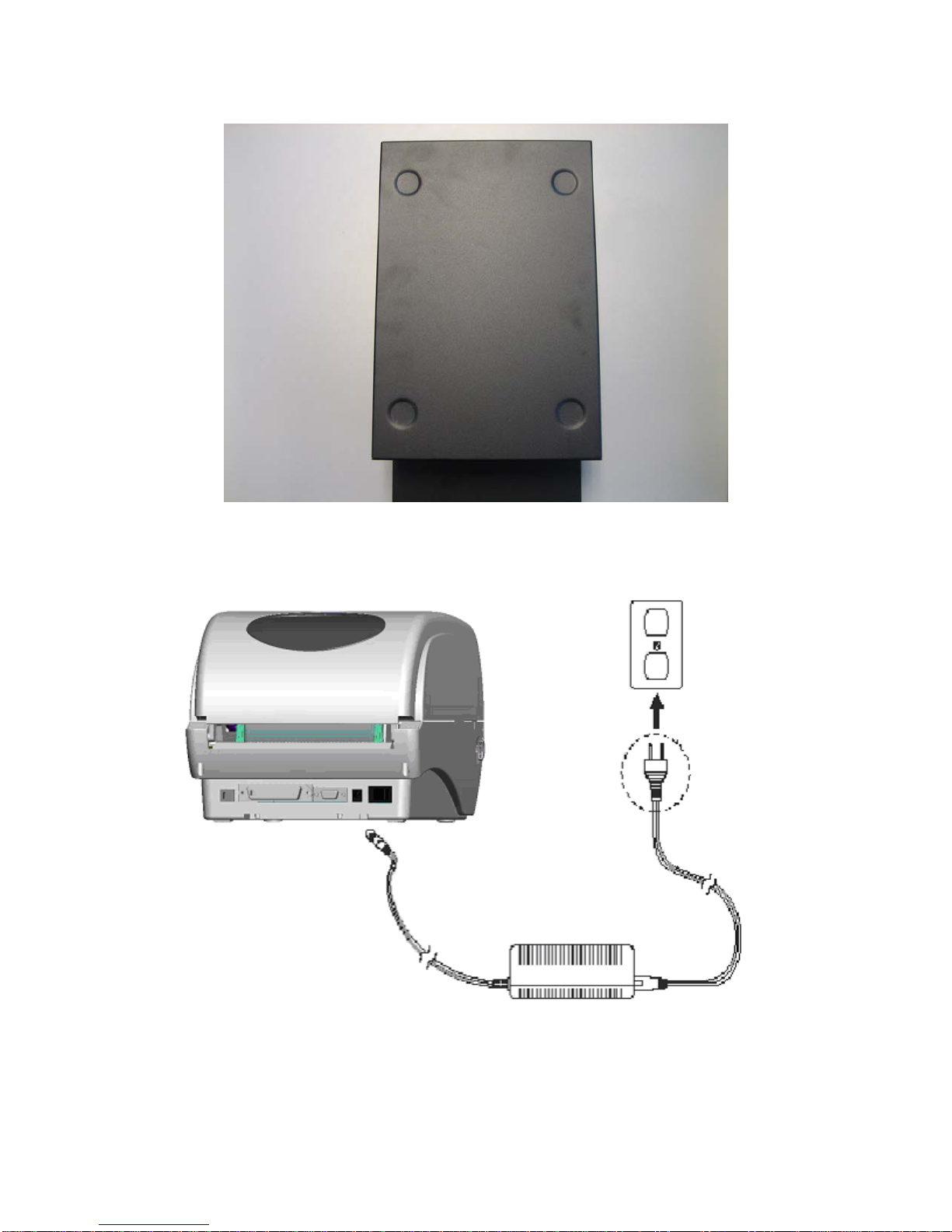

5. Place the FX400 onto the smaller stand. There are also four indents on the
FX400 stand that correspond to the rubber feet on the FX400.
6. Connect power and USB to the FX400 using the included power cord and
converter.
7. Your printers are now ready for printing.

7
Section 2: Install Foil or Laminate
Install only Primera approved media. Other media may have thermal properties
that may not be compatible with the FX400. Follow these instructions to install the
media.
1. Push down on the ribbon access window to release the lock. Lift the window to
access the ribbon area.
2. The FX400 comes with two rewind/supply spindles and these can be used
interchangeably.

8
3. The media will come with two cores. One will have the media supply (foil or
laminate) and the other will be an empty core. Insert one of the spindles into the
empty core. This will be the rewind core.
4. Insert the remaining spindle into the media supply core. Note the position of the
loose end of the media in the diagram below. It should be coming off the supply
toward the back of the printer.
5. Place the media rewind core on the front set of hubs. The flange on the spindle
should be on the right side of the printer. First, insert the left side of the core onto
the spring-loaded hub. Then, place the right side of the core on the hub.

9
6. Place the media supply core on the back set of hubs. The flange on the spindle
should be on the right side of the printer. First, insert the left side of the core onto
the spring-loaded hub. Then, place the right side of the core on the hub.
7. Open the top cover of the printer. Release the cover lock by pulling forward on
the cover release levers and lift up on the cover to open.

10
8. Pull the loose end of the media from the supply core over the print head. Feed it
back toward the rewind core. Attach the loose end on the media to the rewind core
using tape or the adhesive strip on the rewind core.
Note: Make sure the media is flat against the print head with no folds or wrinkles.

11
Section 3: Design, Print and Imprint
A. Design the LX Label
Design your LX label according to the instructions that come with you printer. Keep
in mind there are variations in the placement of the foil. Foil can be printed over the
top of areas that have already been printed on with the LX printer. In other words,
there is no need to leave a white unprinted space for a foil border or graphic.
See examples below:
B. Design the FX Label
Design the FX Label using any design software. The page size of your design should
be the same as the page size of the LX label and the same as the label size. The
design should be monochrome black only. It is useful to print the LX label first and
then determine the placement and size of the FX label relative to the position of
objects on your LX label.

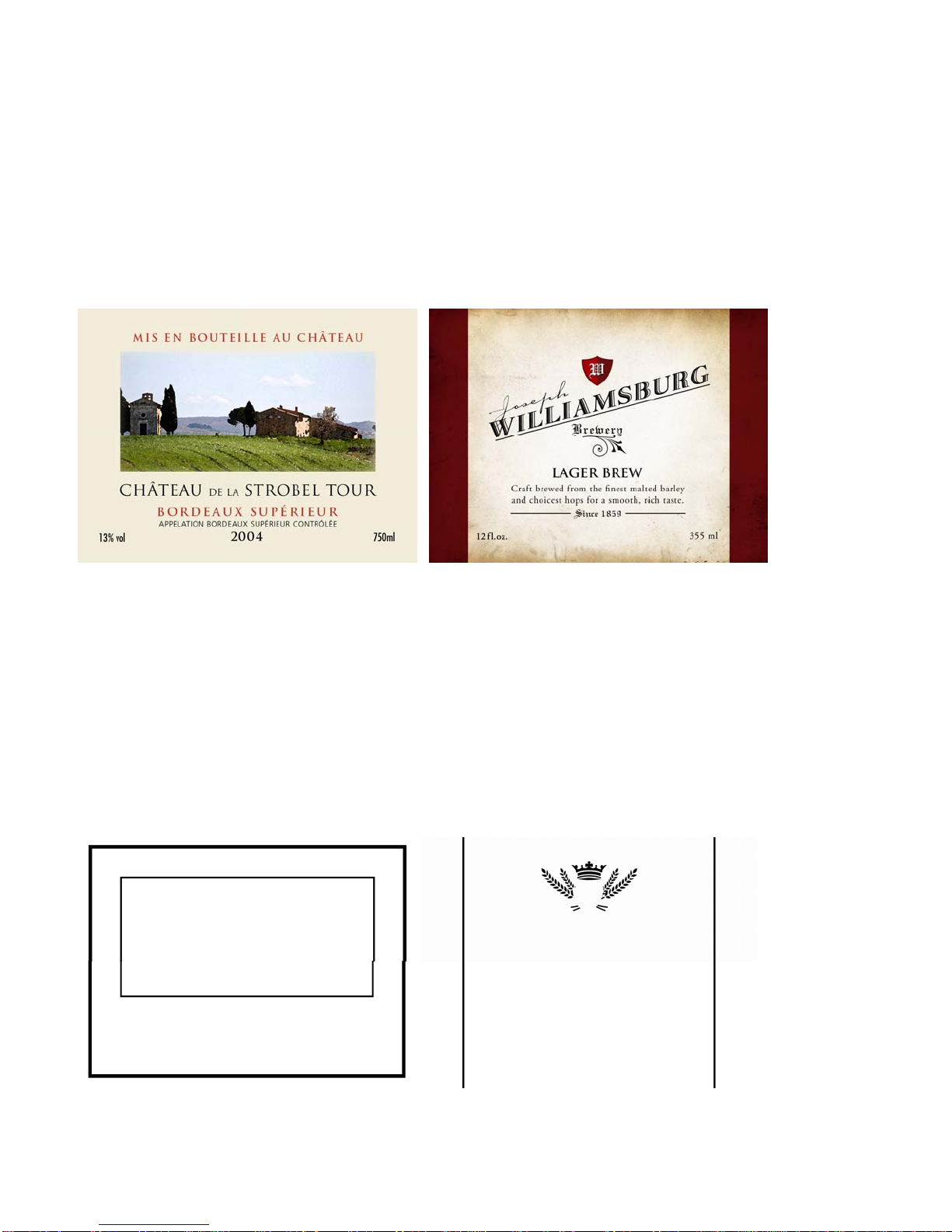

See example below:
LX Sample 1 LX Sample 2
FX Sample 1 FX Sample 2

12
Using Photoshop®or Illustrator®you can design both aspects of the label in
separate layers. This way you can easily align the LX inkjet portion with the FX foil
portion. To create your output file for use in PTFoil (Section 4D) simply hide each
layer and export the file as a BMP, JPG or TIF.
An example of both the LX label and the FX label can be found on your installation
disc in the “Sample” folder.
Important Note: *.lbl files from Nice Label®can not be used with the PTPrint
software unless you have Nice Label Pro. Nice Label Pro does not come with your
LX printer.
C. Design a Laminate Label
If you are using your FX400 as a label laminator create a solid black box in the
same size as your LX page size and label. Save it as a JPG, BMP or TIF file. See
example below:
D. Print with PTFoil Software
Now that you have your media loaded it is time to design, print and foil imprint or
laminate your label. PTFoil allows you to print both your LX label and your FX Foil
label from one single application.
1. Go to Start – All Programs – PTFoil to launch the PT Foil Software.

13
2. Set the Printer (LX810 or LX400).
3. Choose the LX Label.
4. Set the size of the label.
5. Choose the FX400 Foil Printer Label.

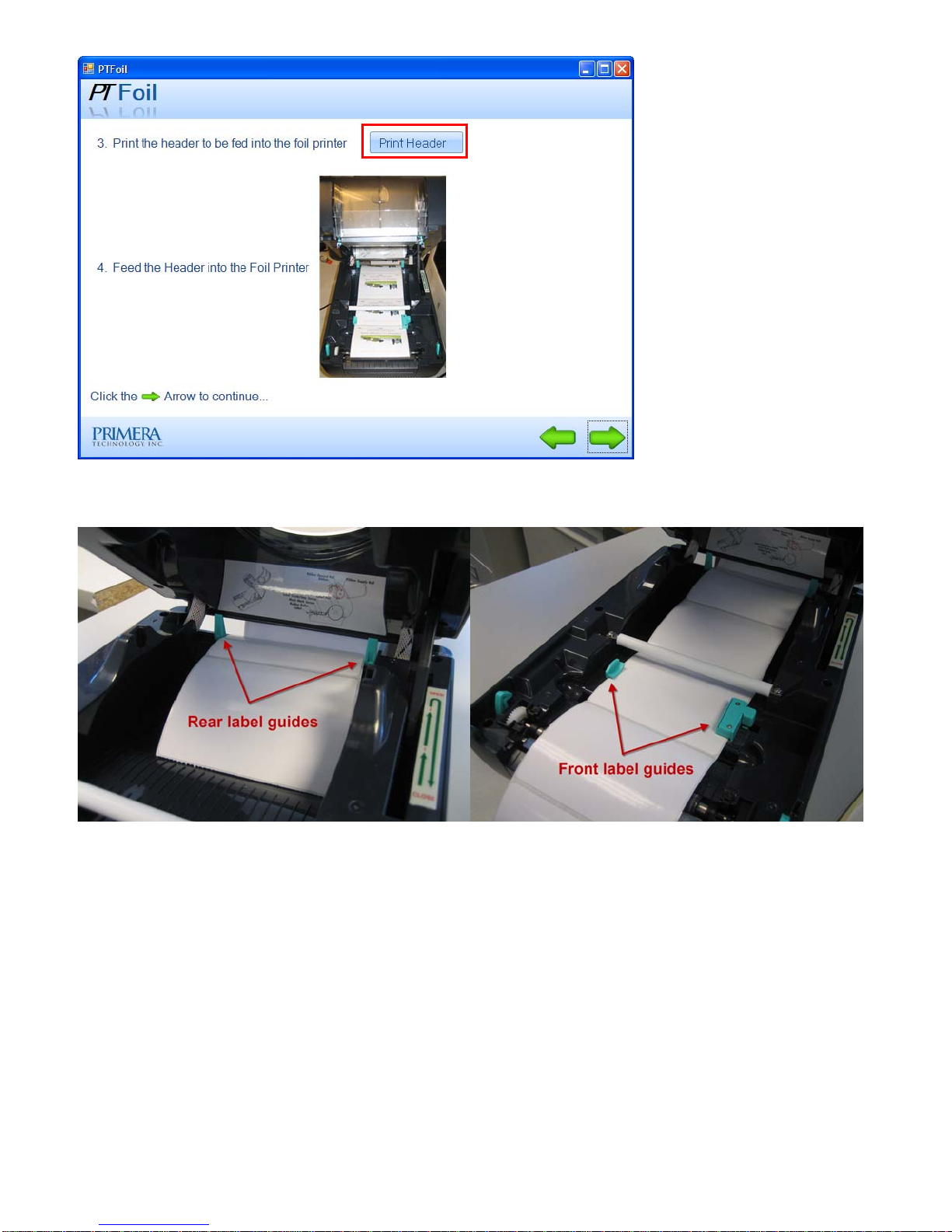

6. Print the header to be fed into the foil printer by clicking the button on the
screen. This allows the FX400 enough label stock to start printing without getting
ahead of the LX printer and causing tension on the label stock.

14
7. Feed the header into the FX400 Printer.
Note: Make sure at least one label is sticking out of the front. Failure to do this
could cause feeding/alignment issues when sending the print job.

15
8. Once the label stock is fed into the printer, the printer needs to be calibrated.
Press the button on the top of the FX400 to calibrate it.
9. Step 6 in the PTFoil application allows you the opportunity to print one test label
to see if the Foil Label file is aligned properly. Unless you have already printed this
label before, it is highly recommended you print a test print.
10. If the label needs adjustment, follow the instructions in Section 4 of this
manual. Pressing the Set Offsets button will display a shorter version of the
instructions in Section 4 of this manual.
11. Once you are sure the label is properly aligned, set the number of copies and
press “Start the Job”. Both the LX Printer and FX400 will be sent the same number
of prints. The software will regulate the speeds.

16
Section 4: Adjusting Offsets
If the foil border or graphic is not aligned properly on your LX label, you can adjust
the placement by following this procedure.
Note: It is also possible the FX image itself is offset within the page size of the
actual file. If this is the case, it is best to adjust the file. This way you will not
permanently change the offsets of the printer for other properly designed label that
might have printed correctly in the past.
1. Go to Start – Printers and Faxes. Right click on the FX400. Choose Printing
Preferences.
2. Go to the Page Setup Tab.

17

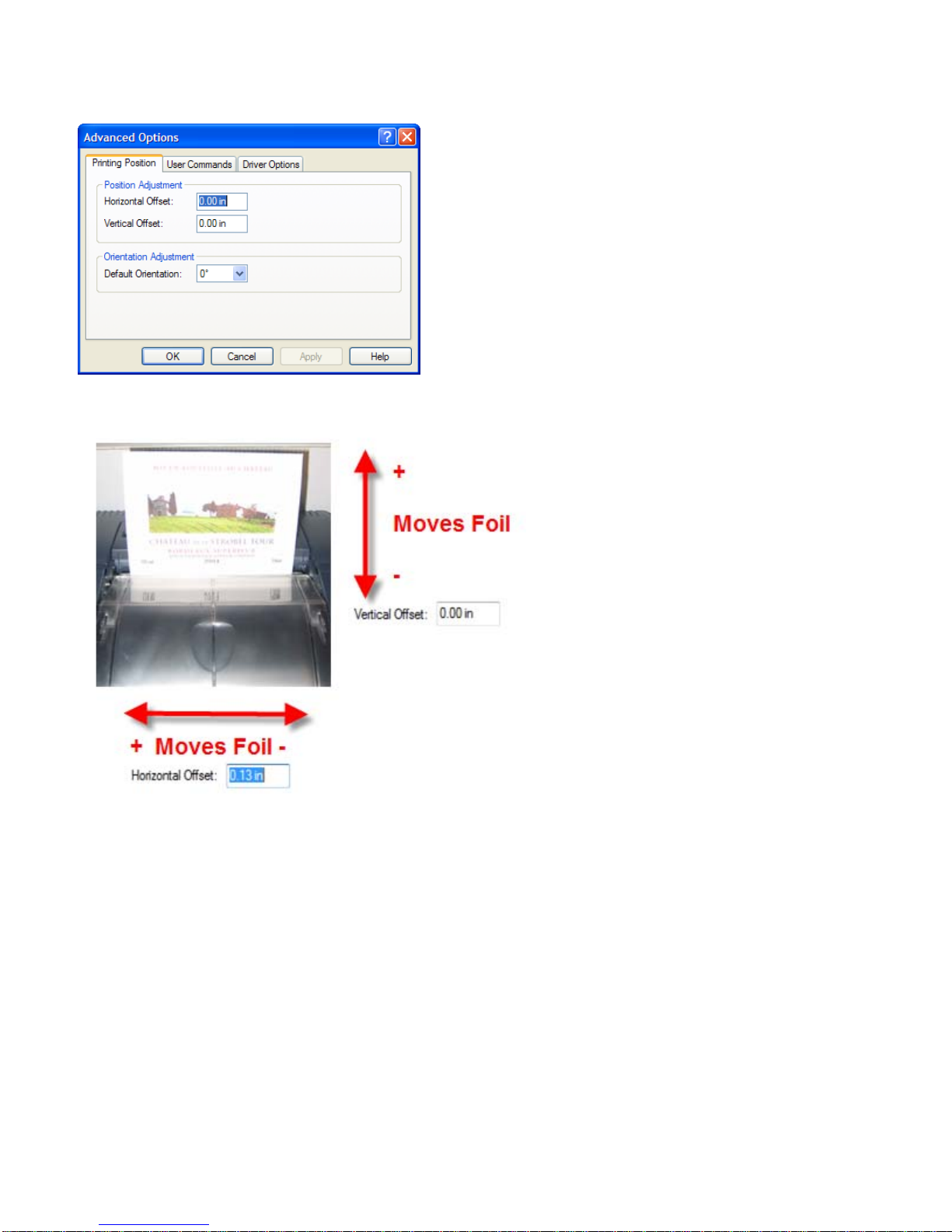

3. Choose Advanced Options.
Use the graphic below as a guide:

18
Section 5: Foil/Laminate Only
1. Attach the external paper roll mount to the bottom of the printer.
2. Install the roll of label stock onto the roll mount.
Note: Skip Steps 1 and 2 if you have fan-fold labels that are not on a roll. Use
steps 3-6 to foil only to these labels.
3. Open the top cover of the printer. See Section 2.7 Install Media for instructions.
Feed the label stock through the external paper feed opening and through the
rear/front paper guides. You will then need to adjust the paper guides to fit the
label stock width.

19
4. Close the top cover of the printer making sure at least one label is sticking out of
the front. Failure to do this could cause feeding/alignment issues when sending the
print job.
5. Design your label using any design software. Keep in mind the page size of the
design should be the same as the dimensions of the label stock you are intending to
print on. The design should be monochrome black only.
6. To imprint foil or laminate, go to the file
menu of the design application, choose print.
Choose the FX400 as the printer. Set the
number of copies and print.
Note: You can also choose to print from the
PTFoil application by checking the FOIL ONLY
box.

20
Section 6: Specifications
Imprint Method: Thermal transfer
Imprint Resolution: 300 dpi (12 dots/mm)
Print Speed: 2” (50.8mm) per second
Imprint Width: .75” (19mm) to 4.125” (104mm)
Data Interface: USB 1.1 or 2.0
Electrical: DC output: 24 VDC @ 3.75A, AC input: 100-240 VAC, 50/60 Hz
Software (included): PTFoil by Primera
Operating Systems: Windows XP/Vista®
Certifications: FCC Class B, UL, UL-C, TUV/GS, C-Tick, CCC
Weight: 18.5 lbs./8.4 kg (not including LX-Series Printer)
Dimensions:
With LX400: 16”W x 40”L x 12.25”H (406mmW x 1016mmL x 311mmH)
With LX810: 17”W x 40”L x 13.625”H (432mmW x 1016mmL x 346mmH)
Foil Supplies: TuffCoat Gold Foil, TuffCoat Silver Foil, TuffCoat Clear Foil
