Printronix T8000 Use and care manual

Administrator’sManual
T8000
Thermal Printers

Printronix makes no representations or warranties of any kind regarding this
material, including, but not
limited to, implied warranties of merchantability
and fitness for a particular purpose. Printronix shall not be
held responsible
for errors contained herein or any omissions from this material or for any damages,
whether direct, indirect, incidental or consequential, in connection
with the furnishing, distribution,
performance or use of this material. The
information in this manual is subject to change without notice.
This document contains proprietary information protected bycopyright. No
part of this document may be
reproduced, copied, translated or incorporated
in any other material in any form or by any means, whether
manual, graphic,
electronic, mechanical or otherwise, without the prior written consent of Printronix.
COPYRIGHT © 2016 PRINTRONIX AUTO ID TECHNOLOGY, INC. All rights reserved.
Trademark Acknowledgements
Printronix, IGP, Auto Label Mapping, LinePrinter Plus, PGL, and PrintNet are registered trademarks of
Printronix, Inc.
T8 is a trademark of Printronix, Inc.
Artifex, the Artifex logo , Ghostscript, and the Ghostscript logo are registered trademarks of
Artifex Software, Inc.
PostScript is a trademark of Adobe Systems Incorporated.
HP is a registered trademark of Hewlett-Packard Company.
Code V is a trademark of QMS, Inc.
QMS is a registered trademark of Quality Micro Systems, Inc.
IBM is registered trademark of International Business Machines Corp.
MS-DOS and Windows are registered trademarks of Microsoft Corporation.
Centronics is a registered trademark of Genicom Corporation.
IEEE is a registered service mark of the Institute of Electrical and Electronic Engineers, Inc.
EIA is a registered service mark of Electronic Industries Association.
ZPL, ZPL II, and Zebra are registered trademarks of Zebra Technologies Corporation.
TEC is a registered trademark of the Toshiba TEC Corporation.
Intermec is a registered trademark of the Intermec Technologies Corporation.
SATO is a registered trademark of SATO America, Inc.
DPL is a trademark and Datamax is a registered trademark of Datamax Technologies Corporation.
IER is a registered trademark of IER Siège
Monarch is a registered trademark of Paxar Corporation.
SD, SDHC and SDXC are trademarks or registered trademarks of SD-3C, LLC in the United States, other
countries or both. Also, miniSD, microSD, miniSDHC, microSDHC, microSDXC, smartSD, smartSDHC,
SDIO and miniSDIO are all trademarks or registered trademarks of SD-3C, LLC in the United States,
other countries or both.

Table of Contents
Trademark Acknowledgements ....................................................................3
1Introduction..................................................................13
The T8000 Family of Printers............................................................................13
Standard Features.............................................................................................14
Optional Features..............................................................................................15
Thermal Printer Technology..............................................................................16
The Printing Process.........................................................................................16
Dynamic Print Control........................................................................................16
Warnings and Special Information ....................................................................16
Manual Conventions..........................................................................................17
2Operation.....................................................................19
Controls and Indicators......................................................................................19
Power Switch.....................................................................................................19

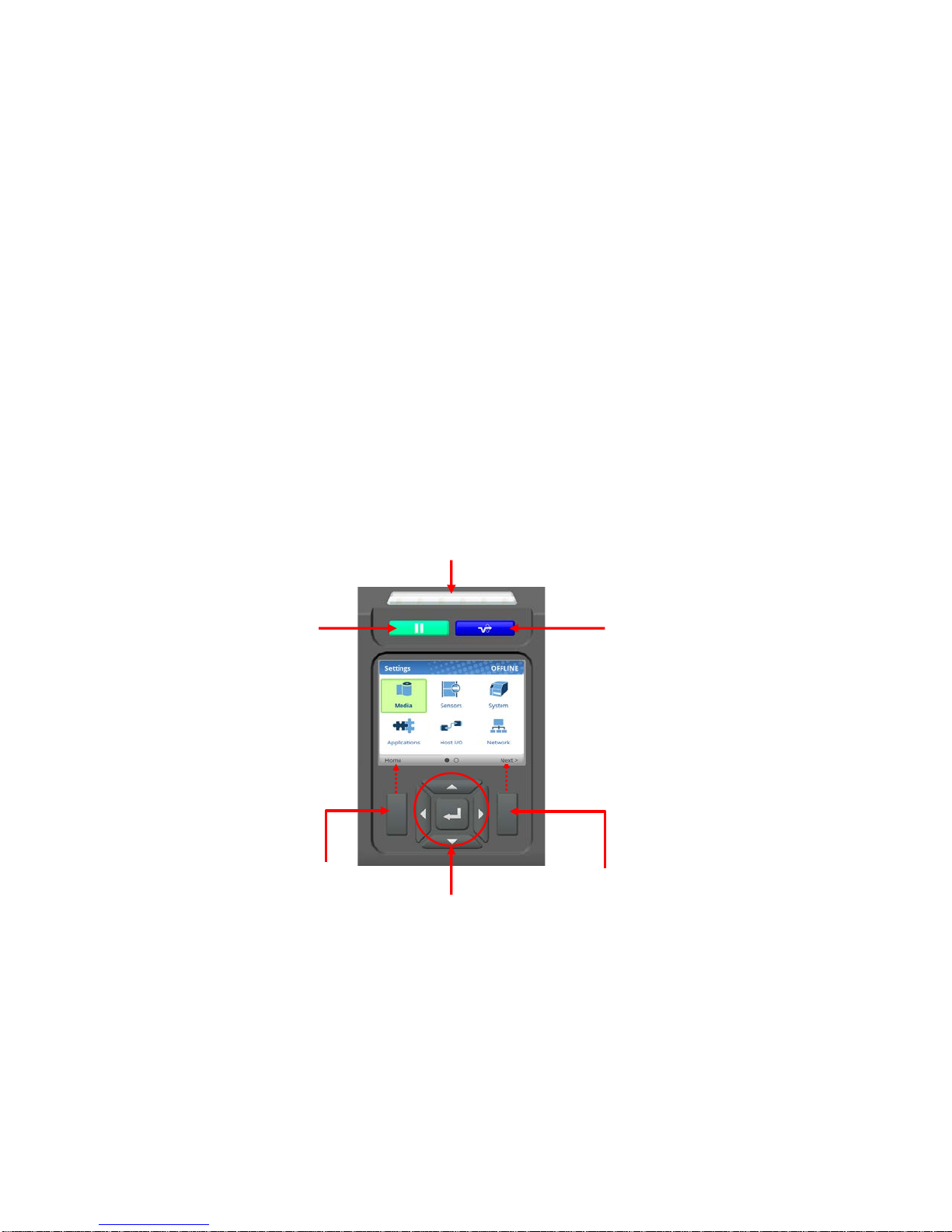

Control Panel.....................................................................................................19
Operating Modes...............................................................................................20
Online Screen....................................................................................................21
Offline (Home) Screen.......................................................................................22
Wizard ..............................................................................................22
Settings ..............................................................................................23
Calibration ...........................................................................................24
Fault .....................................................................................................24
Job in Process...................................................................................................25
Media Handling Modes......................................................................................25
Using theOptionalInternalRewinder...................................................................26
Batch Rewind Mode ..........................................................................................26
Configuring the Printer Menu ............................................................................26
Installing the Paper Path ...................................................................................27
Loading Media...................................................................................................28
Removing Printed Media from the Rewinder ....................................................29
Label Peel-Off....................................................................................................29
Configuring the Printer Menu ............................................................................29
Loading Media...................................................................................................29
Removing Label Liner from the Rewinder..........................................................31
Removing the Paper Path .................................................................................31
Printing Adjustments..........................................................................................32

Printhead Pressure Adjustment.........................................................................32
Printhead Pressure Block Adjustments.............................................................33
Left Pressure Block ...........................................................................................33
Right Pressure Block.........................................................................................33
Positioning the Media Sensors..........................................................................34
Media with Horizontal Black Marks.....................................................................35
Media with No Label Length Indicators...............................................................35
Media with Gaps, Notches, or Holes (Gap).......................................................36
Media with Dark Background Labels with Gaps (Advanced Gap) ....................37
Dark Background Media with Notches or Holes (Advanced Notch)..................38
Sensing Different Media Types .........................................................................39
Calibrating the Media Sensors ..........................................................................39
Running Auto Calibrate .....................................................................................40
Running Media Profile.......................................................................................41
Gap Sensing......................................................................................................42
Advanced Gap Sensing.....................................................................................44
Running Manual Calibrate.................................................................................45
Cleaning ............................................................................................................46
Exterior Cleaning...............................................................................................46
Interior Cleaning ................................................................................................47
Cleaning the Printhead, Platen Roller, Media Sensors/Damper.......................47
Printhead Cleaning............................................................................................47
Platen Roller Cleaning.......................................................................................47
Media Sensor Cleaning.....................................................................................48
Media Damper Cleaning....................................................................................49
Cutter Option Cleaning......................................................................................49
3Configurations..............................................................51
Overview............................................................................................................51
Setting Printer Configuration Parameters .................................................51
Saving a Configuration ........................................................................................53
Auto Save Configuration.....................................................................................54
Naming Configurations......................................................................................54
Loading a Configuration ....................................................................................55
Specifying a Power-Up Configuration ...............................................................56
Modifying a Saved Configuration.......................................................................56
Viewing the Current Configuration ....................................................................56
Printing a Configuration .....................................................................................56
SettingsOrganization ........................................................................57

Media
....................................................................................................58
Intro: Label Length.............................................................................................58
Intro: Clip Page..................................................................................................58
Media > Speed ..................................................................................................59
Media > Image...................................................................................................60
Media > Handling ..............................................................................................66
Media > Ribbon .................................................................................................70
Media > Top of Form.........................................................................................71
Media > Faults...................................................................................................73
Media > Auto Label Map ...................................................................................74
Auto Label Map Examples ................................................................................75
Example 1: Simple Case....................................................................................75
Example 2: Uneven Number Case ....................................................................75
Example 3: Past Maximum File Width...............................................................77
Example 4: Blank Label Case............................................................................77
Sensors ................................................................................................78
Intro: Sensor Types...........................................................................................78
Sensors > Control..............................................................................................78
Sensors > Calibrate...........................................................................................81
Sensors > Diagnostics.......................................................................................86
System ...............................................................................................88
System > Control...............................................................................................88
System > Energy Star .......................................................................................91
System > Flash File View..................................................................................92
System > Flash File Edit....................................................................................92
System > SD File View......................................................................................93
System > SD File Edit .......................................................................................93
System > Printer Mgmt......................................................................................95
System > GPIO..................................................................................................97
Application .......................................................................................98
LP+, PGL, VGL Character Sets.........................................................................98
Application > Control .......................................................................................102
Application > IPDS Setup................................................................................108
Application > PS/PDF......................................................................................114
Application > PGL Setup.................................................................................115
Application > VGL Setup.................................................................................124
Application > ZGL SETUP...............................................................................138

Application > TGL SETUP...............................................................................138
Application > IGL SETUP................................................................................138
Application > STGL SETUP ............................................................................138
Application > DGL SETUP ..............................................................................138
Application > IEGL SETUP..............................................................................138
Application > MGL SETUP..............................................................................138
Application > LP+ SETUP ...............................................................................138
Application > P-SERIES Setup........................................................................143
Application > P-SERIES XQ Setup .................................................................149
Application > Serial Matrix Setup ....................................................................153
Application > Proprinter Setup.........................................................................158
Application > Epson FX Setup.........................................................................161
Application > Fonts..........................................................................................165
Host IO ..........................................................................................167
Host IO > Control.............................................................................................167
Host IO > Centronics.......................................................................................167
Host IO > IEEE-1284.......................................................................................172
Host IO > USB.................................................................................................173
Host IO > Serial...............................................................................................173
Network ............................................................................................182
Network > Control............................................................................................182
Network > Ethernet..........................................................................................184
Network > WLAN.............................................................................................186
Network > WLAN Params ...............................................................................189
Network > WLAN EAP.....................................................................................195
Network > Date................................................................................................196
Configs ...............................................................................................197
Configs > Control.............................................................................................197
Configs > Custom............................................................................................199
Tools .................................................................................................200
Tools > Print Tests ..........................................................................................200
Tools > Diagnostics.........................................................................................201
Tools > Statistics .............................................................................................202
Tools > About ..................................................................................................203
Validator ..............................................................................................205
4Downloading Firmware..............................................206

Firmware File Types (.prg) and (.exe).............................................................207
Web Page Download.......................................................................................208
Windows Driver Download ..............................................................................210
Automatic Download (.exe) .............................................................................211
Manual Two-Key Download Sequence...........................................................213
Manual Three-Key Download Sequence.........................................................213
Sending Firmware in Download Mode ............................................................214
Sending Firmware via Ethernet (LPR).............................................................214
Sending Firmware via USB .............................................................................214
Sending Firmware via Parallel.........................................................................215
Sending Firmware via Serial ...........................................................................216
Downloading Files to the Main File System ....................................................217
Filename Extensions Not Shown in Menus.....................................................217
File Properties Not Shown in Menus...............................................................218
Web Page Download.......................................................................................218
PTX_SETUP Download...................................................................................220
Unzip the file and you will find a Linux version (bdcert.lnx), Windows version
(bdcert.bat), and README.TXT file....................Error! Bookmark not defined.
The bdcert.lnx can must be run from a Linux command line. ..Error! Bookmark
not defined.
Manual Two-Key Download ............................................................................221
Downloading Files to the SD Card ..................................................................222
Using TrueType Fonts.....................................................................................222
Downloading TrueType Fonts .........................................................................222
PGL Emulation ................................................................................................223
Adding a Header/Manual Two-Key Download................................................223
Header for SD Card..........................................................................................224
Labeling Applications.......................................................................................224
Select and Print Downloaded TrueType Fonts ...............................................224
To Print ASCII Characters...............................................................................224
To Print All Characters ....................................................................................224
Demo Facility...................................................................................................225
Downloading a Demo File ...............................................................................225
ConfiguringthePrintertoRunaDemoFile ..........................................................225
Starting a Demo File........................................................................................225
Pausing a Demo File.......................................................................................226
Stopping a Demo File......................................................................................226
Deleting a Demo File.......................................................................................226
WLAN Radio Firmware Upgrade.....................................................................226
Firmware Download Methods..........................................................................226
Firmware File Types (.fls) and (.exe)...............................................................227
Web Page Download.......................................................................................227
Windows Driver Download ..............................................................................228

Automatic Download (.exe) .............................................................................228
Manual Two-Key Download Sequence...........................................................228
5Reprogramming the Security Key ..............................229
Reprogramming the Security Key ...................................................................229
How to Program the Security Key...................................................................229
6Diagnostics and Troubleshooting...............................231
Printer Tests......................................................................................................231
Troubleshooting CommonSituations.................................................................231
Interfacing........................................................................................................231
Hex DumpMode..............................................................................................232
Controlling Print Quality...................................................................................232
Replacing the Printhead..................................................................................234
Restore the Printer to Operation .....................................................................236
Diagnostics for Fatal Error:..............................................................................236
Solving other Printer Problems........................................................................237
Printer Alarms..................................................................................................245
Fault Messages...............................................................................................245
Operator-Correctable Fault Messages............................................................245
Fault Messages Requiring Field Service Attention .........................................245
Fatal Messages Requiring Firmware Upgrade or Diagnostics........................245
ASpecifications ............................................................261
Print Method ....................................................................................................261
Media...............................................................................................................262
Ribbon .............................................................................................................264
Indicators and Switches...................................................................................264
Memory............................................................................................................265
Media Cutter Option ........................................................................................265
Cutter...............................................................................................................265
Host Interfaces ................................................................................................266
Power...............................................................................................................266
Environmental..................................................................................................267
Physical ...........................................................................................................267
Acoustic Specifications....................................................................................267
BPrinter Options...........................................................269
Hardware Options............................................................................................269
Media Cutter....................................................................................................269
Internal Rewinder ............................................................................................269
Media Cutter Tray............................................................................................269
Online Data Validator ......................................................................................269
Real Time Clock (RTC) ...................................................................................269

Interface Options .............................................................................................269
Wireless NIC (802.11 a/b/g/n wireless)...........................................................269
IPDS over Ethernet..........................................................................................270
General Purpose Input/Ouput (GPIO).............................................................270
Parallel (Centronics or IEEE-1284).................................................................270
Supplies and Accessories ...............................................................................270
Genuine Printronix Thermal Transfer Ribbons................................................270
Printronix Wide Spectrum Wax Ribbon 8300..................................................270
Printronix Wax Resin Blend Ribbon 8500.......................................................270
Printronix Flood-Coat Specialty Wax Resin Blend Ribbon 8550 ....................270
Printronix Specialty Resin Ribbon 8600..........................................................271
Printronix Harsh Environment Resin Ribbon 8700..........................................271
Printronix Gasoline Resistant Specialty Resin Ribbon 8770...........................271
Genuine Printronix Media................................................................................271
Accessories.....................................................................................................273
CASCII Control Codes .................................................276
D Media Cutter Installation ................................................278
Prepare the Printer..........................................................................................278
Installing the Cutter..........................................................................................279
Restore the Printer to Operation .....................................................................280
Removing the Media Cutter.............................................................................280
EMedia Cutter Tray Installation....................................282
Assembling the Media Cutter Tray..................................................................282
Installing the Media Cutter Tray ......................................................................283
FLoading WLAN Certificates........................................285
Overview..........................................................................................................285
Loading Wifi Certificate file(s) from Windows..................................................285
Loading Wifi Certificate file(s) from Linux........................................................285
GPTX_SETUP Commands...........................................287
Overview..........................................................................................................287
ThePTX_SETUPCommands ...........................................................................287
General Commands ........................................................................................287
Summary of the CONFIG Command ..............................................................292
Operation of the FILE_IO Command...............................................................292
Thermal Commands........................................................................................293
HQuick Change Memory Card (QCMC) .......................295
Overview..........................................................................................................295
Installing the QCMC ........................................................................................296
Saving the Printer’s Configuration to the QCMC.............................................296

CopyingtheQCMC“Snapshot”Image toaSecondPrinter ...........................................298
UpdatingtheQCMCImage ...................................................................................300
ErasingtheQCMCImage ......................................................................................300
ICustom Configuration Module (CCM)........................303
Overview..........................................................................................................303
Creating a CCM...............................................................................................303
Using CCM To Configure A Printer .................................................................304
JCustomer Support......................................................306
Printronix Customer Support Center...............................................................306
Corporate Offices ............................................................................................307
KGlossary ....................................................................308
LCommunication Notices and Warranties....................314
Communication Statements ................................................................................315
Industry Canada Compliance Statement.........................................................316
Statement of CISPR 22 Compliance...............................................................316
Japanese VCCI Class A..................................................................................316
German Conformity Statement........................................................................317
Korea...............................................................................................................317
Taiwan.............................................................................................................318
China ...............................................................................................................318
Software License Agreement..........................................................................319
eCos ................................................................................................................320
Open SSL........................................................................................................321
OpenSSL License............................................................................................321
Original SSLeay License.................................................................................322
WPA Supplicant License.................................................................................323
Brian Gladman AES Library ............................................................................323
Artifex Portions Software Copyright Notices ...................................................324
Google Font Open Sans..................................................................................324
Cousine Font ...................................................................................................324
Limited Software Product Warranty.................................................................325
Remedy ...........................................................................................................325
Disclaimer of Warranties and Limitation of Remedies ....................................325
Termination of License Agreement .................................................................325
U.S. Government Restricted Rights................................................................325
Acknowledgement of Terms and Conditions...................................................326
Warranty Information.......................................................................................326
PRINTER WARRANTY...................................................................................326
THERMAL PRINTHEAD..................................................................................326
SUPPLIES.......................................................................................................326

ON-SITE MAINTENANCE SERVICE..............................................................326

14
1 Introduction
The T8000 Family of Printers
NOTE: As used in this manual, the terms “T8000” and “printer” refer to all models within the series.
The T8000 series consists of a family of high quality, direct thermal and thermal transfer printers
specifically designed for printing labels and tags from multiple environments:
• MS-DOS®
• Windows®
• Unix/Linux
• EBCDIC (with the TN firmware or IPDS option)
• SAP/ERP (with the Postscript/PDF firmware or Standard firmware with SAP device type)
The T8000 series are comprised of the products detailed in Table 1.
Table 1. The T8000 Series
Version Max Print
Speed (ips) Printing Density Max Print Width
T8204 14 203 4.1
T8304 12 300 4.1
T8206 12 203 6.6
T8306 10 300 6.6
T8208 10 203 8.5
T8308 8 300 8.5

15
Standard Features
•512MB DRAM memory (fixed).
•128MB Flash memory (fixed).
•Auto Label Mapping®: For compatibility with programs written for Printronix line matrix printers.
•Bar Codes: Supports over multiple types of 1-D and 2-D bar codes.
•Download: Fonts, forms, and graphics to printer memory.
•Emulations:
• Printronix LinePrinter Plus® (LP+). Provides direct compatibility with Printronix P-Series
printers, Epson FX-1050, Proprinter IIIXL, and Serial Matrix Printers.
• Printronix PGL®. Provides printer system commands for text, barcodes, graphics, lines, and
boxes.
• Printronix VGL. Emulates the QMS Code V™ Version II programming language to produce
on-line forms, bar codes, and alphanumeric text generation in both normal and high resolution.
• ZGL interpreter for legacy ZPL (Zebra®) applications
• TGL interpreter for legacy TEC (TEC®) applications
• IGL interpreter for legacy IPL (Intermec®) applications
• STGL interpreter for legacy SPL (SATO®) applications
• DGL interpreter for legacy DPL™ (Datamax®) applications
• IEGL interpreter for legacy IER-520® (IER®) applications
• MGL interpreter for legacy MPCL II® (Monarch®) applications
•High Resolution Printhead: For sharp graphics and text.
•Label Taken Sensor: Detects removal of labels in Tear-Off mode (and in Peel-Off mode when
optional rewinder is installed).
•Network Interface Port: This interface allows you to attach the printer to a LAN (Local Area Network).
The port is visible on the back panel. The Ethernet port is a 10/100Base and supports data transfer
rates up to 100 Mbps. The PrintNet Enterprise Suite (PNE) remote management software is included
with the package.
•Resident Fonts (Standard Firmware): Letter Gothic Bold (#93779), Courier Bold (#93952), CG
Triumvirate Bold Condensed (#92250), OCR-A (#90993), OCR-B (#91409), CG Triumvirate (#92244),
CG Triumvirate Bold (#92248), and CG Times New Roman (#92500).
•SD memory card slot: Supports SD cards from 4 to 32 GB.
•Serial RS-232
•Tear-Off Mode: Positions the label at the tear-off position and detects its removal before printing the
next label.
•Tear-Off Strip Mode: Prints a specified number of labels and positions the last label at the tear-off
position.
•Thermal Transfer and Direct Thermal Printing: On all printers
•USB 2.0 Universal Serial Bus

16
•Ventless System: For operation in environments with airborne particulate matter without
compromising performance.
Optional Features
Ask your authorized representative about the following enhancement options:
•Andalé Fonts: A selection of four different purchasable Andale fonts can be provided (one font per SD
card). The Andale fonts will become active when the SD card is installed.
•GPIO (General Purpose Input/Output): Enables a T8000 printer to interface with an external device
such as a label applicator system. GPIO is available as a factory option or field installable kit that also
includes a mating connector for field interface, installation instructions, and operation manual.
•Internal Label Rewinder: In label peel-off mode, peels off labels one at a time before printing the next
label and rewinds the liner into a discardable roll. In batch rewind mode, rewinds printed labels into a
removable roll.
•IPDS: The printer may be ordered with this option installed or it can be field installed by an authorized
service representative or by use of an SPX at a later date. The printer must have a 300 dpi printhead
installed to support this field installed option.
•Media Cutter: Automatically cuts printed media when the media exits the printer. Available for 4, 6,
and 8 inch printers.
•Media Cutter Tray: Used with the media cutter option to catch and collect the cut media in a bin.
•Online Barcode Validator: Analyzes each bar code to ensure it meets stringent scanning standards.
This inspection validates the symbology and specifications of both linear and PDF417 bar code
images. Bad bar code labels are cancelled and good replacement labels are printed.
•Postscript/PDF:The Postscript/PDF firmware enables your printer to support Postscript and PDF
applications directly from the host computer making your ERP and WMS integration simple.
•Parallel: Centronics®-compatible parallel, IEEE® 1284 compliant parallel.
•Premium Asian Fonts:A selection of three different purchasable Asian fonts can be provided (one
font per SD card). These Asian fonts include Hanzi GB, Kanji SJIS, and Hangul, are available for use
when the SD card is installed
•QCMC (Quick Change Memory Card): The QCMC provides the ability to duplicate an entire printer’s
firmware, saved configurations, and custom files quickly through the printer’s control panel with a user
friendly interface.
•TN5250:The TN firmware enables your printer to communicate with an IBM host through a network
interface using the 5250 datastream. This feature allows you to use an application generated for the
coax/twinax emulation to be printed through the network interface.
•Wireless Network: This card provides wireless 802.11a/b/g/n connectivity without expensive cabling
and reconfigurations required from a wired network. PNE is standard with this option.
For more information about printer options, see Appendix B page 269.

17
Thermal Printer Technology
Quiet and fast, with excellent print quality, your multifunction thermal printer uses an inline thermal
printhead. The thermal printer operates differently from a line matrix or laser printer, because the thermal
printer uses a printhead with heating elements and special paper or ribbon.
The Printing Process
The thermal printhead allows two modes of operation:
•Direct Thermal
During direct thermal printing, the thermal printhead selectively heats small, rectangular thermal dots.
When these contact the coated thermal paper, the dyes and developers in the coating react to the heat
and develop an image. This mode of printing is generally used for short-term labeling applications.
•Thermal Transfer
During thermal transfer printing, the heated thermal dots contact a thermal ribbon. The heat reacts with the
ribbon and bonds the image to the paper. This method is used especially for abrasive, long-storage
applications and for specialized applications, such as in extreme environmental conditions or where
tamper-proofing is required.
Dynamic Print Control
Dynamic print control is a unique feature of your thermal printer that provides excellent print quality by
preventing unevenness of print density.
Print quality largely depends on how the thermal paper or the thermal ribbon and thermal transfer paper
responds to the heat of the thermal printhead.
During printing, the thermal printhead must reach a set temperature in the shortest possible time. Then it
must cool down to the original temperature in the shortest possible time after printing. Thus print quality is
dependent on the precise control of the energy supplied to the thermal dots.
The dynamic print control is a method for predicting the quantity of heat required to print dots based on the
results of the previous printing. This prevents unevenness of print density and results in the printing of
narrow- ladder bar codes or vertical grid lines that are straight from the microscopic viewpoint.
Warnings and Special Information
For your safety and to protect valuable equipment, read and comply with all information highlighted under
special headings:
WARNING Conditions that could harm you and damage the equipment.
WARNING Achten Sie auf folgendes, um keine Personen in Gefahr zubringen bzw. das
Gerät zu beschädigen.
WARNING Condiciones que pueden causar daños a personas y equipos.
WARNING Conditions à respecter pour éviter tout danger corporel et dommage matériel.
WARNING Condizioni che possono arrecare danni alle persone e alle apparecchiature.
CAUTION Conditions that could damage the printer or related equipment.
IMPORTANT Information vital to proper operation of the printer.
NOTE: Information and helpful tips about printer operation.

18
Manual Conventions
•Operator panel keys are printed in uppercase letters.
Example: Press the PAUSE key and then press ENTER.
•Operator panel keys are often shown by their symbol or icon (located on the control panel directly
below the key).
Example: Press the ↵ key for ENTER.
•Operator panel menu settings are often shown by their full location that includes the ICON name,
submenu, and then menu, each separated with a ‘>’ sign.
Example: Change the Media > Image > Label Length menu.
•Control panel LCD messages are printed in uppercase letters inside quotation marks ( “ ” ).
Example: When “OFFLINE” appears on the control panel LCD, you may release the PAUSE key.
•Key combinations are indicated by the +(plus) symbol.
Example: Press ↑ + ↓ means Press the Up ↑key and the Down ↓ key at the same time.

19

20
2 Operation
Controls and Indicators
Power Switch
The power switch is located on the bottom back panel of the printer. To apply power, place the switch in the
| (ON) position. When you first power on the
printer, an initialization sequence will immediately appear on
the color LCD control panel.
To remove power, place the power switch in the O (OFF) position.
Control Panel
The control panel is located on the front of the printer and includes a Status LED array, QVGA color
display, PAUSE key, FEED key, LEFT SOFT key, RIGHT SOFT key, and navigation keys (buttons) with
the ENTER button in the center. These are described in the following
tables.
PAUSE Key FEED Key
Navigation / ENTER
RIGHT SOFT Key
LEFT SOFT Key
Status LED
The QVGA (quarter VGA) screen is a 320 x 240 pixel color display (non-touch). It is comprised of a Header
that shows the printer state and location with the User Interface (UI), the general display area, and a footer
used to show the purpose of the LEFT and RIGHT SOFT keys (when available).
The status LED indicates when the
printer is ONLINE, OFFLINE, or when there is a fault condition:
• LED is on solid: ONLINE and Ready to Print.
• LED is off: OFFLINE and not accepting data.
• LED is flashing: Fault Indicator.
