Pro-Elec PELL0061 User manual

1
LOCAL AIR CONDITIONER
Model: PELL0061

32
IMPORTANT SAFETY INFORMATION
TRANSPORTATION AND STORAGE
• Do not use any means to accelerate the defrosting process or to clean, other than
those recommended by the manufacturer.
• The appliance shall be stored in a room without continuously operating ignition
sources (for example: open ames, an operating gas appliance or an operating
electric heater).
• Do not pierce or burn.
• Be aware that refrigerants may not contain an odour.
• The appliance shall be installed, operated and stored in a room with a oor area
larger than 13m2.
• Keep any required ventilation openings clear of obstruction.
• Servicing shall be performed only as recommended by the manufacturer.
• The appliance shall be stored in a well-ventilated area where the room size
corresponds to the room area as specied for operation.
• Any person who is involved with working on or breaking into a refrigerant circuit
should hold a current valid certicate from an industry-accredited assessment
authority, which authorises their competence to handle refrigerants safely in
accordance with an industry recognised assessment specication.
• Servicing shall only be performed as recommended by the equipment
manufacturer. Maintenance and repair requiring the assistance of other skilled
personnel shall be carried out under the supervision of the person competent in
the use of ammable refrigerants.
• All working procedure that affects safety means shall only be carried by competent
persons.
• The appliance is only suitable for indoor use, and is not suitable for other
applications.
• Follow local grid interconnection rules while installing the appliance and ensure
that it is properly grounded. If you have any question on electrical installation,
follow the instructions of the manufacturer, and if necessary, ask a professional
electrician to install it.
• Place the appliance in a level and dry place and keep a distance of above 50cm
between the machine and the surrounding objects or walls.
• After the appliance is installed, ensure that the mains plug is intact and rmly
plugged into the power outlet, and place the power cord to avoid a trip hazard.
• Do not put any object into the air inlet and outlet of the air conditioning. Keep the
air inlet and outlet free from obstructions.
• When drainage pipes are installed, ensure that the drainage pipes are properly
connected, and are not distorted or bent.
• While adjusting the upper and lower wind-guide strips of the air outlet, use gentle
nger pressure to avoid damaging the wind-guide strips.
• When moving the appliance, make sure that it is in an upright position.
• The appliance should be kept away from gasoline, ammable gas, stoves and
other heat sources.
• Don’t disassemble, overhaul and modify the appliance arbitrarily, otherwise it may
cause a malfunction or harm to persons and properties.
• To avoid danger, if a machine failure occurs, refer to a professional for repair.
Please read these instructions carefully before use and retain for future reference. • Do not install and use the appliance in a bathroom or other humid environments.
• Do not pull out the mains plug to turn off the appliance.
• Do not place cups or other objects on the appliance to prevent water or other
liquids from spilling into the air conditioning.
• Do not use insecticide sprays or other ammable substances near the appliance.
• Do not wipe or wash the appliance with chemical solvents such as gasoline and
alcohol. When you need to clean the air conditioning, you must disconnect the
power supply, and clean it with a half-wet soft cloth. If the machine is really dirty,
scrub with a mild detergent.
• The appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities if they have been given
supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved.
• Children shall not play with the appliance. Cleaning and maintenance shall not be
made by children without supervision.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualied persons in order to avoid a hazard.
• The appliance shall be installed in accordance with local wiring regulations.
Transportation and labelling
• Transport of equipment containing ammable refrigerants must be in compliance
with the transport regulations.
• Marking of equipment using signs in compliance with local regulations
• Disposal of equipment using ammable refrigerants in compliance with national
regulations.
Storage of equipment/appliances
• The storage of equipment should be in accordance with the manufacturer’s
instructions.

54

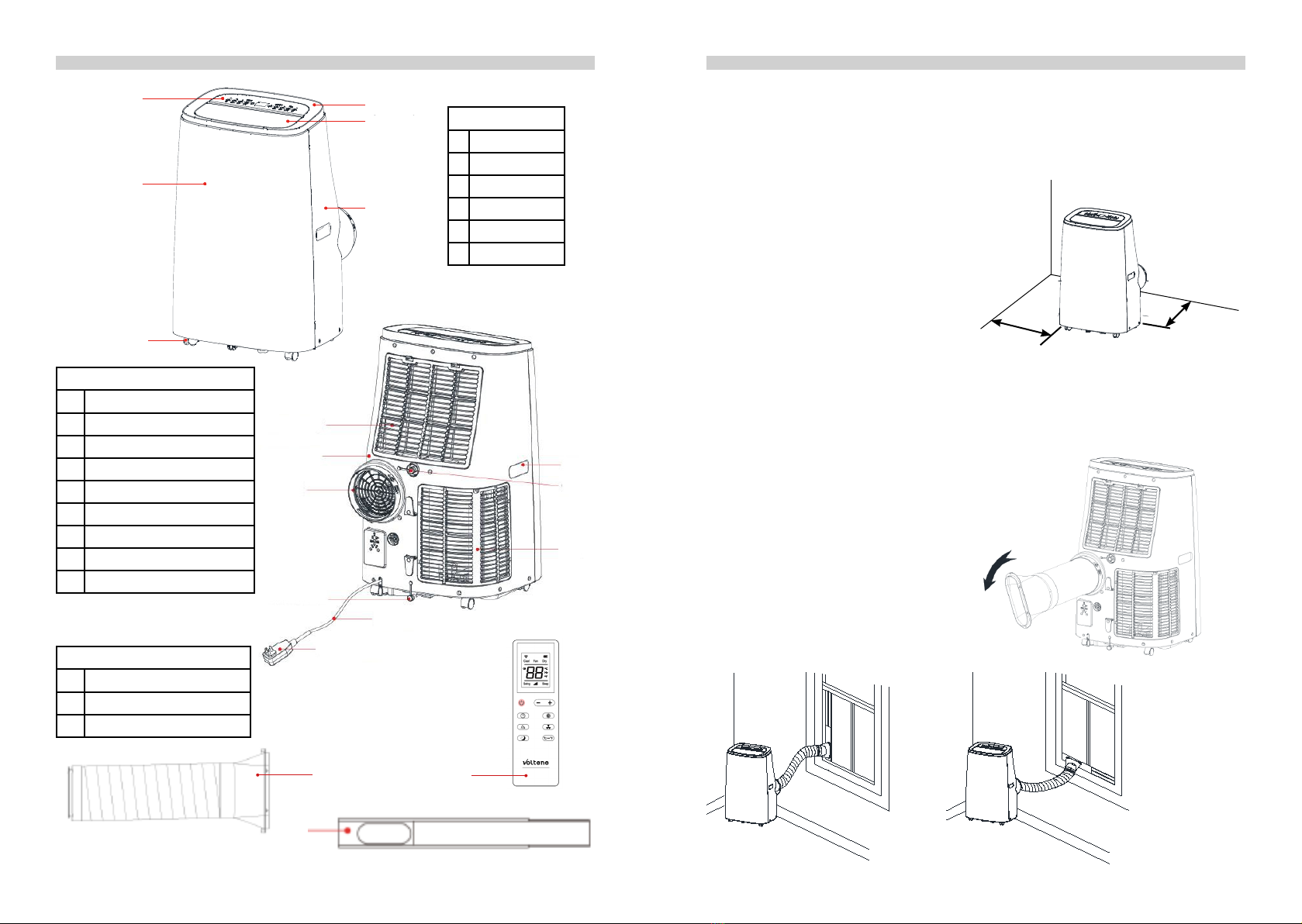

PRODUCT OVERVIEW
Front
1Control panel
2 Top Panel
3 Flap
4 Front Casing
5 Rear Casing
6 Castor
Back
7 Filter Housing
8 Rear Casing
9 Air Outlet Duct
10 Manual Drainage Outlet
11 Mains Plug
12 Power Cord
13 Cooling Grille
14 Continual Drainage Outlet
15 Handle
Accessories
16 Exhaust hose
17 Adjustable window guide
18 Remote control
7
914
15
10
11
12
13
1816
Positioning
Warning: before using the local air conditioning, keep it upright for at least two hours.
• The air conditioner must stand upright on an even surface.
• Do not position near a bath, sink or other permanently damp or wet areas.
• Place the air conditioner at least 50cm away from any other wall, curtains or heat
sources to ensure adequate air circulation.
• Ensure that the mains socket outlet
remains accessible when the air
conditioner is in use.
• Ensure that there is free access to the
air-inlet and air-outlet vents.
POSITIONING & INSTALLATION
Ventilation Installation
Note: The window kit is only designed for use with casement windows.
• Fit the exhaust hose onto the air outlet duct on the rear of the air conditioner,
turning anti-clockwise to lock into place.
• Adjust the length of the window guide to t the width of your window. The length of
the guide is adjustable. If it is too long
it may be cut to size.
• Fit the exhaust hose adapter into the
window guide.
• Close the window onto the window
guide so that is securely held in place.
12
3
4
5
6
8
17
Min 50cm
Min 50cm

76
INSTALLATION ERRORS
To operate efciently the air must be able to ow freely into the exhaust hose. To assist
this:
• Avoid any sharp bends or kinks in the exhaust hose.
• Keep it as level as possible.
• Keep its length as short as possible. The maximum extension length of the
exhaust pipe is 1.5m. Do not try to lengthen it.
CONTROL PANEL
• POWER: Press to turn the air conditioner on or off. When it turns on, it will do so in
the default mode of cooling with low fan speed.
• MODE: press this key to select cooling, heating, dehumidifying and fan mode.
• FAN: press this key to select the fan speed (high, middle or low). Not available in
sleep or dehumidifying modes.
• DOWN: in timer mode this reduces the time setting. In cooling mode, press this
key to reduce the temperature.
• UP: in timer mode this increases the time setting. In cooling mode, press this key
to increase the temperature.
• SLEEP: When the power is on and in the cooling mode (or heating mode), press
the button to start the sleep mode. Under sleep mode, the FAN speed is set to
LOW speed and not adjustable. The sleep mode can be cancelled by pressing the
button again.
• TIMER: in the power-on or standby mode, press this key to setup on/off delay
timer from 1 to 24 hours using the UP or DOWN buttons.
• SWING: Press once and the louvre will swing continuously left and right. Press the
button again and the louvre will stop moving.
• All functions can also be accessed using the remote control.
REMOTE CONTROL
1. POWER
2. TIMER
3. SWING
4. SLEEP
5. UP/DOWN
6. MODE
7. FAN
OPERATION MODES
Cooling/Heating Mode
• After the air conditioner turns on, the default setting is cooling mode with a
temperature of 22°C and low fan speed.
• Press MODE to select cooling mode and the cooling mode indicator turns on.
• Press UP or DOWN to adjust temperature from 16°C to 31°C.
• Press FAN to select high or low fan speed.
Fan Mode
• Press MODE to select fan mode and the fan mode indicator turns on.
• Press FAN to select high speed or low speed.
Note: When in fan mode, the temperature and sleep function cannot be set.
Timer Mode
• In standby mode, press TIMER to set the number of hours to when the unit turns
on. The timer mode indicator turns on. The length of time is adjustable from 1 to 24
hours.
• In power-on mode, press TIMER to set the number of hours to when the unit
goes into standby mode. The timer mode indicator turns on. The length of time is
adjustable from 1 to 24 hours.
Dehumidifying Mode
• Press MODE to select dehumidifying mode and the dehumidifying indicator turns on.
Note: In dehumidifying mode, the sleep function cannot be set up and the fan speed
is low.
Sleep Mode
• Press SLEEP to enter into sleep mode; the default value of the fan speed is low.
When sleep mode turns on, in cooling mode, after the rst hour the temperature setting
will increase by 1°C. After the second hour, the temperature will go up a further 1°C
and then remain the same.
7
1
2
3
4
5
6
8

98
NOTE: Sleep mode is not available in dehumidifying and fan mode.
Compressor Protection
After powering on, or a restart, there is a three minute delay before the compressor
starts to operate. This helps to prolong the life of the compressor.

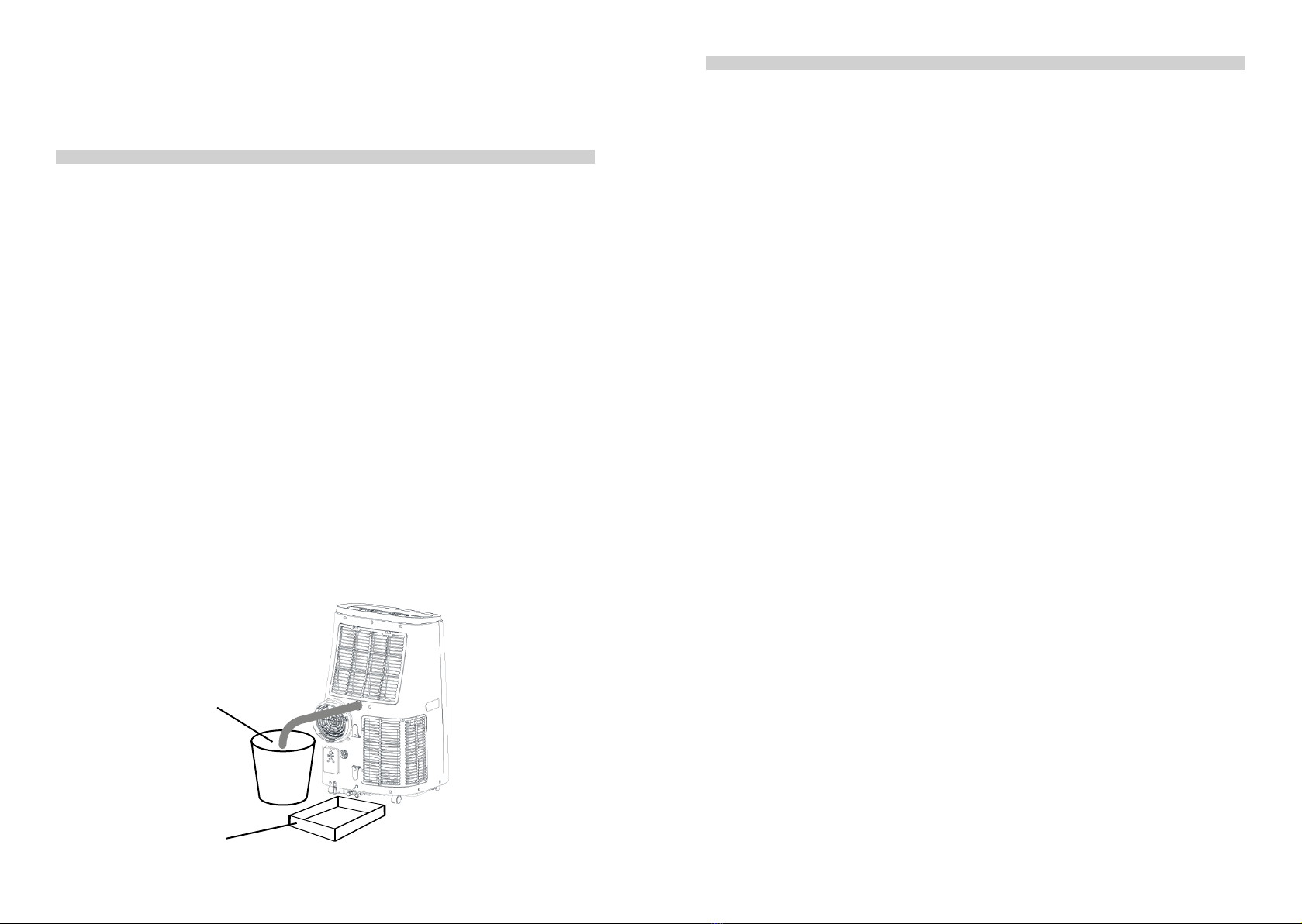

WATER DRAINAGE
• This machine has two drainage methods: manual drainage and continuous
drainage.
Manual Drainage
• The air conditioner has an internal water tank to collect water that accumulates
during the cooling process. This tank will need to be emptied periodically.
• When the internal water tank is full the air conditioner will go into standby mode,
the compressor will stop and all the key functions will be disabled. The water tank
will need to be emptied before normal operation can be resumed.
• Unplug the air conditioner from the mains supply.
• Place a shallow container under the drainage outlet on the rear of the unit to
collect the water. Use this only for temporary drainage of the unit. Do not allow the
water to drip continuously into the container, as it will overow.
• Remove the plug cap and the drainage plug to drain the tank.
• When the tank is empty, ret the drainage plug and cap.
• Reconnect the air conditioner to the mains supply and press the POWER button
on either the front panel or the remote control. The air conditioner will restart and
operate normally.
Continuous Drainage
• Remove the upper plug cap and the drainage plug and attach the drain hose to the
outlet and place the open end into a larger uid container.
• In dehumidifying mode this will allow longer operation without the frequent standby
and manual draining of the water as a larger container can be used.
The water level will need monitoring to avoid overow, unless the pipe can be
placed into a waste water drain.
NOTE: the whole pipe length must at any point be higher than the output or it will not
drain.
MAINTENANCE
Important: In order to avoid an electric shock, power-off the air conditioner and
disconnect the mains plug before performing any maintenance or repair activities.
Cleaning
• Unplug from the mains supply before cleaning.
• Do not splash water into the air conditioner.
• Clean the outside of the air conditioner with a damp, not wet, cloth and dry
thoroughly before using.
• Do not use any chemicals, abrasives or solvents, which may damage the surface
of the air conditioner.
Filters
Clean the lters every two weeks. If the lters become blocked by dust, the efciency
of the air conditioner will be reduced.
• Remove the air lters on the rear of the unit.
• Run a vacuum cleaner lightly over the surface of the lters to remove dust.
• If the lters are exceptionally dirty wash them in warm water and a mild detergent
and allow to dry thoroughly before retting.
Note: Do not operate the air conditioner without the lters.
Continuous
Drainage
Manual
Drainage
Seasonal Cleaning
If the air conditioner is not going to be used for a long time, please follow the steps
below:
• Unplug the air conditioner from the mains.
• Remove the drainage plug and empty the internal water tank.
• Plug the air conditioner into the mains and power on. Select the fan mode and run
for two hours to allow the air conditioner to dry out.
• Turn off and unplug from the mains.
• Clean and dry the lters and then reinstall them.
• Remove the batteries from the remote control.
• Put the air conditioner back in its original carton and store in a cool, dry place.
•
Long term storage
• Unscrew the drainage cover, unplug the water plug, and discharge the water in the
water pan into other water containers or directly tilt the body to discharge the water
into other containers.
• Plug the air conditioner into the mains and power on. Select the fan mode and run
for two hours to allow the air conditioner to dry out so as to keep the inside of the
body in a dry state and prevent mildew.
• Turn off the machine, unplug the mains plug, and wrap the power cord around the
cable storage and install the drain plug and the drainage cover.
• Remove the exhaust pipe and keep it safely.
• Cover the appliance with a plastic bag. Store in a dry place, keep it out of the
reach of children, and take dust control measures.
• Remove the batteries from the remote control.

1110
FURTHER SAFETY INFORMATION
Information on servicing
• Checks to the work area prior to beginning work on systems containing ammable
refrigerants, safety checks are necessary to ensure that the risk of ignition is
minimised. For repair to the refrigerating system, the following precautions shall be
complied with prior to conducting work on the system.
Work procedure
• Work shall be undertaken under a controlled procedure so as to minimise the risk
of a ammable gas or vapour being present while the work is being performed.
General work area
• All maintenance staff and others working in the local area shall be instructed on
the nature of work being carried out. Work in conned spaces shall be avoided.
The area around the workspace shall be sectioned off. Ensure that the conditions
within the area have been made safe by control of ammable material.
Checking for presence of refrigerant
• The area shall be checked with an appropriate refrigerant detector prior to
and during work, to ensure the technician is aware of potentially ammable
atmospheres. Ensure that the leak detection equipment being used is suitable
for use with ammable refrigerants, i.e. non-sparking, adequately sealed or
intrinsically safe.
Presence of re extinguisher
• If any hot work is to be conducted on the refrigeration equipment or any associated
parts, appropriate re extinguishing equipment shall be available to hand. Have a
dry powder or CO2 re extinguisher adjacent to the charging area.
No ignition sources
• Any person carrying out work in relation to a refrigeration system which involves
exposing any pipe work that contains or has contained ammable refrigerant shall
use any sources of ignition in such a manner that it may lead to the risk of re
or explosion. All possible ignition sources, including cigarette smoking, should
be kept sufciently far away from the site of installation, repairing, removing and
disposal, during which ammable refrigerant can possibly be released to the
surrounding space. Prior to work taking place, the area around the equipment is
to be surveyed to make sure that there are no ammable hazards or ignition risks.
“No Smoking” signs shall be displayed.
Ventilated area
• Ensure that the area is in the open or that it is adequately ventilated before
breaking into the system or conducting any hot work. A degree of ventilation shall
continue during the period that the work is carried out. The ventilation should
safely disperse any released refrigerant and preferably expel it externally into the
atmosphere.
Checks to the refrigeration equipment
• Where electrical components are being changed, they shall be t for the purpose
and to the correct specication. At all times the manufacturer’s maintenance
and service guidelines shall be followed. If in doubt consult the manufacturer’s
technical department for assistance.
The following checks shall be applied to installations using ammable refrigerants:
1. The charge size is in accordance with the room size within which the
refrigerant containing parts are installed.
2. The ventilation machinery and outlets are operating adequately and are not
obstructed.
3. If an indirect refrigerating circuit is being used, the secondary circuit shall be
checked for the presence of refrigerant.
4. Marking to the equipment continues to be visible and legible. Markings and
signs that are illegible shall be replaced.
5. Refrigeration pipe or components are installed in a position where they
are unlikely to be exposed to any substance which may corrode refrigerant
containing components, unless the components are constructed of materials
which are inherently resistant to corrosion or are suitably protected against
corrosion.
Checks to electrical devices
• Repair and maintenance to electrical components shall include initial safety
checks and component inspection procedures. If a fault exists that could
compromise safety, then no electrical supply shall be connected to the circuit until
it is satisfactorily dealt with. If the fault cannot be corrected immediately but it is
necessary to continue operation, an adequate temporary solution shall be used.
This shall be reported to the owner of the equipment so all parties are advised.
Initial safety checks shall include:
1. That capacitors are discharged: this shall be done in a safe manner to avoid
possibility of sparking.
2. That there no live electrical components and wiring are exposed while
charging, recovering or purging the system.
3. That there is continuity of earth bonding.
Repairs to sealed components
• During repairs to sealed components, all electrical supplies shall be disconnected
from the equipment being worked upon prior to any removal of sealed covers,
etc. If it is absolutely necessary to have an electrical supply to equipment during
servicing, then a permanently operating form of leak detection shall be located at
the most critical point to warn of a potentially hazardous situation.
• Particular attention shall be paid to the following to ensure that by working on
electrical components, the casing is not altered in such a way that the level of
protection is affected. This shall include damage to cables, excessive number
of connections, terminals not made to original specication, damage to seals,
incorrect tting of glands, etc.
• Ensure that apparatus is mounted securely. Ensure that seals or sealing materials
have not degraded such that they no longer serve the purpose of preventing the
ingress of ammable atmospheres. Replacement parts shall be in accordance with
the manufacturer’s specications.
Note: The use of silicon sealant may inhibit the effectiveness of some types of leak
detection equipment. Intrinsically safe components do not have to be isolated prior to
working on them.

1312
Repair to intrinsically safe components
• Do not apply any permanent inductive or capacitance loads to the circuit without
ensuring that this will not exceed the permissible voltage and current permitted for
the equipment in use.
• Intrinsically safe components are the only types that can be worked on while live
in the presence of a ammable atmosphere. The test apparatus shall be at the
correct rating.
• Replace components only with parts specied by the manufacturer. Other parts
may result in the ignition of refrigerant in the atmosphere from a leak.
Cabling
• Check that cabling will not be subject to wear, corrosion, excessive pressure,
vibration, sharp edges or any other adverse environmental effects. The check shall
also take into account the effects of aging or continual vibration from sources such
as compressors or fans.
Detection of ammable refrigerants
• Under no circumstances shall potential sources of ignition be used in the
searching for or detection of refrigerant leaks. A halide torch (or any other detector
using a naked ame) shall not be used.
Leak detection methods
• The following leak detection methods are deemed acceptable for systems
containing ammable refrigerants.
• Electronic leak detectors shall be used to detect ammable refrigerants, but the
sensitivity may not be adequate, or may need re-calibration.
(Detection equipment shall be calibrated in a refrigerant-free area).
• Ensure that the detector is not a potential source of ignition and is suitable for the
refrigerant used. Leak detection equipment shall be set at a percentage of the
LFL of the refrigerant and shall be calibrated to the refrigerant employed and the
appropriate percentage of gas (25%maximum) is conrmed.
• Leak detection uids are suitable for use with most refrigerants but the use of
detergents containing chlorine shall be avoided as the chlorine may react with the
refrigerant and corrode the copper pipe-work.
• If a leak is suspected, all naked ames shall be removed/ extinguished.
• If a leakage of refrigerant is found which requires brazing, all of the refrigerant
shall be recovered from the system, or isolated (by means of shut off valves) in a
part of the system remote from the leak. Oxygen free nitrogen (OFN) shall then be
purged through the system both before and during the brazing process.
Removal and evacuation
• When breaking into the refrigerant circuit to make repairs – or for any other
purpose – conventional procedures shall be used. However, it is important that
best practice is followed since ammability is a consideration. The following
procedure shall be adhered to:
1. Remove refrigerant.
2. Purge the circuit with inert gas.
3. Evacuate.
4. Purge again with inert gas.
5. Open the circuit by cutting or brazing.
• The refrigerant charge shall be recovered into the correct recovery cylinders. The
system shall be “ushed” with OFN to render the unit safe. This process may need
to be repeated several times. Compressed air or oxygen shall not be used for this
task.
• Flushing shall be achieved by breaking the vacuum in the system with OFN
and continuing to ll until the working pressure is achieved, then venting to
atmosphere, and nally pulling down to a vacuum. This process shall be repeated
until no refrigerant is within the system. When the nal OFN charge is used, the
system shall be vented down to atmospheric pressure to enable work to take
place. This operation is absolutely vital if brazing operations on the pipe-work are
to take place.
• Ensure that the outlet for the vacuum pump is not close to any ignition sources and
there is ventilation available.
Charging procedures
• In addition to conventional charging procedures, the following requirements shall
be followed.
1. Ensure that contamination of different refrigerants does not occur when using
charging equipment. Hoses or lines shall be as short as possible to minimise
the amount of refrigerant contained in them.
2. Cylinders shall be kept upright.
3. Ensure that the refrigeration system is earthed prior to charging the system
with refrigerant.
4. Label the system when charging is complete (if not already).
5. Extreme care shall be taken not to overll the refrigeration system.
6. Prior to recharging the system it shall be pressure tested with OFN.
7. The system shall be leak tested on completion of charging but prior to
commissioning. A follow up leak test shall be carried out prior to leaving the
site.
Decommissioning
• Before carrying out this procedure, it is essential that the technician is completely
familiar with the equipment and all its detail. It is recommended good practice
that all refrigerants are recovered safely. Prior to the task being carried out, an oil
and refrigerant sample shall be taken in case analysis is required prior to re-use
of reclaimed refrigerant. It is essential that electrical power is available before the
task is commenced.
• Become familiar with the equipment and its operation.
• Isolate system electrically.
• Before attempting the procedure ensure that:
1. Mechanical handling equipment is available, if required, for handling
refrigerant cylinders.
2. All personal protective equipment is available and being used correctly.
3. Pump down refrigerant system, if possible.
4. If a vacuum is not possible, make a manifold so that refrigerant can be
removed from various parts of the system.
5. Make sure that cylinder is situated on the scales before recovery takes place.
6. Start the recovery machine and operate in accordance with manufacturer’s
instructions.
7. Do not overll cylinders. (No more than 80% volume liquid charge).

1514
TROUBLESHOOTING
Trouble Cause Solution
Machine does
not work
• Power is off
• Water-full indicator is on
• The ambient temperature is too
low or too high
• In cooling mode, the room
temperature is lower than the set
temperature; in heating mode,
the room temperature is higher
than the set temperature
• In dehumidication mode, the
ambient temperature is low.
• Switch the power on
• Drain internal water tank
• Recommend to use the
machine in at the temperature
range of 7-35oC (44-95oF)
• Change the set temperature
• The machine is placed in
a room with an ambient
temperature of greater than
17oC (62oF)
Poor Cooling
• The unit is in direct sunlight
• Door and windows are open,
other heat sources are in the
room
• Filters are too dirty
• Air-inlet or outlet is blocked
• Reposition the unit
• Close the door and windows
and remove other heat
sources
• Clean or replace lters
• Remove blockage
Too noisy • Machine is not on a level surface • Place it on a level oor
Compressor
doesn’t work
• Compressor time-delay overheat
protection is on
• Wait for 3 minutes, then
restart the air conditioner
The remote
control does
not work
• Distance too great
• Remote control signal not
detected by the control panel
• The batteries are drained
• Make sure that the remote
control is correctly aimed at
the control panel
• Replace the batteries
Display shows
“E1” or “E2”
• The room temperature or pipe
temperature sensor is abnormal
• Check the sensors and
related circuitry
8. Do not exceed the maximum working pressure of the cylinder, even
temporarily.
9. When the cylinders have been lled correctly and the process completed,
make sure that the cylinders and the equipment are removed from site
promptly and all isolation valves on the equipment are closed off.
10. Recovered refrigerant shall not be charged into another refrigeration system
unless it has been cleaned and checked.
Labelling
• Equipment shall be labelled stating that it has been de-commissioned and emptied
of refrigerant. The label shall be dated and signed. Ensure that there are labels on
the equipment stating the equipment contains ammable refrigerant.
Recovery
• When removing refrigerant from a system, either for servicing or decommissioning,
it is recommended good practice that all refrigerants are removed safely.
• When transferring refrigerant into cylinders, ensure that only appropriate
refrigerant recovery cylinders are employed. Ensure that the correct number of
cylinders for holding the total system charge is available.
• All cylinders to be used are designated for the recovered refrigerant and labelled
for that refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders
shall be complete with pressure relief valve and associated shut-off valves in good
working order.
• Empty recovery cylinders are evacuated and, if possible, cooled before recovery
occurs.
• The recovery equipment shall be in good working order with a set of instructions
concerning the equipment that is at hand and shall be suitable for the recovery
of ammable refrigerants. In addition, a set of calibrated weighing scales shall
be available and in good working order. Hoses shall be complete with leak-free
disconnect couplings and in good condition. Before using the recovery machine,
check that it is in satisfactory working order, has been properly maintained and that
any associated electrical components are sealed to prevent ignition in the event of
a refrigerant release. Consult manufacturer if in doubt.
• The recovered refrigerant shall be returned to the refrigerant supplier in the correct
recovery cylinder, and the relevant Waste Transfer Note arranged. Do not mix
refrigerants in recovery units and especially not in cylinders.
• If compressors or compressor oils are to be removed, ensure that they have been
evacuated to an acceptable level to make certain that ammable refrigerant does
not remain within the lubricant. The evacuation process shall be carried out prior to
returning the compressor to the suppliers. Only electric heating to the compressor
body shall be employed to accelerate this process. When oil is drained from a
system, it shall be carried out safely.

16
TECHNICAL SPECIFICATION
INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF
ELECTRICAL & ELECTRONIC EQUIPMENT.
When this product has reached the end of its life it must be treated as Waste Electrical & Electronic
Equipment (WEEE). Any WEEE marked products must not be mixed with general household waste,
but kept separate for the treatment, recovery and recycling of the materials used. Contact your local
authority for details of recycling schemes in your area.
Made in China. PR2 9PP
Man Rev 1.0
Main voltage 220-240V ~ 50Hz
Rated input power 1550W
Power standby mode 0.51W
Cooling capacity 4.1kW (14,000BTU/h)
Air ow 400m³/h
Sound power level 65dB (A)
Refrigerant/charge R290/260g
Global warming potential 0.585kgCO2eq.
Energy efciency ratio (EER) 2.6
Energy efciency class A
Fan speeds 2
Thermostat 16 - 31°C
Operating Range 7 - 35°C
Recommended room oor area 16-22m²
Dimensions 480x390x780mm
Weight 28kg
