Pro-face PL-HD220 User manual

-1-
This hard disk drive unit is made by Pro-face for use with its panel-type computers,
hereafter referred to as the "PL". This 2.5 inch 20GB hard disk is designed to be
installed inside the PL.
PL-HD220
Installation Guide
Corresponding PL units: PL-5900/PL-5910/ PL-X900/PL-X920 Series units
(All product names that appear in this guide are the trademarks of their re-
spective companies)
Pro-face: Digital Electronics Corporation (in Japan and other countries)
MS-DOS, Windows: Microsoft Corporation (USA)
To Prevent Accidents
• Since the PL-HD220 is a precision instrument, be sure it is neither hit by nor pressed
strongly against another object. After unpacking, be sure the unit is not dropped or
jolted during installation. Also, a PL built in to a larger unit (i.e. operation panel)
should be removed and packed separately prior to shipping.
• Be sure water, liquids or metal particles are not allowed to enter the PL-HD220. Any
of these may cause either a breakdown or an electrical shock.
• Do not place or store this unit in a location where there is direct sunlight, excessive
heat, dust or vibration.
• Do not store or operate this unit near chemicals, or where there are chemical fumes.
• Do not allow anyone other than Pro-face’s own service staff to perform mainte-
nance or adjustments to this unit.
• Do not move or shift the PL while the PL-HD220 is installed and the PL unit's power
is ON.
• Be sure to check that the PL’s power is disconnected before
installing the unit, in order to prevent an electrical shock.
• Do not attempt to modify or open the PL-HD220, since it can
cause a shock or fire.
• When installing the PL-HD220, be sure to read the following “3.
Installation” section’s information completely to insure that the
unit is correctly installed.
WARNINGS
WARNINGS

-2-
• The PL-HD220 has a finite usage lifetime. Therefore, be sure to back
up all HDD data periodically or prepare a backup HDD unit.
• The Hard Disk lifetime specified here may be reduced due to unfore-
seen environmental factors, however, the disk should operate for
20,000 hours or approximately 5 years, whichever comes first, at an
operating temperature of 20oC and approximately 333 hours of opera-
tion per month. (HDD access frequency of 20% or less)
Capacity
Seek Time AtStartup: 4.5W (TYP)
Read/Write : 1.6/1.6W (TYP)
During Wait: 0.2W (TYP)
Interface
Lifetime 5years,or20,000 operating hours,whichever
comesfirst
20GB
PowerConsumption
12msec(TYP)
ATA
Please check that the following items are all included in your package.
• Do not use the PL-HD220 in locations where corrosive gasses are present, since they
can lead to a hard disk breakdown.
• To prevent damage to file data, be sure to shut down the PL unit's OS before turning
OFF the main power.
• To extend the life of your PL unit's hard disk, use the BIOS menu [POWER MAN-
AGEMENT SETUP] - [HDD Power Down] setting to turn the HDD unit's power
OFF when the HDD is not being used. Recommended setting is the factory setting of
"5Min". When using Windows®2000, use the [Start] - [Settings] - [Control Panel] -
[Power Options] - [Turn off hard disks] setting to turn the HDD unit's power OFF
when not in use. Recommended setting is [After 5 mins].
 PL-HD220 (1)  Installation Guide
(PL-HD220)
Installation
Guide
Pro-face has taken the utmost care to insure the quality of this product when it was
shipped, however, should, for any reason, problems or damage have occurred during
shipping, please contact your Pro-face representative immediately for service.
Package Contents


Features
Hardware Specifications
1

-3-
• When using a PL optional unit, be sure to check that unit’s specifica-
tions for any special conditions or cautions that may apply to its use.
• Since the PL unit’s hard disk drive (HDD) is a consumable item, i.e. it
has a limited lifetime, be sure to back up its data regularly and prepare
a spare HDD unit.
• Using the Hard Disk in an environment that is excessively hot and/or
humid will shorten the disk’s operation life. A wet bulb temperature of
29oC or less is recommended, which is equivalent to the following
data.
• To extend the life of your PL unit's hard disk, use the BIOS menu
[POWER MANAGEMENT SETUP] - [HDD Power Down] setting to
turn the HDD unit's power OFF when the HDD is not being used. Rec-
ommended setting is the factory setting of "5Min". When using Win-
dows®2000, use the [Start] - [Settings] - [Control Panel] - [Power Op-
tions] - [Turn off hard disks] setting to turn the HDD unit's power OFF
when not in use. Recommended setting is [After 5 mins].
Environment
Operating Temperature 5oCto 50oC
Storage Temperature -10oCto +60oC
Ambient Humidity 10%RHto 85%RH (no condensation,
Wet bulb tempertature: 29oCorless)
Noise Resistance NoiseVoltage: 1500Vp-p
(via Noise Simulator) PulseWidth:50ns,500ns,1
µ
s
Electrostatic Discharge
Immunity 6kV
Vibration Resistance 4.9m/s2(10Hz to25Hz)(When Operating)
Shock Resistance 3920m/s2 (1ms,Half-sine shock pulse)
Temperature Humidity
at350Cno higherthan 64%
at400Cno higherthan 44%

-4-
The PL-HD220 is factory set for use as the PL's Slave drive (Second Hard Disk).
When using the PL-HD220 as the PL's Master dirve (First Hard Disk), be sure to
perform the following setup.
<PL-HD220>
Slave Setting
(for use as Slave)
Master Setting
(for use as Master)
Jumper Plug
When using the PL-HD220 as
a Master, be sure to remove
the jumper plug, as shown in
the left side figure.
• All Pro-face PL units have a built-in hard disk. This hard disk, when
shipped, is set as the PL's Master. Therefore, when an additional HDD
unit (PL-HD220) is used, be sure to set this HDD unit's jumper plug to
"Slave".
• Except for the jumper plug shown here, do NOT use any other short
plugs with the PL-HD220, since it can cause a malfunction or damage
the unit.
Hard Disk Unit Settings
2

-5-
Since the PL-HD220 is a precision instrument that has a low resistance
to shock, be sure it is neither hit by nor pressed strongly against another
object when installing it.

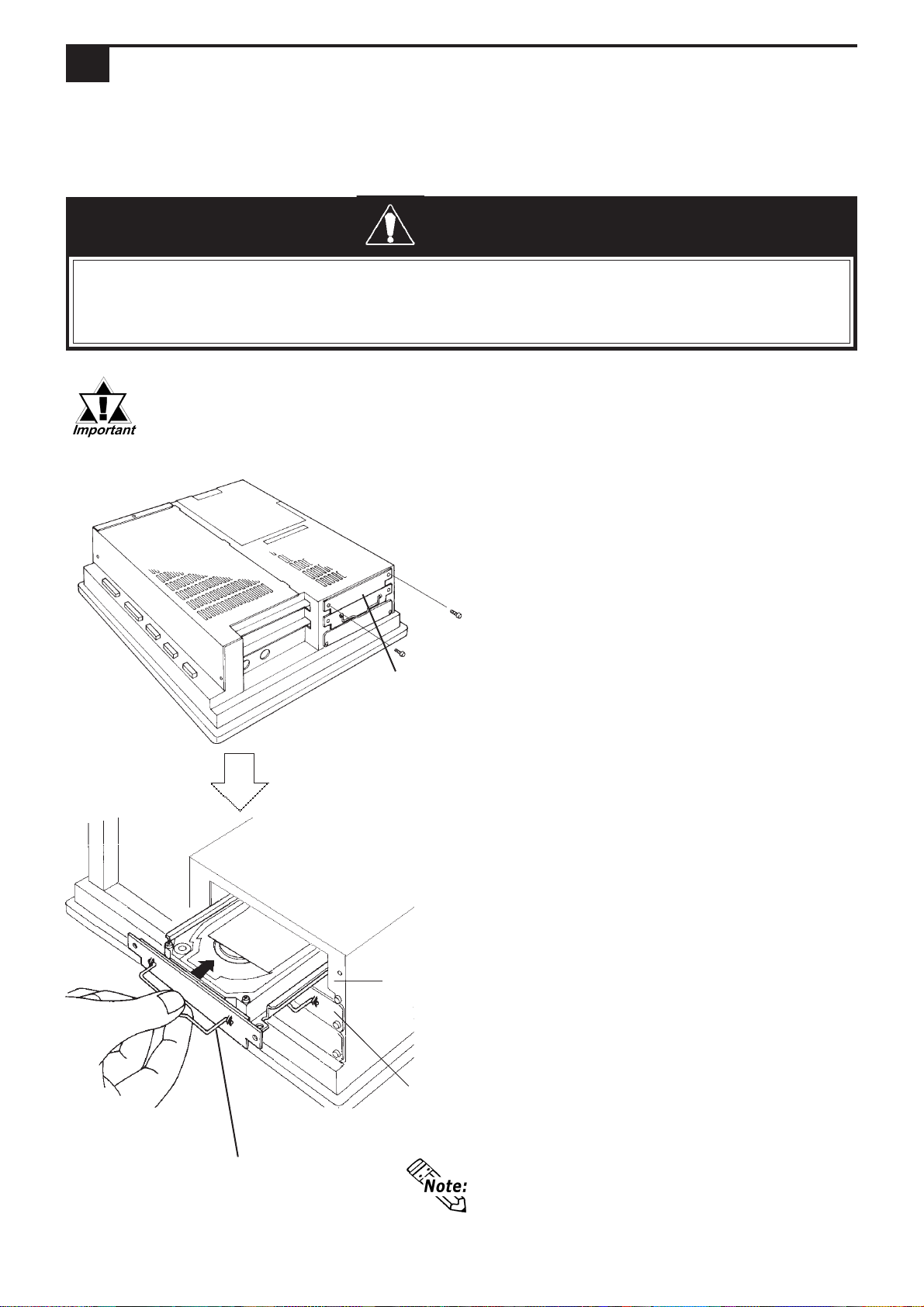

Expansion Slot 1
Removal
Handle
Expansion Slot 1
1)Remove the uppermost
(Expansion Slot 1) expansion
slot cover's two (2) attachment
screws.
2)Hold the PL-HD220's removal handle
and slide the unit slowly into the
expansion slot, until the rear face
connector is completely inserted into
the slot's connector pins.
When installing an HDD unit in Expansion
Slot 0, use the above installation proce-
dures.
Installation
3
Use the following steps to install the PL-HD220 in the PL. Even though the unit
shown below is a PL-X900 Series unit, the PL-5900, PL-5910 and PL-X920 Series
installation procedures are the same.
WARNINGS
Shock Danger! Be sure to unplug the PL unit from its power supply
prior to installing the PL-HD220.
WARNING
3) Reattach the two (2) expansion slot
cover attachment screws.
Expansion Slot 0

-6-
4Hardware Setup
All the following explanation screens use the PL's factory settings (default settings).
•Normally, the factory default settings should be used.
•Certain BIOS screen items may differ from those shown here due
to new versions.
1) Connect a keyboard to the PL.
2) Turn the PL unit’s power ON.
3) When the “Press <DEL> to enter SETUP” message appears, press your PC’s
DEL key.
The Setup utility will start. Select the [STANDARD CMOS SETUP] and the
following screen will appear.
4
Operation Keys
Displays the keys used (enabled) during Setup, and their
function(s)
Help Information Display Area
Provides detailed information about the currently highlighted
(cursor position) item
System Settings Area
Displays the current System Settings for each Menu area
Date (mm:dd:yy): Wed,Jul 2 1998
Time (hh:mm:ss): 14 : 50 : 3
CYLS. HEADS PRECOMP LANDZONE SECT0RS MODE
Drive C :Auto( 0Mb) 0 0 0 0 0 AUTO
Drive D :Auto( 0Mb) 0 0 0 0 0 AUTO
Drive A :1.44M,3.5 in.
Video : EGA/VGA
VGA_Text Mode: Normal
Halt On: All, But Keyboard
Base Memory: 640K
Extended Memory: 31744K
Other Memory: 384K
Total Memory: 32768K
ESC:Quit ↑↓→←: Select Item PU/PD/+/-: Modify
F1:Help (Shift)F2: Change Color
ROM PCI/ISA BIOS(2A5LEU1C)
STANDARD CMOS SETUP
AWARD SOFTWARE, INC.
When using a PL-X900 series unit:

-7-
When using a PL-5900/PL-5910/PL-X920 series unit:
Even though the BIOS screen shown below is for PL-5900 Series unit, the PL-5910
and PL-X920 Series setup procedures is the same.
1) Connect a keyboard to the PL.
2) Turn the PL unit’s power ON.
3) When the Start-up Screen appears, press your PC’s F2 key or DEL key to go to
the BIOS Setup Screen.
In the Setup Screen, select the [STANDARD CMOS SETUP] screen, and from
there, select either the IDE Primary Master or IDE Primary Slave menus. Next, the
following screen will appear.
IDE HDD Auto-Detection Press Enter
IDE Primary Master Auto
Access Mode Auto
Capacity 0 MB
Cylinder 0
Head 0
Precomp 0
Landing Zone 0
Sector 0
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
CMOS Setup Utility - Copyright (C) 1984-2000 Award Software
IDE Primary Master
Item Help
Menu Level
To auto-detect the
HDD's size, head...on
this channel
4) Confirm whether "AUTO" is selected in the Master and Slave screens. If AUTO is
not selected, change these settings to AUTO. If AUTO is selected in both, disk
parameters will be automatically read when the PL is turned ON. The factory set-
ting is AUTO and recommended for most users. (When using together with HDD
unit.)
5) After changing all settings, press the ESC key and select [Save & EXIT Setup] to
save the settings.
4) Confirm that both the C and D drives are set to [Auto]. If [Auto] is not selected, be
sure to change this setting to [Auto]. This designates that when the PL is started
up, the hard disk's parameters are automatically read out and used. The [Auto]
setting is factory set and recommended for most users.
5) Press the [ESC] key, select [SAVE & EXIT SETUP] and save the settings data.

-8-
© 2000 Digital Electronics Corporation All rights reserved.
Software Setup
5
After completing the hardware setup, in order to save data and application(s) to the
HDD, use your OS (MS-DOS or Windows) to create partitions and format (initialize)
the unit. Please consult your OS’s operation manual for details about these proce-
dures.
Note
Please be aware that Digital Electronics Corporation shall not be held
liable by the user for any damages, losses, or third party claims arising
from the uses of this product.
Digital Electronics Corporation
8-2-52 Nanko Higashi, Suminoe-ku, Osaka 559-0031, Japan
URL: http://www.pro-face.com/
