PS-3650A/PS-3651A Series
(PS365XA-HD60)
Installation Guide
The PS365XA-HD60 is the hard disk unit
(HDD unit) for Pro-face’s PS-3650A/PS-
3651A Series (hereafter referred as the "PS-
A") units. This 2.5 inch 60GB hard disk is
designed to be installed inside the PS-A unit.
Corresponding units:
PS-3650A/PS-3651A Series
(only for the units installing a Serial ATA
interface)
About the Manual
For the detailed information on PS-A series,
refer to the following manuals.
• PS-3650A/PS-3651A Series Hard-
ware Manual
The manual can be downloaded from Pro-
face Home Page.
URL
http://www.pro-face.com/otasuke/
Safety Cautions
• Be sure to check that the PS-A unit’s
power is disconnected before installing
the unit, in order to prevent an electri-
cal shock.
• Do not attempt to modify or open the
HDD unit, since it can cause a shock or
fire.
• When installing the HDD unit, be sure
to read this guide "Installation" sec-
tion's information completely to insure
that the unit is correctly installed.
To Prevent Accidents
• Since the HDD unit is a precision instru-
ment, be sure it is neither hit by nor
pressed strongly against another object.
After unpacking, be sure the unit is not
dropped or jolted during installation. Also,
a PS-A unit built in to a larger unit (i.e.
operation panel) should be removed and
packed separately prior to shipping.
• Be sure water, liquids or metal particles are
not allowed to enter the HDD unit. Any of
these may cause either a breakdown or an
electrical shock.
• Do not place or store this unit in a location
where there is direct sunlight, excessive
heat, dust or vibration.
• Do not store or operate this unit near chem-
icals, or where there are chemical fumes.
• Do not allow anyone other than Pro-face’s
own service staff to perform maintenance
or adjustments to this unit.
• Do not move or shift the PS-A unit while
the HDD unit is installed and the PS-A
unit's power is ON.
• Do not use the HDD unit in locations
where corrosive gasses are present, since
they can lead to a hard disk breakdown.
• To prevent the data damage, be sure to shut
down the PS-A unit’s OS according to the
correct procedure before turning OFF the
main power.
• To prevent HDD memory leaks, restart the
OS periodically.
• The hard disk has the lifetime. To use it
longer by steady operation, read the
attached “Instructions for Using the Hard
Disk” carefully.
• In order to extend the lifetime of the hard
disk, Pro-face recommends you set the
Windows®[Control panel]-[Performance
and Maintenance]-[Power Management
option]-[Turn off hard disks] selection to
turn the hard disk off when the unit is not
being operated. A setting of 5 minutes is
recommended.

2
Unit Disposal
• When this HDD unit is disposed of, it
should be done so according to your coun-
try’s regulations for similar types of indus-
trial wastes.

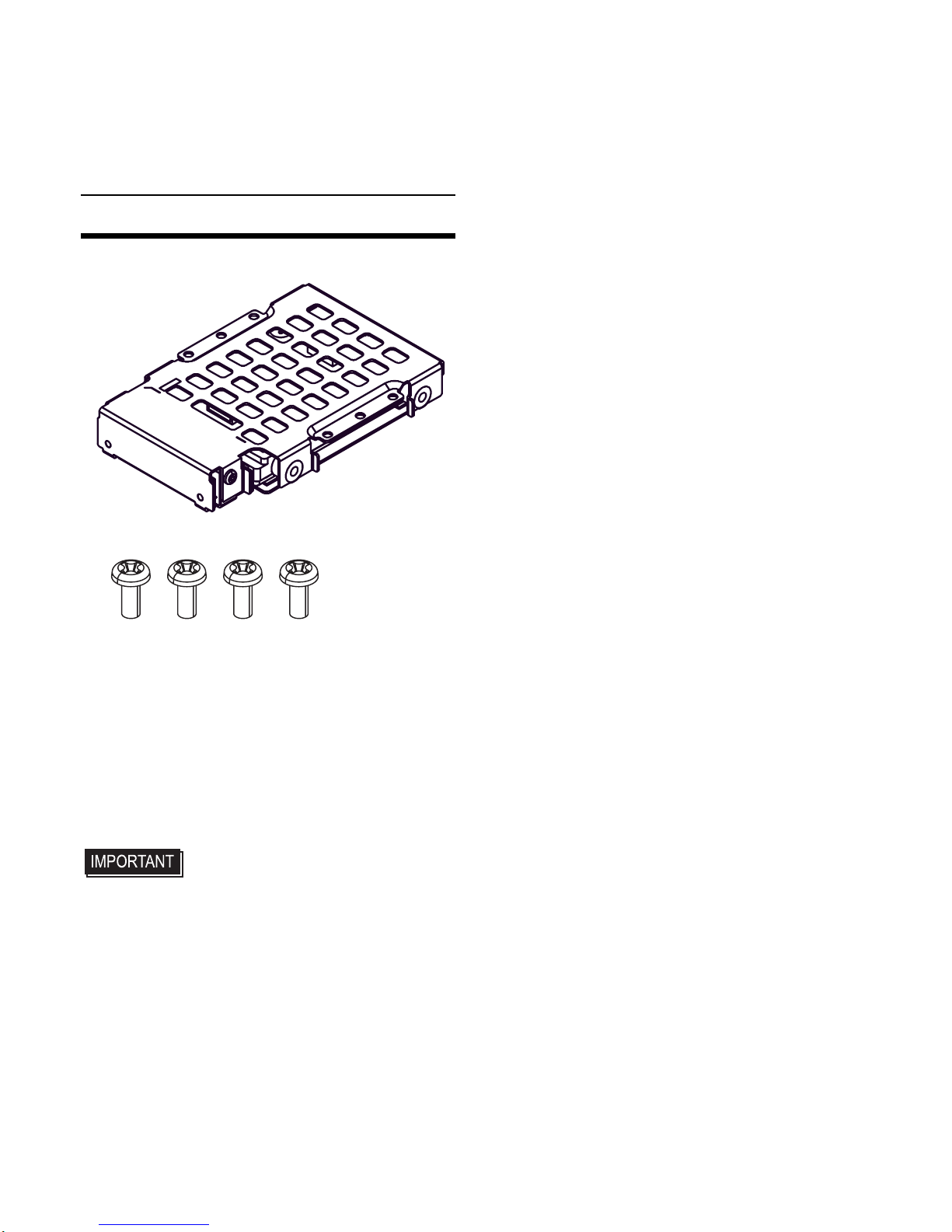

Package Contents
(1) HDD Unit (1) (PS365XA-HD60)
(2) Attachment Screws (4)
(3) Installation Guide (1) (This Guide)
(4) Instructions for Using the Hard Disk (1)
Pro-face has taken the utmost care to ensure
the quality of this product when it was
shipped, however, should, for any reason,
problems or damage have occurred during
shipping, please contact your Pro-face
representative immediately for service.
• This HDD unit has a finite usage life-
time. Therefore, be sure to back up all
HDD data periodically and/or prepare
a backup HDD unit.

3
Hardware Specifications
Features
• This HDD unit has a finite usage lifetime. Therefore, be sure to back up all HDD data
periodically and/or prepare a backup HDD unit.
• The HDD unit's lifetime will vary, depending on the usage conditions and environment.
The above value is calculated assuming an ambient temperature of 20°C and 333
hours of operation per month. (HDD access frequency of 20% or less)
• To use the hard disk longer by steady operation, read the attached “Instructions for
Using the Hard Disk” carefully.
Environment
Capacity 60GB
Average Seek Time 12msec
Power Consumption At Startup : 5.0W (TYP) Read/Write : 1.8W (TYP)
During Wait : 0.25W (TYP)
Interface Serial ATA Rev. 1.0a
Operation Lifetime 5 years, or 20,000 operating hours,whichever comes first
Weight Approx. 400g
Surrounding Air
Temperature PS-3650A Series 5°C to 50°C
PS-3651A Series 5°C to 45°C
Storage Temperature -20°C to +60°C
Ambient Humidity 10%RH to 90%RH (no condensation)
(Wet bulb temperature: 29°C or less)
Storage Humidity 10%RH to 90%RH (no condensation)
(Wet bulb temperature: 39°C or less)
Noise Immunity
(via Noise Simulator) Noise Voltage: 1,500Vp-p Pulse Width: 50ns, 500ns, 1µs
Electrostatic Discharge Immunity 6kV
Vibration Resistance
10Hz to 57Hz
single-amplitude 0.0375mm
57Hz to 150Hz
Constant acceleration 4.9m/s2
X,Y,Z directions: 10 cycles (for 80 minutes)
Concussion Resistance 3,920m/s2 (1ms, Half-sine shock pulse)
(When Shipping)

4
• Using the HDD unit in an environment that is excessively hot and/or humid will
shorten the disk’s usage lifetime. A wet bulb temperature of 29°C or less is recom-
mended. This is equivalent to the following data.
Temperature at 35°C at 40°C
Humidity no higher than 64%RH no higher than 44%RH

5
Installation
• Shock Danger! Be sure to unplug the
PS-A unit from its power supply prior to
installing the HDD unit.
• Since the HDD unit and PS-A's the cir-
cuit board are a precision instrument
that has a low resistance to shocks, be
sure it is neither hit by nor pressed
strongly against another object when
installing it.
• The electric power may be supplied to
the PS-A unit even when the screen
blacks out (such as the standby
mode). Be sure to confirm that the
power cable on the rear side of the
PS-A is disconnected.

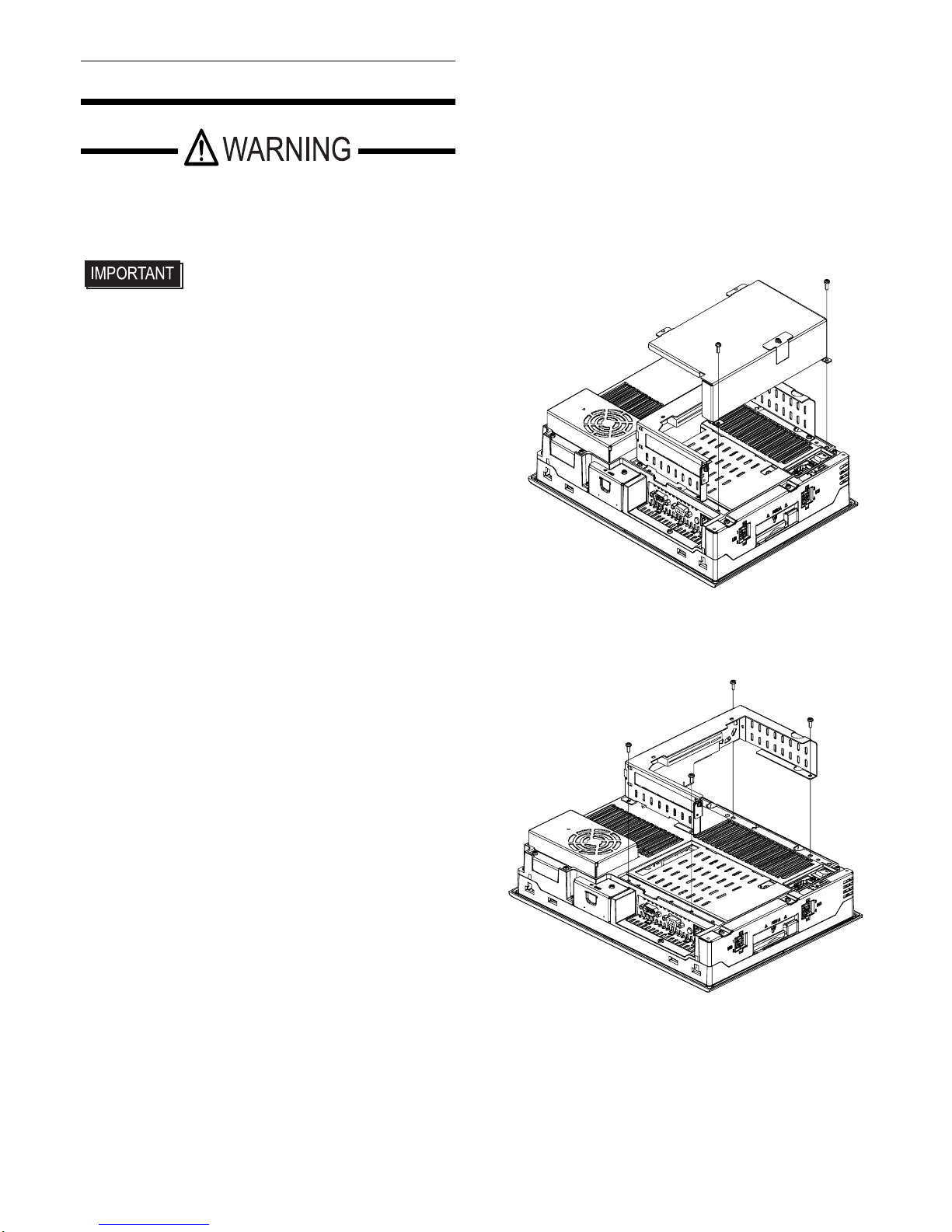

When attaching the HDD unit
to the PS-3650A
(1) Turn OFF the power switch of the PS-A
and remove the power cable. Place the
PS-A on a flat, level surface facing the
display face downwards.
(2) Unscrew the expansion board cover's
screws (2) and remove the expansion
board cover.
(3) Unscrew the expansion board base's
screws (4) and remove the expansion
board base.

6
(4) Remove the DISK cover.
(5) Mount the HDD unit vertically on the
circuit board and plug the HDD unit
cable connector in the Serial ATA
interface.
• Mount the HDD unit vertically and
thoroughly not to hit the circuit board.
Otherwise, it may cause a malfuction
or damage the HDD unit and PS-A.
(6) Fix the HDD unit with the screws (4)
which are contained in your package.
The torque required to tighten these
screws is 0.5 to 0.6 N·m.
(7) With opposite procedure above, set the
DISK cover, expansion board base, and
expansion board cover to the PS-A unit,
respectively. The torque required to
tighten these screws is 0.5 to 0.6 N·m.
When attaching the HDD unit
to the PS-3651A
(1) Turn OFF the power switch of the PS-A
and remove the power cable. Place the
PS-A on a flat, level surface facing the
display face downwards.
(2) Unscrew the DISK cover's screws (3)
and remove the expansion board base.
(3) Mount the HDD unit vertically on the
circuit board and plug the HDD unit
cable connector in the Serial ATA
interface.
• Mount the HDD unit vertically and
thoroughly not to hit the circuit board.
Otherwise, it may cause a mulfuction
or damage the HDD unit and PS-A.
Serial ATA Interface
Serial ATA Interface

7
(4) Fix the HDD unit with the screws (4)
which are contained in your package.
The torque required to tighten these
screws is 0.5 to 0.6 N·m.
(5) With opposite procedure above, set the
DISK cover to the PS-A unit. The
torque required to tighten these screws is
0.5 to 0.6 N·m.
