USER'S MANUAL
CAUTION
Read all precautions and instruc-
tions in this manual be ore using
this equipment. Keep this manual
or uture re erence.
Serial
Number
Decal
Model No. 831.280442
Serial No.
Patent Pending
Visit our website at
www.pro orm.com
new products, prizes,
fitness tips, and much more!
SEARS, ROEBUCK AND CO.,
HOFFMAN ESTATES, IL 60179

2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE OU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO OPERATE THE EXERCISE C CLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
FULL 90 DA WARRANT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

3
1. Read all instructions in this manual be ore
using the exercise cycle.
2. It is the responsibility o the owner to ensure
that all users o the exercise cycle are ade-
quately in ormed o all precautions. Use the
exercise cycle only as described.
3. The exercise cycle is intended or in-home
use only. Do not use the exercise cycle in a
commercial, rental, or institutional setting.
4. Use the exercise cycle indoors on a level sur-
ace. Keep the exercise cycle away rom
moisture and dust. Place a mat under the
exercise cycle to protect the loor or carpet.
5. Inspect and properly tighten all parts regularly.
Replace any worn parts immediately.
6. Keep children under the age o 12 and pets
away rom the exercise cycle at all times.
7. The exercise cycle should not be used by
persons weighing more than 250 pounds.
8. Wear appropriate clothes when exercising;
do not wear loose clothes that could become
caught on the exercise cycle. Always wear
athletic shoes when using the exercise cycle.
9. When connecting the link arms to the pedals,
make sure that the link arms are ully seated
on the pedal bushings (re er to HANDLEBAR
OPERATION on page 9). I the link arms are
not on the pedal bushings, they may slip o
during use, resulting in injury to the user.
10. When adjusting the height o the seat, make
sure that the pin on the seat knob is inserted
into one o the adjustment holes in the seat
post (re er to HOW TO ADJUST THE SEAT on
page 9). Do not rest the seat post on top o
the pin on the seat knob.
11. Always keep your back straight when using
the exercise cycle; do not arch your back.
12. I you eel pain or dizziness while exercising,
stop immediately and begin cooling down.
13. The pulse sensor is not a medical device.
Various actors may a ect the accuracy o
heart rate readings. The pulse sensor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
WARNING:Be ore beginning this or any exercise program, consult your physician. This
is especially important or persons over the age o 35 or persons with pre-existing health problems.
Read all instructions be ore using. SEARS assumes no responsibility or personal injury or property
damage sustained by or through the use o this product.
IMPORTANT PRECAUTIONS
WARNING:To reduce the risk o serious injury, read the ollowing important precau-
tions be ore using the exercise cycle.

4

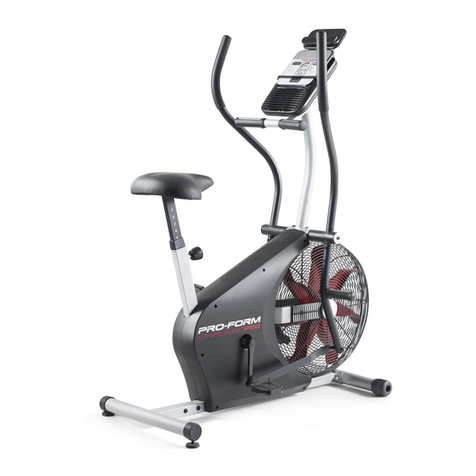

Congratulations for selecting the new PROFORM®
WHIRLWIND exercise cycle. Cycling is one of the
most effective exercises for increasing cardiovascular
fitness, building endurance, and toning the entire
body. The PROFORM®WHIRLWIND offers an array
of features designed to let you enjoy this healthful
exercise in the comfort and privacy of your home.
For your bene it, read this manual care ully be ore
you use the exercise cycle. If you have questions
after reading this manual, please call our toll-free
HELPLINE at 1-800-736-6879, Monday through
Saturday, 7 a.m. until 7 p.m. Central Time (excluding
holidays). To help us assist you, please mention the
product model number when calling. The model num-
ber is 831.280442. The serial number can be found
on a decal attached to the exercise cycle (see the
front cover of this manual).
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Pulse Sensor
Handlebar
Water Bottle Holder*
*Water bottle is not included
FRONT
BACK
Seat
T-handle
Lock Rod
Pedal
Console
Bookrack
Seat Knob
Link Arm
RIGHT SIDE
BEFORE YOU BEGIN

5
ASSEMBLY
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
Assembly can be completed using the included tools; however, a rubber mallet is also
recommended.
Use the drawings below to identify the small parts used in assembly. The number in parenthesis below each
drawing refers to the key number of the part, from the PART LIST on page 14. The second number refers to the
quantity needed for assembly. Note: Some small parts may have been pre-attached or shipping. I a part is
not in the parts bag, check to see i it has been pre-assembled.
M10 x 75mm Carriage Bolt (65)–4
M4 x 12mm
Screw (77)–2
M8 x 77mm Button Bolt (58)–2
M8 Split
Washer (81)–4 M8 Flat
Washer (73)–4
M6 Nylon
Locknut (56)–4 M8 Nylon
Locknut (66)–6 M10 Nylon
Locknut (64)–4 M10 Split
Washer (54)–12
M6 x 38mm Button
Bolt (57)–4 M10 x 17mm Button
Screw (55)–3 M10 x 22mm Button
Screw (80)–9
65
1. Attach one of the Stabilizers (19) to the front of the
Frame (1) with two M10 x 75mm Carriage Bolts (65)
and two M10 Nylon Locknuts (64). 19
64
1
1

6
2. Attach the Frame Extension (84) to the Frame (1)
with six M10 x 22mm Button Screws (80) and six
M10 Split Washers (54).
Attach the other Stabilizer (19) to the Frame
Extension (84) with two M10 x 75mm Carriage Bolts
(65) and two M10 Nylon Locknuts (64).
3. Attach the Seat (20) to the Seat Post (6) with four
M8 Nylon Locknuts (66) and four M8 Split Washers
(81). Note: The Nylon Locknuts and Split Washers
may be preattached to the Seat.
Turn the Seat Knob (29) counterclockwise two or
three turns to loosen it. Next, pull the Seat Knob,
insert the Seat Post (6) into the Frame (1), and then
release the Seat Knob. Move the Seat Post up and
down slightly until it locks into position.
Push the Seat Guide (46) into the top of the Frame
(1). Secure the Seat Guide to the Frame with an M4
x 4mm Screw (70). Then, tighten the Seat Knob.
3
20
6
1
66
81
46
65
19
64
64
54
80
80
80
54
54
84
1
2970
4. Apply a small amount of the included grease to the
Handlebar Axle (33). Insert the Handlebar Axle into
the Frame (1) and center it. To avoid damaging
the Reed Switch Wire (31), make sure that it is
positioned as shown in the inset drawing. (Note:
It may be helpful to use a rubber mallet to insert the
Handlebar Axle.)
While another person holds the Upright (2) in the
position shown, connect the Extension Wire (39) to
the Reed Switch Wire (31). Care ully pull the
upper end o the Reed Switch Wire to remove
any slack.
Set the Upright (2) on the Frame (1); be care ul not
to pinch the Extension Wire (39) or the Reed
Switch Wire (31). Attach the Upright with three M10
x 17mm Button Screws (55) and three M10 Split
Washers (54).
4
2
39
55
55 54
54
31
1
Grease
33
33
31 Side
Shield
1
2

7
6. Refer to the inset drawing. Insert the T-handle (4)
into the opening in the bottom of the Console (3) as
shown. Be care ul not to pinch the console wire.
Align the holes in the metal tube on the T-handle
with the holes in the bracket on the Console.
Tighten two M4 x 12mm Screws (77) into the holes.
While another person holds the Console (3) near
the Upright (2), connect the console wire to the
Extension Wire (39). Insert the excess console wire
and Extension Wire into the Upright.
Attach the Console (3) to the Upright (2) with three
M10 x 22mm Button Screws (80) and three M10
Split Washers (54). Be care ul to avoid pinching
the console wire or the Extension Wire (39).
Snap the bookrack onto the Console (3) in the loca-
tion shown.
6
5. The Console (3) requires four “D” batteries (not
included); alkaline batteries are recommended.
Press the tab on the battery cover, and lift off the
battery cover. Insert four batteries into the battery
compartment. Make sure that the batteries are
oriented as shown by the diagram inside the
battery compartment. Reattach the battery cover.
3
Battery
Cover
Batteries
5
7. Identify the Left Handlebar (7) and the Left
Handlebar Base (8), which are marked with stickers.
Attach the Left Handlebar to the Left Handlebar
Base with two M6 x 38mm Button Bolts (57) and
two M6 Nylon Locknuts (56).
Attach the Right Handlebar (not shown) to the Right
Handlebar Base (not shown) in the same way. 7
8
57
56
7
3
Bookrack
39
Console
Wire
Be care ul
not to pinch
the console wire
during this step.
54 54
80
80
80
2
Bracket
Tube
77
77
4
3

8
9. Identify the Left Link Arm (15), which is marked with
a sticker.
Apply a small amount of grease to an M8 x 77mm
Button Bolt (58). Insert the Button Bolt into the Left
Handlebar Base (8). Slide an M8 Flat Washer (73),
a Link Arm Bushing (45), the Left Link Arm (15), and
another M8 Washer (73) onto the Button Bolt. Make
sure that the Link Arm Bushing and the Le t
Link Arm are turned as shown. Tighten an M8
Nylon Locknut (66) onto the Button Bolt. Rest the
notch in the Left Link Arm on the left lock rod.
Attach the Right Link Arm (not shown) to the Right
Handlebar Base (not shown) in the same way.
10. Remove the 1/2” Pedal Nut (68) from the shaft of
one of the Pedals (23). Make sure that there is a
Pedal Spring (42), a Red Washer (71), a Pedal
Bushing (43), a Black Pedal Washer (79), and a
Pedal Spacer (44) on the shaft of the Pedal. In addi-
tion, make sure that the Pedal Bushing (43) is
turned as shown. Firmly tighten the shaft of the
Pedal clockwise into the left Crank Arm (26).
Tighten the 1/2” Pedal Nut (68) back onto the shaft.
Attach the other Pedal (not shown) in the same way.
8
58
23
68
42
71 43 79 44
26
15
Lock
Rod Notch
73
66
9
10
11. Make sure that all parts are properly tightened be ore you use the exercise cycle. Place a mat
beneath the exercise cycle to protect the loor.
8. Slide the Left and Right Handlebars (7, 9) onto the
Handlebar Axle (33). Make sure that the
Handlebars are on the correct sides.
Using the included pedal tool, tap a Push Nut (78)
onto each end of the Handlebar Axle (33). Make
sure that the Push Nuts are turned as shown in
the inset drawing. (Note: It may be helpful if anoth-
er person holds a block of wood against one end of
the Handlebar Axle while you tap a Push Nut onto
the other end.) Then, tap a Large Axle Cap (49)
onto each end of the Handlebar Axle.
49
49
78
7
1
33
Grease
9
8
73 45
78
Pedal Tool 33

9
HOW TO OPERATE THE EXERCISE CYCLE
HANDLEBAR OPERATION
The handlebars can be used in either the dual-action
mode, for both upper-body and lower-body exercise,
or the stationary mode, for pedaling exercise only.
Dual-action Mode
To convert the
handlebars to
the dual-
action mode,
the link arms
must be con-
nected to the
pedals. Refer
to drawing 1.
Lift the link
arms off the
lock rods.
Refer to draw-
ing 2. Pull the
link arms out-
ward against
the tops of
the red wash-
ers, while
pulling
against the
bottoms of the
red washers
with your fin-
gers as shown. Be care ul not to pinch your in-
gers. Next, slide the link arms onto the pedal bush-
ings. Move the link arms up and down slightly to
make sure that they are fully seated on the pedal
bushings. CAUTION: Make sure that the link arms
are ully seated on the pedal bushings. I the link
arms are not on the pedal bushings, they may slip
o during use, resulting in injury to the user.
Stationary Mode
To convert the handlebars to the stationary mode, the
link arms must be disconnected from the pedals. Pull
the link arms outward against the red washers until
the link arms are free of the pedal bushings (see
drawing 2 above). Be care ul not to pinch your in-
gers. Next, lift the link arms off the pedals, and clip
them onto the lock rods (see drawing 1 above).
HOW TO ADJUST THE SEAT
For effective exer-
cise, the seat must
be at the proper
height. As you
pedal, there should
be a slight bend in
your knees when
the pedals are in
the lowest position.
To adjust the seat,
first turn the seat
knob counterclock-
wise two or three
turns to loosen it.
Next, pull the seat
knob, raise or lower the seat post, and then release
the seat knob. Move the seat post up and down
slightly until it locks into position. Then, tighten the
seat knob. CAUTION: Make sure that the pin on the
seat knob is inserted into one o the adjustment
holes in the seat post. Do not rest the seat post
on top o the pin on the seat knob.
DESCRIPTION OF THE CONSOLE
The console features six modes that provide instant
exercise feedback during your workouts. The modes
are described below.
• Time—This mode displays the elapsed time.
• Distance—This mode displays the total distance you
have pedaled.
• Speed—This mode displays your pedaling speed.
Note: Speed and distance can be displayed in either
miles or kilometers. An MPH or a KPH will appear
when the speed is displayed to show which unit of
measurement is selected. To change the unit of
measurement, press and hold the On/Reset button
for ten seconds.
• Calories—This mode displays the approximate num-
ber of calories you have burned.
• Fat calories—This mode displays the approximate
number of fat calories you have burned (see FAT
BURNING on page 12).
• Pulse—This mode displays your heart rate when the
thumb pulse sensor is used (see step 3 on page 10).
Seat
Post Seat
Knob
Lock
Rod
1
Link Arm
Red
Washer Pedal
Bushing
2
Link
Arm
Seat

10
BATTERY INSTALLATION
The console requires four “D” batteries. To install bat-
teries, refer to assembly step 5 on page 7.
HOW TO OPERATE THE CONSOLE
Note: If there is a piece of clear plastic on the face of
the console, remove it before operating the console.
1. To turn on the
power, press
the On/Reset
button or begin
pedaling.
2. Begin exercising and monitor your progress with the
two displays.
Left display—
This display
shows the
elapsed time
and the dis-
tance that you
have pedaled.
The display will
change from
one number to the other every seven seconds, as
shown by the indicators in the display.
Right display—
This display
shows your
pedaling speed
and the approx-
imate numbers
of calories and
fat calories you
have burned.
When the thumb pulse sensor is used, the display
will also show your heart rate (see step 3 at the
right). Every seven seconds, the display will change
from one number to the next, as shown by the indi-
cators in the display.
To reset the displays at any time, press the
On/Reset button.
3. Measure your heart rate, if desired.
To measure
your heart rate,
stop pedaling
and place your
thumb on the
pulse sensor as
shown. The
pulse sensor is
pressure activat-
ed—fully press it down. Do not press too hard, or
the circulation in your thumb will be restricted,
and your pulse will not be detected. Next, raise
your thumb slightly until the heart-shaped indicator
in the right display flashes steadily. Hold your
thumb at this
level. After a few
seconds, two
dashes will
appear in the
display, and
then your heart
rate will be
shown. Hold
your thumb on
the pulse sensor for another 15 seconds for the
most accurate reading. If the displayed heart rate
appears to be too high or too low, or if your heart
rate is not displayed, lift your thumb off the pulse
sensor and allow the display to reset. Press down
again on the pulse sensor as described above.
Make sure that you are applying the proper amount
of pressure to the pulse sensor. Try the pulse sensor
several times until you become familiar with it.
Remember to sit still while measuring your heart
rate.
4. To turn off the power, simply wait for a few minutes.
The console has an “auto-o ” eature. I the
pedals are not moved and the On/Reset button
is not pressed or a ew minutes, the power will
turn o automatically to conserve the batteries.
Indicators

11
MAINTENANCE AND TROUBLESHOOTING
Inspect and tighten all parts of the exercise cycle regu-
larly. To clean the exercise cycle, use a damp cloth
and mild detergent. Never use abrasives or solvents;
keep liquid away from the console.
CONSOLE TROUBLESHOOTING
If the console does not function properly, the batteries
should be replaced. See assembly step 5 on page 7
for battery installation instructions.
ADJUSTING THE BELT
The exercise cycle features a precision belt that must
be kept properly adjusted. If the belt is too tight, the
bearings may be damaged; if the belt is too loose, the
fan may be damaged. If the belt causes excessive
noise or slips as you pedal, follow the steps below.
Carefully remove the four Guard Clips (76), the left
Guard Fastener (35), and the Left Guard (13). Press
down on the Belt (22). There should be no more
than 3/4 inch, and no less than 1/4 inch, o verti-
cal movement in the center o the Belt.
If the Belt (22) needs to be adjusted, loosen the right
Guard Fastener (not shown). To tighten the Belt, turn
the M6 Nuts (53) clockwise; to loosen the Belt, turn
the M6 Nuts counterclockwise. Make sure that the fan
is straight, and then reattach the Left Guard, tighten the
Guard Fasteners, and reattach the Guard Clips.
ADJUSTING THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, the Right Side Shield (18) must be moved (refer
to the drawing below). Remove the four M4 x 25mm
Screws (69) from the Left Side Shield (17). Lift the
Right Link Arm (16) off the pedal or the lock rod and
move it clear of the Right Side Shield. Pull the top of
the Right Side Shield away from the Left Side Shield.
Next, locate the Reed Switch (31). Turn the Crank Arm
(26) until the Magnet (48) is aligned with the Reed
Switch. Loosen, but do not remove, the M4 x 16mm
Screw (27). Slide the Reed Switch slightly closer to or
away from the Magnet. Retighten the Screw. Turn the
Crank for a moment. Repeat until the console displays
correct feedback. When the Reed Switch is correctly
adjusted, reattach the Right Side Shield.
31
Note: For clarity, the
Right Side Shield is
not shown.
27
48
26
35
76
76
69
18
17
69
Lock Rod
16
69
76
13
53
22
Fan 32

12
The following guidelines will help you to plan your
exercise program. Remember that proper nutrition and
adequate rest are essential for successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recom-
mended heart rates for fat burning, maximum fat burn-
ing, and cardiovascular (aerobic) exercise.
To find the proper heart rate for you, first find your age
on the chart above (ages are rounded off to the near-
est ten years). Next, find the three numbers below your
age; the three numbers are your “training zone.” The
lowest number is the recommended heart rate for fat
burning; the middle number is the recommended heart
rate for maximum fat burning; and the highest number
is the heart rate for aerobic exercise.
Fat Burning
To burn fat effectively, you must exercise at a relative-
ly low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible carbohydrate calories for ener-
gy. Only after the first few minutes of exercise does
your body begin to use stored fat calories for energy. If
your goal is to burn fat, adjust the intensity of your
exercise until your heart rate is near the lowest num-
ber or the middle number in your training zone as you
exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys-
tem, your exercise must be “aerobic.” Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the intensity of your exercise until your heart
rate is near the highest number in your training zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A warm-up, consisting of 5 to 10 minutes of stretching
and light exercise. A proper warm-up increases your
body temperature, heart rate, and circulation in prepa-
ration for exercise.
Training zone exercise, consisting of 20 to 30 min-
utes of exercising with your heart rate in your training
zone. (During the first few weeks of your exercise pro-
gram, do not keep your heart rate in your training
zone for longer than 20 minutes.)
A cool-down, with 5 to 10 minutes of stretching. This
will increase the flexibility of your muscles and will
help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, plan three work-
outs each week, with at least one day of rest between
workouts. After a few months of regular exercise, you
may complete up to five workouts each week, if
desired. The key to success is make exercise a regu-
lar and enjoyable part of your everyday life.
WARNING:Be ore beginning
this or any exercise program, consult your
physician. This is especially important or
individuals over the age o 35orindividuals
withpre-existinghealth problems.
The pulse sensor is not a medical device.
Various actors may a ect the accuracy o
heart rate readings. The pulse sensor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
EXERCISE GUIDELINES

13
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right.
Move slowly as you stretch—never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach down
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times. Stretches: Hamstrings, back of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward
you and rest it against the inner thigh of your extended leg. Reach
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Hamstrings, lower back and
groin.
3. Cal /Achilles Stretch
With one leg in front of the other, reach forward and place your hands
against a wall. Keep your back leg straight and your back foot flat on
the floor. Bend your front leg, lean forward and move your hips
toward the wall. Hold for 15 counts, then relax. Repeat 3 times for
each leg. To cause further stretching of the achilles tendons, bend
your back leg as well. Stretches: Calves, achilles tendons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp one
foot with your other hand. Bring your heel as close to your buttocks
as possible. Hold for 15 counts, then relax. Repeat 3 times for each
leg. Stretches: Quadriceps and hip muscles.
1
2
3
4

14
1 1 Frame
2 1 Upright
3 1 Console
4 1 T-handle
5 1 Fan
6 1 Seat Post
7 1 Left Handlebar
8 1 Left Handlebar Base
9 1 Right Handlebar
10 1 Right Handlebar Base
11 2 Foam Grip
12 2 Handlebar Endcap
13 1 Left Guard
14 1 Right Guard
15 1 Left Link Arm
16 1 Right Link Arm
17 1 Left Side Shield
18 1 Right Side Shield
19 2 Stabilizer
20 1 Seat
21 4 Stabilizer Endcap
22 1 Belt
23 2 Pedal
24 2 Handlebar Base Endcap
25 1 Pulley/Crank
26 2 Crank Arm
27 2 M4 x 16mm Screw
28 1 Bearing Assembly
29 1 Seat Knob
30 2 Guard Bracket
31 1 Reed Switch/Wire
32 1 Clamp
33 1 Handlebar Axle
34 6 Handlebar Bushing
35 2 Guard Fastener
36 1 Fan Axle
37 2 Fan Bearing
38 2 Adjustment Bracket
39 1 Extension Wire
40 1 Idler Arm
41 2 Crank Cover
42 2 Pedal Spring
43 2 Pedal Bushing
44 2 Pedal Spacer
45 2 Link Arm Bushing
46 1 Seat Guide
47 1 Seat Post Bushing
48 1 Magnet
49 2 Large Axle Cap
50 2 Small Axle Cap
51 1 Fan Washer
52 2 Eyebolt
53 2 M6 Nut
54 12 M10 Split Washer
55 3 M10 x 17mm Button Screw
56 4 M6 Nylon Locknut
57 4 M6 x 38mm Button Bolt
58 2 M8 x 77mm Button Bolt
59 1 M10 x 25mm Flat Head Bolt
60 1 Frame Extension
61 2 Axle Bushing
62 4 M4 x 16mm Round Screw
63 1 Idler Arm Washer
64 5 M10 Nylon Locknut
65 4 M10 x 75mm Carriage Bolt
66 6 M8 Nylon Locknut
67 2 Flange Screw
68 2 1/2” Pedal Nut
69 9 M4 x 25mm Screw
70 1 M4 x 4mm Screw
71 2 Red Washer
72 4 M8 Split Washer
73 4 M8 Flat Washer
74 1 Fan Spacer
75 1 Idler Spring
76 4 Guard Clip
77 2 M4 x 12mm Screw
78 2 Push Nut
79 2 Black Pedal Washer
80 9 M10 x 22mm Button Screw
# 1 User’s Manual
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of this manual for information about ordering replacement parts.
EXPLODED DRAWING—Model No. 831.280442 R1102A
Key No. Qty. Description Key No. Qty. Description

15
EXPLODED DRAWING—Model No. 831.280442 R1102A
1
2
3
4
5
6
7
8
9
10
11
11
12
12
14
13
15
16
17
18 19
19 20
21
21
21
21
22
23
23
25
26
26
28
28
29
30 31
32
30
33 34
34
34
34
34
34
35
35
36
37
37
38
38
39
40
41
41
42
43 44
42
43
44
45
45
46
47
48
49
78
50
50
74
51
52
53
52
53
54 54
54
54
55
55
80
80
56
56 57
57
58
58
59 64
66
66
64
64
64
64
65
65
66
67
68
67
68
62
27
69
69
69
69
77
77
62 70
71
71
63
73
73
75
78
49
55
76
79
73
79
72
72
27
24
24
73
61
61
72
69 80
54 54
54
80
54
54 80
60

Part No. 193742 R1102A Printed in China © 2002 Sears, Roebuck and Co.
Model No. 831.280442
QUESTIONS?
I you ind that:
• you need help assembling or
operating the PROFORM®
WHIRLWIND
• a part is missing
• or you need to schedule repair
service
call our toll- ree HELPLINE
1-800-736-6879
Monday–Saturday, 7 am–7 pm
Central Time (excluding holidays)
REPLACEMENT
PARTS
I parts become worn and need to
be replaced, call the ollowing toll-
ree number
1-800-FON-PART
(1-800-366-7278)
All replacement parts are available for immediate purchase or
special order when you visit your nearest SEARS Service
Center. To request service or to order parts by telephone, call
the toll-free numbers listed at the left.
When requesting help or service, or ordering parts, please be
prepared to provide the following information:
• The MODEL NUMBER of the product (831.280442)
• The NAME of the product (PROFORM®WHIRLWIND
exercise cycle)
• The KE NUMBER and DESCRIPTION of the PART (see
the PART LIST and the EXPLODED DRAWING on pages 14
and 15)
FULL 90 DAY WARRANTY
For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this
SEARS BIKE EXERCISER, contact the nearest SEARS Service Center throughout the United States
and SEARS will repair or replace the BIKE EXERCISER, free of charge.
This warranty does not apply when the BIKE EXERCISER is used commercially or for rental purposes.
This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state.
SEARS, ROEBUCK AND CO., DEPT. 817WA, HOFFMAN ESTATES, IL 60179
