Pro's Kit NT-6580 User manual

NT-6580
Laser Distance Measurer (80M)
User Manual
1st Edition
©2013 Copyright by Prokit’s Industries Co., Ltd

1
Thank you for buying Pro’sKit NT-6580 Laser Distance Measurer (80M).
Please read these instructions carefully before using the product.
English user manual
Contents
Brief Introduction ---------------------------------------------------------------------1
Safety instructions--------------------------------------------------------------------2
Buttons -----------------------------------------------------------------------------3
Basics -----------------------------------------------------------------------------3
Measurement ---------------------------------------------------------------------5
Numeric Keypad-----------------------------------------------------------------------9
Troubleshooting --------------------------------------------------------------------11
Icons------------------------------------------------------------------------------------12
Function list and specifications---------------------------------------------------13
Care-------------------------------------------------------------------------------------14
1. Brief Introduction
NT-6580 Laser Distance Measurer measures distances up to 80 meters
in just one second with 2.0 millimeter accuracy. It’s integrated with a
worldwide unique feature: Numeric Keypad.
NT-6580 is the world’s leading laser distance measurer integrated with
numeric keypad, which works as a calculator, also computes measured
data. It’s efficient and convenient, saves your time and trouble for data
processing and notes taking.
Other features that come with NT-6580 are also helpful and easy to use
include:
360° tilt measurement
NT-6580 measures inclination up to 360° range, so that distance to
inaccessible objects can be measured using trigonometric function.
Looks and feels fantastic
NT-6580 housing is designed like a sports car, and it adopts double
injection technology, ABS+TPU materials, offers a gorgeous
appearance and comfortable touch feeling.

2
In the box:
NT-6580 device*1
Lithium Battery*1
Charger*1
USB Cable*1
Pouch*1
Documentations (User Manual*1)
2. Safety instructions
WARNING: Failure to follow these safety instructions could result in fire,
electric shock, or other injuries, or damage to NT-6580 Laser Distance
Measurer or other property. Read all the safety information below before
using NT-6580.
Laser classification
NT-6580 uses a visible laser beam which emerges from the front of the
instrument.
Laser Class 2 products:
Do not stare into the laser beam or direct it towards other people
unnecessarily. Eye protection is normally afforded by aversion responses
including the blink reflex.
WARNING:
Looking directly into the beam with optical aids (e.g. binoculars,
telescopes) can be hazardous. Do not look directly into the beam with
optical aids.
Looking into the laser beam may be hazardous to the eyes. Do not look
into the laser beam. Make sure the laser is aimed above or below eye
level.

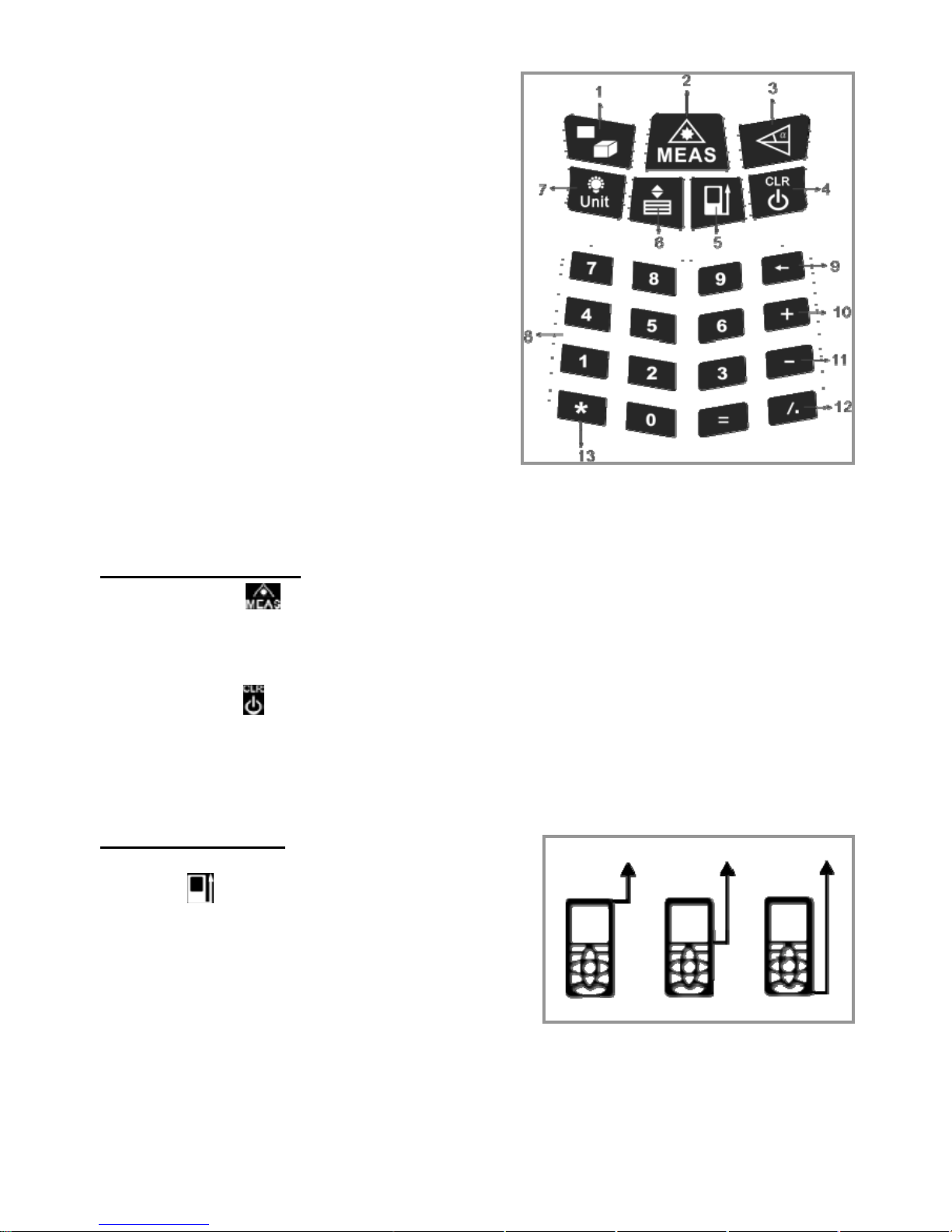

3. Buttons
3
1. Area/Volume/ Pythagoras
2. Power On/Measuring/Laser on
3. Tilt/Auto Level/Auto Height
4. Power off /Cancel/Back/Clear
5. Reference
6. Historical Data
7. Units/LCD Backlight
8. Numeric Keypad
9. Backspace
10. Adding/Go up
11. Subtraction/Go down
12. Division/ Decimal Point
13. Multiplication
4. Basics
Power On And Off
Long press to power on the instrument and activate the laser. The
display is on and shows the battery symbol until the next button is
pressed.
Long press to power off the instrument.
The instrument will be switched off automatically after three minutes of
inactivity.
Figure (C)
Reference Setup
See Figure (C)
Press to switch reference point
between tripod thread, the top and the
bottom of the instrument. There is
beep warning tone when reference
pint is changed.
The default reference setting is from the bottom of the instrument. The
reference point will be set to default every time when it’s powered off, I.E.
the measuring reference point is from the bottom of the instrument every
time when it’s powered on.

Display Backlight
Press to switch on or off the display backlight. User can trigger the
function when he/she is in dark situation. The value is clearly visible on
the display.
Distance Unit Setup
Long press to change the distance unit between m, ft, in, ft+/in. Long
press again to continuously change the next unit.
Clear/Cancel
When measuring or calculating, user can press to cancel the last
action, until all data on display are cleared and go back to single distance
measurement interface.

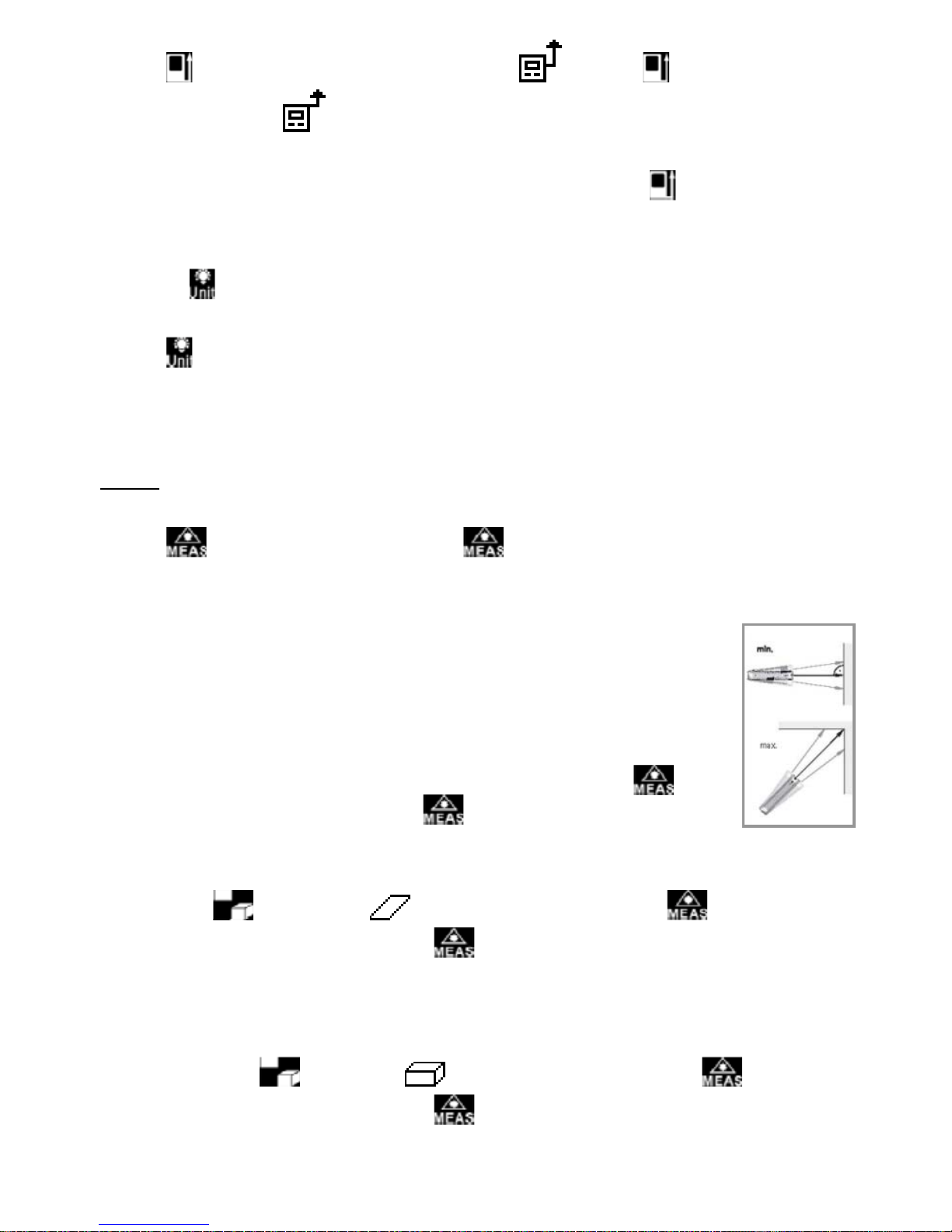

Historical Data
Press to view historical data, including 50 measured and calculated
results, shown in reversed order.
Press to go up to view previous record.
Press to go down to view next record.
Press to go back to single distance measurement interface.
4

5. Measurement
Single Distance Measurement Figure (D)
Follow the steps below to take single distance
measurement.
(1) Press to activate the laser, and aim at the
object which is to be measured.
(2) Press again to take measurement. Results will
be seen on display immediately.
Continuous Measurement
Long press button, until you hear beeps, to activate continuous
measurement. Under this mode, minimum or maximum distance can be
measured from a fixed measuring position by sweeping ideal points.
It’s usually used to find the right angle and diagonal. User can press
or to stop continuous measurement and the values of minimum and
maximum distances are shown in the display as well as the last
measured value in the summary line.
Area Measurement
Press once, the symbol appears on display.
Press to take the first distance measurement (e.g. Length).
Press again to take the second distance measurement (e.g. width).
The results of length, width, perimeter, area will be seen on display
orderly.
5

Volume Measurement
Press twice, the symbol appears on display.
Following the hint, press to activate laser, and aim at the target,
press again to take the first distance measurement (e.g. Length). Then
measure the width, and then height, the result of volume will be seen in
the summary line.
Indirect Measurement
This device can measure distance to inaccessible points, such as the
distance to a wall which is blocked by obstacles, or the height of a tree,
using trigonometric function.
To ensure measuring accuracy, indirect measurement should be based
on the following conditions:
(1) The measuring points of the object which is to be measured should be
on the same horizontal or vertical line.
(2) Put the device at a fixed but horizontally and vertically rotary tripod.

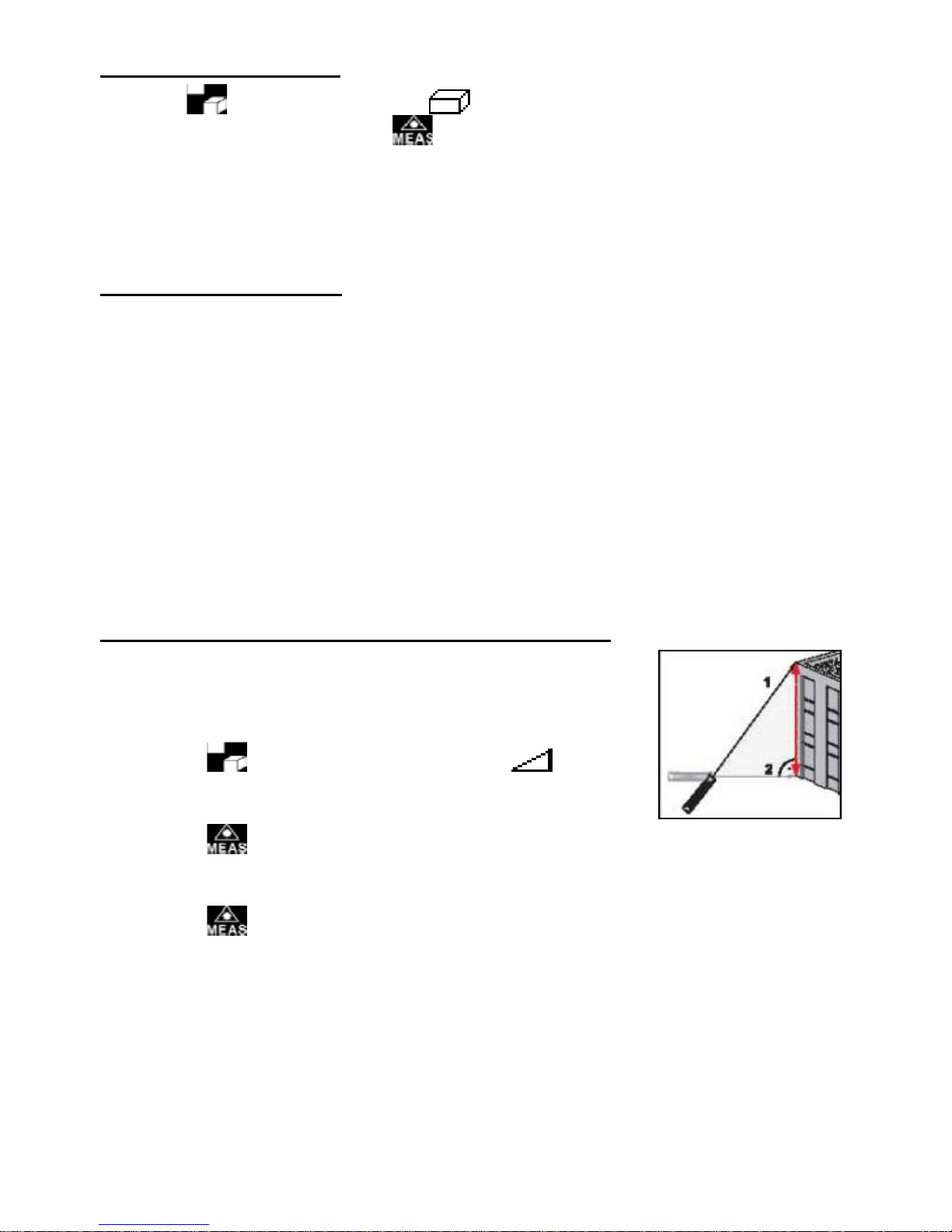

Indirect Measurement: Pythagoras Two Points
Figure (E)
As shown in Figure (E), if user wants to measure
the height of a building, he can use Pythagoras to
calculate the height.
(1) Press three times, the symbol
appears on display.
(2) Press to activate laser and aim at the
point which is to be measured.
(3) Press again to take the first measurement, and again to take the
second measurement.
(4) The height of building (third side of triangle), first and second distance
value will be seen on display.
Note:
(1) The device will automatically determine the longer distance as triangle’s
hypotenuse, and shorter distance as right-angle side.
6

(2) When measuring right-angle side (Distance 2 in Figure E), user should
ensure laser beam is right-angled to the target line.
(3) User can press to delete any measured length and then press
to re-measure.
Indirect Measurement: Pythagoras Three Points
As shown in Figure (F), there is another function to measure the height of
the building. Figure (F)
(1) Press four times, the symbol
appears on display.
(2) Press to activate laser and aim at the
point which is to be measured.
(3) Press again to take the first
measurement, and again to take the second and third measurement.
(4) The height of building, first, second and third distance value will be
seen on display.
Note:
(1) The device will automatically determine the longer distance as triangle’s
hypotenuse, and shorter distance as right-angle side.
(2) When measuring right-angle side (Distance 2 in Figure E), user should
ensure laser beam is right-angled to the target line.
(3) User can press to delete any measured length and then press
to re-measure.
Tilt Measurement
Press to activate tilt sensor, the symbol appears on display.
The tilt is continuously shown as ° or % depending on the setting.
Press to record the tilt on display, and take a distance measurement.
7

Note:
The tilt sensor measures inclination between ± 180°.
The accuracy of tilt sensor is 0.3°.
Auto Horizontal Measurement Figure (G)
Press twice, the symbol
appears on display. Press to
measure tilt and hypotenuse distance,
results of tilt, distance of hypotenuse
and two right-angle sides will be seen
on display. Refer to Figure (G).
Auto Height Measurement Figure (H)
Press third times, the symbol
appears on display. Press button
to measure distance to the top and to
the bottom of the object, distance of two
hypotenuse, and height of object will be
seen on display. Refer to Figure (H).
Addition / Subtraction
Press to take a measurement, then press button, and press
to take the second measurement, the second value will be automatically
added to the first one.
Press to take a measurement, then press button, and press
to take the second measurement, the second value will be automatically
subtracted from the first one.
Note:
This process can be repeated as required.
8

6. Numeric Keypad
Numeric keypad was integrated into NT-6580 Laser Distance Measurer,
which can be used as an ordinary calculator, and also used in the
calculation of measurements.
Launch/Quit Calculator
Launch: When the device is in the mode of measurement, viewing
historical data, or standby, press any numeric key（0～9）or to enter
Calculator, meanwhile a calculator icon will be seen on display.
Quit: When the device is in calculator mode, press to clear data, press
again to quit calculator mode.
Keypad List
Addition
Subtraction
Multiplication
Division (Long press)/Decimal Point
←Backspace
＝Equal Sign
Ordinary Calculator
When in calculator mode, user can use the device to do four arithmetic
operations (Addition, Subtraction, Multiplication, and Division.), the figure
is accurate up to four decimal places.
9

Calculator in Measuring
When a measurement was taken, and user enters into calculator mode,
the device will use the measurement result as an original data to do
calculation. User can also edit original data, such as press backspace ←to
clear digital, or use numeric keypad to add digital, or even press to
re-measure.
When the original data was confirmed, user presses operational character
(+,-,*,/),then uses numeric keypad to input new digits or press to take
new measurement, the results of calculation will be seen on display after
user presses the Equal Sign＝.
This process can be repeated as required.
Calculator in Viewing Historical Data
When viewing historical data and user enters into calculator mode, the
device will use the historical data as the original data to do the calculation.
User can also edit historical data, such as press backspace ←to clear
digital, or use numeric keypad to add digital, or even press to
re-measure.
When the original data was confirmed, user presses operational character
(+,-,*,/), then uses numeric keypad to input new digitals or press to
take new measurement, the results of calculation will be seen on display
after user presses the Equal Sign＝.
This process can be repeated as required.
10

11
7. Troubleshooting
All errors or failures will be shown as codes. The following table explains
the meaning of codes and solutions.
Code Cause Corrective Measure
204 Calculation error Refer to user menu, repeat the
procedures.
208 Currency for LD
out of range
If cannot be solved after several times of
reboot, meaning the instrument is out of
work, please contact your distributor.
220 Battery too low Recharge the battery
253 Temperature too
low
Warm up instrument
255
Receiver signal
too weak,
measurement
time too long
Use target plate or change a good
refection.
256 Received signal
too strong
Target too reflective, use target plate or do
not aim at strong light objective.
Error Hardware error and uncertainty
error
Switch on/off the device several times. If
the symbol still appears, then your
instrument is defective. Please contact
your distributor.

8. Icons
Icon Function Description (“- - -“ refers to the side
to be measured)
Battery status Show the battery level
Reference Front: ; Rear: ; Tripod thread:
Area measurement Step1: Length: -> Step2: Width
Volume
measurement
Step1: Length: ->Step2: Width:
->Step3: Height
Indirect (2 points)
measurement
Step1: hypotenuse ->Step2:
base-side :
Indirect (3 points )
measurement
Step1: first side: ->Step2: second
side ; ->Step3: third side
Tilt measurement Shows the inclination and hypotenuse
Auto level Step 1: shows inclination, hypotenuse
and horizontal distance
Auto height Step 1: distance to top ; Step 2:
distance to bottom
Continuous
measurement
First value display line: minimum value
Second value display line: maximum
value
Third value display line: latest value
Historical data 20 Records
Calculator icon Device is in calculator mode.
12

13
9. Function list and specifications
Part Number NT-6580
Measurement range 0.2 ~ 80m
Typical measuring accuracy ±2.0mm
Area measurement √
Volume measurement √
Pythagorean two/three points √
Min/max, continuous measurement √
Add/subtraction √
Tilt measurement √
Tilt measurement range ±180°
Tilt measurement accuracy 0.3°
Calculator √
Measuring units m/in/ft/ft+in
Battery type Rechargeable lithium battery
Battery capacity 1200mAh (BL-4C)
Battery life 20,000 measurement times
(Only for reference.)
Display 4-line dot matrix
Backlight √
Beeper √
Historical data 20 sets
Operating temperature 0°c ~ 40°c
Storage temperature -10°c ~ 60°c
Auto laser off 30 seconds
Auto instrument off 180 seconds
Laser class Class 2
Laser type 635nm, ＜1mW
Ingress protection IP54
Dimensions 120 x 54 x 28mm
Weight (Not including battery) 122g

14
Remark
[1] Applies for 100 % target reflectivity (white painted wall), low background
illumination, 25°C.
[2] Applies for 10 to 500 % target reflectivity, high background illumination,
-10°C to +50°C.
[3] Tolerances apply from 0.2m to 10 m with a confidence level of 95 %.
The tolerance may deteriorate to 0.15 mm/m between 10 m to 30 m
and to 0.2 mm/m for distances above 30 m
[4] In favorable conditions (good target surface properties, room
temperature), measuring range is up to 80m. In unfavorable conditions,
such as intense sunshine, poorly reflecting target surface (black surface) or
high temperature variations, the deviation over 10m distance may
increase.
10. Care
Do not use aggressive cleaning agents or solutions.
----------------------------------------------------------------
NT-6580 鐳射測距儀 (80M)
使用說明書
感謝您購買和使用 Pro＇sKit NT-6580 鐳射測距儀 (80M)，使用前請仔細閱
讀說明書，閱讀後請妥善保存，以備查閱。
目錄
產品介紹------------------------------------------------------------------------------------15
安全使用指南------------------------------------------------------------------------------15
按鍵功能------------------------------------------------------------------------------------16
初始操作和設置-------------------------------------------------------------------------- 16
測量-------------------------------------------------------------------------------------------17
功能-------------------------------------------------------------------------------------------19
計算器功能---------------------------------------------------------------------------------19
錯誤代碼及解決方法--------------------------------------------------------------------20
圖標功能------------------------------------------------------------------------------------21
技術參數------------------------------------------------------------------------------------22
保養------------------------------------------------------------------------------------------22

15
產品介紹
NT-6580 鐳射測距儀，採用雙色模工藝鑄造，彰顯美觀，柔性的材質使其更
加符合人體工學，手感更好，舒適握持。
領先業界採用測距儀數位鍵盤，解決了測距儀數字輸入困難的重大難題，同
時結合內置特有的計算器功能，讓資料計算在彈指之間輕鬆實現，並且立即
保存，隨時隨地享受快捷計算和高效存儲。
我們用心注重產品外觀的同時，也同樣用心關注產品性能，80 米遠量程，2
毫米高精度，NT-6580 繼承前代測距儀強抗干擾測量的特性，強光下測量性
能達到國際領先水準，讓您體驗更遠更準的戶外測量樂趣。
NT-6580 內置 360 度傾角感測器，全方位角度測量，隨心所轉，體驗完美的
角度測量。面積、體積、勾股(畢氏)定理測量等多種測量功能滿足您的測量
需求，省時省力，高效精准。
此外，我們在注重產品外觀和性能的同時，也同樣注重產品對環境的影響，
達到國際標準的安全鐳射、可循環使用的環保鋰電池、讓您體驗超強續航測
距的同時，安全無憂。
包裝內含
NT-6580 測距儀 1台
充電鋰電池 1個
充電器 1個
USB 線1條
保存袋 1個
使用說明書 1本
安全使用指南
鐳射等級
NT-6580 產品設有可見鐳射，並從儀器的前端發射。
本產品屬於二級鐳射產品：
不要直視雷射光束，在不必要的情況下不要瞄準他人。眼睛會本能地通過
轉視或眨眼等行為來保護眼睛。
警告
通過光學鏡片（如：目鏡、望遠鏡等）直視雷射光束，會對眼睛造成危害。

預防措施：
不要通過光學鏡片直視雷射光束。
小心
用眼睛直視雷射光束會對眼睛造成危害。
預防措施：
不要直視雷射光束。注意使雷射光束在眼睛的上方或下方射過。（特別是
在將儀器固定在機械設備上等情況下）。
按鍵功能
1. 面積/體積/勾股(畢氏)定理測量
2. 開機/打開鐳射/測量鍵
3. 角度/自動水準/自動垂直測量
4. 關閉機器/清除資料
5. 基準設置
6. 流覽歷史資料
7. 單位/背光設置
8. 數位按鍵
9. 倒退鍵
10. 加法/資料向上翻閱
11. 減法/數據向下翻閱
12. 除法/點號
13. 乘法
初始操作和設置
開啟和關閉
開啟：按 鍵開啟儀器或鐳射，電池的
圖示將顯示在顯示幕上。
手動關閉：長按 鍵直到螢幕畫面消失，
即可關閉儀器。
自動關閉：如果沒有任何按鍵操作，3 分鐘
之後儀器將自動關閉。
測量基準邊設置
如右圖所示，儀器默認的基準邊設置是後沿。
16

按 鍵，測量將以三角架為基準邊 ，再按 鍵下一個測量將以
前沿為基準邊 ，改變測量基準邊時會有蜂鳴聲提醒。在重新開啟後，
測量基準邊將自動返回到默認設置（後沿）。
總之，要選擇合適的測量基準邊，只需要重複地按 鍵，直到得到需要
的基準位置，每次開啟儀器，基準點都會重置到後沿處。
測量單位設置
長按 鍵，有以下單位可供選擇 m, ft，in, ft+in。
照明顯示
按 鍵，可以開啟和關閉照明功能，用戶可以在黑暗環境下隨時開啟這
個功能，測量數值將很清晰的顯示在顯示幕上面。
測量
單次測量
按 鍵，啟動鐳射。再次按 鍵，觸發測量。測量結果立即顯示
在顯示幕上。
連續測量
如右圖所示，這個功能可以使用戶從一個測量點出發，測
量出最大或最小的距離，在測量模式下，儀器可以移動接
近目標，測量資料每 0.5 秒被顯示一次。從而，在這個測
量過程中的最大和最小值動態的顯示在第一和第二行。
舉個例子，用戶從一面牆開始，向目標點連續移動，同時
當時的資料被連續的讀出來。要連續測量，長按 鍵
直到連續測量指示出現。按 鍵停止此功能，連續測
量功能在連續測量 3 分鐘後自動停止。
面積測量
按一次 鍵，圖示 將顯示在顯示幕內，按 鍵進行第一個
長度的測量(如：長)，再次按 鍵進行第二個長度的測量(如：寬)。第
二次測量後，面積測量結果將計算後顯示在主顯示幕內第 4 行, 同時屏幕
第 3 行顯示測量的矩形周長。
體積測量
連續兩次按 鍵 圖示 將顯示在顯示幕內，按 鍵進行第一
個長度的測量(如：長)，再按 鍵進行第二個長度的測量(如：高)，再
17

按 鍵進行第三個長度的測量(如：寬)，第三次測量後體積的計算結
果自動顯示在主顯示行。
間接測量
本儀器可以利用畢氏定理計算距離，這個功能可以實現對不易到達的地方
的距離測量。
請按照下面的步驟進行測量：
‧所有的被測量點都應在同一水準或垂直面上。
‧為能得到更準確的測量結果，建議將儀器固定在一個點上旋轉進行測量
（如：將儀器靠在牆面上進行測量）。
間接測量：一次勾股(畢氏)定理測量
如右圖所示，測量一個建築物的高度或寬度，或者
當一個高度需要通過兩個或三個距離來確定時，可
以通過間接測量功能實現，連續三次按 鍵，
圖示 將顯示在螢幕上，此時鐳射開啟,被測距
離的圖示閃爍顯示在顯示幕裏。瞄準最上面的點
（如右圖 1），然後按 進行測量。第一次測量
進行完成後測量值被採集。儘量保持儀器水平，儀
器默認水平測量，第二個被測距離的圖示閃爍顯示在顯示幕裏。瞄準水平
的點 (如右圖 2)，然後按 進行測量。測量結果顯示在顯示幕主顯示
內，而分部測量結果顯示在輔助顯示內。
間接測量：二次勾股(畢氏)定理測量
如右圖所示，連續四次按 鍵，圖示 將
顯示在顯示幕內。此時鐳射開啟。瞄準最上面的點
(如右圖 1)，然後按 進行測量。第一次測量完
成後測量值將被採集。瞄準中間的點第二個被測距
離的圖示閃爍顯示在顯示幕裏，儘量保持儀器水
準，儀器默認水準測量。(如右圖２)，然後按
進行測量。資料將被採集。第三個被測距離的圖示閃爍顯示在顯示幕裏。
瞄準最下面的點(如右圖 3)然後進行測量。資料將被採集。測量結果顯示
在顯示幕主顯示內，而分部測量結果顯示在輔助顯示內。
角度測量
按 鍵啟動角度功能，圖示 將顯示在顯示幕內，按 鍵進行
傾斜角和距離的測量。角度和距離測量結果將顯示在顯示幕主顯示內。
‧傾角感測器能感應到±180°內的傾斜。
18

‧角度感測器精度是 0.3 度。
自動水平距離測量
連續按 鍵兩次，圖示 將顯示在功能區。按 鍵來進行傾斜
角度和距離的測量。在主顯示內顯示出儀器自動計算出水準距離，而分部
測量結果顯示在輔助顯示內。
自動垂直距離測量
連續按 鍵三次，圖示 將顯示在功能區。按 鍵分別進行兩
條邊的測量，同時兩邊夾角自動得出。在主顯示內顯示出儀器自動計算出
的垂直距離，而分部測量結果顯示在輔助顯示內。
功能
加/減距離測量功能
測量時，按 鍵，下一個測量值將會與當前測量值相加，然後按
鍵，第二個測量結果顯示，同時自動加上之前的數值顯示在主顯示行。
測量時，按 鍵，下一個測量值將會與當前測量值相減，然後按
鍵，第二個測量結果顯示，同時自動減去之前的數值顯示在主顯示行。
取消測量功能
測量時，逐步按 鍵，可以逐步取消測量指令，直至螢幕資料完全清空。
歷史儲存功能
連續按 鍵， 最後 20 個測量或計算資料將逆序顯示出來。
按 鍵，向上進行翻閱。
按 鍵，向下進行翻閱。
按 鍵，返回測量主介面。
計算器功能
計算器功能簡介
NT-6580，領先業界搭配測距儀數位鍵盤，集成計算器功能，複雜計算，
輕點就好，而且還可以隨時隨地保存資料，計算結果，立即保存。
啟動/關閉計算器功能
啟動：在測量介面、歷史記錄查看介面或者待機介面，按數字 0～9 以及
﹡字鍵, 例如按鍵“７＂，即可進入計算器功能，此時螢幕上方將顯示計
算器圖示 。
19
