Pro's Kit MT-7610 Series User manual

Optical Time DomainReflectometer
USER'S GUIDE
MT-7610
EnglishEnglish

Optical Time DomainReflectometer
USER'S GUIDE
MT-7610
EnglishEnglish

As the laseris harmful to the eyes, donot attempt todisassemble the cabinet.
Precautions for Use
Use batteries
At the same time, can not use different styleor different capacitancebatteries. And onlycharge the rechargeablebatteries.
Avoiding condensation problems
As much aspossible, avoid suddentemperature changes. Donot attempt touse the driveimmediately after movingit
from a coldto a warm location, to raisingthe room temperature suddenly, ascondensation may form within the drive. If the
temperature changes suddenlywhile using the drive,
Stop using itand take out batteries for at least an hour.
Storage
When long timeno use, must take out the batteries to avoid destroying the device.
Due to technologyimprovement, product specifications are subject to change without notice.
1
Wavelength:635-650nmWavelength:635-650nm
VISIBLE LASER RADIATIONVISIBLE LASER RADIATION
SEMICONDUCTOR LASERSEMICONDUCTOR LASER
AVOD EYE OR SKIN EXPOSUREAVOD EYE OR SKIN EXPOSURE
TO DIRECT OR SCATTERED RADIATIONTO DIRECT OR SCATTERED RADIATION
Wavelength:800-1700nmWavelength:800-1700nm
INVISIBLE LASER RADIATIONINVISIBLE LASER RADIATION
SEMICONDUCTOR LASERSEMICONDUCTOR LASER
AVOD EYE OR SKIN EXPOSUREAVOD EYE OR SKIN EXPOSURE
TO DIRECT OR SCATTERED RADIATIONTO DIRECT OR SCATTERED RADIATION
CLASS I LASER PRODUCTCLASS I LASER PRODUCT
You arecautioned that changes or modifications not espressly
approved in thisdocument could voidyout authority to operate this
equipment.
To reduce the riskof fire orelectric shock,do notexpose this
apparatus to rainor moisture.
To avoid electrical shock,do not openthe cabinet. Referservicing to qualified personnelonly.
NOTENOTE
WARNINGWARNING

Contents
1. Warning and Note 1
2. Standard 3
3. Product presentation
4
3.1 Description 4
3.2 On/off 5
3.2 Measurement Interface 6
3.3 Real-time and average measurement 7
3.4 Event list 8
3.5 Real-time measurement tips 9
3.6 Cursor selection and waveform zoom in/out 10
3.5 Menu 11
3.5.1 Menu-File menu 12
3.5.2 Menu-Measure settings 15
3.5.3 Menu-System settings 16
3.5.4 Menu-Module settings 18
3.5.5 Menu- About 19
3.6 TF card and USB communication 20
3.7 User upgrading 21
3.8 Charging 22
3.9 Detail parameters 23

3

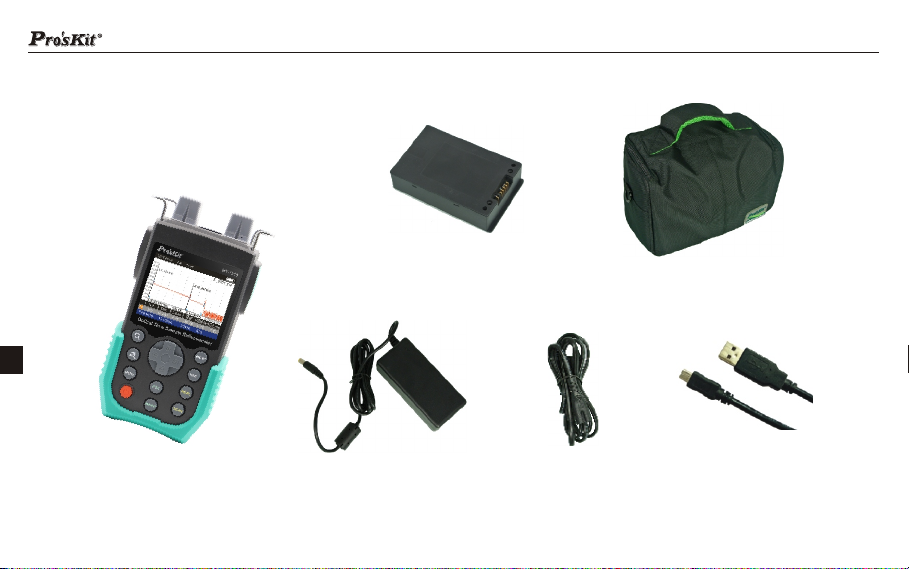

Standard
Host
Lithium battery
USB cable
Power cable
Power adapter
Carrying bag

4
20
21
22
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
Up button
Right button
Down button
Left button
Menu button
Cancel button
VFL optic fiberconnector
LCD
Power button
Full screen button
Zoom control button
Support frame
OTDR optic fiberconnector
File operation button
Cursor select button
Power adapter socket
Charge indicator
USB interface
TF(micro SD) cardslot
Real-time measurement button
Average measurement button
Confirming button
Anti-dust cover

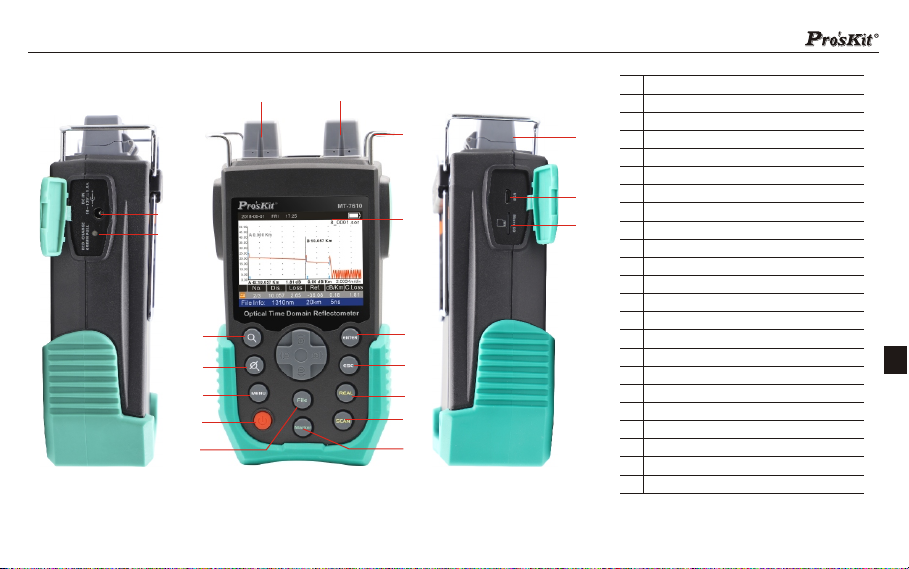

Description
1
3
2
18
19
23
4
5
6
11
9
10
8
7
12
13 14
15
16 17

5
Button is usedto turn on/off the device. Keeppressing it for2 seconds
to turn on device. Short press it again to turn off the device.
Press button to
start measuring. But usershould modify
measurement setting byreal
requirement before teststart.
Optical Time Domain Reflectometer
MENU
Marker
File
ESC
ENTER
REAL
SCAN
SCAN
On/off
MT-7610MT-7610
2018-06-01 FRI 17:25
0.00 A-B:0.000 Km 0.00 dB 0.00 dB/Km
A 0.000 Km
B 0.000 Km
2.000Km/div
5.00
10.00
15.00
20.00
25.00
30.00
35.00
40.00
45.00
50.00
Laser Radiation Do not look directly to the laser
Measure Info: 1310nm 20km 5ns

2018-06-01 FRI 17:25
8_0001.sor
0.00 A-B:10.057 Km 1.81 dB 0.00 dB/Km
A 0.000 Km
2.000Km/div
5.00
10.00
15.00
20.00
25.00
30.00
35.00
40.00
45.00
50.00
No.
2/3 2.65 0.1810.057 -36.08 1.81
File Info: 1310nm 20km 5ns
Dis. Loss Ref. dB/Km C.Loss
B 10.057 Km
123
6
Measurement Interface
2018-06-01 FRI 17:25
A-B: 10.057Km 1.81dB 0.00dB/Km 2.000Km/div
Date and time Power
The distance and
Attenuation between
A and B cursor
Every horizontal
grid is 2.0Km
Events list
Measure info
Measurement setting info
8_0001.sor
File name
Waveform region
There are 10x10grids in waveform region.
Horizontal grids meandistance, vertical grids
mean dB value. As shown infigure,
each horizontal gridrepresents 2.0km, each
vertical grid represents 5dB.

7

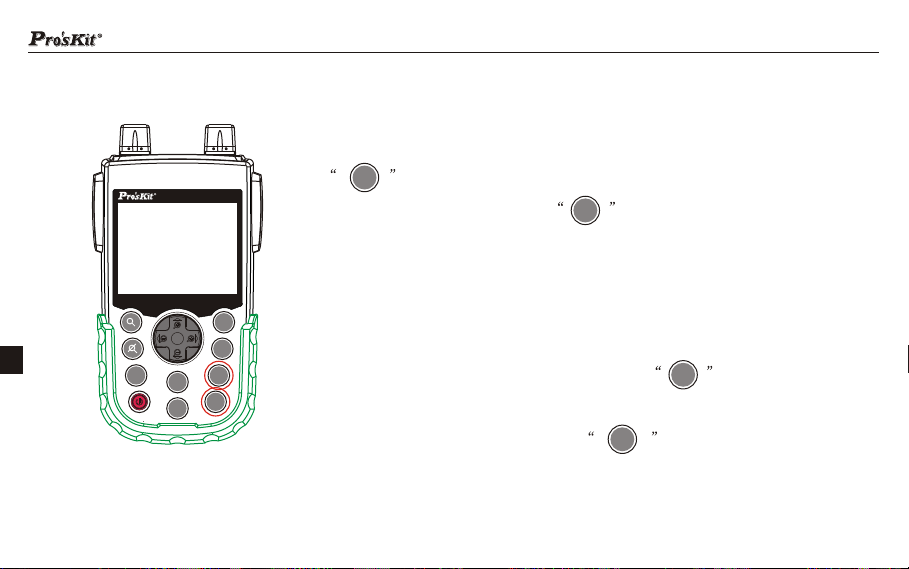

Real-time and averagemeasurement
Real-time measurement canquickly judge basic faults of opticalfiber. Press
button to start real-timemeasuring. During measuring, you can change
range, zoom inor zoom out . Press button again tostop. The device
will not analysesevent after real-time measurement in default. Unless you turn on
RT analyse inSystem settings, thedevice will analyse events according to the last
refreshed waveform.
Average measurement canjudge the line condition more accurate. It can get a
better SNR andfits high requirementcircuit. Press button to start. Usercan
set measurement timefrom 5 secondto 180 second. The device analyses events and
generates event listautomatically. Press button during measuring,device
will stop measuring,analyses events and generates event list automatically.
REAL
REAL
SCAN
SCAN
Optical Time Domain Reflectometer
MENU
Marker
File
ESC
ENTER
REAL
SCAN
MT-7610MT-7610

8
Optic fiber start
Reflection event
Attenuation event
Gain event
optic fiber ending
Event list
After measurement or open a waveform in memory, there is
event list onthe bottom of waveform interface. Press
button to showthe whole event list.Five types ofevents as
followed:
Press Up orDown button to select an eventwhich needs tobe
located by cursoron the waveform. Then press button
to return to waveform interface. The cursorwill stay onthe
position of theselected event. Press button to return to
waveform interface.
Event list on maininterface
Event List
ESC
ENTER
ENTER
No.
2/3 2.65 0.1810.057 -36.08 1.81
Dis. Loss Ref. dB/Km C.Loss
2018-06-01 FRI 17:25
No.
1/3
3/3
0.00
--.--
--.--
0.18
0.000
14.154
-34.04
-20.95
0.00
5.20
File Info: 1310nm 20km 5ns
Dis. Loss Ref. dB/Km C.Loss
2/3 2.65 0.1810.057 -36.08 1.81

9
The device supports userto change measurement range during real-time
measurement. Start Real-time measuringfunction and press Up or Down button to
increase or decreasethe range. Andit also supports to change the cursorposition
and zoom in/outwaveform in realtime, which means youcan zoom inpartial
waveform while measuring to judge the network fault.
Real-time measurement tips
Optical Time Domain Reflectometer
MENU
Marker
File
ESC
ENTER
REAL
SCAN
MT-7610MT-7610

2018-06-01 FRI 17:25
8_0001.sor
0.00 A-B:10.057 Km 1.81 dB 0.00 dB/Km
A 0.000 Km
2.000Km/div
5.00
10.00
15.00
20.00
25.00
30.00
35.00
40.00
45.00
50.00
No.
2/3 2.65 0.1810.057 -36.08 1.81
File Info: 1310nm 20km 5ns
Dis. Loss Ref. dB/Km C.Loss
B 10.057 Km
123
10

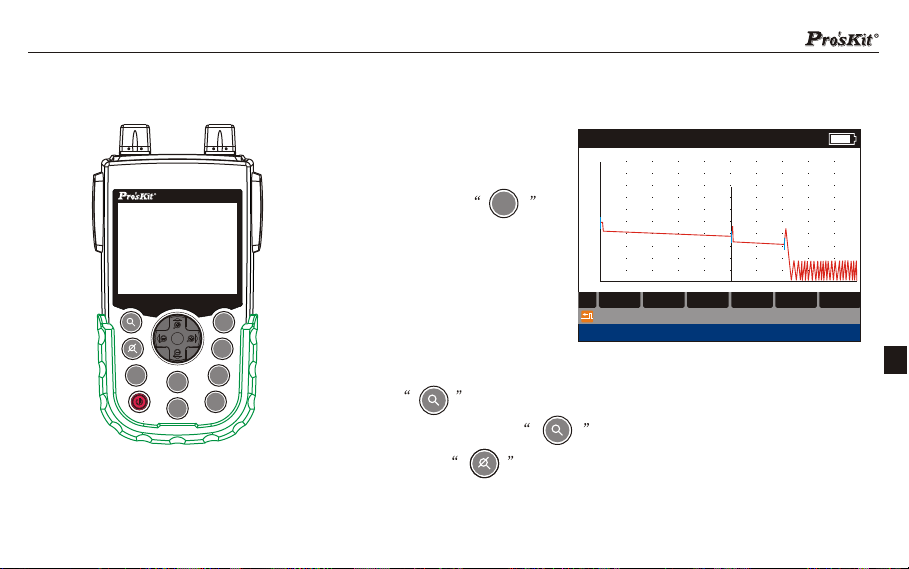

Cursor selection andwaveform zoom in/out
This device hastwo cursors, A and B.
Default distance is0m, activated cursor
turned to bright black. Press
button switch toanother cursor. Press Left
or Right buttonto move cursor. Press Upor
Down button toprevious or next event. You
can calculate thedistance and attenuation
between two cursors.
Keep pressing , then pressand Up/Down buttonto zoom inor out
waveform vertically. Keep pressing , then pressLeft/Right button tozoom in
or out horizontally. Press button to returnto full screendisplay. Notice:the
focus of zoomingis the locationof the activated cursor.
Optical Time Domain Reflectometer
MENU
Marker
File
ESC
ENTER
REAL
SCAN
Marker
MT-7610MT-7610

11

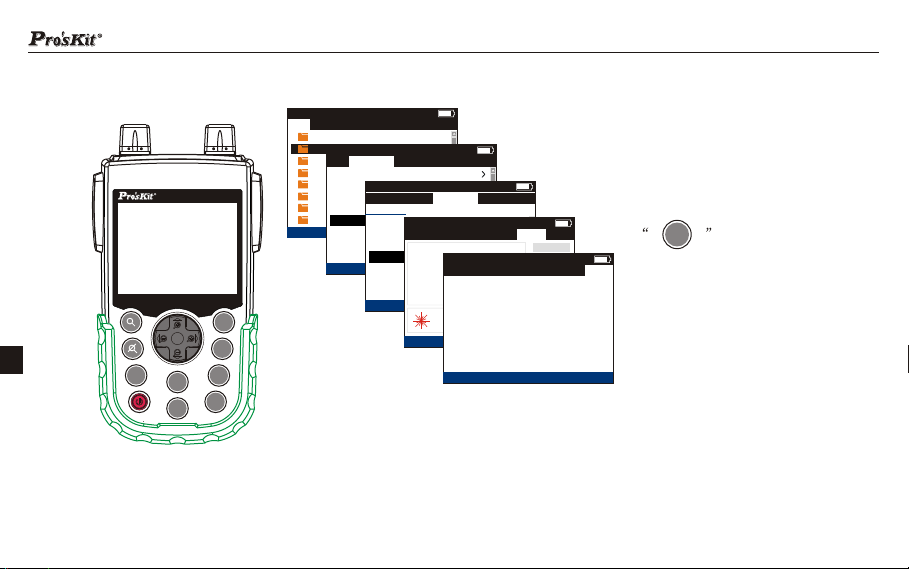

There are fivepages of menu
which used toconfigure parameters.
Under waveform interface, press
button to switchthe
five menus cyclically.
The five menusare:
1. File menu
2. Measure settingsmenu
3. System settingsmenu
4. Module settingsmenu
5. About
Menu
Optical Time Domain Reflectometer
MENU
Marker
File
ESC
ENTER
REAL
SCAN
MENU
MT-7610MT-7610
2018-06-01 FRI 17:25
File Info:
Files Measure Set. System Set. Module About
20180601
20180601
20180601
20180601
20180601
20180601
20180601
20180601
2018-06-01 FRI 17:25
Measure Set. System Set. Module About
Pulse Width
Average Time
Reflection Threshold
End Threshold
Splice Loss
250ns
15s
65.0dB
3.0dB
0.05dB
Wavelength
Scan Mode
Range
Manual
1650nm
20Km
Files
2018-06-01 FRI 17:25
Backlight
Auto shutdown
Date format
Time format
Auto name
60
30Min
YYYY-MM-DD
24-hour format
Open
Common Storage Administration Other
Language
Voice
English
Close
Measure Set. System Set. Module About
Files
2018-06-01 FRI 17:25
Do not stare into beam!
Wavelength
VFL On
Save file
REF set.
REF view
Open file
Offset
dBm
dB
mw
000.00
+00.00
+00.00
1310nm
REF:-70.00dBm
Measure Set. System Set. Module About
Files
2018-06-01 FRI 17:25
CPU ID:
A798FAD6
Hardware version:
TEN5A04_PL_V0.0
TEN1A20V35_ANALOG_V5.1
Software version:
SEN5A04_PL_V0.0.4
Measure Set. System Set. Module About
Files

12
Menu-File menu
When the file menu opens,you will see the folders.
The folder name is the date of the file saved, which is
generated automatically by system. Files measured in
the same day will be stored in the same folder. Folder
can be deleted and renamed .
Press Up or Down button to select a folder and press
button to open delete or rename tip. Then press
button to finish deleting, or press
button to cancel.When the delete or rename tip opens,
press down button to select rename,and press
putton to enter the soft keyboard and rename it,or press
button to cancel.
ESC
ESC
2018-06-01 FRI 17:25
File Info:
Files Measure Set. System Set. Module About
20180528
20180527
20180525
20180524
20180526
20180601
20180530
20180529 2018-06-01 FRI 17:25
File Info:
Files Measure Set. System Set. Module About
20180528
20180527
20180525
20180524
20180526
20180601
20180530
20180529 Rename
Delete
ENTER
ENTER

13
Menu-File menu
Files will displays after the folder,press Up or Down
button to select one file and press button
can delete or rename the file,press button
to open the waveform thumbnail.
Filename can make up of 23 digits, alphabets and
special symbols at most. The last four numbers_xxxx is
generated by "Automatic naming"function. Shut down
this function will not generate.
2018-06-01 FRI 17:25
File Info: 1310nm 20km 5ns
Files Measure Set. System Set. Module About
133210_0003.sor
133210_0004.sor
133210_0006.sor
133210_0007.sor
133210_0005.sor
2018-04-19
2018-04-19
2018-04-19
2018-04-19
2018-04-19
...
133210_0001.sor
133210_0002.sor
2018-04-19
2018-04-19
2018-06-01 FRI 17:25
File Info: 1310nm 20km 5ns
Files Measure Set. System Set. Module About
133210_0003.sor
133210_0004.sor
133210_0006.sor
133210_0007.sor
133210_0005.sor
2018-04-19
2018-04-19
2018-04-19
2018-04-19
2018-04-19
...
133210_0001.sor
133210_0002.sor
2018-04-19
2018-04-19
Rename
Delete
2018-06-01 FRI 17:25
File Info: 1310nm 20km 5ns
Files Measure Set. System Set. Module About
133210_0003.sor
133210_0004.sor
133210_0006.sor
133210_0007.sor
133210_0005.sor
2018-04-19
2018-04-19
2018-04-19
2018-04-19
2018-04-19
...
133210_0001.sor
133210_0002.sor
2018-04-19
2018-04-19

14
Menu-File menu
When finish measuringan optic fiber, press
button to enter storage interface.
Default filename ishour/minute/second of firsttime
storage. Press Up/Down/Left/Rightbutton to select
alphabets, digits andsymbols on softkeyboard. You
can input 23alphabets at most.If "Automatic
naming" is enabled,the filename willautomatically
generated with fourdigits. Without shuttingdown
the device, thefollowing stored file'sname will
automatically plus 1.The file format is.SOR.
On file recallinginterface, press Right buttoncan
Modify filename, asthe same operationsabove.
File
2018-06-01 FRI 17:25
*
0.00 A-B:10.057 Km 1.81 dB 0.00 dB/Km
A 0.000 Km
2.000Km/div
5.00
10.00
15.00
20.00
25.00
30.00
35.00
40.00
45.00
50.00
2/3 2.65 0.1810.057 -36.08 1.81
1310nm 20km 5ns
B 10.057 Km
123
q
1
w
2
e
3
r
4
t
5
y
6
u
7
i
8
o
9
p
0
asdfghjkl
zxcvbnm
en Enter
Space
140950
._#
2018-04-19
2018-04-19
2018-04-19
2018-04-19
2018-04-19
2018-06-01 FRI 17:25
133210_0003.sor
133210_0004.sor
133210_0006.sor
133210_0007.sor
133210_0005.sor
2018-04-19
2018-04-19
2018-04-19
2018-04-19
2018-04-19
...
133210_0001.sor
133210_0002.sor
2018-04-19
2018-04-19
1234567890
140950.sor
qwertyuiop
asdfghjkl
zxcvbnm
en Enter
Space
._#
Files Measure Set. System Set. Module About

15
Menu-Measure settings
Measure settings menu is used to set relative measurement data, which The judgment
of events list is based on. Wrong setting might leads to wrong or missing events.
Wavelength---wavelength of laser.
Scan mode---Manual and auto mode. Under auto mode, it will match the Distance,
range and pulse width .
Range---match with the length of measured optic fiber, usually over one level.
Pulse width---set the pulse width of output laser. Usually, small pulse width can measure
close event, large pulse width can measure remote distance,but enlarge event's blind area.
Average time---can set between 5 second and 180 second as average measurement time.
Splice loss---treat as an event when the loss is higher than setting value.
Reflection threshold---treat as an event when the reflection is higher than setting value.
End threshold---treat as the end of optic fiber when the loss is higher than setting value.
Reflective rate---represent the average refractive index of entire optic fiber.
Scatter coefficient--- the intrinsic value of Rayleigh Scattering.
Optical detector---set whether to check light input in the fiber before measurement or not.
Real time analyse---set whether to analyses events after real time measuring or not.
11
2018-06-01 FRI 17:25
Measure Set. System Set. Module About
Pulse Width
Average Time
Reflection Threshold
End Threshold
Splice Loss
1us
15s
65.0dB
3.0dB
0.05dB
Wavelength
Scan Mode
Range
Manual
1550nm
20Km
Files
Real time analyse Close
Reflective Rate
Scatter Coefficient
Optical Detector
52.1
1.46832
Open

16
Menu-System settings
Common
Language---set the current display language.
Voice---set whether to open or not.
Backlight---set brightness of LCD,settings range from 10 to 100.
Auto shutdown---set time of automatic off or cancel this function.
Auto name---name automatically when file is saving, can cancel this
function.
Date form at---set the display order of year,month and day.
Time form at---switching between 24-hour system and 12-hour system.
Date setting--- set year, month, day.
Time setting---set hour, minute.
2018-06-01 FRI 17:25
Backlight
Auto shutdown
Date format
Time format
Auto name
60
30Min
YYYY-MM-DD
24-hour format
Open
Common Storage Administration Other
Language
Voice
English
Close
Measure Set. System Set. Module About
Files
Date setting
Time setting
17:25
2018-06-01

17
Menu-System settings
Storage
Default storage device information---view the current TF
card information.
Format default storage device---delete all files in the current
TF card.
USB connection---connect USB status to view TF card or
internal storage file.
OTG---connect USB status settings to view TF card files or not.
Administration
Hardware module information---when installing the optional
module,you can set whether the module is open or not.
Software module information---when installing the optional
module,you can set whether the module is open or not.
Self-examination---testable connection of optional modules.
Other
Restore factory settings---is used in resetting to default ,
and has no effect on the set time and stored data.
2018-06-01 FRI 17:25
USB connection
OTG
Common Storage Administration Other
Default storage device information
Format default storage device
Measure Set. System Set. Module About
Files
Close
2018-06-01 FRI 17:25
Self-examination
Common Storage Administration Other
Hardware module information
Software module information
Measure Set. System Set. Module About
Files
2018-06-01 FRI 17:25
Common Storage Administration Other
Restore factory settings
Measure Set. System Set. Module About
Files
