Pro's Pro Electronic SX-01 User manual

Page 1
Electronic SX-01
Stringing Machine
User’s Manual
Attention:
Please read this manual carefully before operating with the
machine.
Keep it properly for the aftersales service.

Page 2
Catalogue
1. Attentions
1.1 Operating attentions 3
1.2 Safe using attentions 3
2. Unpacking and inspection
2.1 Components 4
2.2 Inspection 4
3. Operating Instructions 5
4. Mounting a racket 6
5. Insert a string 7
6. Adjusting the base of the swivel clamp 7
7. Maintance 8
8. Troubleshooting 8
9. Service Guide 9
10. Calibration 10

Page 3
Safety precautions
Following are fatal informations for your safety, please observe strictly.
“ ” Warning mark – Any information in this manual with a warning mark must be
abided by strictly, otherwise there will be danger of the personal safety or could lead to a
significant accident.
“ ” Forbidden mark – Any information in this manual with a forbidden mark must be
abided by strictly, otherwise there will be danger of the personal safety or could lead to
damage of the machine.
1.1 Warning
Do use 220v AC power and the provided cable and plug. Please make sure the power
match the machine in the play court.
Do not disassemble or change the machine voluntarily, otherwise it will damage the
machine or cause serious accidents.
Do not use the machine close to volatile or flammable gas.
Do keep away from heat, prevent putting the machine under the sun for long time
avoiding the plastic and rubber parts become aged.
Do contact with local service provider or manufacturer. If the machine has an unusual
situation, for example: big noise, strong smog and leakage, please cut the power
immediately.
Do unplug the power plus when the machine is not in use or renew parts.
1.2 Forbidden
Do not let the kids play with the machine or power equipment.
Do not touch the inner parts when the machine is operating or it will cause an accident.
Do not let the kids operate the machine when cleaning up interior of the machine, in
order to avoid damaging the machine or causing any danger.
Do not operate the power or machine switch with barefoot or wet hands.
Do not move it during working.
Do not clean the surface of the machine with volatile wet cloth.
Do not putting it aside in moist or other bad environment.
Do not pressing the ascending and descending pounds function in the same time,
otherwise it will cause damage to the machine.
Do not placing the cable in high temperature or beside the heating.

Page 4
Unpacking and inspection
The machine is delivered ready assembled.

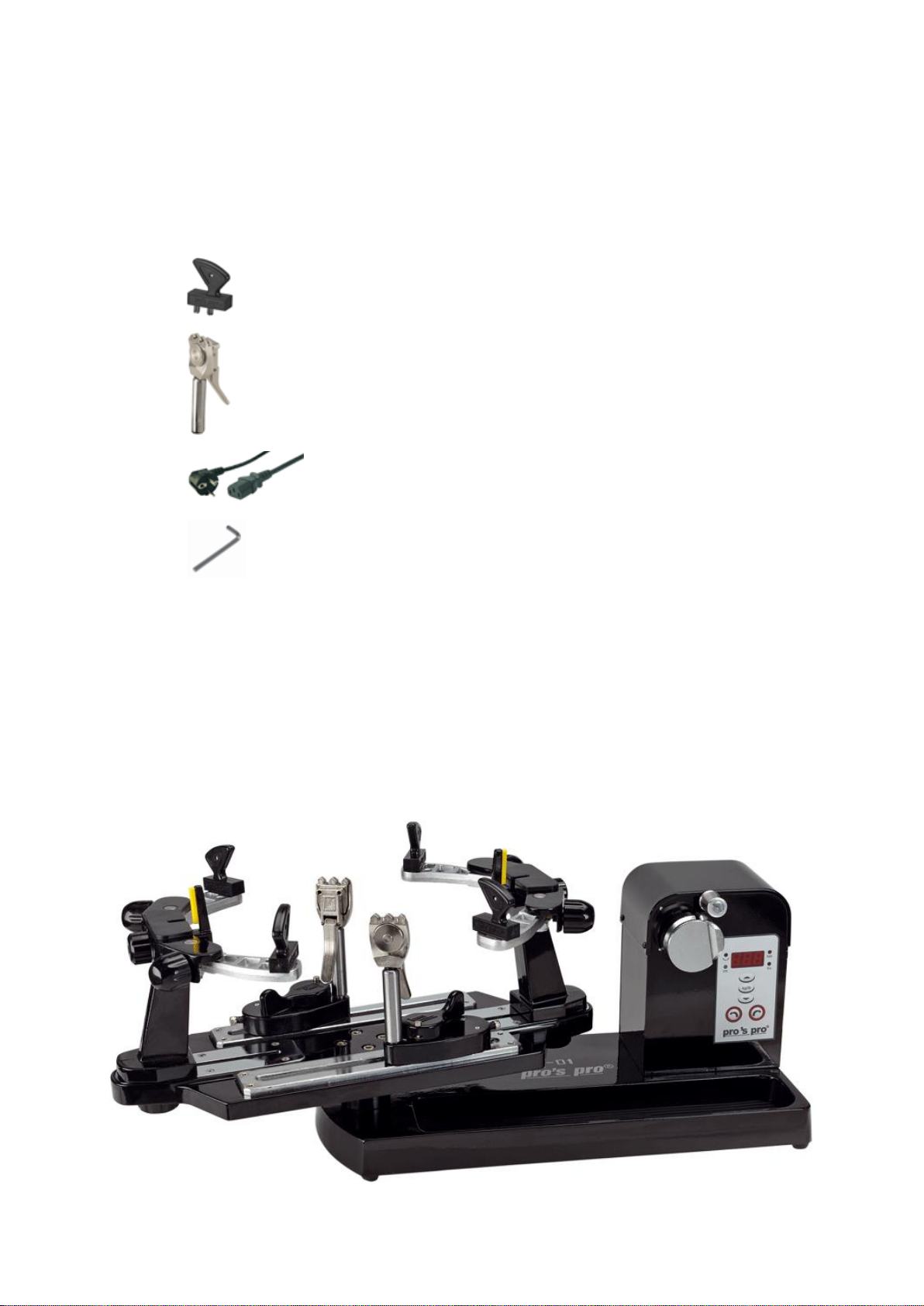

2.1 Components:
4x T054 racket frame support
2x T071 clamp
1x AC power cable
Set of Allen wrench
2.2 Unpack the machine carefully and inspect the Electronic SX-01 stringing
machine for any obvious damage. Check if all parts are included in the carton.
If any item is missing or damaged, contact your delivery agent and your sales
representative. Retain the original packaging materials for the event that
reshipping is required.

Page 5

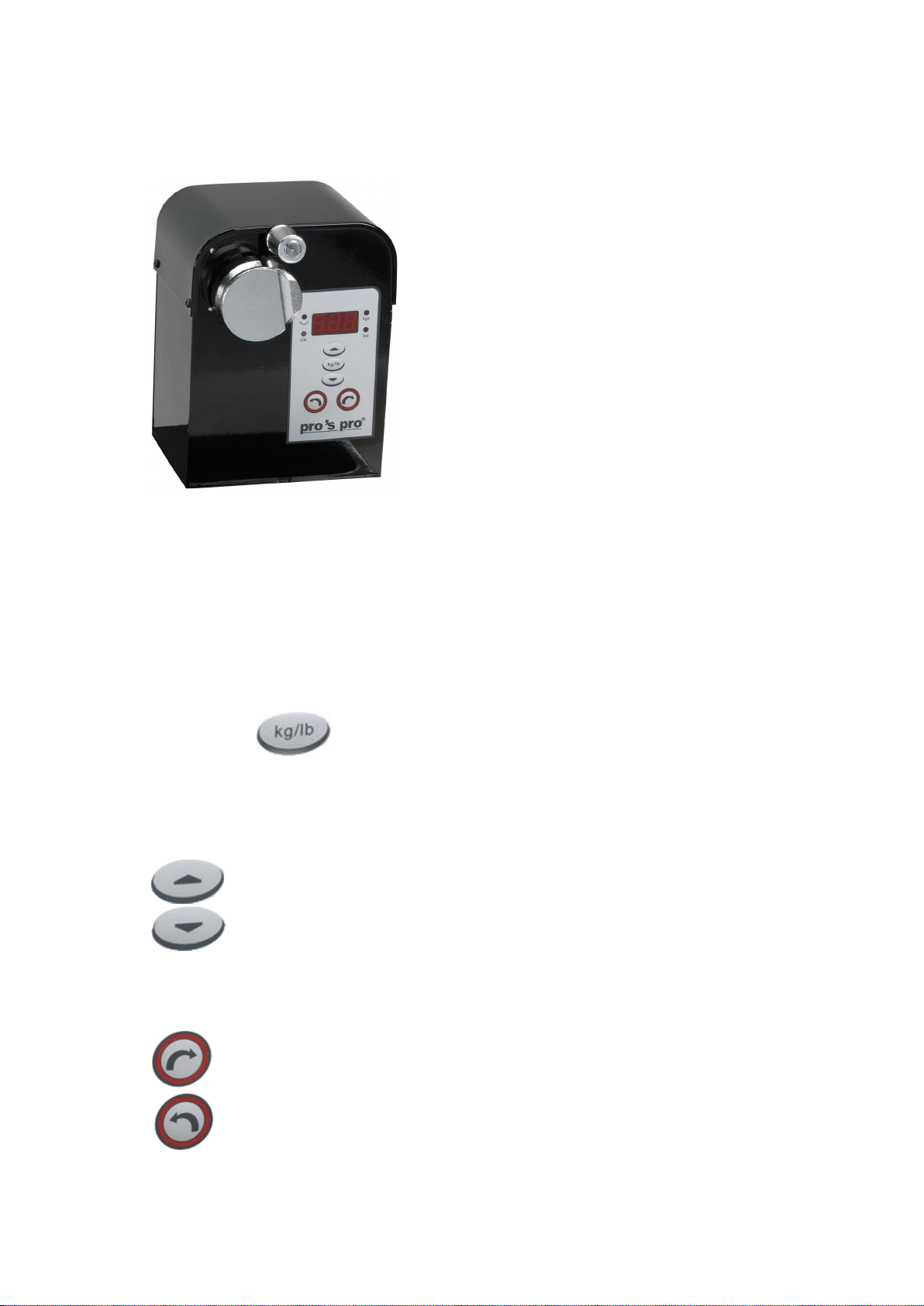

3. Operating Instructions
1. Place the machine on a table or a stand foot.
2. On the back side of the electronic tension there is a switch which should be
in the ON position for normal operation.
3. Turn the power on and a green light flashes and the tension strength appears
on the LED display.
4. Select the tension scale in kilograms or pounds. The machine is always
shipped set to kilogram. The switch for it is between both knob for setting
the tension
5. For setting the tension use the 2 knobs for rising and reducing the tension.
The tension can be set in 0,5 kg steps.
Rising the tension
Reducing the tension
6. The stringing machine has 2 positions:
Machine pulls to the selected tension
Machine moves back to the starting position to release the string.

Page 6
7. If the engine doesn’t stop pulling automatically, press the backwards
button.
8. After stringing turn the machine off.
9. Turn the tension on the display down to 10 kilogram the tension in the
machine should be as low as possible in the time of not stringing.

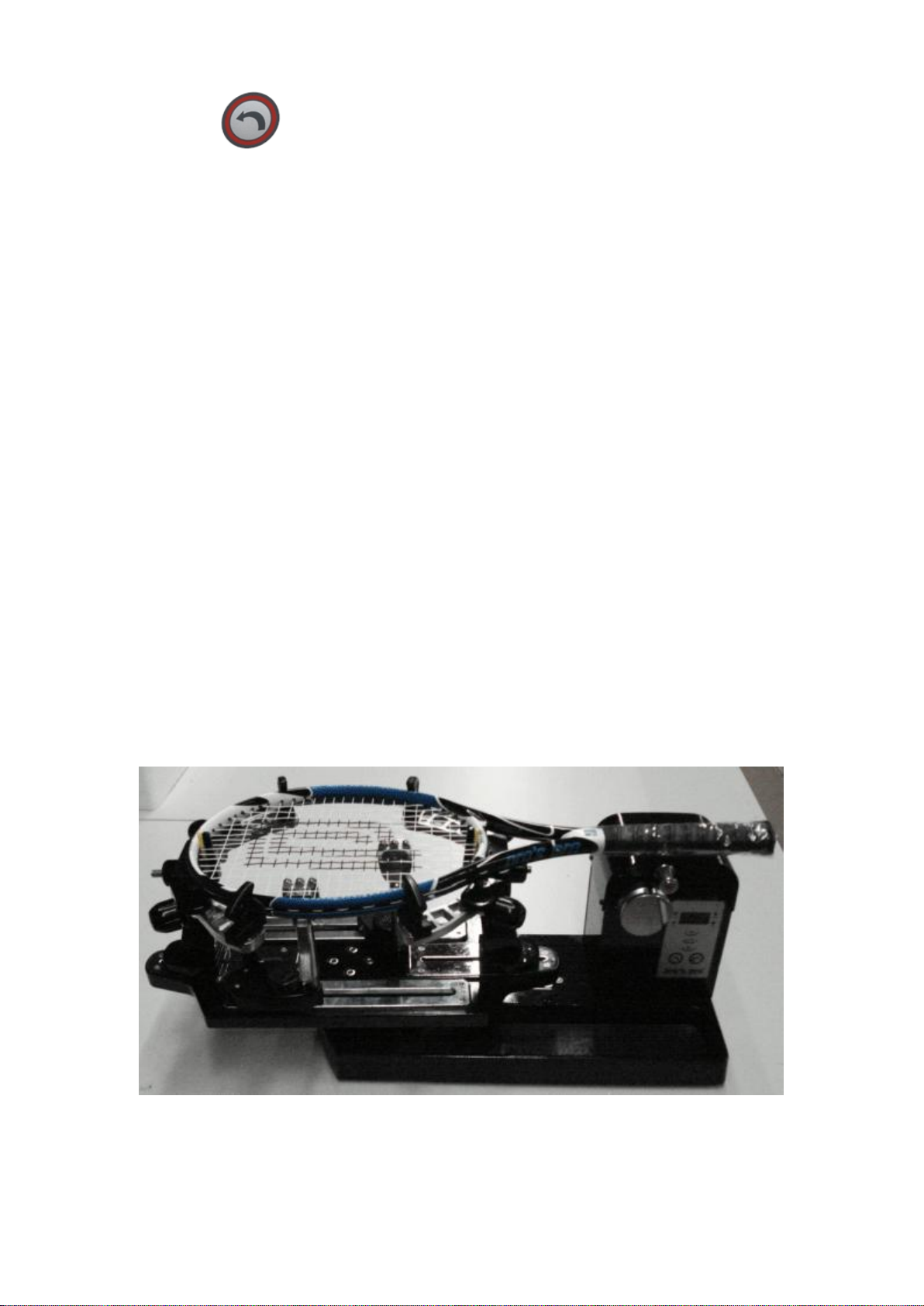

4. Fixing of the Racket
Loosen both mounting stocks, place the four K-shaped side supports into the
hole of the side-support arms, in the far outer hole for tennis rackets, in the other
hole for badminton and squash. Now place the racket in the middle of the
stringing machine. Ensure that the two swivel clamps can reach all of the racket
area for stringing.
Never apply excessive force or over-tighten the mounting stock locking knobs,
this will damage the parts.
Tighten now the side support arms and the mounting stock, but be careful not to
do this too heavily, that the racket will not be deformed.

Page 7
5. How to put the string into the tension system
First place the string over the small reel and then around the big one and place it
into the slot and hold the string down. Then push the button to 1 and the
machine starts pulling until it has the right tension.
6. How to use the Swivel Clamp System
When the clamp falls back into the clamp base, it opens automatically.
Alternatively, the quick release can be opened by applying pressure on the
release button. A significant improvement to conventional systems is that the
clamp base can be adjusted with a rotary screw. The adjustment with an Allen
key is no longer necessary.

Page 8
7. Maintenance
1. The Electronic SX-01 stringing machine is adjusted and calibrated before
shipment. Working is easy and relatively maintenance-free.
2. Keep the stringing machine always at a dry and safe place. Keep it away
from dust, grease, moisture and any type of heat.
3. Clean the dust and other dirt with a soft cloth or brush.
4. Water should never come inside the machine!
5. Do not use liquid cleansers, abrasive cleaners or aerosol cleaners.
6. Use fine emery cloth to remove the wax buildup from the jaws of the
clamps and the string gripper.
7. Do not uses sandpaper to remove the wax buildup; it will destroy the
special finishing.
8. Do not lubricate the tracks of the turntable.
9. Do not use penetrating oils to clean or to lubricate.
10.Check the clamps often to be sure that they hold the string properly. I not
adjust them as shown before.
11.Reset the tension setting to 10 kilograms after stringing.
8. Troubleshooting
The power light does not shine and the electronic part does not do anything.
Be sure the power switch is in “on” position.
Check that the power cord is properly installed.
Check the fuse. Turn off the power switch and unplug the power cord
from the wall outlet before checking the fuse. The fuse housing is next to
the power switch.
Check the wall outlet with another electronic equipment.

Page 9
The string clamp does not hold the string:
Clean the jaws of the string clamp.
Use the large dial to adjust the distance between the jaws. Adjust the
distance according to the thickness of your tennis string.
The string slips through the string gripper:
Clean the string gripper, like described before.
The clamp does not move smoothly or can not be fixed:
Clean the tracks of the turntable.
Adjust the swivel clamp base per instruction.
The tension pulling is not correct:
Calibrate the machine.
Is the string not fixed in the clamp?
Is the clamp base moving?
10. Service Guide
Service notice
If there is problem during the using time, please call our service hotline or send an email.
Please do provide us: bar code or detailed order/consignee and the date of purchase.
The clamp can also be fine-adjusted. On the opposite side of the dial there
are 2 small Allen screws (2.5 mm). These can be easily loosened or
retracted using an Allen key.
The machine does not pull, when the forward button is pushed:
Calibrate the machine

Page 10
11. Calibration
The machine is calibrated with an electronic Tension calibrator, if you have only
a mechanic one, please be sure that it is not too old otherwise the spring inside
will give you wrong results.
1. Set the tension to 30 kg
2. press the KG/LB continual until the LCD show 0.00kg
3. fix a tension calibrator

Page 11
4. press right button for starting stringing the line
5. after pressing this button the display switches to 20,5kg, now push the
up/down button as long as the multimeter (tension calibrator) is 30kgs,
then press the KG/LB button and ---OK-----loose the line---finish! (no
matter what is shown on the display of the engine!)
