probst HVZ-uni User manual

Hydraulic Installation Clamp
HVZ-uni
004
Order-No.:
51400017
Serial-No.:
Hydraulic Installation Clamp
HVZ-uni
V7
Translation of original operating instructions

Contents
HVZ-uni
V7
18/06/12
2 / 36
1Contents
1Contents .....................................................................................................2
2Declaration of Conformity...........................................................................4
3General .......................................................................................................6
3.1 Authorized use................................................................................................ 6
3.2 Survey and construction .................................................................................. 7
3.3 Technical data ................................................................................................ 7
3.4 Safety symbols ............................................................................................... 8
3.5 Definition skilled worker / specialist.................................................................. 8
3.1 Safety Marking................................................................................................ 8
4Safety .........................................................................................................9
4.1 Personal safety requirements........................................................................... 9
4.2 Protective equipment ...................................................................................... 9
4.3 Accident prevention ........................................................................................ 9
4.4 Function Control ............................................................................................. 9
4.4.1 General....................................................................................................... 9
4.4.2 Hydraulic................................................................................................... 10
4.5 Safety procedures......................................................................................... 10
4.5.1 Hydraulic excavator and other lifting equipment .......................................... 10
4.5.2 Safety at installation work .......................................................................... 10
4.5.3 Check on the gripping quality of certain layers of paving stones ................... 11
5Installation ...............................................................................................12
5.1 Mechanical connection .................................................................................. 12
5.2 Hydraulical connection .................................................................................. 12
6Adjustments..............................................................................................13
6.1 General ........................................................................................................ 13
6.2 Settings of the HVZ uni ................................................................................. 14
6.2.1 Settings of the main gripping direction........................................................ 16
6.2.2 Adjusting the gripping depth ...................................................................... 18
6.2.3 Gripper length main gripping direction ........................................................ 19

Contents
HVZ-uni
V7
18/06/12
3 / 36
6.2.4 Adjustment side gripping direction.............................................................. 21
6.3 First gripping trial.......................................................................................... 24
6.4 Height adjustment of the rollers (K) ............................................................... 26
6.5 Annotations to the pushing of device ............................................................. 26
7Operating..................................................................................................27
7.1 General ........................................................................................................ 27
7.2 Indications for concrete paver installation, complying with the standards ...... 28
7.3 Operating procedure of laying cycle ............................................................... 29
7.4 General hints for laying according to standards............................................... 30
7.5 General laying-hints: ..................................................................................... 31
8Maintenance and care...............................................................................32
8.1 Maintenance................................................................................................. 32
8.2 Trouble shooting........................................................................................... 34
8.2.1 Disturbing noise when opening and closing the main clamp ......................... 34
8.3 Repairs......................................................................................................... 34
8.4 Safety procedures......................................................................................... 35
8.5 Hints to the identification plate ...................................................................... 36
8.6 Hints to the renting/leasing of PROBST devices............................................... 36

Declaration of Conformity
HVZ-uni
V7
18/06/12
4 / 36
2Declaration of Conformity
Konformitätserklärung;Declaration of conformity ; Déclaration de Conformité;
Certificato di conformita´norme CE;Declaración de conformidad
DESCRIPTION:
Hydraulic Installation Clamp
HVZ-uni
Hersteller: PROBST GREIFTECHNIK VERLEGESYSTEME
Manufacturer: Gottlieb-Daimlerstraße 6
Fabricant: 71729 Erdmannhausen
Costruttore: Probst Greiftechnik Verlegesysteme GmbH
Fabricante: [e-mail] www.probst-gmbh.de
Einschlägige Bestimmungen,
denen die Maschine entspricht: 2006/42/EG (Maschinenrichtlinie)
Complies with the following provisions applying to it: EC-machinery directive 2006/42/EG
Spécifications respective qui sont conformes à la machine: Idée directrice ECdokumne 2006/42/EG
Definizione che sono conformi alla macchina: EG-linea di Guida CE 2006/42/EG
Cumple con las siguientes provisiones aplicables a: Directrices de la CE 2006/42/EG
Fundstellen der harmonisierten Normen:
Applied harmonized standards in particular:
Lieus de découverte des normes harmonisées:
Luogo di accertamento delle norme armonizzate
Aplicados en particular los siguientes estándares
EN ISO 12100-1 2003 Sicherheit von Maschinen, Grundbegriffe, allgemeine
(ISO 12100-1) Gestaltungsleitsätze, Teil 1: Grundsätzliche Terminologie,
Methodik.
Safety of machinery; Basic concepts, general principles for design,
Part 1: Basic terminology, methodology.
Sécurité des machines; notions fondamentales, principes
généraux de conception, Partie 1: terminologie de base,
méthodologie.
Sicurezza della macchina, nozioni fondamentali, verifica della
struttura generale, Parte 1: terminologia di base, metodologia.
Seguridad de la maquinaria; conceptos básicos, principios
generales de diseño, parte 1: terminología básica, metodología.

Declaration of Conformity
HVZ-uni
V7
18/06/12
5 / 36
EN ISO 12100-2 2003 Sicherheit von Maschinen, Grundbegriffe, allgemeine
(ISO 12100-2) Gestaltungsleitsätze, Teil 2: Technische Leitsätze und
Spezifikationen.
Safety of machinery; basic concepts, general principles for design;
Part 2: principles and specifications.
Sécurité des machines; notions fondamentales, principes
généraux de conception; Partie 2: Principes et spécifications
techniques.
Sicurezza della macchina, nozioni fondamentali, verifica della
struttura generale; Parte 2:principi e specificazioni tecniche.
Seguridad de la maquinaria; conceptos básicos, principios
generales de diseño, parte 2: principios y especificaciones.
DIN EN ISO 13852 2008 Sicherheit von Maschinen - Sicherheitsabstände gegen das
Erreichen von Gefährdungsbereichen mit den oberen u.
unteren Gliedmaßen.
Safety of machinery ― Safety distances to prevent hazard zones
being reached by upper and lower limbs
Sécurité des machines ― Distances de sécurité empêchant les
membres supérieurs et inférieurs d'atteindre les zones dangereuses.
Sicurezza della macchina ― Distanza di sicurezza al fine di evitare
pericolo di passaggio sotto e basso carichi sospesi.
Seguridad de la maquinaria ― Distancia de seguridad con el fin de
evitar que las extremidades superiores y inferior del cuerpo alcancen
las zonas de peligro.
DIN EN 349 1993 Mindestabstände zur Vermeidung des Quetschens von
(ISO 13854) 1996 Körperteilen.
Minimum distance to avoid squeezing any parts of the body.
Distances minimum afin d’éviter une contusion des parties du corps.
Distanza minima al fine di evitare contusioni di parti del corpo.
Distancia mínima con el fin de evitar contusiones en cualquier parte
del cuerpo.
Authorized person for EC-dokumentation:
Name: J. Holderied
Address: Probst GreiftechnikVerlegesysteme GmbH; Gottlieb-Daimler-Str. 6; D-71729 Erdmannhausen
Signature:
Erdmannhausen, 18.06.2012..........................................................................
(M. Probst, Managing director)

General
HVZ-uni
V7
18/06/12
6 / 36
3General
3.1 Authorized use
●This clamp was developed to meet the need of builders for a device to mechanically install awide range
of pavers which are delivered to the site in ready-to-install formation. The hydraulic installation clamp
may be used in connection with any carrier, such as wheel-loaders, compact loaders, excavators, mobile
excavators, truck-mounted crane special machines (VM203/204).
●To operate the hydraulic installation clamp 2 separate hydraulic circuits are required on the carrier.
●With the device (HVZ-uni) it is possible to handle one layer of pavers. Do not exceed the carrying
capacity and the max. width of the device HVZ-uni.
●Only pavers in good quality are allowed for laying. Pavers with „feet, bellies and blind spacers” are not
allowed“, because the complete bricklayer could fall out of the device.
The device is equipped with:
●Adjustable main tension, movable on low-maintenance
steel-polyamid sliders.
●Adjustable side gripping direction for accurate positioning
of the laying formation.
●Two operating handles for optimal guiding of the clamp.
●An height adjustable support for a variable gripping
depth.
●An oil pressure gauge.
●With pressure control valve to avoid overload.
●With spring-mounted steel-lamellas for gripping.
Er’s
Prohibition
●The device is only designed for the use specified in this documentation.
●Every other use is not authorized and is forbidden!
●All relevant safety regulations, especially regulations of the declaration of conformity, and
additional local health and safety regulations have to be observed.

General
HVZ-uni
V7
18/06/12
7 / 36

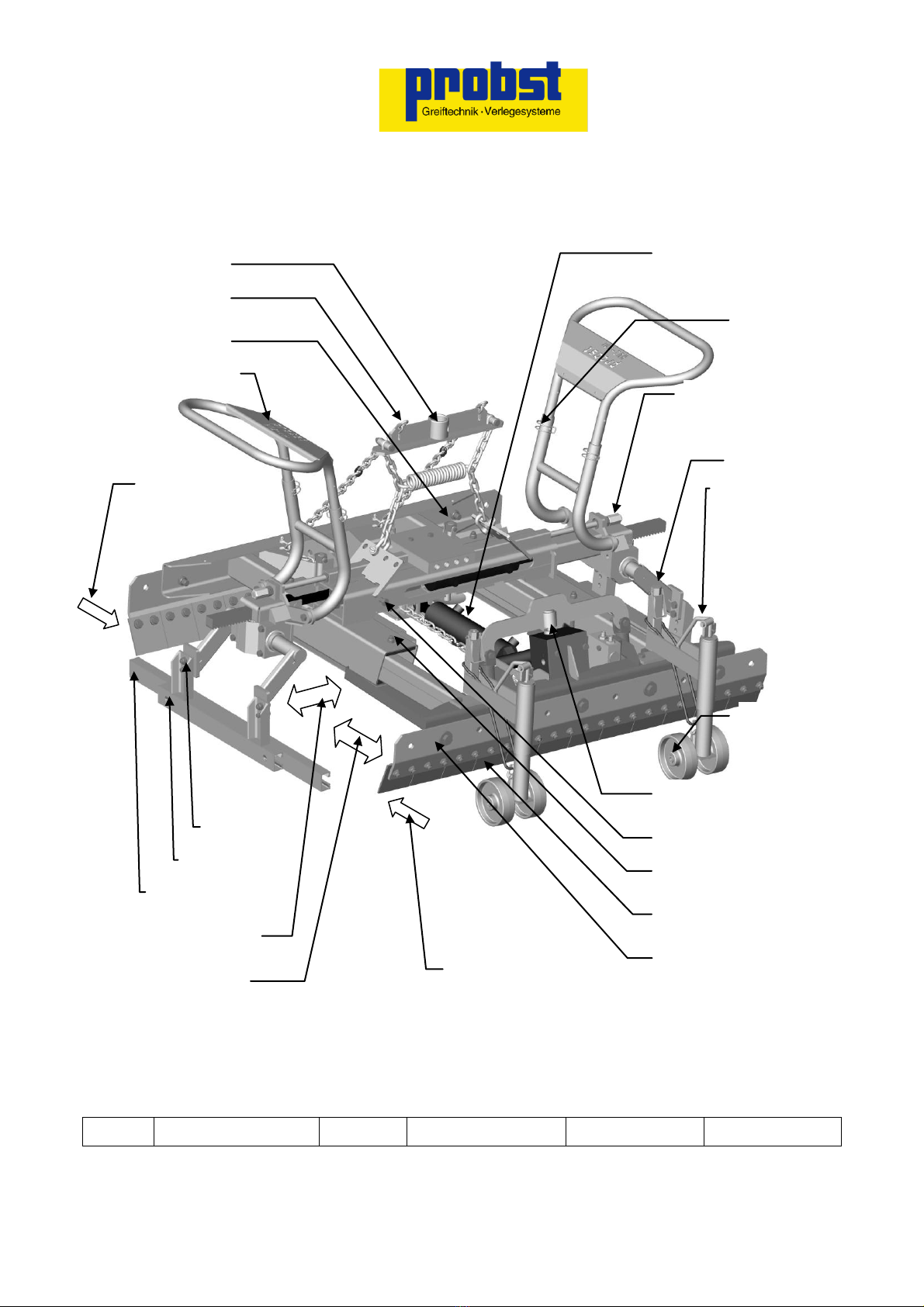

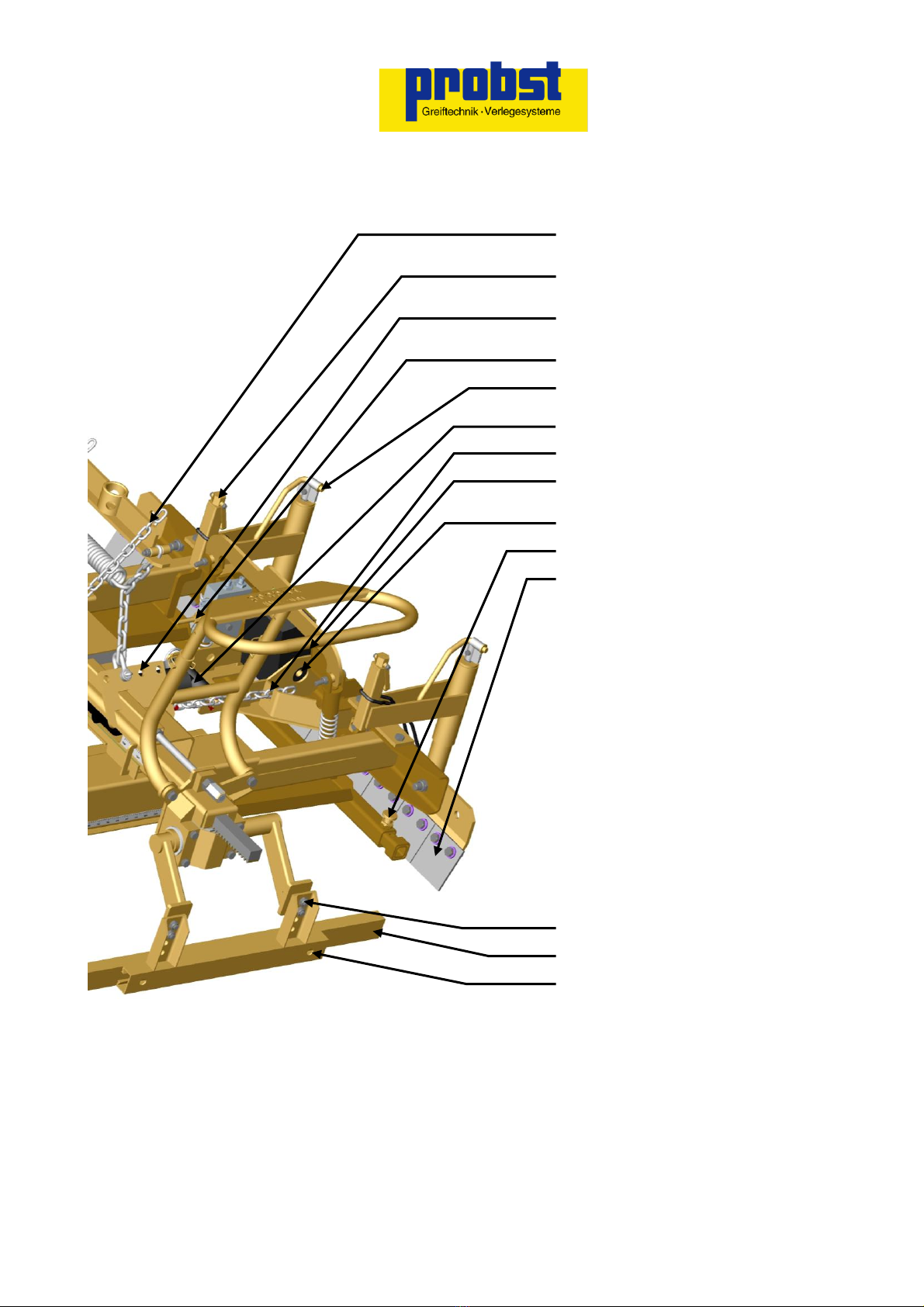

3.2 Survey and construction
3.3 Technical data
Type
Main gripping
width
[mm]
Gripping
depth
[mm]
Side gripping
width
[mm]
Carrying
capacity
[kg]
Deadweight
[kg]
HVZ-uni
575 –1.245
85
990 –1.480
400
210
Setting U
Setting Q
Operator handle
Suspension
Main clamping
direction
Rollers
Steel-Lamellas
Setting L
Side clamping
direction
Setting P
Hydraulic cylinder
Main clamping direction
Readjustment
guidance X1
Pushing-off device
ADV
Facing bedding
sand –main
clamping
C-Profile
Setting R
SettingT
Side clamping
direction
Setting G
Setting K
Angle chains
Setting F
Setting H
SettingV
Gripper
Main clamping direction
Setting M/N
Laying-side
Main gripper

General
HVZ-uni
V7
18/06/12
8 / 36

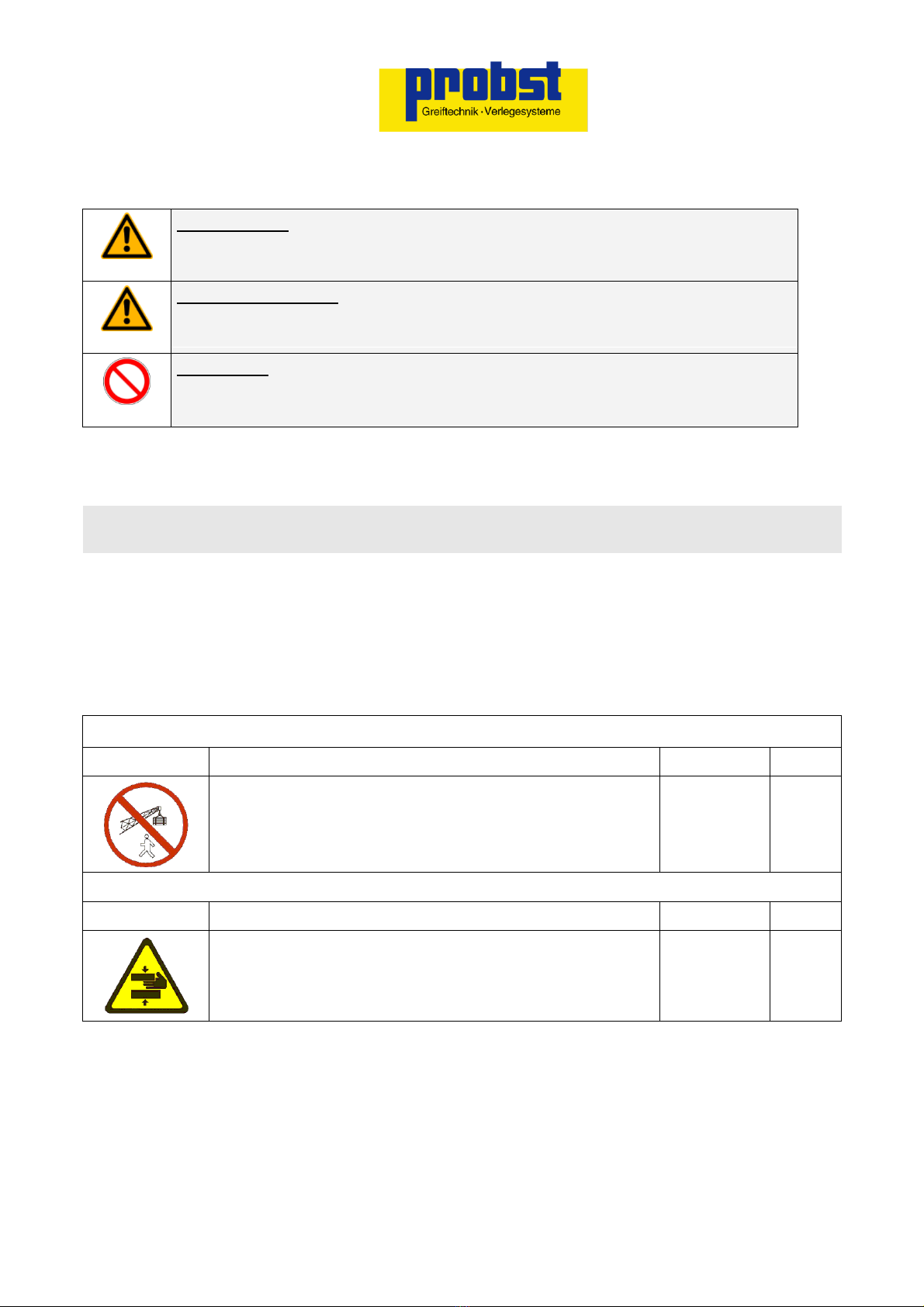

3.4 Safety symbols
Danger
Danger to life!
Identifies imminent hazard. If you do not avoid the hazard, death or severe injury will
result.
Attention
Hazardous situation!
Identifies a potentially hazardous situation. If you do not avoid the situation, injury or
damage to property can result.
Prohibition
Prohibition!
Identifies imminent a prohibition. If you do not avoid the prohibition, death and severe
injury, or damage to property will result.
3.5 Definition skilled worker / specialist
Only skilled workers or specialists is it allowed to carry out the installation,- maintenance, - and repair work
on these device!
Skilled workers or specialists must have for the following points (if it
applies for these device), the necessary professional knowledge.
●for mechanic
●for hydraulics
●for pneumatics
●for electrics
3.1 Safety Marking
WARNING SIGN
Symbol
Meaning
Order-No.:
Size:
It is not allowed to be under hanging loads. Danger to life!
2904.0210
2904.0209
2904.0204
30 mm
50 mm
80 mm
WARNING SIGN
Symbol
Meaning
Order-No.:
Size:
Danger of pinching the hands.
2904.0221
2904.0220
2904.0107
30 mm
50 mm
80 mm

Safety
HVZ-uni
V7
18/06/12
9 / 36
4Safety
4.1 Personal safety requirements
●Only qualified, authorized certificated
personal is allowed to operate the device
and all devices which are connected
(lifting equipment).
!
●Each operator must have read and
understood the operating instructions.
●The manual guiding is only allowed for
machines with handles.
!111
4.2 Protective equipment
The protective equipment must consist, according to
the safety regulations of the following parts:
●Protective clothing
●Safety gloves
●Safety shoes
4.3 Accident prevention
Danger
Prohibition
●The operating range have to be
covered for unauthorized persons,
especially children.
●The workplace have to be sufficiently
illuminated.
●The working with the device in case of
atmospheric editions under 37,5° F is
forbidden!
Because the goods could be fall down
caused by dampness or freezing.
Attention
Danger
●Take care handling wet, dirty and not
solidified components.
●Take care in case of thunderstorm!
4.4 Function Control
4.4.1 General
●Before using the device check the functions and
the working condition.
●Maintenance and lubrication are only permitted
when device is shut down!
●Do not use the device, until all faults which can
cause safety hazards are removed.
●If there are splits at carrying parts of the device,
immediately stop using it.
●The operating instructions must be available at
the workplace every time.
●Do not remove the data-plates of the machine.
●Unrecognisable data-plates must be replaced.

Safety
HVZ-uni
V7
18/06/12
10 / 36
4.4.2 Hydraulic
●Check all hydraulic hoses and connection for
tightness. Only experts are allowed to replace
faulty parts ( depressurized)
●Ensure a clean working environment before
opening the hydraulic connection.
●The hydraulic hoses must be free of breaks and
abrasion. Take care that there are no outstanding
edges, where the hoses could kook in.
The operator of the device is responsible for a constant line pressure, which is necessary for the
working with this device.
Only under these conditions is a safety gripping, lifting and transporting of the gripping goods
with this device ensured.
4.5 Safety procedures
4.5.1 Hydraulic excavator and other lifting equipment
●Hydraulic excavator and other lifting equipment
has to be in good, safe working condition.
●Take care that the maximum capacity of
the hydraulic excavator and other lifting
equipment is not exceeded.
●Only authorized, certificated and qualified
personnel is allowed to operate the lifting
equipment / fork lift.
●The operator staff must have all the necessary
qualifications.
4.5.2 Safety at installation work
Prohibition
Danger
Prohibition
●The manual guiding of is only allowed
for devices with handles.
●While using the device be sure that
there are no persons in the working
area. Life danger!!
●The use of the device is only permitted
in proximity to the ground. Do not swing
it over peoples heads.
●While using the device is the stay of
persons in the working area forbidden.
Except it is indispensable. Caused of the
way of using the device, e.g. if the
device must be leaded by hand.
●The operator is not allowed to leave the
control unit as long as the device loaded
with load. The load must always be in
the range of vision of the operator.
●The load must always be in the range of
vision of the operator, during the
transporting and laying operation
Prohibition
Prohibition
Prohibition
●The device should not be opened if
the opening path of the gripping arm
is blocked by a resistance (e.g. other
concrete blocks or the like)!
●Do not use the device to jerk seized
set down load.
●Do not replace the seal of the
pressure relief valve to increase
pressure without talking to the
manufacturer!
●Do not lift any components off-
centre, because that could fall down.
●Set the stonepacks carefully down.
●Safety before rapidity.
●The capacity and the nominal width
the device are not allowed to cross
over.

Safety
HVZ-uni
V7
18/06/12
11 / 36
4.5.3 Check on the gripping quality of certain layers of paving stones
For the secure function of the device the gripping quality of certain layers of paving stones has to be
checked as follows:
Take the number of blocks you want to grip, the
blocks in main gripper direction have to face the
ground.
If the tower is falling, the
blocks can fall out of the
cube moving grab STAZ.
If the tower is standing,
the gripping quality is OK.
Blocks have "feet" (for instance by torn paver
moulds)
Blocks have "bellies" (for instance by wet mixture)
The sand in the gabs of the lowest layer enforces
"bridges" (just with multi layer production)
Spacers do not reach the top ("blind Spacers")
Conclusion: Layer of blocks falls down and
tears apart

Installation
HVZ-uni
V7
18/06/12
12 / 36
5Installation
5.1 Mechanical connection
There is a suspension to connect the hydraulic installation clamp mechanically to the lifting device/support
frame.
The 2 point suspension is equipped with a spring for
vibration damping.
5.2 Hydraulical connection
Two separate hydraulic circuit are required to
connect the HVZ-uni to the equipment used to
operate the HVZ-uni (excavator, wheelloader,eg).
The hydraulic tubes are connected to the valve block.
The max. pressure for both hydraulic circuits is 200
bar.
The connections are related to the following functions:
Hydraulic circuit 1
●OPEN and CLOSE main gripping direction
Hydraulic circuit 2
●OPEN and CLOSE side gripping direction
Hydraulic circuit 2
Hydraulic circuit 1
Suspension
Adjusting chain
Spring
Suspension
chain

Adjustments
HVZ-uni
V7
18/06/12
13 / 36
6Adjustments
6.1 General
A
●Optimal efficiency is achieved only
when the operator understands and
follows the necessary easy
adjustments required for various types
of pavers to be installed. Therefore, it
is very important for the operator to
read carefully the following points of
explanation an instruction in order to
get the maximum benefit from this
very versatile device.
Attention:
Take care that nobody is in the operating area of the HVZ-uni
during operations of the hydraulic functions. It is not allowed to
do adjustments while there are hydraulic activities. Move the
hydraulics slowly and carefully during the set up to avoid
damages.
Danger
Danger of injury!

Adjustments
HVZ-uni
V7
18/06/12
14 / 36
6.2 Settings of the HVZ uni
The HVZ-uni has the following basic settings:
V
Height of the operator
handle
P
Opening width
side clamp direction
B
Position cylinder
retaining pin,
main clamp direction
facing bedding sand
I
Positionadjustment
gripping depth facing
bedding sand
N
Gripperlength
main clamp direction
(optional)
E
Position centering chain
facing bedding sand
H
Gripping depth facing
bedding sand
X1
Readjustment
guidance clearance
main clamp direction
M
Gripperadjustment
main clamp direction
S
Positioningadapter
P
N
V
B
I
E
H
M
X1
S

Adjustments
HVZ-uni
V7
18/06/12
15 / 36
F
Position of both
angling chains
G
Gripping depth
laying side
C
Position central two-
chain suspension
J
Hydraulic closing
pressure main clamp
direction
K
Height adjustment
rollers
A
Position cylinder
retaining pin, Main
clamp direction laying-
side
D
Position adjusting
chain laying-side
W2
Power down pressure
hydraulics main clamp
direction open
W1
Switch-on pressure
hydraulics main clamp
direction close
O
Length pushing off
device
L
Steellamellas main
clamp direction
Q
Gripping depth side
clamp direction
R
Lenght side grippers
U
Create trapezoid
(optional)
F
G
J
K
A
W1
C
O
L
Q
R
U
W2
D

Adjustments
HVZ-uni
V7
18/06/12
16 / 36
6.2.1 Settings of the main gripping direction
The gripping direction, activated from the single hydraulic cylinder, holding the paver layer with the steel
lamellas is called main gripping direction.
The following diagram is attached to the HVZ-uni.
Opening width
in mm
Adjustments
OW min
in mm
OW max
in mm
600
A1
B6
D0
E0
F4
I1
570
770
650
A1
B6
D0
E1
F4
I1
570
770
700
A1
B5
D1
E4
F6
I2
630
830
750
A2
B5
D2
E5
F7
I3
680
880
800
A3
B5
D3
E6
F7
I3
730
930
850
A3
B4
D6
E8
F9
I6
800
1000
900
A3
B4
D6
E7
F9
I5
800
1000
950
A3
B3
D6
E9
F10
I6
870
1070
1000
A3
B2
D6
E11
F12
I7
940
1140
1050
A3
B2
D8
E10
F11
I8
940
1140
1100
A3
B1
D9
E12
F12
I9
1010
1210
1150
A3
B1
D10
E11
F11
I10
1010
1210
1200
A3
B1
1250
A3
B1
picture 1

Adjustments
HVZ-uni
V7
18/06/12
17 / 36
On the diagram the setup positions are marked as follows:
●Setting A: Position cylinder retaining pin, main gripping direction laying-side
●Setting B: Position cylinder retaining pin, main gripping direction planum-side
●Setting C: Position central two-chain suspension
●Setting D: Position of the centering chain laying side (pos. D 7 for example means that the 7th chain-
link, counted from the mark on the chain in direction to the end of the chain, has to be inserted into the
slot.)
●Setting E: Position of the centering chain facing bedding sand (pos. E 7 for example means that the 7th
chain-link, counted from the mark on the chain in direction to the end of the chain, has to be inserted
into the slot.)
●Setting F: Position of both working position chains (Pos. F 5 for example means that the 5th chain-link,
measured from the mark on the chain to the end of the chain, has to be inserted into the slit of the
hangers.)
●Setting G: Setting gripping depth laying-side
●Setting H: Setting gripping depth facing bedding sand
●Setting I: Positionsetting gripping depth facing bedding sand
Step by step:
Check the measurement of pack:
●The measurement of the pack in direction of the main
gripper, usually the smaller dimension on a rectangular
laying cluster has to be measured.
Setting I
●The gripping depth, planum side, has to be moved
completely towards the centre of the clamp and locked
with the spring loaded pin.
Setting A
●Unhook the chains D, E, F and hook them into the
holder with the last chain link.
●Get the position for the cylinder retaining pin A from
the setting diagram and lock the pin in the correct
position.
Setting B
●Get the position for the cylinder retaining pin B from
the setting diagram and lock the pin in the correct
position.
Setting C
●Position the central two-chain-suspension in the
relevant position (for special tasks, for example
installation on a slope, other positions of this chain can
be chosen)
Setting D
●Get the position of the chain D out of the diagram. It
could be possible that you have to move the main
gripper on the machine side in the polyamide slides, so
that the centering chain can be locked in the right
position.
●Open main clamping cylinder completely

Adjustments
HVZ-uni
V7
18/06/12
18 / 36
Setting E
●Similar setting for the centering chain E (when the
setting is done, both centering chains, D and E should
be almost tight but still hanging through a little bit).
●Attention: If the centering chains are not set correctly,
it can happen that the chains are overstressed when
the main clamp is opened completely.
Setting F
●Get the position of the chain F out of the diagram.
Open the side clamping completely:
●Until the side clamping parts are completely in their
open position, position the laying clamp on top of a
layer, making sure that the laying side main gripper are
touching the sides of the pavers with the steel-lamellas.
●Close the main gripping cylinder until the steel-lamellas
are almost clamping the pavers, just having about 5
mm distance to them.
6.2.2 Adjusting the gripping depth
Adjusting the gripping depth
laying–side G
●Adjust the gripping depth on laying side by turning the
handles G, so that the steel-lamellas are gripping the
pavers in about the middle of the height of the paver.
●Secure the handle G by pushing it down in order to
avoid any movement.
Positionsetting gripping depth facing
bedding sand I
●Release the spring loaded pin.
●Lift the HVZ-clamp up a little bit by hand or by using
the carrying machine.
●Pull out both height supports towards the planum-side
until the disk at the bottom is about 10 cm away from
the edge of the laying cluster (You can do this
adjustment also by using the diagram).
●Lock the spring loaded pin in the right hole.
Adjusting the gripping depth
facing bedding sand H
●Adjust the gripping depth by turning the handles until
the steel-lamellas touch the pavers about 1/3 of the
paver thickness up from the bottom.
●Secure the handle G by pushing it down in order to
avoid any movement.

Adjustments
HVZ-uni
V7
18/06/12
19 / 36
6.2.3 Gripper length main gripping direction
Setting of the steel-lamellas
●The steel-lamellas should not stitch out sideways over
the contur of the laying cluster, because they could hit
the already laid blocks when laying a new cluster into
an edge.
●Depending on the length of a pack, the lamellas which
are stitching over, should be replaced by the 1.5 lamella
or the half lamella.
●When mounting the screws with the lamellas, pay
attention to the configuration of the spring washers as
shown on the drawing. Tighten the self-locking nuts
tight and then loosen them again by 1/2 turn.
●In order to give the steel-lamellas a higher flexibility
and therefore a good, secure and gentle grip to the
pavers.
Recommendation
●If later on, when doing constant laying work, single
pavers are falling out of the gripped cluster in always
the same position: Get more gripping force into that
row where the block always drops out by completely
tighten the screws. Doing this, the gripping force in this
row is getting higher than in the other rows.
●For special paver shapes it can be advantageous or
even necessary (for example on hexagen blocks) to use
special lamellas. Contact the supplier of the laying
clamp, giving him information about the laying cluster
which has to be installed.

Adjustments
HVZ-uni
V7
18/06/12
20 / 36
Settings of the gripper M
●The main gripper holders are 1200 mm long and they
are mounted in the middle of the main gripping
direction. If the length of a laying cluster is for example
only 1 m long, also on this 1200 mm long main gripper
holder the steel-lamellas can be fitted to not stitch over
the pavers. However, the complete gripper holder is
stitching over on a side and could interfere with kerbs
or walls on the side.
●A temporary solution could be to mount the main
gripper holder of centre which is possible by having a
second set of holes in this main gripper holder.
●Then, on the one side, where the laying should be done
against a kerb or a wall, is not stitching over any more,
when fitting the steel-lamellas exactly up to the end.
●Special gripper holders N
●It is recommended to have a second pair of main
gripper holders, for example 1 m long, in order to be
able to have an optimal setting of the laying clamp
HVZ-uni.
●Also, if special laying clusters have to be laid time by
time, which require use of special lamellas, it is
recommended to buy a complete pair of main gripper
holders and to mount the special steel lamellas
constantly on this gripper holder.
●Then only the complete gripper holder has to be
exchanged and not the complete setting of the steel-
lamellas have to be done.
Length adjustment of the pushing off
device O
●The length of the pushing of tube can be adjusted by
releasing the spring loaded pin. Lock the spring loaded
pin again when the tube extension is about 2 cm before
the end of the layer of pavers.
