PROCET PT-PSE105GBS-D-10 User manual

ＰＴ－ＰＳＥ１０５ＧＢＳ－Ｄ－１０ 10G Fiber to 802.3bt PoE++ Converter
www.procetpoe.com
Ｑｕｉｃｋ Ｉｎｓｔａｌｌａｔｉｏｎ Ｇｕｉｄｅ

Ｄｅｃｌａｒａｔｉｏｎ
Ｃｏｐｙｒｉｇｈｔ ©２０２3Ｃｒｅａｔｉｖｅ Ｌｉａｎｊｉｅ Ｎｅｔｗｏｒｋ Ｔｅｃｈｎｏｌｏｇｙ Ｃｏ．Ｌｔｄ
Ａｌｌ ｒｉｇｈｔｓ ｒｅｓｅｒｖｅｄ．
Ｄｅｃｌａｒａｔｉｏｎ
This document belongs to PROCET company. It is not allowed to reproduce and
modify without the original author's permission. It is PROCET's policy to improve
its products as new technology, components, software, and firmware at any time.
PROCET, therefore, reserves the right to change specifications without prior notice.
Please follow WEEE (Waste Electrical and Electronic Equipment) disposal
instructions for old electronic products.
Please do not dispose of the old product in your general household waste bin.
The symbol indicates that the product should not be discarded as unsorted
waste but must be sent to separate collection facilities for recovery and recycling.

Ｉｎｔｒｏｄｕｃｔｉｏｎ
Ｏｖｅｒｖｉｅｗ
Network Engineers
Network Administrators
The installation Guide for PT-PSE105GBS-D-10 and mainly introduces the
hardware specification, installation methods, and precautions of the installation.
There may be differences in the appearance and configuration from other
models. All product images in this manual are for illustration purposes only and
may differ from the actual product.
This manual includes the following chapters:
1. Product Introduction. Including the basic functions and specification of
PT-PSE105GBS-D-10, as well as the product appearance and applications
introduction.
2. Installation Introduction. Introducing the preparation work and
precautionsbefore installing the product.
3. Product Installation. Two methods of product installation.
Field Technicians
Fｏｒ Ｗｈｏｍ

２．１ Ｐａｃｋａｇｅ ｃｏｎｔｅｎｔｓ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．０４
２．２ Ｉｎｓｔａｌｌａｔｉｏｎ ｔｏｏｋｉｔｓ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．０４
２．３ Inspection
Ｔａｂｌｅ ｏｆ ｃｏｎｔｅｎｔｓ
１．１ Ｉｎｔｒｏｄｕｃｔｉｏｎ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．０１
１．２ Ａｐｐｅａｒａｎｃｅ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．０１
１．３ Ｓｐｅｃｉｆｉｃａｔｉｏｎ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．０３
．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．０４
Ｔａｂｌｅ ｏｆ ｃｏｎｔｅｎｔｓ
１.Ｉｎｔｒｏｄｕｃｔｉｏｎ 01
２．Ｉｎｓｔａｌｌａｔｉｏｎ Ｐｒｅｐａｒａｔｉｏｎ 04
３．１ Ｉｎｓｔａｌｌing ｉｎ ｗａｔｅｒｐｒｏｏｆ ｃａｓｅ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．０６
３．２ Cｏｎｎｅｃｔｉｏｎ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．０８
３．３ Grounding．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．０８
３．４ Inspection．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．１０
３．Ｉｎｓｔａｌｌａｔｉｏｎ 06

Ｉｎｔｒｏｄｕｃｔｉｏｎ ０１
１． Ｉｎｔｒｏｄｕｃｔｉｏｎ
１．１ Ｉｎｔｒｏｄｕｃｔｉｏｎ
１．２ Ａｐｐｅａｒａｎｃｅ
Ｕｐｐｅｒ Ｖｉｅｗ
PT-PSE105GBS-D-10 is a single-port media converter with PoE function. The
single PoE output port delivers 1.75A up to 95W(max) power for remote
PDs over 4 pairs. Equipped detecting chip inside which will make the PoE
identification handshake with IEEE802.3af/at/bt PDs. Such as PTZ cameras,
wireless APs, base stations, and other PoE-powered devices which need
high power watts. Protecting non-PoE powered devices.
RJ45 port supports 100/1000Mbps, 2.5G/5G/10GbE NBase-T, while the fiber
slot only supports 10GE SFP+ of optical module. Enclosed in an IP40 high-
impact metal case with a DIN Rail mount bracket, designed for indoor use
but can work outdoors by covering it with a waterproof case. It works with
an input voltage of 50-57Vdc and operates under -40°C to +65°C. For
planning purposes, the effective distance is 100 meters over Cat6 cables.
ＤＩＮ
ＤＣ Power ｐｏｒｔ
Rail Mounting Bracket

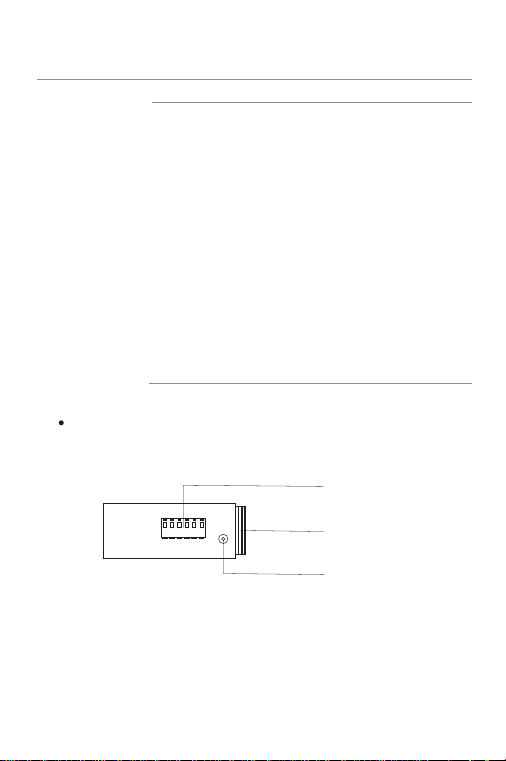

１－１ Ｕｐper View
GND Terminal

１－２
０２ Ｉｎｔｒｏｄｕｃｔｉｏｎ
Ｓｉｄｅ Ｖｉｅｗ
１－３ Ｆｒｏｎｔ Ｖｉｅｗ
Ｓｉｄｅ Ｖｉｅｗ
Ｆｒｏｎｔ Ｖｉｅｗ
ＳＦＰ Ｉｎｐｕｔ ｐｏｒｔ
ＰｏＥ Ｏｕｔｐｕｔ Ｐｏｒｔ
Ｄａｔａ Ｉｎｄｉｃａｔｏｒ
PoE Load Indicator
DC Power Indicator
ＤＩＮ Ｒａｉｌ Mounting Bracket

Ｉｎｔｒｏｄｕｃｔｉｏｎ ０３
１．３ Ｓｐｅｃｉｆｉｃａｔｉｏｎ
Items
Ｉｎｐｕｔ
４／５（＋）， ７／８（－） ＆ ３／６（＋）， １／２（－）
ＩＥＥＥ８０２．３ａｆ／ａｔ／ｂｔ
Ｄｅｓｃｒｉｐｔｉｏｎ
Ｄａｔａ Ｓｐｅｅｄ
Ｐｏｗｅｒ Ｐｉｎｓ
ＰｏＥ Ｓｔａｎｄａｒｄ
４８－５５Ｖｄｃ １７５０ｍＡ
Ｏｕｔｐｕｔ
Ｗｏｒｋ Ｔｅｍｐ．
Ｏｐｅｒａｔｉｎｇ Ｈｕｍｉｄｉｔｙ
Ｏｐｅｒａｔｉｎｇ Ａｌｔｉｔｕｄｅ
Ｓｔｏｒａｇｅ Ｔｅｍｐ．
Ｓｔｏｒａｇｅ Ｈｕｍｉｄｉｔｙ
－４０℃ ｔｏ ６５℃
２０％－８０％，ｎｏｎ－ｃｏｎｄｅｎｓａｔｉｏｎ
Ｕｐ ｔｏ ５０００Ｍ
－４０℃ to ８５℃
１０％－９０％，ｎｏｎ－ｃｏｎｄｅｎｓａｔｉｏｎ
ＩＥＥＥ８０２．３ｕ／ａｂ／ｂｚ／ａｎ ＩＥＥＥ８０２．３ａｅ
１４４．５ｍｍ×９５ｍｍ×３５．４ｍｍ （４８５ｇ）
ＣＥ ＦＣＣ
ＩＰ４０
Ｎｅｔｗｏｒｋ Ｐｒｏｔｏｃｏｌ
ＩＰ Ｒａｔｅｄ
ＥＮ ５５０３２:２０１５／Ａ１１:
５０－５７Ｖｄｃ ２．０Ａ
２０２０
ＥＮ ５５０３５:２０１７／Ａ１１:２０２０
ＥＭＣ
１００Ｍ／１０００Ｍ／２．５Ｇ／５Ｇ／１０Ｇ,１０Ｇ ＳＦＰ＋
Regulatory Compliance
Ｄｉｍｅｎｓｉｏｎｓ & NW

０４ Ｉｎｓｔａｌｌａｔｉｏｎ Ｐｒｅｐａｒａｔｉｏｎ
２．Ｉｎｓｔａｌｌａｔｉｏｎ Ｐｒｅｐａｒａｔｉｏｎ
２．１ Ｐａｃｋａｇｅ ｃｏｎｔｅｎｔｓ
Ｏｐｅｎ ｔｈｅ ｂｏｘ ｏｆ ｔｈｅ ＰＴ－ＰＳＥ105GBS-D-10 ａｎｄ ｃａｒｅｆｕｌｌｙ ｕｎｐａｃｋ ｉｔ，
ｔｈｅ ｂｏｘ ｓｈｏｕｌｄ ｃｏｎｔａｉｎ ｔｈｅ ｆｏｌｌｏｗｉｎｇ ｉｔｅｍｓ：
２．２ Ｉｎｓｔａｌｌａｔｉｏｎ ｔｏｏｌｋｉｔ
Ｔｈｅｓｅ ｔｏｏｌｓ ｍａｙ ｂｅ ｎｅｅｄｅｄ ｄｕｒｉｎｇ ｅｑｕｉｐｍｅｎｔ ｉｎｓｔａｌｌａｔｉｏｎ， ａｎｄ ｓｈｏｕｌｄ ｂｅ
ｐｒｅｐａｒｅｄ ｂｙ ｙｏｕｒｓｅｌｆ： ｌｅｖｅｌ ｒｕｌｅｒ， ｍａｒｋｉｎｇ ｐｅｎ， ｃｒａｆｔ ｋｎｉｆｅ， ｗｉｒｅ ｓｔｒｉｐｐｅｒ，
ｎｅｔｗｏｒｋ ｐｌｉｅｒｓ， ｉｍｐａｃｔ ｄｒｉｌｌ，ｄｉｆｆｅｒｅｎｔ ｍａｔｃｈｉｎｇ ｄｒｉｌｂｉｔｓ， ｒｕｂｂｅｒ ｈａｍｍｅｒ，
ｃｒｏｓｓ ｓｃｒｅｗｄｒｉｖｅｒ， ｗｒｅｎｃｈ， ｌａｄｄｅｒ， ｅｔｃ．
２．３ Ｉｎｓｐｅｃｔｉｏｎ
２．３．１ Ｃｏｎｎｅｃｔ ｔｈｅ ｄｅｖｉｃｅ ｔｏ ａ ＤＣ Ｐｏｗｅｒ Ｓｙｓｔｅｍ ａｎｄ ｃｈｅｃｋ ｔｈｅ ＰＷＲ ＬＥＤ ｔｏ
ｅｎｓｕｒｅ ｐｒｏｐｅｒ ｆｕｎｃｔｉｏｎ ｂｅｆｏｒｅ ｉｎｓｔａｌｌａｔｉｏｎ．
２．３．２ Ｃｏｎｎｅｃｔ ｔｈｅ ＰｏＥ ｐｏｒｔ ｔｏ ｔｈｅ ＰｏＥ ｐｏｗｅｒｅｄ ｄｅｖｉｃｅ（ＰＤ）． Ｓｕｃｈ ａｓ ｔｈｅ ＩＰ
Ｃａｍｅｒａｓ ｏｒ Ｗｉｒｅｌｅｓｓ ＡＰｓ．

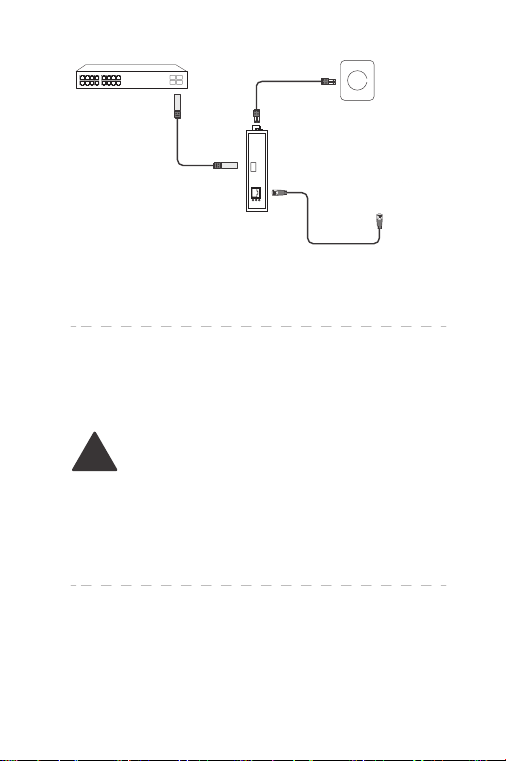

Ａｓ ｓｈｏｗｅｄ ｉｎ Ｆｉｇｕｒｅ ２－１；
Ｃａｕｔｉｏｎ：
Ｐｌｅａｓｅ ｕｓｅ ＰｏＥ ｐｏｗｅｒｅｄ ｄｅｖｉｃｅ（ＰＤ） ｔｈａｔ ｃｏｍｐｌｉｅｓ ｗｉｔｈ
IEEE802.3af/at/bt to connect this product.
!
ＰＴ－ＰＳＥ１０５ＧＢＳ－Ｄ－１０ Ｕｓｅｒ ｍａｎｕａｌ Ｇｒｏｕｎｄ
ｌｕｇ Ｗｉｒｅ＆ ２．５
ｓｃｒｅｗ

２－１
Ｉｎｓｔａｌｌａｔｉｏｎ Ｐｒｅｐａｒａｔｉｏｎ ０５
Device Connection
Ｔｏ ｅｎｓｕｒｅ ｂｅｔｔｅｒ ｌｉｇｈｔｎｉｎｇ ｐｒｏｔｅｃｔｉｏｎ ｆｏｒ ｏｕｔｄｏｏｒ ＰＤ，ｉｔ ｉｓ
ｒｅｃｏｍｍｅｎｄｅｄ ｔｏ ｕｓｅ ＰＲＯＣＥＴ Ｅｔｈｅｒｎｅｔ ｓｕｒｇｅ ｐｒｏｔｅｃｔｉｏｎ ｐｒｏｄｕｃｔｓ． Ｆｏｒ
Ｓｗｉｔｃｈ
ＳＦＰ Ｐｏｒｔ
Ｄａｔａ Ｉｎｐｕｔ
Ｐｏｗｅｒ Ｉｎｐｕｔ
ＰｏＥ Ｄａｔａ&Power
Output
ＰＴ－ＰＳＥ１０５ＧＢＳ－Ｄ－１０
ＰＤ
ｍｏｒｅ ｉｎｆｏｒｍａｔｉｏｎ， ｐｌｅａｓｅ ｖｉｓｉｔ ｈｔｔｐ：／／ｗｗｗ．ｐｒｏｃｅｔｐｏｅ．ｃｏｍ
Ｃａｕｔｉｏｎ：
1. Please read the instructions carefully and follow the standard operating
procedures before using.
2. Please place it in a well-ventilated and dry area, and it is for indoor use only.
3. Connect the DC power cable with positive and negative wires into the DC
terminal block of Procet Injector.
4. Connect a fiber cable with SFP+ optical module at 10G from your switch into
the injector's SFP slot for data Input.(The optical module does not include in the
package). You can choose either single-mode or multi-mode SFP transceivers.
5. Connect a CAT6 cable with the RJ45 connector into the RJ45 socket labeled
PoE. On the other end of the CAT6 cable, connect to your PoE Device (such as IP
Cameras etc). The total Ethernet cable length can not exceed 100 meters.
6. The device must be placed on a stable surface, preferably affixed and mounted
permanently. Do not leave it "dangling" and use plugged-in cables in tension as
support. Drops, falls, and impacts experienced by the injector can compromise
the internal components & cause premature failure.
7. Do not place heavy objects on top of this injector. Allow at least 5cm of
clearance on all sides of the device for heat ventilation / natural convection.
!
DC

０６ Ｉｎｓｔａｌｌａｔｉｏｎ
３． Ｉｎｓｔａｌｌａｔｉｏｎ
Ｉｆ ｉｔ ｉｓ ｐｌａｃｅｄ ｉｎ ａｎ ｏｕｔｄｏｏｒ ｅｎｖｉｒｏｎｍｅｎｔ， ｐｌｅａｓｅ ｉｎｓｔａｌｌ ｔｈｅ ｄｅｖｉｃｅ ｉｎ ａ
ｗａｔｅｒｐｒｏｏｆ ｃａｓｅ ａｎｄ ｗｉｔｈ ａ ｈｅｉｇｈｔ ｏｆ ４５ｃｍ ｉｆ ｐｏｓｓｉｂｌｅ．
３．１．１ Ｉｎｓｔａｌｌ ｔｈｅ ｗａｔｅｒｐｒｏｏｆ ｃａｓｅ ｆｉｒｓｔ， ａｎｄ ｋｅｅｐ ｔｈｅ ｃａｓｅ ｏｐｅｎ．
As showed in 3-1.
３．１ Ｉｎｓｔａｌｌａｔｉｏｎ ｉｎ ｗａｔｅｒｐｒｏｏｆ ｃａｓｅ
Ｃａｂｌｅ
３－１
Backplate
Ｗａｔｅｒｐｒｏｏｆ ｃａｓｅ
This product is safe to use for waterproof case installation and wall-mounted
installation.

Ｃａｕｔｉｏｎ：
Ｐｌease ｕｓｅ ｔｈｅ ｅｘｐａｎｓｉｏｎ ｂｏｌｔｓ, when you install the
product with wall-mounted way.
!
Ｉｎｓｔａｌｌａｔｉｏｎ ０７
３．１．２ Ｒｅｍｏｖｅ ｔｈｅ ｍｅｔａｌ ｂａｃｋｐｌａｔｅ ｆｒｏｍ ｔｈｅ ｗａｔｅｒｐｒｏｏｆ case ａｎｄ fix
the DIN rail bracket on the backplate, then ｉｎｓｔａｌｌ ｔｈｉｓ ｐｒｏｄｕｃｔ on
ＤIＮ ｒａｉｌ
３－２
bracket.
As showed in 3-2.
３．１．３ Rｅｉｎｓｔａｌｌ ｔｈｅ ｂａｃｋｐｌａｔｅ ｗｉｔｈ ｔｈｅ ｉｎｓｔａｌｌｅｄ ｐｒｏｄｕｃｔ ｉｎｔｏ ｔｈｅ
ｗａｔｅｒｐｒｏｏｆ case.
ＤＩＮ Ｒａｉｌ
Ｒａｉｌ Ｍｏｕｎｔｉｎｇ
Ｓｃｒｅｗs
Ｉｎｓｔａｌｌａｔｉｏｎ
ＤＩＮ Ｒａｉｌ
Backplate

０８ Ｉｎｓｔａｌｌａｔｉｏｎ
Ｃａｕｔｉｏｎ：
Wａｔｅｒｐｒｏｏｆ Ｅｔｈｅｒｎｅｔ ｃａｂｌｅｓ ｓｈｏｕｌｄ ｂｅ ｗｉｔｈ ａ ｐｒｏｔｅｃｔｉｖｅ
ｓｈｅａｔｈ． CAT5e/6 cables are recommended.
!
３．２ Ｃｏｎｎｅｃｔｉｏｎ
Ａｆｔｅｒ ｉｎｓｔａｌｌａｔｉｏｎ ｉｓ ｄｏｎｅ， ｔｈｅ ｎｅｘｔ ｓｔｅｐ ｉｓ ｔｈｅ ｃｏｎｎｅｃｔｉｏｎ. The following
precautions should be taken when connecting the Ethernet cable:
３．２．１ Ｌａｙ ｔｈｅ ｃａｂｌｅ ａｃｃｏｒｄｉｎｇ ｔｏ ｔｈｅ ｄｅｓｉｇｎ ｒｅｑｕｉｒｅｍｅｎｔｓ． Ｔｈｅ ｃａｂｌｅ
ｓｈｏｕｌｄ ｂｅ ｌａｉｄ ｆｉｒｍｌｙ ａｎｄ ｎｅａｔｌｙ， ｗｉｔｈ ｎｏ ｃｒｏｓｓｉｎｇ， ｔｗｉｓｔｉｎｇ， ｏｒ ｃｒａｃｋｉｎｇ．
３．２．２ Ｄｏ ｎｏｔ ｌａｙ ｔｈｅ ｃａｂｌｅ ｔｏｇｅｔｈｅｒ ｗｉｔｈ ｈｉｇｈ－ｖｏｌｔａｇｅ ｐｉｐｅｌｉｎｅｓ， ｆｉｒｅ
ｐｉｐｅｌｉｎｅｓ， ｏｒ ｂｕｉｌｄｉｎｇ ｌｉｇｈｔｎｉｎｇ ｐｒｏｔｅｃｔｉｏｎ ｓｙｓｔｅｍｓ ｔｏ ａｖｏｉｄ ｉｎｔｅｒｆｅｒｅｎｃｅ
ｆｒｏｍ ｓｔｒｏｎｇ ｅｌｅｃｔｒｉｃｉｔｙ ｏｒ ｍａｇｎｅｔｉｓｍ．
３．２．３ Ｕｓｅ ＰＶＣ ｐｉｐｅｓ， ｉｒｏｎ ｐｉｐｅｓ， Ｐｒｉｌｋａ ｐｉｐｅｓ， ｏｒ ｃａｂｌｅ ｔｒａｙｓ ｆｏｒ ｃａｂｌｅ
ｌａｙｉｎｇ． Ｔｈｅ ｃａｂｌｅ ｔｒａｙｓ ｓｈｏｕｌｄ ｂｅ ｐｌａｃｅｄ ａｇａｉｎｓｔ ｔｈｅ ｗａｌｌ， ｗｉｔｈ ｎｅａｔ ａｎｄ
ｂｅａｕｔｉｆｕｌ ｒｏｕｔｉｎｇ． Ｓｏｆｔ ｈｏｓｅｓ ｏｒ ｅｌｂｏｗ ｊｏｉｎｔｓ ｓｈｏｕｌｄ ｂｅ ｕｓｅｄ ａｔ ｔｕｒｎｉｎｇ
ｐｏｉｎｔｓ． Ｔｈｅ ｃａｂｌｅ ｔｒａｙｓ ｓｈｏｕｌｄ ｂｅ ｓｅｃｕｒｅｄ ｗｉｔｈ ｃａｂｌｅ ｔｉｅｓ， ｈａｎｇｅｒｓ， ａｎｄ
ａｎｇｌｅ ｓｔｅｅｌｓ ａｔ ａ ｓｐａｃｉｎｇ ｏｆ １ ｔｏ １．５ ｍｅｔｅｒｓ． Ｉｆ ａ ｍｅｔａｌ ｃａｂｌｅ ｔｒａｙ ｉｓ ｕｓｅｄ，
ｉｔ ｓｈｏｕｌｄ ｂｅ ｇｒｏｕｎｄｅｄ ａｔ ｂｏｔｈ ｅｎｄｓ．
３．２．４ Ｆｏｒ ｏｕｔｄｏｏｒ ｈｏｒｉｚｏｎｔａｌ ｗｉｒｉｎｇ， please use ａ ｓｌｏｔ ｅｖｅｒｙ ６ ｍｅｔｅｒｓ
ｕｎｄｅｒ ｔｈｅ ＰＶＣ ｐｉｐｅ ａｓ ａ ｄｒａｉｎ ｔｏ ｐｒｅｖｅｎｔ ｗａｔｅｒ ａｃｃｕｍｕｌａｔｉｏｎ ｉｎｓｉｄｅ ｔｈｅ
ｐｉｐｅ．
3.2.5 The wall penetration for the Ethernet cable should be sealed with
waterproof and flame-retardant materials.
３．３ Ｇｒｏｕｎｄｉｎｇ
If the installation is in the computer room, it can be connected to
the dedicated grounding busbar in the room. The grounding busbar
is a connecting conductor between the grounding bodies of the
building, such as flat iron, flat steel, nanomaterial conductors,
copper-clad steel, etc.
ＰＲＯＣＥＴ ＰｏＥ ｉｎｊｅｃｔｏｒ ＰＴ－ＰＳＥ１０５ＧＢＳ－Ｄ－１０ ｈａｓ ｔｈｅ ｆｏｌｌｏｗｉｎｇ ｇｒｏｕｎｄｉｎｇ
ｓｏｌｕｔｉｏｎｓ ｆｏｒ ｒｅｆｅｒｅｎｃｅ ｄｕｒｉｎｇ ｃｏｎｓｔｒｕｃｔｉｏｎ：
Pls refer to the figure 3-3.

Ｉｎｓｔａｌｌａｔｉｏｎ ０９
３－３ Ｇｒｏｕｎｄｉｎｇ
ＧＮＤ Ｔｅｒｍｉｎａｌ
２．５ Ｓｃｒｅｗ
Ｇｒｏｕｎｄｉｎｇ Ｂｕｓｂａｒ
Ｃａｕｔｉｏｎ：
Ｕｓｅ ａ ｇａｌｖａｎｉｚｅｄ ｍｅｔａｌ ｐｉｐｅ ｂｕｒｉｅｄ ｕｎｄｅｒｇｒｏｕｎｄ ａｔ
ａ ｄｅｐｔｈ ｏｆ ｏｎｅ ｍｅｔｅｒ ｏｒ ｍｏｒｅ， ｓｕｃｈ ａｓ ａ ｗａｔｅｒ ｏｒ
ｓｅｗ ａｇｅ ｐｉｐｅ ， ａｓ ａｎ ｅｍｅｒｇｅｎｃｙ ｇｒｏｕｎｄｉｎｇ ｉｆ ｎｏ
ｏｔｈｅｒ ｇｒｏｕｎｄｉｎｇ ｅｎｖｉｒｏｎｍｅｎｔ ｉｓ ａｖａｉｌａｂｌｅ.
!

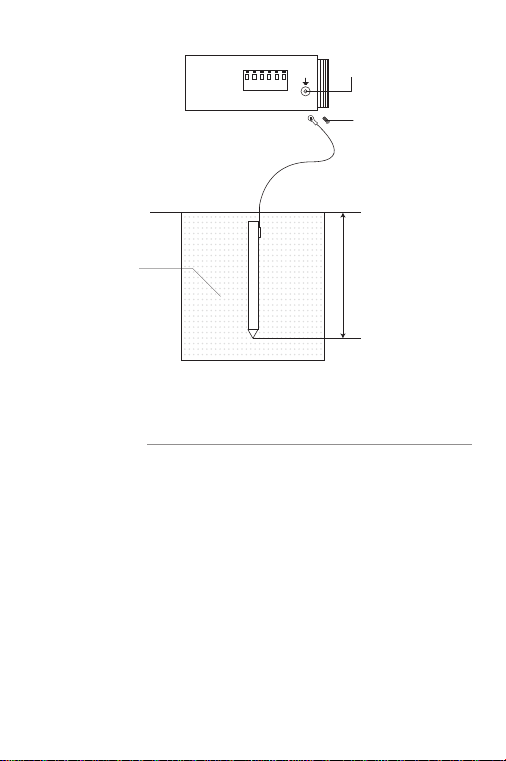

For the safety of personnel and equipment in an environment without
dedicated grounding equipment, a simple grounding device can
be constructed as follows:
a. Prepare a 6mm 2 grounding wire or a braided soft copper wire.
b. Prepare a copper tube or angleiron, or other metal tube, bury it
underground to a depth of one meter or more as a grounding
electrode.
c. Use the grounding wire to connect the external grounding terminal
of the product to the metal tube.（or angle iron）

３．４ Ｉｎｓｐｅｃｔｉｏｎ
2200
３－４ Ｓｉｍｐｌｅ
１０ Ｉｎｓｔａｌｌａｔｉｏｎ
Ｇｒｏｕｎｄｉｎｇ
Ｇｒｏｕｎｄ
２．５ Ｓｃｒｅｗ
MM
Ｓｏｉｌ
ＧＮＤ Ｔｅｒｍｉｎａｌ
Inspect the installed equipment before putting it into operation：
· Make sure the PD is compliant with our product.
· Make sure the Ethernet cable connection is correct.
Make sure all connections are correct, and turn on the power,
inspect all the indicators.

Qualication Card
PASS
