Procom FBD32RT User manual

Do notstoreor use gasolineor other flammablevaporsand liquidsin vicinityof
thisor anyother appliance.
WHAT TO DO IFYOU SMELL GAS
·Do nottryto lightanyappliance.
·Do nottouch anyelectrical switch; do not use anyphonein your building.
·Immediatelycall your gassupplier from aneighbor’sphone. Followthegas
supplier’sinstructions.
·If you cannotreachyour gas supplier, call thefire department.
Installation andservice must beperformed byaqualifiedinstaller, service agency
or thegassupplier.
INSTALLER: DO NOT DISCARD THIS MANUAL LEAVE FOR HOMEOWNER’S
FUTURE REFERENCE
.
WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED
EXACTLY, A FIRE MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL
INJURY, OR LOSS OF LIFE.
PC-FBD32RT-0903
CAUTION FOR YOUR SAFETY
Questions about installation, operation, or troubleshooting? Before returning to your retailer, contact our
customer service department at 1-877-886-5989, 8:00 a.m.- 4:30p.m., EST, Monday-Friday or e-mail
[e-mail].
Thisisan unvented gas-fired heater. It uses air (oxygen) from theroom in whichit is
installed. Provisionsfor adequatecombustion andventilation air must beprovided.
Refer to Air for Combustion andVentilation section on page 7of this manual.
Thisappliance maybeinstalled in an aftermarket, permanentlylocated manufactured
(mobile)home, wherenot prohibited bylocal codes. Thisappliance isfor usewith the
typeof gas indicated on theratingplateonly. Thisappliance isnot convertiblefor use
with other gases.
WARNING: This appliance is
equipped for(Natural and Propane)
gas. Field conversion is not
permitted other than between
natural or propane gases.
VENT-FREE GAS FIREPLACE INSERT
Model # FBD32RT

2
TABLE OF CONTENTS
Important Safety Information...........................................................................................................................................3
Air For Combustion and Ventilation.................................................................................................................................7
Installation.....................................................................................................................................................................10
Operation.......................................................................................................................................................................20
Care & Maintenance......................................................................................................................................................25
Troubleshooting.............................................................................................................................................................26
Replacement Parts........................................................................................................................................................29
WARNING:READ THE INSTALLATION & OPERATION INSTRUCTIONS BEFORE USING THIS APPLIANCE
IMPORTANT: Read instructions andwarnings carefully before starting installation. Failure to follow these instructions
may result in a possible fire hazard and will void the warranty.
PRODUCT SPECIFICATIONS
MODEL FBD32RT
Input Rating 32,000 BTU/Hr 32,000 BTU/Hr
Gas Type Natural LP/Propane
Ignition Piezo / Automatic Piezo / Automatic
Manifold Pressure 4 in. W.C. 9 in. W.C.
Inlet Gas Pressure (*For purposes of input adjustment)
Maximum 10.5 in. 14 in.
Minimum * 5 in. 11 in.
Dimensions, inches(H xW xD)
Heater 33.27 in. x36.38 in. x18.38 in.
Carton 35.85 in. x40.19 in. x20.49 in.
Weight, lbs
Stove 88.2
Shipping 105.4

3
IMPORTANT SAFETY INFORMATION
IMPORTANT: Read this owner s manual carefully and completely beforetrying to assemble, operate, or service this
heater. Improper use of this heater can cause serious injury or death from burns, fire, explosion, electrical shock, and
carbon monoxide poisoning.
Only a qualified installer, service agent, or local gas supplier may install and service this product.
WARNING: Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other
appliance.
WARNING: This appliance is for use with only thetype of gas indicated on the rating plate. This appliance is
not convertible for use with other gases.
CARBON MONOXIDE POISONING: Early signs of carbon monoxide poisoning resemble the flu with headaches,
dizziness, or nausea. If you have these signs, theheater may not be working properly. Get fresh air immediately!
Have heaterserviced. Some people are more affected by carbon monoxide than others. These include pregnant
women, people with heart or lung disease, people who are anemic, those under the influence of alcohol, and those
living in high altitudes.
NATURAL AND PROPANE/LP GAS: Natural and Propane/LP gases are odorless. An odor-making agent isadded
to the gas. The odor helps you detect a gas leak. However, the odor added to the gas can fade. Gas may be present
even thoughno odor exists. Make certain you read and understand all warnings. Keep this manual for reference. It is
your guide to operating this heater safely.
WARNING: Any change to this fireplace or its controls can be dangerous.
WARNING: Do not allow fans or any other drafts that alter burner flame to blow directly into the heater. They create
drafts that alter burner flame patterns, which can cause sooting.
WARNING: Do not use a blower insert, heat exchange insert, or other accessory not approved foruse with this
heater.
Due to high temperatures, the appliance should belocated out of traffic andaway from furniture and draperies. Do not
place clothing or other flammable material on or near the appliance. Never place any objects in the heater. Heater
becomes very hot when running heater. Keep children and adults away from hot surfaces to avoid burns or clothing
ignition. Fireplace will remain hot for a time after shutdown. Allow surfaces to cool before touching. Carefully
supervise young childrenwhen they are in the room with the heater.
You must operate this heater with theheater screen in place. Keep the heater area clear and free from combustible
materials, gasoline, and other flammable vapors and liquids.

4
1. Do not placePropane/LPsupply tank(s) inside any structure. Place Propane/LP supply tank(s) outdoors.
2. This heater needs fresh air ventilation to run properly. This heater has an Oxygen Depletion Sensing (ODS) safety
shut-off system. The ODS shuts down the heater if not enough fresh air is available. See Air for Combustion and
Ventilation, pages 7 through 9. If heater keeps shutting off, see Troubleshooting, pages 26 through28.
3. Keep all air openings in front and bottom of heaterclear and free of debris.This will ensure enoughair for proper
combustion.
4. If heater shuts off. Do not relight until you providefresh, outside air. If heater keeps shutting off, have it serviced.
5. Do not run heater:
lWhere flammable liquids or vapors are used or stored.
lUnder dusty conditions.
6. Before usingfurniture polish, wax, carpet cleaner, or similar products, turn heater off. If heated, the vapors from
these products may create a white powder residue within burner boxor onadjacent walls or furniture.
7. Always run heater with control knob at Pilot or ON locked positions. Never set control knob between locked
positions. Poor combustion and higher levels of carbon monoxide may result.
8. Do not use heater if any part has been under water. Immediately call a qualified service technician to inspect the
room heater and to replace any part of the control system and any gas control which has been under water.
9. Turn off and unplug heater and let cool before servicing. Only a qualified service person should service and repair
heater.
10. Operating heater aboveelevations of4,500 feet could cause pilot outage.
11. To prevent performance problems, do not use propane/LP fuel tank of less than 100 lb. capacity.
12. This heater should not be installed ina bedroom or bathroom.
13. Do not use this heater as a wood-burning heater.Use only the logs provided with the heater.
14. To prevent sooting, follow the instructions in Care and Maintenance (page25).
15. Do not add extra logs orornaments such as pinecones, vermiculite, or rock wool. Using these added items can
cause sooting. Do not add lava rock around base. Rock and debris could fall into the control area of heater. After
servicing, always replace screen before operating heater.
16. This heater is designed to be smokeless. If logs ever appear to smoke, turn off heater and call a qualified service
person. Note: During initial operation, slight smoking could occur due to log curing andthe heater burning
manufacturing residues.
QUALIFIED INSTALLING AGENCY
Only a qualified agency should perform installation and replacement of gas piping, gasutilization equipment or
accessories, and repair and servicing of equipment. The term “qualified agency”means any individual, firm,
corporation, or company that either inperson or through a representative isengaged in and is responsible for:
a) Installing, testing, or replacing gas piping or
b) Connecting, installing, testing, repairing, or servicing equipment; that is experienced insuch work; that is familiar
with all precautions required; and that has complied with all the requirement of the authority having jurisdiction.

5
PRODUCT FEATURES
SAFETY PILOT
This heater has a pilot with an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS/pilot shuts off the
heater if there is not enough fresh air.
PIEZO IGNITIONSYSTEM
This heater is equipped with an electronic piezo control system. This system requires AAA batteries (provided).
2GAS OPTIONS CAPABLE
Your heater is equipped to operate oneither propane or naturalgas. The heater is shipped from the factory ready for
connecting to propane. The heater can easily be changed to natural gas by having your qualified installer follow the
instructions on page 15 and the markings on the heater.
State of Massachusetts: The installation must be made by alicensed plumber or gas fitter in the
Commonwealth of Massachusetts. Sellers of unvented propane or naturalgas-fired supplemental room
heaters shallprovide toeach purchaser a copy of 527 CMR 30 upon sale of the unit.
In the State of Massachusetts, unvented propane or natural gas-fired space heaters shall be prohibited in
bedrooms and bathrooms.
In the State of Massachusetts the gas cock must be a T-handle type. The State of Massachusetts
requires that a flexible appliance connector cannot exceed three feet in length.
LOCAL CODES
Install and use heater with care. Follow all codes. In the absence of local codes, use the latest edition of The National
Fuel Gas Code, ANSI Z223.1, also known as NFPA 54*.
*Available from:
This heater is designed for vent-free operation. State and local codes in some areas prohibit the use of vent-freeheaters.
American National Standards Institute, lnc. National Fire Protection Association, lnc.
1430 Broadway 1 Batterymarch Park
New York, NY 10018 Quincy, MA 02269-9101

6
UNPACKING
1. Remove topinner pack.
2. Tilt carton so that heateris upright.
3. Remove protective side packaging.
4. Slide heaterout of carton.
5. Remove protective plastic wrap.
6. Hold the screen lift and pull forward.
7. Remove logset by cutting plastic.
8. Carefully unwrap log.
9. Check for any shipping damage. If heater or log is damaged,promptly inform your dealer where you bought the
heater.
PRODUCT IDENTIFICATION
WATER VAPOR: A BY-PRODUCT OF UNVENTED ROOM HEATERS
Water vaporis a by-product of gas combustion. An unvented room heater produces approximately one (1) ounce (30
mL) of water for every 1,000 BTUs (.3 kw) of gas input per hour. An unvented room heater is recommended as a
supplemental heater (a room) rather than a primary heat source (an entirehouse). In most supplemental heat
applications,the water vapor does not create a problem. In most applications, the water vapor enhances the low
humidity atmosphere experienced during cold weather. The following steps will help insure that water vapor does not
become a problem:
1. Be sure the heater is theproper size for the application, including adequate combustion air and circulation air.
2. If there is high humidity, the dehumidifier may be used to helplower the water vapor content of theair.
3. Do not use an unvented room heater as the primary heat source.
Figure 1

7
AIR FOR COMBUSTION AND VENTILATION
WARNING: This heater should not be installed ina confined space or unusually tight construction unless
provisions are provided for adequate combustion and ventilation air. Read the following instructions to insure
proper fresh air for this and other fuel-burning appliances in your home.
PRODUCING ADEQUATE VENTILATION
This heater shall not be installed in a room or space unless the required volume of indoor combustion air is provided
by the method described in the NATIONAL FUEL GAS CODE, ANSI Z223.1/NFPA 54, the INTERNATIONAL FUEL
GAS CODE, or applicable local codes.
The following are excerpts from National Fuel Gas Code, NFPA 54/ANSI Z223.1,Section 5.3, Air for Combustion and
Ventilation. All spaces in homes fall into one of the three following ventilation classifications:
1. Unusually Tight Construction
2. Unconfined Space
3. Confined Space
The information on pages 8 through 9 will help you classify your space and provide adequate ventilation.
Confined and Unconfined Space
The NationalFuel Gas Code, ANSI Z223.1 defines a confined space as a space whose volume is less than 50 cu. ft. per
1,000 BTU/hr (4.8 m^3 per kw) of the aggregate input rating of all appliances installed in that spaceand an unconfining
space as a space whose volume is not less than 50 cu. ft. per 1,000 BTU/hr (4.8 m^3 per kw) of the aggregate input
rating of all appliances installed in that space. Rooms communicating directly with the space in which the appliances are
installed*, through openings not furnished with doors, are considered a part of the unconfined space.
This heater shall not be installed in a confined space or unusually tight construction unless provisions are provided for
adequate combustion and ventilation air.
·Adjoining rooms are connecting only if there are doorless passageways or ventilation grills between them
UnusuallyTight Construction
The air that leaks arounddoors and windows may provide enough fresh air for combustion and ventilation. However,
in buildings of unusually tight construction, you must provide additional fresh air.
Unusually tight construction is defined as construction where:
a) walls and ceilings exposed to the outside atmosphere have a continuous water vapor
retarder with a rating of one perm (6x10
-11
kg per pa-sec-m
2
) or less with openings gasketed or sealed and
b) weather stripping has been added on windows that can be opened and on doors and
c) caulking or sealants are applied to areas such as joints around window and door frames, between sole platesand
floors, between wall-ceiling joints, between wall panels, at penetrations for plumbing, electrical, and gas lines, and at
other openings.
If your home meets all of the three criteria above, you must provide additional fresh air. See “Ventilation Air From
Outdoors”(page 9). If your home does not meet all of the three criteria above, proceed to “Determining Fresh-Air Flow
For Heater Location”.
DETERMINING FRESH-AIR FLOWFOR HEATER LOCATION
Determining ifYou Have aConfined or Unconfined Space
Use this worksheet to determine if you havea confined or unconfined space.
Space: Includes the room in which you will install heater plus any adjoining rooms with doorless passageways or
ventilation grills between the rooms.
1. Determine the volume of the space Length ×Width ×Height= cu. ft. (volume of space) Example: Space size 20 ft.
(length) ×16ft.(width) ×8 ft. (ceiling height) = 2560 cu. ft. (volume of space)
If additional ventilation toadjoining room is supplied with grills or openings, add the volume of these rooms to the
total volume of the space.

8
2. Divide the space volumeby 50 cu. ft.to determine the maximum BTU/hr the space can support.
__________(volume of space) ÷50 cu. ft.= (Maximum BTU/hr the space can support)
Example: 2560 cu. ft. (volume of space) ÷50 cu. ft. = 51.2 or51,200 (maximum BTU/hr the spacecan support)
3. Add the BTU/hr of all fuel burning appliances in the space.
Vent-free heater _____________BTU/hr
Gas water heater* _____________BTU/hr
Gas furnace _____________BTU/hr
Vented gas heater _____________BTU/hr
Gas heater logs _____________BTU/hr
Other gas appliances*+BTU/hr
Total =_____________BTU/hr
*Do not include direct-vent gas appliances. Direct-vent draws combustion air from the outdoors and vents to the
outdoors.
4. Compare the maximum BTU/hr the space can support with the actual amount of BTU/hr used.
__________BTU/hr (maximum the space can support)
__________BTU/hr (actual amount ofBTU/hr used).
Example : 51,200 BTU/hr (maximum the space can support)
56,000 BTU/hr (actual amount of BTU/hr used)
The space in the aboveexample is aconfined space becausethe actual BTU/hr used is more than the maximum
BTU/hr the space can support.
You must provide additional fresh air. Your options are as follows:
a) Rework worksheet, adding the space of an adjoining room. If the extra space providesan unconfined space,
remove door to adjoining room or add ventilation grills between rooms. See “Ventilation Air From Inside
Building,”page 9.
b) Vent room directly to the outdoors. See “Ventilation Air From Outdoors”, Page 9.
c) Install a lower BTU/hr heater if lower BTU/hr size makes room unconfined. If the actual BTU/hr used is less
than the maximum BTU/hr the spacecan support, the space is an unconfined space. You will need no
additional fresh air ventilation.
WARNING: If the area in which the heater may be operated is smaller than that defined as an unconfined space
or if the building is of unusually tight construction, provide adequate combustion and ventilation air by one of the
methods described in the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Air for Combustion and Ventilation, or
applicable local codes.
WARNING: If the area in which the heater may be operated does not meet the required volume for indoor
combustion air, combustion and ventilation air shall be provided by one of the methods described in the
NATIONAL FUEL GAS CODE, ANSI Z223.1/NFPA 54, the INTERNATIONAL FUEL GAS CODE, or applicable
local codes.
Example:
Gas water heater 30,000 BTU/hr
Vent-free heater + 26,000 BTU/hr
Total = 56,000 BTU/hr

9
Ventilation Air From Inside Building
This fresh air would come from adjoining
unconfined space. Whenventilating to an
adjoining unconfined space, you must
provide two permanent openings: one
within 12 inches of the wall connecting
the two spaces (see options 1 and 2,
Figure 2). You can also remove door into
adjoining room (see option 3, Figure 2).
Follow the National Fuel Gas Code NFPA
54/ANSI Z223.1. Air for Combustion and
Ventilation for required size of ventilation
grills or ducts.
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation
grills or duct. You must provide two
permanent openings: one within 12 inches
of the ceilingand one within 12 inches of
the floor. Connect these items directly to
the outdoors or spaces open to the outdoors.
These spaces include attics and crawl spaces.
Follow the National Fuel Gas Code NFPA
54/ANSI Z223.1. Air for Combustion and
Ventilation for required size of ventilation grills or ducts.
IMPORTANT: Do not provide openings for
inlet or outlet air into attic if attic has a
thermostat-controlled power vent. Heated
air entering the attic will activate the
power vent. Rework worksheet, adding the
space of theadjoining unconfined space. The
combined spaces must have enough fresh air to
supply all appliances in both spaces.
Figure 2 - Ventilation Airfrom Inside Building
Figure 3 - Ventilation Airfrom Outdoors

10
INSTALLATION
NOTICE: This heater is intended for use as supplemental heat. Use this heater along with your primary heating
system. Do not install this heater as your primary heat source. If you havea central heating system, you may run
system s circulating blower while using heater. This will help circulate the heat throughout the house.
WARNING: A qualified technician must install heater. Follow all local codes.
WARNING: Never install the heater:
·in a bedroom or bathroom
·in a recreational vehicle
·Where curtains, furniture, clothing, or other flammable objects are less than 42 inches from the front, top or sides
of the heater.
·in high traffic areas
·in windy or drafty areas
CAUTION: This heater creates warm air currents. These currents moveheat to wall surfaces next to heater. Installing
heater next to vinyl or cloth wall coverings or operating heater where impurities (such as tobacco smoke, aromatic
candles, cleaning fluids, oil or kerosene lamps, etc.) in the air exist, may discolor walls.
WARNING: Maintain the minimum clearances. Ifyou can, provide greater clearances from floor, ceiling and adjoining
side and back walls.
IMPORTANT: Vent-free heaters add moisture to the air. Although this is beneficial, installing heater in rooms without
enough ventilation air may cause mildew to form from too much moisture. See Air for Combustion and Ventilation,
pages 7 through 9.
CHECK GAS TYPE
Use only thetype of gas indicated on the plate. If your gas supply cannot meet that requirement, do not install heater.
CLEARANCES TO COMBUSTIBLES
Carefully follow the instructions below. This heater is a wall mount unit designed to sit directly on thefloor or on a
mantel base.
IMPORTANT: You must maintain minimum wall and ceiling clearances during installation. The minimum clearances are
shown in Figure 4. Measure from outermost point of heater.
Minimum Wall and Ceiling Clearances (see Figure 4)
A. Clearances from outermost point of heater to any
combustible side wall should not be less than 7
inches.
B. Clearances from the heater to the ceiling should
not be less than 42 inches.

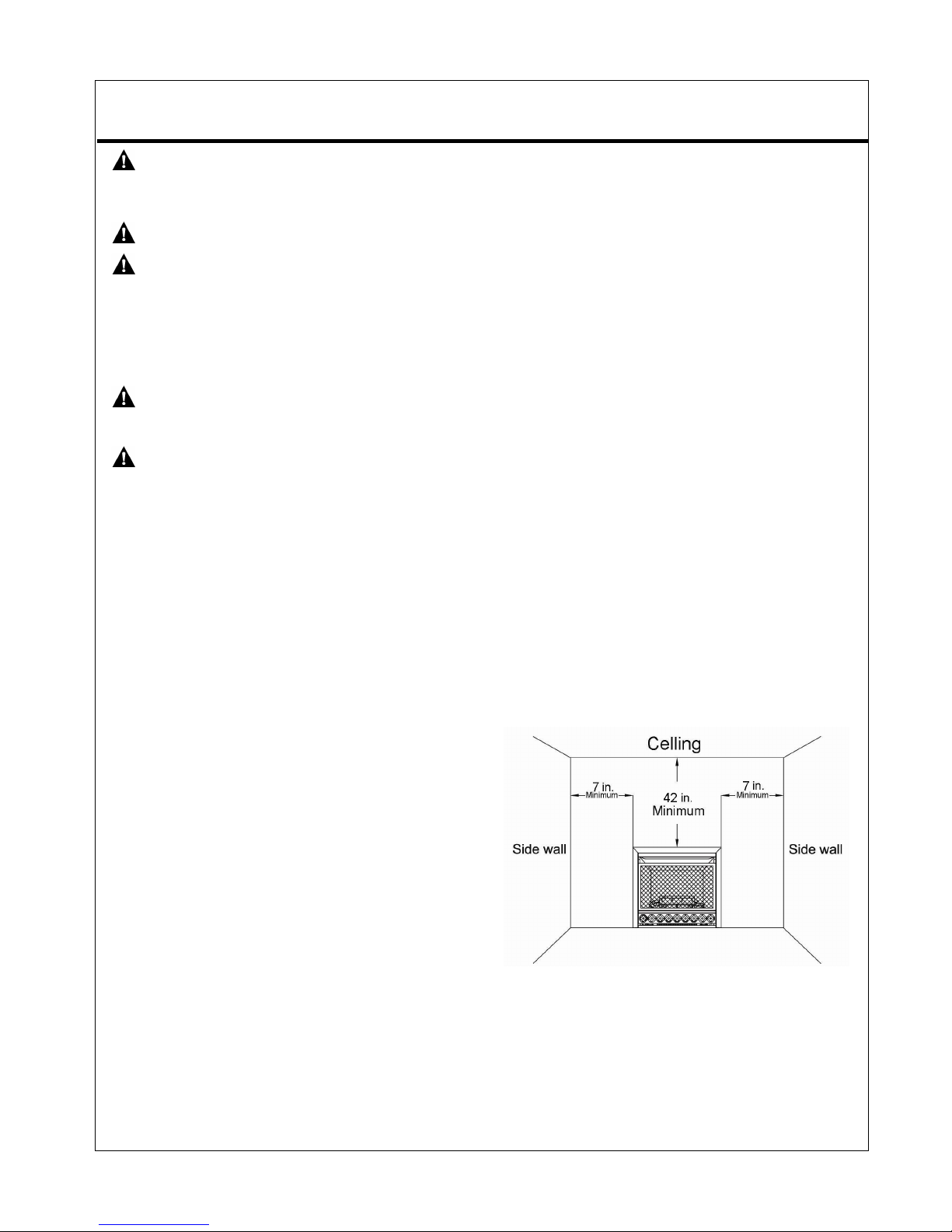

Figure 4 –Minimum Clearance to Wall
and Ceiling

11
NOTE: When heater is installed directly on carpeting, tile or other combustible material, other than wood flooring, the
heater must be installed on a metal or wood panel extending the full width and depth ofthe heater.
BUILT-IN FIREPLACE INSTALLATION
Built-in installation of this fireplace involves installing
fireplace intoa framed-in enclosure. This makes
the front of the fireplace flush with wall. If installing
a built-in mantel above the fireplace,you must
follow the clearances shown in Figure 5.
Follow the instructions.
NOTICE: Surface temperatures of adjacent walls
and mantelsbecome hotduring operation. Walls
and mantelsabove the fireboxmay become hot
to the touch.If installed properly, these temperatures
meet the requirement of the national product standard.
Follow all minimum clearances shown in this
manual. See Figure 6.
1. Frame in rough opening. Use dimensions shown in Figure 7
for the roughopening. If installing in a corner, use
dimensions shown in Figure 8 for the rough opening.
The height is 23 1/4 -in.,which is the same
as the wall opening above.
2. Carefully set fireplace in front of roughopening with back of
fireplace inside wall opening.
3. Attach gas line to fireplace gas regulator. See "Connecting
to Gas Supply," page 13.
4. Check all gas connections for leaks. See Checking Gas
Connections, page 16.
Figure 5 –Clearance to Combustibles
Figure 6
Figure 7 - Rough Opening for Installing in Wall

12
IMPORTANT: When finishing your firebox,
Combustible materials such as wall board,
gypsum board, sheet rock, drywall, plywood,
etc, must have ½-in. clearance to the sides
and top of the firebox. Combustible
materials should never overlap the firebox
front facing.
WARNING: Do not allow any combustible
materials to overlap thefireboxfront facing.
WARNING: Do not allow combustible or
noncombustible materials to cover any
necessary openings like louvered slots.
WARNING: Never modify or cover the louvered slots on the front of the firebox.
Assembling Hood
CAUTION: Do not operate fireplacewithout hood in place.
Aim three holes on fireboxpanel at those on heat insulation board; fixthe fireboxwith screws pre-set on its board by
directly inserting screwdriver into holes on top fireboxpanel.
Figure 8 - Rough Opening for Installing in Corner
Figure 9

13
CONNECTING TO GAS SUPPLY
WARNING: A qualified technician must connect heater to gas supply. Follow all local codes.
WARNING: This appliance requires a 3/8 in. NPT inlet connection to pressure regulator (see Figure 10).
CAUTION: Never connect heater directly to the gas supply. This heater requires an external regulator (not
supplied). The external regulator between the gas supply andheater must be installed.
INSTALLATION ITEMS NEEDED
Before installing heater, make sure you have the items listed below:
·piping (check local codes)
·sealant (resistant to propane/LP gas)
·equipment shutoff valve*
·test gauge connection**
·sediment trap
·tee joint
·pipe wrench
·Flexible Gashose (check local code)
*A CSA design-certified equipment shutoff valve with 1/8 in. NPT tap is an acceptablealternativeto test gauge
connection.
**Purchase the optional CSA design certified equipment shutoff valve fromyour dealer.
WARNING: Never connect heater to private (non-utility) gas wells. This gas is commonly known as wellhead gas.
The installer must supply an external regulator. The external regulator will reduce incoming gas pressure. You
must reduce incoming gas pressure to between 11 and 14 inches of watercolumn for propane andbetween 5
and 10.5 inches of watercolumn for natural gas. If you do notreduce incoming gas pressure, heater regulator
damage could occur. Install external regulator withthe vent pointing down as shown in Figure 11. Pointing the
vent down protects it from freezing rain or sleet.

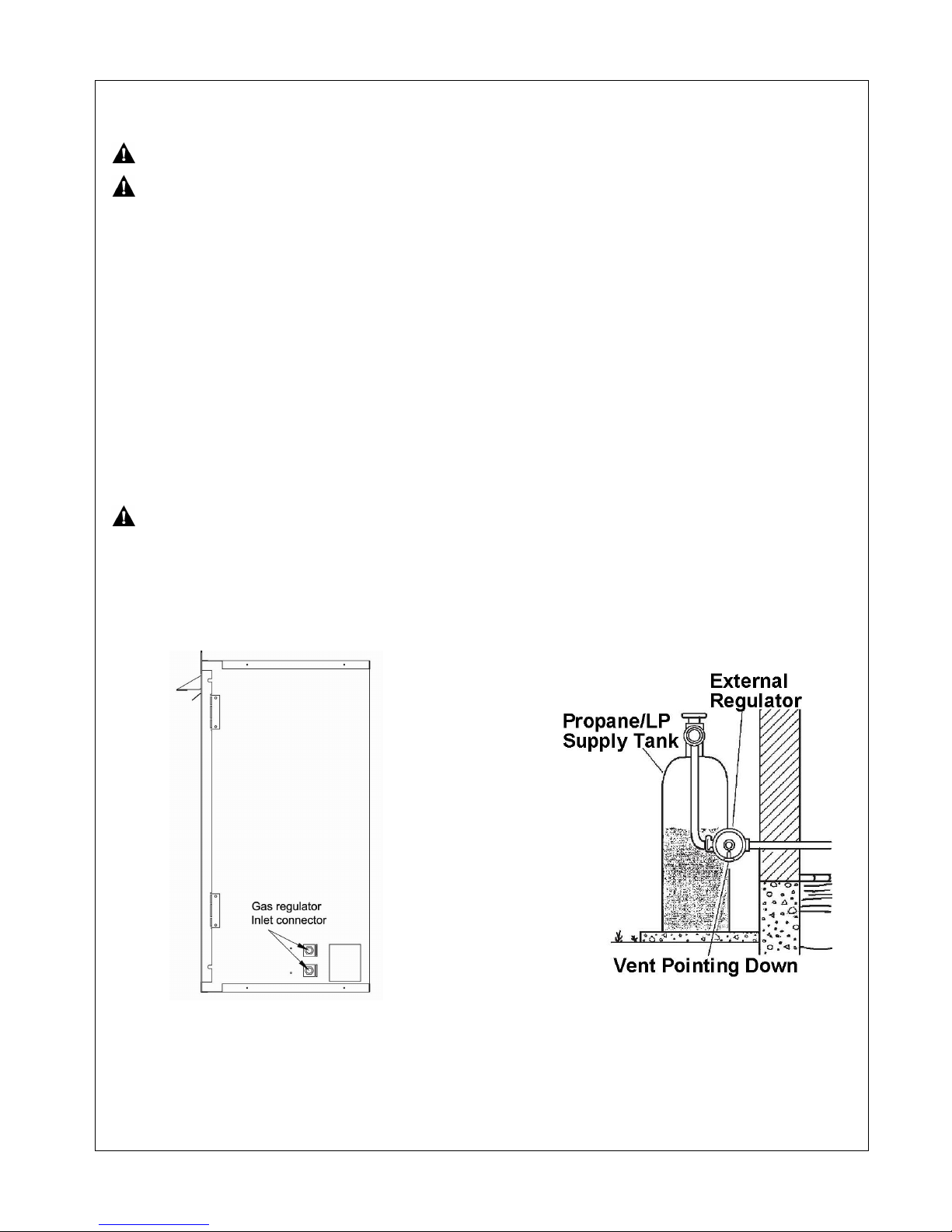

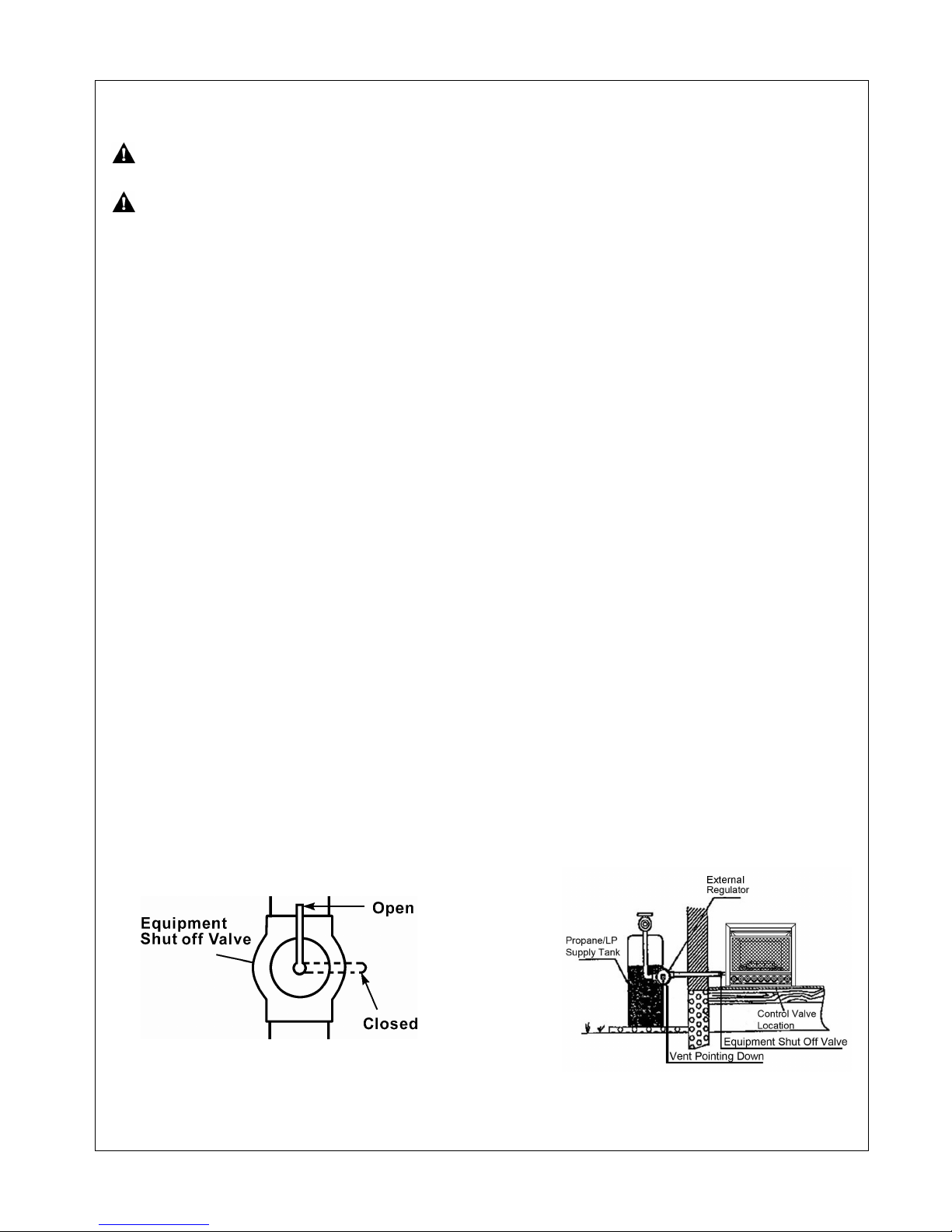

Figure 11 - External Regulator With
Vent Pointing Down
Figure 10 - Gas Regulator Location and Gas
Line Access Into Stove Cabinet

14
CAUTION: Use only new black iron or steel pipe. Internally tinned coppertubing may be used in certain areas.
Check your local codes. Use pipe of ½inch diameter or greater to allow proper volume gas to heater. If pipe is
too small, loss of pressure will occur. Installation must include an equipment shutoff valve, union, and plugged
1/8-inch NPT tap. Locate NPT tap within reach for test gauge hook up. NPT tap must be upstreamfrom heater
(see Figure 12).
IMPORTANT: Install equipment shutoff valve in an accessible location. The equipment shutoff valve is for turning on
or shutting off the gas to the appliance. Apply pipe joint sealant lightly to male threads. This will prevent excess
sealant from going into pipe. Excess sealant in pipe could result in clogged heater valves.
CAUTION: Use pipe joint sealant that is resistant to gas (PROPANE or NG). We recommend that you install a
sediment trap in a supplyline as shown in Figure 12. Locate sediment trap where it is within reach for cleaning
and not likely to freeze. Install in the piping system between fuel supply and heater. Asediment trap traps
moisture and contaminants. This keeps them from going intoheater controls. If sediment trap is not installed or is
installed incorrectly, heater may not run properly.
CAUTION: Avoid damage to regulator. Hold gas regulator with wrench when connecting into gas piping and/or
fittings. NG Models: 5 in. to 10.5 in. W.C. Gas supplier provide external regulator for natural gas.
*Purchase the optional CSA design-certified equipment shutoff valve fromyour dealer.See "Accessories".
Figure 12 –Gas Connection

15
CAUTION: Two gas line installation at the same time is forbidden. You are not allowed to open the cover while the
machine is running.
Heater is pre-set at factory for propane gas; no changes are required for connecting topropane. Only a qualified installer
or service technician canperform gas selection and connectingto gas supply.
CAUTION: To avoid gasleakage atthe inlet ofregulator, aqualified installer or servicetechnician must use steel
or metal hex plug with sealant.
For changing from propane to natural gas supply

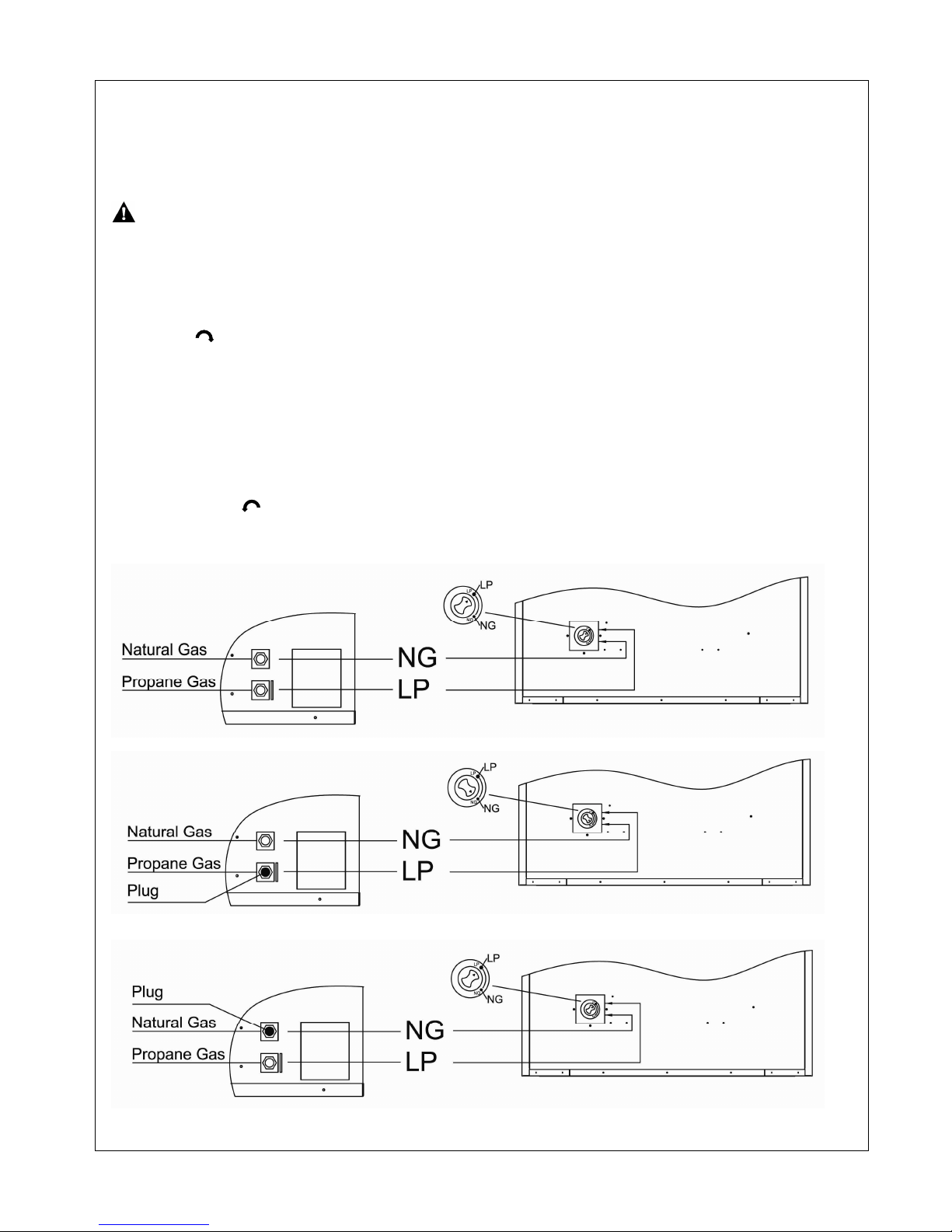

1. Removebottom screw from cover plate, see Figure 13, and rotate to expose gas selection valve.
2. For NATURAL GAS, press in knob using a flatscrewdriver with a blade the width of a quarter and turn knob
clockwise until the knob locks intothe NG position (see Figure 14). Selection valve must be locked into the NG
position. Do not operate heater between locked positions!
3. Rotate and close cover over gas selection valve and reinstall screw.
4. Removesteel or metal hexplug (with wrench provided) from natural gas inlet of regulator and install into LP inlet of
regulator, use thread sealant to assure there are no leaks.
For changing from natural gas supplyto propane supply
1. Remove bottom screw from cover plate, see Figure 13, and rotate to expose gas selection valve.
2. For PROPANE GAS, press in knob using a flat screw driver with a blade the width of a quarter and turn knob
counterclockwise until the knob locks into the LP position (see Figure 15). Selection valve mustbe locked into
either the LPposition or the NG position.
3. Rotate and close cover over gas selection valve and reinstall screw.
4. Removesteel or metal hexplug from LP gas inlet of regulator and install into NG inlet of regulator, use thread
sealant to assure there are no leaks.
Figure 15
Figure 13
Figure 14

16
CHECKING GAS CONNECTIONS
WARNING: Test all gas piping and connections for leaks after installing or servicing. Correct all leaks
immediately.
WARNING: Never use an open flame to check for a leak. Apply a mixture of liquid soap and water to all joints. If
bubbles form, there may be a leak. Correct all leaks immediately.
PressureTesting Gas SupplyPiping System
Test PressuresIn ExcessOf 1/2PSIG ( 3.5kPa)
1. Disconnect heater with its appliance main gas valve (control valve) and equipment shutoff valvefrom gas supply
piping system. Pressures in excess of 1/2 PSIG will damage heater regulator.
2. Cap off open end of gas pipe where equipment shutoff valve was connected.
3. Pressurize supply piping system by either using compressed air or opening gas supply tank valve.
4. Check all joints of gas supply piping system. Apply mixture of liquid soap and water to gas joints. Bubbles forming
show a leak.
5. Correct all leaks immediately.
6. Reconnect heater and equipment shutoff valve to gas supply. Check reconnectedfittings for leaks.
Test PressuresEqual Toor Less Than 1/2PSIG (3.5 kPa)
1. Close equipment shutoffvalve (see Figure 16).
2. Pressure supply piping system by either using compressed air or opening gas supplytank valve.
3. Check all joints from gas meter to equipment shutoff valve (see Figure 17). Apply mixture of liquid soap and water to
gas joints. Bubbles forming show a leak.
4. Correct all leaks immediately.
PressureTesting HeaterGas Connections
1. Open equipment shutoff valve (see Figure 16).
2. Open gas supply tank valve.
3. Make sure control knob of heater is in the OFF position.
4. Check all joints from equipment shutoff valve to control valve (Figure 17). Apply mixture of liquid soap and water to
gas joints. Bubbles forming show a leak.
5. Light heater (see Operating, page 20). Check all other internal jointsfor leaks.
6. Turn off heater (see To Turn Off Gas to Appliance, Page 23).
Figure 16 –Equipment Shut-off Valve Figure 17- Checking GasJoints

17
Installation for DecorativeTrim:

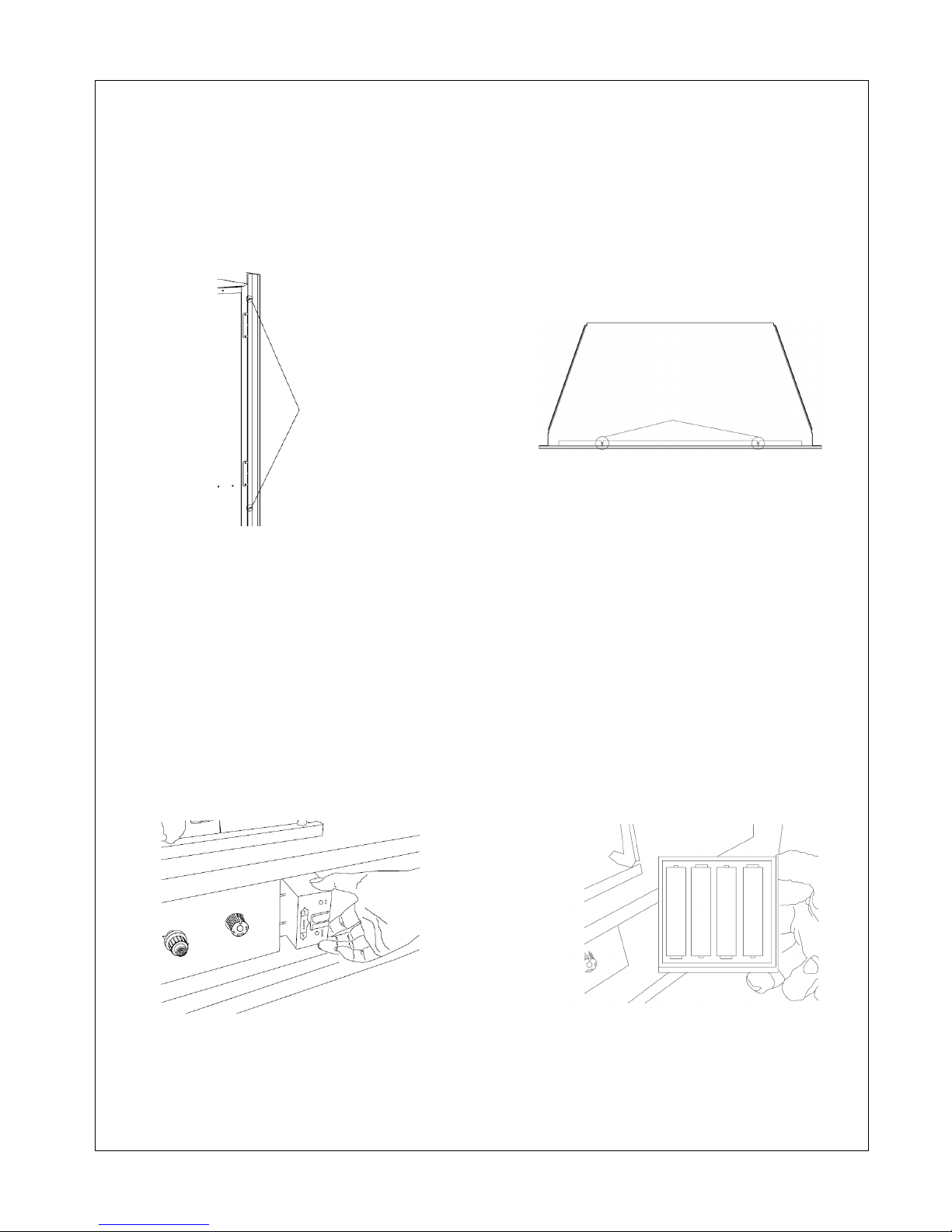

1. Installation for Left/Right Decorative Trim:
·Wedge two flanged screws on sides of the shell into slots of Left/Right Decorative Trim. (See Figure 18)
2. Installation for Top Decorative Trim:
·Wedge two flanged screws on top cover into slotsof Top Decorative Trim.(See Figure 19)
Figure 18
Figure 19
Installation for RemoteReceiver:
The remote receiver operates on four1.5V AA-size batteries. It is recommended that ALKALINE batteries be used
for longer battery life and maximum microprocessor performance.
IMPORTANT: New or fully charged batteries are essential for proper operation of the remote receiver as the
solenoid power consumption is higher than standard remote control systems.
1. Take Control Boxout from Control Panel. (See Figure 20 )
2. Remove battery cover along the direction showed on the battery box, andinstall four (4) AA batteries into the
box. (See Figure 21 )
Figure 20 Figure 21

18
INSTALLING LOGS
WARNING: Failure to position the parts in accordance
with these diagrams or failure to use only parts included
may result in property damage or personal injury.
CAUTION: After installation, and periodically thereafter,
check to ensure that no flame comes in contact with any
log. With the heater set to high, check to see if flames
contact any log. If so, reposition logsaccording to the log
installation instructions in this manual. Flames contacting
logs will create soot.

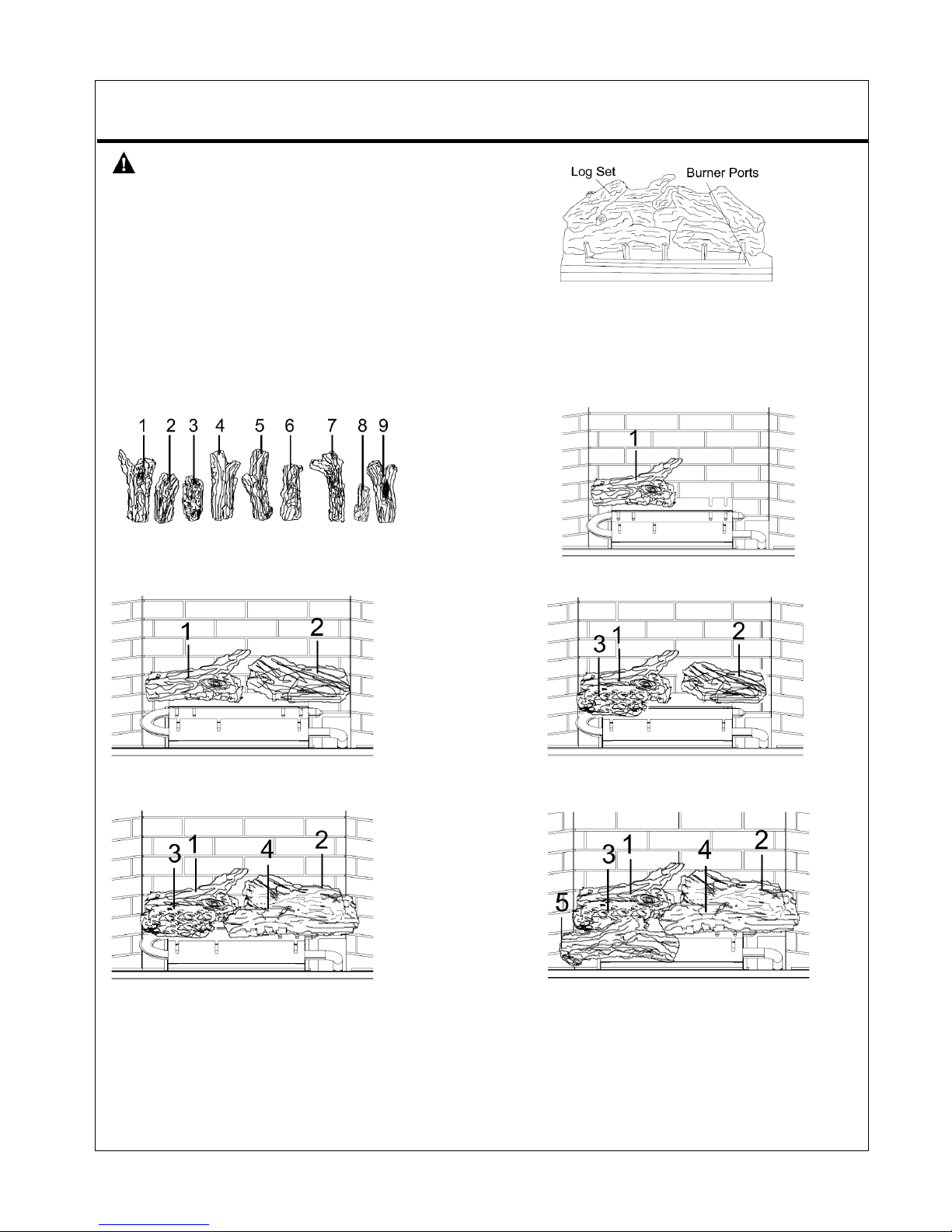

Figure 22 - Installing LogSet
IMPORTANT: Make sure log does not cover any
burner ports (see Figure 22). It is very important to
install the logs exactly as instructed. Do not
modify logs. Use only logs supplied with heater.
All logs
STEP 3: Install the log 3 on the left front angle.
STEP 2: Install the log 2 on the right rear iron.
STEP 1: Install the log 1on the left rear angle iron.
STEP 5: Install the log 5 on the left front angle.
STEP 4: Install the log 4 on the right front angle.

19

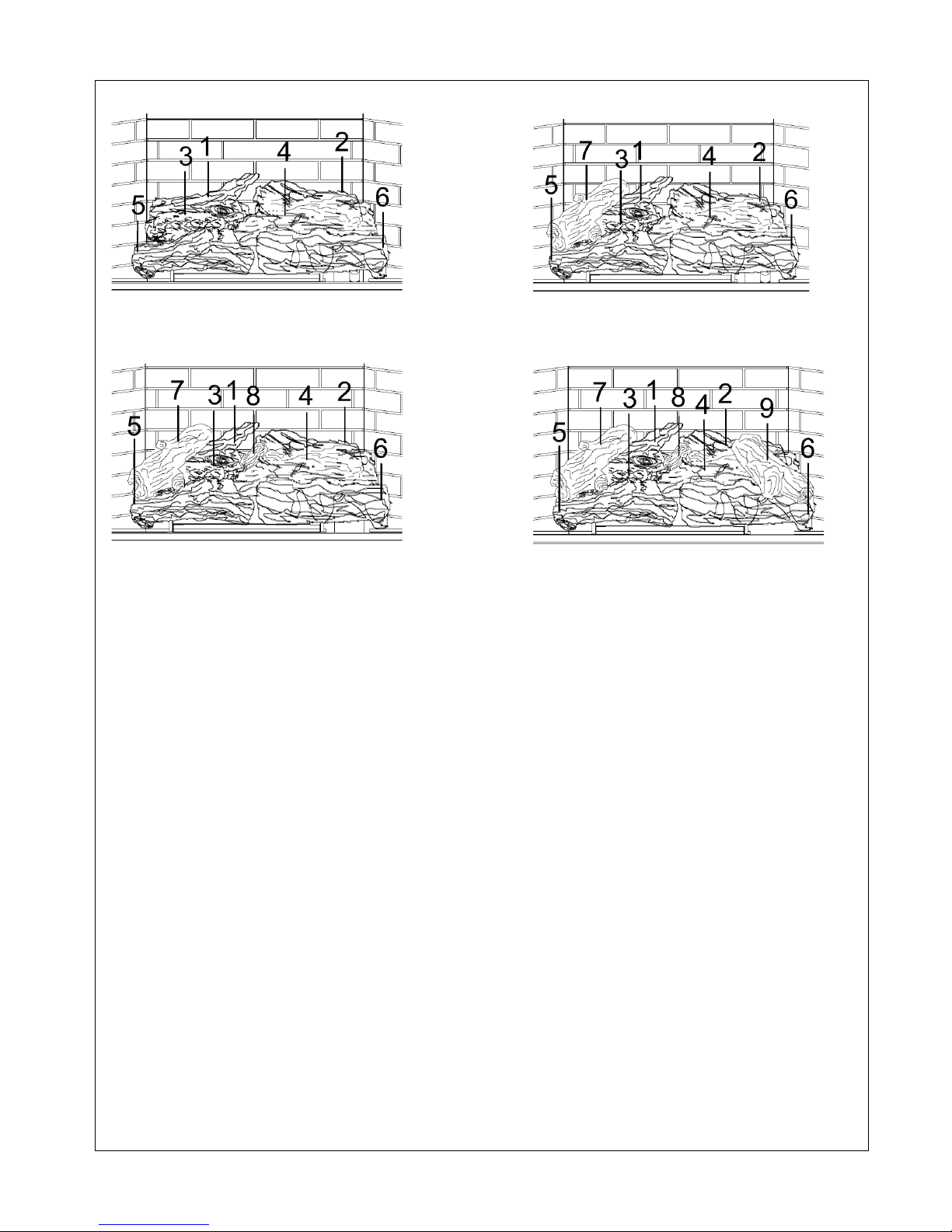

STEP 7: Insert the pinhole on the upper part of log 7 in
the pin on log 1, log 3 and log 5.
STEP 6: Install the log 6 on the right front angle.
STEP 9: Insert the pinhole on the upper part of log
9 in the pin on log 4 andlog 6.
STEP 8: Insert the pinhole on the upper part of log
8 in the pin on the log 4 and log 2 .
NOTE: This equipment has been tested and found to comply with the limit
s for Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipmentgenerates, uses and can radiate radio frequencyenergy and,if not installed
and used in accordance with the instructions, may cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
·Reorient or relocate the receiving antenna.
·Increase theseparation between theequipment and the receiver.
·Connect the equipment into an outleton a circuit different from that to which the receiver is connected.
·Consult the dealer or an experiencedradio/TV technician for help.

20
OPERATION
FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING: If you do not follow these instructions exactly, afire or explosion may result causing property
damage, personal injury or loss of life.
NOTICE: During initial operation of new heater, burning logs will give off a paper burning smell. Orange flame will
also be present. Open a window to vent smell. This will last only few hours.
CAUTION: Do not try to adjust heating levels by using the equipment shutoff valve.
A. This appliance has a pilot whichmust be lit by the electronic ignitor. When lighting the pilot, follow these instructions
exactly.
B. BEFORE LIGHTING smell all around the appliance area for gas. Be sure to smell next to the floor becausesome
gas is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
•Do not try to light any appliance.
•Do not touch any electrical switch; do not use any phone in your building.
•Immediately call your gas supplier from a neighbor s phone.Follow the gas supplier s instructions.
•If you cannot reach your gas supplier, call the fire department
C. Use only your hand to push control. Never use tools. If the appliancedoes not operate, don t try to repair it.
Call a qualified service technician or gas supplier. Forced or attempted repair may result in fire or explosion.
D. Do not use this appliance if any part has been under water. Immediately call a qualified service technician to inspect
the appliance and to replace any partof the control system and any gas control, which has been under water.
Note: Please wait one minute after shutting off fireplace to allow the control valve to reset before starting again.
