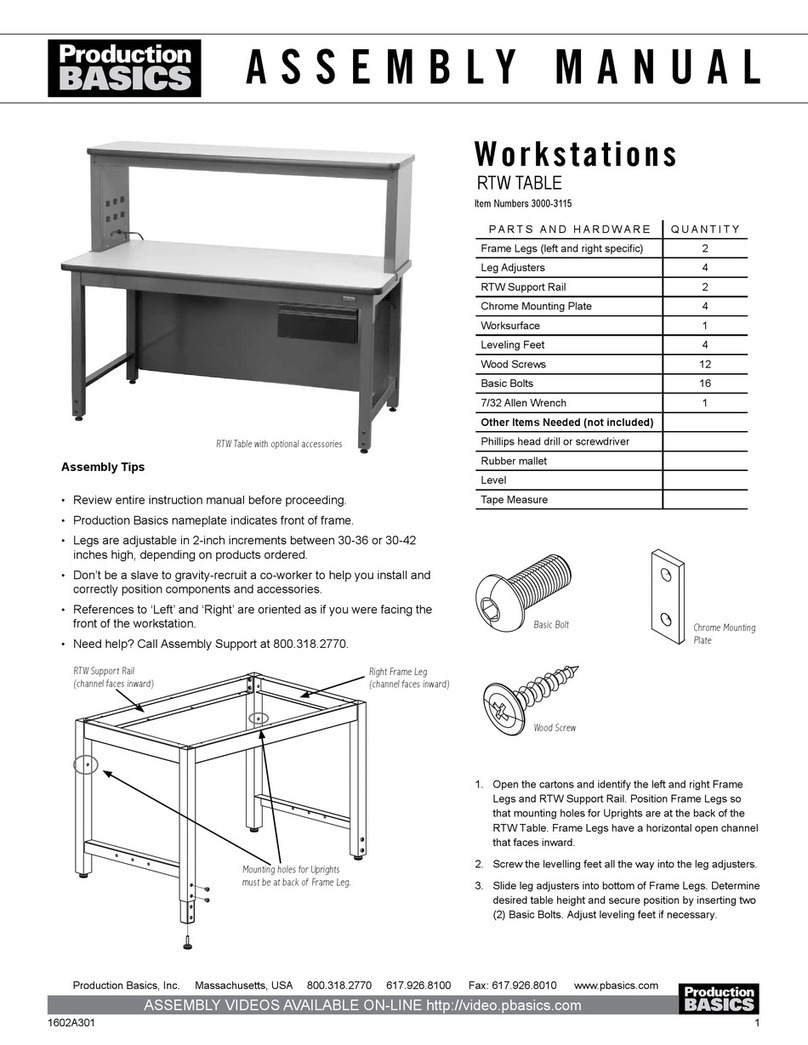

Production Basics RTW 3000 User manual

RTW TABLE
RTW Table with optional accessories.
Production Basics, Inc. 30 Bridge St. Watertown, MA 02472 617.926.8100 Fax: [phone] www.pbasics.com
Item Numbers 3000-3115
PARTS AND HARDWARE QUANTITY
Frame Legs (left and right specific) 2
Leg Adjusters 4
RTW Support Channel 2
Chrome Mounting Plate 4
Worksurface 1
Leveling Feet 4
End Caps 6
Wood Screws 12
Basic Bolts 16
Allen Wrench 1
Other Items Needed (not included)
Phillips head drill or screwdriver
Rubber mallet
Level
Tape Measure
Assembly Tips
Review entire instruction manual before proceeding.
Production Basics nameplate indicates front of frame.
Legs are adjustable in 2-inch increments between 30-36 inches high
to customize worksurface height.
Don't be a slave to gravity-recruit a co-worker to help you install and
correctly position components and accessories.
References to 'Left' and 'Right' are oriented as if you were facing the
front of the workstation.
Need help? Call Assembly Support at 800.318.2770.
RTW Support Channel
Right Frame Leg
(channel facing inward)
Mounting holes for Uprights
must be at back of Frame Leg.
1. Open the cartons and identify the left and right Frame Legs
and RTW Support Channels. Position Frame Legs so that
pre-drilled holes are at the back of the RTW Table. Frame
Legs have a horizontal open channel that faces inward.
2. Screw the levelling feet all the way into the leg adjusters.
3. Slide leg adjusters into bottom of Frame Legs. Determine
desired table height and secure position by inserting two (2)
Basic Bolts. Adjust leveling feet if necessary.
ASSEMBLY MANUAL
WORKSTATIONS
Basic Bolt Chrome Mounting
Plate
Wood Screw
To view an expanded hardware kit, download this linked PDF.

4. Locate Support Channel. Loosely attach the Chrome
Mounting Plate to the outside of the Support Channel with
two (2) Basic Bolts using Allen wrench provided.
5. Slip the Chrome Mounting Plate into the slot on the frame leg
as shown. The leg will be between the Chrome Mounting
Plate and the Support Channel. Repeat for all sides and
tighten bolts.
6. Position the worksurface on the frame so that it is flush with
the back of unit with equal overhang, left and right. It is often
easier to invert the assembled RTW frame onto the
underside of the worksurface for proper positioning.
7. Attach the worksurface to the frame by drilling wood screws
through the pre-drilled holes in the Support Channels and
Frame Legs, then into underside of worksurface. Turn RTW
Table right side up.
Chrome Mounting Plate
Left Back
RTW ADD-ON CORNER
Item Numbers 3418-3519
PARTS AND HARDWARE QUANTITY
Height Adjustable Leg (2 pieces each) 1
Leveling Foot 1
Connection Plates 2
Laminate Worksurface 1
Basic Bolts 2
Wood screws 20
Allen Wrench 1
Other Items Needed (not included)
Phillips head drill or screwdriver
1. Set height of adjustable leg and screw in leveling foot.
2. Insert three (3) wood screws through connection plate and
into the underside of the worksurface. Repeat for other
connection bracket on opposite RTW Table.
3. Place the corner in between the workstations. Secure with
wood screws.
4. Use wood screws to attach adjustable leg to underside of
worksurface 1” from edge.
Need help? Call Assembly Support at 800.318.2770
Mounting holes for Uprights
must be at back of Frame Leg.
Note: Add-on Corner requires two (2) RTW
Tables for proper assembly. Assemble RTW
Tables before assembling Add-on Corner.

Need help? Call Assembly Support at 800.318.2770
PARTS AND HARDWARE QUANTITY
Ground Bolt 1
Ground Wire 1
Washer 1
Nut 1
1. Insert Ground Bolt through top of worksurface through pre-
drilled hole.
2. Slip ground wire over bolt underneath the worksurface. Add
the nut and tighten.
3. Ground other end of wire to electrical ground.
For additional information on grounding, contact your
company’s ESD manager or the ESD Association at
315.339.6937, www.esda.org.
GROUND BOLT
For ESD Laminate Worksurfaces and Shelving
Worksurface Underside
