Swiss Madison SM-WC424 User manual

Residential Concealed In-Wall Toilet Tank
Carrier System for Wall-Hung Toilet
SM-WC424
@SwissMadison
#WellMadeForever
www.swissmadison.com |1-434-623-4766 |[e-mail]
INSTALLATION INSTRUCTIONS
Wall-Hung Carrier System
®
well made for e v e r

ScissorsPlumbers Tape Coupler
not included
Flat File
Plumbers
Grease
—1 —
If you have any questions or concerns please contact us:
1-434-623-4766
[email protected]
PRIOR TO INSTALLATION:
· Inspect carrier to ensure no damages have occurred while in shipping.
· Observe all plumbing and building codes in accordance with your state and local requirements.
· All dimensions are nominal! Be sure to measure your toilet prior to installation.
· The step-by-step guidelines in the installation instructions are a general reference. Should there be
any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss
Madison products by hiring a licensed professional.
· Read installation and maintenance instructions thoroughly before installing. Be sure to use proper
tools and always wear proper personal safety accessories for your protection.
· Be sure to properly bleed all air from the piping system, trapped air can cause damage to the flushing
system and toilet bowl.
· Avoid outside wall installations to avoid possible freezing.
SUGGESTED TOOLS & MATERIALS:
Safety
Glasses Wrench
Drill
Tape
Measure
Level
Hacksaw
WALL-HUNG CARRIER SYSTEM INSTALLATION INSTRUCTIONS

—2 —
1. 2.
C
A
B
B
D
A
D
C
· Before fasteningsides, you must first attach legs to framing. At this
point it is possible to readjust your bowl rim to your desired height.
· L-shaped mountingbrackets are for masonry applications.
· Fasten your frame into studs/framingusingfour mounting holes in
the carrier frame (two on each side). It is recommended for framing
installations to use2 ” screws and 1 fender washers (needing
four of each total).
· Be sure to screw carrier to woodframingflush across the front.
1
2
44
0
OR
A：B：
13
OR
OR
4
3
OR
19
WALL-HUNG CARRIER SYSTEM INSTALLATION INSTRUCTIONS
12345
8
22 23
24
9
10
11
12
13 14
15 18
17
16
25
26
27
28
29 30
31
42
41
40
39
38
37
36
35 32 33 34
19
20
21
43
67
Flush Actuator
not included

—3 —
3.
5.
4.
· When connecting to a 3” sewer line it is advised
to drill a 3 ɀƔȤ” hole before connecting the
discharge pipe to the frame.
· It is possible to offset the discharge pipe left
or right. If offsetting is required, you must
move the top bracket holding the discharge
pipe to the back holes in the frame. This
allows you to miss the carrier frame when
connecting the necessary plumbing.
· For a vertical discharge, leave bracket as
shown above.
· Use this mounting position for an offset
installation.
WALL-HUNG CARRIER SYSTEM INSTALLATION INSTRUCTIONS

—4 —
6. 7. 8.
9. 10. 11.
*coupler not included, please
consult your local plumber.
Depending
on your
installation
it will either
be a 4” x 3”
or a 3” x 3”
mechanical
coupling.
· Cover installation bolts with protective slip, do not
remove slip until after toilet is in place. It is
important to keep threads clean for later
adjustment.
· Ensure template is plumb.
· Install dry wall over carrier system
in intended location.
· Find cutout template that was included with
your carrier.
· Cut out the small marked holes (1) to align
cutout with the threaded bolts.
· Align template up on your wall so the threaded
bolts fit through the precut holes.
· Cut around the marked lines (2) to reveal
pipe/actuator locations behind the drywall.
WALL-HUNG CARRIER SYSTEM INSTALLATION INSTRUCTIONS

—5 —
12.
15. 16.
13.
14.
· Cut drywall to reveal where to install flush plate
and attach plumbing.
NOTE: Swiss Madison is not responsible for any
damage done to wall or carrier system.
· Install mud guards into
proper holes to ensure no
debris enters pipes after
sheetrock has been cut.
WALL-HUNG CARRIER SYSTEM INSTALLATION INSTRUCTIONS

17. 18.
19. 20.
21. 22.
—6 —
· Hold the shutoff valve
stationary while tightening your
water connection.
· Install the locknut as
shown.
· Once the water connection is made to the water shutoff valve, undo the
other side of the hose. Next, turn valve on to flush out any debris before
reinstalling to the actuator.
WALL-HUNG CARRIER SYSTEM INSTALLATION INSTRUCTIONS

23. 24.
25. 26.
27. 28.
—7 —
· Ensure roughing box is secure to keep debris
from entering the tank.
WALL-HUNG CARRIER SYSTEM INSTALLATION INSTRUCTIONS

Installing the Toilet.
1. 2. 3.
4. 5. 6.
7. 8. 9.
10.
L2
L1
depth
depth + 1”
12.11.
—8 —
· Install pipes. Be sure to seal them thoroughly.
· With a ruler, against the back of the bowl, on
top of pipe, mark as shown.
· After cutting, take file and remove all burrs.
Try and bevel edge.
· Before mounting bowl, measure thickness of
china and mounting hardware to get
approximate depth of threaded rods.
· Use slotted end of thread bolt to adjust in or
out. Do not damage the thread.
· Install with mounting hardware and ensure
toilet bowl is level.
· With grease, sponge thoroughly to
lubricate all ends.
· Measure distance between both lines on
pipes. Take measured distance, deduct from
bald end of pipe and cut pipes as shown in
step 6. This will allow some tolerance to recut
if necessary.
· With a ruler, against finished wall, on top of
pipe, mark as shown.
· Remove pipes from wall and install into back
of bowl. Make sure pipes are sealed
thoroughly.
WALL-HUNG CARRIER SYSTEM INSTALLATION INSTRUCTIONS
· L1: The distance between the two lines on
the straight tube.
· L2: The distance between the two lines on
the connecting pipe.
L1+zɀƔdžȢ”
L2
L2+zɀƔdžȢ”
L1

www.swissmadison.com | 1-434-623-4766 | [email protected]
@SwissMadison
#WellMadeForever
INSTALLATION INSTRUCTIONS
Wall-Hung Toilet
®
well made for e v e r

—1 —
If you have any questions or concerns please contact us:
1-434-623-4766
[email protected]
PRIOR TO INSTALLATION:
· Inspect toilet to ensure no damages have occurred while in shipping.
· Observe all plumbing and building codes in accordance with your state and local requirements.
· All dimensions are nominal! Be sure to measure your toilet prior to installation.
· The step-by-step guidelines in the installation instructions are a general reference. Should there be
any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss
Madison products by hiring a licensed professional.
· Read installation and maintenance instructions thoroughly before installing. Be sure to use proper
tools and always wear proper personal safety accessories for your protection.
· Two people are recommended to handle and install this product as it is fragile.
REQUIRED PARTS:
SUGGESTED TOOLS & MATERIALS:
Safety
Glasses Wrench
Level Screwdriver
Putty Knife Tape
Measure
HacksawFlexible
Supply Tube
Bolts Cover
Caps
Wall-Hung
Toilet
WALL-HUNG TOILET INSTALLATION INSTRUCTIONS
Outlet Pipe & Inlet Pipe
(Included with tank
carrier system
- sold separately)

—2 —
WALL-HUNG TOILET INSTALLATION INSTRUCTIONS
3. Determine Pipe Size
· Apply lubricant on rubber washers of straight
tube and connecting pipe, then insert into holes.
· Draw lines on pipes as pictured below.
2. Dry Fit Outlet Pipe and Inlet Pipe
· Fully insert straight tube into cistern flushing outlet
then connect pipe into discharge outlet.
· Draw lines to mark the finished wall location on each
pipe as pictured below.
1. Install Tank Carrier System
· Before toilet bowl installation, a wood frame and
commercial or residential tank system is required.
· Install according to manufacturer's instructions.
4. Cut Pipes
· Measure the distance between both marked lines
on pipe. Take measured distance, deduct from bald
end of pipe and cut pipes as shown below.
· After cutting, take a file and remove all burrs. Try
and bevel pipe edge.
L1: The distance between the two lines on the
straight tube.
L2: The distance between the two lines on the
connecting pipe.
L2
L1
L1 + ¹5⁄16”
L2
L2 + ¹5⁄16”
L1

B x2
—3 —

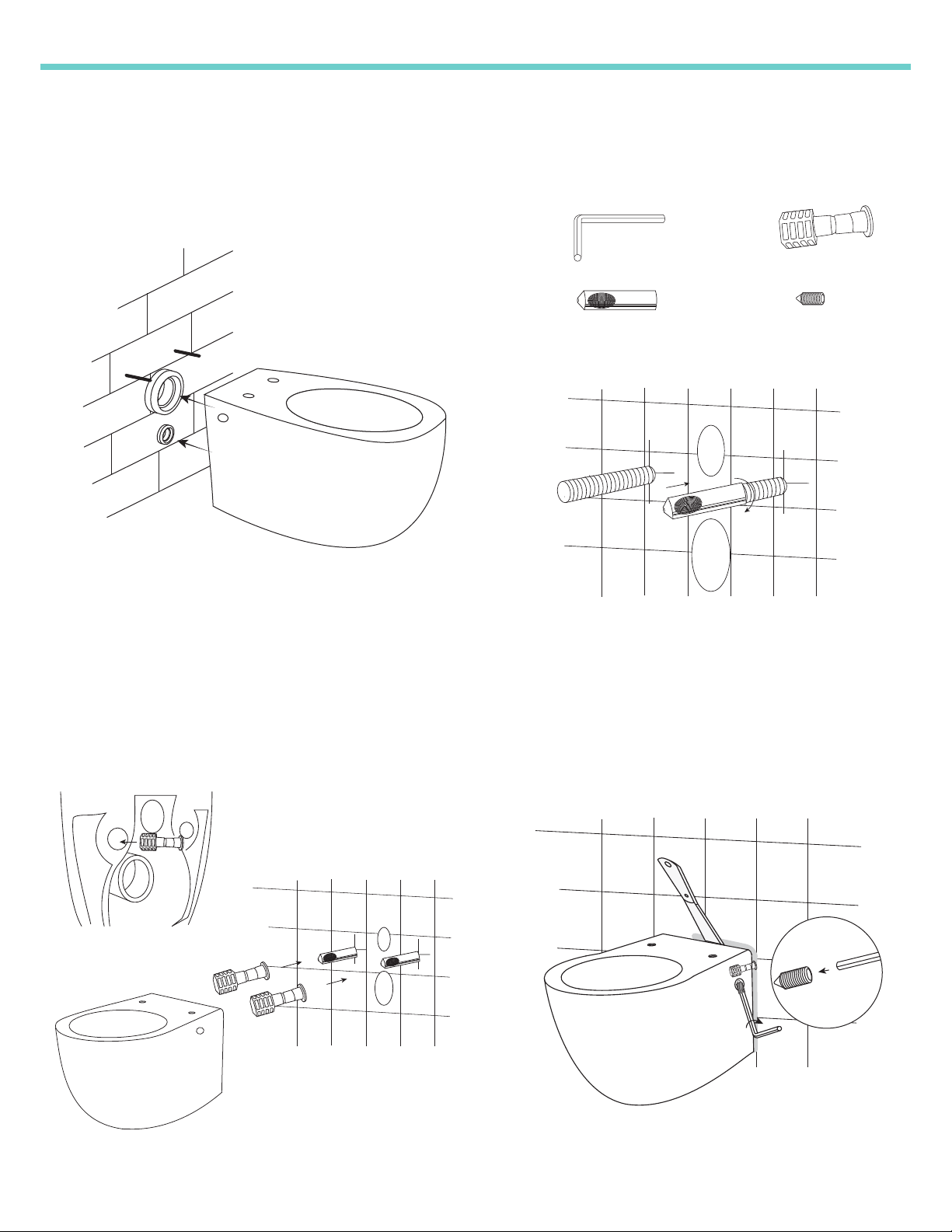

5. Mount Toilet Bowl
· Apply lubricant to the joint surface on straight tube
and connecting pipe.
· Mount the toilet bowl to the wall.
6. Anchor Bowl
· Place part B onto the screw.
WALL-HUNG TOILET INSTALLATION INSTRUCTIONS
A
B x2
C x2
D x2
7. Attach Bowl
· Put part C into the hole in the back of the bowl.
· Insert part C into part B.
8. Secure and Seal
· Using tool A, tighten part D to secure the bowl.
· Insert cover caps into installation hole.
· Fill any gaps with cement or sealant.
B
BB
C
C
C
DD
A
A

WALL-HUNG TOILET INSTALLATION INSTRUCTIONS
TOILET SEAT INSTALLATION
—4 —
1. Disassemble
· Disassemble the cover cap and the hinge.
2. Construct Hinges
· Insert screw and nut into the hole on the hinge.
· Attach blind hole screw fixing to the bottom of screw.
3. Attach Hinges
· Insert hinges with blind hole screw fixings attached
into holes on toilet bowl.
· Lightly tighten hinges with a screwdriver too allow
for later adjustment.
Pull
4. Adjust and Cover Hinges
· Be sure the hinge is all the way forward for proper
seat fitting.
· Place the covers onto the hinges.
or
Incorrect: Correct:

WALL-HUNG TOILET INSTALLATION INSTRUCTIONS
—5 —
5. Adjust and Attach Seat
· Align seat to the hinges then firmly tighten the hinges.
· Attach seat to the secure hinges.
· Adjust seat to align to the bowl.
TOILET SEAT USAGE
· To remove, push middle button until you hear a “click”, then pull straight up.
· To re-install, align hinge posts with reference marks on seat, then push down until your hear a “click”.
*Click* *Click*
One Button:
Two Button:
*Click* *Click*

www.swissmadison.com | 1-434-623-4766 | [email protected]
INSTALLATION INSTRUCTIONS
Wall-Mount Actuator Flush Plate
@SwissMadison
#WellMadeForever
®
well made for e v e r

—1 —
If you have any questions or concerns please contact us:
1-434-623-4766
[email protected]
PRIOR TO INSTALLATION:
· Inspect product to ensure no damages have occurred while in shipping.
· Observe all plumbing and building codes in accordance with your state and local requirements.
· The step-by-step guidelines in the installation instructions are a general reference. Should there be
any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss
Madison products by hiring a licensed professional.
· Read installation and maintenance instructions thoroughly before installing. Be sure to use proper
tools and always wear proper personal safety accessories for your protection.
· Make sure all wood studs and supports are properly installed.
· Confirm that your model will fit in intended location and plumbing fixtures are located where legally
required before beginning installation.
· Verify all the necessary plumbing is installed by a certified plumber.
· This flush plate must be used with the back plate provided as a whole set.
SUGGESTED TOOLS & MATERIALS: INCLUDED PARTS:
Safety
Glasses Tape
Measure
Flush
Plate
Installation
Bolts
Back
Plate
Level
ACTUATOR FLUSH PLATE INSTALLATION INSTRUCTIONS
Utility
Knife

2.
4.
1.
3.
turn on
ACTUATOR FLUSH PLATE INSTALLATION INSTRUCTIONS
—2 —

5.
7. 8.
6.
9. 10.
*click*
*click* *click*
ACTUATOR FLUSH PLATE INSTALLATION INSTRUCTIONS
2
1
3
Full Flush Half Flush
—3 —

1-434-MADISON
(623-4766)
www.swissmadison.com
ONE YEAR LIMITED WARRANTY
Swiss Madison® products are made with quality materials and excellent craftsmanship to provide our
customers with beautiful, durable, long-lasting products. Should there be any defects in materials or
craftsmanship under regular use that are discovered within the first year of installation, Swiss Madison®
will provide replacement parts at no charge, or at its discretion, replace any product or part of the product
that is deemed defective, under normal installation, use, service or maintenance. This warranty applies
only to the original purchaser. Proof of purchase will be required in the instance of a claim.
Swiss Madison®recommends all installations of Swiss Madison® products to be conducted by a
licensed, professional plumber or contractor. Swiss Madison®will not be held responsible for any
damage or product failure due to improper installation, misuse, or failure to utilize a licensed professional
for installation. Swiss Madison® is not responsible for any installation or removal costs.
This One Year Limited Warranty Will Be Voided If:
• The installation recommendations were not followed by the installer
• The product has been moved from its initial place of installation
• The product has in any way been modified from its packaged state
• The product has been subjected to improper maintenance, abuse, misuse, excessive use of
chemicals, accidents, or other damages, etc.
Swiss Madison®makes no implication that its products comply with any local building or plumbing
codes. It is the consumer’s responsibility and obligation to determine local code compliance prior to and
during installation. This warranty extends only to the original purchaser and first consumer.
Swiss Madison®is not responsible for any special, incidental or consequential damages associated with
the installation, replacement, return or use of the original purchaser’s product. This includes, but is not
limited to: freight costs, labor, travel time, lost profit, home damages and other contingent liabilities and
costs (including, without limitation, costs associated with ‘professionals’ or ‘experts’, investigations,
audits, analyses, attorneys and any other professional/hired services).
The Swiss Madison®warranty is a comprehensive and explicit limit of liability. All items not disclosed
within the warranty are not addressable within the responsibility of Swiss Madison®. Certain states have
variances regarding implied warranties; in those situations, we remain fully compliant.
If you have any questions or concerns, please contact us directly at
1-434-MADISON (623-4766)
WARNING: Contents of your order may contain sharp and possibly other harmful pieces and may
cause hazard to children and adults. Swiss Madison®is not responsible in any way for personal
damages.
®
well made for e v e r
