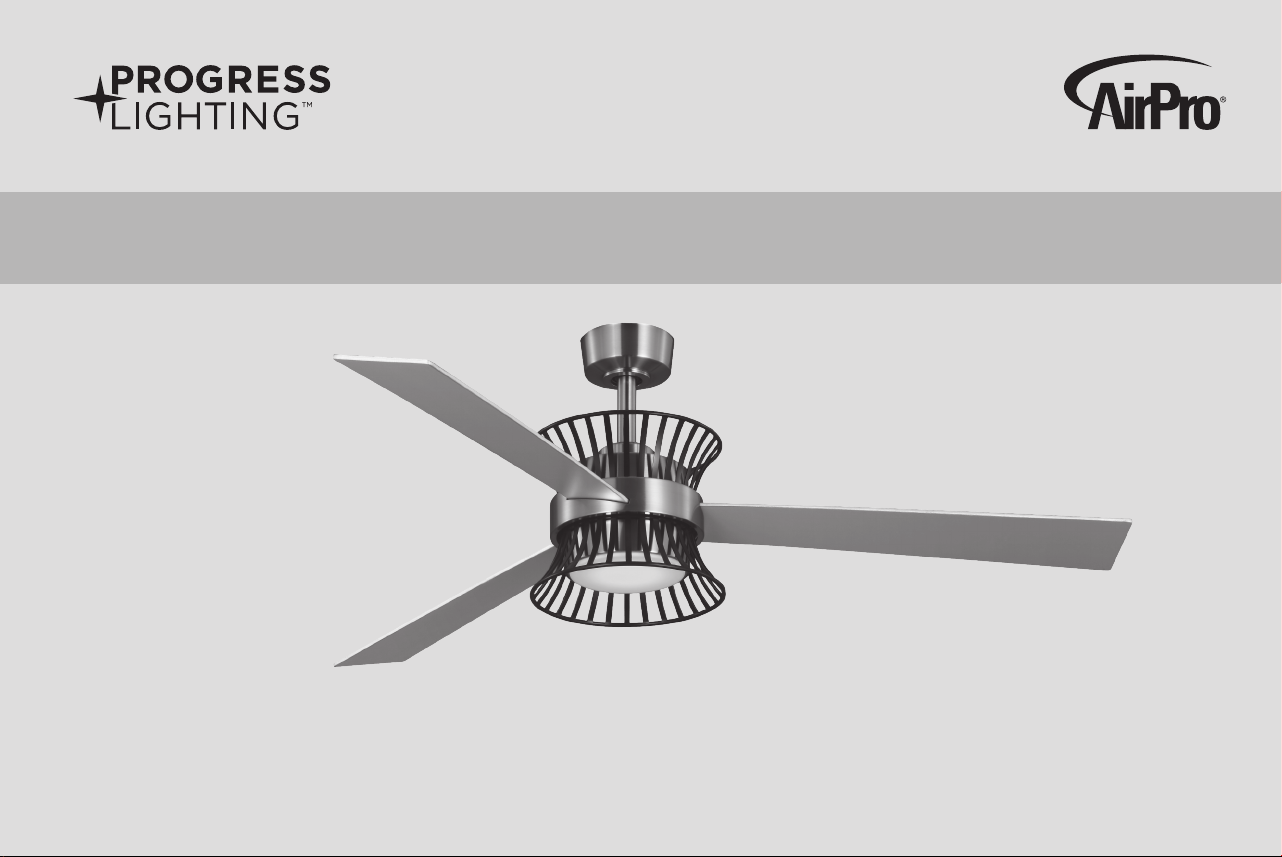

Progress Lighting AirPro P250110 User manual

Ceiling Fan Installation Manual
P250110
93166076

Date Purchased
Store Purchased
Model No.
Serial No.
Vendor No. 109226
P250110
Limited Lifetime Warranty
Progress Lighting fan motors are warranted to the original purchaser to be free of electrical and/or mechanical defects for so
long as the original purchaser owns the fan. Pull chain switches, reverse switches, capacitors and metal finishes are warranted to
be free from defects in materials or workmanship for a period of 1 year from the date of purchase. Warping of wooden or plastic
blades is not covered by this warranty nor is corrosion and/or deterioration of any finishes for fans installed within ten miles of
any sea coast. Extended warranties for ENERGY STAR® qualified products may apply.
Progress Lighting ceiling fans with built-in LED light sources, when properly installed and under normal conditions of use, are
warranted to be free from defects in material and workmanship which cause the light sources to fail to operate in accordance
with the specifications for (i) five (5) years from the date of purchase on the LED Light modules and electrical components for
fans used in single family residences, and (ii) three (3) years from the date of purchase on the LED Light modules and electrical
components for fans used in multi-family or commercial applications. LED bulbs supplied by Progress Lighting carry no
warranty other than manufacturer’s warranty. Non-LED bulbs carry no warranty.
With proof of purchase, the original purchaser may return the defective fan to the place of purchase during the first 30 days for
replacement. After 30 days, the original purchaser MUST contact Progress Lighting at [phone] for repair or replacement
which shall be determined in Progress Lighting’s sole discretion and shall be purchaser’s sole and exclusive remedy.
Labor and Shipping Excluded. This warranty does not cover any costs or fees associated with the labor (including, but not
limited to, electrician’s fees) required to install, remove, or replace a fan or any fan parts.
This warranty shall not apply to any loss or damage resulting from (i) normal wear and tear or alteration, misuse, abuse or
neglect, or (ii) improper installation, operation, repair or maintenance by original purchaser or a third party, including without
limitation improper voltage supply or power surge, use of improper parts or accessories, unauthorized repair (made or
attempted) or failure to provide maintenance to the fan.
THE FOREGOING WARRANTIES STATE PROGRESS LIGHTING’S ENTIRE WARRANTY OBLIGATION AND
ORIGINAL PURCHASER’S SOLE AND EXCLUSIVE REMEDY RELATED TO SUCH PRODUCTS. PROGRESS
LIGHTING IS NOT RESPONSIBLE FOR DAMAGES (INCLUDING INDIRECT, SPECIAL, INCIDENTIAL OR
CONSEQUENTIAL), DUE TO PRODUCT FAILURE, WHETHER ARISING OUT OF BREACH OF WARRANTY,
BREACH OF CONTRACT, OR OTHERWISE. THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTIES,
WHETHER EXPRESSED OR IMPLIED, INCLUDING THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE OR NONINFRINGEMENT.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitations of incidental or
consequential damages, so the above limitations and exclusions may not apply to you. This warranty gives you specific rights
and you may have other rights which vary from state to state.
UPC 785247257096
785247257089
785247257072

1.
2.
3.
9.
10.
12.
13.
14.
Table of Contents
Safety Rules ..................................................................................................................................................................
Unpacking Your Fan .....................................................................................................................................................
Installing Your Fan .......................................................................................................................................................
Installing the Light Kit and Glass Shade .....................................................................................................................
Operating Your Transmitter ........................................................................................................................................
Care of Your Fan .........................................................................................................................................................
Troubleshooting ..........................................................................................................................................................
Specifications ..............................................................................................................................................................

1. To reduce the risk of electric shock, insure electricity has been turned off at
the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical Code and
local electrical codes. Electrical installation should be performed by a
qualified licensed electrician.
3. WARNING: To reduce the risk of electrical shock and fire, do not use this
fan with any solid-state fan speed control device.
4. WARNING: To reduce the risk of fire, electric shock, or personal injury,
mount to outlet box marked "Acceptable for Fan Support of 15.9 kg (35
lbs.) Or Less" and use mounting screws provided with the outlet box.
Most outlet boxes commonly used for the support of light fixtures are not
acceptable for fan support and may need to be replaced. Due to the
complexity of the installation of this fan, a qualified licensed electrician
is strongly recommended.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR
FAN SUPPORT.
5. The outlet box and support structure must be securely mounted and capable
of reliably supporting a minimum of 35 lbs (15.9 kg) or less. Use only
UL-listed outlet boxes marked FOR FAN SUPPORT.
6. The fan must be mounted with a minimum of 7 ft (2.1m) clearance from
the trailing edge of the blades to the floor.
7. To operate the reverse function on this fan, press the reversing button
while the fan is running.
8. Avoid placing objects in the path of the blades.
9. To avoid personal injury or damage to the fan and other items, be cautious
when working around or cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan blades. A dry
dust cloth or lightly dampened cloth will be suitable for most cleaning.
11. After making electrical connections, spliced conductors should be turned
upward and pushed carefully up into the outlet box. The wires should be
spread apart with the grounded conductor and the equipment-grounding
conductor on one side of the outlet box.
12. Electrical diagrams are for reference only. Light kits that are not packed
with the fan must be UL Listed and marked suitable for use with the
model fan you are installing. Switches must be UL General Use Switches.
Refer to the Instructions packaged with the light kits.
NOTE
READ AND SAVE ALL INSTRUCTIONS!
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE ARMS (ALSO REFERRED TO AS BRACKETS) DURING
ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN
THE PATH OF THE BLADES.
1. Safety Rules

Unpacking Your Fan 2.
14. Loose parts bag containing:
a. Blade attachment hardware
3/16" x 1/2" screws with lock washers (10)
b. Mounting hardware
Wire nuts (3)
14

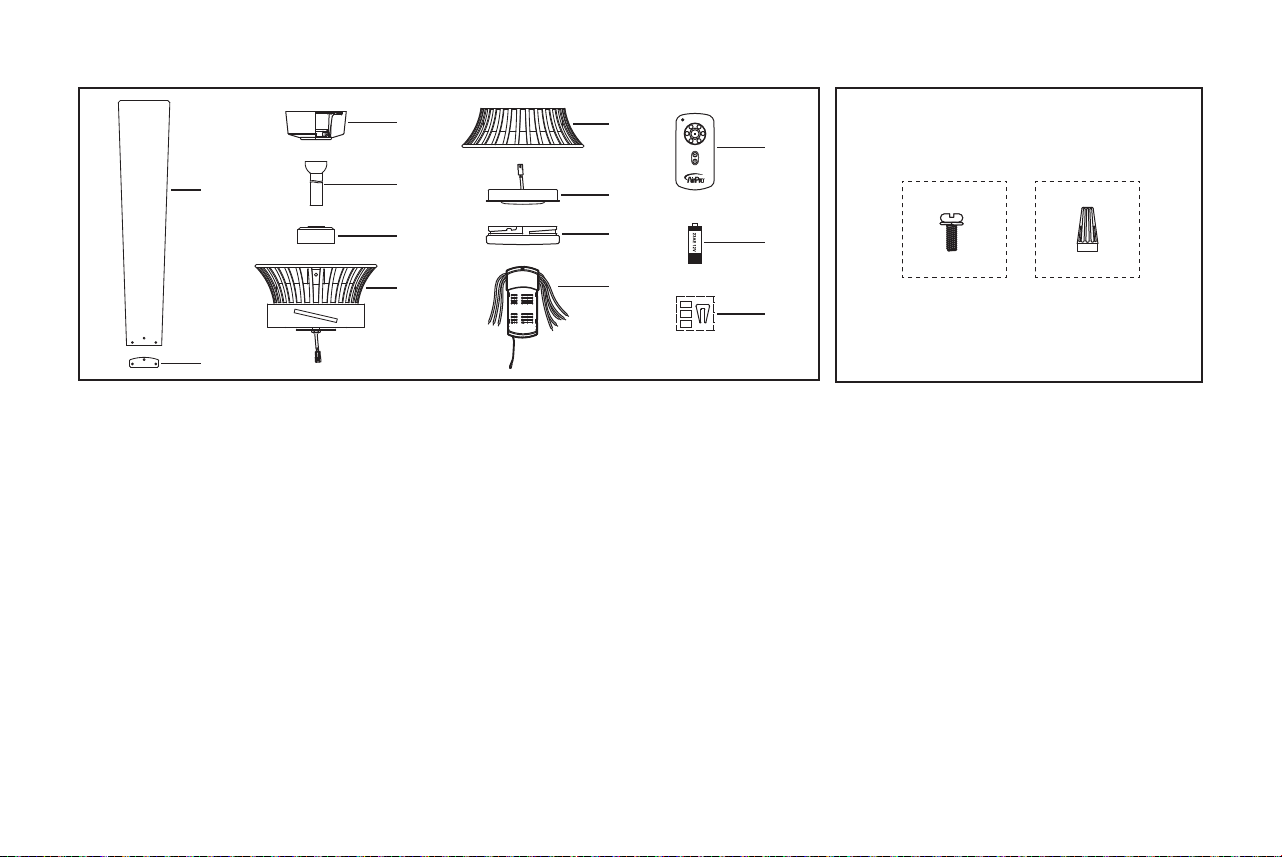

Unpack your fan and check the contents. You should have the following items:
1. Fan blades (3)
2. Blade support plates (3)
3. Canopy assembly
4. Ball/downrod assembly
5. Collar cover
6. Fan motor assembly
7. Decorative frame
8. 20W LED light kit
9. Glass shade
10. Receiver with 9 wire nuts
11. Transmitter incl. holder + 2 mounting screws
12. 12V MN21/A23 battery
13. Balancing kit
1
2
37
8
11
12
13
9
10
4
5
6a
b
I
II
III IV
V
VI

Tools Required
Phillips screw driver, straight slot screw driver,
adjustable wrench, step ladder, and wire cutters.
Mounting Options
If there isn't an existing UL listed mounting box,
then read the following instructions. Disconnect
the power by removing fuses or turning off circuit
breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and building
materials. The outlet box and its support must be
able to fully support the moving weight of the
fan (at least 35 lbs). Do not use plastic outlet boxes.
Outlet box
Outlet box Outlet box
NOTE: You may need a longer downrod to maintain
proper blade clearance when installing on a steep,
sloped ceiling.
To hang your fan where there is an existing fixture
but no ceiling joist, you may need an installation
hanger bar as shown in Figure 4 (available at your
Progress Lighting Retailer).
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK, OR OTHER PERSONAL INJURY,
MOUNT FAN ONLY TO AN OUTLET BOX
MARKED ACCEPTABLE FOR FAN SUPPORT
AND USE THE MOUNTING SCREWS
PROVIDED WITH THE OUTLET BOX. OUTLET
BOXES COMMONLY USED FOR THE
SUPPORT OF LIGHTING FIXTURES MAY NOT
BE ACCEPTABLE FOR FAN SUPPORT AND
MAY NEED TO BE REPLACED. CONSULT A
QUALIFIED ELECTRICIAN IF IN DOUBT.
Angled ceiling
maximum
25 angle
Recessed
outlet box
Provide strong
support
Ceiling
hanger
bracket
3. Installing Your Fan
Figure 1 Figure 3
Figure 4
Figure 2

Hanging the Fan
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly:
Step 1. Remove the decorative canopy bottom cover
from the canopy by turning the cover counter
clockwise.(Fig. 5)
Step 2. Remove the mounting bracket from the
canopy by removing the 1 of 2 screws from the
bottom of the mounting bracket and loosening the
other one a half turn from the screw head. Next,
turn the canopy counter clockwise to removing the
mounting bracket from the canopy. (Fig. 5)
Step 3. Pass the 120-volt supply wires through the
center hole in the ceiling hanger bracket as shown
in Fig. 6.
Step 4. Secure the hanger bracket to the ceiling
outlet box with the screws and washers provided
with your outlet box. (Fig. 6)
4.
Figure 6
Ceiling
hanger
bracket
Mounting screws
(supplied with
electrical box)
UL Listed
electrical
box
120V Wires
Washers
Figure 5
Ceiling hanger
bracket
Ceiling
canopy
Canopy
cover

WARNING
FAILURE TO PROPERLY INSTALL
LOCKING PIN AS NOTED IN STEP 7
COULD RESULT IN FAN LOOSENING AND
POSSIBLY FALLING.

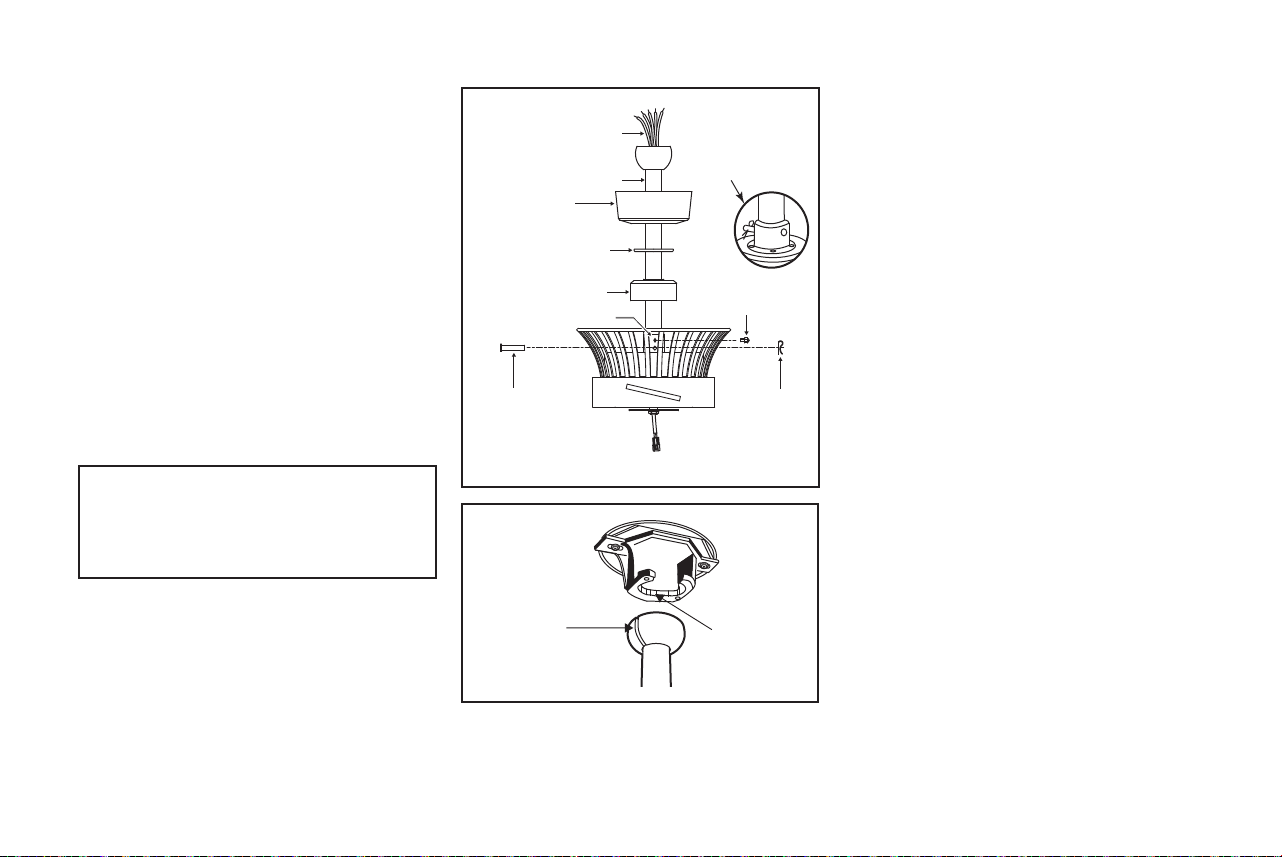

Step 8. Tighten two set screws on top of the fan
motor firmly. (Fig. 7)
Step 9. Place the downrod ball into the hanger
bracket socket. (Fig. 8)
Figure 7
Hanger pin Lock pin
Supply wires
Canopy
Canopy cover
Collar cover
Downrod
Set screws
Pin in locked
position
Collar
5.
Figure 8
Groove Tab
Step 5. Remove the hanger pin, lock pin and set
screws from the top of the motor assembly. (Fig. 7)
Step 6. Route the wires exiting from the top of the
fan motor through the collar cover, canopy cover
nd canopy and then through the ball/downrod.
(Fig. 7)
Step 7. Align the holes at the bottom of the
downrod with the holes in the collar on top of the
motor housing (Fig. 7). Carefully insert the hanger
pin through the holes in the collar and downrod.
Be careful not to jam the pin against the wiring
inside the downrod. Insert the locking pin through
the hole near the end of the hanger pin until it
snaps into its locked position, as noted in the circle
inset of Fig. 7.

Make the Electrical
Connections
WARNING: To avoid possible electrical shock,
be sure electricity is turned off at the main fuse
box before wiring.
WARNING: Check to see that all connections are
tight, including ground, and that no bare wire is
visible at the wire nuts, except for the ground wire.
CAUTION: To reduce the risk of electric shock,
this fan must be installed with an isolating wall
control/switch.
NOTE: The fan must be installed at a maximum
distance of 20 ft. from the remote control for proper
signal transmission between the remote control
and the fan's receiving unit.
If you feel you do not have enough electrical wiring
knowledge or experience, have your fan installed
by a licensed electrician.
Follow the steps below to connect the fan to your
household wiring. Use the plastic wire nuts with your
fan. Secure the plastic wire nuts with electrical tape.
Make sure there are no loose strands or
connections.

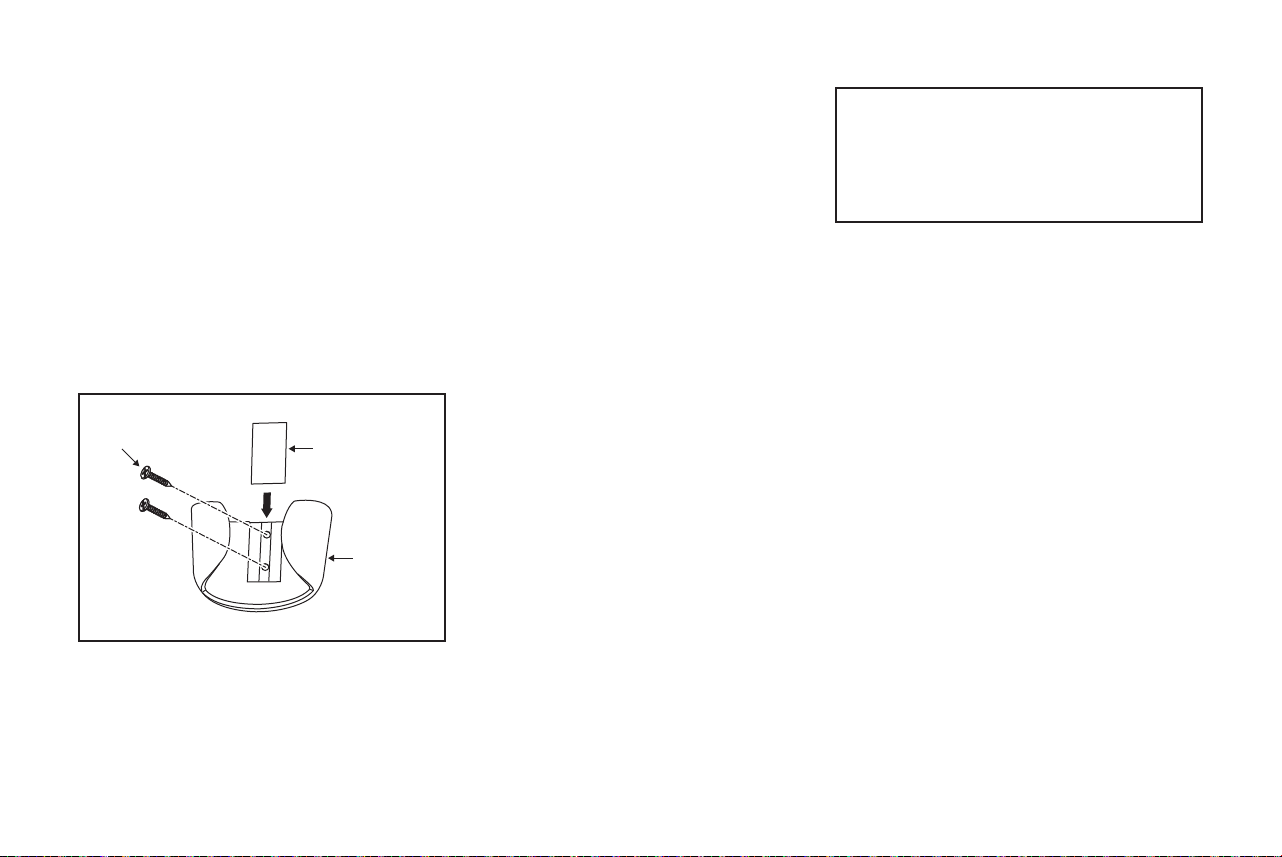

Step 1. Insert the receiver into the mounting
bracket with the flat side of the receiver facing the
ceiling. (Fig. 9)
Step 2. Make wire connections from the fan to the
receiver. (Fig. 10)
From Fan To Receiver
White Wire ----------- White Wire "For Light"
Blue Wire ------------ Blue Wire "For Light"
Yellow Wire --------- Yellow Wire
Red Wire ------------- Red Wire
Grey Wire ------------ Grey Wire
Step 3. Make wire connections from the receiver
to the outlet box. (Fig. 10)
From Receiver To Outlet Box
Black Wire "AC in L" ----- Black Wire (Hot)
White Wire "AC in N"----- White Wire (Neutral)
From Fan & To Outlet Box
Receiver
Green Wires* ------ Green or Bare Wire (Ground)
* There are three green grounding leads: from the
mounting bracket, hanger ball/downrod assembly,
receiver.
Step 4. Turn the wire nut connections upward,
spreading them apart so the green (ground) and
white wires will be on one side of the outlet box
and the black and blue wires will be on the other
side. Carefully tuck the connections up into the
outlet box.
Figure 10
White ("AC IN N")
White (Neutral)
Black ("AC IN L")
Black (Hot)
Receiver
Outlet Box
White
White
Blue
Blue
Red
Red
Yellow
Yellow
Grey
Grey
Green
Green
Green
Ground conductor
Green
Canopy
6.
Figure 9
Hanger
bracket
Receiver

Figure 12

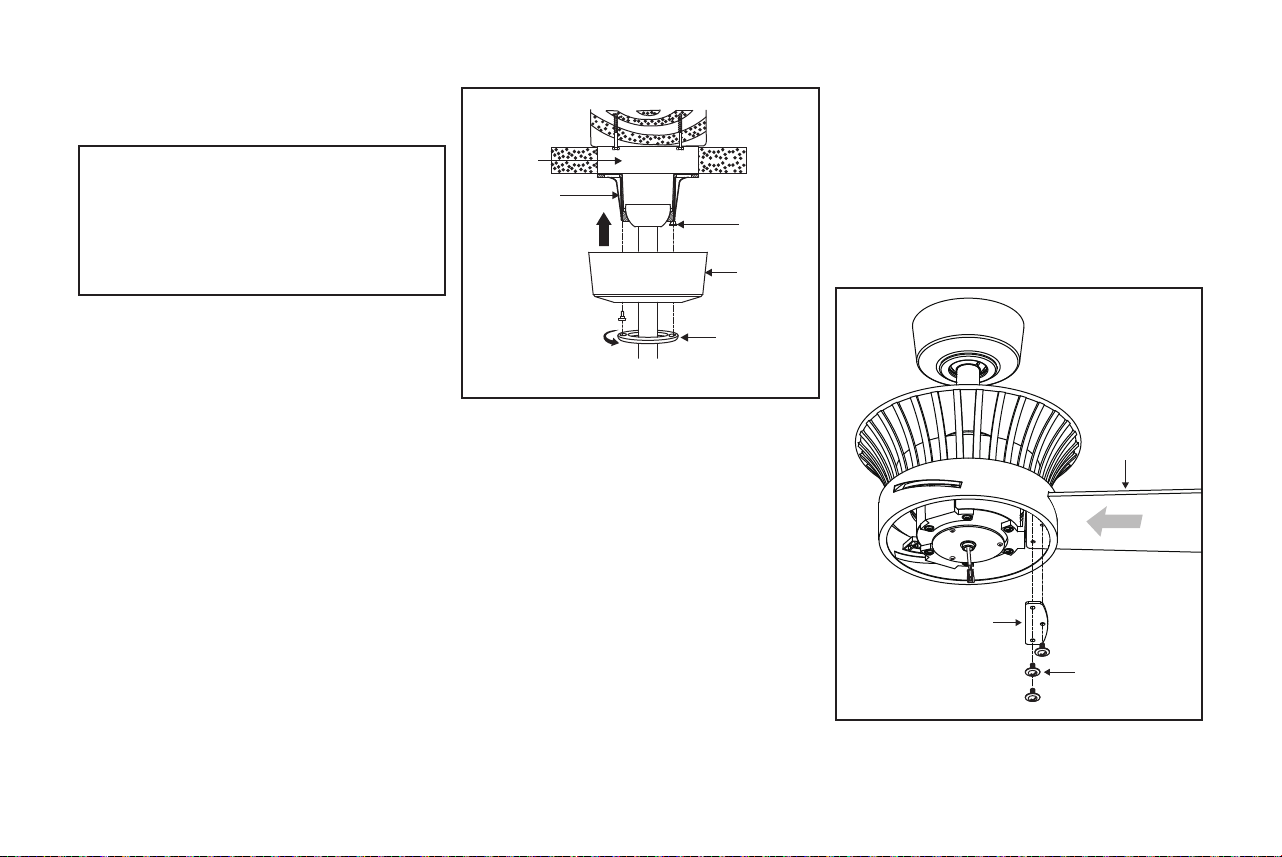

Attaching the Fan Blades
Step 1. Insert the blade through the slot in the
housing. Align the holes in the blade and the fan
motor assembly and secure with the blade support
and blade screw with lock washer. (Fig. 12)
Step 2. Repeat these steps for the remaining blades.
Figure 11
Outlet box
Hanger
bracket
Canopy
Canopy cover
Screws
Screws
Blade support plates
Blades
7.
Finishing the Installation
Step 1. Tuck connections neatly into ceiling outlet
box.
Step 2. Slide the canopy up to mounting bracket
and place the key hole on the canopy over the
screw on the mounting bracket, turn canopy until it
locks in place at the narrow section of the key
holes. (Fig. 11)
Step 3. Align the circular hole on canopy with the
remaining hole on the mounting bracket, secure by
tightening the two set screws. NOTE: Adjust the
canopy screws as necessary until the canopy and
canopy cover are snug.
WARNING
MAKE SURE THE TAB ON THE HANGING
BRACKET PROPERLY SITS IN THE GROOVE
IN THE HANGER BALL BEFORE ATTACHING
THE CANOPY TO THE BRACKET BY
TURNING THE HOUSING UNTIL IT DROPS
INTO PLACE.

Figure 14

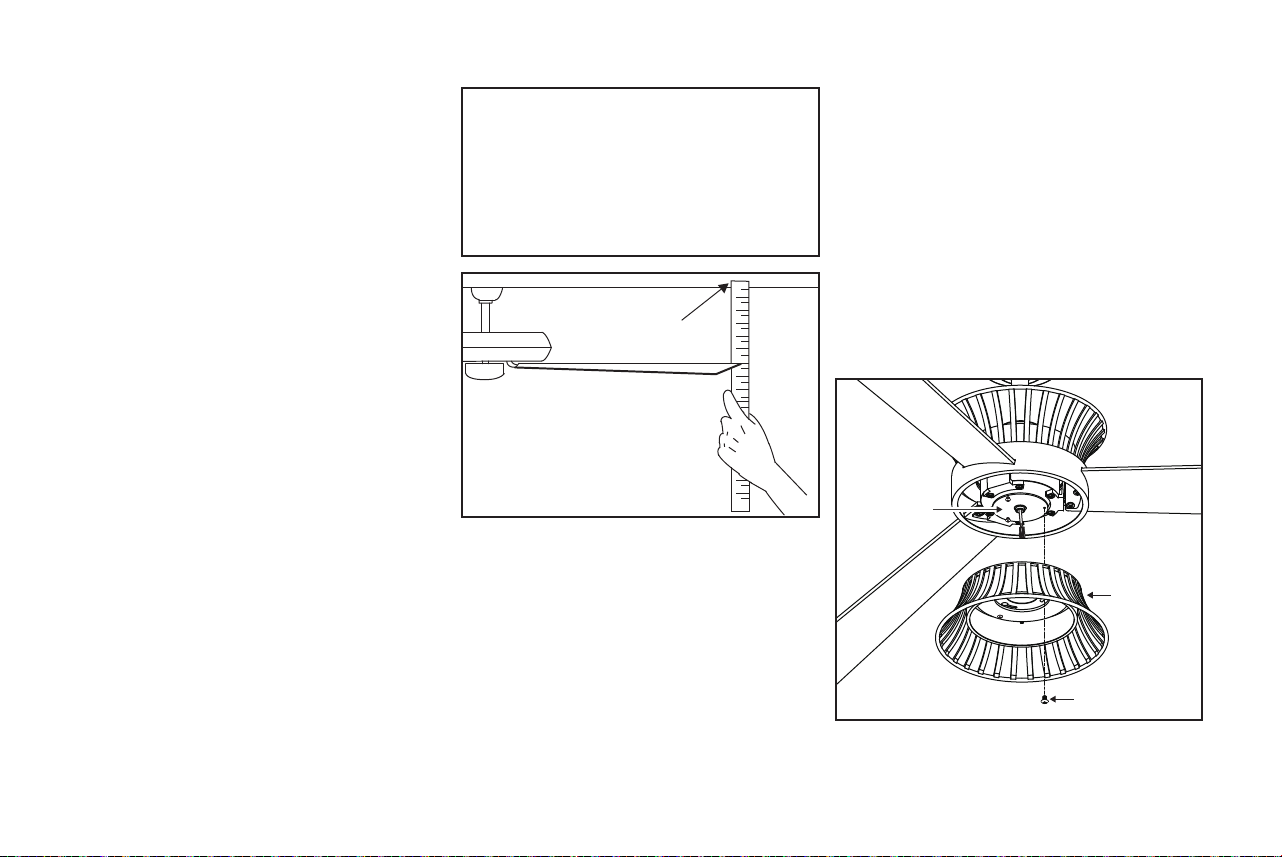

Blade Balancing
All blades are grouped by weight. The fan may
wobble even though the blades are weighed equally.
The following procedure should correct most fan
wobbling problems. Check after each step.
1. Check that all blade screws are secure.
2. Most fan wobbling problems are caused when
blade levels are unequal. Check this level by
selecting a point on the ceiling above the tip of
one of the blades. Measure this distance as shown
in Figure 12. Rotate the fan until the next blade
is positioned for measurement. Repeat for each
blade. The distance deviation should be equal
within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade
wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging
two adjacent (side by side) blades can redistribute
the weight and possibly result in smoother
operation.
Touching
ceiling
Figure 13
WARNING
TO REDUCE THE RISK OF PERSONAL
INJURY, DO NOT BEND THE BLADE
HOLDERS WHILE INSTALLING,
BALANCING THE BLADES, OR CLEANING
THE FAN. DO NOT INSERT FOREIGN
OBJECTS BETWEEN ROTATING FAN
BLADES.
Installing the Decorative
Frame
Step 1.Remove 1 of the 3 screws from the mounting
ring and loosen the other 2 screws. (Do not remove)
Step 2.Place the key holes on the decorative frame
over the 2 screws previously loosened from the
mounting ring. Rotate the decorative frame in the
slots to align the points of the decorative frame with
points of the fan housing. Secure by tightening the 2
screws previously loosened and the one previously
removed. (Fig. 14)
Decorative
frame
Screws
Mounting ring
8.

CAUTION: Before starting installation, disconnect
the power by turning off the circuit breaker or
removing the fuse at fuse box. Turning power off
using the fan switch is not sufficient to prevent
electric shock.
Step 1. Remove 1 of 3 screws from the posts of the
mounting plate and keep it for future use. Loosen
the other 2 screws. (Do not remove) (Fig. 15)

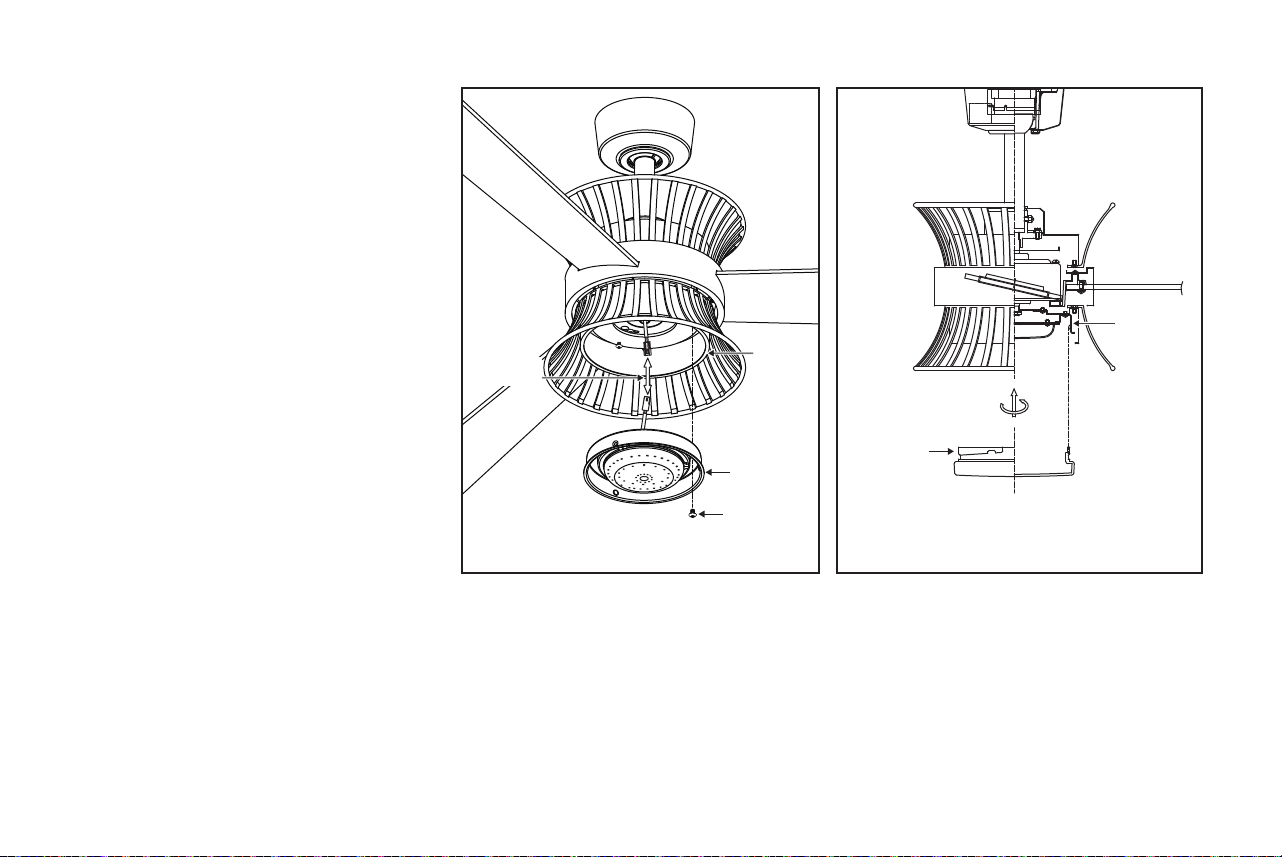

Step 2. While holding the LED light kit under your
fan, make the polarized plug connections: (Fig. 15)
- White to white
- Black to black
Step 3. Place the key holes in the LED light kit
over the two screws previously loosened from the
mounting plate. Turn the light kit until the light kit
locks in place at the narrow section of the key
holes. (Fig. 15)
Step 4. Securely tighten the two mounting screws
previously loosened and the one previously removed.
(Fig. 15)
Step 5. Raise glass shade up against the LED light
kit and secure it to fan by turning glass clockwise
until snug. DO NOT OVERTIGHTEN. (Fig. 16)
Figure 15 Figure 16
Screws
LED light kit
Glass
shade
LED light kit
Wire
connectors
Mounting
Plate
9. Installing the Light Kit and Glass Shade

Installing the Battery
Install a 12V MN21/A23 battery (included) into the
remote control. To prevent damage to the remote
control, remove the battery if not used for long
periods. (Fig. 17)
Figure 17

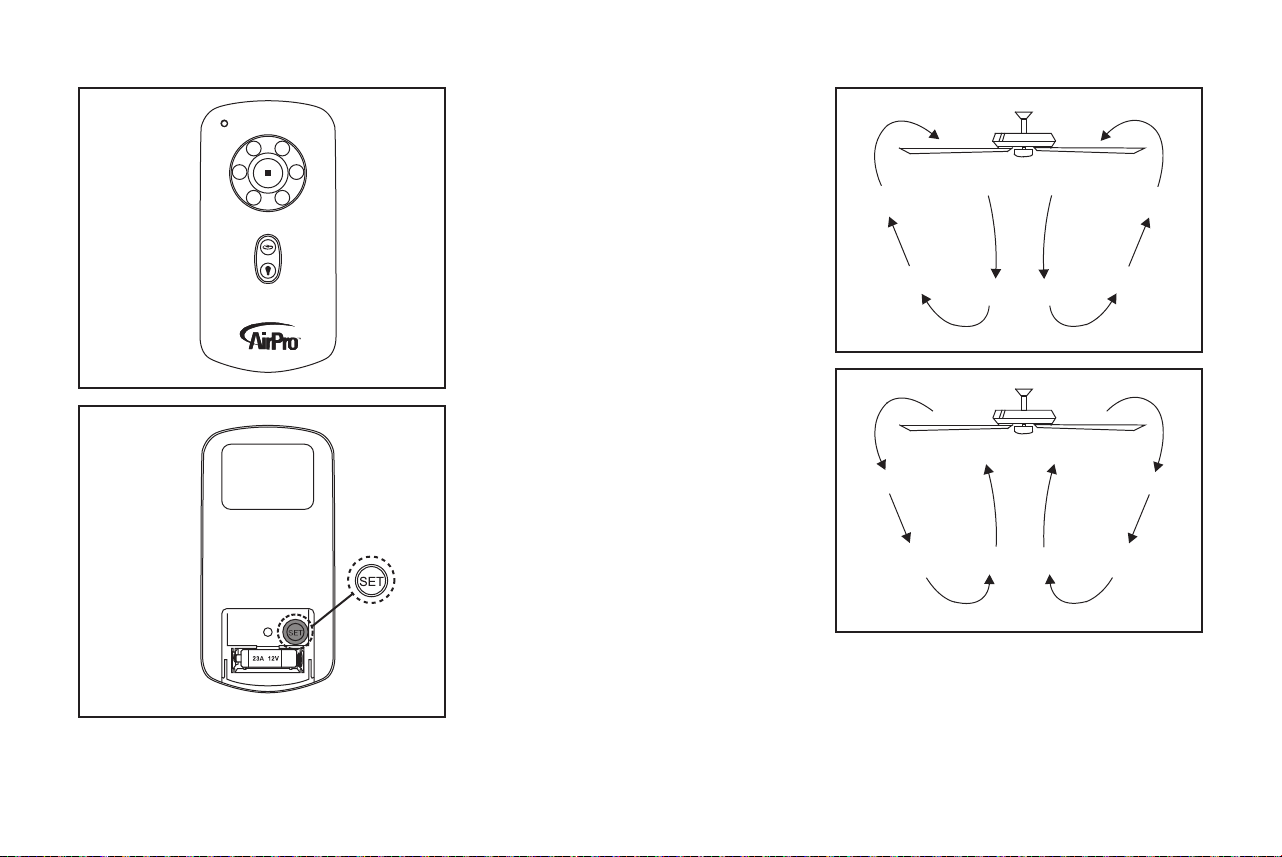

From the back of the transmitter, with the fan’s
power off, restore power to the fan. Press and hold
“SET” button for about 5 seconds and release. If
optional light kit is installed, the light kit will flash
twice and the signal light on the hand held transmitter
will come on when the button is pressed. The fan
has completed the pairing process with the remote
control and is ready for use. (Fig. 19)
NOTE: If the self calibration test failed, turn the
AC power off; restore power and process the self
calibration test again.
NOTE: During self calibration test, the remote is
non-fuctional.
NOTE: The learning frequency function and self
calibration test will continue to retain the last set
frequency and calibration set even when the AC
power is shut off. If the frequency is changed the
self calibration test will occur again.
Over 80W protection: When the receiver detects
motor power consumption which is greater than
80W, the receiver power will be stopped and
operation will immediately discontinue. Wait for 5
seconds and then turn the receiver power back on.
Remote Control Button Definitions:
These six buttons are used to set the fan speed as
follows:
I = minimum speed
II = low speed
III = medium low speed
IV = medium speed
V = medium high speed
VI = high speed
button: Turns the fan off.
button: Controls fan direction.
button: This button is to control optional light
on or off. Press and hold the button to activate the
dimmer function.
Your DC brushless motor is equipped with an
automatically learned type remote control. There are
no frequency switches on the receiver; the receiver
unit will automatically scan the frequency from
the remote control if any changes are made. The
frequency settings on the transmitter should be
changed ONLY in case of interference or if a
second or more ceiling fans with the same type
of control system are installed in the same
structure.
Setting the Remote Control
Follow the below steps to set the remote control:
The auto learning function will only mandate within
60 seconds when turning the fan’s AC power ON.
Operating Your Transmitter 10.

Figure 19
Figure 18
Figure 20
Figure 21
Speed settings for warm or cool weather depend
on factors such as the room size. Ceiling height,
number of fans and so on.
NOTE: To operate the reverse function on this fan,
press the reverse button while the fan is running.
Warm weather - (Forward) A downward airflow
creates a cooling effect as shown in Fig. 20. This
allows you to set your air conditioner on a warmer
setting without affecting your comfort.
Cool weather - (Reverse) An upward airflow moves
warm air off the ceiling area as shown in Fig. 21.
This allows you to set your heating unit on a
cooler setting without affecting your comfort.
I
II
III IV
V
VI
11.

Step 1. Remove the remote control holder cover
from the remote control holder.
Step 2. Attach the remote control holder with the
two remote control holder mounting screw provided.
(Fig. 22)
Step 3. Replace the remote control holder cover
into remote control holder.
Installing the Remote
Control Holder
Here are some suggestions to help
you maintain your fan
1. Because of the fan's natural movement, some
connections may become loose. Check the support
connections, brackets, and blade attachments
twice a year. Make sure they are secure. (It is not
necessary to remove fan from ceiling.)
2. Clean your fan periodically to help maintain
its new appearance over the years. Use only a soft
brush or lint-free cloth to avoid scratching the finish.
The plating is sealed with a lacquer to minimize
discoloration or tarnishing. Do not use water when
cleaning. This could damage the motor or possibly
cause an electrical shock.
3. There is no need to oil your fan. The motor
has permanently lubricated bearings.
IMPORTANT
MAKE SURE THE POWER IS OFF AT THE
ELECTRICAL PANEL BOX BEFORE YOU
ATTEMPT ANY REPAIRS. REFER TO THE
SECTION "MAKING ELECTRICAL
CONNECTIONS"
Remote
Control
Holder
Remote Control
Holder Cover
Screws
Figure 22
Care of Your Fan 12.

Solution
1. Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections in the switch housing.
CAUTION: Make sure main power is off.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub is tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch housing.
CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware are tight. Check that light bulb is also secure.
6. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.
1. Turn the AC power off to fan, and re-do steps for programming on page 9.
2. Do not turn off fan from standard wall switch. Use only our wall switch or your remote to regulate fan.
Problem
Fan will not start.
Fan sounds noisy.
Fan has lost its
programming
repeatedly.
13. Troubleshooting

12.35
lbs
15.72
lbs 2.31'
Fan Size Speed Volts
Amps Watts RPM CFM N.W. G.W. C.F.
55"
Low
High
120
120
These are approximate measures. They do not include Amps and Wattage used by the light kit.
0.04
0.47
2.38
35.06
49
173
1559.47
5465.71
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause undesired operation.
WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate
the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
©2023 Progress Lighting, Inc.
701 Millennium Blvd.,
Greenville, SC 29607
All Rights Reserved Specifications 14.

Manual de Instalación del Ventilador de Techo
P250110
93166076

Fecha de compra
Lugar de compra
N de modelo.
N de serie
Numero de vendedor
UPC
109226
P250110
Garantía limitada de por vida
Se garantiza al comprador original que los motores de los ventiladores de Progress Lighting no presentan defectos mecánicos o
eléctricos por el tiempo durante el cual el comprador original sea dueño del ventilador. Los interruptores de cadena, interruptores
de reversa, capacitores y acabados de metal cuentan con garantía libre de defectos de materiales o mano de obra por 1 año a partir
de la fecha de compra. La deformación de las aspas de plástico o madera no está cubierta por esta garantía, así como tampoco la
corrosión y/o el deterioro de los acabados en el caso de los ventiladores instalados dentro de un radio de 10 millas (16 km) de la
costa del mar. Pueden corresponder garantías extendidas para los productos que cumplen con los requisitos de ENERGY STAR®.
Los ventiladores de techo Progress Lighting con fuentes de iluminación LED incorporadas, cuando se los instala debidamente y
bajo condiciones de uso normales, están garantizados como libres de defectos de materiales y mano de obra que hacen que las
fuentes de iluminación dejen de funcionar de acuerdo con las especificaciones durante (i) cinco (5) años a partir de la fecha de
compra para los módulos de luces LED y los componentes eléctricos para los ventiladores utilizados en residencias unifamiliares,
y (ii) tres (3) años a partir de la fecha de compra para los módulos de luces LED y los componentes eléctricos para los ventiladores
utilizados en aplicaciones comerciales o multifamiliares. Los focos LED suministrados por Progress Lighting no cuentan con
garantía más allá de la garantía del fabricante. Los focos que no son LED no cuentan con garantía.
Con comprobante de compra, el comprador original podrá devolver el ventilador defectuoso al lugar de compra, durante los
primeros 30 días, para su reemplazo. Pasados los 30 días, el comprador original DEBE contactarse con Progress Lighting al (864)
678-1000 para la reparación o el reemplazo, que se determinará a criterio exclusivo de Progress Lighting y será la compensación
única y exclusiva del comprador.
Se excluye la mano de obra y el envío. Esta garantía no cubre los costos o cargos asociados con la mano de obra (incluidos, entre
otros, los honorarios del electricista) necesaria para instalar, quitar o reemplazar el ventilador o cualquiera de sus partes.
Esta garantía no se aplicará a ninguna pérdida o daño que resulte del (i) uso y desgaste normales o de una alteración, uso indebido
o descuido, o de la (ii) instalación, operación, reparación o mantenimiento inadecuados por parte del comprador original o de un
tercero, incluidos, entre otros, suministro de voltaje inadecuado o sobrecarga eléctrica, uso de piezas o accesorios inadecuados,
reparación no autorizada (realizada o que se intentó realizar) o falta de mantenimiento al ventilador.
LAS GARANTÍAS PRECEDENTES ESTABLECEN LA OBLIGACIÓN DE GARANTÍA COMPLETA DE PROGRESS LIGHTING Y LA
COMPENSACIÓN ÚNICA Y EXCLUSIVA DEL COMPRADOR ORIGINAL EN RELACIÓN CON DICHOS PRODUCTOS. PROGRESS
LIGHTING NO ASUME RESPONSABILIDAD POR DAÑOS (INCLUIDOS INDIRECTOS, ESPECIALES, INCIDENTALES O EMERGENTES),
DEBIDO A FALLAS DEL PRODUCTO, YA SEA QUE SURJAN DEL INCUMPLIMIENTO DE LA GARANTÍA, DEL INCUMPLIMIENTO
CONTRACTUAL O DE OTRO MODO. ESTA GARANTÍA REEMPLAZA CUALQUIER OTRA GARANTÍA, YA SEA EXPRESA O
IMPLÍCITA, INCLUSO AQUELLAS DE COMERCIABILIDAD, IDONEIDAD PARA UN FIN EN PARTICULAR O NO INCUMPLIMIENTO.
Algunos estados no permiten limitaciones sobre la duración de una garantía implícita o la exclusión de limitaciones de daños
incidentales o emergentes, de modo que las limitaciones y exclusiones anteriores tal vez no se apliquen a su caso. La presente
garantía le otorga derechos específicos y es posible que usted tenga otros derechos que varían según el estado.
785247257096
785247257089
785247257072

Tabla de Contenido
1.
2.
3.
9.
10.
12.
13.
14.
Normas de seguridad ....................................................................................................................................................
Cómo desembalar el ventilador ....................................................................................................................................
Cómo instalar el ventilador ..........................................................................................................................................
Instalación del kit de luces y la pantalla de vidrio .......................................................................................................
Operando su transmisor ..............................................................................................................................................
Cómo cuidar del ventilador ........................................................................................................................................
Resolución de problemas ...........................................................................................................................................
Especificaciones .........................................................................................................................................................
