Proluxe DPR2000 User manual

Operations Manual
DPR2000 - Single Pass Dough Sheeter
Model #: DPR2000









WWW.PROLUXE.COM

Version: 51719

DOUGHPROTM
Take Your Dough Production To The Next Level

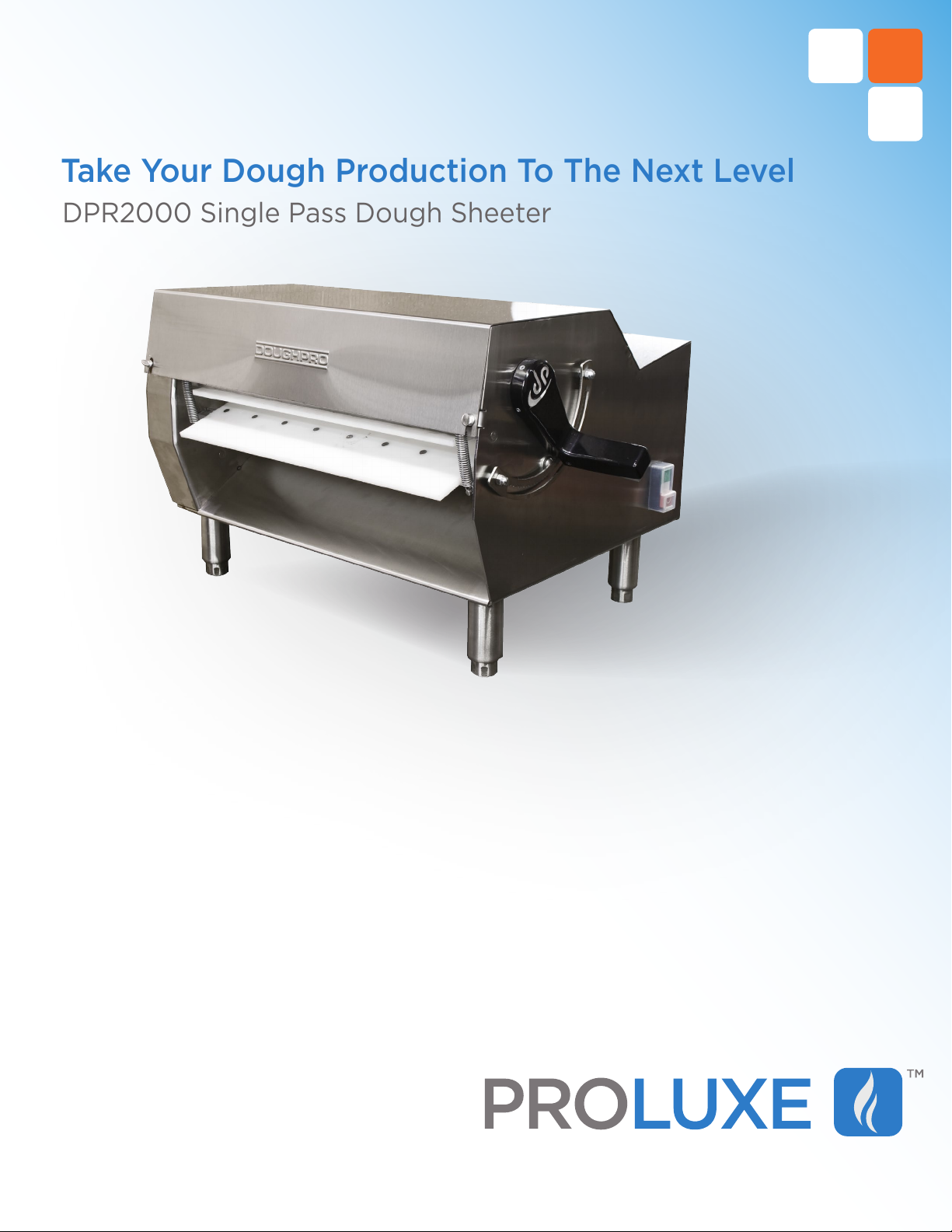

DPR2000 Single Pass Dough Sheeter
formerly DoughPro. New Name. Same Quality. Superior Service.
proluxe.com
Every professional pizza kitchen must have the ProLuxe DPR2000 Single Pass Dough Sheeter. is fully-mechanical, high-
production piece attens product in only one pass. e heavy duty stainless steel construction gives you condence that your
product will be perfect every time, and the maintenance free drive system improves your operation eciency. e compact size
ts just about anywhere. Great for operators who prefer sheeting dough versus pressing, the DPR2000 rolls all size dough up to
and including 18” diameter.
Features
• Highproduction.
• 1-passoperation.
• icknesscontrol.
• Easytoclean
In addition to the quality execution and unique customization capabilities, our expert technical support team supports the
ProLuxe DPR2000. We are available 24 hours a day/7 days a week to answer any questions and provide you with great,
no-debate service support.

DOUGHPROTM
Take Your Dough Production To The Next Level
DPR2000 Single Pass Dough Sheeter
20281 Harvill Ave | Perris, CA 92570
t: [phone] | t: [phone] | f: [phone]
w: www.proluxe.com | e: [e-mail]
17.5
16.3
23.8
26.9
23.5
TOP VIEW
FRONT VIEW RIGHT SIDE VIEW
ON/OFF Switch Yes Electrical Data
DPR2000A - 115v/60hz
8.80 amps - NEMA 5-15P
DPR2000B - 208v - 230v/60hz
4.40 amps - NEMA 6-15P
DPR2000CEB - (Europe) 230v/50hz
4.40 amps - CEE 7/7 plug
Rollers Synthetic or
Stainless Steel
Bearings Sealed
Thickness Adjustment Yes Shipping Weight
176lbs/79kg
Machine Weight
142lbs/64kg
Finish Stainless
Motor 3/4 Hp
Power cord length 72”
Listed:

DPR2000 Operations Instructions
Step 1.
Turn the unit on by pressing the green power button.
Step 2.
Adjust the thickness of the rollers by rotating the
easy adjust arm on the right side of the unit.
Step 3.
Pre flour the hopper to make sure the rollers have been
coated. Apply a liberal amount of flour to your
pre-portioned dough ball.
Step 4.
Slide your dough ball through the hopper, and catch on
other end. You may have to run your dough ball through
multiple times to achieve your desired thickness.

DPR2000 Cleaning Instructions
Important: Please make sure the DPR2000 is off and unplugged before cleaning.
Step 1.
Loosen the 2 housing screws on the front panel of the machine. Then lift up the front panel.
Step 2.
It is Important that you remember how the two scrapers that are going to removed are positioned
inside the unit. Start by removing the two springs off of the lower scraper. The scrapers are now free
and can be removed.
Step 3.
Clean the rollers, scrapers and housing with a damp cloth then dry with cloth.
Step 4.
Re-attach the scrapers and springs.
Step 5.
Lower the front panel and tighten the two housing screws.

EXPDPR2000 RD 011819
CETEC MANUAL SHEET 1 OF 3
79
72X
75
5
3
28 4X
25
4X 24
4X
14X
24X
52
4X
20 4X
53
4X
27
23
33
29
EXPDPR2000

EXPDPR2000 RD 011819
CETEC MANUAL SHEET 2 OF 3
47 49 39
38
39
1
46
51
47
50
48
11
39
38
39 41 43
42
40
11
22 2X
17 2X
80 2X
10
59 3X
20 77
6
44
45
59
20
61
62
21
37
35
34
17 2X
22 2X
10
55 4X
58 4X
32
59
2036
63
77 20
EXPDPR2000
66

EXPDPR2000 RD 011819
CETEC MANUAL SHEET 3 OF 3
89
76
78 2X
60
21
2X
67 2X
12 2X
26
81
80
80
45
8X
45
8X
21
21
79
79
80
80
83
75
2X
16 2X
SCALE 1 : 2
A
58
4X
74
19
57
4
13
31
3X 56
4X 55
2X 58
2X
30
2X 56
DETAIL
56
15
61
54
7X
54
9X
81
64
65
18
14
EXPDPR2000
A

PARTSLISTFORMODELDPR2000
ITEM
NO. DESCRIPTION DPR2000A DPR2000B QTY.
1 APPLIANCELEGS4"STAINLESSSTEEL 1101097091 1101097091 4
2 RUBBERFOOT 1101097096 1101097096 4
3 GROMMET,RUBBER3/8ID,7/8"OD,3/16THIK 110969116 110969116 1
4 BRACKET,RELAY 1101097080 1101097080 1
5 THREADEDSPACER 1101097074 1101097074 2
6 BELTGUARD 11059052 11059052 1
7 NUTCOUPLING5/16‐18X1‐1/8 1101097094 1101097094 2
8 ADJUSMENTPLATE 1101097119 1101097119 1
9 HANDLEADJUSMENTASSEMBLY 1101097118 1101097118 1
10 PROXIMITYSWITCHSENSOR 1101097082 1101097082 2
11 MIDDLEROLLERSPACER 1101097105 1101097105 2
12 THUMBSCREWWITHSHOULDER 1101097086 1101097086 2
13 RELAY,TERMS30A250V 1101097081 1101097081 1
14 STRAINRELIEF MPS90014 MPS90014 1
15 TERMINALBLOCK#1SINGLE 6991 6991 1
16 SCREW,PANHEADPHILLIPS8‐32X5/8 SP83258 SP83258 2
17 NUT,HEX4‐40 NH440 NH440 4
18 POWERCORD 110969174 110969175 1
19 NUT,HEX10‐32 NH1032 NH1032 1
20 WASHER,SAE5/16 WSAE516 WSAE516 8
21 NUT,HEX1/4‐20 NH1420 NH1420 5
22 WASHER,INTERNALTOOTHLOCK#6 WLIT6 WLIT6 4
23 MOTORBASE 110623006 110623006 1
24 WASHER3/8SPLITLOCK WL38 WL38 4
25 WASHER,SAE3/8 WSAE38 WSAE38 4
26 START‐STOPCOMBINATIONBUTTON,W/EXTENDEDSTOP 1101097083 1101097083 1
27 GEARMOTORASSEMBLY120VOLTUSMOTOR 1101097134 1101097134 1
28 BOLT,HEX3/8‐16X1STAINLESSSTEEL BH38161S BH38161S 4
29 CONNECTOR,1/2"MALEX3/8"CLAMP 100455167 100455167 1
30 SCREW,PANHEADPHILLIPS8‐32X5/8 SP83258 SP83258 2
31 SCREW,PANHEADPHILLIPS10‐32X3/8 SP103238 SP103238 1
32 PULLEY,GUIDINGIDLERASSEMBLY 11059504 11059504 1
33 PAD,VIBRATIONDAMPENING 1101745768001 1101745768001 1
34 TENSIONERBARASSEMBLY 1101097009 1101097009 1
35 PULLEY,IDLERTENSIONERASSEMBLY 1101097123 1101097123 1
36 PULLER,IDLERASSEMBLY 1101097124 1101097124 1
37 PULLEY,MOTOR 1101097125 1101097125 1
38 TOPROLLERASSEMBLY 1101097021 1101097021 2
39 DOUBLESEALEDBEARING 1101097026 1101097026 4
40 MIDDLEROLLERSHAFT 1101097033 1101097033 1
41 MIDDLERROLLERBRACKETASSEMBLY 1101097034 1101097034 1
42 PULLEY,MIDDLERROLLER 1101097126 1101097126 1
43 PLASTICGUARD 1101097103 1101097103 2
44 MIDDLEFRONTSCRAPER#3SPRINGPIN 1101097064 1101097064 1
45 1/4‐20SERRATEDHEXNUT NHSF1420 NHSF1420 18
46 TOPCONCENTRICBRACKETASSYDPR2000 110100110 110100110 1
47 PIN,ROLL3/16X11/4 PR316114 PR316114 2
48 UPPERROLLERSHAFT 1101097027 1101097027 1
49 RIGHTSIDECAM 1101097029 1101097029 1
50 LEFTSIDECAM 1101097030 1101097030 1
51 PULLEY,ROLLERUPPER 1101097127 1101097127 1
52 BOLT,HEX5/16X1‐1/4STAINLESSSTEEL BH51618114S BH51618114S 4
53 WASHER,5/16"SPLITLOCK WL516 WL516 4
54 SCREW,BUTTONHEAD1/4‐20X1/2STAINLESSSTEEL SB142012S SB142012S 17
55 WASHER,SAE#8 WSAE8 WSAE8 8
56 WASHER,INTERNALTOOTHLOCK#8 WLIT8 WLIT8 7
57 SCREW,PANHEADPHILLIPS8‐32X3/4STAINLESSSTEEL SP83234S SP83234S 1
58 NUT,HEX8‐32 NH832 NH832 10
59 SCREW,BUTTONHEAD5/16‐18X1/2 SB5161812 SB5161812 3
60 TOPROLLERGAUGEDECAL DP110109720T DP110109720T 1
61 SIDECOVER 11059508 11059508 1
62 SPRING,EXTENSION12"O.D.X3.0"LONGX1/16"THK SE123116 SE123116 1
63 BELT,VTYPE1/2"WIDEX5/16"THICKX43"LONG BV1251643 BV1251643 1
64 SLIDINGPLATE11059509 11059509 1
65 SAFETYCOVERASSEMBLY 11059506 11059506 1
66 SCREW,SET1/4‐20X3/4" SST142034 SST142034 1
PLDPR2000RD011819CUSTOMERMANUAL

PARTSLISTFORMODELDPR2000
67 NUT,ACCORN1/4‐20NICKLEPLATE NA1420 NA1420 2
68 LOWERFRONTSCRAPER#3SUBASSEMBLY 11017770517 11017770517 1
69 MIDDLEFRONTSCRAPER#3BAR 1101097063 1101097063 1
70 ANGULARWELDSTUDFORSCRAPER#2 1101097101 1101097101 2
71 SCRAPER,TENSIONSPRING 1101097052 1101097052 4
72 TOPFRONTSCRAPER#2SUBASSEMBLY 11017770513 11017770513 1
73 TOPFRONTSCRAPER#2BAR 1101097057 1101097057 1
74 WASHER,INTERNALTOOTHLOCK#10 WLIT10 WLIT10 1
75 THREADEDSPACER,DPR2000 11059503 11059503 1
76 SCREW,SET1/4‐20X1/2 SST142012 SST142012 1
77 SCREW,BUTTONHEAD5/16‐18X3/4 SB5161834 SB5161834 4
78 SCREW,SET1/4‐20X3/8 SST142038 SST142038 2
79 FRAMEWELDINGASSEMBLYDPR2000 11059501 11059501 1
80 SCREW,ROUNDHEAD4‐40X1/2" SR44012 SR44012 2
81 COVER,BACK 11059507 11059507 1
A1 GEARMOTORKITASSEMBLY1105797120 1105797120 1
A2 TOPROLLERASSEMBLY 11059505 11059505 1
A3 MIDDLEROLLERASSEMBLY 1101097130 1101097130 1
A4 MIDDLEFRONTSCRAPER#3ASSEMBLY 11017770516 11017770516 1
A5 TOPFRONTSCRAPER#2ASSEMBLY 11017770512 11017770512 1
PLDPR2000RD011819CUSTOMERMANUAL

Warranty & Return Policy
Proluxe warrants all products manufactured by it against defects in workmanship or materials from the date of purchase for a period of
(1) year on parts and labor. This warranty applies to only equipment purchased and used in the United States. Warranty period
shall begin when equipment ships. Warranty travel shall only be covered for 60 miles. Limited lifetime warranty on heating
elements.
ALL WARRANTY SERVICE CALLS MUST BE APPROVED BY PROLUXE. IF THIS PROCEDURE IS NOT FOLLOWED,
WARRANTY SERVICE WILL NOT BE COVERED. WARRANTY SERVICE WILL BE PAID ON STRAIGHT TIME, OVERTIME WILL
NOT BE COVERED.
Exclusions:
1. WOOD / GAS FIRED OVENS: PROLUXE warranty applies to the main body of the oven being steel / refractory and insulation shall
be free from defects in materials and workmanship for a period of four years from the date of purchase. The gas equipment shall be
free from defects in materials and workmanship for a period of one (1) year
from the date of purchase. Lifetime warranty against cracks on oven floor.
2. Air compressors are excluded from this warranty, but PROLUXE may act as a warranty expeditor in certain instances regarding
these compressors. The air compressor manufacturer provides a limited warranty
and a copy of this warranty is furnished with all compressors sold by PROLUXE. For prompt handling of compressor warranty claims
the instructions of the compressor manufacturer must be adhered to.
3. Equipment built to special order as well as accessories cannot be canceled and are not returnable unless defective within the
terms of this warranty.
4. In no event shall PROLUXE be liable for consequential damages arising out of the failure of any of its products if operated
improperly, altered or caused by normal wear or damage by operator abuse.
5. BC2325 pedestal warranty disclaimer: Pedestals shall only be covered under warranty if they have been cleaned using the factory
approved cleaning method. Cracked or damaged pedestals must be inspected by the factory before warranty is authorized.
6. Limited lifetime warranty on heating elements: If replacement is needed, Proluxe will send the new part at no charge but labor will
not be covered unless the unit is still under the 1 year manufacture warranty.
Returned Merchandise Policy:
Should it become necessary to return any of the company’s products, the following instructions must be adhered to: First,
contact our customer service department for approval and a return authorization number. Please have the serial number
of your item available at that time. All merchandise must be shipped freight prepaid by customer or service agency.
Subject to the inspection of the product by the company, a restocking charge of 20% of the Net purchased price paid to
PROLUXE will be assessed. Merchandise may not be returned for credit without prior written approval of PROLUXE. Collect shipments
will not be accepted. No returns after 60 days of original shipment date on machines. Purchased parts may not be returned after 30
days.
If upon inspection by PROLUXE or its authorized agent it is determined the equipment has not been used in an appropriate manner,
has been modified, or has not been properly maintained, or has been subject to misuse,
misapplication, neglect, abuse, accident, unauthorized modification, damage during transit, delivery, fire, flood, act or war,
riot or act of God, then this warranty shall be deemed null and void.
Terms & Conditions:
1. Prices indicated in the PRICE LIST are suggested retail prices and are shown in U.S. DOLLARS.
2. Terms of Payment: NET 30 days.
3. NEW ACCOUNTS: Satisfactory credit information must be provided before open account status can be extended.
Unless agreed otherwise, all shipments will be made C.O.D., CASH IN ADVANCE.
4. PRICING: Prices, specifications, model numbers, capacities and accessories are subject to change without notice.
5. FREIGHT / ROUTING: Method of shipment will be determined by PROLUXE unless otherwise
advised by PURCHASER.
6. DAMAGED CLAIMS: All merchandise shipped at purchaser’s risk. Inspection must be made by purchaser at time
goods are received. If goods are damaged, the PURCHASER shall request that the agent of the transportation
company make a written notation on the proper shipping documents immediately and then file a claim for damage.
GOODS DAMAGED IN SHIPMENT ARE NOT RETURNABLE.
7. RETURNS: Machines may not be returned after 60 days. Purchased parts may not be returned after 30 days. A
restocking fee of 20% will be assessed on non-warranty returns.
8. TAXES: Prices indicated herein DO NOT include State, Federal, Local or foreign taxes or duties, nor do they include
fees, permits, insurance or other levies, all of which are the responsibility of the purchaser.
9. All orders are subject to acceptance by PROLUXE.
10. Possession of this price list shall not be considered an offer to sell.
Rev 12916
