Proluxe DPR3000 User manual

Operations Manual

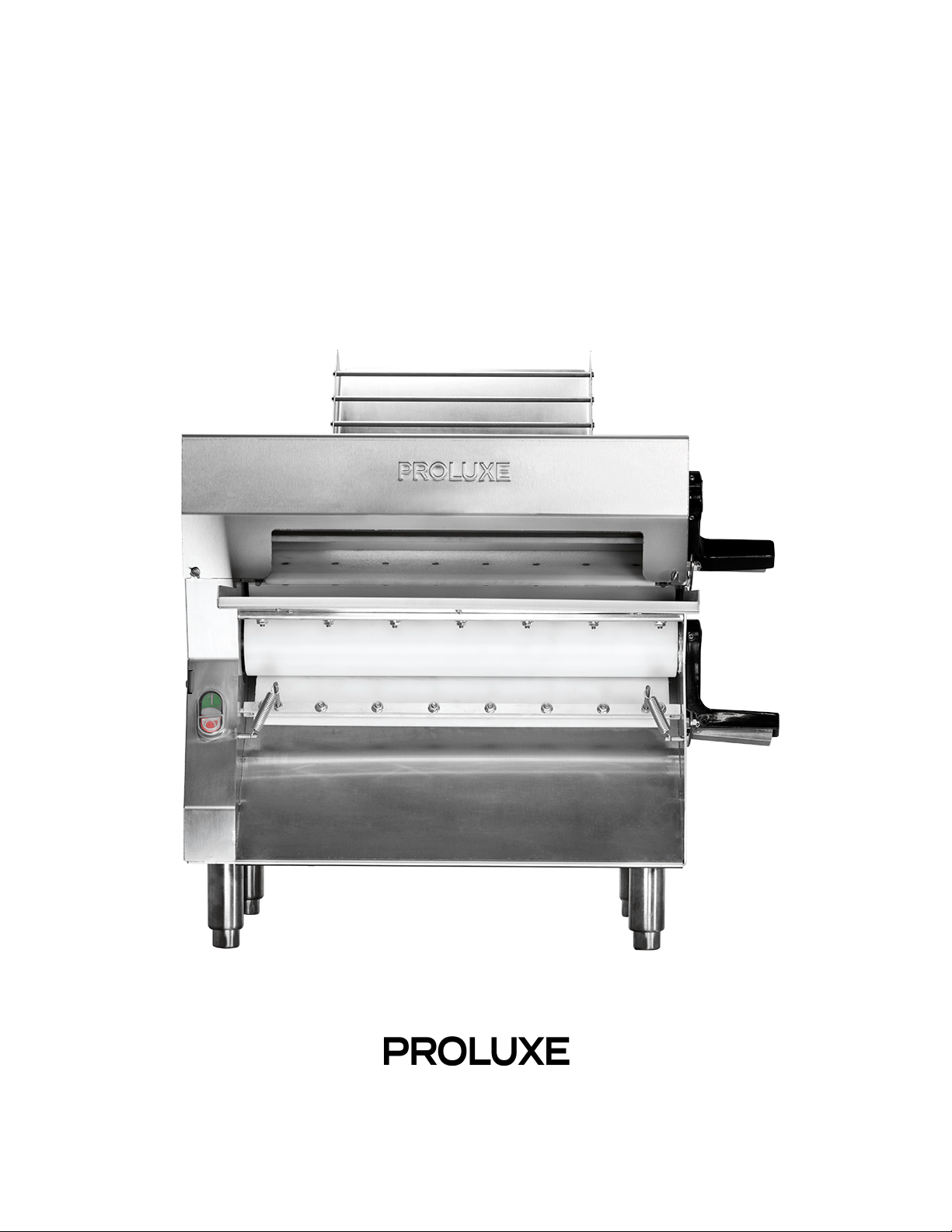

DPR3000 - Dual Pass Dough Sheeter
Model #: DPR3000








WWW.PROLUXE.COM

Version: 51719

Congratulations on your selection of
the Dual Pass Dough Sheeter is a
leading manufacturer of food
preparation and cooking equipment
designed for the most demanding
commercial kitchens. Proluxe
equipment is a result of the highest
quality engineering and time-tested
design.

This manual includes installation,
operation, and maintenance
procedures for your new dough
sheeter. Please read this manual
carefully and keep it with your
machine and is the key to proper
operation and lasting service.


Electrical:
208V/50-60Hz/2800W/13.5 Amps
1 phase

Also available; specify when ordering:
●Voltage: 208
●Amps: 13.5/14.2
●Watts: 2800

Includes: 72” cord and 6-30P NEMA
approved plug.

Shipping Weight:
88lbs. (39kg)



G E T T I N G S T A R T E D

Please read carefully before attempting to
use this appliance. DO NOT touch hot
surfaces.

1. Carefully unpack and clean platen
with mild soap and wipe clean with
water.

2. Place in location where it will be used
allowing for clearances per the
dimensions.

3. Plug into proper 208V wall outlet. If
other appliances are connected to
the same circuit make sure the total
load does not exceed maximum
ampacity of the circuit.


H O W T O O P E R A T E

Guidelines for operating your new dough
roller safely:

1. Using pre-portioned dough balls,
place a small amount of flour in the
hopper and on the receiving table.
2. 
3. Place the dough ball in the hopper.

4. Pass 1: The dough ball will be
partially flattened and oblong.

5. Pass 2: Rotate the dough 90º and
place flattened dough through the
hopper again.

6. Place your final product directly onto
a pan, screen or peel.

1


H O W T O C L E A N 

Proluxe machines are relatively maintenance
free. For a long lifespan, please follow the
following care procedures.

1. Unplug the unit before cleaning.

2. Loosen the screws to open the safety
shield.

3. Detach springs at each end.

4. Remove all scapers.

5. Clean rollers, scrapers, tray, and
machine housing with mild soap and
wipe clean with a damp cloth.

6. Re-attach the scrapers and springs.

7. Tighten the screws on the safety
shield.

Service Problems
Contact our factory at [phone] (U.S.
only) or approved service agency. When
contacting the factory for information, parts
or service instructions, please provide the
serial number of the machine be provided.
This number can be found on the serial plate
located on the rear of the machine.































2

3

4

5



6

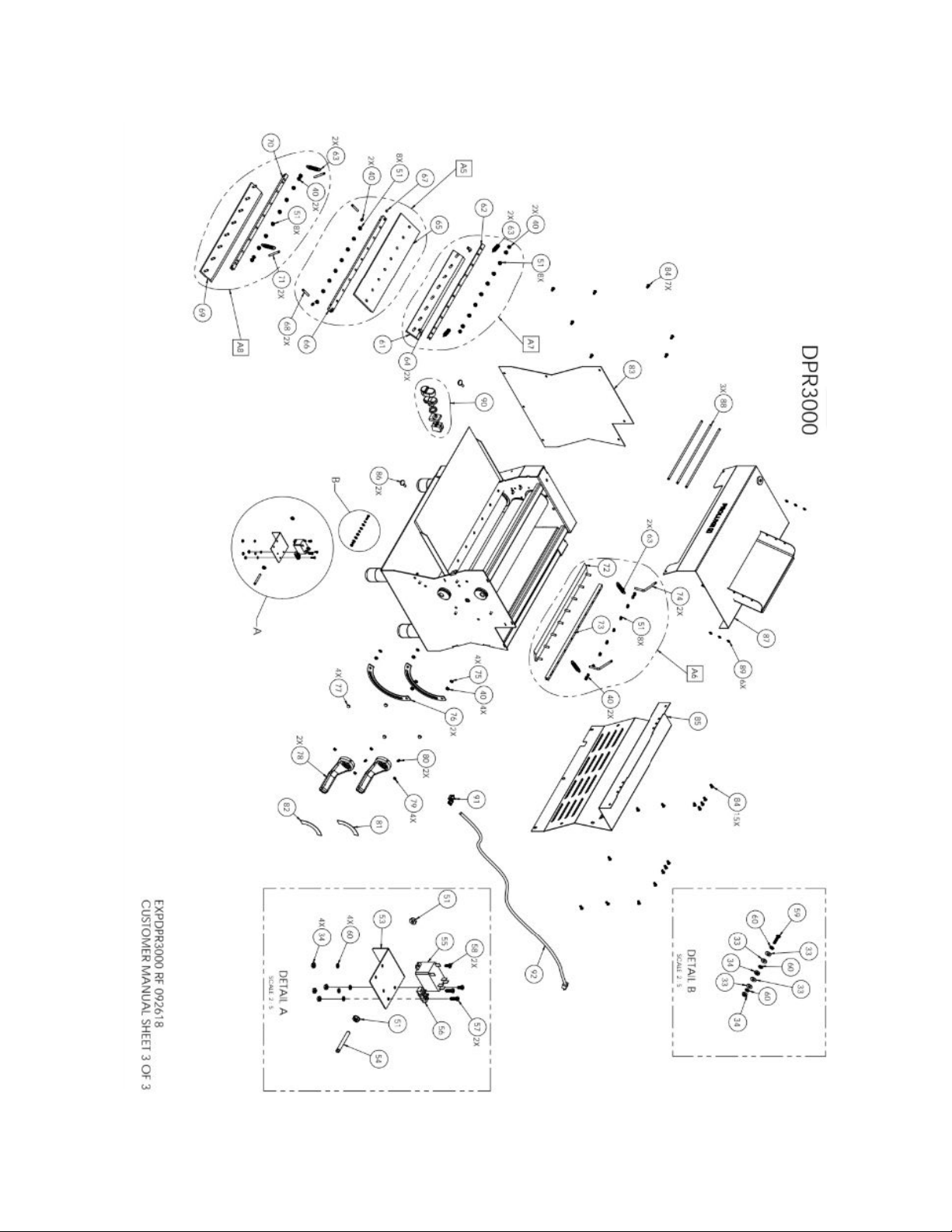

Part List - Model #: DPR3000


ITEM
#
DESCRIPTION
DPR3000A
(120V)
DPR3000MEA
(120V)
DPR3000B
(240V)
QTY.
1
ADJUSTABLE LEG
1101097091
1101097091ME
1101097091
4
2
DOUGH ROLLER WELDING ASSEMBLY
11017457610
11017457610
11017457610
1
3
RUBBER FOOT
1101097096
1101097096
1101097096
4
4
PAD, VIBRATION DAMPENING
1101745768001
1101745768001
1101745768001
1
5
MOTOR BASE
110623006
110623006
110623006
1
6
GEAR MOTOR ASSEMBLY 120 VOLT US
MOTOR
1101097134
1101097134
1101097134
1
7
WASHER, SAE 5/16
WSAE516
WSAE516
WSAE516
9
8
WASHER, LOCK 5/16
WL516
WL516
WL516
4
9
HEX BOLT 5/16-18 X 3/4 STAINLESS
STEEL
BH5161834S
BH5161834S
BH5161834S
4
10
GROMMET
110969116
110969116
110969116
2
11
WASHER, LOCK 3/8
WL38
WL38
WL38
4
12
WASHER, SAE 3/8
WSAE38
WSAE38
WSAE38
4
13
HEX BOLT 3/8-16 X 1 STAINLESS STEEL
BH38161S
BH38161S
BH38161S
4
14
THREADED SPACER
1101097074
1101097074
1101097074
2
15
WASHER, CUT 5/16
WC516
WC516
WC516
5
16
SCREW, BUTTON HEAD 5/16-18 X 3/4
SB5161834
SB5161834
SB5161834
6
17
HEX COUPLING 5/16-18 X 1-1/8
1101097094
1101097094
1101097094
4
18
CONNECTOR, 1/2" MALE X 3/8" CLAMP
100455167
100455167
100455167
1
19
TOP ROLLER SUB ASSEMBLY
1101097021
1101097021
1101097021
3
20
DOUBLE SEALED BEARING
1101097026
1101097026
1101097026
6
21
TOP ROLLER BRACKET
1101097023
1101097023
1101097023
1
22
PLASTIC GUARD
1101097103
1101097103
1101097103
3
23
PULLEY, ROLLER UPPER AND LOWER
1101097127
1101097127
1101097127
2
24
LEFT SIDE CAM
1101097030
1101097030
1101097030
2
25
RIGHT SIDE CAM
1101097029
1101097029
1101097029
2
26
PIN, ROLL 3/16 X 1-1/4
PR316114
PR316114
PR316114
4
27
UPPER & LOWER ROLLER SHAFT
1101097027
1101097027
1101097027
2
28
MIDDLE ROLLER SHAFT
1101097033
1101097033
1101097033
1
29
MIDDLE ROLLER BRACKET ASSEMBLY
1101097034
1101097034
1101097034
1
7

30
PULLEY, MIDDLE ROLLER
1101097126
1101097126
1101097126
1
31
MIDDLE ROLLER SPACER
1101097105
1101097105
1101097105
2
32
BOTTOM ROLLER BRACKET
1101097036
1101097036
1101097036
1
33
WASHER, SAE #8
WSAE8
WSAE8
WSAE8
10
34
NUT, HEX 8-32
NH832
NH832
NH832
12
35
PULLEY, MOTOR
1101097125
1101097125
1101097125
1
36
SCREW, SET 1/4-20 X 3/4
SST142034
SST142034
SST142034
1
37
PULLEY, IDLER ASSEMBLY
1101097124
1101097124
1101097124
1
38
PULLEY, IDLER TENSIONER ASSEMBLY
1101097123
1101097123
1101097123
1
39
TENSIONER BAR ASSEMBLY
1101097009
1101097009
1101097009
1
40
NUT, HEX 1/4-20
NH1420
NH1420
NH1420
13
41
SCREW, BUTTON HEAD 1/4-20 X 1/2
SB142012
SB142012
SB142012
1
42
SPRING, EXTENSION 1/2" O.D. X 3.0"
LONG X 1/16" THICK
SE123116
SE123116
SE123116
1
43
BELT, V-TYPE 1/2" WIDE X 5/16" THICK X
48" LONG
BV1251648
BV1251648
BV1251648
1
44
BELT GUARD
11017457604
11017457604
11017457604
1
45
PROXIMITY SWITCH SENSOR
1101097082
1101097082
1101097082
2
46
NUT, HEX 4-40
NH440
NH440
NH440
4
47
SCREW, ROUND HEAD 4-40 X 1/2"
SR44012
SR44012
SR44012
2
48
SCREW, BUTTON HEAD 5/16-18 X 1/2
SB5161812
SB5161812
SB5161812
4
49
IN-TAKE TRAY SHELF SUB ASSEMBLY
1101097037
1101097037
1101097037
1
50
INTAKE TRAY
1101097040
1101097040
1101097040
1
51
NUT, SERRATED FLANGED HEX, 1/4-20
NHSF1420
NHSF1420
NHSF1420
41
52
SCREW, SHEET METAL #8 X 5/16, HEX
WASHER HD SLOTTED
SMS8516
SMS8516
SMS8516
6
53
RELAY BRACKET
1101097080
1101097080
1101097080
1
54
PIN, TENSION SPRING
1101097079
1101097079
1101097079
1
55
RELAY, TERMS 30A 250V
1101097081
1101097081
1101097081
1
56
TERMINAL, BLOCK #1 SINGLE
6991
6991
6991
1
57
SCREW, PAN HEAD PHILLIPS 8-32 X 5/8
SP83258
SP83258
SP83258
2
58
SCREW, PAN HEAD PHILLIPS 8-32 X 3/8
SP83238
SP83238
SP83238
2
59
SCREW, PAN HEAD PHILLIPS 8-32 X 3/4
STAINLESS STEEL
SP83234S
SP83234S
SP83234S
1
60
WASHER, INTERNAL LOCK #8
WLIT8
WLIT8
WLIT8
7
61
TOP FRONT SCRAPER #2 SUB ASSEMBLY
1101097056
1101097056
1101097056
1
62
TOP FRONT SCRAPER #2 BAR
1101097057
1101097057
1101097057
1
8

63
EXTENSION SPRING SCRAPER
1101097052
1101097052
1101097052
6
64
ANGULAR WELD STUD MACHINED
1101097101
1101097101
1101097101
2
65
MIDDLE FRONT SCRAPER #3 SUB
ASSEMBLY
1101097062
1101097062
1101097062
1
66
MIDDLE FRONT SCRAPER #3 BAR
1101097063
1101097063
1101097063
1
67
MAGNET DISC 1/4" DIA
110601065
110601065
110601065
1
68
MIDDLE FRONT SCRAPER #3 SPRING PIN
1101097064
1101097064
1101097064
2
69
BOTTOM FRONT SCRAPER #4 SUB
ASSEMBLY
1101097069
1101097069
1101097069
1
70
BOTTOM FRONT SCRAPER #4 BAR
1101097070
1101097070
1101097070
1
71
SPRING PIN FOR #4 SCRAPER
1101097071
1101097071
1101097071
2
72
BACK SCRAPER #1 SUB ASSEMBLY
1101097049
1101097049
1101097049
1
73
BACK SCRAPER #1 BAR
1101097050
1101097050
1101097050
1
74
BACK SCRAPER #1 SPRING PIN
1101097051
1101097051
1101097051
2
75
WASHER, SAE 1/4
WSAE14
WSAE14
WSAE14
4
76
ADJUSTMENT PLATE
1101097119
1101097119
1101097119
2
77
NUT, ACCORN 1/4-20 NICKLE PLATE
NA1420
NA1420
NA1420
4
78
HANDLE ADJUSTMENT ASSEMBLY
1101097118
1101097118
1101097118
2
79
SCREW, SET 1/4-20 X 3/8
SST142038
SST142038
SST142038
4
80
SCREW, SET 1/4-20 X 1/2
SST142012
SST142012
SST142012
2
81
TOP ROLLER GAGE DECAL
DP110109720T
DP110109720T
DP110109720T
1
82
BOTTOM ROLLER GAGE DECAL
DP110109720B
DP110109720B
DP110109720B
1
83
COVER, LEFT SIDE
11017457602
11017457602
11017457602
1
84
SCREW, BUTTON HEAD 1/4-20 X 1/2
STAINLESS STEEL
SB142012S
SB142012S
SB142012S
22
85
BACK COVER
1101097131
1101097131
1101097131
1
86
THUMB SCREW WITH SHOULDER
1101097086
1101097086
1101097086
2
87
SAFETY COVER ASSEMBLY
11017457603
11017457603
11017457603
1
88
SAFETY BAR
1101097044
1101097044
1101097044
3
89
E-CLIP 1/4"
1101097045
1101097045
1101097045
6
90
START-STOP COMBINATION BUTTON,
W/EXTENDED STOP
1101097083
1101097083
1101097083
1
91
STRAIN RELIEF
MPS90014
MPS90014
MPS90014
1
92
POWER CORD
110969174
110969174
110969175
1
93
HARNESS, MAGNETIC START/STOP
1101745765084
1101745765084
1101745765084
1
94
CABLE SOOW 16/2
1101745765006
1101745765006
1101745765006
2.3
FT
9

95
CABLE 14/3 BLACK SJOW
1101745765000
1101745765000
1101745765000
2 FT
96
TIE CABLE 4" BLACK
CT003E
CT003E
CT003E
6
97
CABLE TIE HOLDER ADHESIVE BACK
1101169113
1101169113
1101169113
5
98
DECAL DISCONNECT POWER, SUPPLY
DP1101097098
DP1101097098
DP1101097098
1
99
MANUAL DPR3000
MDPR3000
MDPR3000
MDPR3000
1
A1
GEAR MOTOR KIT ASSEMBLY
110579120
110579120
110579120
1
A2
ROLLER, TOP ASSEMBLY
1101097129
1101097129
1101097129
1
A3
ROLLER, MIDDLE ASSEMBLY
1101097130
1101097130
1101097130
1
A4
ROLLER, BOTTOM ASSEMBLY
1101097128
1101097128
1101097128
1
A5
MIDDLE FRONT SCRAPER, #3 ASSEMBLY
1101097059
1101097059
1101097059
1
A6
BACK SCRAPER, #1 ASSEMBLY
1101097046
1101097046
1101097046
1
A7
TOP FRONT SCRAPER, #2 ASSEMBLY
1101097053
1101097053
1101097053
1
A8
BOTTOM FRONT SCRAPER, #4
ASSEMBLY
1101097066
1101097066
1101097066
1




















10

Warranty & Return Policy


Proluxe warrants all products manufactured
by it against defects in workmanship or
materials from the date of purchase for a
period of 1 year on parts and labor. This
warranty applies to only equipment
purchased and used in the United States.

Warranty period shall begin when equipment
ships. Warranty travel will only be covered
for 60 miles.

ALL WARRANTY SERVICE CALLS MUST BE
APPROVED BY PROLUXE. IF THIS
PROCEDURE IS NOT FOLLOWED,
WARRANTY SERVICE WILL NOT BE
COVERED. WARRANTY SERVICE WILL BE
PAID ON STRAIGHT TIME, OVERTIME
WILL NOT BE COVERED.

Service Calls
Contact our factory to obtain warranty
service. Proluxe must issue a return
authorization number, and call tag, or find
the name and location of a Factory
Authorized Service Center nearest you.
When calling for service, please furnish the
model number, serial number, and a
description of the problem.


E X C L U S I O N S

The warranties provided by Proluxe DO
NOT apply to the following:

●Damage due to misuse, abuse,
alteration, or accident.
●Improper or unauthorized repairs.
●Submerged in water.
●Damaged in shipment.
●Equipment exported to foreign
countries.

Special Order Equipment and
Accessories
Cannot be canceled and are not returnable
unless defective within the terms of this
warranty.
In no event shall Proluxe be liable for
consequential damages arising out of the
failure of any of its products if operated
improperly or caused by normal wear or
damaged by operator abuse.

Limited Lifetime Warranty on
Heating Elements
If replacement is needed, Proluxe will send
the new part at no charge but labor will not
be covered unless the unit is still under the 1
year manufacturer warranty.


R E T U R N E D M E R C H A N D I S E
P O L I C Y

Should it become necessary to return any of
the company’s products, the following
instructions must be adhered to: First,
contact our customer service department for
approval and a return authorization number.
Please have the serial number of your item
available at that time. All merchandise must
be shipped freight prepaid by customer or
service agency. Subject to the inspection of
the product by the company, a restocking
charge of 20% of the Net purchased price
paid to Proluxe will be assessed.
11

Merchandise may not be returned for credit
without prior written approval of Proluxe.

Collect shipments will not be accepted. No
returns after 60 days of original shipment
date on machines. Purchased parts may not
be returned after 30 days. If upon inspection
by Proluxe or its authorized agent it is
determined the equipment has not been used
in an appropriate manner, has been modified,
or has not been properly maintained, or has
been subject to misuse, misapplication,
neglect, abuse, accident, unauthorized
modification, damage during transit, delivery,
fire, flood, act or war, riot or act of God, then
this warranty shall be deemed null and void.


T E R M S & C O N D I T I O N S

1. Price List prices are suggested retail prices
and are shown in U.S. Dollars.

2. Terms of Payment: 1% 10 days, NET 30
days.

3. New Accounts: Satisfactory credit
information must be provided before open
account status can be extended.

Unless agreed otherwise, all shipments will
be made C.O.D., Cash in advance.

4. Pricing: Prices, specifications, model
numbers, capacities and accessories are
subject to change without notice.

5. Freight/Routing: Method of shipment will
be determined by Proluxe unless otherwise
advised by purchaser.

6. Damaged Claims: All merchandise shipped
at purchaser’s risk. Inspection must be made
by purchaser at time goods are received. If
goods are damaged, the PURCHASER shall
request that the agent of the transportation
company make a written notation on the
proper shipping documents immediately and
then file a claim for damages.

Note  : Goods damaged in shipping are
non-returnable.

7. Returns: Machines may not be returned
after 60 days. Purchased parts may not be
returned after 30 days. A restocking fee of
20% will be assessed on non-warranty
returns.

8. Taxes: Prices indicated herein DO NOT
include State, Federal, Local or foreign taxes
or duties, nor do they include fees, permits,
insurance or other levies, all of which are the
responsibility of the purchaser.

9. All orders are subject to acceptance by
Proluxe.

10. Possession of this price list shall not be
considered an offer to sell



12
