Proluxe CS157 User manual
Operations Manual
Vantage Light - Single Lid Clamshell Grill
Model #: CS157
WWW.PROLUXE.COM
Version: 122820
Congratulations on your selection of
the Vantage Light Clamshell Grill.
Proluxe is a leading manufacturer of
food preparation and cooking
equipment designed for the most
demanding commercial kitchens.
Proluxe equipment is a result of the
highest quality engineering and
time-tested design.
This manual includes installation,
operation, and maintenance
procedures for your new clamshell
grill. Please read this manual
carefully and keep it with your
machine for proper operation and
lasting service.
Electrical:
120V/50-60Hz/1150W/9.6 Amps
1 phase
Also available; specify when ordering:
●Voltage: 120/220
●Amps: 9.6/5.2
●Watts: 1150/1150
Includes: 72” cord and 6-30P NEMA
approved plug.
Controlled heating zones: 2
Shipping Weight:
68lbs. (30kg)
I N T E R N A T I O N A L S Y M B O L S
Symboles internationaux
Power Off
éteindre
Power On
allumer
Hot Surface
surface chaude
Risk of Electrical Shock
Risque de choc électrique
Protective Earth Terminal
Borne de terre de protection
Caution - Warning
chaud - avertissement
1
S A F E T Y S U M M A R Y
Warning
To reduce the risk of electrical shock, do not
remove or open cover. No user-serviceable
parts inside. Refer servicing to qualified
personnel.
Avertissement
Pour réduire le risque de choc électrique, ne pas
retirer ou couvercle ouvert Aucune pièce
réparable par l’utillsateur, reportez-vous à du
personnel qualifié.
Warning
In case of power cord damage, do not
attempt to repair or replace the power cord.
Please contact the manufacturer or the local
distributor.
Avertissement
Pour une protection continue contre l’incendie
et de choc électrique, remplacer avec le même
type et calibre du fusible. Mis fusible
supplémentaire nominale max 3A, 120 Vac.
Warning
For continued protection against fire and
electric shock, replace with the same type
and rating fuse. Listed Supplemental Fuse
rated max 3A, 120Vac.
Avertissement
Pour une protection continue contre l’incendie
et de choc électrique, remplacer avec le même
type et calibre du fusible. Mis fusible
supplémentaire nominale max 3A, 120 Vac.
Caution Hot
Avoid touching hot surfaces while operating
the machine.
Attention à chaud
Évitez de toucher les surfaces chaudes lorsque
vous utilisez la machine.
Caution
When servicing or cleaning the machine,
make sure that the power cord is removed
from the wall socket.
During normal operation, the base of the
machine must be installed or placed above
the wall socket.
Avertissement
Lors de l'entretien ou du nettoyage de la
machine, assurez-vous que le cordon
d'alimentation est débranché de la prise murale.
2
G E T T I N G S T A R T E D
Please read carefully before attempting to
use this appliance.
1. Place in a location where it will be
used allowing for clearances per the
dimensions indicated. Allow 2”
minimum clearance between
adjacent equipment and/or wall
areas.
2. Plug into proper 3 prong wall outlet.
If other appliances are connected to
the same circuit make sure the total
load does not exceed a maximum
ampacity of the circuit. Electrical
information is as follows:
3. Press the power button, the green
light above will illuminate when
powered on. The display flashes and
shows left preset timer during
warm-up. Preheat time will be
approximately 40-50 minutes. When
the set point is reached, the display
stops flashing and beeps 3 times.
4. Simply place the product in the
center the grill, close lid and press the
desired preset time cycle 10 or 20
seconds. After the time cycle is
finished press it again to reset the
time cycle.
T E M P E R A T U R E/T I M E R
S E T T I N G S
How to Find Set Temperature
To find the temperature of upper platens:
Press and hold the TEMP button and the
arrow up (↑) button at the same time.
To find the temperature of bottom platens:
Press and hold the TEMP button and the
arrow down (↓) button at the same time.
Adjusting the Set Temperature
1. Press and hold the TEMP button and
the arrow up (↑) button at the same
time for 15 seconds.
2. The current temperature with display
on the right digital display screen
only.
3. Using the up (↑) and down (↓) adjust
the temperature to your desired
setting.
4. Once your desired temperature is
set, push the TEMP button to return.
Adjusting the Set Time
1. Press the TEMP button first and then
select the desired timer button and
hold for 5 seconds.
2. The current temperature with display
on the right digital display screen
only.
3. Using the up (↑) and down (↓) adjust
the timer to your desired setting.
4. Once your desired temperature is
set, push the TEMP button to return.
Note: When adjusting the timer settings, the
right set of buttons control the left side.
Your left side timer will automatically set to
3
your right control settings. If you desire a
separate left timer you can manually adjust
the left side timer without affecting the right
timer.
C L E A N C Y C L E
Start Cycle
To start a clean cycle, push CLEAN button
once so the CLEAN LED light is turned on. All
preset LED’s are turned off, and the
temperature set point is changed to the clean
set point of 275°F. This also initiates the cool
down to clean set point condition as well the
display starts flashing until the clean set
point is reached.
Stop Cycle
To stop the clean cycle, simply press the
CLEAN button once to deactivate the clean
cycle. The CLEAN LED is turned off, the
preset LED’s are restored, the temperature
set point is changed to the main set point.
Again, the warm-up condition is initiated and
the display flashes until the cook set point is
reached.
Change Clean Temp
275°F is the factory default temp for the
CLEAN cycle. To change the CLEAN cycle
temp, simultaneously hold down the TEMP
and CLEAN buttons for 15 seconds. The
current temp setting will display on the right
digital display only. Using the up or down
arrows to adjust to the desired temp.
P R E V E N T A T I V E
M A I N T E N A N C E
Proluxe machines are relatively
maintenance-free. For a long lifespan, the
following preventative maintenance should
be followed:
Daily Care:
1. Platens: Turn your machine off and allow
to cool down before attempting to clean.
These platens should only be cleaned with
mild soap and warm water then wiped off
with a clean, soft cloth or soft sponge.
2. Exterior surfaces: Wipe daily with mild
soap and warm water.
DO NOT use ice or cold water to cool the
unit down. This can cause platens to warp.
Service Problems:
Contact our factory at (800) 624-6717 (U.S.
only) or approved service agency. When
contacting the factory for information, parts
or service instructions, please provide the
serial number of the machine be provided.
This number can be found on the serial plate
located on the rear of the machine.
4
Vantage Light Troubleshoot Guide - Model #: CS157
5
Problem
Cause
Action
Ref #
Power button on
digital controller face
is depressed but
doesn’t turn on.
1. Power cord is not plugged in.
2. Circuit breaker is tripped off in the
site's breaker box.
3. Transformer has taken an
electrical surge and is damaged.
4. Check the voltage on the
secondary side of the transformer. If
you read 12VDC then you are
receiving voltage to the controller.
5. Possible blown fuse.
1. Plug the power cord into wall
receptacle and power button.
2. Reset circuit breaker that the
grill is plugged into. Depress
Power Button to turn on.
3. Replace Transformer after you
check the secondary side of the
transformer. If working properly,
you should receive 12vdc.
4. Replace controller. Controller
should be on once the power
button is depressed.
5. Replace fuse.
----
-----
18
A8
98
Digital controller's
LED's are scrambled
1. Possibly a component on the
Digital controller is damaged.
1. Replace digital controller.
A8
6
or randomly erratic.
If when turning on,
the display will first
go to segment check
2. Control needs to reset.
2. While the unit is on unplug unit,
wait for 1 min. Then plug machine
on again and depress the power
button.
----
Digital controller is
constantly beeping.
No heat on either on
left, right, upper, or
lower platen.
Sensor in one of two zones lost its
continuity. Depress TEMP. While
depressing TEMP depress either up
or down arrow to locate error
message PROB (zone 1, lower
platen, zone 2 left upper platen, zone
3, right upper platen.) If occurred
when depressing the up arrow
indicates either the left or right
platen has the open sensor or
Probe.
Disconnect probe and check for
continuity (by using Ohm Meter)
and replace. Do not cut and splice
new sensor. Install new 2000
ohm RTD sensor to underside of
the platen and reconnect to
controller. Upper left and right
sensor for replacement on upper
platens, lower platen sensor for
replacement for lower platen.
22
46
Digital display shows
PROB. No heat on
any platen.
Sensor lost it's continuity as shown
on a muti-meter.
Disconnect prob that is open (no
continuity as shown on a multi-
meter. Must replace sensor
(RTD). Do not cut and splice new
sensor. Install a new 2000 ohm
RTD sensor to under side of heat
platen and reconnect to the
controller.
41
Digital controller
beeping and is
overheating.
The mechanical relay on the switched
side is not opening to regulate
temperature. Hold TEMP button
then depress either the down or up
arrow (zone 1, lower platen, zone 2,
left upper platen and zone 3, right
upper platen.) RLY will display on
problem zone indicating the damage.
Replace the mechanical relay.
15
Either platen is not
heating but the
digital controller is
on and appears to be
functioning.
If the mechanical relay(s) on the coil
side are receiving 12vdc indicates the
controller is functioning properly. If
there is no voltage on the switching
side of the relay to the heaters, the
relay is not working properly.
Replace the mechanical relay.
15
Beeper is not
functioning.
Beeper has failed.
Replace control board.
A8
One of the three
heater platens not
close to set point.
The offset function in the controller's
setting needs to be adjusted to
achieve proper shade of toast.
Call (800) 624-6717 for
instructions.
----
7
One heating zone is
not reaching setpoint
and another heater is
overheating.
Sensors maybe crossed.
Make sure each sensor is
connected to its prospective
position on the terminal block
and back to the controller.
----
Setpoint is reached
but slightly off in
temperature.
Offset may need to be calibrated and
adjusted.
Call (800) 624-6717 for
instructions.
----
Heater platen is
overheating.
1. The mechanical Relay may be
stuck in the closed position (zone 1,
lower platen #1 labeled on this relay,
zone 2, left upper and zone 3, right
upper).
2. If you are receiving 12vdc on the
coil of the relay, the controller is
properly functioning.
Use an Ohm meter for a
continuity check must check at
the cold pins of the heater (where
the heater wire is brazed at
the cold pin. This will eliminate
any other failure before the
heater element validating the loss
off continuity at the source the
heater element.
15
Upper heater not
coming down parallel
to the lower platen.
Parallel lever not attached either in
the rear out on the upper heater
platen. Check to see if parallel leveler
is connected on both sides. The
retaining clip attached to pin may
have come off.
Reconnect the pin and the
retaining E-Clip.
25
Upper platen falling
down or lost
tension.
The springs have lost some
tension.
Remove rear panel and adjust the
retaining collars on shaft by
winding the spring tighter. There
are multiple set screws that need
to be loosened in order to wind
the spring tighter. Once proper
tension is achieved, tighten all set
screws to prevent tension loss.
----
8
A2
A2P
A1
1
55
14
56 57
74
23
36
18
5154
52
12
11
68
4X
8
8X
44
4X
53
4X 45
39 4X
24
44
79
44 8X

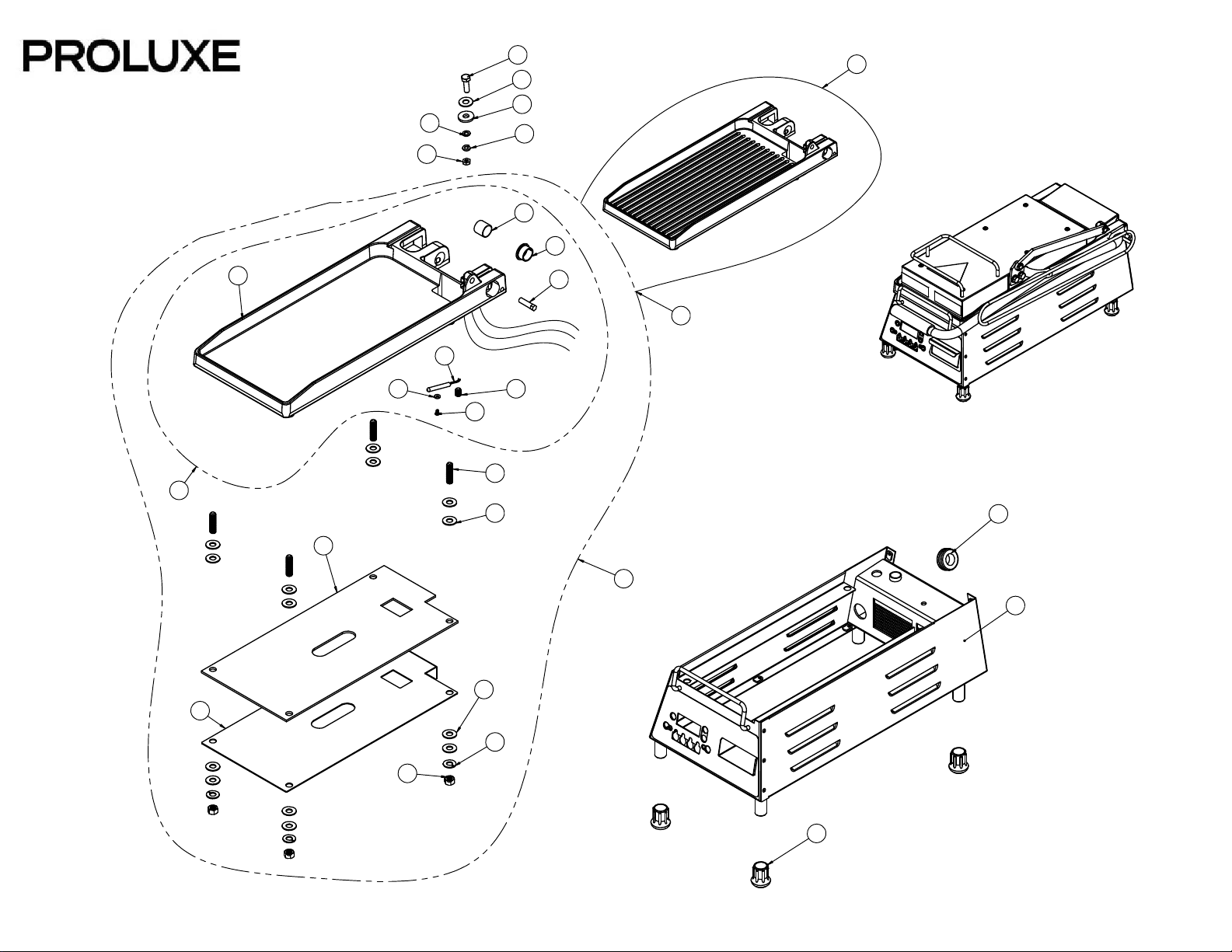

CS157
EXPCS157 RE 021521 CETEC & CUSTOMER
SHEET 1 OF 2
ECO#894
A1P
A5
A3
A4
A3P
A4P
67
22
80
27
4X
38 4X
58 43
4X 46 4X
13
60
3
10
73 51
21
71
17 2X
37 2X
72
2
42 3X
41 3X
78
2X
15
77
78 2X
62
61
31
2X 42
2X
16
2X
64
20
6X
23
66
65 47 4X
63
49 6X
75
69
35
51
52
54
19
76
EXPCS157 RE 021521 CETEC & CUSTOMER
SHEET 2 OF 2
ECO#894
25
9
2X
2X 46
2X
2X 43
2X
7
40
70
32
3X
29
8X
34
48
4X 43
59
4X 46
3X
2X
47
30
5
4X
33 4
2X
6
26
46
43
48
28 4X
PARTS LIST FOR CS157
PLCS157 RE 021521 CETEC AND CUSTOMER
ITEM # DESCRIPTION
MODEL
CS157A MODEL
CS157DTA MODEL
CS157PA MODEL
CS157CEC
QTY.
120V 120V 120V 220V
1LOWER WRAP AROUND SHROUD ASSEMBLY 110103901 110103901 110103901 110103901 1
2SHIM, CLEVIS 11060421 11060421 11060421 11060421 1
3SPRING, DETENT 1/2 LONG 110115555 110115555 110115555 110115555 1
4FUSE HOLDER MPPF708 MPPF708 MPPF708 MPPF708 1
5FUSE BUSS 1 AMP MPPF701R MPPF701R MPPF701R MPPF701R 1
6TRANSFORMER 11096975 11096975 11096975 11096975 1
7TERMINAL BLOCK #6 6016 6016 6016 6016 1
8SCREW, SET 3/8-16 X 1 1/2 SST3816112 SST3816112 SST3816112 SST3816112 4
9CORD, POWER 110969174 110969174 110969174 MPPW202 1
10 TUBBING-PAD 110115531 110115531 110115531 110115531 1
11 COVER, LOWER PLATTEN ASSEMBLY 110103909 110103909 110103909 110103909 1
12 LOWER PLATEN INSULATION 110103910 110103910 110103910 110103910 1
13 GREASE TRAY 110103903 110103903 110103903 110103903 1
14 HI TEMP WASHER C4401 C4401 C4401 C4401 1
15 TOP LINK 110115508 110115508 110115508 110115508 1
16 BOLT, HEX 5/16-18 X1 STAINLESS STEEL BH516181S BH516181S BH516181S BH516181S 2
17 E-CLIP, RETAINING RING LCC3478 LCC3478 LCC3478 LCC3478 2
18 STOP, HEX PIN 11018344037 11018344037 11018344037 11018344037 1
19 HANDLE GRIP 110901168 110901168 110901168 110901168 1
20 SCREW SET KNURLED CUP POINT 5/16-18 x 3/8 SST5161838KN SST5161838KN SST5161838KN SST5161838KN 6
21 GROMMET INSULATION 7/8 O.D. X 3/8 I.D 110115554 110115554 110115554 110115554 1
22 INSULATION UPPER PLATEN 110888251 110888251 110888251 110888251 1
23 BUSHING, TEFLON , 3/4 110113441 110113441 110113441 110113441 2
24 GROMET, RUBBER 110103919 110103919 110103919 110103919 1
25 STRAIN RELIEF 1106546468 1106546468 1106546468 1106546468 1
26 TRANSFORMER INSULATION 1101159180 1101159180 1101159180 1101159180 1
27 SPACER, NYLON 1/4X.141 X 9/32 11090109 11090109 11090109 11090109 4
28 WASHER, SAE #8 WSAE8 WSAE8 WSAE8 WSAE8 4
29 NUT, HEX 8-32 NH832 NH832 NH832 NH832 3
30 SCREW, PAN HEAD PHILLIPS 2-56 X 1/4 SP25614 SP25614 SP25614 SP25614 1
31 WASHER INTERNAL TOOTH LOCK 5/16 WLIT516 WLIT516 WLIT516 WLIT516 2
32 WASHER INTERNAL TOOTH LOCK #8 WLIT8 WLIT8 WLIT8 WLIT8 3
33 RELAY, MECHANICAL 30 AMP 110942520 110942520 110942520 110942520 2
34 BOTTOM COVER 110103917 110103917 110103917 110103917 1
PARTS LIST FOR CS157
PLCS157 RE 021521 CETEC AND CUSTOMER
35 WIRE HARNESS 110103950 110103950 110103950 110103950 1
36 FLANGE BUSHING TEFLON 1/2 LONG 110115563 110115563 110115563 110115563 1
37 BUSHING TEFLON 1 LONG 110115541 110115541 110115541 110115541 2
38 WASHER, STEEL 311150019 311150019 311150019 311150019 4
39 FEET, RUBBER 3/4 11016546469 11016546469 11016546469 11016546469 4
40 MARKER STRIP #6 DOUBLE MS6016 MS6016 MS6016 MS6016 1
41 WASHER, CUT 5/16 WC516 WC516 WC516 WC516 3
42 WASHER, SPLIT LOCK 5/16 WL516 WL516 WL516 WL516 5
43 WASHER, INTERNAL TOOTH LOCK #6 WLIT6 WLIT6 WLIT6 WLIT6 12
44 WASHER, SAE 3/8 WSAE38 WSAE38 WSAE38 WSAE38 17
45 NUT, HEX 3/8-16 NH3816 NH3816 NH3816 NH3816 4
46 NUT, HEX 6-32 NH632 NH632 NH632 NH632 12
47 SCREW, PHILLIPS 8-32X3/8 STAINLESS STEEL SP83238S SP83238S SP83238S SP83238S 12
48 SCREW, PHILLIPS 6-32X3/8 SP63238 SP63238 SP63238 SP63238 6
49 SCREW, PAN HEAD PHILLIPS 10-24 X 3/8 STAINLESS STEEL SP102438S SP102438S SP102438S SP102438S 6
50 SCREW, SOCKED HEAD 5/16-18 X 3/4 SSH5161834 SSH5161834 SSH5161834 SSH5161834 3
51 SCREW, SET 3/8-16 X 1/2 SST381612 SST381612 SST381612 SST381612 3
52 SCREW, PAN HEAD PHILLIPS 6-32 X 1/4 SP63214 SP63214 SP63214 SP63214 2
53 WASHER, SPLIT LOCK 3/8 WL38 WL38 WL38 WL38 4
54 WASHER, SAE #6 WSAE6 WSAE6 WSAE6 WSAE6 2
55 BOLT, HEX 1/4-20 x 1 BH14201 BH14201 BH14201 BH14201 1
56 WASHER, SAE 1/4 WSAE14 WSAE14 WSAE14 WSAE14 1
57 WASHER, SPLIT LOCK 1/4 WL14 WL14 WL14 WL14 1
58 DIGITAL CONTROL 110171433052 110171433052 110171433052 110171433052 1
59 SCREW, PHILLIPS 6-32X5/8 SP63258 SP63258 SP63258 SP63258 2
60 PLUNGER ASSEMBLY 110115544 110115544 110115544 110115544 1
61 UPPER LEVELING BRACKET 110115510 110115510 110115510 110115510 1
62 UPPER LEVELING SHIM 110115557 110115557 110115557 110115557 1
63 HANDLE, SPRING ADJUSTING COLLAR 110115528 110115528 110115528 110115528 1
64 COLLAR, HOLDER 110115530 110115530 110115530 110115530 1
65 BACK COVER 110103907 110103907 110103907 110103907 1
66 COUNTER BALANCE SPRING 1101039154 1101039154 1101039154 1101039154 1
67 SHROUD, RIGHT ASSEMBLY 11016546455 11016546455 11016546455 11016546455 1
68 RTD SENSOR 2000 OHM, BOTTOM 1108881102 1108881102 1108881102 1108881102 1
69 RTD, TOP SENSOR 1108881101 1108881101 1108881101 1108881101 1
70 SCREW, PAN HEAD PHILLIPS 8-32 X 1 SP8321 SP8321 SP8321 SP8321 1
PARTS LIST FOR CS157
PLCS157 RE 021521 CETEC AND CUSTOMER
71 HANDLE RIGHT ASSEMBLY 110115521 110115521 110115521 110115521 1
72 CLEVIS ASSY, RIGHT HAND 110115504 110115504 110115504 110115504 1
73 SCREW, SET 3/8-16 X 1 SST38161 SST38161 SST38161 SST38161 1
74 NUT, HEX 1/4-20 NH1420 NH1420 NH1420 NH1420 1
75 OVERLAY OCS157B OCS157B OCS157B OCS157B 1
76 PIN, PIVOT FRONT 11017088865 11017088865 11017088865 11017088865 1
77 PIN, PIVOT BACK 11017088866 11017088866 11017088866 11017088866 1
78 RETAINING RING 11017088867 11017088867 11017088867 11017088867 4
79 LOWER MACHINED PLATEN / (PANINI VERSION) 110103932120 110103932120 110103932P 110103932220 1
80 UPPER MACHINED PLATEN / (PANINI VERSION) 110115540120 110115540120 110115575120 110115540220 1
81 WIRE, TGGT, 14 GA (HEATER) 110069 110069 110069 110069 10.75 FT
82 TFE, SHRINK TUBING 7 AWG 110131 110131 110131 110131 0.67 FT
83 TERMINAL, RING #6 14-16 GA 1601HT 1601HT 1601HT 1601HT 2
84 WIRE, TFE 14 GA GREEN WTFE14G WTFE14G WTFE14G WTFE14G 5.5 FT
85 TERMINAL, RING #8 14-16 GA 1604 1604 1604 1604 6
86 TFE NON SHRINK TUBING 110133 110133 110133 110133 2.67 FT
87 TERMINAL, #6 RING X 18-22 GA 2202 2202 2202 2202 2
88 TERMINAL, Q.D. FEMALE 14-16 GA MPSQ100 MPSQ100 MPSQ100 MPSQ100 2
89 MANUAL CS157 MCS157 MCS157 MCS157 MCS157 1
A1 LOWER PLATEN WITH WIRING 110103932207 110103932207 N/A 110103932102K 1
A1P LOWER PLATEN PANINI WITH WIRING N/A N/A 110103932307 N/A 1
A2 LOWER PLATEN ASSEMBLY 110109332K 110109332K N/A 110103932203K 1
A2P LOWER PLATEN PANINI ASSEMBLY N/A N/A 110103932PK N/A 1
A3 UPPER PLATEN RIGHT HAND WITH WIRING 1101155204 1101155204 N/A 1101155204 1
A3P UPPER PLATEN PANINI RIGHT HAND WITH WIRING N/A N/A 1101155304 N/A 1
A4 UPPER PLATEN RIGHT HAND ASSEMBLY 1101155113 1101155113 N/A 1101155114 1
A4P UPPER PLATEN PANINI RIGHT HAND ASSEMBLY N/A N/A 1101155313 N/A 1
A5 KITTED, PROGRAMMED CONTROLLER TEMPERATURE ASSEMBLY 110171433052K 110171433052K 110171433052K 110171433052K 1
Warranty & Return Policy
Proluxe warrants all products manufactured
by it against defects in workmanship or
materials from the date of purchase for a
period of 1 year on parts and labor. This
warranty applies to only equipment
purchased and used in the United States.
Warranty period shall begin when equipment
ships. Warranty travel will only be covered
for 60 miles.
ALL WARRANTY SERVICE CALLS MUST BE
APPROVED BY PROLUXE. IF THIS
PROCEDURE IS NOT FOLLOWED,
WARRANTY SERVICE WILL NOT BE
COVERED. WARRANTY SERVICE WILL BE
PAID ON STRAIGHT TIME, OVERTIME
WILL NOT BE COVERED.
Service Calls
Contact our factory to obtain warranty
service. Proluxe must issue a return
authorization number, and call tag, or find
the name and location of a Factory
Authorized Service Center nearest you.
When calling for service, please furnish the
model number, serial number, and a
description of the problem.
E X C L U S I O N S
The warranties provided by Proluxe DO
NOT apply to the following:
●Damage due to misuse, abuse,
alteration, or accident.
●Improper or unauthorized repairs.
●Submerged in water.
●Damaged in shipment.
●Equipment exported to foreign
countries.
Special Order Equipment and
Accessories
Cannot be canceled and are not returnable
unless defective within the terms of this
warranty.
In no event shall Proluxe be liable for
consequential damages arising out of the
failure of any of its products if operated
improperly or caused by normal wear or
damaged by operator abuse.
Limited Lifetime Warranty on
Heating Elements
If replacement is needed, Proluxe will send
the new part at no charge but labor will not
be covered unless the unit is still under the 1
year manufacturer warranty.
R E T U R N E D M E R C H A N D I S E
P O L I C Y
Should it become necessary to return any of
the company’s products, the following
instructions must be adhered to: First,
contact our customer service department for
approval and a return authorization number.
Please have the serial number of your item
available at that time. All merchandise must
be shipped freight prepaid by customer or
service agency. Subject to the inspection of
the product by the company, a restocking
charge of 20% of the Net purchased price
paid to Proluxe will be assessed.
16
Merchandise may not be returned for credit
without prior written approval of Proluxe.
Collect shipments will not be accepted. No
returns after 60 days of original shipment
date on machines. Purchased parts may not
be returned after 30 days. If upon inspection
by Proluxe or its authorized agent it is
determined the equipment has not been used
in an appropriate manner, has been modified,
or has not been properly maintained, or has
been subject to misuse, misapplication,
neglect, abuse, accident, unauthorized
modification, damage during transit, delivery,
fire, flood, act or war, riot or act of God, then
this warranty shall be deemed null and void.
T E R M S & C O N D I T I O N S
1. Price List prices are suggested retail prices
and are shown in U.S. Dollars.
2. Terms of Payment: 1% 10 days, NET 30
days.
3. New Accounts: Satisfactory credit
information must be provided before open
account status can be extended.
Unless agreed otherwise, all shipments will
be made C.O.D., Cash in advance.
4. Pricing: Prices, specifications, model
numbers, capacities and accessories are
subject to change without notice.
5. Freight/Routing: Method of shipment will
be determined by Proluxe unless otherwise
advised by purchaser.
6. Damaged Claims: All merchandise shipped
at purchaser’s risk. Inspection must be made
by purchaser at time goods are received. If
goods are damaged, the PURCHASER shall
request that the agent of the transportation
company make a written notation on the
proper shipping documents immediately and
then file a claim for damages.
Note
: Goods damaged in shipping are
non-returnable.
7. Returns: Machines may not be returned
after 60 days. Purchased parts may not be
returned after 30 days. A restocking fee of
20% will be assessed on non-warranty
returns.
8. Taxes: Prices indicated herein DO NOT
include State, Federal, Local or foreign taxes
or duties, nor do they include fees, permits,
insurance or other levies, all of which are the
responsibility of the purchaser.
9. All orders are subject to acceptance by
Proluxe.
10. Possession of this price list shall not be
considered an offer to sell
17
Table of contents
Other Proluxe Commercial Food Equipment manuals
Proluxe
Proluxe DP2000CKE User manual
Proluxe
Proluxe DPR2000 User manual
Proluxe
Proluxe DOUGHPRO DP2300CBE User manual
Proluxe
Proluxe Apex Pro X1 User manual
Proluxe
Proluxe Impact X1 User manual
Proluxe
Proluxe DP2000 User manual
Proluxe
Proluxe DOUGHPRO DP1300 Series User manual
Proluxe
Proluxe Apex X1 User manual
Proluxe
Proluxe Endurance X2 User manual
Proluxe
Proluxe DP2010ZPE User manual
Proluxe
Proluxe Endurance Pro X2 User manual
Proluxe
Proluxe DP2000FPE User manual
Proluxe
Proluxe DP2000UPE User manual
Proluxe
Proluxe FAST-FIRE'D BLAZE PIZZA DOUGHPRO DP1300BZ User manual
Proluxe
Proluxe Endurance X1M User manual
Proluxe
Proluxe Impact X1 DP3300 User manual
Proluxe
Proluxe Endurance X1 User manual
Proluxe
Proluxe Endurance Pro X2 User manual
Proluxe
Proluxe Endurance Pro X2M User manual
Proluxe
Proluxe DP2000PRE User manual
Popular Commercial Food Equipment manuals by other brands
Perlick
Perlick RS-NDK 1030849 Installation and operation instructions
Bonnet Neve
Bonnet Neve MULTIFRESCO PLUS User instructions
Henny Penny
Henny Penny Evolution Elite Gas 16X quick guide
Adventys
Adventys L'OCTOPUS 3500 user manual
Vollrath
Vollrath Cayenne TSI7001 Operator's manual
LTI
LTI DI-FT Series Operation & maintenance manual
PERFECT FRY COMPANY
PERFECT FRY COMPANY PFM Series owner's manual
Henny Penny
Henny Penny HEC-103 Operator's manual
PizzaGroup
PizzaGroup AR300 instruction manual
Electrolux
Electrolux Frytop 1200 Installation and operating manual
APW Wyott
APW Wyott FDC-18 Installation and operating instructions
MEFE
MEFE CAT 6633A operating manual
