Prolycht ORION 300 User manual

User Manual
© 2020 PROLYCHT Lighting Co., Ltd. All rights reserved
PROLYCHT
TM

Preface
Safety instructions
Thank you for choosing Prolycht’s Orion 300 color spot light. Orion 300 is by far the
most versatile spot light. It combines new semiconductor technology, innovative
six-channel color mixing technology and latest camera research achievements. It is
powerful, portable and reliable, made to be a brand-new weapon you can use for various
film and video production applications.
The light fixture is used for professional lighting. The lighting system and accessories
must be used by professional or trained personnel. All operations must follow the relevant
safety instructions:
1, All instructions must be read and understood before use, including the transport,
installation and operation of the equipment.
2, The weight of the lamp head and light accessories must be taken into account when
handling and lifting;
3, Check all cable connections before using. Make sure all cables are appropriately
labeled to prevent tripping;
4, The lamp head may reach high temperature when operating. To prevent from burns,
staff must operate carefully when touching the lamp body. it is recommended to wear
appropriate protective devices;
5, Be alert to fire and burn hazards and do not place flammable materials and objects in
front of the lamp
6, Make full inspection lamp head electrical connection, safety isolation and insulation
protection before using.
7, Do not block and cover the light head vents with objects to prevent overheating;
8, Do not operate the lamp head when the light shield is closed, which may cause
overheating;
9, Before each usage, make visual inspection. Ensure regular electrical inspection at least
every 6 months. Record and form an archive;
10, Operating in explosive environment is prohibited
11, Do not use the equipment in a humid or dusty environment, which may cause short
circuits and the risk of electric shock;
12, Do not operate the damaged equipment until a professional maintenance personnel
checked;
13, The lamp head and accessories must be safely connected to prevent falling;
14, Before cleaning maintenance or repair, the product must be shut down and the power
cable must be removed from the power outlet. Do not operate when the product is
charged.
15, Do not immerse the lamp head in water or other liquids to prevent damage to
equipment and risk of electric shock;
16, When repairing is required, do not remove the lamp head on your own. The product
must be handed over to a designated qualified maintenance personnel. Incorrect removal
may damage the equipment or even cause electric shock when re-using.
17, Do not place cables, plugs and contact parts in water to prevent the risk of electric
shock;
- 1 -

CE Compliance Statement
Thunder products comply with the following EU-specified specifications:
1, Directive 2014/30/EU of the European Parliament and of the Council of 26 February
2014 on the harmonization of the laws of the Member States relating to electromagnetic
compatibility
2, Safety requirement of the European Union LVD 2014/35/EU directive and its latest
amended version
3, Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on
the restriction of the use of certain hazardous substances in electrical and electronic
equipment
EU uniform standards implemented:
EN 55015:2013+A1:2015
EN 61547:2009
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 60598-2-17:2018
EN 60598-1:2015
18, Radiation and glare from the head of the lamp can cause damage to people and
animals (e.g. sunburn, impaired vision). Within the minimum distance (2.5m) specified in
the equipment and operating instructions, exposure to the beam for more than 8 hours
per day will cause injury;
19, Do not use non-recommended batteries, cables and other accessories, which may
damage the equipment, or even cause fire and electric shock;
20, When maintenance is required, must contact the designated authorized maintenance
personnel. Any malfunction caused by unauthorized self-removal is not within the scope
of the repair;
21, The lamp heads and all components that do not have the necessary protection must
be protected by other appropriate protective measures, make sure they are placed in
weatherproof positions, under protective roofs, and ensured that air flow around the
headlights was unrestricted;
22, Check and make sure that the weight of the lamp head, accessories and cables is
lower than the maximum safety load of the bracket;
23, When the lamp head is fixed on the bracket, the screws must be tightened and make
sure the bracket itself is balanced to prevent falls which may damage the equipment and
threaten personal safety;
24, This product is certified by RoHS and CE. Please strictly refer to the relevant national
standards for operation and use. Incorrect use causes damage to the equipment and is
not covered by the product warranty;
- 2 -

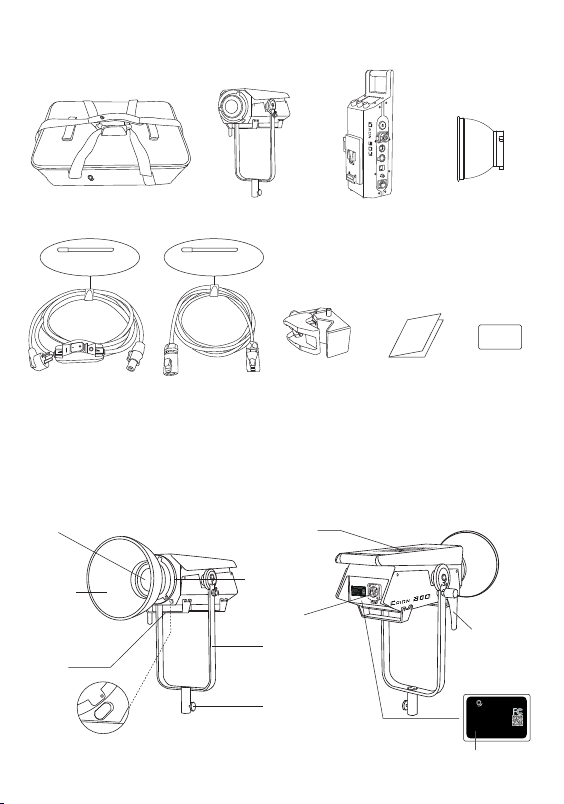

1.Packing list
- 3 -
2.Product details
Lamp head
Control box Standard reflectorCarrying bag
AC Power cable Connecting cable
Quick
Release Clamp User manual Warranty card
Lamp head
Clamp handle
Heat outlet
Lamp head input port
Yoke
Clamp handle
Tripod
Standard
reflector
Light – emitting surface
Mount lock
Bowens mount
Velcro strapVelcro strap
PROLYCHT
TM
MODEL:ORION 300
MAX.POWER:320W
INPUT:100-240V~，50/60Hz
Ta:4 5℃ / 113° F IP:20
Product No.:C4606045
Non-replaceable light source
Download
Chromalink App
Product label
Product ID
PROLYCH T
TM
PROLYCHT
TM
PROLYC HT
TM
PRO LYCH T
TM

- 4 -
Controller box
Quick Release Clamp
Battery plate
Bluetooth antenna
V slot
（use to fix control box）
Spring flake
（press to uninstall）
Claw handler
(rotate to fix the
claw onto the tripod)
Quick shoe
Power switch
Control box output port
DMX in
DMX out
LAN port
Data comm. port
（reserved）
AC power port
PRO LYCH T
TM
Control interface
USB port

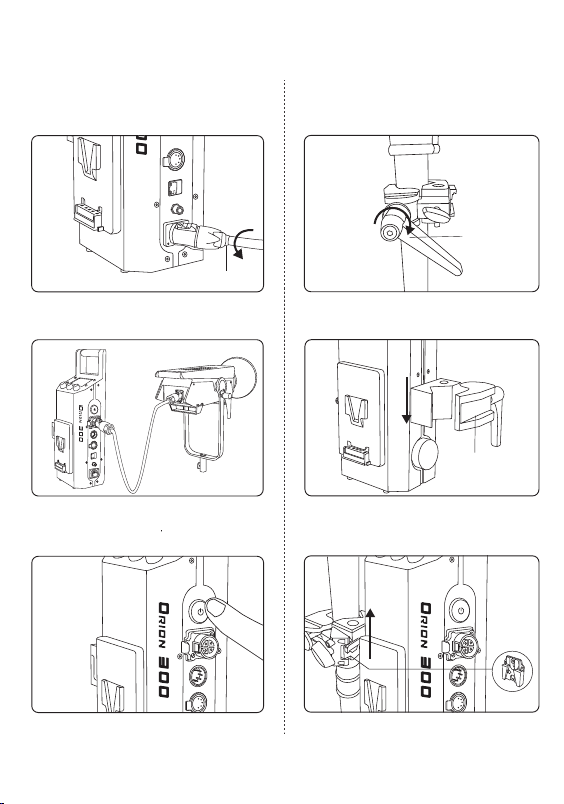

3.Installation
a) Turn on the power b) Clip the control box
①Use the power cable to connect the
controller box and AC 100V~240V
Turn to lock
③When disassembling, press the spring
flake and remove the control box up.
③Press the power button on the controller
box
②Use the connecting cable to connect
lamp head and the controller box
②Insert the control box from top to
bottom into the fast-loading Clamp’s
card piece.
①Install the quick release clamp on the
control box
spring
flake
- 5 -
Turn to lock
Slide down to lock

- 6 -

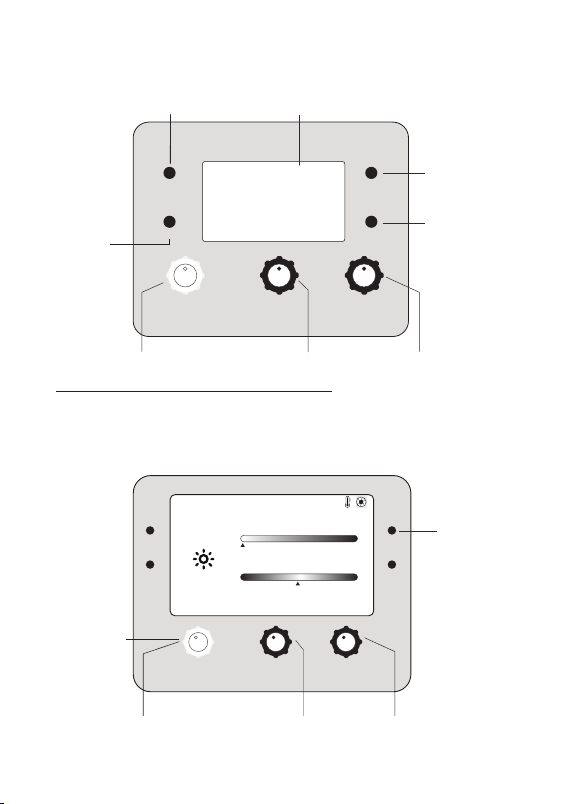

4.Operations

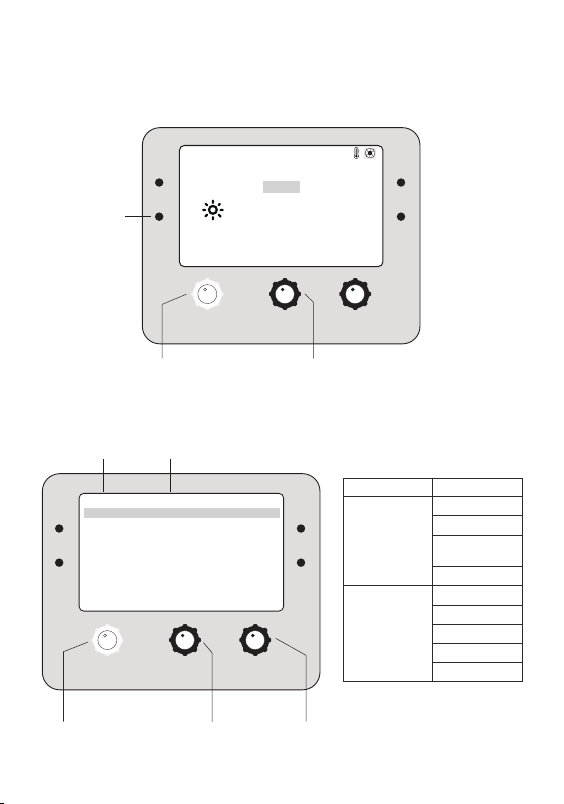

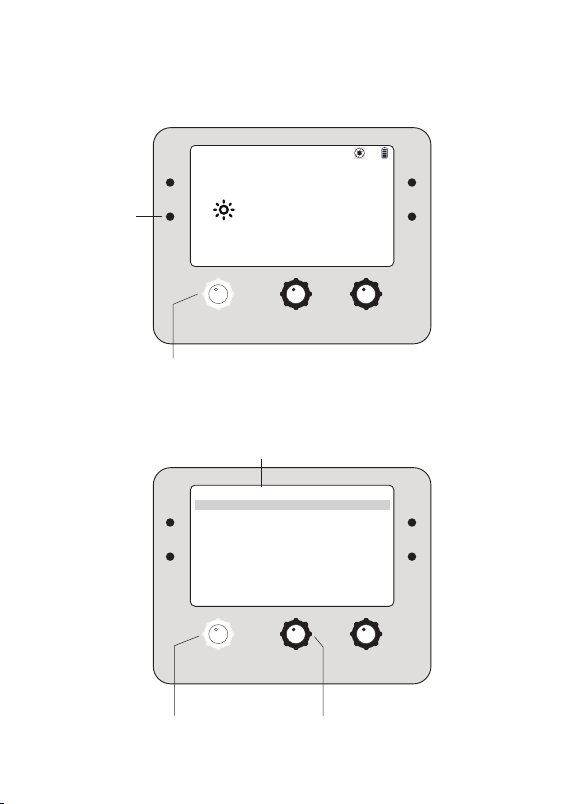

MENU
BACK
MODE
PRESET
INTENSITY / SELECTOR
a) CCT Mode
MENU
BACK
MODE
PRESET
INTENSITY / SELECTOR
Press to switch between high
performance and high brightness mode
BACK
MENU LCD full color screen
MODE
Preset button
Right Knob Central Knob
INTENSITY/SELECTOR Knob*
*This is a multi-function knob, which can be turned or pressed
Adjust
Green/Magenta deviation
Adjust CCT
Adjust intensity
Switch to next
lighting mode
CCT
100%
long press PRESET to save
2700K
G/M:+0.00
A

- 7 -
Main page Advanced setting page
b) Skin Tone Mode
MENU
BACK
MODE
PRESET
INTENSITY / SELECTOR
long press PRESET to save
SkinTone
100%
freshness：18%
5600K3200K
A
c) HSI Mode
Adjust FreshnessAdjust CCTAdjust intensity
MENU
BACK
MODE
PRESET
INTENSITY / SELECTOR
Adjust saturationAdjust HueAdjust intensity
100% Hue:00°
Saturation:10%
HSI
long press PRESET to save
Press to enter
adv. setting page
A
MENU
BACK
MODE
PRESET
INTENSITY / SELECTOR
ADV.Settings: HSI
CCT
7300K
Adjust CCT of the central white point
Left-knob to select.Central-knob to modify

- 8 -
MENU
BACK
MODE
PRESET
INTENSITY / SELECTOR
Main page
Adjust CCT
Adjust intensity
Press to enter
gel database
MENU
BACK
MODE
PRESET
INTENSITY / SELECTOR
LEE > 700 Series
700.
perfect Lavender
701. Provence
702. Special Pale Lavender
703.Cold Lavender
704.Lily
706.King Fals Lavender
708.Cool Lavender
709.Electric Lilac
710.Spir Special Blue
711.Cold Blue
-
Gel brand Gel Category
Gel brand Gel Category
Rosco Color Correction
Color Correction
LEE
CalColor
Cinelux
600 Series
700 Series
Cosmetic
Color Filters
Storaro
Selection
Switch Get category
Switch Gel brand
Turn to scan,
Press to confirm
d) Gel Mode
Gel database page
A
59.8%
Gel
ROSCO
3202. Full CTB
3200K 5600K
press BACK for more gels

- 9 -
MENU
BACK
MODE
PRESET
INTENSITY / SELECTOR
Adjust intensity
Press to enter
source database
e) Source Matching Mode
Main page
99.7%
Other
Green Glow Stick
A
Source
Matching
press BACK for more sources
MENU
BACK
MODE
PRESET
INTENSITY / SELECTOR
Incandescent Fluorescent Discharge Other
01.Candle
02.Gas Fire
03.Sun Direct
04.Sun Overcast
05.SUn Blue Hour
06.Mobile Phone
07.Computer Monitor
08.Electro-luminescent
09.Blow Torch
10.Road Flare
Switch source category
Turn to scan
Press to confirm
Source category
Source database

- 10 -
MENU
BACK
MODE
PRESET
INTENSITY / SELECTOR
f) Light Effect Mode
Advanced setting page
Adjust speed
Change intensity
Press to enter adv. setting page
Control
(Start/Pause/Off)
Press to enter
effect database
Back to the main page
Turn to scan
Press to confirm
Source database page
0.00%
press BACKfor more effects.
Speed
A
Light Effect
Strobe
MENU
BACK
MODE
PRESET
INTENSITY / SELECTOR
Adjust parameter
Select parameter
MENU
BACK
MODE
PRESET
INTENSITY / SELECTOR
ADV. Settings: Strobe
TYPE COLORS SAT
Color 03-color 100%
GEL MODE
3202
CCT DUV
2700K +0.00
Left-knob to select.Central-knob to modify.
Light Effect
01.Fire
02.Candle
03.Paparazzi
04.Lightning
05.Club
06.Police
07.FireWorks
08.Strobe
09.Television
10.Party
Main page

- 11 -
100% Hue:00°
Saturation:10%
A
HSI
long press PRESET to save
MENU
BACK
MODE
PRESET
INTENSITY / SELECTOR
Select color
Adjust intensity
33.3%
A
单色控制
49.7% 68.2% 22.6% 65.0%
Central-knob to select.Left-knob to modify
Single Color

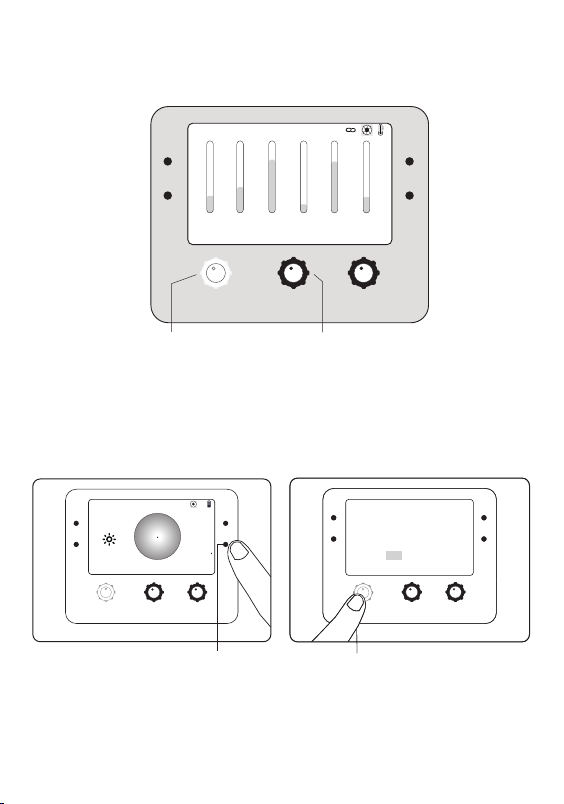

g) RGBWA Mode
h) Save, Retrieve And Delete Data
(i) Save
①Long press the PRESET button on any
lighting mode
MENU
BACK
MODE
PRE
INTENSITY / SELECTOR
②Press to confirm
SELECTOR
MENU
BACK
MODE
PRESET
SELECTOR
MENU
BACK
MODE
PRESET
Save to Preset?
Yes
06
NO
33.3% 49.7% 68.2% 22.6% 65.0% 33.0%
A

- 12 -
(ii) Retrieve
①Press the Preset button to enter the
PRESET page
MENU
BACK
MODE
PRE
INTENSITY / SELECTOR
MENU
BACK
MODE
PRE
INTENSITY / SELECTOR
②Turn to scan, press to confirm
③Press the BACK button
Preset List
01.<CCT>57.1% 3000K +0.0
02.<CCT>54.5% 5200K -0.13
03.<CCT>54.6% 7000K -0.13
04.<AR>0.1% 6550K -0.13
05.<HSI>0.1% 18 45%
06.Empty
07.<Effect>Fireworks
08.<Gel:Rosco>3200K 3202.Full CTB
09.Empty
10.Empty
SELECTOR
MENU
BACK
MODE
PRESET
Preset List
01.<CCT>57.1% 3000K +0.0
02.<CCT>54.5% 5200K -0.13
03.<CCT>54.6% 7000K -0.13
04.<AR>0.1% 6550K -0.13
05.<HSI>0.1% 18 45%
06.Empty
07.<Effect>Fireworks
08.<Gel:Rosco>3200K 3202.Full CTB
09.Empty
10.Empty
MENU
K
MODE
PRESET
INTENSITY / SELECTOR
Preset List
01.<CCT>57.1% 3000K +0.0
02.<CCT>54.5% 5200K -0.13
03.<CCT>54.6% 7000K -0.13
04.<AR>0.1% 6550K -0.13
05.<HSI>0.1% 18 45%
06.Empty
07.<Effect>Fireworks
08.<Gel:Rosco>3200K 3202.Full CTB
09.Empty
10.Empty
(iii) Delete
①On the preset list page, long press the
PRESET button until the entry turns red
MENU
BACK
MODE
PRE
INTENSITY / SELECTOR
Delete Mode
01.<CCT>57.1% 3000K +0.0
02.<CCT>54.5% 5200K -0.13
03.<CCT>54.6% 7000K -0.13
04.<Source>Tungsten bulb
05.Empty
06.Empty
07.Empty
08.Empty
09.Empty
10.Empty
③Press to confirm deletion
SELECTOR
MENU
BACK
MODE
PRESET
确认删除
是 否
Delete Confirm
Yes No
MENU
BACK
MODE
PRESET
②Turn to scan, press to confirm
SELECTOR
Delete Mode
01.<CCT>57.1% 3000K +0.0
02.<CCT>54.5% 5200K -0.13
03.<CCT>54.6% 7000K -0.13
04.<Source>Tungsten bulb
05.Empty
06.Empty
07.Empty
08.Empty
09.Empty
10.Empty

- 13 -
4.Control multiple fixtures
a) Use ChromaLink app to control multiple devices
Serial connect DMX cables
Steps：① Download and open ChromaLink app
② Turn on Bluetooth on the phone
③ Use Bluetooth within the app to connect devices
within any DMX network.

- 14 -

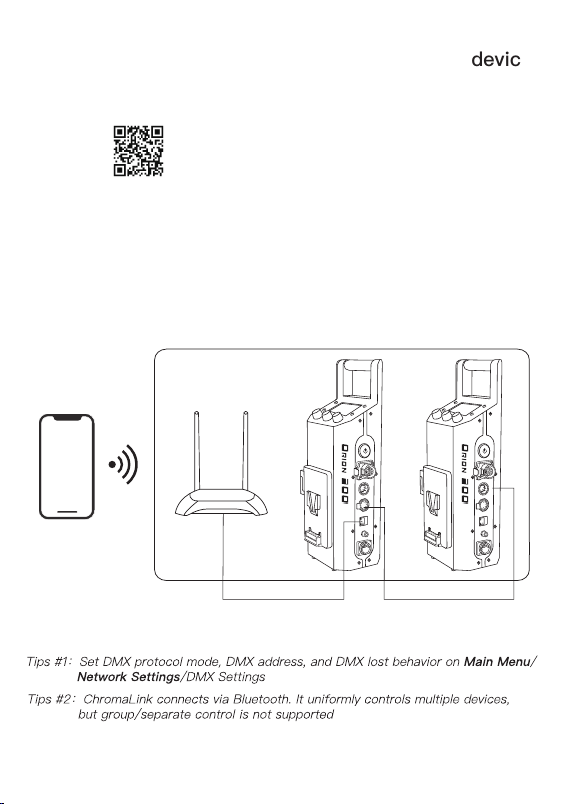

b) Use ChromaLink Pro app to control multiple devices
Serial connect DMX cablesConnect via Ethernet cable
Steps：① Download and open ChromaLink Pro app
② Connect the first device in the DMX network to the wifi
router using an Ethernet cable
③ Turn on your phone’s wifi and connect your phone to the
same wifi network
④ Open the ChromaLink Pro app and click scan button and
start group control.

- 15 -
Key Specs
Optical Interface Bowens
Light Aperture 50mm/1.97’’
Power consumption 300W ~ 320W
Battery configuration Two V-mount 14.8V batteries
Weight Light head 3.7 kg/ 8 lbs
Power box 3.2 kg/ 7 lbs
White Light 2,000 K to 20,000 K with Green-Magenta adjustment
Color modes CCT, Skin-tone, HSI, individual color, Gel,
source matching, Dynamical effects
Color rendition
3200 ~ 6500K:
CRI : 96 Average
TLCI : 96 Average
TM-30 Rf 94 Average
illuminance 1m 30,000lx (Standard reflector)
Dimming 0 ~ 100% smooth, with selectable dimming curves

FCC Statement:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
The antenna(s) used for this transmitter must be installed to provide a separation
distance of at least 20 cm from all persons.
