Promac MDA-35S User manual

Serial number:
Date of purchase:
/ /
Operators manual
V 1.0 English | September 2020
Magnetic drilling machine
MDA-35S

2
Congratulations on your purchase of the MDA-35S portable magnetic drilling machine. Your
model is designed to produce superior holes quickly and efficiently.
Before operating your new magnetic drilling machine, please read all instructions first. These
include the Operators Manual and warning label on the unit itself. With proper use, care and
maintenance your model will provide you with years of effective hole drilling performance.
TO REDUCE THE RISK OF INJURY USER MUST READ AND UNDERSTAND ALL
INSTRUCTIONS

3
Table of contents
MDA-35S ...............................................................................................................................1
Table of contents..................................................................................................................3
1. Safety ................................................................................................................................4
1.1 General safety instructions 4
1.2 Specific safety information 6
2. Description .......................................................................................................................8
2.1 Intended use 8
2.2 Description and features 8
2.3 Case content 8
2.4 Serial number 9
2.5 Technical data 9
2.6 Symbols 10
2.7 Environmental 11
3. Preparation & adjustment ..............................................................................................12
3.1 Assembly 12
3.2 Prior to use 13
4. Using the machine..........................................................................................................14
4.1 Control panel 14
4.2 Electromagnet 15
4.3 Switching motor on and off 16
4.4 Tool lubrication 16
5. Working with operation tools ........................................................................................17
5.1 Annular cutters 17
5.2 Twist drills 18
5.3 Countersinks 18
6. Maintenance....................................................................................................................19
7. Trouble shooting ............................................................................................................21
8. Exploded views & spare parts list.................................................................................23
8.1 Exploded views 23
8.2 Spare parts list 26
8.3 Wiring diagram 28

4
1. Safety
1.1 General safety instructions
Do not use this power tool before you have thoroughly read and completely understood this
Instruction Manual and the “General Safety Instructions”, including the figures, specifications,
safety regulations and the signs indicating DANGER, WARNING and CAUTION.
WARNING: When using electrical tools basic safety precautions should always be
followed to reduce the risk of fire, electrical shock and personal injury including
following.
Please also observe the relevant national industrial safety regulations. Non-observance of
the safety instructions in the said documentation can lead to an electric shock, burns and/or
severe injuries.
This Operator’s Manual including the “General Safety Instructions” should be kept for later
use and enclosed with the power tool, should it be passed on or sold.
WORK AREA
1. Keep your work area clean and well lit. Cluttered benches and dark areas invite
accidents.
2. Do not operate magnetic drilling machine in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Magnetic drilling machine may create
sparks which may ignite the dust or fumes.
3. Keep bystanders, children, and visitors away while operating a magnetic drilling
machine. Distractions can cause you to lose control.
ELECTRICAL SAFETY
1. Magnetic drilling machine plugs must match the outlet. Never modify the plug in any
way. Do not us any adapter plugs.
2. Avoid body contact with grounded surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is grounded.
3. Do not expose magnetic drilling machines to rain or wet conditions. Water entering a
machine will increase the risk of electric shock.
4. Do not abuse the cord. Never use the cord to carry the magnetic drilling machine or
pull the plug from an outlet. Keep cord away from heat, oil, sharp edges or moving
parts. Replace damaged cords immediately. Damaged cords increase the risk of
electric shock.
5. When operating a magnetic drilling machine, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
6. If operating a magnetic drilling machine in a damp location is unavoidable, use a
residual current device (RCD) protected supply. Use of an RCD reduces the risk of
electric shock.

5
PERSONAL SAFETY
1. Stay alert, watch what you are doing and use common sense when using a magnetic
drilling machine. Do not use machine while tired or under the influence of drugs,
alcohol, or medication. A moment of inattention while operating magnetic drilling
machines may result in serious personal injury.
2. Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your
hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair
can be caught in moving parts.
3. Avoid accidental starting. Be sure switch is off before plugging in. Carrying magnetic
drilling machines with your finger on the switch or plugging in magnetic drilling
machines that have the switch on invites accidents.
4. Never place hands, fingers, gloves or clothing near cutting area or rotating machine
parts.
5. Remove adjusting keys or switches before turning the machine on. A wrench or a key
that is left attached to a rotating part of the machine may result in personal injury.
6. Do not overreach. Keep proper footing and balance at all times. Proper footing and
balance enables better control of the magnetic drilling machine in unexpected
situations.
7. Use safety equipment. Always wear eye protection. Dust mask, non-skid safety
shoes, hard hat, or hearing protection must be used for appropriate conditions.
8. Always use supplied safety chain during any work on non-horizontal components.
Mounting can release.
MACHINE USE AND CARE
1. When using the machine on non-horizontal surfaces, you must use cutting paste. Do
not use oil because the oil can drip into the motor unit
2. During machine operations, the annular cutter must be cooled and lubricated with
good quality cutting or lubrication oil. Remove the slug from the annular cutter after
each hole. Caution, the slug may be hot!
3. Use clamps or other practical way to secure and support the work piece to a stable
platform. Holding the work by hand or against your body is unstable and may lead to
loss of control.
4. Do not use machine if switch does not turn it on or off. Any tool that cannot be
controlled with the switch is dangerous and must be repaired.
5. Disconnect the plug from the power source before making any adjustments, changing
accessories, or storing the tool. Such preventive safety measures reduce the risk of
starting the tool accidentally.
6. Store idle magnetic drilling machines out of reach of children and other untrained
persons. Tools are dangerous in the hands of untrained users.
7. Maintain machines with care. Keep cutting tools sharp and clean. Properly maintained
tools, with sharp cutting edges are less likely to bind and are easier to control.
8. Check for misalignment or binding of moving parts, breakage of parts, and any other
condition that may affect the machine operation. If damaged, have the tool serviced
before using. Many accidents are caused by poorly maintained tools.
9. Use only accessories that are recommended for your model. Accessories that may be
suitable for one machine, may become hazardous when used on another machine.

6
SERVICE
1. Tool service must be performed only by qualified repair personnel. Service or
maintenance performed by unqualified personnel could result in a risk of injury.
2. When servicing a tool, use only identical replacement parts. Follow instructions in the
maintenance section of this manual. Use of unauthorised parts or failure to follow
maintenance instructions may create a risk of electric shock or injury.
3. When using this machine, you MUST wear ear and eye protection.
1.2 Specific safety information
•Keep your fingers well out of the drill area;
•Avoid touching the drilled core that is automatically ejected by the centering pin when
the working procedure is finished. Contact with the core when it is hot, or if it falls, can
cause personal injuries;
•Always use the drill guard. Before switching on machine ensure the guard is closed
securely;
•Always use the safety chain;
•The magnetic drilling machine is suitable for use on steel with a thickness starting from
5 mm, with zero air gap between the magnet core surface and the mounting surface.
Curvature, coats of paint and surface irregularities will create an air gap. Keep the air
gap to a minimum;
•Always place the machine on a flat surface;
•Do not clamp the magnetic drilling machine on small or irregularly shaped objects;
•Always place the machine on a surface that is clear of shavings, chips, swarf and
surface dirt;
•Keep the magnet clean and free of debris and swarf;
•Do not switch on the machine until it has been mounted and installed according to
these instructions;
•Do not switch on the machine before having checked that the magnetic stand has
been tightened firmly to the mounting surface;
•Adjust the table so cutter does not extend into the work piece before drilling. Do not
perform any design, assembly or construction activities on the work piece while the
machine is switched on;
•Before switching on the machine, make sure all accessories have been mounted
correctly;
•Always use the recommended speed for the accessories and the material;
•Do not use the machine on the same work piece on which electric welders are being
used;
•Use only an appropriate cutting fluid. We offer a range of premium lubricants which
are specially developed and selected for optimum performance and maximum tool life;
•Do not use liquid cutting fluids while drilling vertically or overhead. Dip the cutter in
cutting paste or apply an appropriate spray for these applications;
•Do not pour cutting fluid into the reservoir while it is mounted in the bracket. Do not
allow cutting fluid to enter the drill motor;
•Before use, ensure movable chuck guard operates properly;
•Ensure that metal chips or resinous residue cannot lead to blockage of the function;
•In case of jammed cutter disconnect the machine from the power supply, remove the
reason for the jam before turning on the machine again.

7
RESIDUAL RISKS
In spite of the application of the relevant safety regulations and the implementation of safety
devices, certain residual risks cannot be avoided. These are:
•Impairment of hearing;
•Risk of personal injury from flying particles;
•Risk of burns due to accessories becoming hot during operation;
•Risk of personal injury due to prolonged use.
Always try to reduce these risks as much as possible.

8
2. Description
2.1 Intended use
This magnetic drilling machine is intended for commercial use as a drilling machine for
drilling materials with a magnetisable surface using annular cutters and twist drills, and for
countersinking in a weather-protected environment using application tools and accessories.
The magnetic drilling machine can be used horizontally, vertically or overhead.

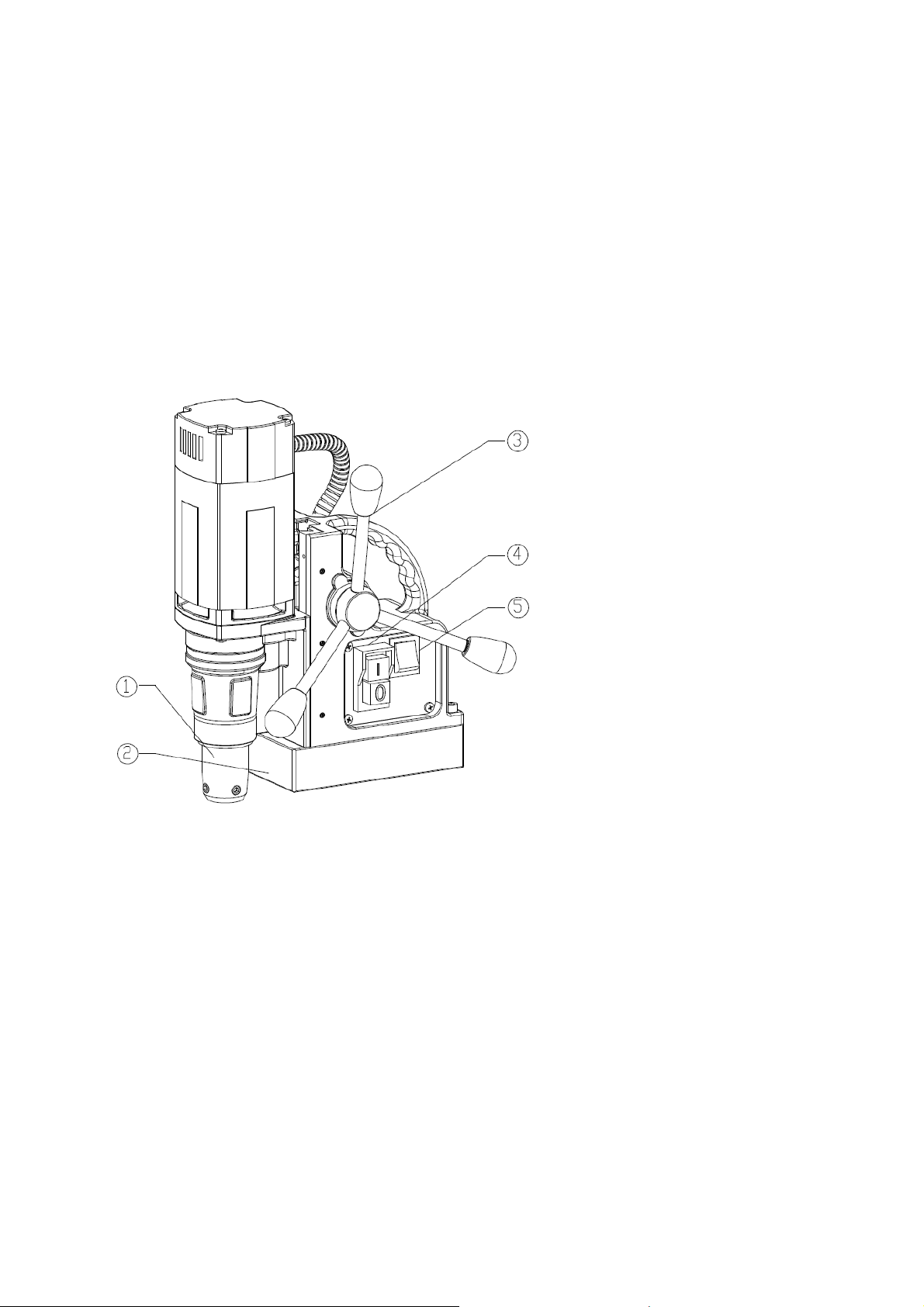

2.2 Description and features
[image 2-1]
2.3 Case content
1 x MDA-35S Magnetic drilling machine
1 x safety guard
3 x handles
1 x hex key 2.5 mm
1 x hex key 3 mm
1 x hex key 4 mm
1 x hex key 5 mm
1 x lubrication system
1 x safety chain
1 x user manual
1.
Spindle
2. Electromagnet
3. Feed handle
4. Motor switch
5. Magnet switch

9
2.4 Serial number
The serial number is mentioned on the machine 3 times: engraved on the frame and magnet,
plus on the serial no. sticker on the motor housing. Additional serial no. stickers are provided
with the machine for your administration.
The serial number will help you and your sales point validate and identify the machine.
As example:
0352009001
breaks down to:
035 20 09 001
Machine series
Year of manufacture
Month of manufacture
Identification number
2.5 Technical data
Metric
Annular cutting
Ø 12
-
35 mm
Twist drilling
Ø 1
-
13 mm
Threading
-
Countersinking
Ø 10
-
35 mm
Length
265 mm
Width
175 mm
Height
293
-
383 mm
Stroke
90 mm
Weight
8,5 kg
Magnet (l x w x h)
160 x 81 x 36 mm
Magnetic force
1,000 kg
Motor power
850 W
Total power
900 W
Speed (no load)
Speed (loaded)
750 rpm
400 rpm
Spindle (Weldon)
19
.
05 mm
Voltage
220
-
240V AC / 50
-
60 Hz

10

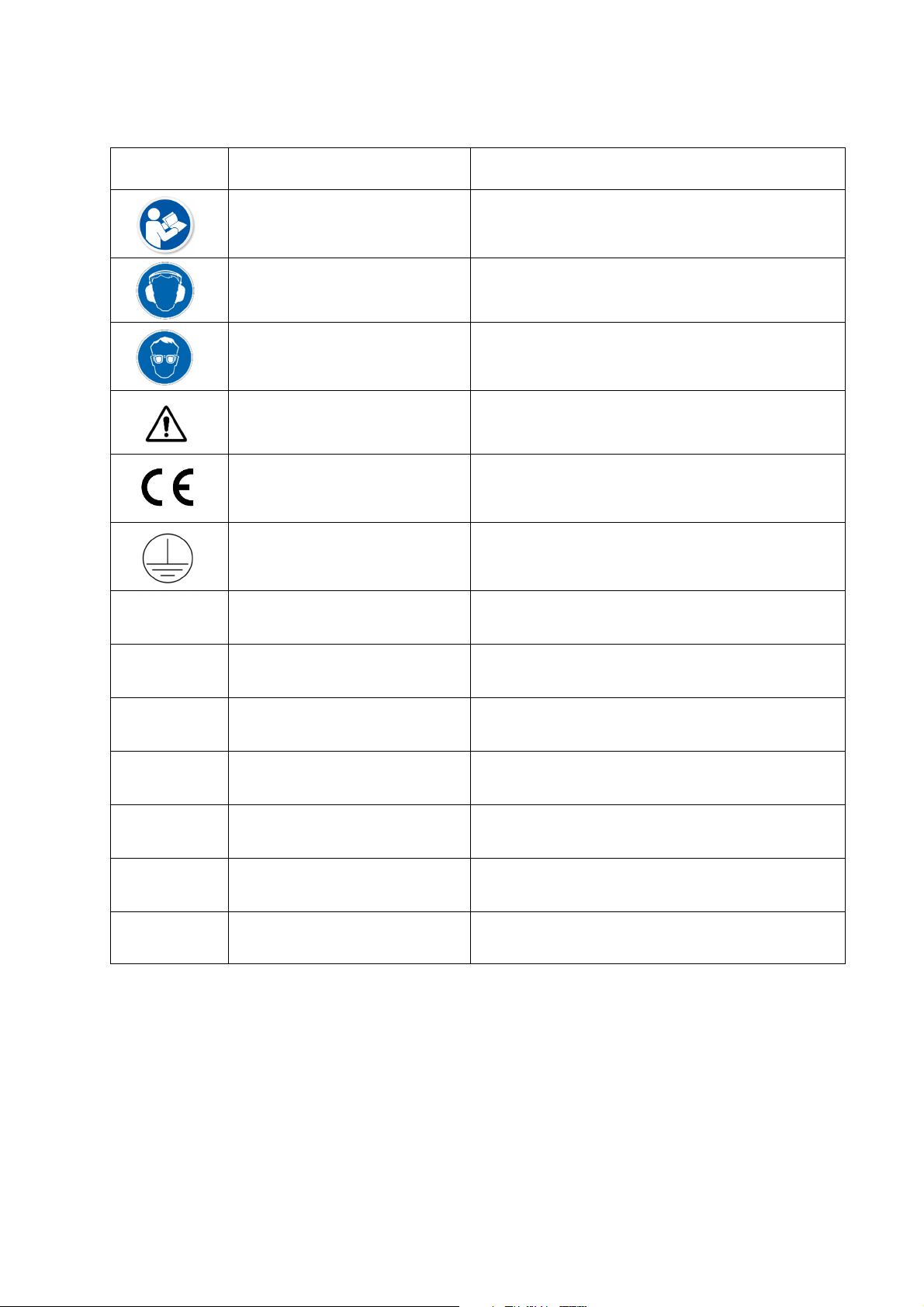

2.6 Symbols
Symbol Term, meaning Explanation
Read documentation
Be sure to read the enclosed documentation
such as the Instruction Manual and the
General Safety Instructions
Wear ear protection Use ear protection during operation
Wear eye protection Use eye-protection during operation
Danger/warning/caution Observe the information in the adjacent text!
European conformity symbol Confirms the conformity of the power tool with
the directives of the European Community
Class of protection I
Product with basic insulation and exposed
(touchable), conductive parts additionally
connected to the protective earth conductor
mm Millimeter Unit of measure for the dimensions
kg Kilogram Unit of measure for the mass
V Volt Unit of measure for the electric voltage
A Ampere Unit of measure for electric current intensity
W Watt Unit of measure for the output
N Newton Unit of measure for the force
rpm Revolutions per minute Unit of measure for motor speed

11
2.7 Environmental
Separate collection. This product must not be disposed of with normal household
waste.
Separate collection of used products and packaging allows materials to be recycled
and used again. Re-use of recycled materials helps prevent environmental pollution
and reduces the demand for raw materials.
Local regulations may provide for separate collection of electrical products from the
household, at municipal waste sites or by the retailer when you purchase a new product.

12
3. Preparation & adjustment
3.1 Assembly
WARNING: To reduce the risk of injury, turn unit off and disconnect machine from
power source before installing and removing accessories, before adjusting or
changing set- ups or when making repairs. Be sure all switches are in the OFF
position. An accidental start-up can cause injury.
FITTING THE FEED HANDLES
1. Fit each of the three feed handles by screwing them into the hub in clockwise
directions;
2. Tighten firmly by hand.
The handles are supposed to face slightly outward. Be careful not to cross-thread any of the
components.
MOUNTING THE DRILL GUARD
The guard protecting against chippings and accidental contact must always be mounted
during operation.
1. Hold the guard in front of the magnet, aligning the slots in the guard with the holes in
the magnet;
2. Fit the screws into the hole located in the side of the magnet.
WARNING: Always use the safety guard.

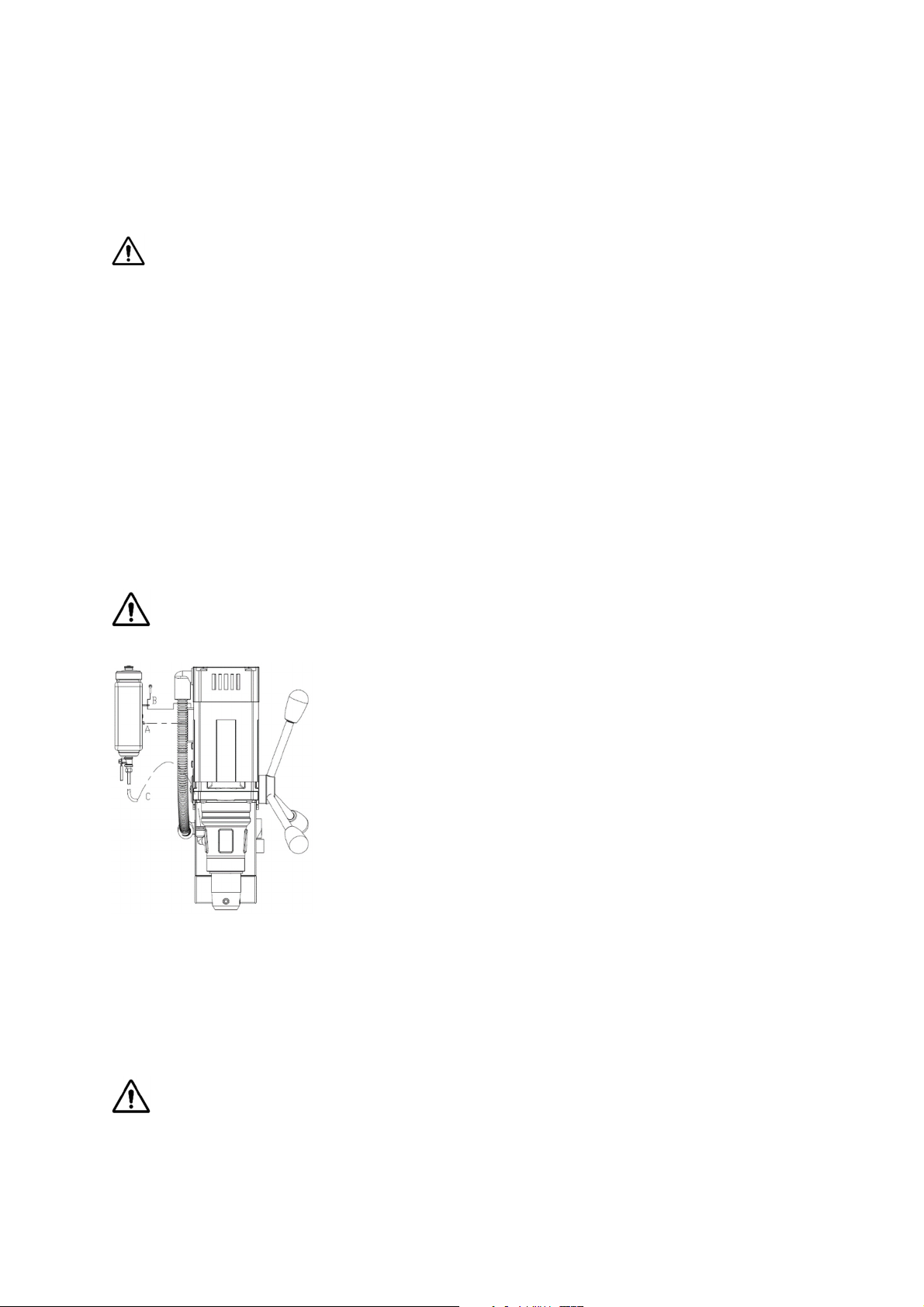

FITTING THE LUBRICATION SYSTEM
The lubrication system can be used for horizontal drilling
applications (the drill being used vertically).
1. Hang the tank (A) on the tank holder
2. Position and tighten the attachment pin (B)
3. Connect the hose (C) to the fitting on the gearbox. Make
sure the hose is connected fully and tightly.
4. To disconnect the hose, press the blue ring on the
connection and gently pull out the hose
[image 3-1]
FITTING THE SAFETY CHAIN
1. Pass the safety chain through the frame grip opening
2. Wrap the chain around the work piece
3. Securely close the chain using the lock
WARNING: Always use the safety chain when using machine vertically and/or up-
side-down.

13
3.2 Prior to use
Please make sure that the contacting surface for the magnet is level, clean and rust-free.
Remove any varnish or primer. When working on materials that are not magnetisable,
suitable fixation devices, obtainable as accessories, e.g. suction plate, vacuum plate or pipe-
drilling device must be used. When work on steel materials with a material thickness of less
than 5 mm, the work piece must be reinforced with an additional steel plate in order to
guarantee the magnetic holding power.
Check the machine for possible damage; Before using the machine, you must carefully
check protective devices or slightly damaged components to ensure they are operating
perfectly and as intended. Check that moving are in perfect working order and do not jam
and check whether parts are damaged. All parts must be correctly installed and fulfill all
conditions necessary to ensure perfect operation of the machine. Damaged protective
devices and parts must be repaired or replaced according to specifications by the dealer.
DO NOT use under wet conditions or in presence of flammable liquids or gases. This
magnetic drilling machine is a professional power tool.
DO NOT let children come into contact with the machine. Supervision is required when
inexperienced operators use this machine.
ELECTRICAL SAFETY
The electric motor has been designed for one voltage only. Always check that the power
supply corresponds to the voltage on the rating plate.
Your magnetic drilling machine is designed in class I (grounded) according to EN 61029-1.
Earth wire is required.
If the supply cord is damaged, it must be replaced by a specially prepared cord available
through the service organisation.
EXTENSION CABLE
If an extension cable is required, use an approved 3-core extension cable suitable for the
power input of this tool (see technical data).The minimum conductor size is 1.5 mm²; the
maximum length is 35 metre. When using a cable reel, always unwind the cable completely.
TRY A FEW SIMPLE PROJECTS USING SCRAP MATERIAL UNTIL YOU DEVELOP A
“FEEL” FOR THE MACHINE.
LET THE MACHINE RUN IN FOR A PERIOD OF 8-10 HOURS BEFORE STARTING WITH
BIG OPERATIONS. DO NOT LOAD THE MACHINE TOO MUCH DURING RUN-IN
PERIOD.
NEVER USE THE MACHINE IN SERIOUS OVERLOAD.
KEEP THE MACHINE CLEAR FROM MOISTURE AT ALL TIMES TO PROTECT THE
MACHINE, YOURSELF AND OTHERS.

14
4. Using the machine
WARNING: Always observe the safety instructions and applicable regulations.
WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect
tool from power source before making any adjustments or removing/installing
attachments or accessories.
4.1 Control panel
The control panel on your magnetic drilling machine is designed for maximum operating
facility and safety.
1. Magnet switch
2. Motor switch
[image 4
-
1]

15
4.2 Electromagnet
Make sure the magnetic drilling machine is placed on a smooth, clean, level and solid
surface without any objects or debris in between to guarantee maximum adhesion.
The workpiece must be at least 6 mm (1/4") thick for the magnet to stick, but minimal 3 mm
(1/8") thick to hold the weight of the machine and to drill safely. In case the workpiece is
between 3 mm (1/8") and 6 mm (1/4"), make sure to make a proper base to create a good
magnetic field as shown below.
[image 4-2]
The electromagnet will work best on surfaces of at least 10 mm (3/8") thickness.
The electromagnet may not be able to create a good enough magnetic field. Causes may be:
-Surface not flat
-Workpiece not magnetisable (e.g. aluminium or stainless steel)
-Workpiece coated or painted
-Workpiece not thick enough
Make sure to solve any of these matters before proceeding in any way and creating unsafe
situations.
1. Connect the machine to the mains/work piece;
2. To activate the magnet, press the red magnet switch. It will be lit;
3. To deactivate the magnet, press the same switch again.
It is not a certainly that the magnet will not release from the material. We accept no
liability in case the magnet does not function or functions poorly.

16
Make sure that the magnet attaches tightly to the work piece before turning on the motor unit
of the magnetic drilling machine. Our magnets have 2 coils; make sure that both coils are in
contact with the material. Do not connect any other machines to the electrical outlet the
magnetic drilling machine is plugged into, as it may result in the loss of magnetic force.
Always use the safety chain included. Drilling above your head is extremely dangerous and
is not recommended. For the use of magnetic drilling machines on pipes, not-flat or non-
magnetic materials, we refer to several vacuum tightening systems and pipe clamping
systems are mentioned.
4.3 Switching motor on and off
The motor unit can only be switched ON when the magnet is activated. To switch the motor
ON, press the green button with marking “I”. To switch the motor OFF, press the red button
with marking “O”.
4.4 Tool lubrication
HORIZONTAL APPLICATIONS
In order to use the lubrication system, the tank must be filled with a cutting fluid or oil
1. Make sure the flow regulator is closed;
2. Unscrew the cap;
3. Fill the container with cutting fluid or oil;
4. Screw the cap back on.
•Adjust the fluid flow as required using the flow regulator;
•Add more cutting fluid if the shavings (metal chips) become blue.
VERTICAL AND OVERHEAD APPLICATIONS
Dip the cutter in cutting paste or apply an appropriate spray.
WARNING: Do not use the lubrication system in vertical or overhead drilling
applications. Instead use cutting paste or spray
Make sure to use only suitable cutting oil or fluid. Proper lubrication will help you create
better and faster results, and extend the lifetime of your tools.

17
5. Working with operation tools
5.1 Annular cutters
Annular cutters only cut material at the periphery of the hole, rather than converting the entire
hole to shavings. As a result, the energy required to make a hole is lower than for a twist drill.
When drilling with an annular cutter, it is not necessary to drill a pilot hole.
WARNING: Do not touch the cutter or the parts close to the cutter immediately after
operation, as they may be extremely hot and cause burns to the skin. Ensure nobody
is in the work area where the metal core is ejected.
DRILLING CONDITIONS
The ease with which material can be drilled depends on several factors including tensile
strength and abrasion resistance. Whilst hardness and/or strength is the usual criterion, wide
variations in machinability can exist among material showing similar physical properties.
The drilling conditions are dependent on requirements for tool life and surface finish. These
conditions are further restricted by the rigidity of the tool and the work piece, lubrication and
machine power available. The harder the material, the lower the cutting speed.
Some materials of low hardness contain abrasive substances leading to rapid cutting edge
wear at high speeds. Feed rates are governed by rigidity of set-up, volume of material to be
removed, surface finish and available machine power.
DRILLING A HOLE
Now that you have read the explanatory information and safety recommendations above, you
are ready to actually start drilling. Follow these 12 steps for best drilling result:
1. Install the annular cutter
-Place the pilot pin into the cutter;
-Align the flat faces on the cutter shank with the screws in the tool holder;
-Make sure the cutter shank is entered fully and correctly;
-Tighten the screws
[image 5-1]
2. Precisely mark the centre of the hole;
3. Use the pilot pin to position the machine and in the correct position, with the tip of the
pilot pin to meet the marked center of the hole;
4. Switch on the magnet and verify that the drill is in the right position and that the
machine is pushed tight against the work piece;

18
5. If your machine is equipped with a lubrication system, put open the valve to release
the oil. If your machine does not have such a system, fill the holes of the spindle with
oil;
6. Switch the motor on at and allow it to run at the required speed;
7. Turn the arms to start drilling. Apply only a slight pressure when the annular cutter
touch the metal. Do not push the annular cutter with force into the metal;
8. Apply a regular pressure while drilling. The drilling performance does not improve by
putting more pressure on the tool. Too much pressure will overload the motor and
your annular cutter will be worn sooner.
A continuous, non-discoloured iron swarf is a sign of correct drilling speed and
a well-cooled, sharp cutter. Let the cutter do the job and give it time to cut the
metal!!!
9. Adjust the oil supply when necessary, if your drill does not have a lubrication system,
stop drilling regularly, refill the holes of the spindle and continue drilling;
10. Apply less pressure when the drill cuts through the material. The slug will be pushed
out of the cutter by the pilot pin;
11. Turn the arms to put the motor in highest position and switch off the motor unit;
12. Remove the burrs, metal chips and clean the cutter and surface without getting
injuries.
Caution: The slug can be sharp and very hot!!
5.2 Twist drills
1. Only use Weldon shank twist drills;
2. Fit the Weldon shank twist drill directly to the gearbox output shaft;
3. Precisely mark the center of the hole, and use the tip of the twist drill to position the
machine and in the correct position, with the tip of the twist drill to meet the marked
center of the hole.
5.3 Countersinks
Thanks to its wide range of operating speeds, the machine can also be used for reaming or
counter-sinking. Follow the steps mention in paragraph 5.2 Twist drills.

19
6. Maintenance
Your power tool has been designed to operate over a long period of time with a minimum of
maintenance. Continuous satisfactory operation depends upon proper tool care and regular
cleaning.
CAUTION: To reduce the risk of injury, turn unit off and disconnect machine
from power source before installing and removing accessories, before
adjusting or changing set- ups or when making repairs. Be sure the switch is in
the OFF position. An accidental start-up can cause injury.
Just as every magnetic drilling machine with moving parts, your magnetic drilling machine
also needs regular maintenance service. A few recommendations follow :
VISUALLY CHECK THE MACHINE FOR DAMAGE
Machine must be checked before operation for any signs of damage that will affect the
operation of the machine. Particular notice must be taken of the mains cable, if the machine
appears to be damaged it should not be used failure to do so may cause injury or death.
CLEANING
-Clean all dirt, dust, metal chips and burrs of your magnetic drilling machine;
-Blow dirt and dust out of the main housing with dry air as often as dirt is seen collecting
in and around the air vents. Wear approved eye protection and an approved dust mask;
-Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the
tool. These chemicals may weaken the materials used in these parts. Use a cloth
dampened only with water and mild soap. Never let any liquid get inside the tool; never
immerse any part of the tool into a liquid.
OPERATION OF THE MACHINE
The machines operation must be checked to ensure that all components are working
correctly. Replace any defective parts immediately. This prevents properly function parts
from being damaged.
CARBON BRUSHES
Brushes should be checked to make sure there is no abnormal wear present. This should be
checked at least once a week if used frequently. If the carbon brush has worn more than 2/3
the original length the brushes should be changed. Failure to do so may cause damage to
the machine.
CHECK MAGNETIC BASE
Before every operation the magnetic base should be checked to make sure that the base is
flat and there is no damage present. An uneven magnet base will cause the magnet not to
hold as efficiently and may cause injury to the operator.
When the machine us put out of use for a longer period, apply a small amount of machine oil
to the underside of the magnetic base for rust protection. Clean the magnetic base again with
next use.
CHECK MACHINE GREASE
The gearbox grease should be checked once a month to ensure all moving components are
covered to prevent wear. The grease should be changed at least once a year to ensure you
gain the best from the machine.

20
CHECK ARMATURE
This should be checked at least 1 per month to check that there are visual signs of damage
to the body or to the commutator. Some signs of wear will be seen on the commutator over a
period of time this is normal as this is the part that comes in contact with the brushes but any
signs of abnormal damage and the part should be replaced.
ADJUSTMENT OF SLIDE
An essential requirement of the machine is that the slide can move in a smooth and
controlled manner, free of lateral movement and vibration.
This situation can be maintained by periodic adjustment of the slide and is accomplished in
the following manner:
1. Place the machine in an upright position and, by means of the capstan, raise the slide
to its highest position. Clean the aluminum rails and apply a small amount of light
machine oil to the wear surfaces;
2. Gently feed in setting screw with supplied Allen key 2.5 until slight resistance is
encountered. Follow your way down adjusting all setting nuts and screws;
3. Operate the slide up and down a few times to test the movement and make any
further necessary adjustments. Try to ensure that all the screws are exerting a
uniform pressure on the slide from top to bottom. A perfectly adjusted slide will
operate freely up and down without any sideways movement.
LUBRICATING THE FEED TRAVEL
The feed travel should be lubricated periodically with grease to ensure smooth operation.
-Raise the motor unit to the highest position possible;
-Lubricate the dove-tail guide way at both sides;
-Lubricate the gear rack.
After repeated use, the gear rack may become loose. If necessary, adjust the self-locking set
screws at the left side. Tighten screws in series until the gear rack moves freely in the dove-
tail guide but does not allow the motor to wobble.
REPAIR, MODIFICATION AND INSPECTION
Repair, modification and inspection of magnetic drilling machines must be done an
authorised dealer. The spare parts list will be helpful if presented with the machine to the
dealer for service when requesting repair or other maintenance.
Our machines are constantly being improved and modified to incorporate the latest
technological advancements. Accordingly, some parts (i.e. part numbers and/or design) may
be changed without prior notice. Also, due to our continuing program of research and
development, the specifications of machines are subject to change without prior notice.
WARNING: If accessories have not been tested with this product, use of such
accessories with this tool could be hazardous. To reduce the risk of injury, only
recommended accessories should be used with this product.
Consult your dealer for further information on the appropriate accessories.
