promethean ActivBoard 500 PRO User manual

Pen/Touch Re-alignment Guide

2 Promethean ActivBoard 500 Pro Pen/Touch Re-alignment Guide ©2011 Promethean Ltd.
Copyright Information
© Promethean Limited. All rights reserved.
is guide may only be reproduced for use within the institution in which the product is used. For use outside of your
institution, no part of this guide may be reproduced, transmitted, stored in a retrieval system or translated into any
other language without the prior permission of Promethean Limited. Please note that the content in this guide is pro-
tected under copyright law. Although every care has been taken in the compilation of this guide, Promethean Limited
accepts no responsibility for errors or omissions, or for damages resulting from the use of information contained within
the following pages.

Promethean ActivBoard 500 Pro Pen/Touch Re-alignment Guide 3
Contents
1. .........................................................................................................................Re-alignment of Grids
1.1 ...................................................................................................................Pen & Touch Calibration
1.1.1 ................................................................................................... Operating System Requirements
1.1.2 ....................................................................................................................Calibration Procedure
2. .......................................................................................................... Required Files and Information
3........................................................................................................................... Calibration Template

1) Re-alignment of Grids
.    
..   :
Operating System: Windows XP SP3 and above (XP/Vista/7); Mac OSX 10.4.11 – 10.6.4 (Tiger/
Leopard/Snow Leopard); Linux Ubuntu 9.10 or 10.04; Debian Lenny; Linex Colegios 2010; Linkat
3; ALT_Linux (Russia)
Driver Required: 5.7.22
Note: If you have the latest version of ActivInspire ~ 1.5 (which you will need to operate the
ActivBoard 500 Pro) you will already have Driver 5.7.22.
..  :
 
Connect the USB cable from the ActivBoard 500 Pro to your PC
•
Once the board is recognised, you will see a YELLOW light ashing on the top left corner
of the board. (The Globe Symbol)
•
Once the board start up is over, The YELLOW light turns into a constant WHITE light.
 
• Touch the Board with an ActivPen and check if it operates correctly.
(You should be able to drag/move the mouse pointer with the pen)
• Now touch the board with a nger and check if it operates correctly.
(You should be able to drag/move the mouse pointer with your nger)
•
This test is done to make sure the board is fully operational and it is in System Mode.
4 Promethean ActivBoard 500 Pro Pen/Touch Re-alignment Guide ©2011 Promethean Ltd.
ATTENTION
DO NOT TOUCH THE BOARD WHILE IT IS CALIBRATING
(while YELLOW light is ashing)
Hints:
• If TOUCH or PEN is not working correctly then unplug the USB cable from the PC.
Wait for a minute and then plug the USB cable back into the PC.
• The Globe light should start ashing YELLOW automatically. If the light does not ash
then check if the board is powered up properly and check all other power options.
• If the problem still persists, then plug the USB cable to another USB port of the PC and see if the board
starts up automatically.

 
Make sure you print out and have the Calibration Template from Section 3 to hand – it is to scale
(208mm or 8.19in x 108mm or 4.25in). Get some scissors and cut the template out.
 
Taking the Calibration Template carefully position it in each of the 4 corners of the Active Area of the
board, and using a pencil make a slight pencil mark directly onto the ActivBoard. Use the template to
guide you where to put the pencil mark.

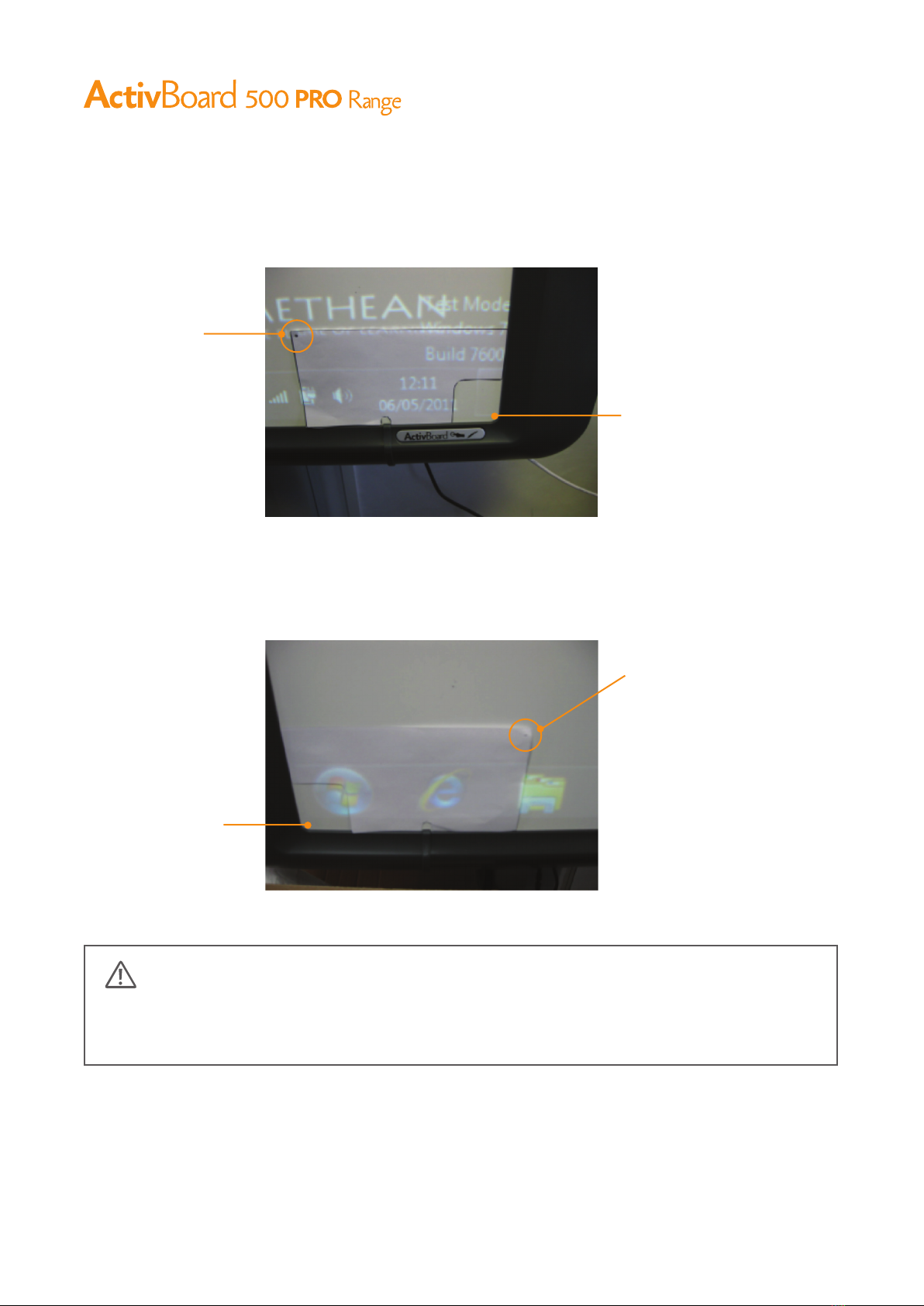

Now fl ip the template over and position it as below in the top right hand corner:
Promethean ActivBoard 500 Pro Pen/Touch Re-alignment Guide 5
Hints:
• It might be easier to just have a blank white screen on the board so you can easily see where you’ve marked the pencil points
Corner gap
indicates
correct position Make a pencil
mark on the
board here
Corner gap
indicates
correct position
Make a pencil
mark on the
board here
Top left hand Corner
Top right hand Corner

Now  ip the template back to its normal position and place in the bottom right hand
corner as below:
Finally  ip the template back over again and place in the bottom left hand corner as below:

For Windows users: GO TO STEP 5
For Mac users: GO TO STEP 6
For UNIX users: GO TO STEP 7
6 Promethean ActivBoard 500 Pro Pen/Touch Re-alignment Guide ©2011 Promethean Ltd.
Corner gap
indicates
correct position
Make a pencil
mark on the
board here
Corner gap
indicates
correct position
Make a pencil
mark on the
board here
Bottom right hand Corner
Bottom left hand Corner
ATTENTION
All pencil marks on the board should be at exactly the relative same positions. If this is not the
case then you have used the template incorrectly. Please replicate exactly as the pictures show.

 

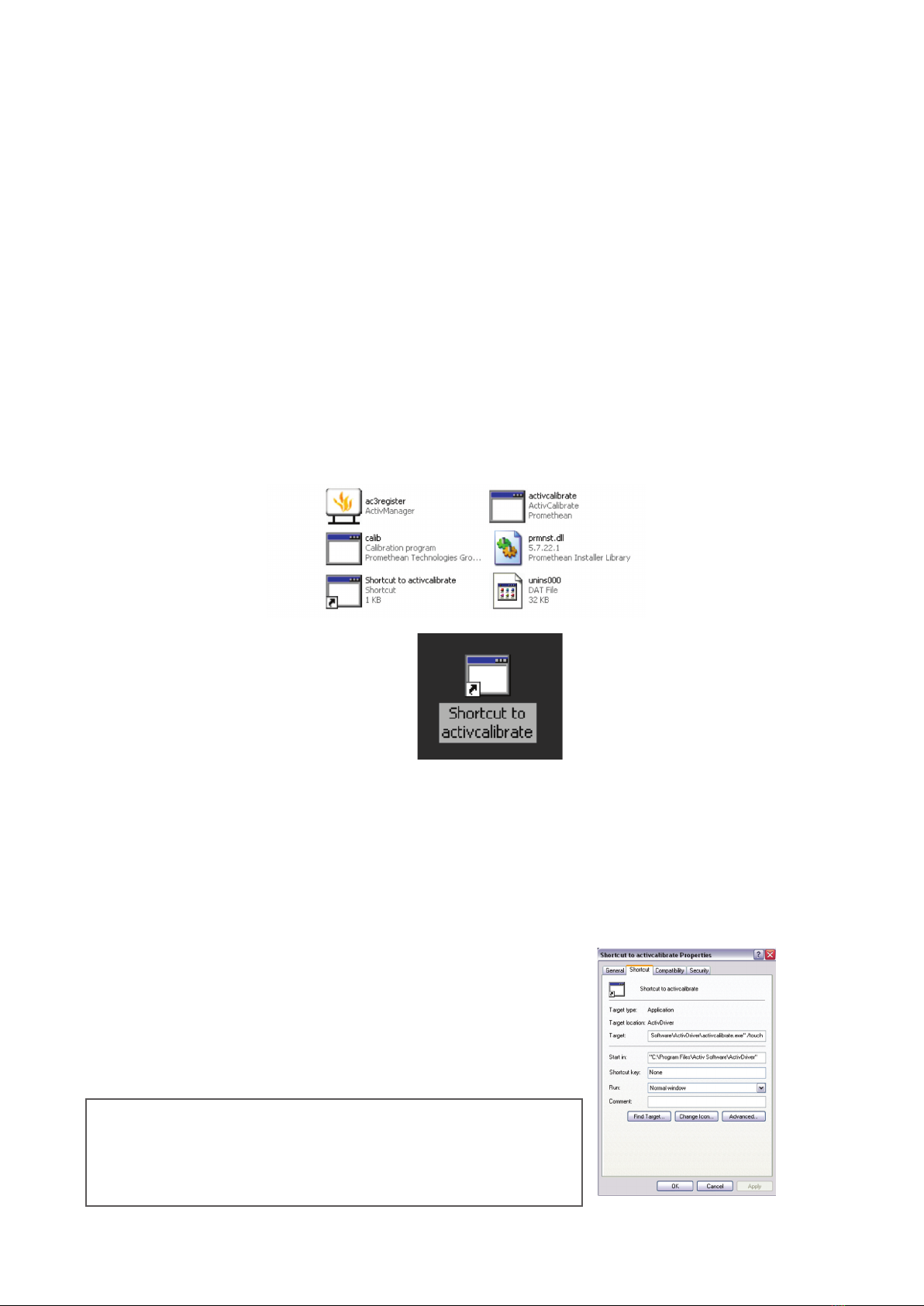

For Windows users: You will need to set up the Calibration Touch  le.
5a: Open up Windows Explorer or My Computer from your Start Menu. Locate the folder Program
Files from the drive where the Operating System is installed (usually C: ).
5b: Double click on Program Files, and then double click on Activ Software. Finally double click on
ActivDriver.
5c: Now within the ActivDriver folder you will see a  le called “activcalibrate”. Right-click on this  le
and select “Create Shortcut”. Drag the shortcut onto your desktop.
5d: Locate the shortcut on your desktop
5e: Right click on this icon and select Properties. In the  eld titled “Target”, you need to enter SPACE
then “ /touch “ after the text “C:\Program Files\Activ Software\ActivDriver\activcalibrate.exe”
Therefore the  nal text should now read exactly as follows:
“C:\Program Files\Activ Software\ActivDriver\activcalibrate.exe” /touch
5f: Select OK to close this box down
5g: To run the Pen/Touch Calibration procedure,
simply double click on the “Shortcut to activcalibrate”  le.
Go to Step 8.
Promethean ActivBoard 500 Pro Pen/Touch Re-alignment Guide 7
Hints:
• If the Shortcut to activcalibrate  le does not run, please reboot your machine
and then re-run the  le by double clicking it (once the ActivBoard has run its
self test and the Globe is constant white).

 
For Mac users: you will need to open a Terminal Window.
Open up your Applications folder, go into the Utilities folder and double-click on Terminal (or,
possibly, Terminal.app depending on how you have the Finder con gured).
It will look something like this:
Once open you need to type the following:
/Applications/Promethean/ActivDriver/activcalibrate.app/Contents/MacOS/activcalibrate --touch
Go to step 8.
8 Promethean ActivBoard 500 Pro Pen/Touch Re-alignment Guide ©2011 Promethean Ltd.

 
For UNIX users: you will need to open a Terminal Window.
To open an UNIX terminal window, click on the “Terminal” icon from Applications/Accessories or
System Tools menus.
If in doubt open the following link for more assistance on where to access a Linux Terminal: http://
www.psychocats.net/ubuntu/terminal
An UNIX Terminal window will then appear with a % or :~$ prompt, waiting for you to start entering
commands.
Once open you need to type the following:
activcalibrate --touch
Go to step 8.
9 Promethean ActivBoard 500 Pro Pen/Touch Re-alignment Guide ©2011 Promethean Ltd.
Access the
Terminal here

Promethean ActivBoard 500 Pro Pen/Touch Re-alignment Guide 10
 

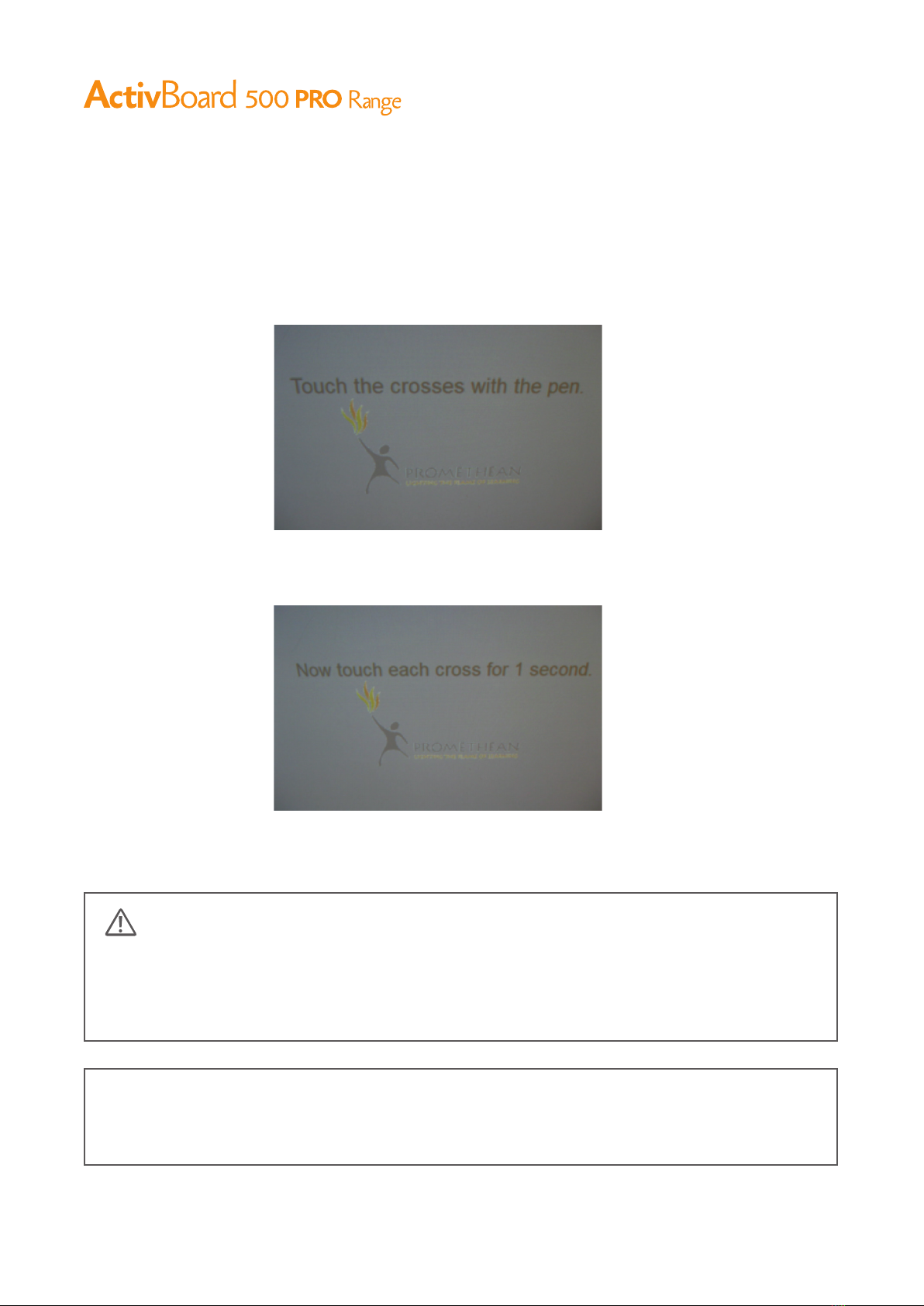

For Windows users, once you have setup and run the “shortcut to activcalibrate”  le OR typed in the
commands for MAC or UNIX users, you will see a GREY window as follows. The screen will show
“Click on surface to begin” as below:
Tap the screen with an ActivPen.
ATTENTION
THE CROSSES IN THE CORNERS OF THE CALIBRATION WINDOW ARE
NOT USED IN THIS PROCESS – YOU WILL USE THE PENCIL MARKS YOU
HAVE CREATED INSTEAD.

 
Follow the on-screen instructions to perform the pen/touch alignment calibration. A PEN and
TOUCH event on the pencil marks represents the cross (+) on the screen. There is one point in each
of the 4 corners for the pen followed by touch.
Touch the Pencil Marks with an ActivPen in the correct order as indicated by the
on-screen instructions
NOW Touch the Pencil Marks with your fi nger in the correct order as indicated by the
on-screen instructions
11 Promethean ActivBoard 500 Pro Pen/Touch Re-alignment Guide ©2011 Promethean Ltd.
ATTENTION
DO NOT lean or touch the board in any other way when performing the “Touch” calibration.
The only contact you should have with the Board surface is with a single  nger ONLY on each
of the Pencil Marks in the correct sequence.
Hints:
• Use your little fi nger to perform the calibration for better accuracy.
• If the touch is not recognised even after couple of seconds, wiggle the  nger around the point of contact.

Promethean ActivBoard 500 Pro Pen/Touch Re-alignment Guide 12
 
Once the calibration is done, the GREY screen disappears automatically.
 
Now calibrate the board again using the standard “ActivPen Only” method of calibrating a
Promethean ActivBoard (Hold the ActivPen to the Promethean globe for a few seconds OR use the
ActivManager icon and select “Calibrate”. Simply follow the on-screen instructions). You DO NOT
need to run the shortcut to activcalibrate  le (Windows users) or enter the MAC or Linux commands
again. Simply use the standard method.
 
Quick Test
•
Perform a simple test. Choose a point in the board. Touch the point with PEN and then a  nger.
This is done to verify the Pen & Touch alignment.
•
If there appears a considerable Off set (Say greater than 1 cm) between PEN & Touch, then repeat
the procedure (from STEP 5 for Windows Users, STEP 6 for Mac Users or STEP 7 for LINUX
Users) for better results.
 
Get a rubber and gently rub off the pencil marks from your ActivBoard!
2) Required Items
Calibration Template (See section 3.)

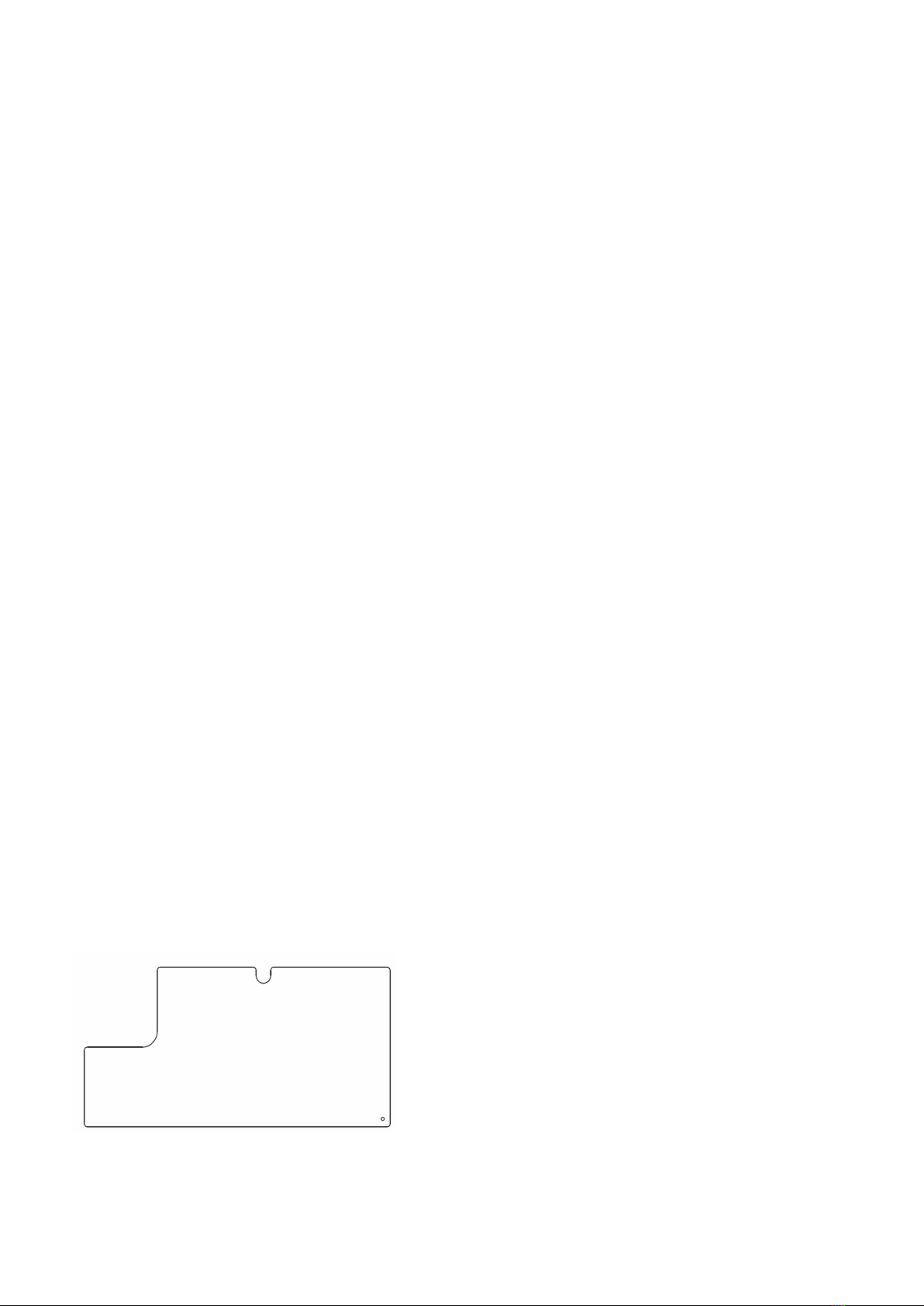

3) Calibration Template
Print the following template
to scale and cut it out.
For Information:
Actual Dimensions required,
208mm(8.19in) x
108mm (4.25in)
For more information visit Promethean Knowledgebase: www.PrometheanKB.com
