ProMinent Sigma/ 1 S1Ba User manual

Part No. 987260 ProMinent Dosiertechnik GmbH ·69123 Heidelberg ·Germany BA SI 012 07/02 GB
ProMinent
®
Please completely read through these operating instructions first! · Do not discard!
The warranty shall be invalidated by damage caused by operating errors!
Two sets of operating instructions are necessary to ensure the ProMinent®Sigma/ 1 S1Ba or S1Ca metering pumps
are operated safely and reliably for their intended purpose:
This product specific Sigma/ 1 operating instructions manual and the ”General operating instructions
ProMinent®motor-driven metering pumps and hydraulic accessories”are only valid if read together!
Operating Instructions
ProMinent®Sigma/ 1
S1Ba (Basic Type)
S1Ca (Control Type)
S1Ca
with left-hand liquid end
S1Ca

Control elements and key functions
1
2
3
16
4
9
10
8
5
6
7
15 14 13 12 11
Control elements: overview
1 Operating light (green)
2 Warning light (yellow)
3 Error warning light (red)
4 Stroke length adjuster
5 LCD display
6 UP key
7 DOWN key
8 P key
9 STOP/START key
10 i key
11 Relay output (optional)
12 Metering monitor socket
13 External control socket
14 Float switch socket
15 Diaphragm rupture indicator socket
16 Mains switch
Key functions
In continuous display mode In settings mode
(operating) (settings)
STOP/START key
STOP
STOP
START
Press briefly Stop pump, Stop pump,
start pump start pump
P key
P
Press briefly Start batch (in “batch” operating mode only), Confirm entry- jump to next menu
Cancel error option or continuous display
Press for 2 s Change to settings mode ---
Press for 3 s --- Jump to continuous display
Press for 10 s Software version displayed
Press for 15 s Load factory settings (calibration) ---
i key
i
Press x1 Toggle between continuous displays Toggle between “change individual digits”
and change a figure"
Press x2 --- For “change individual digits”:
jumps to first digit
Arrow keys UP and DOWN
Press separately Change directly alterable values Select other settings,
(until “Set” appears) change individual digit or figure
Press simultaneously Prime (in “Stroke rate” permanent display)- ---

P
P
PPPP
P
P
P
Bedien-/Einstellschema
P
PP
P
PP
P
PP
P
P
P
P
P
P
P
P
P P
P
P
i
STOP
STOP
START
START
edom
Batch
Contact
ManualAnalog
edom
Analog
edom
Manual
edom
Contact
edom
Batch
edoc
enon
1edoc
2edoc
0
99
0
9
0
9
0
tes
hctab
glana
Set
wolf
xua
bilac
raelc
9
0
9
0
9
0
9
0
6
0
ffo
no
02o
mA
Set
Analog
024
mA
Set
Analog
evruc
Set
Analog
11i
mA
Set
Analog
01i
mA
Set
Analog
12f
Freq.
Set
Analog
02f
Freq.
Set
Analog
11f
Freq.
Set
Analog
01f
Freq.
Set
Analog
91f
Freq.
Set
Analog
01f
Freq.
Set
Analog
91f
Freq.
Set
Analog
01f
Freq.
Set
Analog
92f
Freq.
Set
Analog
92f
Freq.
Set
Analog
02f
Freq.
Set
Analog
02f
Freq.
Set
Analog
91i
mA
Set
Analog
01i
mA
Set
Analog
91i
mA
Set
Analog
01i
mA
Set
Analog
22i
mA
Set
Analog
02i
mA
Set
Analog
92i
mA
Set
Analog
02i
mA
Set
Analog
92i
mA
Set
Analog
02i
mA
Set
Analog
nore
Set
Analog
ffore
Set
Analog
no
ffo
1
0
9
0
9
0
9
0
9
0
1
0
no
ffo
trats 0
6
0
9
0
9
0
9
0
9
0
Dauer-
anzeige
10000
02451
tinu
tinu
2 s
-----
Set
Analog
Set
Analog
Set
Analog
Pumpe stoppen/starten
Direkt veränderbare Größen ändern
= Sperrung (CODE 1)
= Sperrung (CODE 2)
Ansaugen
Charge starten (nur in Betriebsart "Batch")
Fehler quittieren
Einstellbare Größen prüfen
2
2
1
1
002
tctnc no
ffo
9
0
9
0
9
0
9
0
SUB 9
0
9
0
sRDDA 0
9
p. 42
p. 50
p. 42
p. 48
Operating-/Settings Diagram
Start/stop pump
Change directly alterable values
Prime
Start batch (in “batch”operating mode only)
Cancel error
Check adjustable values
Continuous
display
➀ = Lock (CODE 1)
➁ = Lock (CODE 2)

Set
P
Set
Set
Set
Calib
Set
Calib
Set
Set
Set
p. 44
p. 48
p. 46
p. 47
p. 31
p. 48
p. 48

i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
52
N
*
Mem
Contact
Stop
Operating mode "Analog" 0-20 mA
Stroke rate
Feed rate
Total stroke number
Total litres
(feed quantity)
"External" display
Signal current
Strokes remaining
Batch size/
Litres remaining
Factor
"Mem" appears only when "memory" function activated
Stroke length
Operating mode "Manual"
Continuous display
Operating mode "Contact" with
memory and tansfer factor 5
Operating mode "Batch" with
memory and tansfer factor 5
653
N
Analog
Stop
86321
L
Analog
Stop
txe
Analog
Stop
002
mA
Analog
Stop
56
%
Analog
Stop
56
%
Manual
Stop
56
%
Contact
Stop
56
%
Batch
Stop
081
Freq.
Manual
Stop
081
Freq.
Contact
Stop
653
N
Stop Contact
081
Freq.
Batch
Stop
653
N
Stop Batch
057
/hL
Manual
Stop
653
N
Stop
Manual
86321
L
Stop Contact
86321
L
Stop Batch
86321
L
Stop
Manual
txe
Stop Contact
Mem
txe
Stop Batch
Mem
52
N
*
Mem
Batch
Stop
01000
L
*
Mem
Batch
Stop
*
Mem
Batch
Stop
5
*
Mem
Contact
Stop
005
081
Freq.
Analog
Stop
057
/hL
Analog
Stop
Continuous
display
= UP and/or DOWN arrow keys, directly alterable values
Operating mode ”Contact”with
memory and transfer factor 5
Operating mode ”Batch”with
memory and transfer factor 5

Page 6 ProMinent®
Dulcodes UV-Desinfektionsanlage
Imprint
Operating Instructions for ProMinent®Sigma/ 1 S1Ba/S1Ca
© ProMinent Dosiertechnik GmbH, 2002
ProMinent Dosiertechnik GmbH
Im Schuhmachergewann 5-11
69123 Heidelberg
P.O. Box 101760
69007 Heidelberg ·Germany
[email protected]
www.prominent.de
Subject to technical modifications.
Imprint

Dulcodes UV-Desinfektionsanlage
Page 7
ProMinent®
Table of contents
Page
Device Identification/Identity Code 9
1 Notes on safety of ProMinent®metering pumps 11
1.1 General notes 11
1.2 Notes on installation, start-up and operation 11
1.3 Notes on maintenance and repair 12
2 Product description S1Ba/S1Ca 13
2.1 Identification of pump type 13
2.2 Design/Functional description 13
2.2.1 Functional description, drive 13
2.2.2 Stroke movement 14
2.2.3 Metering capacity diagram 15
2.2.4 Functional description, delivery unit 17
2.2.5 Integrated overflow valve with bleeder function 18
2.2.6 Diaphragm rupture sensor 20
3 Technical data 23
3.1 Technical data Sigma/ 1 23
3.1.1 Capacity data 23
3.1.2 Dimensions Sigma/ 1 25
3.1.3 Dimensions Sigma/ 1 with servo motor 26
3.1.4 Dimensions Sigma/ 1 with left hand liquid end 27
3.1.5 Motor data 27
3.1.6 Stroke adjuster 28
3.1.7 Stroke actuator 28
3.1.8 Electrical data, stroke sensor “S1Ba”28
3.1.9 Electrical data, pacing relay “S1Ba”28
3.1.10 Sound intensity level 28
4 Start-up/Maintenance 29
4.1 Start-up 29
4.2 Maintenance 29
4.3 Replacement of wearing parts 29
5 Features of the S1Ca metering pumps 31
5.1 Function description, motors 31
5.2 Function description, controller 32
5.3 Sockets, symbols and wiring diagram 34
5.4 Retrofitting relays 39

Page 8 ProMinent®
Dulcodes UV-Desinfektionsanlage
Table of contents
6 Control elements 40
7 Settings 41
7.1. Check adjustable values 42
7.2 Change to settings mode 42
7.3 Select operating mode (MODE menu) 43
7.4 Settings for operating mode (SET menu) 43
7.4.1 Settings for “manual”operating mode 43
7.4.2 Settings for “analogue”operating mode (ANALG menu) 43
7.4.3 Settings for “contact”operating mode (CONTCT menu) 45
7.4.4 Settings for “batch”operating mode (BATCH menu) 47
7.5 Settings for programmable functions (SET menu) 47
7.5.1 Settings for “calibration”function (CALIB menu) 47
7.5.2 Setting for “auxiliary frequency”function (AUX menue) 48
7.5.3 Settings for the “flow”function (FLOW menu) 49
7.6 Setting code (CODE menu) 49
7.7 Cancel total stroke number or total litres (CLEAR window) 49
8 Operating 50
8.1 Manual operation 50
8.2 Remote control 51
9 Troubleshooting 51
10 Decommissioning and disposal 53
11 Spare parts and accessories 54
Annex 55
Motor data sheet 55
EC Declaration of Conformity 56
Exploded diagrams of liquid ends 57
Stroke actuator wiring diagram 63
Stroke adjuster wiring diagram 63

Dulcodes UV-Desinfektionsanlage
Page 9
ProMinent®
Identity code ordering system
Please enter the identity code on the device label into the grey box below.
Dulcodes UV-Desinfektionsanlage Identity code ordering system
ProMinent®
S1Ba Sigma Basic Type (S1Ba)
HM Main drive, diaphragm
Pump type: (figures 1+2 = back pressure [bar], figures 3-5 = feed rate [l/h])
12017 12 bar 17 l/h
12035 12 bar 35 l/h
10050 10 bar 50 l/h
10022 10 bar 22 l/h
10044 10 bar 44 l/h
07065 7 bar 65 l/h
07042 7 bar 42 l/h
04084 4 bar 84 l/h
04120 4 bar 120 l/h
Liquid end materials:
PV PVDF
SS Stainless steel
Seal material:
T PTFE seal
Diaphragm:
0 Standard diaphragm, PTFE version
1 Double diaphragm with diaphragm rupture indicator (retro fit possible)
Liquid end version:
0 No spring
1 With 2 valve springs, stainless steel 1.4301, 0.1 bar
4 With pressure relief valve, Viton®seal, no valve spring
5 With pressure relief valve, Viton®seal, and valve spring
Hydraulic connection:
0 Standard threaded connector (according to technical data)
1 Union nut and PVC insert
2 Union nut and PP insert
3 Union nut and PVDF insert
4 Union nut and stainless steel insert
7 Union nut and PVDF hose nozzle
8 Union nut and stainless steel hose nozzle
Version:
0 With ProMinent®logo (standard)
1 Without ProMinent®logo
Electrical power supply:
S 3 ph, 230 V/400 V 50/60 Hz, 0.09 kW
M 1 ph, AC, 230 V/50/60 Hz, 0.09 kW
N 1 ph, AC 115 V 60 Hz, 0.09 kW
L 3 ph, 230 V/400 V, 50 Hz, (EExe, EExde)
P 3 ph, 230 V/400 V, 60 Hz, (EExe, EExde)
R 3 ph, variable speed motor, 230/400 V, 0.09 kW
V Variable speed motor with integrated speed control 1 pH,
230 V, 50/60 Hz
Z 1 ph, variable speed control set 1 ph, 230/400 V, 50/60 Hz
2 No motor, C 42 flange (NEMA)
3 No motor, B5 Gr. 56 (DN)
Enclosure rating:
0 IP 55 (standard)
1 Exe motor version (EExe II T3)
2 Exde motor version (EExde IIC T4)
Stroke sensor:
0 No stroke sensor (standard)
2 Pacing relay (reed relay)
3 Stroke sensor (Namur) for hazardous locations
Stroke length adjustment:
0 Manual (standard)
1 With stroke positioning motor, 230 V/50/60 Hz
2 With stroke positioning motor, 115 V/60 Hz
3 With stroke control motor,
0...20 mA 230 V/50/60 Hz
4 With stroke control motor
4...20 mA 230 V/50/60 Hz
5 With stroke control motor
0...20 mA 115 V/60 Hz
6 With stroke control motor
4...20 mA 115 V/60 Hz
S1Ba HM ___ ___ T ___ ___ ___ ___ ___ ___ ___ ___ 01
Viton®is a registered trademark of DuPont Dow Elastomers.

Page 10 ProMinent®
Dulcodes UV-Desinfektionsanlage
Identity code ordering system
Identity code ordering system
Please enter the identity code on the device label into the grey box below.
Notice:
S2Ca pump types: 60 Hz performance
data applies (as 60 Hz operation)
but max. 200 strokes/min.
S1Ca Sigma Control Type (S1Ca)
HM Power end, diaphragm
Pump typ: (figures 1+2 =back pressure [bar ],figures 3-5 =feed rate [l/h ])
12017 12 bar 20 l/h
12035 12 bar 42 l/h
10050 10 bar 50 l/h
10022 10 bar 26 l/h
10044 10 bar 53 l/h
07065 7 bar 65 l/h
07042 7 bar 50 l/h
04084 4 bar 101 l/h
04120 4 bar 120 l/h
Liquid end materials:
PV PVDF
SS Stainless steel
Seal material:
T PTFE seal
Displacement element:
0 Standard diaphragm
1 Double diaphragm with rupture indicator incorporating “Pump stopping”function
2 Double diaphragm with rupture indicator incorporating “Pump alarm”function
Liquid end version:
0 No springs
1 With 2 valve springs, stainless steel 1.4301, 0.1 bar
4 With relief valve,Viton
®
seal,no valve spring
5 With relief valve,Viton
®
seal,with valve spring
Hydraulic connection:
0 Standard threaded connector (according to technical data)
1 Union nut and PVC insert
2 Union nut and PP insert
3 Union nut and PVDF insert
4 Union nut and stainless steel insert
7 Union nut and PVDF hose nozzle
8 Union nut and stainless steel hose nozzle
Version:
0 With ProMinent®logo
1 Without ProMinent®logo
Electrical power supply:
U 3 ph, 230 V/400 V, ±10 %, 50/60 Hz
Cable and plug:
A 2 m European
B 2 m Swiss
C 2 m Australian
D 2 m USA
Relays:
0 No relay
1 With fault indicating relay (N/C)
3 With fault indicating relay (N/O)
4 As 1 with pacing relay
5 As 3 with pacing relay
Control variant:
0 Manual + external with pulse control
1 Manual + external + pulse control
+ analogue
P PROFIBUS®
Access code:
0 No access code
1 With access code
Metering monitor:
0 Input with pulse evaluation
1 Input with permanent contact
evaluation
Stroke length
adjustment:
0 Manual
C Manual + calibration
S1Ca HM ___ ___ T ___ ___ ___ ___ U ___ ___ ___ ___ ___ ___ 01
Viton®is a registered trademark of DuPont Dow Elastomers.

Dulcodes UV-Desinfektionsanlage
Page 11
ProMinent®
Notes on safety of ProMinent®metering pumps
1 Notes on safety of ProMinent®metering pumps
Notes on safety and important operating notes are divided into classes accompanied with
pictograms. Please familiarize yourself with the following definitions and pictograms.
DANGER
Danger to life or risk of serious injury!
WARNING
Danger of injury or serious damage to the device!
NOTICE
These situations require complete attention!
IMPORTANT
Information which must be followed!
1.1 General notes
WARNING
•The equipment/devices may only be used for their intended purpose.
•ProMinent®metering pumps must not be assembled with parts which are not
tested and recommended by ProMinent otherwise this can lead to injury to
persons and damage to property for which no liability will be accepted!
•Pumps must be accessible at all times to facilitate operation and maintenance.
Access points must not be obstructed or blocked!
•Before carrying out any maintenance and repair work always drain off and
flush out the liquid end first if hazardous or unknown metered media are used!
•When metering hazardous or unknown liquids, always wear safety clothing
(safety goggles, gloves, ...) when working on the liquid end!
•You must observe the guidelines in this operating instructions manual and the
”General operating instructions manual for ProMinent®motor-driven metering
pumps and hydraulic accessoires”on assembly, installation and maintenance!
1.2 Notes on installation, start-up and operation
WARNING
•The metering pump can contain water residue in the liquid end as the result of
testing at the factory!
If handling media which must not come in contact with water, all traces of
water must be removed from the liquid end before start-up! For this purpose,
turn the pump through 180˚and drain off the liquid end then flush with a
suitable medium from above via the intake connection!
•Do not connect mains voltage to the control cable!
•When operating the metering pump against a closed shut-off element on the
pressure side or in the event of pressure peaks during the metering stroke, the
system pressure can reach a multiple of the maximum permissible operating
pressure that can consequently cause the pressure line to burst!
•To avoid this situation, an overflow is recommended for the purpose of limiting
the maximum permissible operating pressure of the pump or system.
•Do not connect a metal bypass line to the overflow valve on the PVT delivery
unit! This could cause cracks in the delivery unit!
•The bearing cover (1) must be fitted when in operation.
The equipment will not otherwise comply with IP 55 and the bearing will not be
adequately secured!
•The design cover (2) must be fitted when in operation.
Equipment will not otherwise comply with IP 55.
1
2
Fig. 1

Page 12 ProMinent®
Dulcodes UV-Desinfektionsanlage
NOTICE
•Set stroke length only with pump in operation!
IMPORTANT
•The pump must be secured in such a way that no vibrations can occur! The valves
of the liquid end must always be positioned vertically in order to ensure trouble-free
operation!
•The intake and delivery lines must always be arranged such as to ensure connection
at the liquid end free of mechanical stress!
The lines must be secured such that no vibrations can occur!
•Only use the clamping rings and hose sockets intended for the relevant hose
diameter as well as original hoses with the specified hose dimensions and wall
thickness otherwise the stability and durability of the connection will not be
guaranteed!
Avoid reducing hose sizes!
Observe the permissible pressure of the hoses!
•A vent with return to the supply tank is advisable when metering extremely
aggressive or hazardous media!
In addition, a shut-off valve should be provided on the delivery or intake side!
1.3 Notes on maintenance and repair
WARNING
•Only specially trained and authorized persons are permitted to carry out
maintenance on metering pumps and their periphery!
•If hazardous or unknown metering media are used, always flush out the liquid
end first before carrying out any maintenance and repair work!
•When metering hazardous or unknown liquids, always wear safety clothing
(safety goggles, gloves) when working on the liquid end!
•Always depressurize the delivery line first before carrying out any work on the
pump!
Always discharge and flush liquid end!
Observe safety data sheets for metered liquid!
DANGER

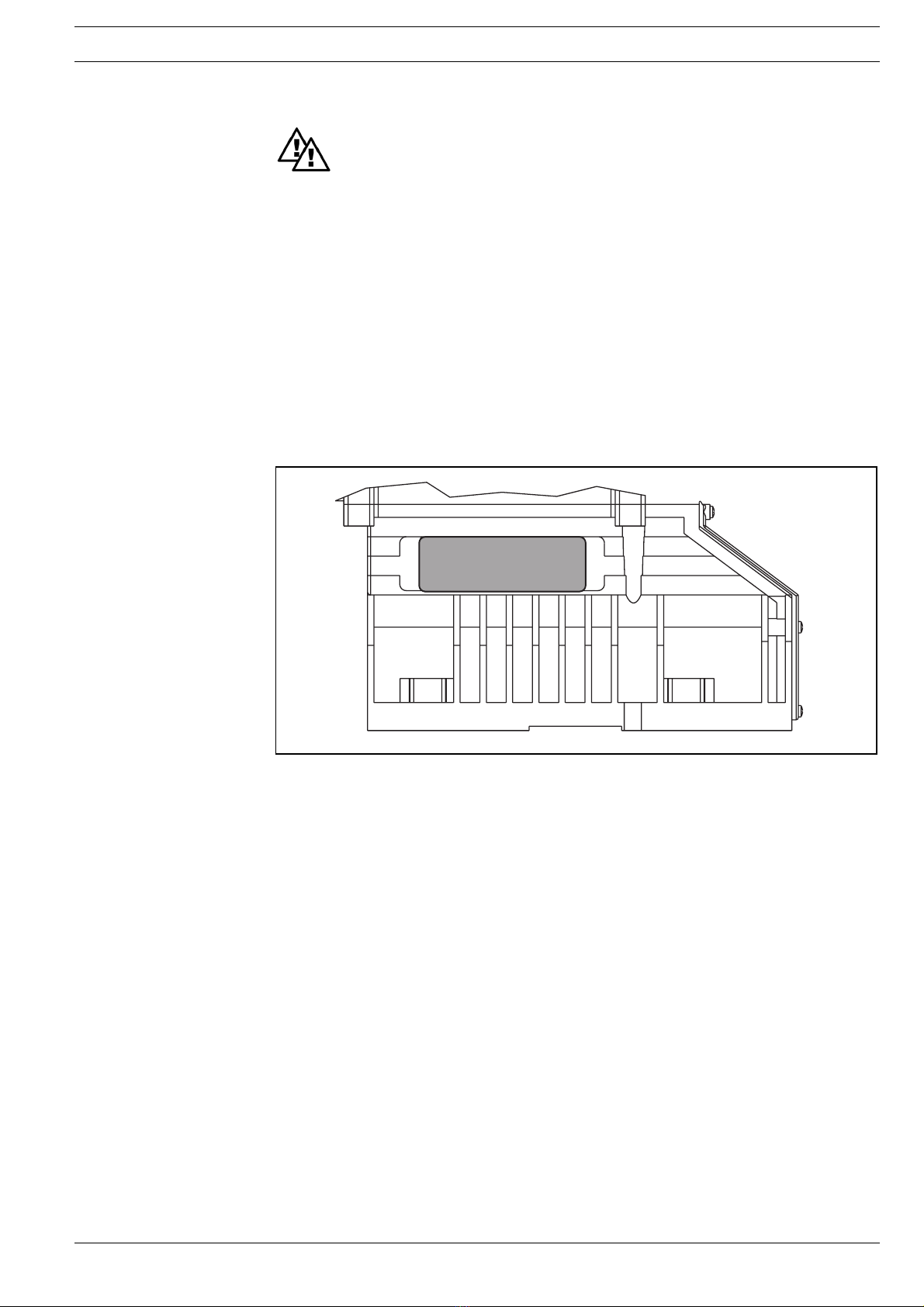

•Disconnect power plug or power supply line before opening the plug!
Isolate relay option if applicable!
Check to ensure power is disconnected!
Secure pump while carrying out repairs to ensure it cannot be switched on
unintentionally!
•Pumps for metering radioactive media must not be shipped through standard
channels!
IMPORTANT
The metering pump must be in a cleaned condition with the liquid end flushed if
returned for repair!
Notes on safety of ProMinent®metering pumps

Dulcodes UV-Desinfektionsanlage
Page 13
ProMinent®
2 Product description S1Ba/S1Ca
WARNING
Use for intended purpose
•The pump is designed as a liquid medium metering pump; it serves the purpose of
metering liquid medium within the specified line system!
•Operate the pump only within the conditions described in the technical data!
•General restrictions with regard to viscosity limits, chemical resistance and density must
be observed (refer to ProMinent®chemical resistance list (catalogue or homepage))!
•All other applications or conversion are prohibited!
•The pump is not designed to meter gaseous media as well as solids.
•The pump is not suitable for metering combustible liquids!
•Only specifically trained and authorized personnel are permitted to operate the pump!
2.1 Identification of pump type
The identity code and serial number are given in addition to the standard technical specifications.
These two numbers must always be quoted when making any enquiries as they enable distinct
identification of the type of metering pump.
2.2 Design/Functional description
2.2.1 Functional description, drive
The ProMinent®Sigma/ 1 diaphragm-type metering pump is an oscillatory displacement pump
with the stroke length adjustable in steps of 1%. It is driven by electric motor (1). The rotary drive
of the electric motor is stepped down by worm gear and transmitted via the eccentric roller (3) to
the push rod (4) connected to fork (8) and converted into oscillatory movement. Return spring (5)
presses the fork with push rod positively against the eccentric roller thus producing the return
stroke. The stroke is adjusted by means of stroke adjustment knob (6) and spindle (7) by limiting
the return stroke. Stroke movement is transmitted directly to the displacement diaphragm.
Interacting with the valves, this diaphragm produces the overpressure and vacuum in the liquid
end necessary for delivery. Flow is pulsating.
In the basic type, the electric motor is normally a 3-ph extended-range AC motor (refer to
Section 3 for other options).
Product description S1Ba/S1Ca
Fig. 2

Page 14 ProMinent®
Dulcodes UV-Desinfektionsanlage
IMPORTANT
A large stroke length and low metering frequency should be selected for very viscous
media!
A shorter stroke length and high frequency should be selected to achieve good mixing
properties!
2.2.2 Stroke movement
Set stroke length dependent on the required delivery capacity.
Product description S1Ba/S1Ca
Fig. 5
75 % 30 %
Fig. 4
+ Delivery stroke
b) At reduced stroke length
–Intake stroke
a) Stroke progression
at max. stroke rate
and stroke length
Stroke speed
Angle reduced stroke length
Fig. 3
61_01-101_00_24-01
6
7
8
3
1
4
5

Dulcodes UV-Desinfektionsanlage
Page 15
ProMinent®
Metering capacity diagram S1Ba (50 Hz)
2.2.3 Metering capacity diagram
Product description S1Ba/S1Ca
Metering capacity diagram S1Ba (50 Hz)
Q (l/h)
0.0
10.0
20.0
30.0
40.0
50.0
60.0
0 102030405060708090100
S1Ba10050
S1Ba12035
S1Ba12017
Q (l/h)
0.0
10.0
20.0
30.0
40.0
50.0
60.0
70.0
0.0 2.0 4.0 6.0 8.0 10.0 12.0
S1Ba10050
S1Ba12035
S1Ba12017
Q (l/h)
0.0
10.0
20.0
30.0
40.0
50.0
60.0
70.0
0 102030405060708090100
S1Ba07065
S1Ba10044
S1Ba10022
Q (l/h)
0.0
10.0
20.0
30.0
40.0
50.0
60.0
70.0
80.0
0.0 1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10.0 11.0
S1Ba07065
S1Ba10044
S1Ba10022
pressure in (bar)
Stroke length in (%)
pressure in (bar)
Metering capacity diagram S1Ba (50 Hz)
Stroke length in (%)
Metering capacity diagram S1Ba (50 Hz)

Page 16 ProMinent®
Dulcodes UV-Desinfektionsanlage
pressure in (bar)
Metering capacity diagram S1Ba (50 Hz)
Stroke length in (%)
Metering capacity diagram S1Ba (50 Hz)
Product description S1Ba/S1Ca
Q (l/h)
0.0
20.0
40.0
60.0
80.0
100.0
120.0
140.0
0 102030405060708090100
S1Ba04120
S1Ba04084
S1Ba07042
Q (l/h)
0.0
20.0
40.0
60.0
80.0
100.0
120.0
140.0
160.0
0.0 1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0
S1Ba04120
S1Ba04084
S1Ba07042
IMPORTANT
•The metering output of S1Ba at 60 Hz is approximately 1.2 times the metering
output of S1Ba at 50 Hz.
•For pump types S1Ca, the output data at 60 Hz apply (for S1Ca, however, only 200
strokes/min. are possible).

Dulcodes UV-Desinfektionsanlage
Page 17
ProMinent®
Product description S1Ba/S1Ca
Fig. 6
3154-4
2.2.4 Functional description, delivery unit
The heart of the delivery unit is the DEVELOPAN®metering diaphragm (2). It hermetically seals
the delivery chamber of liquid end (4) and produces a displacement in the liquid end. The end
disc (5) made of chemically resistant plastic together with safety diaphragm (13) separates the
drive housing from the delivery unit and protects the drive from corrosion in the event of the
diaphragm failing. Delivery is based on the interaction between intake valve (1) and head valve (3)
of the same design together with the diaphragm movement. The valve balls can be supported
with springs for metering viscous media.
The connection dimensions of valves and liquid ends of the same size but with different materials
are identical. These parts can be interchanged as required.
Materials and dimensions are specified in Section 3, Technical data.

Page 18 ProMinent®
Dulcodes UV-Desinfektionsanlage
Product description S1Ba/S1Ca
2.2.5 Integrated overflow valve with bleeder function
Task:
The task of the overflow valve is to protect the motor and gear unit against impermissible
overpressure caused by the metering pump.
This function is produced by a spring-loaded ball.
A pressure relief mechanism for the bleeder function is provided.
Design and functional description
(refer to Fig. No. 7 and 8)
Initially, the overflow valve illustrated under item 102 operates as a simple directly control
safety valve. As soon as the pressure set with spring item 132 is exceeded, the effective pressure
raises ball item 130. The liquid then flows off into the tank via hose connection item 128.
Fig. 7
3160-4
Overflow valve Sigma/ 1 liquid end, 12 bar PVT Identcode Type: 12035
*colour of cap –grey
Overflow valve Sigma/ 1 liquid end, 10 bar PVT Identcode Type: 10044, 10050
*colour of cap –beige
Overflow valve Sigma/ 1 liquid end, 7 bar PVT Identcode Type: 07042, 07065
*colour of cap –black
Overflow valve Sigma/ 1 liquid end, 4 bar PVT Identcode Type: 04120
*colour of cap –red

Dulcodes UV-Desinfektionsanlage
Page 19
ProMinent®
Product description S1Ba/S1Ca
Fig. 8
3161-4
NOTICE
•Knob item 139 must be turned in clockwise direction as far as it will go ”close“.
•The bypass line must always be closed and must be routed back into the
supply tank. Connection via hose connection item 128.
•Minimal overflow can occur in the bypass line when the valve operates close to
the overpressure function.
The bleeder function is achieved by turning knob item 139 in counterclockwise direction as far as
it will go ”open“: Priming aid for starting up pump against pressure. The force of spring item 132
relieves ball item 130 which is controlled by the lower spring force of bleeder spring item 133.
NOTICE
Once the pump has primed, turn knob item 139 in clockwise direction as far as it
will go ”close“! The pump can now be placed into operation.
Overflow valve Sigma/ 1 liquid end, 12 bar SST Identcode Type: 12035
*colour of cap –grey
Overflow valve Sigma/ 1 liquid end, 10 bar SST Identcode Type: 10044, 10050
*colour of cap –beige
Overflow valve Sigma/ 1 liquid end, 7 bar SST Identcode Type: 07042, 07065
*colour of cap –black
Overflow valve Sigma/ 1 liquid end, 4 bar SST Identcode Type: 04120
*colour of cap –red

Page 20 ProMinent®
Dulcodes UV-Desinfektionsanlage
Technical data
Corresponding to the type of pump, overflow valves are available for pressure stages pnom 4, 7,
10 and 12 bar with (1.05 ... 1.15) xpnom opening pressure.
Material in contact with metered medium
Material Liquid end Suction/ Seals Balls Springs Integrated
version discharge overload
connector valve
PVT PVDF PVDF PTFE Ceramic / glass Stainless steel PDFE/Viton®
1.4301
SST Stainless steel Stainless steel PTFE Stainless steel Stainless steel Stainless
1.4571/1.4404 1.4581 1.4404 1.4301 steel /Viton®
Viton®is a registered trademark of DuPont Dow Elastomers.
Use for intended purpose/Use not for intended purpose
Use for intended purpose
To protect the motor and gear unit against impermissible overpressure caused by the metering
pump.
If the pump is the only pressure generator in the system, the overflow valve will also protect the
system automatically.
NOTICE
•The ceramic ball and ball seat of the overflow valve are wearing parts. Slight
leakage can occur at the safety valve after a prolonged period of operation.
The ball and ball seat should be replaced if leaks occur.
•The bypass line must always be connected and must be routed back into the
supply tank.
Use not for intended purpose
To protect the system from impermissible overpressure which has other causes than the pressure
generated by the metering pump.
The pump must not be operated without the bypass line connected.
The bypass line must not be connected in the intake line (the bleeder function will no longer be
guaranteed). The bypass line must be routed back into the supply tank.
DANGER
When carrying out maintenance work on the overcurrent valve, pay attention to
the tensioning state of the pressure spring item132! Wear safety goggles!
2.2.6 Diaphragm rupture sensor
Function:
Monitors the seals in the working diaphragm. This liquid end can continue to function for a short
period in emergency mode, i.e. full operating pressure, no leakage, even after diaphragm rupture.
Design and function description (see Fig. 9)
Liquid ends with diaphragm rupture sensors comprise a standard liquid end (item 100) a working
diaphragm (item 200) and an auxiliary diaphragm (item 148) The auxiliary diaphragm is positioned
between the back plate (item 201) and the interim plate (item 147) and forms a sealed
compartment together with the working membrane (item 200).
The leak tightness of the working diaphragm, Item 200, is monitored with a diaphragm failure
detector, Item 104, that triggers a contact signal in the event of diaphragm failure so that the
pump is stopped in the S1Ca and the diaphragm failure is indicated on a LCD.
Product description S1Ba/S1Ca
