ProMinent Sigma 3 S3Ba User manual

Part No. 987517 ProMinent Dosiertechnik GmbH ·69123 Heidelberg ·Germany BA SI XXX XX/XX GB
ProMinent
®
Please completely read through these operating instructions first! · Do not discard!
The warranty shall be invalidated by damage caused by operating errors!
Two sets of operating instructions are necessary to ensure the ProMinent®Sigma/ 3 S3Ba or S3Ca metering pumps
are operated safely and reliably for their intended purpose:
This product specific Sigma/ 3 operating instructions manual and the ”General operating instructions
ProMinent®motor-driven metering pumps and hydraulic accessories”are only valid if read together!
Operating Instructions
ProMinent®Sigma/ 3
S3Ba (Basic Type)
S3Ca (Control Type)
S3Ba S3Ca
Please enter the identity code of the device here.
S3Ca ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___
S3Ca ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___
Version 10.03

Control elements: overview
1Operating light (green)
2Warning light (yellow)
3Error warning light (red)
4Stroke length adjuster
5LCD display
6UP key
7DOWN key
8Pkey
9STOP/START key
10 i key
11 Relay output (optional)
12 Metering monitor socket
13 Float switch socket
14 External control socket
15 Diaphragm rupture indicator socket
16 Mains switch
Key functions
In continuous display mode In settings mode
(operating) (settings)
STOP/START key
STOP
START
Press briefly Stop pump, Stop pump,
start pump start pump
P key
P
Press briefly Start batch (in “batch” operating mode only), Confirm entry- jump to next menu
Cancel error option or continuous display
Press for 2 s Change to settings mode ---
Press for 3 s --- Jump to continuous display
Press for 10 s Software version displayed ---
Press for 15 s Load factory settings (calibration) ---
i key
i
Press x1 Toggle between continuous displays Toggle between “change individual digits”
and change a figure"
Press x2 --- For “change individual digits”:
jumps to first digit
Arrow keys UP and DOWN
Press separately Change directly alterable values Select other settings,
(until “Set” appears) change individual digit or figure
Press simultaneously Prime (in “stroke rate” permanent display) ---
Control elements and key functions
1
2
3
16
4
9
10
8
5
6
7
15 14 13 12 11

P
P
PPPP
P
P
P
P
PP
P
PP
P
PP
P
P
P
P
P
P
P
P
P P
P
P
i
STOP
STOP
START
START
edom
Batch
Contact
ManualAnalog
edom
Analog
edom
Manual
edom
Contact
edom
Batch
edoc
enon
1edoc
2edoc
0
99
0
9
0
9
0
tes glana
Set
02o
mA
Set
Analog
024
mA
Set
Analog
evruc
Set
Analog
11i
mA
Set
Analog
01i
mA
Set
Analog
12f
Freq.
Set
Analog
02f
Freq.
Set
Analog
11f
Freq.
Set
Analog
01f
Freq.
Set
Analog
91f
Freq.
Set
Analog
01f
Freq.
Set
Analog
91f
Freq.
Set
Analog
01f
Freq.
Set
Analog
92f
Freq.
Set
Analog
92f
Freq.
Set
Analog
02f
Freq.
Set
Analog
02f
Freq.
Set
Analog
91i
mA
Set
Analog
01i
mA
Set
Analog
91i
mA
Set
Analog
01i
mA
Set
Analog
22i
mA
Set
Analog
02i
mA
Set
Analog
92i
mA
Set
Analog
02i
mA
Set
Analog
92i
mA
Set
Analog
02i
mA
Set
Analog
nore
Set
Analog
ffore
Set
Analog
2 s
-----
Set
Analog
Set
Analog
Set
Analog
2
1

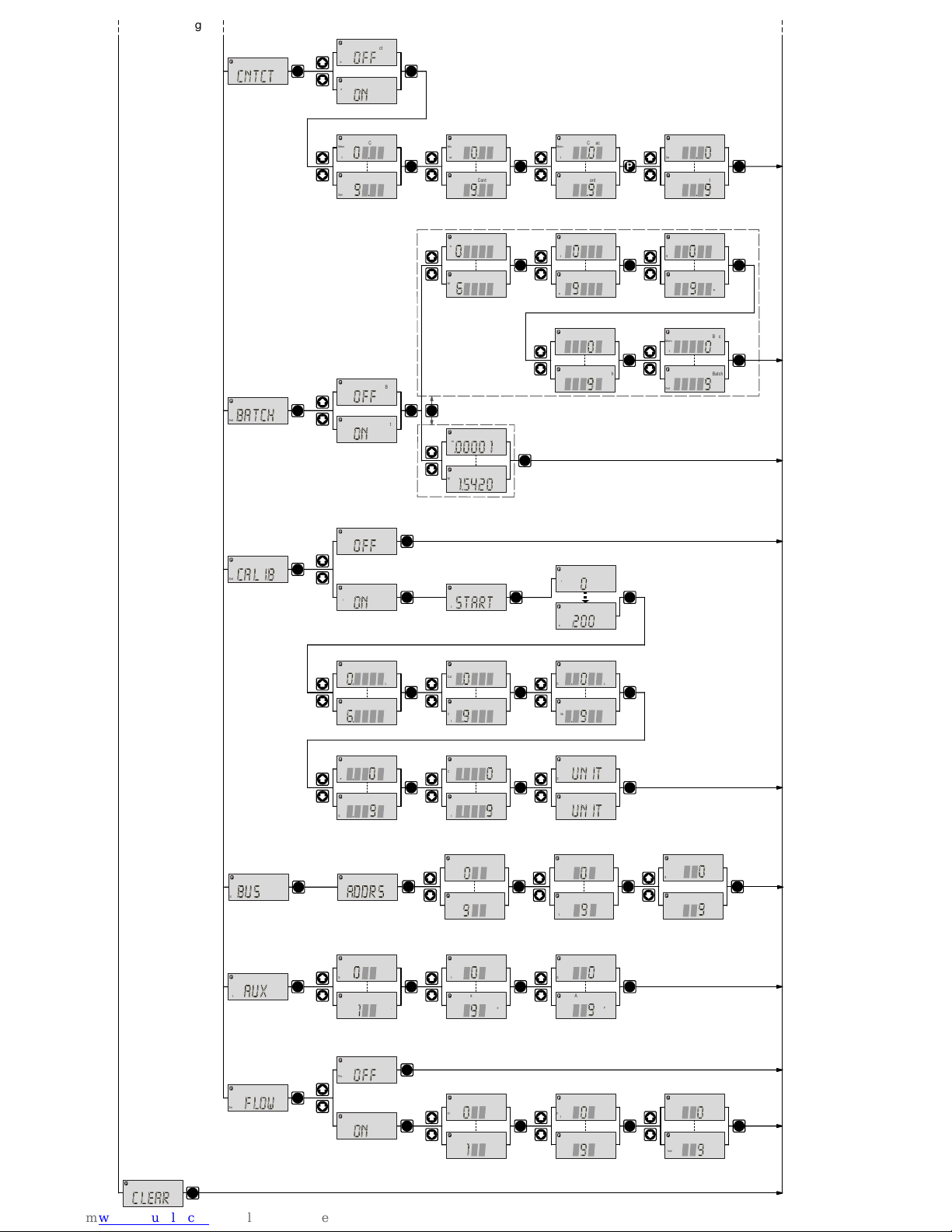

Operating-/Settings Diagram
Continuous
display
Start/stop pump
Change directly alterable values
= Lock (CODE 1)
= Lock (CODE 2)
Prime
Start batch (in"batch" operating mode only)
Cancel error
Check adjustable values
2
1
page 47
page 40
page 46
page 40
next page
First select the operating mode here and
then enter the settings in the SET menu!
Exceptions: Timer and PROFIBUS®.

P
PPP
P
PP
PP
P
P
i
P
P
P
P
P
P
P
STOP
START
P
PP
P
PP
P
PP
P
P
P
hctab
Set
wolf
Set
xua
Set
bilac
Set
raelc
L
N
9
*
Set
Mem
Batch
0
*
Set
Mem
Batch
9
*
Set
Mem
Batch
0
*
Set
Mem
Batch
9
*
Set
Mem
Batch
0
*
Set
Mem
Batch
9
*
Set
Mem
Batch
0
*
Set
Mem
Batch
6
*
Set
Mem
Batch
0
*
Set
Mem
Batch
ffo
Set
Mem
Batch
no
Set
Mem
Batch
no
Set
Flow
ffo
Set
Flow
1
Set
Flow
0
Set
Flow
9
Set
Flow
0
Set
Flow
9
Set
Flow
0
Set
Flow
9
Freq.
Set
Aux
0
Freq.
Set
Aux
9
Freq.
Set
Aux
0
Freq.
Set
Aux
1
Freq.
Set
Aux
0
Freq.
Set
Aux
no
Set
Calib
ffo
Set
Calib
trats
Set
Calib
0
Set
Calib
N
6
LSet
Calib
0
LSet
Calib
9
LSet
Calib
0
LSet
Calib
9
LSet
Calib
0
LSet
Calib
9
LSet
Calib
0
LSet
Calib
9
LSet
Calib
0
LSet
Calib
10000
Set
Mem
Batch
L
02451
Set
Mem
Batch
L
tinu
LSet
tinu
gal
Set
Set
Calib
N
002
PPP
PP
tctnc
Set
no
Set
Mem
Contact
ffo
Set
Mem
Contact
9
Set
Mem
Contact
0
Set
Mem
Contact
9
Set
Mem
Contact
0
Set
Mem
Contact
9
Set
Mem
Contact
0
Set
Mem
Contact
9
Set
Mem
Contact
0
Set
Mem
Contact
P
P
SUB
Set
P
PP
9
Set
0
Set
9
Set
Calib
0
Set
Calib
Set
Set
sRA
Set
0
9
P
page 42
page 44
page 45
page 46
page 46
page 46
page 29
previous page

i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
#
N
*
Mem
Contact
Stop
Operating mode "Analog" 0-20 mA
Stroke rate
Feed rate
Total stroke number
Total litres
(feed quantity)
"External" display
Signal current
Strokes remaining
Batch size/
Litres remaining
Factor
"Mem" appears only when "memory" function activated
Stroke length
Operating mode "Manual"
Continuous display
Operating mode "Contact" with
memory and tansfer factor 5
Operating mode "Batch" with
memory and tansfer factor 5
$
#
!
N
Analog
Stop
&$
! 
L
Analog
Stop
JN
A
Analog
Stop


mA
Analog
Stop
#$
%
Analog
Stop
#$
%
Manual
Stop
#
$
%
Contact
Stop
#$
%
Batch
Stop

&
Freq.
Manual
Stop

&
Freq.
Contact
Stop
$
#
!
N
Stop
Contact

&

Freq.
Batch
Stop
$
#
!
N
Stop
Batch

#
%
/hL
Manual
Stop
$
#
!
N
Stop
Manual
&$
! 
L
Stop
Contact
&$
! 
L
Stop
Batch
&$
! 
L
Stop
Manual
JN
A
Stop
Contact
Mem
J
N
A
Stop
Batch
Mem
#
N
*
Mem
Batch
Stop




L
*
Mem
Batch
Stop
*
Mem
Batch
Stop
#
*
Mem
Contact
Stop


#

&
Freq.
Analog
Stop

#
%
/hL
Analog
Stop
Continuous
display
= UP and/or DOWN arrow keys, directly alterable values
Operating mode ”Contact” with
memory and transfer factor 5
Operating mode ”Batch” with
memory and transfer factor 5

Page 6 ProMinent®
Dulcodes UV-Desinfektionsanlage
Imprint
Operating Instructions for ProMinent®Sigma/ 3 S3Ba/S3Ca
© ProMinent Dosiertechnik GmbH, 2000
ProMinent Dosiertechnik GmbH
Im Schuhmachergewann 5-11
69123 Heidelberg
P.O. Box 101760
69007 Heidelberg ·Germany
[email protected]
www.prominent.de
Subject to technical modifications.
Imprint

Dulcodes UV-Desinfektionsanlage
Page 7
ProMinent®
Page
Device Identification/Identity Code 9
1Notes on safety of ProMinent®metering pumps 11
1.1 General notes 11
1.2 Notes on installation, start-up and operation 11
1.3 Notes on maintenance and repair 12
2Product description S3Ba/S3Ca 13
2.1 Identification of pump type 13
2.2 Design/Functional description 13
2.2.1 Functional description, drive 13
2.2.2 Stroke movement 14
2.2.3 Metering capacity diagram 15
2.2.4 Functional description, delivery unit 17
2.2.5 Integrated overflow valve with bleeder function 18
2.2.6 Diaphragm rupture sensor 20
3Technical data 23
3.1 Technical data Sigma/ 3 basic type S3Ba23 23
3.1.1 Capacity data 23
3.1.2 Dimensions S3Ba 24
3.1.3 Dimensions S3Ca 25
3.1.4 Dimensions S3Ba with servo motor 25
3.1.5 Motor data 26
3.1.6 Stroke actuator drive mechanism 26
3.1.7 Stroke adjuster drive mechanism 26
3.1.8 Electrical data, stroke sensor “S3Ba”26
3.1.9 Electrical data, pacing relay “S3Ba”27
3.1.10 Sound intensity level 27
4Start-up/Maintenance 28
4.1 Start-up 28
4.2 Maintenance 28
4.3 Replacement of wearing parts 28
5Features of the S3Ca metering pumps 30
5.1 Function description, motors 30
5.2 Function description, controller 30
5.3 Sockets, symbols and wiring diagram 32
5.4 Retrofitting relays 38
Table of contents

Page 8 ProMinent®
Dulcodes UV-Desinfektionsanlage
Table of contents
6Control elements 39
7Settings 40
7.1. Check adjustable values 41
7.2 Change to settings mode 41
7.3 Select operating mode (MODE menu) 42
7.4 Settings for operating mode (SET menu) 42
7.4.1 Settings for “manual”operating mode 42
7.4.2 Settings for “analogue”operating mode (ANALG menu) 42
7.4.3 Settings for “contact”operating mode (CONTCT menu) 44
7.4.4 Settings for “batch”operating mode (BATCH menu) 46
7.5 Settings for programmable functions (SET menu) 46
7.5.1 Settings for “calibration”function (CALIB menu) 47
7.5.2 Settings for “auxiliary frequency”function (AUX menu) 47
7.5.3 Settings for the “flow”function (FLOW menu) 48
7.6 Setting code (CODE menu) 48
7.7 Cancel total stroke number or total litres (CLEAR window) 48
8Operating 49
8.1 Manual operation 49
8.2 Remote control 50
9Troubleshooting 50
10 Decommissioning and disposal 52
11 Spare parts and accessories 53
Annex 54
Motor data sheet 54
EC Declaration of Conformity 55
Exploded diagrams of liquid ends 56
Wiring diagram, stroke actuator 63
Wiring diagram, stroke adjuster 63

Dulcodes UV-Desinfektionsanlage
Page 9
ProMinent®
Identity code ordering system
Please enter the identity code on the device label into the grey box below.
Dulcodes UV-Desinfektionsanlage Identity code ordering system
ProMinent®
S3Ba Sigma Basic Type (S3Ba)
HMain power end, diaphragm
Pump type: (Figures 1 + 2 = back pressure [bar], figures 3 - 5 = feed rate [l/h]):
120145* 12 bar; 145 l/h
120190* 12 bar; 190 l/h
120270* 12 bar; 270 l/h
120330* 12 bar; 330 l/h
070410 7 bar; 410 l/h
070580 7 bar; 580 l/h
040830 4 bar; 830 l/h
041030 4 bar; 1030 l/h *for PVDF max. 10 bar
Liquid end material:
PV PVDF
SS Stainless steel
Seal material:
TPTFE seal
Positive displacement element:
0Standard diaphram, PTFE version
1With membrane rupture signalling (retrofittable)
Liquid end version:
0No valve springs
1With 2 valve springs, Hastelloy C, 0.1 bar
4With bypass valve, Viton®seal, no valve springs
5With bypass valve, Viton®seal and valve springs
Hydraulic connector:
0Standard threaded connector (as technical data)
1Union nut and PVC pipe connector insert
2Union nut and PP pipe connector insert
3Union nut and PVDF pipe connector insert
4Union nut and stainless steel pipe connector insert
7Union nut and PVDF tubing nozzle
8Union nut and stainless steel tubing nozzle
Version:
0With ProMinent®logo (standard)
1Without ProMinent®logo
Power supply:
S3ph, 230 V/400 V, 0.37 kW
M1ph, 230 V, 0.55 kW
N1ph, 115 V, 0.55 kW
L3ph, 230 V/400 V, 0.37 kW, 50 Hz, (EExe, EExde)
P3ph, 230 V/400 V, 0.37 kW, 60 Hz, (EExe, EExde)
RVariable speed stroke control motor, 3 ph, 230 V/400 V, 0.55 kW
ZSpeed control, 1 ph, 230 V/400 V, 0.55 kW
1No motor, with B 14 flange, size 71 (DIN)
2 No motor, with C 56 flange, (NEMA)
3No motor, B 5 flange, size 71 (DIN)
Enclosure rating:
0IP 55
1Exe motor version (EExe II T3)
2Exde motor version (EExde IIC T4)
Stroke sensor:
0No stroke sensor (standard)
2Pacing relay (read relay)
3 Stroke sensor (Namur) for potentially hazardons area.
Stroke length adjustment:
0Manual
1With stroke positioning motor, 230 V/50/60 Hz
2With stroke positioning motor, 115 V/50/60 Hz
3With stroke control motor
0...20 mA 230 V/50/60 Hz
4With stroke control motor
4...20 mA 230 V/50/60 Hz
5With stroke control motor
0...20 mA 115 V/50/60 Hz
6With stroke control motor
4...20 mA 115 V/50/60 Hz
S3Ba _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Viton®is a registered trademark of DuPont Dow Elastomers.

Page 10 ProMinent®
Dulcodes UV-Desinfektionsanlage
Identity code ordering system
Identity code ordering system
Please enter the identity code on the device label into the grey box below.
S3Ca Sigma Control Type (S3Ca)
H Main drive, diaphragm
Pump type: (figures 1+2 = back pressure [bar], figures 3-5 = feed rate [l/h]):
120145* 12 bar; 174 l/h
120190* 12 bar; 228 l/h Note:
120270* 12 bar; 324 l/h 60 Hz performance data apply
070410 7 bar; 492 l/h for S3Ca pump types
070580 7 bar; 696 l/h (due to internal 60 Hz operation).
040830 4 bar; 1000 l/h * for PVDF max. 10 bar
Liquid end material:
PVT PVDF
SST Stainless steel
Positive displacement element:
0Standard diaphram, PTFE version
1Double diaphragm with rupture indicator incorporating “Pump stopping”function
2Double diaphragm with rupture indicator incorporating “Pump alarm”function
Liquid end version:
0No valve springs
1With 2 valve springs, Hastelloy C 4: 0.1 bar (standard for DN 32)
4With bypass valve, Viton
®
seal, no valve springs
5With bypass valve, Viton
®
seal and valve springs (standard for DN 32)
Hydraulic connector:
0Standard thr eaded connector (as technical data)
1Union nut and PVC insert
2Union nut and PP insert
3Union nut and PVDF insert
4Union nut and stainless steel insert
7Union nut and PVDF hose nozzel
8Union nut and stainless steel hose nozzel
Version:
0With ProMinent
®
logo (standard)
1Without ProMinent
®
logo
Power supply:
A1ph 200-230 V ±10 %, 50/60 Hz
B1ph 100-115 V ±10 %, 50/60 Hz
W1ph 115-230 V ±10 %, 50/60 Hz
Lead and plug:
A2mEurope
B2m Switzerland
C2m Australia
D2m USA
Relay:
0No relay
1Fault indicating relay N/C
3Fault indicating relay N/O
4As 1 + pacing relay
5As 3 + pacing relay
Fpower relay N/C
G power relay N/O
Control variants:
0Manual + external with pulse control
1 Manual + external with pulse control + analogue
4as 0 + process-timer
5as 1 + process-timer
P PROFIBUS®
Access code:
0No access code
1With access code
Metering monitor:
0 Input with pulse evaluation
1Input with continuous contact evaluation
Stroke length adjustment:
0Manual
CManual + calibration
S3Ca _ _ _ ___________
Viton®is a registered trademark of DuPont Dow Elastomers.

Dulcodes UV-Desinfektionsanlage
Page 11
ProMinent®
Notes on safety of ProMinent®metering pumps
1Notes on safety of ProMinent®metering pumps
Notes on safety and important operating notes are divided into classes accompanied with
pictograms. Please familiarize yourself with the following definitions and pictograms.
DANGER
Danger to life or risk of serious injury!
WARNING
Danger of injury or serious damage to the device!
IMPORTANT
These situations require complete attention!
NOTE
Information which must be followed!
1.1 General notes
WARNING
•The equipment/devices may only be used for their intended purpose.
•ProMinent®metering pumps must not be assembled with parts which are not tested and
recommended by ProMinent otherwise this can lead to injury to persons and damage to
property for which no liability will be accepted!
•Pumps must be accessible at all times to facilitate operation and maintenance. Access
points must not be obstructed or blocked!
•Before carrying out any maintenance and repair work always drain off and flush out the
liquid end first if hazardous or unknown metered media are used!
•When metering hazardous or unknown liquids, always wear safety clothing
(safety goggles, gloves, ...) when working on the liquid end!
•You must observe the guidelines in this operating instructions manual and the
”General operating instructions manual for ProMinent®motor-driven metering pumps
and hydraulic accessoires” on assembly, installation and maintenance!
1.2 Notes on installation, start-up and operation
WARNING
•The metering pump can contain water residue in the liquid end as the result of testing at
the factory!
If handling media which must not come in contact with water, all traces of water must
be removed from the liquid end before start-up! For this purpose, turn the pump through
180˚ and drain off the liquid end then flush with a suitable medium from above via the
intake connection!
•Do not connect mains voltage to the control cable!
• When operating the metering pump against a closed shut-off element on the pressure
side or in the event of pressure peaks during the metering stroke, the system pressure
can reach a multiple of the maximum permissible operating pressure that can conse-
quently cause the pressure line to burst!
•To avoid this situation, an overflow is recommended for the purpose of limiting the
maximum permissible operating pressure of the pump or system.
•Do not connect a metal bypass line to the overflow valve on the PVT delivery unit! This
could cause cracks in the delivery unit!

Page 12 ProMinent®
Dulcodes UV-Desinfektionsanlage
IMPORTANT
•Set stroke length only with pump in operation!
• Pull the red plug for venting the gear unit during initial operation of the Sigma/ 3
metering pump (refer to Fig. 2, item 10)!
NOTE
• The pump must be secured in such a way that no vibrations can occur! The valves of the
liquid end must always be positioned vertically in order to ensure trouble-free operation!
•The intake and delivery lines must always be arranged such as to ensure connection at
the liquid end free of mechanical stress!
The lines must be secured such that no vibrations can occur!
•Only use the clamping rings and hose sockets intended for the relevant hose diameter as
well as original hoses with the specified hose dimensions and wall thickness otherwise
the stability and durability of the connection will not be guaranteed!
Avoid reducing hose sizes!
Observe the permissible pressure of the hoses!
•Avent with return to the supply tank is advisable when metering extremely
aggressive or hazardous media!
In addition, a shut-off valve should be provided on the delivery or intake side!
1.3 Notes on maintenance and repair
WARNING
•Only specially trained and authorized persons are permitted to carry out maintenance on
metering pumps and their periphery!
•If hazardous or unknown metering media are used, always flush out the liquid end first
before carrying out any maintenance and repair work!
• When metering hazardous or unknown liquids, always wear safety clothing (safety
goggles, gloves, ...) when working on the liquid end!
• Always depressurize the delivery line first before carrying out any work on the pump!
Always discharge and flush liquid end! Observe safety data sheets for metered liquid!
DANGER
• Disconnect power plug or power supply line before opening the plug!
Isolate relay option if applicable!
Check to ensure power is disconnected!
Secure pump while carrying out repairs to ensure it cannot be switched on
unintentionally!
•Pumps for metering radioactive media must not be shipped through standard channels!
NOTE
The metering pump must be in a cleaned condition with the liquid end flushed if returned
for repair!
Notes on safety of ProMinent®metering pumps

Dulcodes UV-Desinfektionsanlage
Page 13
ProMinent®
2Product description S3Ba/S3Ca
WARNING
Use for intended purpose
• The pump is designed as a liquid medium metering pump; it serves the purpose of
metering liquid medium within the specified line system!
•Operate the pump only within the conditions described in the technical data!
•General restrictions with regard to viscosity limits, chemical resistance and density must
be observed (refer to ProMinent chemical resistance list (catalogue or homepage))!
•All other applications or conversion are prohibited!
•The pump is not designed to meter gaseous media as well as solids.
•The pump is not suitable for metering combustible liquids!
•Only specifically trained and authorized personnel are permitted to operate the pump!
2.1 Identification of pump type
The identity code and serial number are given in addition to the standard technical specifications.
These two numbers must always be quoted when making any enquiries as they enable distinct
identification of the type of metering pump.
2.2 Design/Functional description
2.2.1 Functional description, drive
The ProMinent®Sigma/ 3 diaphragm-type metering pump is an oscillatory displacement pump
with the stroke length adjustable in steps of 0.5%. It is driven by electric motor (1). The rotary drive
of the electric motor is stepped down by worm gear and transmitted via the eccentric roller (3) to
the push rod (4) connected to fork (8) and converted into oscillatory movement. Return spring (5)
presses the fork with push rod positively against the eccentric roller thus producing the return
stroke. The stroke is adjusted by means of stroke adjustment knob (6) and spindle (7) by limiting
the return stroke. Stroke movement is transmitted directly to the displacement diaphragm.
Interacting with the valves, this diaphragm produces the overpressure and vacuum in the liquid
end necessary for delivery. Flow is pulsating.
In the basic type, the electric motor is normally a 3-ph extended-range AC motor (refer to
Section 3 for other options).
Product description S3Ba/S3Ca
Fig. 1

Page 14 ProMinent®
Dulcodes UV-Desinfektionsanlage
0180 360
1
10
6
7
3
8
5
4
2.2.2 Stroke movement
Set stroke length dependent on the required delivery capacity.
Product description S3Ba/S3Ca
Fig. 2
61_01-101_00_11-01
20 0
0
50
25
75
5
75%
05
0
25
10
30%
Fig. 4
S3Ba/S3Ca-007-GB
75 % 30 %
Fig. 3
S3Ba/S3Ca-006-GB
+ Delivery stroke
b) At reduced stroke length
–Intake stroke
a) Stroke progression
at max. stroke rate
and stroke length
Stroke speed
Angle reduced stroke length

Dulcodes UV-Desinfektionsanlage
Page 15
ProMinent®
Product description S3Ba/S3Ca
Q (l/h)
Pressure in (bar)
S3Ba/S3Ca
HM12330
S3Ba/S3Ca
HM12270
S3Ba/S3Ca
HM12190
Q (l/h)
Stroke length in (%)
0
50
100
150
200
250
300
350
400
1211109876543210
S3Ba/S3Ca
HM12145
0
50
100
150
200
250
300
350
100908070605040302010
S3Ba/S3Ca
HM12330
S3Ba/S3Ca
HM12270
S3Ba/S3Ca
HM12190
S3Ba/S3Ca
HM12145
Fig. 6
HM_12 Hub
Fig. 5
HM12_Druck
NOTE
A large stroke length and low metering frequency should be selected for very viscous
media!
A shorter stroke length and high frequency should be selected to achieve good mixing
properties!
2.2.3 Metering capacity diagram

Page 16 ProMinent®
Dulcodes UV-Desinfektionsanlage
Product description S3Ba/S3Ca
Fig. 7
HM07_Druck
Pressure in (bar)
Q (l/h)
Fig. 8
HM07_Hub
Stroke length in (%)
S3Ba/S3Ca
HM070410
S3Ba/S3Ca
HM040830
S3Ba/S3Ca
HM070580
S3Ba/S3Ca
HM041030
0
200
400
600
800
1000
1200
1009080706050403020
Q (l/h)
S3Ba/S3Ca
HM070410
S3Ba/S3Ca
HM040830
S3Ba/S3Ca
HM070580
S3Ba/S3Ca
HM041030
0
200
400
600
800
1000
1200
76543210,50

Dulcodes UV-Desinfektionsanlage
Page 17
ProMinent®
13
5
2
1
3
4
13
Product description S3Ba/S3Ca
Fig. 9
3154-4
Fig. 10
61_05-104_00_72-03
2.2.4 Functional description, delivery unit
The heart of the delivery unit is the DEVELOPAN®metering diaphragm (2). It hermetically seals
the delivery chamber of liquid end (4) and produces a displacement in the liquid end. The end
disc (5) made of chemically resistant plastic together with safety diaphragm (13) separates the
drive housing from the delivery unit and protects the drive from corrosion in the event of the
diaphragm failing. Delivery is based on the interaction between intake valve (1) and head valve (3)
of the same design together with the diaphragm movement. The valve balls can be supported
with springs for metering viscous media.
The connection dimensions of valves and liquid ends of the same size but with different materials
are identical. These parts can be interchanged as required.
Materials and dimensions are specified in Section 3, Technical data.
3
2
5
1
4
13
2
5
3
1
4

Page 18 ProMinent®
Dulcodes UV-Desinfektionsanlage
110
127
134
102
133
137
132
138
139*
131
202
203
126
125
136
128
130
111
112
100
114
115
118
200
201
117
101
113
116
Product description S3Ba/S3Ca
2.2.5 Integrated overflow valve with bleeder function
Task:
The task of the overflow valve is to protect the motor and gear unit against impermissible
overpressure caused by the metering pump.
This function is produced by a spring-loaded ball.
A pressure relief mechanism for the bleeder function is provided.
Design and functional description
(refer to Fig. No. 11 and 12)
Initially, the overflow valve illustrated under item 102 operates as a simple directly control
safety valve. As soon as the pressure set with spring item 132 is exceeded, the effective pressure
raises ball item 130. The liquid then flows off into the tank via hose connection item 128.
Delivery unit overflow valve Sigma/ 3, 10 bar PVT Identity code type: 120145, 120190, 120270, 120330
Delivery unit overflow valve Sigma/ 3, 4 bar PVT Identity code type: 040830, 041030
Delivery unit overflow valve Sigma/ 3, 7 bar PVT Identity code type: 070410, 070580
Fig. 11
3160-4

Dulcodes UV-Desinfektionsanlage
Page 19
ProMinent®
111
134
102
133
132
138
139*
131
202
203
126
125
127
136
128
130
112
100
110
114
115
118
200
201
117
101
113
116
137
141
140
129
Product description S3Ba/S3Ca
Delivery unit overflow valve Sigma/ 3, 12 bar SST Identity code type: 120145, 120190, 120270, 120330
Delivery unit overflow valve Sigma/ 3, 4 bar SST Identity code type: 040830, 041030
Delivery unit overflow valve Sigma/ 3, 7 bar SST Identity code type: 070410, 070580
Fig. 12
3161-4
IMPORTANT
•Knob item 139 must be turned in clockwise direction as far as it will go ”close“.
•The bypass line must always be closed and must be routed back into the supply tank.
Connection via hose connection item 128.
•Minimal overflow can occur in the bypass line when the valve operates close to the
overpressure function.
The bleeder function is achieved by turning knob item 139 in counterclockwise direction as far as
it will go ”open“: Priming aid for starting up pump against pressure. The force of spring item 132
relieves ball item 130 which is controlled by the lower spring force of bleeder spring item 133.
IMPORTANT
Once the pump has primed, turn knob item 139 in clockwise direction as far as it will go
”close“! The pump can now be placed into operation.

Page 20 ProMinent®
Dulcodes UV-Desinfektionsanlage
Product description S3Ba/S3Ca
Technical data
Corresponding to the type of pump, overflow valves are available for pressure stages pnom 4, 7,
10 and 12 bar with (1.05 ... 1.15) xpnom opening pressure.
Material in contact with metered medium
Liqiud end: Overflow valve: Seals in overflow valve: Balls (DN25): Plates (DN 32): Springs:
PVDF PVDF Viton
®
O-rings*, PTFE Glass Hastelloy C Hastelloy C
Stainless steel 1.4571 Stainless steel 1.4571 Viton
®
O-rings*, PTFE Stainless steel 1.4571 Hastelloy C Hastelloy C
*Viton®is a registered trademark of DuPont Dow Elastomers.
Use for intended purpose/Use not for intended purpose
Use for intended purpose
To protect the motor and gear unit against impermissible overpressure caused by the metering
pump.
If the pump is the only pressure generator in the system, the overflow valve will also protect the
system automatically.
IMPORTANT
•The ceramic ball and ball seat of the overflow valve are wearing parts. Slight leakage can
occur at the safety valve after a prolonged period of operation. The ball and ball seat
should be replaced if leaks occur.
•The bypass line must always be connected and must be routed back into the supply
tank.
Use not for intended purpose
To protect the system from impermissible overpressure which has other causes than the pressure
generated by the metering pump.
The pump must not be operated without the bypass line connected.
The bypass line must not be connected in the intake line (the bleeder function will no longer be
guaranteed). The bypass line must be routed back into the supply tank.
DANGER
When carrying out maintenance work on the overcurrent valve, pay attention to the
tensioning state of the pressure spring item132! Wear safety goggles!
2.2.6 Diaphragm rupture sensor
Function:
Monitors the seals in the working diaphragm. This liquid end can continue to function for a short
period in emergency mode, i.e. full operating pressure, no leakage, even after diaphragm rupture.
Design and function description (see Fig. 13)
Liquid ends with diaphragm rupture sensors comprise a standard liquid end (item 100) a working
diaphragm (item 200) and an auxiliary diaphragm (item 148) The auxiliary diaphragm is positioned
between the back plate (item 201) and the interim plate (item 147) and forms a sealed
compartment together with the working membrane (item 200).
The leak tightness of the working diaphragm, Item 200, is monitored with a diaphragm failure
detector, Item 104, that triggers a contact signal in the event of diaphragm failure so that the
pump is stopped in the S3Ca and the diaphragm failure is indicated on a LCD.
