SP2290
2.4G Digital Wireless Outdoor Speaker
User’s Manual
Please read before using the equipment.
Please visit www.promowide.com for details.

P.1
INTRODUCTION
This 2.4G digital wireless speaker system uses latest wireless technology that
enables you to enjoy music and TV sound anywhere inside or outside your home.
You can simply connect the system to any audio source such as Radio, TV, VCR,
Hi-Fi and i-Pod/CD/MP3/VCD/DVD player. Without complicated wiring and
installation with your Audio/Video equipments and rear channel amplifier, the
system enables you to enjoy thrilling, lifelike sound in minutes.
FEATURES
1. Weatherproof indoor and outdoor speaker.
2. 2.4G Digital technology speaker system.
3. Digital technology lets you roam freely throughout your house, garden or even
to the pool.
4. Operating distance up to 100 feet in open area.
5. No line of sight limitation.
6. Virtually interference free audio quality.
7. Auto tuning function.
8. Remote control unit for your convenience.
9. Wall-mountable.
10. 8-channels Auto Frequency Searching System.
11. 2-way speaker.

P.2
COMPONENT IDENTIFICATION
TRANSMITTER
SPEAKER RECEIVER
REMOTE CONTROL
VOLUME DOWN
VOLUME UP
POWER ON /OFF
AUTO TUNE
AUTO TUNE
VOLUME UP
VOLUME DOWN
POWER ON /OFF
CHANNEL BUTTON POWER ON/OFF BUTTON (BLUE LED)

P.3

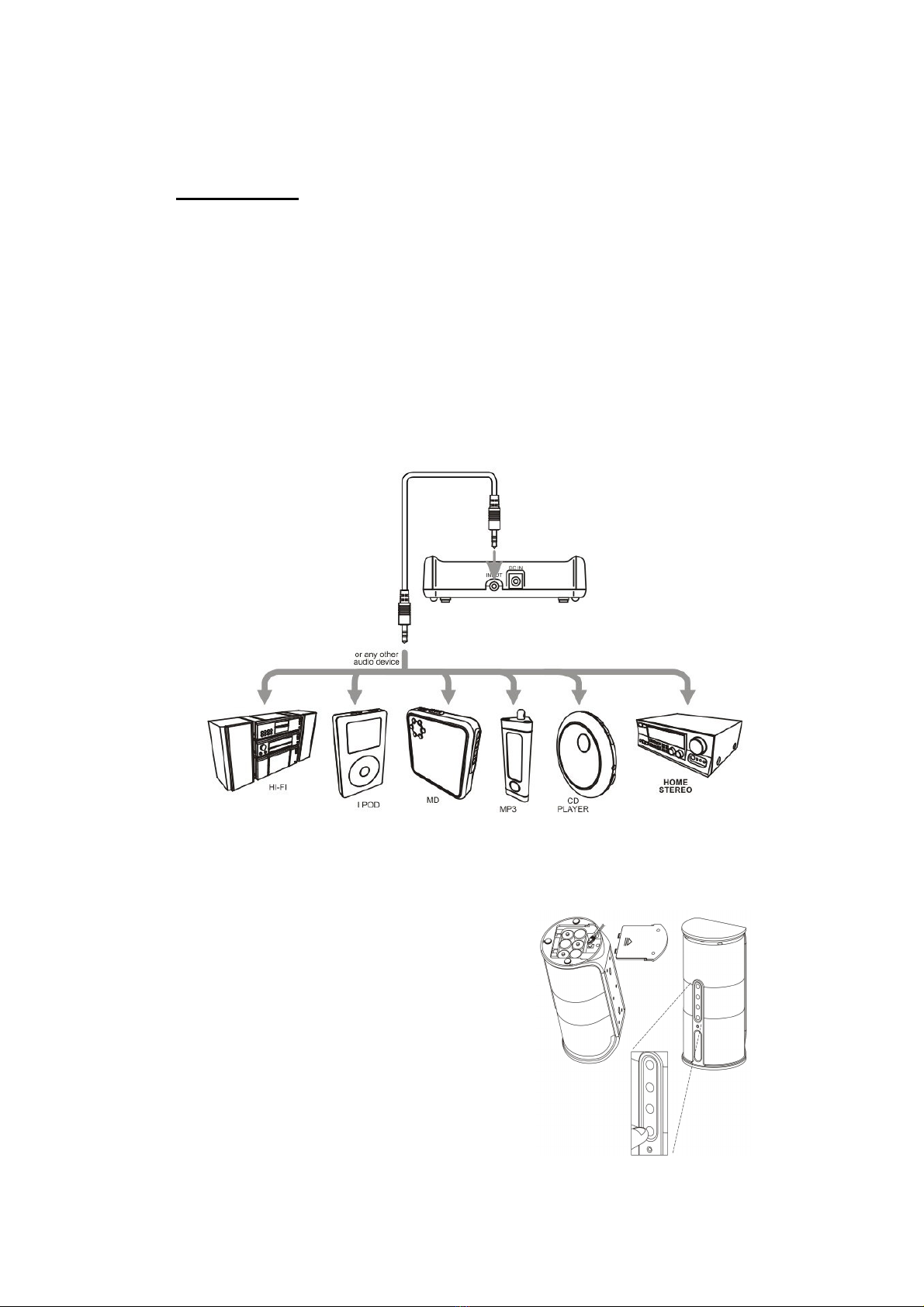

INSTALLATION
TRANSMITTER
1. Connect the supplied AC/DC power adaptor to an electrical wall outlet.
2. Plug the AC/DC power adaptor in the DC jack located on the rear of the
transmitter.
3. Plug in the AC adaptor and press on the “Power” button, the blue POWER LED
illuminates. If the blue POWER LED does not illuminate, make sure the adaptor
is plugged in.
4. You can connect different kinds of audio devices, such as i-Pod, MP3 or MD to
the transmitter by the audio cord provided.
SPEAKER RECEIVER
1. Insert 6 pieces ‘C’ size ALKALINE battery into the battery compartment with
correct polarity at the bottom of the speaker
(batteries not included in the package) or
connect the 9V power adaptor to the DC input
jack on the bottom of the speaker, then plug
it to the wall AC outlet.

P.4
2. Press On/Off button and turn the speaker ON. The POWER LED will light up in
blue. Switch off the speaker by pressing the ON/OFF button on the speaker or
on the remote control unit, and the LED will be off.

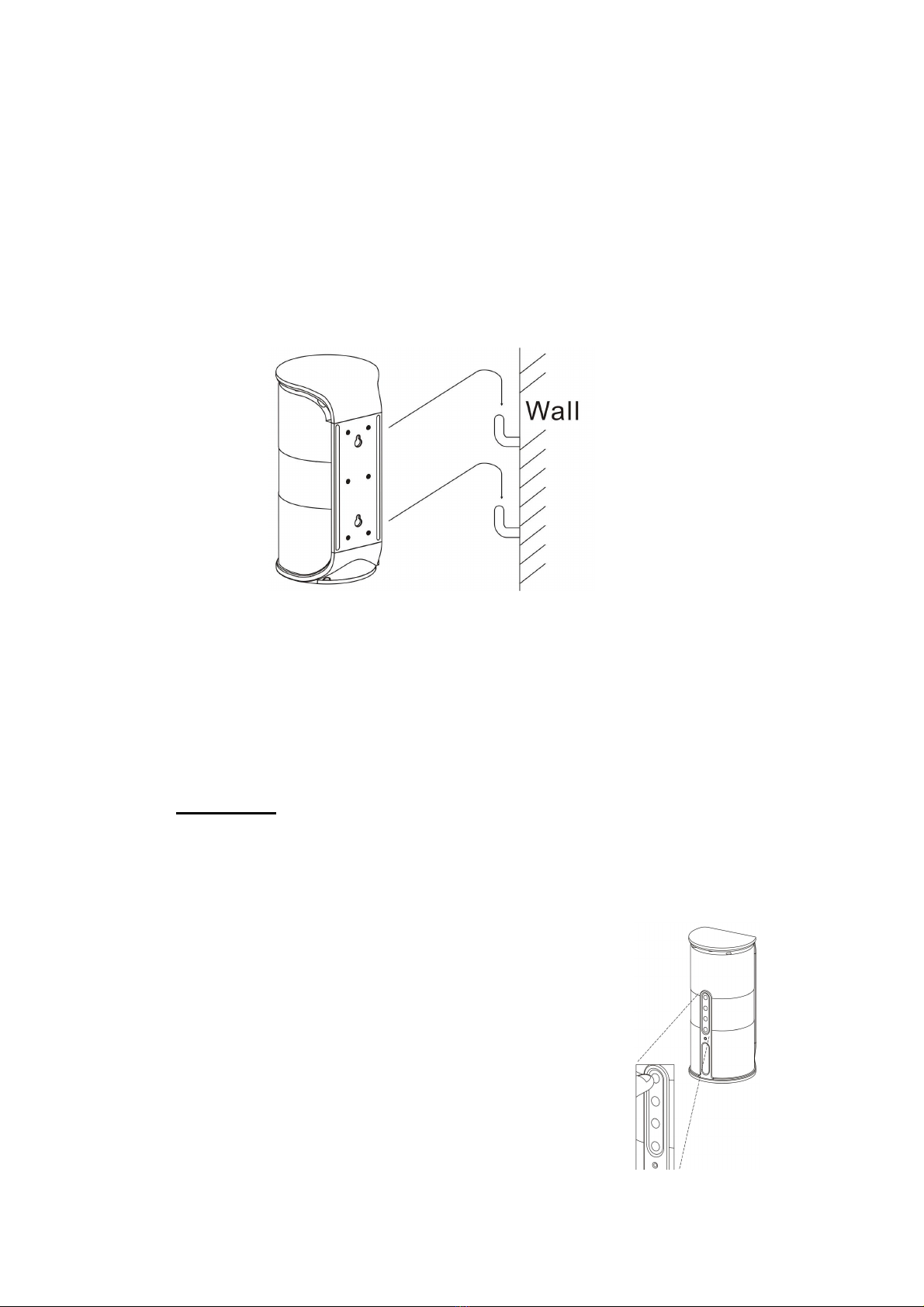

3. To suit the needs of different users, the speaker is designed for wall mounting.
There are two holes at the back of the speaker for you to hang it on the wall.
REMOTE CONTROL UNIT
1. Remove the battery cover at the rear of the remote control unit and insert 2
pieces “AAA” size batteries (not included) into the battery compartment with the
correct polarity.
2. Place back the cover and close the battery compartment.
OPERATION
1. Turn on the audio source (TV or audio component) to which the transmitter is
connected with.
2. The transmitter will select the most suitable channel out of 8 channels for the
best performance in your location automatically.
3. Turn on the ON/OFF button on the speaker (the ON/OFF
button on the remote control unit cannot be used as a
primary device to switch on the speaker). Press the “AUTO
TUNE” button to get the best channel in the speaker.
Tuning process can also be activated by pressing the
“AUTO TUNE” button on the remote control unit.
4. Volume can be adjusted up by pressing “+” button or down

P.5
by pressing the button “-“ to the desired listening level, or you can press the “+”
button or “-“ button” on the remote control unit to adjust the volume level.
5. You should now be able to place your speaker freely from room to room without
disruption. Should there is any disruption (signal cuts off or carries distortion), press
the speaker’s “AUTO TUNE” button to maximize the best reception.
If you could still hear the interference, press the “CHANNEL” button on the
transmitter and then press the “AUTO TUNE” button on the speaker again for
frequency matching. When transmitting / receiving over long distances, the signal
from the system will become weaker.
6. Switching Off
a) For protection of the transmitter and power saving, the transmitter will cut
off automatically if there is no/weak operation input signal from audio
source for 4 minutes.
In other words, if the signal comes back, the transmitter will work again
automatically.
b) Press the ON/OFF button to turn off the speaker and the LED light goes
off, or simply press the ON/OFF button on the remote control unit. If you
use the remote control unit to turn off the speaker, the speaker will be at
stand-by mode for 5 minutes and the LED will be changed from blue to
yellow. You can switch on the speaker again by using the remote control
unit during the stand-by time. If there is no signal from the remote control
unit in 5 minutes, the speaker will automatically power off.
WARNING:
THE POWER ADAPTORS ARE FOR INDOOR USE ONLY. IF IT IS SLIGHTLY
RAINING, KEEP THE SPEAKER OPERATED BY BATTERY AND MOVE THE
ADAPTORS TO AREA OUT OF RAINWATER.
This device must be used with the AC/DC adaptors supplied in the package.

P.6
TROUBLE SHOOTING
NO SOUND
- Ensure the AC/DC adaptor is fully inserted into the AC outlet and the
power connection input on the transmitter.
- Ensure the speaker, the TV or audio component is ON.
- Speaker’s battery capacity is too low, replace with new batteries or
connect the AC/DC adaptor to the speaker.
- The audio / video equipment is not playing. Start playing the equipment.
- The volume of speaker is too low, adjust the volume to an appropriate
level.
DISTORTED
- Press the “AUTO TUNE” button on the speaker.
- If there is still interference, press the “CHANNEL” button on the
transmitter and then press the “AUTO TUNE” button on the speaker
again for frequency matching.
- Battery capacity is too low. Replace with the new battery.
- Ensure the volume level of speaker is adjusted properly.
- The speaker is too far away from the transmitter, move it closer.
- The input level of the audio signal is too high. Turn down the volume of
the audio source equipment.
-
TECHNICAL SPECIFICATIONS
Transmission Mode : UHF
Carrier Frequency : 2.4G Digital
Operation Voltage : Transmitter, DC 9V 150mA
Speaker, 6 X ‘C
’ size Alkaline batteries (not
included) or DC 9V 1A adaptor (included)
Remote Control Unit, 2 X ‘AAA’ size batteries
(not included)
Frequency Response : 20Hz – 20KHz
Distortion : 0.4%
S/N Ratio : 80dB
Operation Distance : Up to 100 feet in open area
Speaker : 2-way

P.7
NOTE:
1. Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
Installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, any changes or modifications not
expressly approved by the party responsible for compliance could void the user's
authority to operate this equipment. (Example - use only shielded interface cables
when connecting to computer or peripheral devices).
1.1 FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20 centimeters between the radiator and your body.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) This device must
accept any interference received, including interference that may cause undesired
operation.

P.8
LIMITED WARRANTY
PARAGON PRODUCTS INTERNATIONAL INC. (The Company) warrants to the
original retail purchaser of this product that should this product proven to have
defects in materials or workmanship for a period of one year from the date of
purchase, Paragon will repair such defects or replaced this product with one of
similar features and price, without charge for parts and repair labor. Any product
which has been subject to misuse, improper installation, accidental damage or
removable parts are excluded from this warranty.
How to Obtain Service
Should this product require service, please return the product with proof of warranty
coverage (e.g. dated bill of sale), copy of warranty card, the return sheet with a brief
explanation of the problem, to the company at the address shown below at
transportation prepared by the retail purchaser:
Paragon Products International Inc.
2168 S. Atlantic Blvd., #312
Monterey Park, CA 91754
U.S.A.
Call at: 1-888-980-7788 or email at: [e-mail]
http://www.promowide.com
This warranty gives you specific legal rights and you may have other legal rights
that vary from state to state.
