PROPOINT 8344558 User manual

Please read this manual before use.
User Manual
5 PC SHORT BARREL AIR
HAMMER KIT
V 3.05 8344558

2 For technical questions call 1-800-665-8685
V 3.05 8344558
5 PC SHORT BARREL AIR
HAMMER KIT
SPECIFICATIONS
Air Consumption at
90 PSI
3 CFM
Maximum Pressure 90 PSI
Air Inlet 1/4 in. NPT
No Load Speed 3,000 Strokes per Minute
Stroke Length 2-5/16 in. Stroke
Chisels 4 Piece Chrome-moly Chisel Set
Material Aluminum Housing
INTRODUCTION
This Pro.Point air hammer is tough enough to keep up with the
daily demands of the professional. Its well-balanced construction
and comfortable handle means a solid grip and less user fatigue.
Good for exhaust work, cutting metals, chipping and scraping
surfaces. Uses standard 0.401 in. shank chisels.

Visit www.princessauto.com for more information 3
8344558 V 3.05
5 pc Short Barrel Air Hammer Kit
SAFETY
WARNING! Read and understand all instructions before using this
tool. The operator must follow basic precautions to reduce the
risk of personal injury and/or damage to the equipment.
Keep this manual for safety warnings, precautions, operating or
inspection and maintenance instructions.
HAZARD DEFINITIONS
Please familiarize yourself with the hazard notices found in this
manual. A notice is an alert that there is a possibility of property
damage, injury or death if certain instructions are not followed.
WARNING! This notice indicates a specific hazard or unsafe
practice that could result in severe personal injury or death if the
proper precautions are not taken.
CAUTION! This notice indicates a potentially hazardous situation
that may result in minor or moderate injury if proper practices are
not taken.
NOTICE! This notice indicates that a specific hazard or unsafe
practice will result in equipment or property damage, but not
personal injury.
WORK AREA
1. Operate in a safe work environment. Keep your work area
clean, well lit and free of distractions.
2. Keep anyone not wearing the appropriate safety equipment
away from the work area.
3. Store tools properly in a safe and dry location. Keep tools out
of the reach of children.

4 For technical questions call 1-800-665-8685
V 3.05 8344558
5 pc Short Barrel Air Hammer Kit
PERSONAL SAFETY
WARNING! Wear personal protective equipment approved by
the Canadian Standards Association (CSA) or American National
Standards Institute (ANSI).
PERSONAL PROTECTIVE EQUIPMENT
1. Always wear impact safety goggles that provide front and
side protection for the eyes. Wear a full-face shield if your
work creates metal filings or wood chips.
2. Wear gloves that provide protection based on the work
materials or to reduce the eects of tool vibration.
3. Non-skid footwear is recommended to maintain footing and
balance in the work environment.
4. Wear protective clothing designed for the work environment
and tool.
5. Wear the appropriate rated dust mask or respirator.
6. This tool can cause hearing damage. Wear hearing protection
gear with an appropriate Noise Reduction Rating to
withstand the decibel levels.
PERSONAL PRECAUTIONS
Control the tool, personal movement and the work environment to
avoid personal injury or damage to tool.
1. Do not operate any tool when tired or under the influence of
drugs, alcohol or medications.
2. Avoid wearing clothes or jewelry that can become entangled
with the moving parts of a tool. Keep long hair covered
or bound.
3. Do not overreach when operating a tool. Proper footing and
balance enables better control in unexpected situations.
4. Support the workpiece or clamp it to a stable platform.
Holding the workpiece by hand or against your body may
lead to personal injury.
5. Securely hold this tool using both hands. Using a tool with
only one hand can result in loss of control.

Visit www.princessauto.com for more information 5
8344558 V 3.05
5 pc Short Barrel Air Hammer Kit
SPECIFIC SAFETY PRECAUTIONS
WARNING! The tool is not electrically insulated. Never use the
tool if there is a chance of it coming into contact with
live electricity.
WARNING! Some wood contains preservative such as copper
chromium arsenate (CCA), which can be toxic. When working on
these materials extra care should be taken to avoid inhalation and
minimize skin contact.
1. Before using this tool, make sure you know the work area
and material you are working on. Make sure you do not
accidentally puncture pipes, pressurized containers or
electrical cables.
2. Do not point the tool at yourself, or others. Keep hands and
other body parts away from the nosepiece to avoid injury.
3. Only use with accessories rated to handle the forces exerted
by this tool during operation. Accessories not designed for
the forces generated may break and forcefully launch pieces.
4. Attach all accessories properly to the tool before connecting
the air supply. A loose accessory may detach or break
during operation.
5. Do not lay the tool down until it has come to a complete
stop. Moving parts can grab the surface and pull the tool out
of your control.
6. The chisels will become hot while chipping or scaling. Allow
the chisels to completely cool before touching.
7. When chipping or scaling in a potentially explosive
environment, use a spark resistant chisel (usually made of
beryllium copper).
8. Chisels that are worn or blunt at the cutting edge or shank.
A damaged chisel may damage the air hammer, reducing
eciency and increasing vibration. A chisel that breaks can
cause injury.
9. Do not store chisels below 0°C (32°F). Freezing
temperatures can make hardened steels brittle, which can
cause breakage and lead to injury.

6 For technical questions call 1-800-665-8685
V 3.05 8344558
5 pc Short Barrel Air Hammer Kit
GENERAL SAFETY PRECAUTIONS
AIR TOOL PRECAUTIONS
1. Extended exposure to air tool noise may cause hearing loss.
Ear protection gear can reduce or eliminate the noise level.
Add a muing device to the air tool’s exhaust if possible.
2. Inspect the tool’s airline for cracks, fraying or other faults
before each use. Discontinue use if the airline is damaged
or hissing is heard from the airline or connectors, while
operating the tool. Replace the defective component/airline.
3. Do not allow people, mobile equipment or vehicles to pass
over the unprotected airline. Position the airline away from
high trac areas, in a reinforced conduit or place planks on
both sides of the airline to create a protective trench.
4. Prevent damage to the airline by observing the following:
a. Never carry the tool by the airline.
b. Keep the airline behind the tool and out of the tool’s
work path.
c. Keep the airline away from heat, oil, sharp edges or
moving parts.
d. Do not wrap the airline around the tool as sharp edges
may pierce or crack the airline. Coil the airline
when storing.
5. A damaged or disconnected airline under pressure may
whip around and inflict personal injury or damage the work
area. Secure the compressor’s airline to a fixed or permanent
structure with clamps or cable ties.
6. Install an in-line shuto valve or regulator to allow immediate
control over the air supply in an emergency, even if a hose
is ruptured.
7. Check the manufacturer’s maximum pressure rating for air
tools and accessories. Compressor outlet pressure must
be regulated so as to never exceed the maximum pressure
rating of the tool.

Visit www.princessauto.com for more information 7
8344558 V 3.05
5 pc Short Barrel Air Hammer Kit
VIBRATION PRECAUTIONS
1. This tool vibrates during use. Repeated or long-term
exposure to vibration may cause temporary or permanent
physical injury, particularly to the hands, arms and shoulders.
2. Anyone using vibrating tools regularly or for an extended
period should first be examined by a doctor and then have
regular medical check ups to ensure medical problems are
not being caused by or worsened from tool use.
3. If you feel any medical symptoms related to vibrations
(such as tingling, numbness, and white or blue fingers), seek
medical attention as soon as possible.
4. DO NOT use this tool if one of the following applies:
a. Pregnant
b. Impaired blood circulation to the hands
c. Past hand injuries
d. Nervous system disorders
e. Diabetes
f. Raynaud’s Disease
5. Do not smoke while operating the tool. Nicotine reduces the
blood flow to the hands and fingers, increasing the risk of
vibration-related injury.
6. Wear suitable gloves to reduce the eects of vibration.
7. Use the tool with the least amount of vibration, when there is
a choice between dierent processes.
8. Do not use for extended periods. Take frequent breaks when
using this tool.
9. Let the tool do the work. Grip the tool as lightly as possible
(while still keeping safe control of it).
10. To reduce vibrations, maintain the tool as explained in this
manual. If abnormal vibrations occur, stop using this
tool immediately.

8 For technical questions call 1-800-665-8685
V 3.05 8344558
5 pc Short Barrel Air Hammer Kit
USE AND CARE OF TOOL
1. Use the correct tool for the job. This tool was designed for a
specific function. Do not modify or alter this tool or use it for
an unintended purpose.
2. Do not carry the tool with fingers near or on the
trigger/switch.
3. Avoid unintentional starts. Be sure that the regulator/throttle
switch is in the neutral or OFF position when not in use and
before connecting it to any air source.
PARTS IDENTIFICATION
WARNING! Do not operate the tool if any part is missing. Replace
the missing part before operating. Failure to do so could result in
a malfunction and personal injury.
Remove the parts and accessories from the packaging and inspect
for damage. Make sure that all items in the parts list are included.

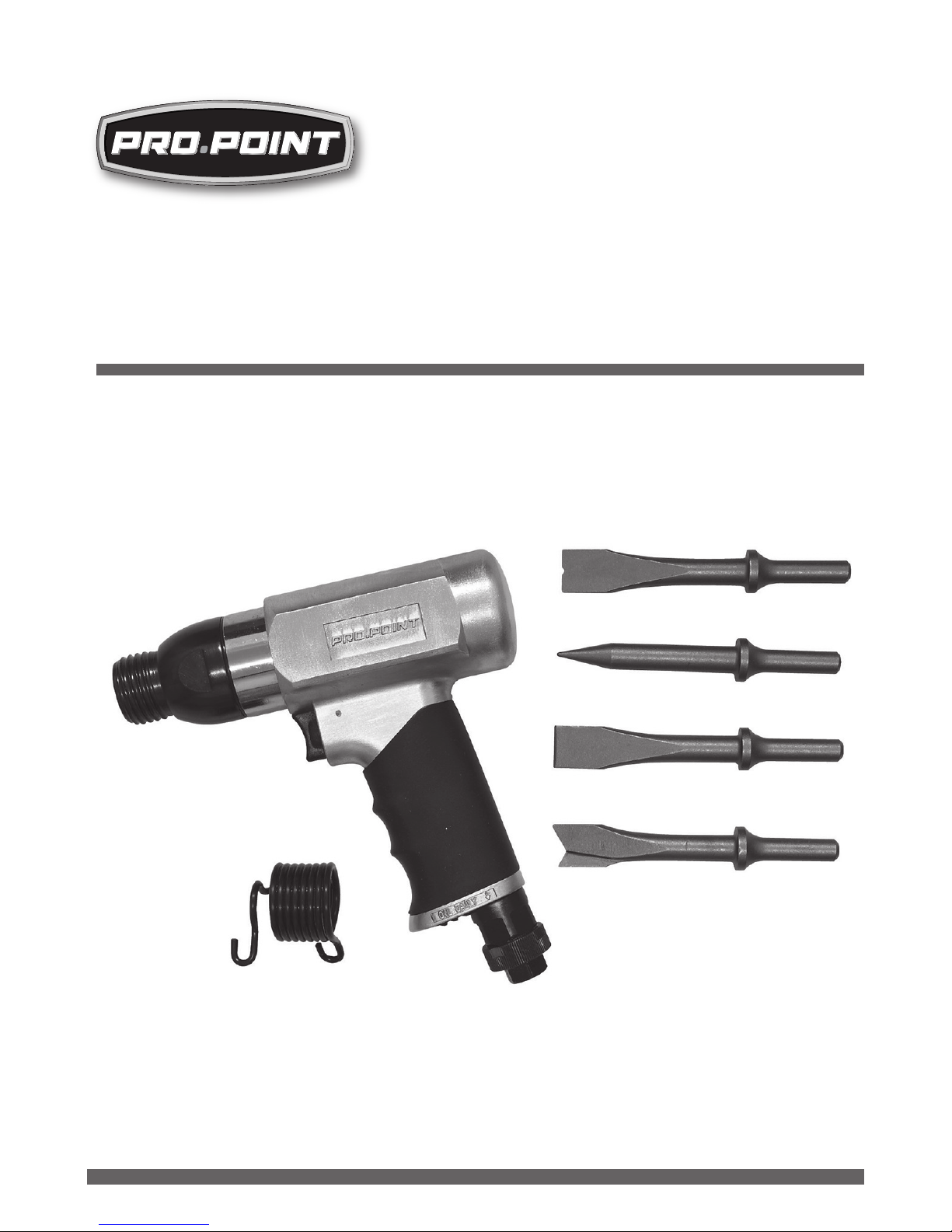

Contents:
• AirHammerwithattachedinletbushing
• Retainingclip
• 4chisels
ASSEMBLY

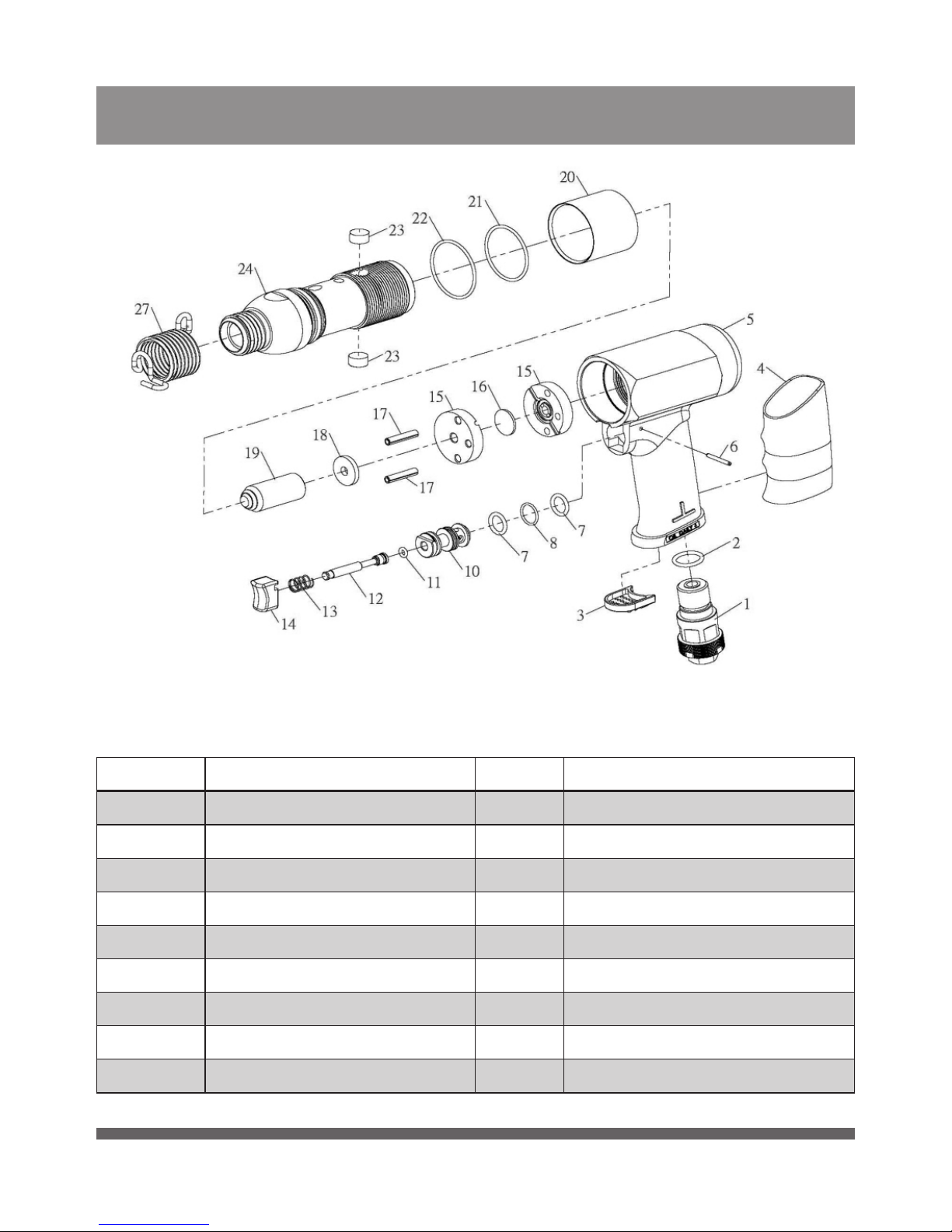

When this manual refers to a part number, it refers to the included
Parts List.
ACCESSORY INSTALLATION
1. Remove the internal packing grease from the tool before the
first use. See Lubrication for instructions.
2. Disconnect the tool from its air source and discharge any
residual air before attaching or changing chisels, bits
or accessories.

Visit www.princessauto.com for more information 9
8344558 V 3.05
5 pc Short Barrel Air Hammer Kit
3. Select your chisel. Make sure it is in good working condition
and will not shatter or break while in use. Unscrew and
remove the retainer spring and insert the shank of the chisel.
Screw the retainer spring back on.
4. Test to make sure the chisel is firmly in place by running the
tool at no load for approximately 30 seconds. Failure to do
so could result in serious injury.
OPERATION
1. Ensure the regulator switch is in the neutral or OFF position.
2. Connect your tool to your air source.
3. Firmly grip the air hammer with both hands and place the
chisel against the workpiece.
4. Squeeze the trigger and slowly move along the workpiece.
Do not force the air hammer, let the tool do the work.
5. If the bit or chisel is not performing well, turn o the tool and
examine it to see if it is dull. Remember that sharp tools are
safer than ones that have become dull.
6. Once finished, disconnect the tool from its air source and
discharge any residual air in the tool before storing it.
7. After each use, remove the chisel and the retainer spring and
clean them, making sure there is no accumulated dust or
debris remaining on the tool.
MAINTENANCE
1. Maintain the tool with care. A tool in good condition is
ecient, easier to control and will have fewer problems.
2. Inspect the tool components periodically. Repair or replace
damaged or worn components.
3. Follow instructions for lubricating and changing accessories.
4. Keep the tool handles clean, dry and free from oil/grease at
all times.
5. Inspect the tool fittings, alignment and hoses and power
supply cord periodically. Have damaged or worn components
repaired or replaced by an authorized technician.

10 For technical questions call 1-800-665-8685
V 3.05 8344558
5 pc Short Barrel Air Hammer Kit
6. When servicing, use only identical replacement parts. Only
use accessories intended for use with this tool. Replace
damaged parts immediately.
7. Maintain the tool’s label and name plate. These carry
important information. If unreadable or missing, contact
Princess Auto Ltd. for replacements.
WARNING! Only qualified service personnel should repair the
tool. An improperly repaired tool may present a hazard to the
user and/or others.
AIR TOOL LUBRICATION
Only use air tool oil to lubricate the tool. Other lubricants may
not be suitable and could damage the tool or cause a malfunction
during use.
1. All air tools are packed in grease to prevent corrosion of
internal parts during shipping and storage. To clean this out,
add a generous amount of air tool oil in the air inlet, and then
run the tool under no load until exhaust is clear.
2. Manually add a drop or two of air tool oil into the tool’s
male connector before each use, and after every hour of
continuous use. Without lubrication, the tool will not work
properly and parts will wear prematurely.
3. Avoid adding too much air tool oil as this can cause
premature power loss and eventual tool failure. The tool will
need to be taken apart by a qualified technician and cleaned
of excess oil.
4. In the event that it becomes necessary to store the tool for
an extended period of time (overnight, weekend, etc.), it
should receive a generous amount of lubrication at that time.
The tool should be run for approximately 30 seconds to
ensure oil has been evenly distributed throughout the tool.
The tool should be stored in a clean and dry environment.
NOTICE! Never use a penetrating oil to lubricate an air tool.
Penetrating oil may act as a solvent that will break down the
grease and cause the tool to seize up.

Visit www.princessauto.com for more information 11
8344558 V 3.05
5 pc Short Barrel Air Hammer Kit
STORAGE
When not in use for an extended period, apply a thin coat of
lubricant to the steel parts to avoid rust. Remove the lubricant
before using the tool again.
DISPOSAL
Recycle a tool damaged beyond repair at the appropriate facility.

12 For technical questions call 1-800-665-8685
V 3.05 8344558
5 pc Short Barrel Air Hammer Kit
TROUBLESHOOTING
Contact Princess Auto Ltd. for a solution if the tool does not function properly or parts are missing. If unable to do so, have a qualified technician service the tool.
Problems Possible Causes Suggested Solutions Tool runs at normal speed, but loses power under load.
Motor parts worn. Contact Princess Auto Ltd. for a solution.
If unable to do so, have a qualified technician service the tool.
Tool runs slowly. Air flows slightly from exhaust.
Motor parts jammed with dirt particles. OR Airflow blocked by dirt.
1. Check air inlet filter for blockage. 2. Pour air tool lubricating oil into air inlet
as per Lubrication instructions.
3. Operate tool in short bursts. 4. Repeat above as needed. If this fails,
contact Princess Auto Ltd. for a solution.
Air regulator in closed position.
Open the air regulator to desired airflow.
Tools will not run. Air flows freely from exhaust.
O-rings throttle valve dislodged from seat inlet valve.
Contact Princess Auto Ltd. for a solution. If unable to do so, have a qualified technician service the tool.
Damage or excessive wearing of internal parts.

Visit www.princessauto.com for more information 13
8344558 V 3.05
5 pc Short Barrel Air Hammer Kit
Problems Possible Causes Suggested Solutions
1. Remove chisel and spring retainer. 2. Push punch through hole in the cylinder
until resting against the piston.
3. Sharply strike punch with a hammer to
loosen piston.
4. If still jammed, disassemble barrel from
housing and use punch to push piston through the rear of barrel.
5. Clean the barrel and piston and remove
any rust.
6. Reassemble. 7. If unable to free piston, contact Princess
Auto for a solution.
Tool will not shut off. O-rings throttle valve dislodged
from seat inlet valve.
Contact Princess Auto Ltd. for a solution. If unable to do so, have a qualified technician service the tool.
Loss of power or erratic performance.
Excessive drain on the airline. Incorrect size or type of hose connectors.
Check the airline and confirm the hose fitting is correct for the inlet bushing.
Moisture or restriction in the airline/tank
Depressurize system and drain tank and airline of water.
Air compressor has insufficient flow.
Ensure tool is connected to a compressor with a rate flow that matches the tool.

14 For technical questions call 1-800-665-8685
V 3.05 8344558
5 pc Short Barrel Air Hammer Kit
PARTS BREAKDOWN
PARTS LIST
PARTS# DESCRIPTION QTY PARTS IDENTIFICATION
1 Inlet Bushing 1 DL-62011
2 O-ring (P16) 1 P-16
3 Exhaust Diuser 1 361003
4 Handle Cover 1 361004A
5 Housing Body 1 361005D
6 Spring Pin (2.5*25) 1 SPP-25250
7 O-ring (P12) 2 P-12
8 O-ring (S14) 1 P-S014
10 Valve Bushing 1 361010

Visit www.princessauto.com for more information 15
8344558 V 3.05
5 pc Short Barrel Air Hammer Kit
PARTS# DESCRIPTION QTY PARTS IDENTIFICATION
11 O-ring (P4) 1 P-4
12 Valve Shaft 1 361012
13 Valve Spring 1 361013
14 Trigger 1 361014
15 Valve Body 2 361015
16 Valve 1 361016
17 Spring Pin (5*25) 2 SPP-50250
18 Cylinder Washer 1 361018
19 Piston 1 361A19
20 Cylinder Sleeve 1 361020
21 O-ring (S38) 1 P-S038
22 O-ring (S40) 1 P-S040
23 Cylinder Lock Plug 2 361023
24 Cylinder (Short Type) 1 361A24
27 Quick Change Retainer 1 361027

16 For technical questions call 1-800-665-8685
V 3.05 8344558
5 pc Short Barrel Air Hammer Kit

V 3,05 8344558
Manuel d'utilisateur
Veuillez lire ce manuel avant d'utiliser cet outil.
TROUSSE DE MARTEAU
PNEUMATIQUE À CYLINDRE
COURT, 5 PIÈCES

2 En cas de questions techniques, appelez le 1-800-665-8685
V 3,05 8344558
TROUSSE DE MARTEAU
PNEUMATIQUE À CYLINDRE
COURT, 5 PIÈCES
SPÉCIFICATIONS
Consommation d’air à
90 lb/po carré
3 pi cubes/min
Pression maximale 90 lb/po carré
Entrée d’air 1/4 po NPT
Vitesse d'impact 3 000 cycles par minute
Longueur de course 2 5/16 po
Ciseaux Jeu de ciseaux en chrome-molybdène,
4 pièces
Matériau Boîtier en aluminium
INTRODUCTION
Ce marteau pneumatique Pro.Point est susamment robuste
pour répondre aux exigences quotidiennes des professionnels. Sa
construction très équilibrée et sa poignée confortable permettent
de disposer d’une prise solide et de diminuer la fatigue ressentie
par l’utilisateur.

Visitez www.princessauto.com pour plus d'informations 3
8344558 V 3,05
Trousse de marteau pneumatiue à cylindre court, 5 pièces
SÉCURITÉ
AVERTISSEMENT ! Veuillez lire et comprendre toutes les
instructions avant d’utiliser cet outil. L’utilisateur doit respecter
les précautions de base lorsqu’il utilise cet outil afin de réduire le
risque de blessure ou de dommage à l’équipement.
Conservez ce manuel qui contient les avertissements de sécurité,
les précautions, les instructions de fonctionnement ou d’inspection
et d’entretien.
DÉFINITIONS DE DANGER
Veuillez-vous familiariser avec les avis de danger qui sont
présentés dans ce manuel. Un avis est une alerte indiquant qu’il
existe un risque de dommage à la propriété, de blessure ou de
décès si on ne respecte pas certaines instructions.
AVERTISSEMENT ! Cet avis indique un risque particulier ou une
pratique non sécuritaire qui pourrait entraîner des blessures
corporelles graves ou même la mort si on omet de prendre les
précautions nécessaires.
ATTENTION ! Cet avis indique une situation possiblement
dangereuse qui peut entraîner des blessures mineures ou
modérées si on ne procède pas de la façon recommandée.
AVIS ! Cet avis indique un risque particulier ou une pratique
non sécuritaire qui entraînera des dommages au niveau de
l’équipement ou des biens, mais non des blessures corporelles.
AIRE DE TRAVAIL
1. Travaillez dans un environnement de travail sécuritaire.
Gardez votre aire de travail propre, bien éclairée et exempte
de toute distraction.
2. Assurez-vous que les personnes qui ne portent pas
l’équipement de sécurité approprié ne se trouvent pas à
proximité de l’aire de travail.

4 En cas de questions techniques, appelez le 1-800-665-8685
V 3,05 8344558
Trousse de marteau pneumatiue à cylindre court, 5 pièces
3. Rangez les outils correctement dans un lieu sécurisé et sec.
Gardez les outils hors de la portée des enfants.
SÉCURITÉ PERSONNELLE
AVERTISSEMENT ! Portez de l’équipement de protection
personnelle homologué par l’Association canadienne de
normalisation (CSA) ou l’American National Standards Institute
(ANSI).
ÉQUIPEMENT DE PROTECTION PERSONNELLE
1. Portez toujours des lunettes antiprojections qui orent une
protection frontale et latérale pour les yeux. Portez un écran
facial panoramique si votre travail produit des limailles ou
des copeaux de bois.
2. Portez des gants qui protègent en fonction des matériaux de
travail et pour réduire les eets des vibrations de l’outil.
3. Les chaussures antidérapantes sont recommandées pour
maintenir la stabilité et l’équilibre au sein de l’environnement
de travail.
4. Portez des vêtements de protection conçus pour
l’environnement de travail et pour l’outil.
5. Portez un masque antipoussières ou un appareil respiratoire
nominal approprié.
6. Cet outil peut causer des dommages à l’ouïe. Portez un
dispositif de protection anti-bruit présentant une cote de
réduction du bruit adéquate en fonction du niveau
de décibels.
PRÉCAUTIONS PERSONNELLES
Gardez le contrôle de l’outil, de vos mouvements et de
l’environnement de travail pour éviter les blessures ou le bris
de l’outil.
1. N’utilisez pas l’outil si vous êtes fatigué ou sous l’eet de
drogues, d’alcool ou de médicaments.
2. Évitez de porter des vêtements ou des bijoux pouvant
se prendre dans les pièces mobiles d’un outil. Gardez les
cheveux longs recouverts ou attachés.
